SPECIALIZED

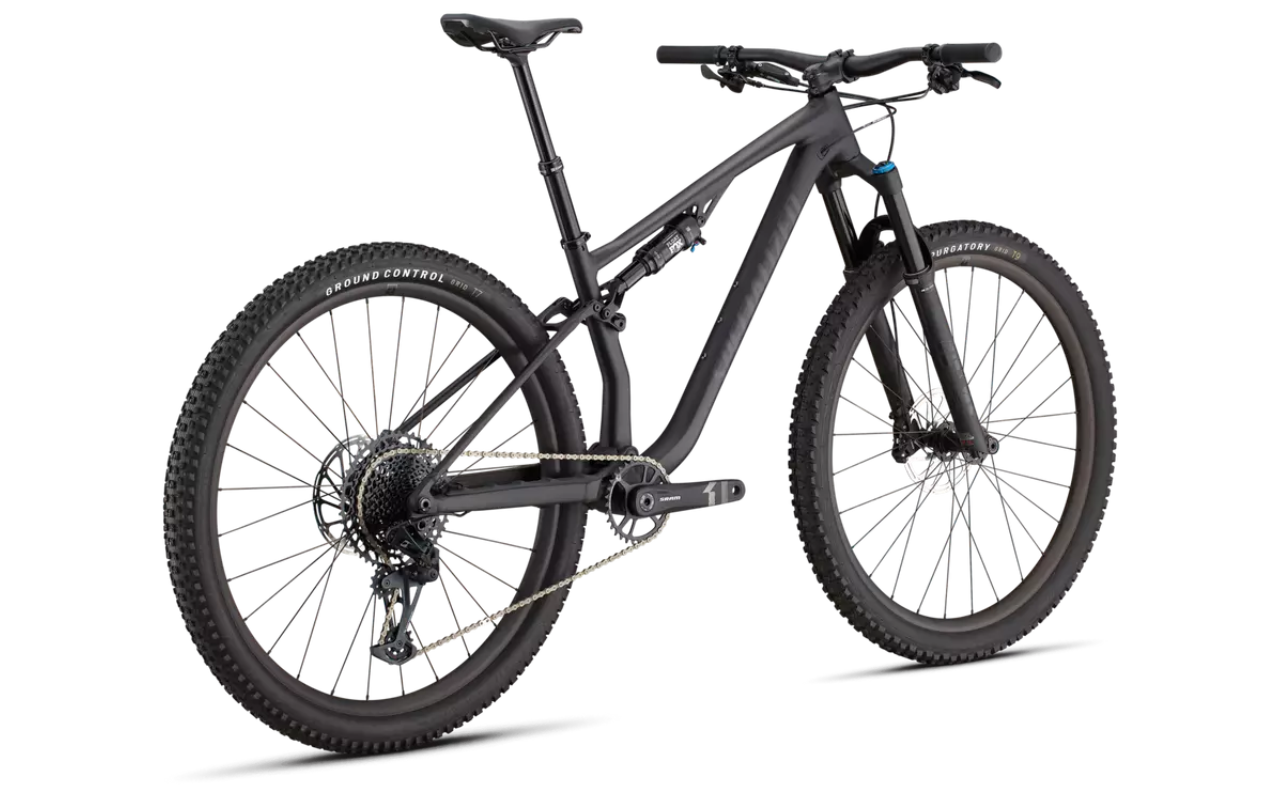

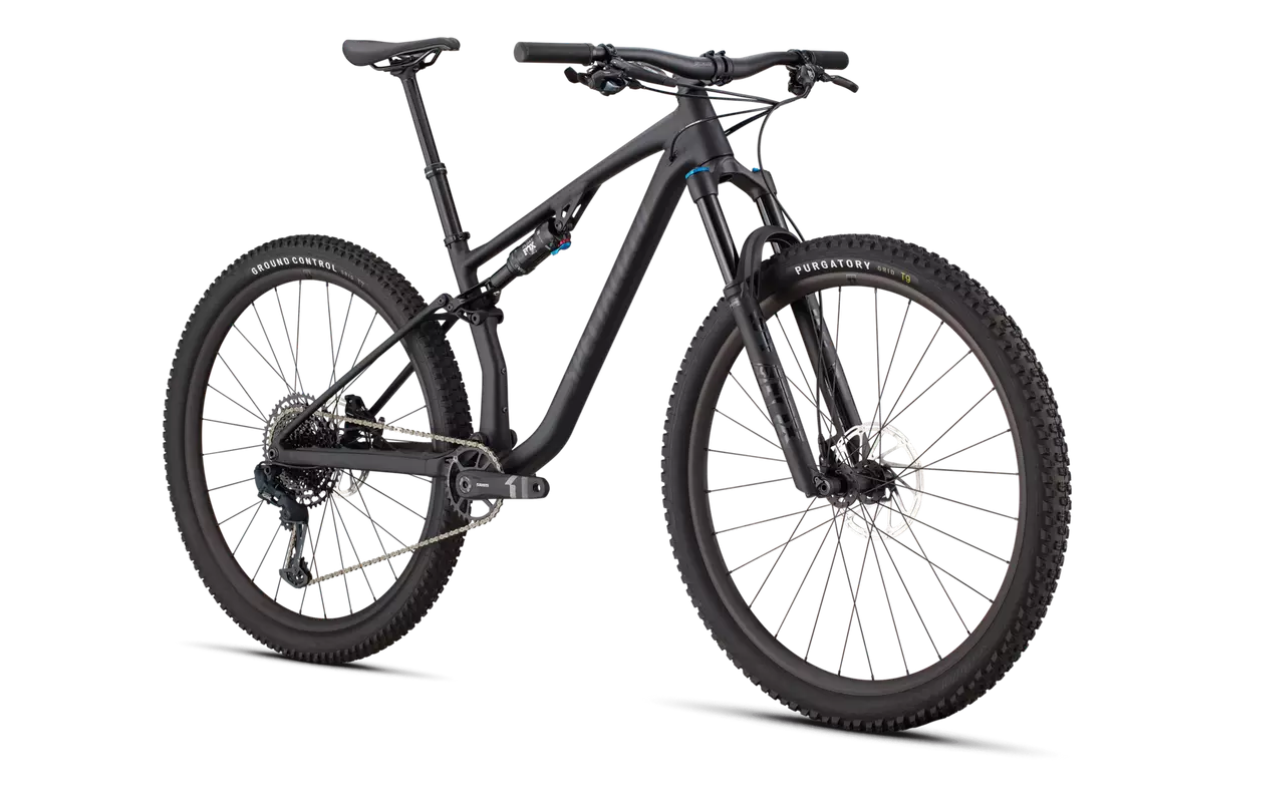

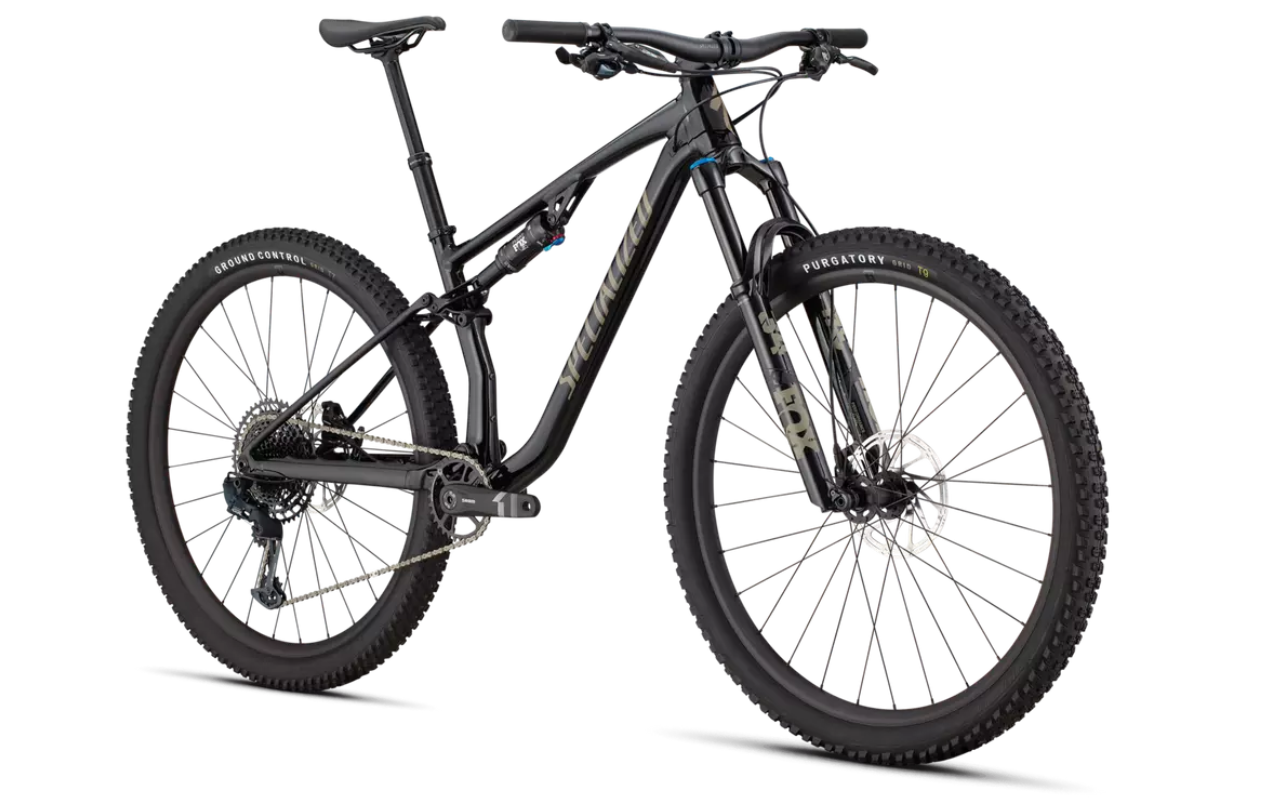

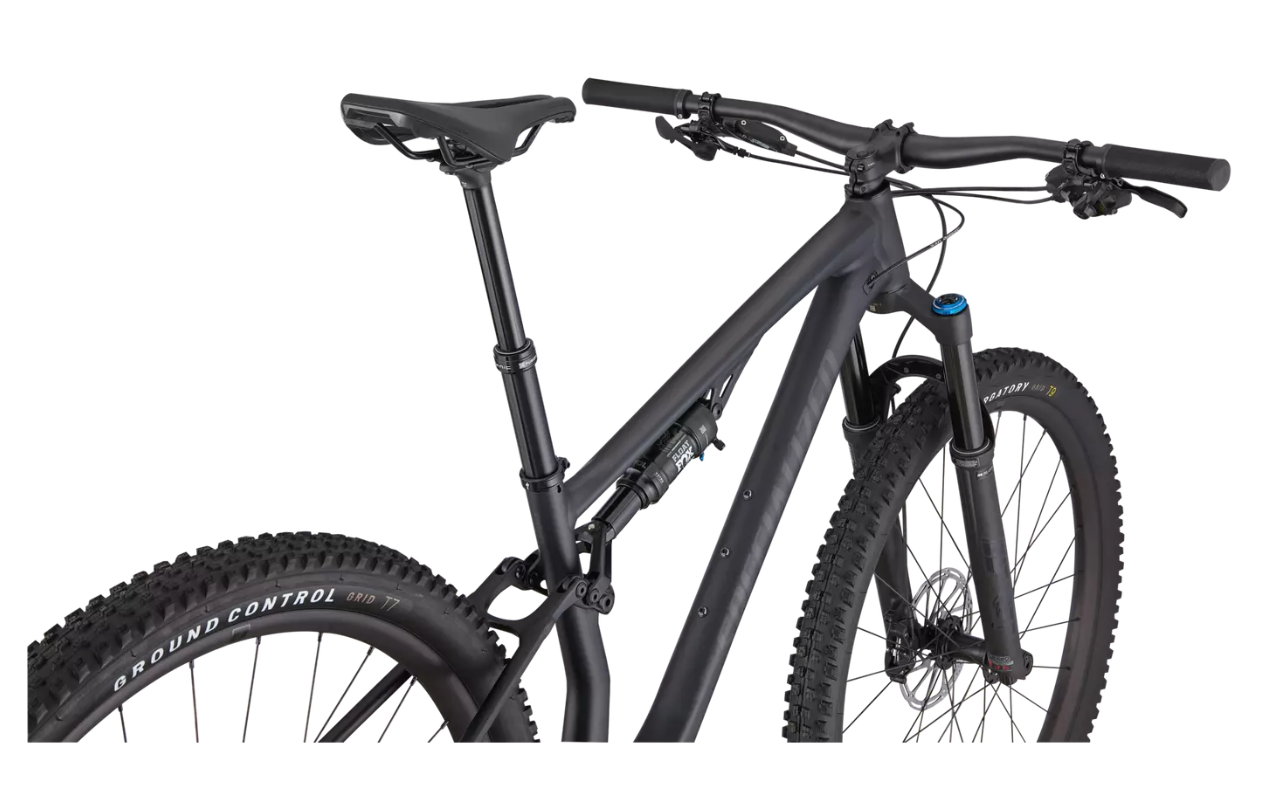

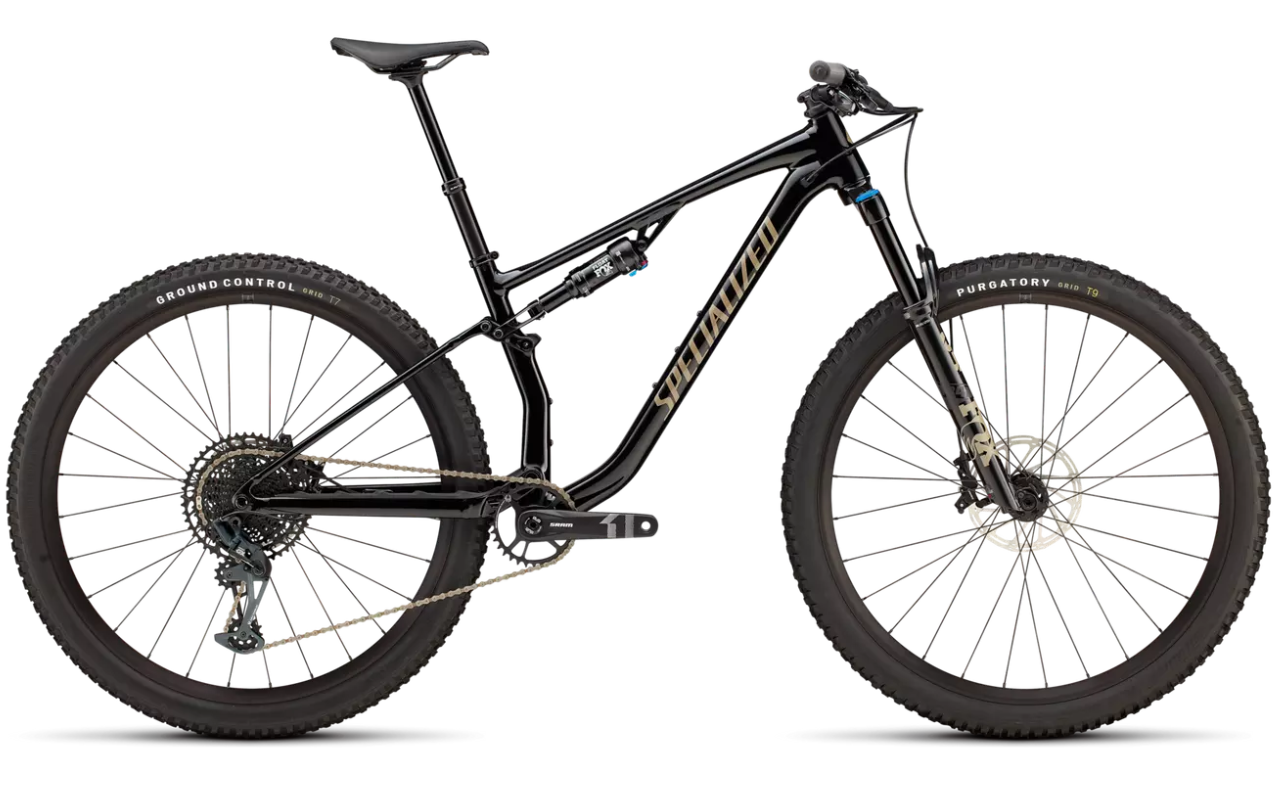

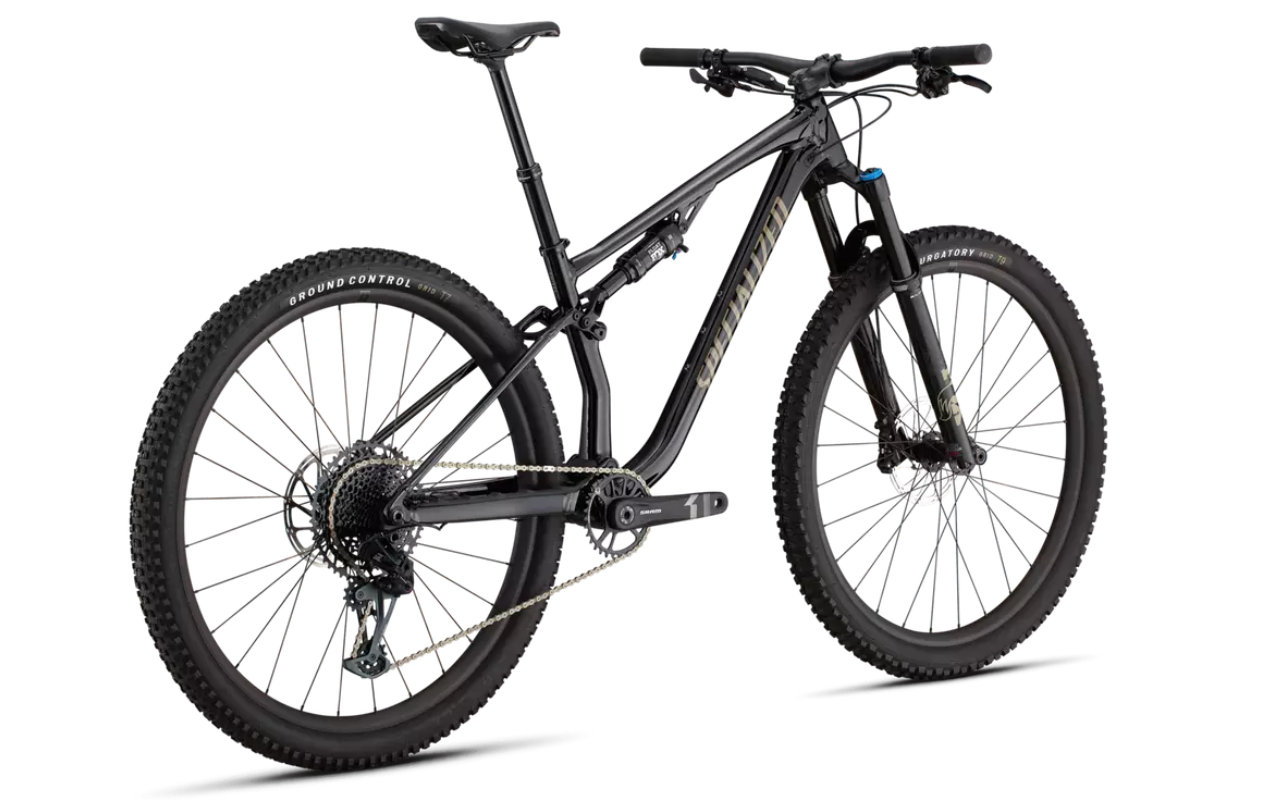

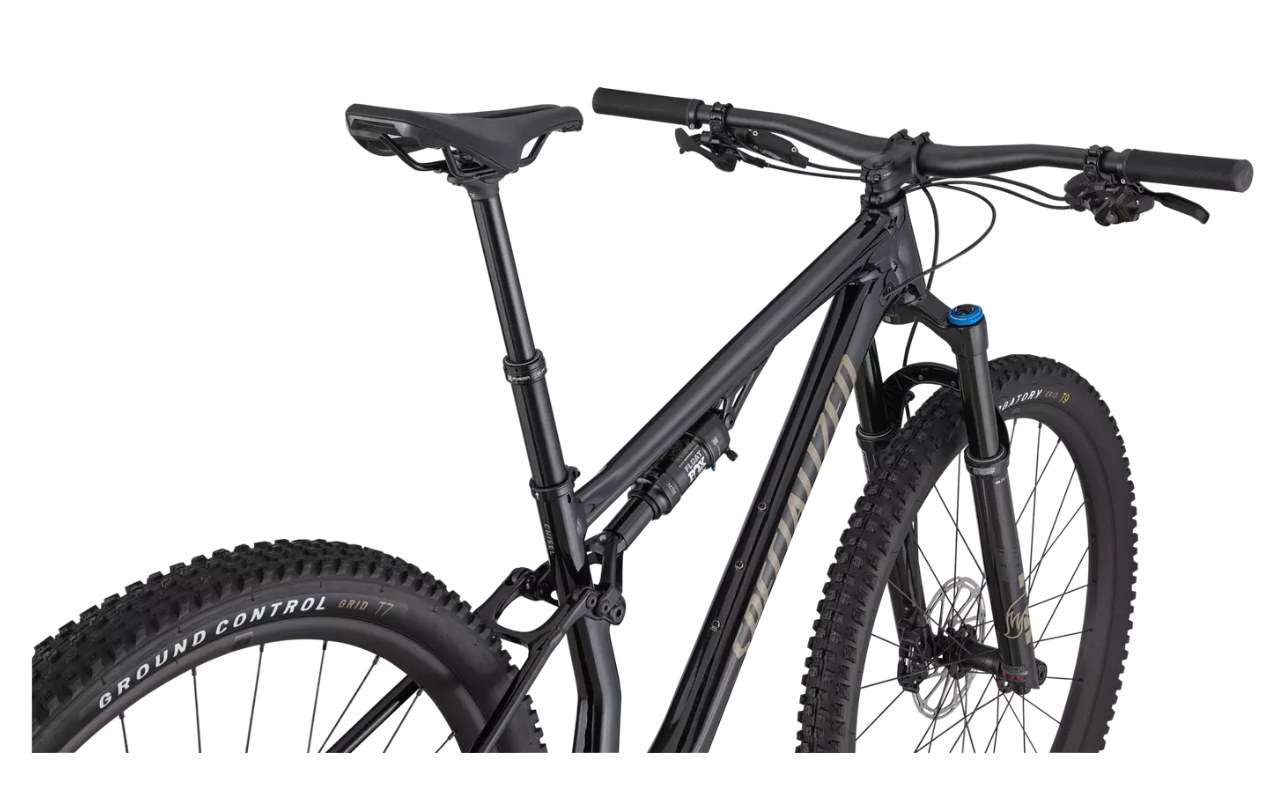

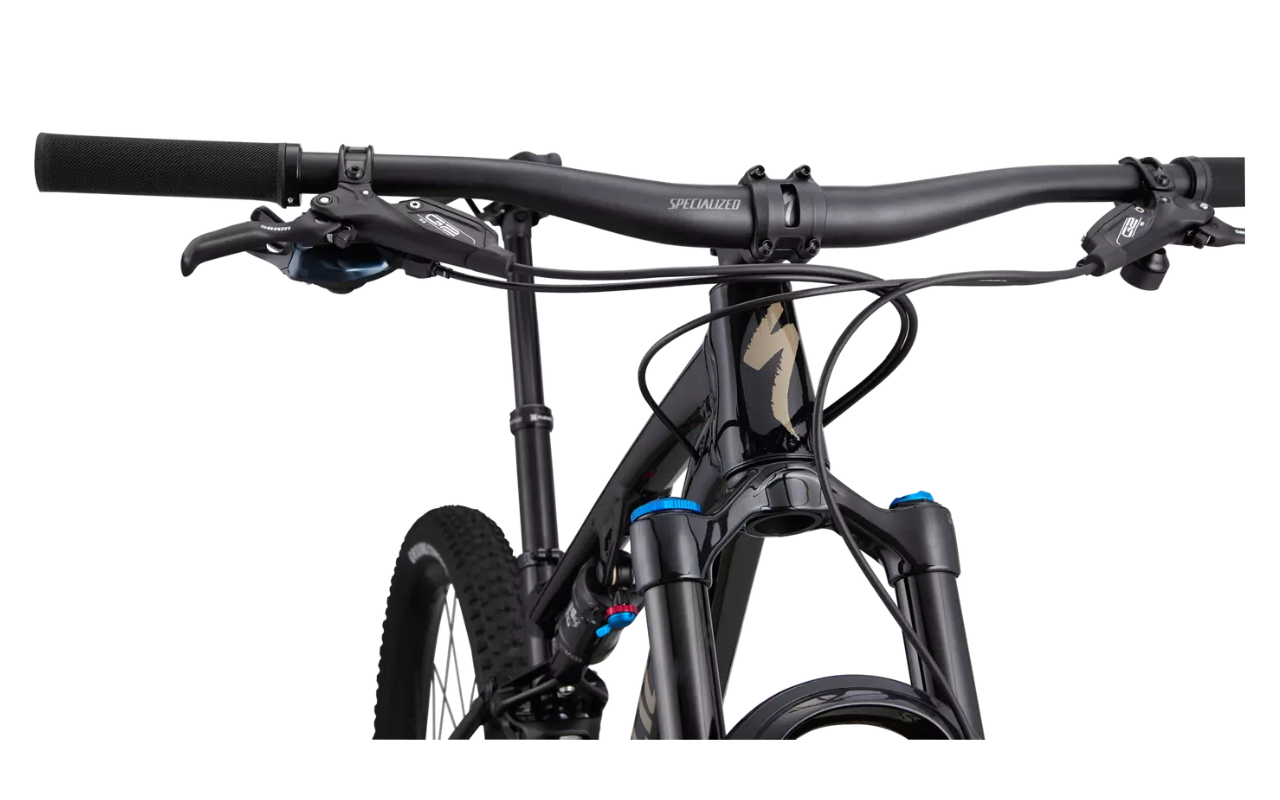

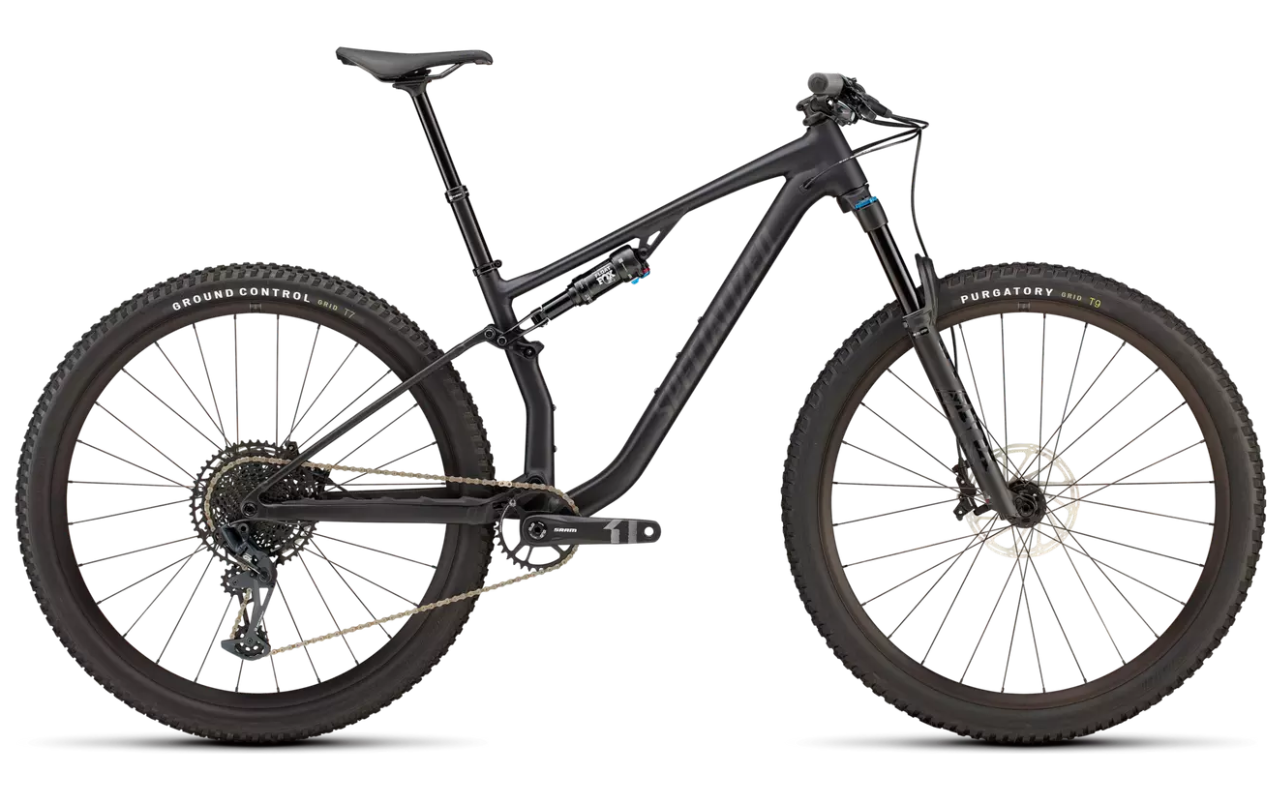

Chisel Comp EVO

Chisel Comp EVO

SKU:93825-5602

Regular price R 69,000.00
Regular price Sale price R 69,000.00
Sale Sold out
Vat Included
Color
Size

Out of stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

The Lightest, Fastest Alloy Full Suspension Bike in the World gets a full makeover with the ultra-capable EVO build. Still 18.4% lighter than the closest competitor and sharing geometry and kinematics from our downcountry-hungry Epic 8 EVO, the all-new Chisel Comp EVO delivers the performance you can feel and is spec’d for the ultimate downcountry experience.

SPEED METAL: With D’Aluisio Smartweld technology, the Chisel Comp EVO boasts the lightest aluminum XC frameset in its class. Each highly manipulated frame tube features continuously varied wall thicknesses and shaping that deliver stiffness where you need it– for efficiency – and ride-smoothing compliance where you want it—for comfort and optimal control.

UNMATCHED CAPABILITY: With a slew of trail-ready specs, including a bump up to 130mm of travel up front, the Chisel EVO eats up the chunk and feels right at home on the rough stuff. Advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry, can all be found in the Chisel Comp EVO, making it more than capable of handling big rides with confidence and speed.

INCREDIBLE EFFICIENCY: The Chisel Comp EVO is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into our Epic 8 EVO platform. The steep seat tube positions you in the optimal pedaling position to save energy for the long rips down. Honed anti-squat reduces pedal-bob. Put it together, and Chisel Comp EVO translates every watt applied to the pedals into maximum forward motion.

SMOOTHER IS FASTER: We engineered a flex stay rear end for class-leading suspension performance while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing proves that Chisel Comp EVO has achieved the impossible—the efficiency, control, and lightweight of a flex stay design in the advanced alloy.

HYDROFORMED ALLOY: Chisel Comp EVO shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a "tube" with pivots and BB shell welded on.

  • D’Aluisio Smartweld hydroformed tubes and engineered tube junctions, flip chip geo adjust, 110mm travel
  • FOX 34 Performance Elite 130mm with Grip 2 damper
  • Ride Dynamics Tuned FOX FLOAT Performance rear shock
  • TranzX dropper post (100mm-170mm)
  • SRAM GX Eagle Rear derailleur
  • SRAM G2 RS 4-piston brakes
  • Specialized Purgatory Grid T9 tire (front)
  • Specialized Ground Control Grid T7 tire (rear)
  • 20mm Rise Handlebars
View full details

Video

Technical Specifications

Frameset

Frame

  • Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

  • Specialized Alloy, 34.9mm



Suspension

Rear Shock

  • Fox Float Performance, Evol LV, Ride Dynamics Tuned, 2-position compression adjust, 190x40mm

Fork

  • Fox 34 Performance Elite, Grip2 Damper, Compression adjust, 130mm travel, 44mm offset, 15x110mm



Brakes

Front Brake

  • SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor

Rear Brake

  • SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor



Drivetrain

Shift Levers

  • SRAM GX, trigger, 12-speed

Rear Derailleur

  • SRAM GX Eagle, 12-speed

Cassette

  • SRAM PG-1230 Eagle 11-50t

Chain

  • SRAM SX Eagle, 12-speed

Crankset

  • SRAM X1000 Eagle, DUB, 165/170/175mm

Chainrings

  • 32t

Bottom Bracket

  • SRAM DUB, BSA 73mm, Threaded



Wheels & Tires

Rims

  • Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

  • Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

  • Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

  • DT Swiss Industry

Front Tire

  • Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4

Rear Tire

  • Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Inner Tubes

  • Standard 40mm PV 29x1.75-2.4



Cockpit

Stem

  • Alloy Stem, 35mm clamp, 60mm

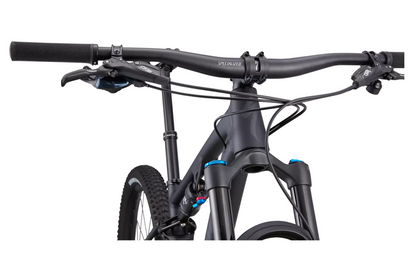

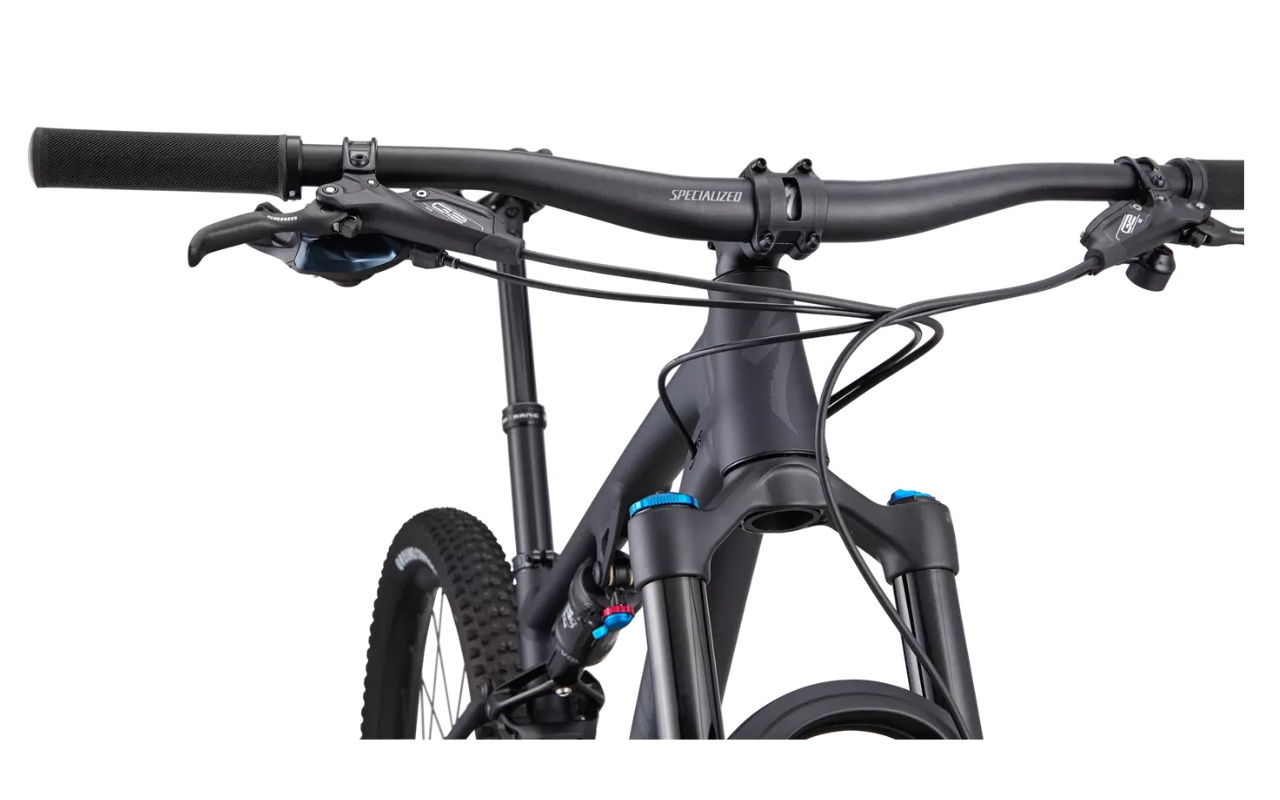

Handlebars

  • Specialized Alloy, 20mm rise, 35mm, 760mm wide

Grips

  • Specialized Trail Grips

Saddle

  • Body Geometry Power Comp, steel rails

SeatPost

  • X-Fusion Manic, 30.9, 125/150/170 Travel, 0mm offset



Weight

Weight

  • 13.53 kg (29 lb, 13.3 oz)

Weight Size

  • MD



* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.




Geometry

 XSSMLXL
Crank Length165mm170mm170mm175mm175mm
Handlebar Width760mm760mm760mm760mm760mm
Stem Length60mm60mm60mm60mm60mm
Saddle Width155mm155mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm
Stack606mm596mm610mm624mm633mm
Reach385mm410mm440mm465mm490mm
Head Tube Length95mm95mm110mm125mm135mm
Head Tube Angle (low)66°66°66°66°66°
Head Tube Angle (high)66.5°66.5°66.5°66.5°66.5°
BB Height (low)330mm339mm339mm339mm339mm
BB Height (high)336mm345mm345mm345mm345mm
BB Drop (low)42mm33mm33mm33mm33mm
Trail117mm117mm117mm117mm117mm
Fork Length, Full540mm540mm540mm540mm540mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center685mm709mm745mm776mm805mm
Chainstay Length437mm437mm437mm437mm437mm
Wheelbase1119mm1145mm1181mm1212mm1241mm
Bike Standover Height762mm783mm783mm792mm795mm
Seat Tube Length375mm392mm410mm450mm500mm
Seat Tube Angle75°75°75°75°75°
Top Tube Length, Horizontal528mm566mm603mm635mm665mm
