SPECIALIZED

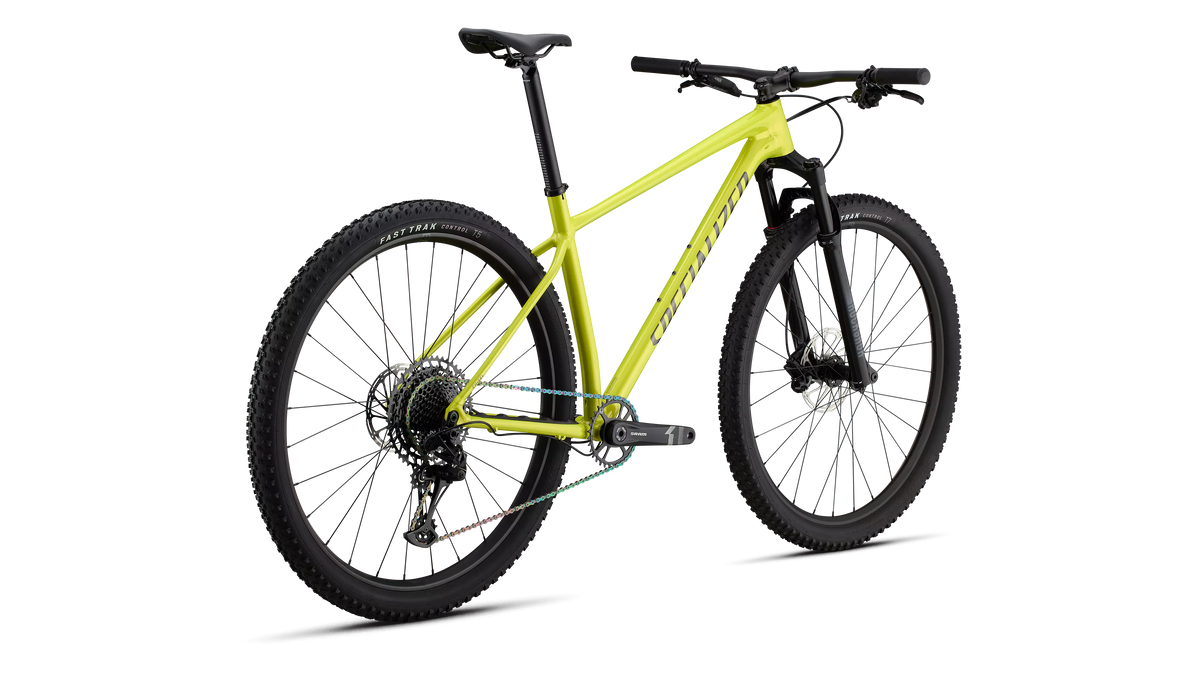

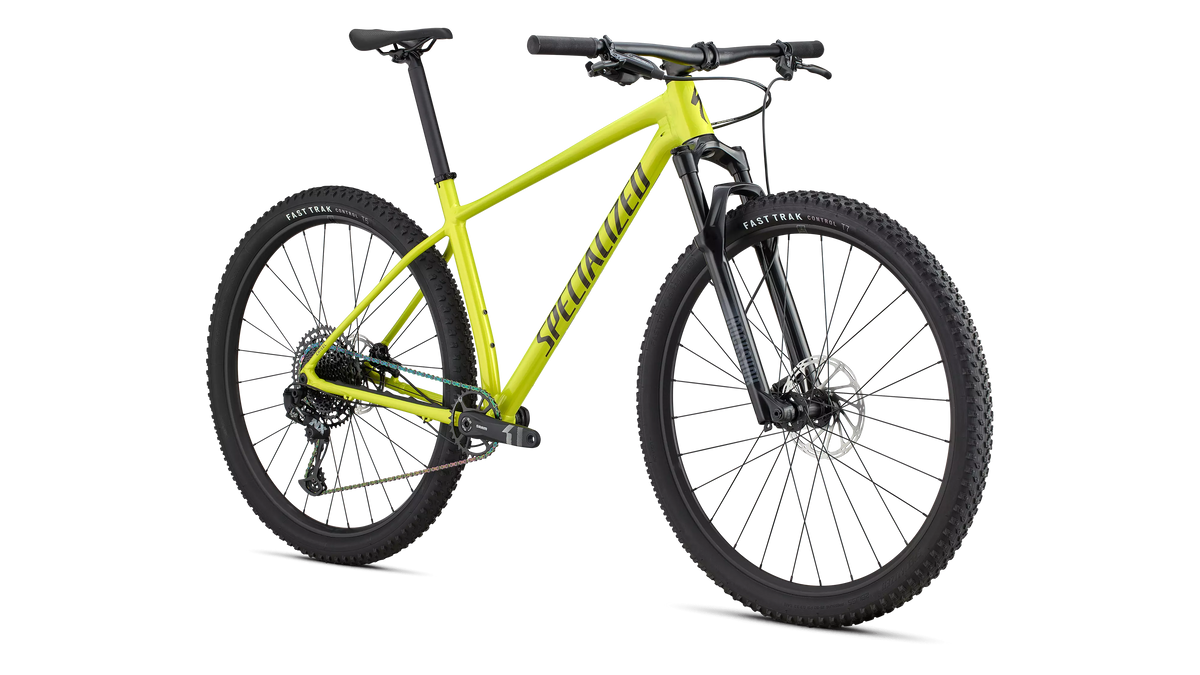

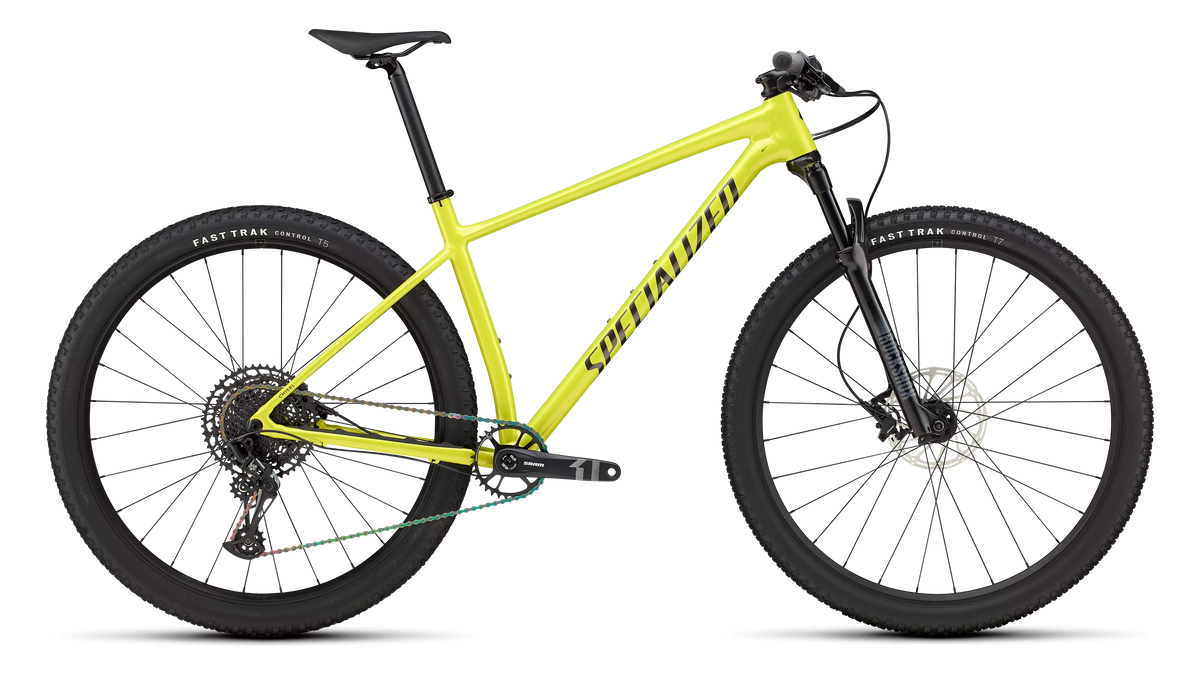

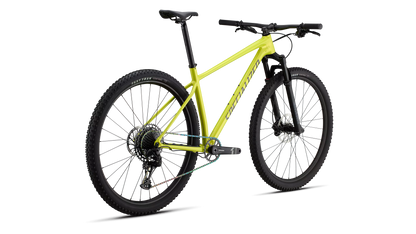

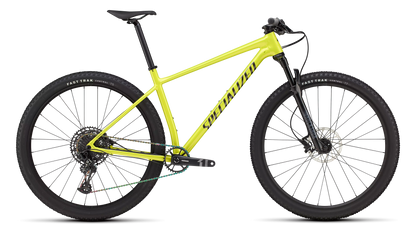

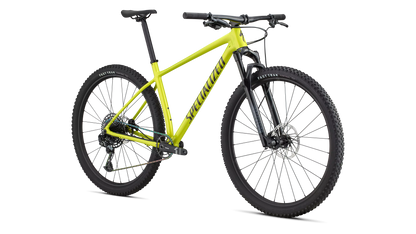

Chisel Hardtail Comp
Chisel Hardtail Comp
SKU:91725-5101
Out of Stock In Store
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
The Chisel Hardtail Comp is purpose-built to tackle modern cross-country trails and race courses with the utmost speed. It brings pro-level features down to a price that leaves some change for race entries.
- Light, strong alloy frame: D'Aluisio Smartweld Technology gives consistent, high-strength welds on hydroformed M5 alloy tubes. The result is one of the lightest alloy hardtail frames around at 1,350g, with stiffness tuned to each size.
- Progressive XC geometry: A 68-degree head angle and longer reach for confidence on technical trails.
- Suspension: RockShox Judy Gold fork with Motion Control damper and Solo Air, 100mm travel (80mm on XS).
- Drivetrain: SRAM NX Eagle 1x12 with an 11–50t cassette and 32t chainring.
- Brakes: SRAM Level T hydraulic disc brakes.
- Wheels & tyres: Specialized alloy rims with 27mm internal width, and 29x2.35 Fast Trak Control casing tyres.
- Modern details: Internal cable routing, threaded BB, Boost spacing, 30.9mm dropper-post compatible.
Share

Technical Specifications
Frameset
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy, 34.9mm
Suspension
Fork
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Brakes
Front Brake
SRAM Level T hydraulic disc, 2-piston caliper
Rear Brake
SRAM Level T hydraulic disc, 2-piston caliper
Drivetrain
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Chain
SRAM XX1 Eagle solid-pin, 12-speed
Crankset
SRAM X1000 Eagle, DUB, 165/170/175mm
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tires
Rims
Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
Front Hub
Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
Spokes
Stainless, 14g
Front Tyre
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Rear Tyre
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Standard, Presta valve, 29x1.75-2.4
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Grips
Specialized Trail Grips
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Specialized Alloy, Single Bolt, 30.9mm
Weight
Weight
11.76 kg (25 lb, 14.8 oz)
Weight Size
LG
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 175 | 175 |
| Handlebar Width | 750 | 750 | 750 | 750 | 750 |
| Stem Length | 60 | 60 | 70 | 70 | 70 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 |
| Stack | 591 | 605 | 605 | 619 | 633 |
| Reach | 385 | 405 | 430 | 455 | 480 |
| Head Tube Length | 95 | 95 | 95 | 110 | 125 |
| Head Tube Angle | 68 | 68 | 68 | 68 | 68 |
| BB Height | 304 | 309 | 309 | 309 | 309 |
| BB Drop | 68 | 63 | 63 | 63 | 63 |
| Trail | 103 | 103 | 103 | 103 | 103 |
| Fork Length, Full | 486 | 506 | 506 | 506 | 506 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 647 | 674 | 699 | 730 | 760 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1070 | 1099 | 1124 | 1154 | 1185 |
| Top Tube Length, Horizontal | 555 | 578 | 603 | 632 | 661 |
| Bike Standover Height | 732 | 762 | 792 | 816 | 847 |
| Seat Tube Length | 367 | 400 | 430 | 470 | 520 |
| Seat Tube Angle | 74 | 74 | 74 | 74 | 74 |
Size Guide
| Size | Rider Height (cm) | Rider Height (ft/in) |
|---|---|---|
| XS | 148 - 155 cm | 4'10" - 5'1" |
| S | 158 - 165 cm | 5'2" - 5'5" |
| M | 165 - 178 cm | 5'5" - 5'10" |
| L | 178 - 185 cm | 5'10" - 6'1" |
| XL | 185 - 195 cm | 6'1" - 6'5" |
Riders between sizes may size up or down depending on riding style, body proportions or personal preference. Pop into the store and we'll help you find the right fit.
