SPECIALIZED

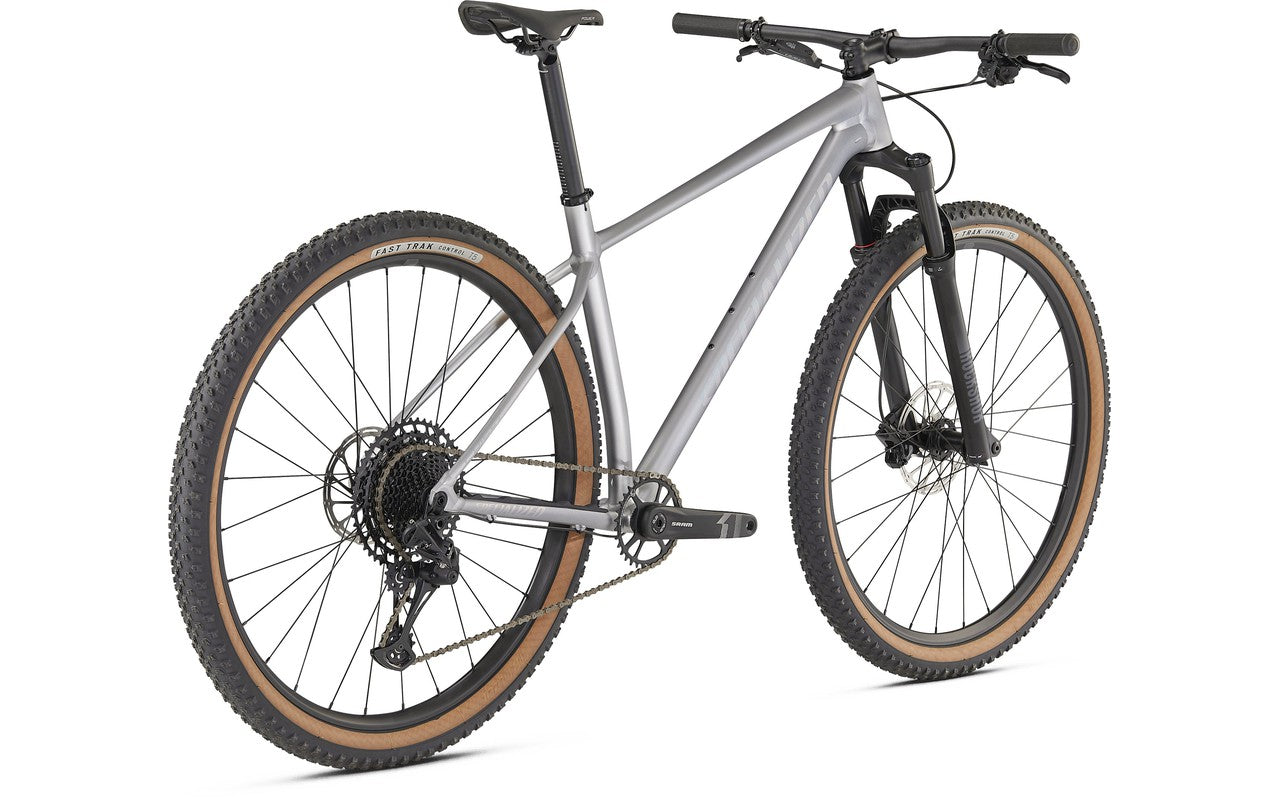

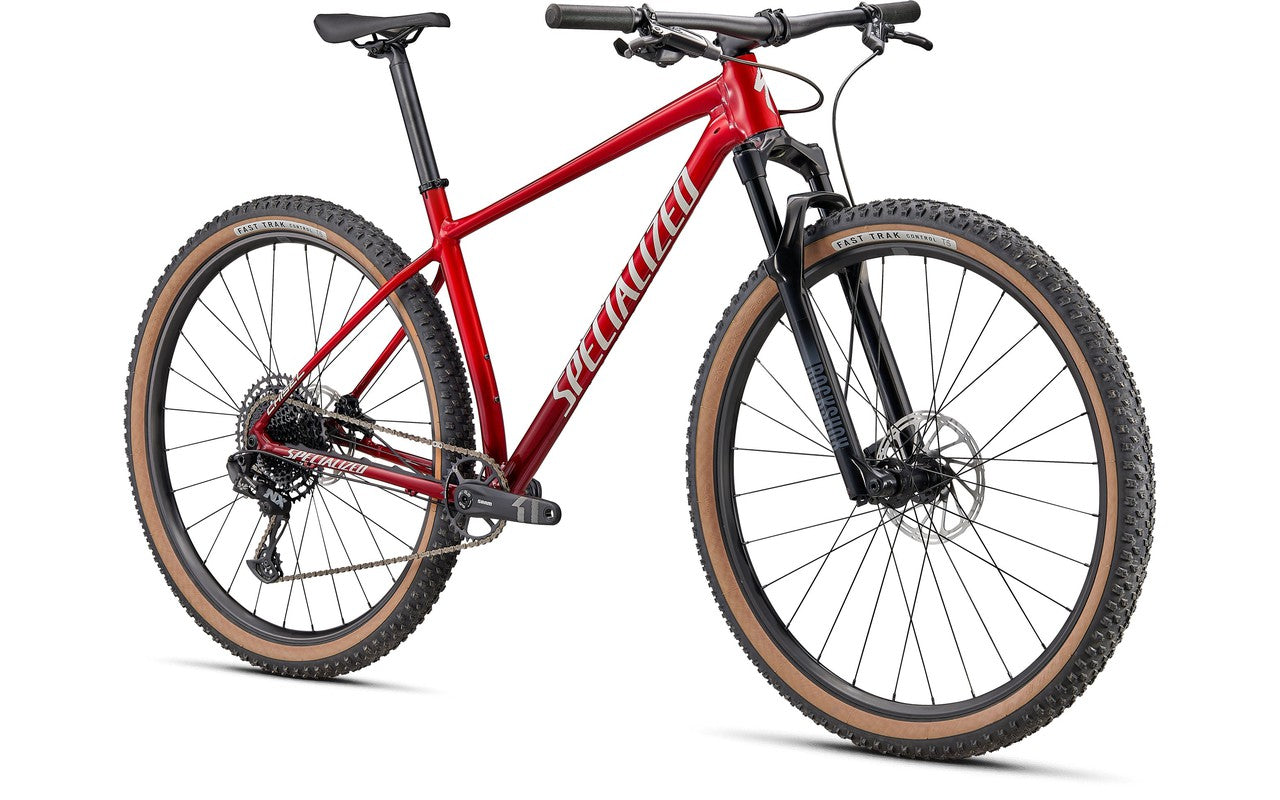

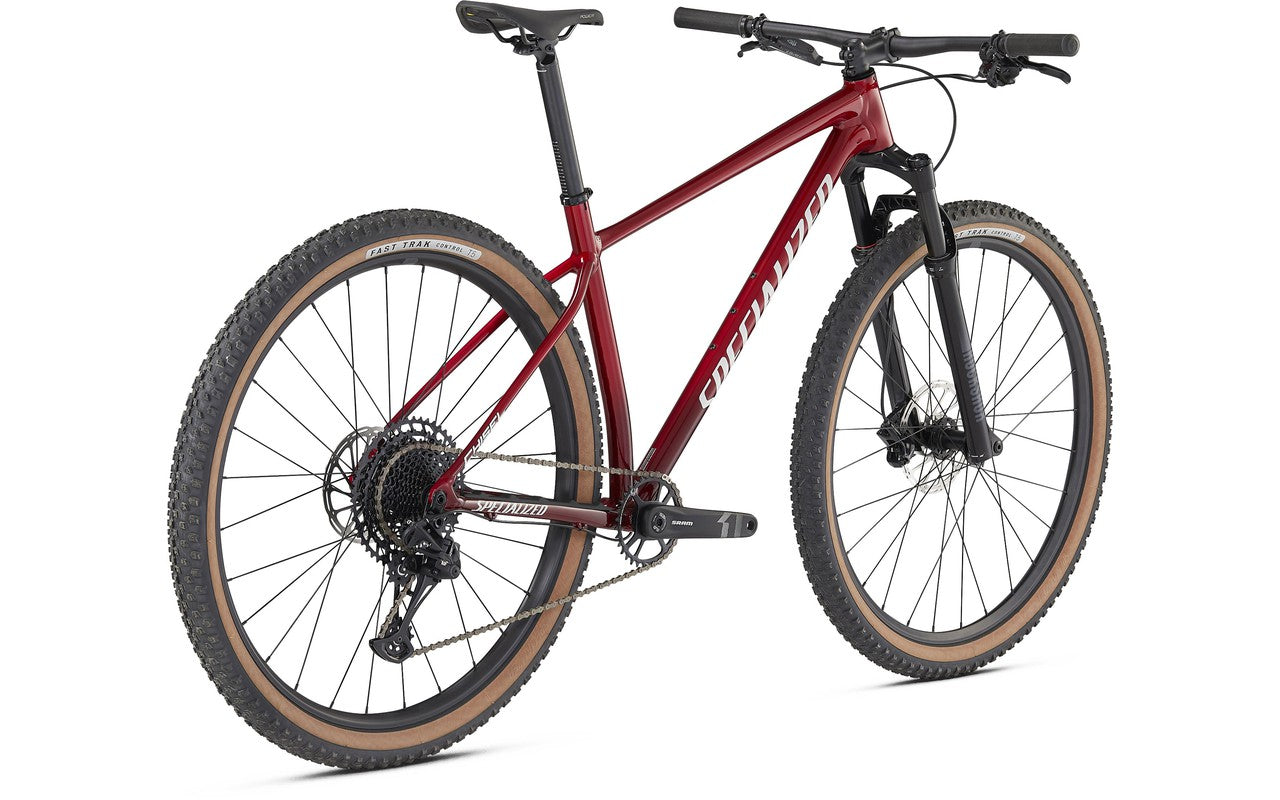

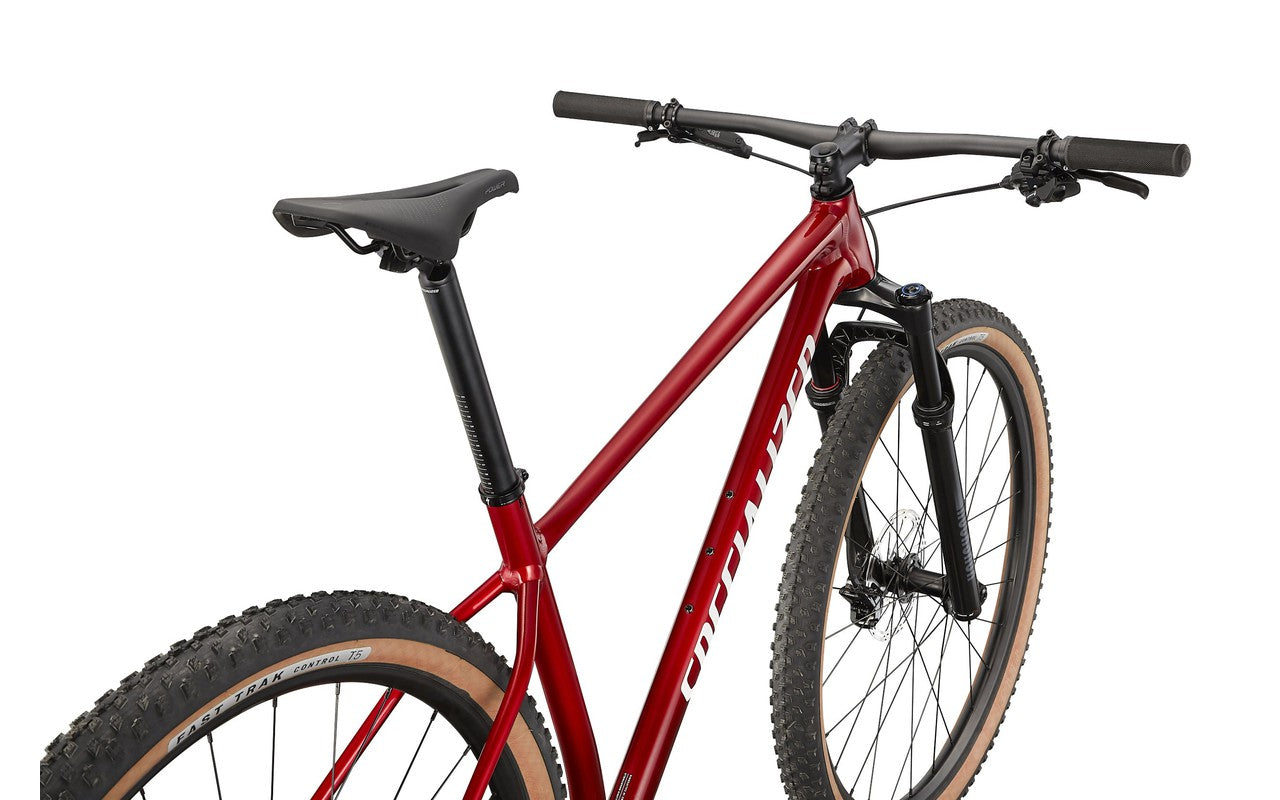

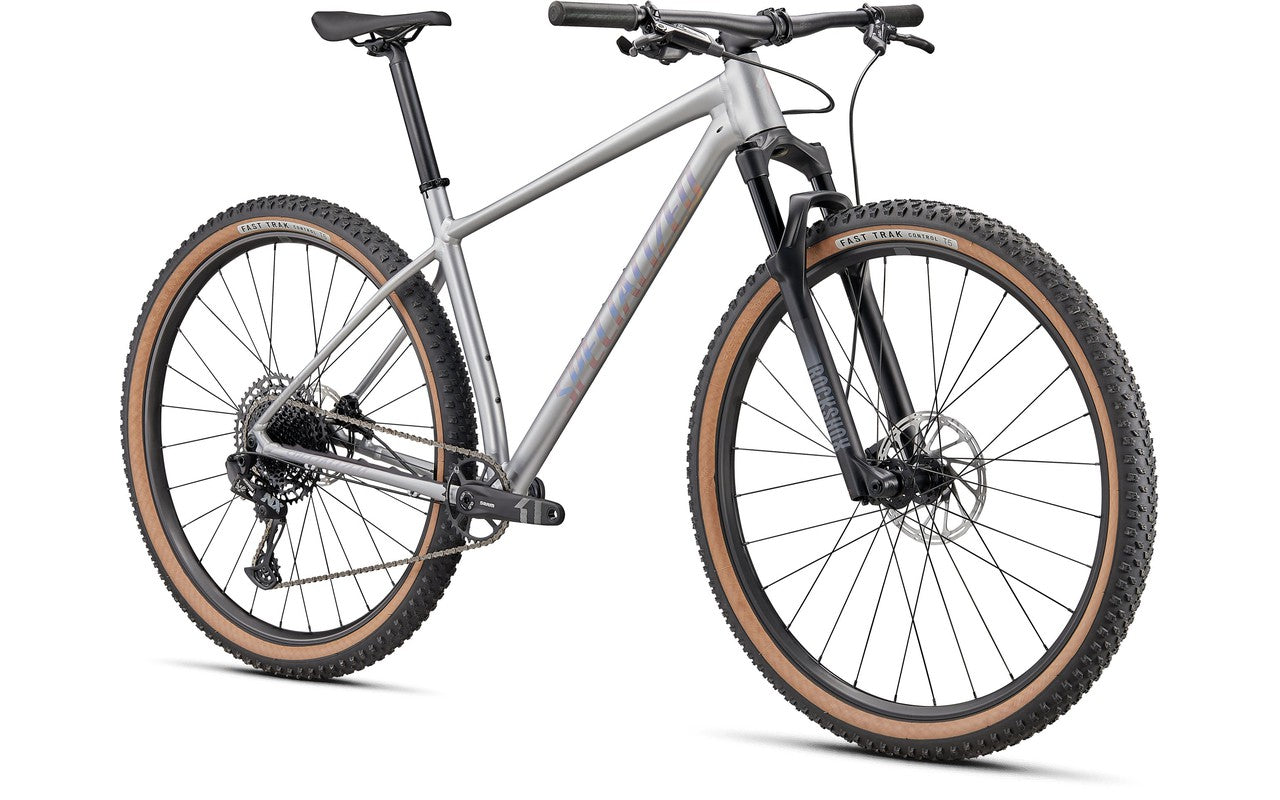

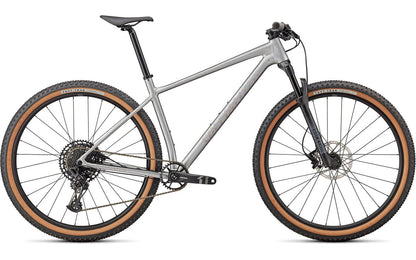

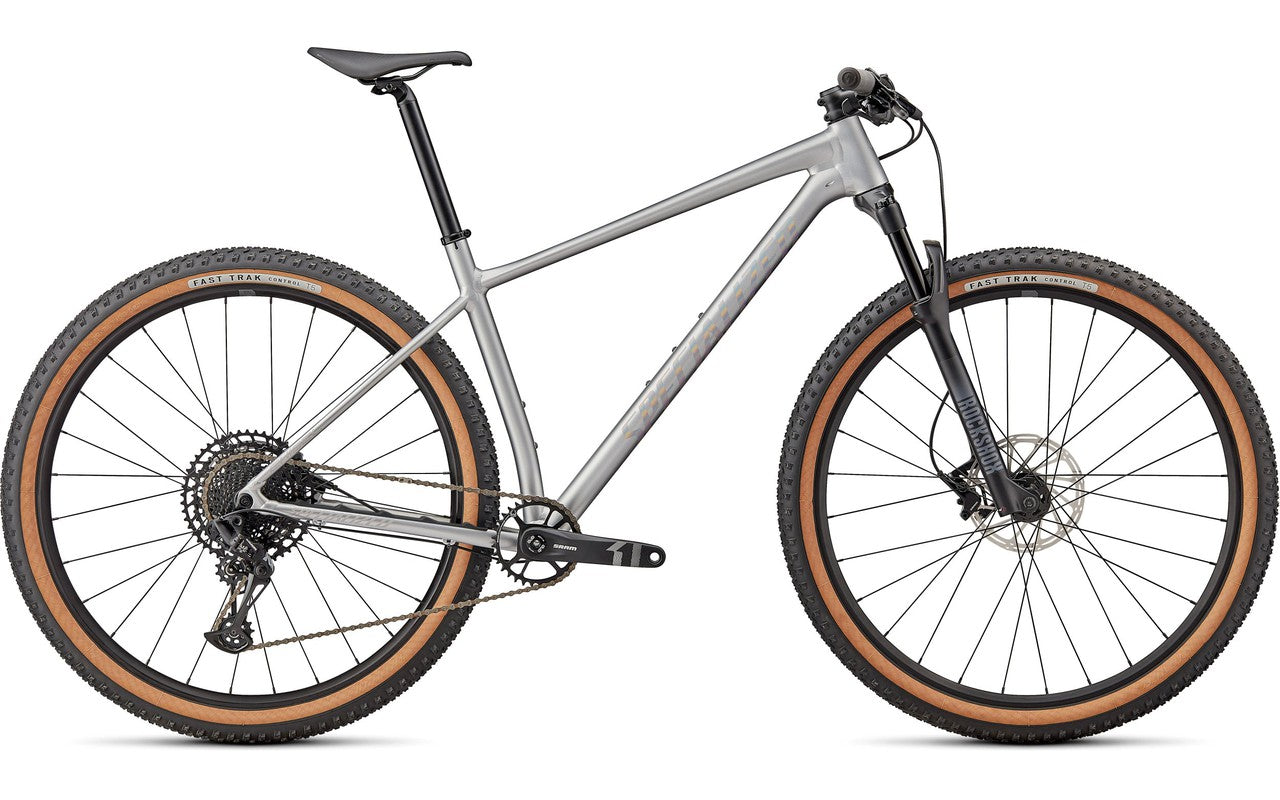

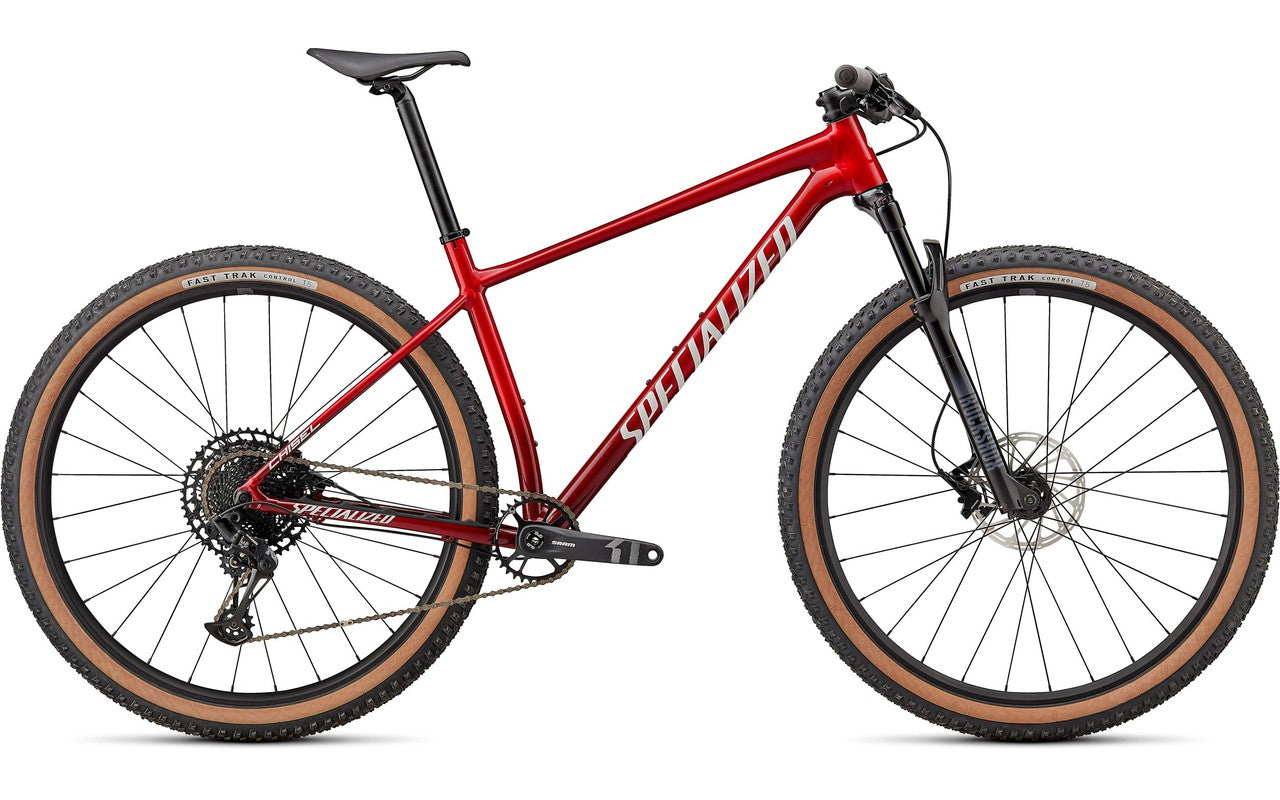

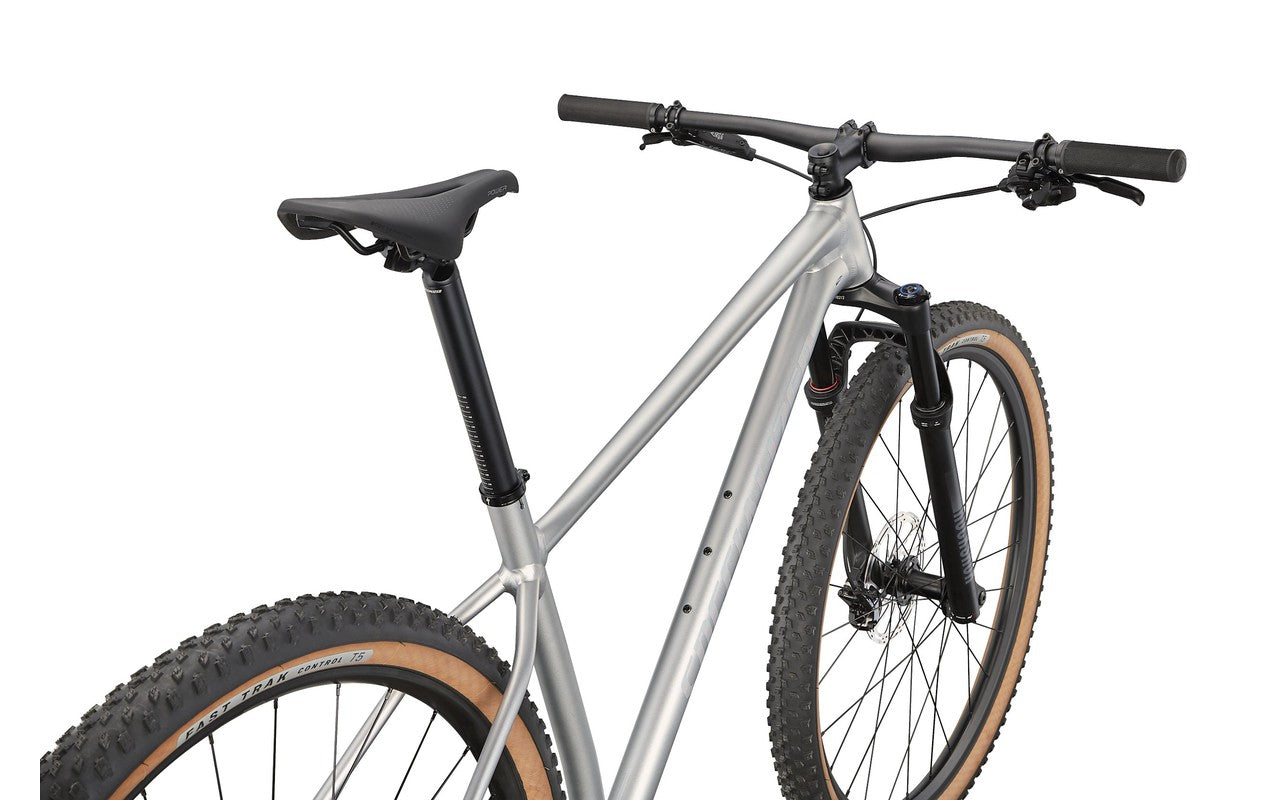

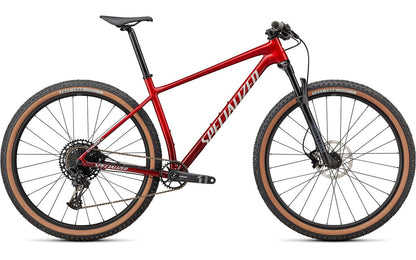

Chisel Hardtail Comp

Chisel Hardtail Comp

91722-5002

R 34,000.00
R 34,000.00 R 34,000.00
Sale Sold out
Vat Included
Size
Color

Out of stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

Chisel Comp


The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries.
  • We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.

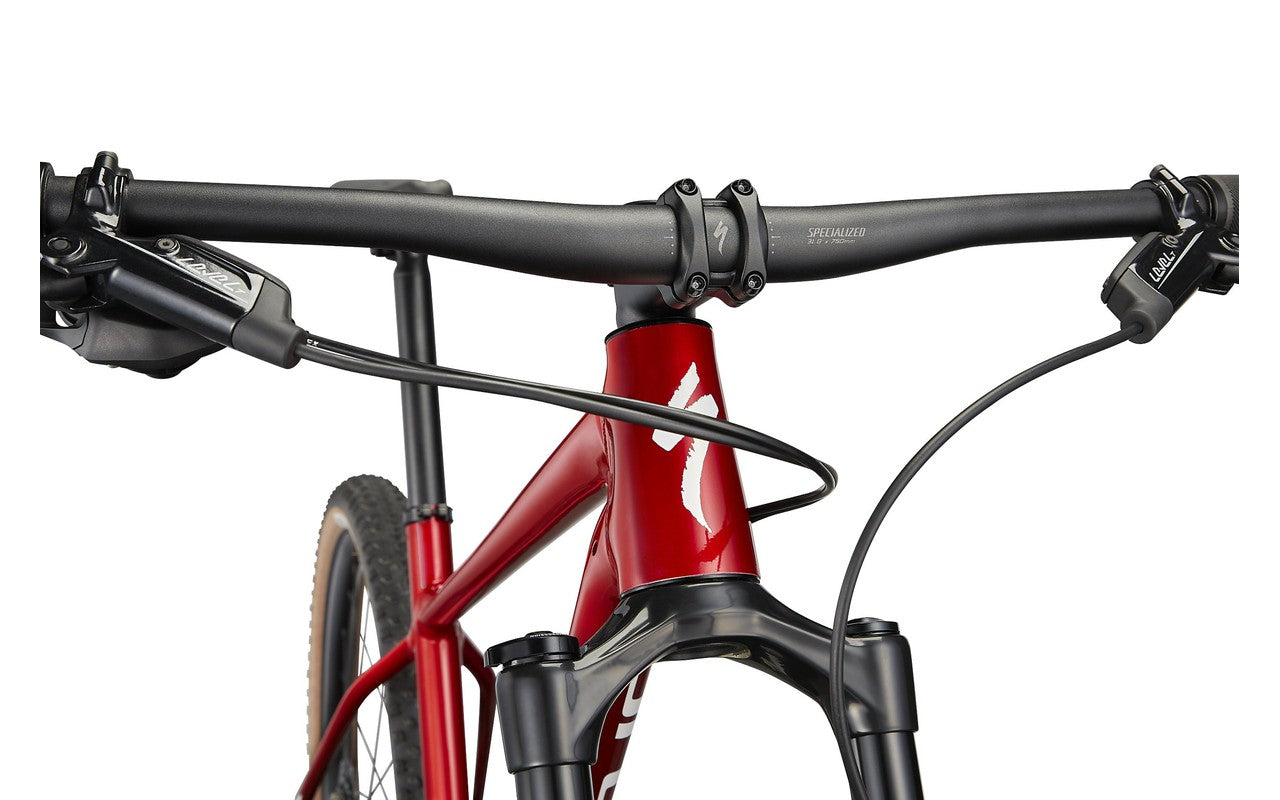

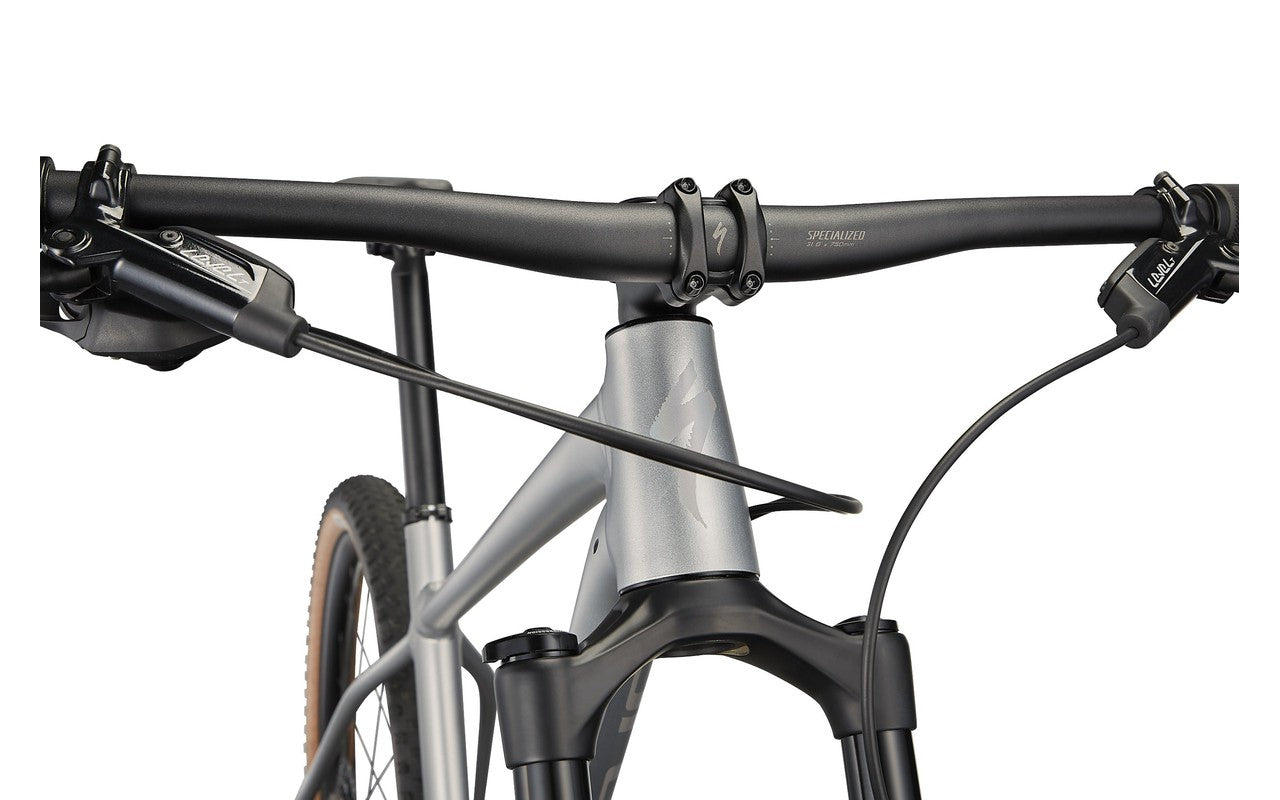

  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
View full details

Technical Specifications

Frameset

Frame

  • Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

  • Specialized Alloy, 34.9mm



Suspension

Fork

  • RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)



Brakes

Front Brake

  • SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL)

Rear Brake

  • SRAM Level T, Post Mount, 160mm Centerline Rotor



Drivetrain

Shift Levers

  • SRAM NX Eagle, trigger, 12-speed

Rear Derailleur

  • SRAM NX Eagle, 12-speed

Cassette

  • SRAM NX Eagle, 12-speed, 11-50t

Chain

  • SRAM, SX Eagle, 12-speed

Crankset

  • SRAM X1000 Eagle, DUB, 170/175mm 32T

Bottom Bracket

  • SRAM DUB, BSA 73mm, Threaded



Wheels & Tires

Rims

  • Specialized Alloy, hookless, Tubeless ready, 25mm inner width

Front Hub

  • Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

  • Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

  • Stainless, 14g

Front Tire

  • Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Rear Tire

  • Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Inner Tubes

  • Standard 40mm PV 29x1.75-2.4



Cockpit

Stem

  • 3D-forged alloy, 31.8mm, 7-degree rise

Handlebars

  • Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Grips

  • Specialized Trail Grips

Saddle

  • Body Geometry Power Sport, steel rails

SeatPost

  • Specialized Alloy, Single Bolt, 30.9mm



* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Crank Length165mmm170mm175mm175mm175mm
Handlebar Width750mm750mm750mm750mm750mm
Stem Length60mm60mm70mm70mm70mm
Saddle Width155mm155mm143mm143mm143mm
Seatpost Length350mm400mm400mm400mm400mm
Head Tube Angle68°68°68°68°68°
BB Drop68mm63mm63mm63mm63mm
Front Center647mm674mm699mm730mm760mm
Chainstay Length432mm432mm432mm432mm432mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Bike Standover Height732mm762mm792mm816mm847mm
Stack591mm605mm605mm619mm633mm
Head Tube Length95mm95mm95mm110mm125mm
Fork Length, Full486mm506mm506mm506mm506mm
Reach385mm405mm430mm455mm480mm
BB Height304mm309mm309mm309mm309mm
Wheelbase1070mm1099mm1124mm1154mm1185mm
Seat Tube Angle74°74°74°74°74°
Top Tube Length, Horizontal555mm578mm603mm632mm661mm
Seat Tube Length367mm400mm430mm470mm520mm
Trail103mm103mm103mm103mm
