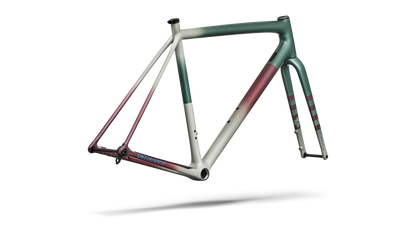

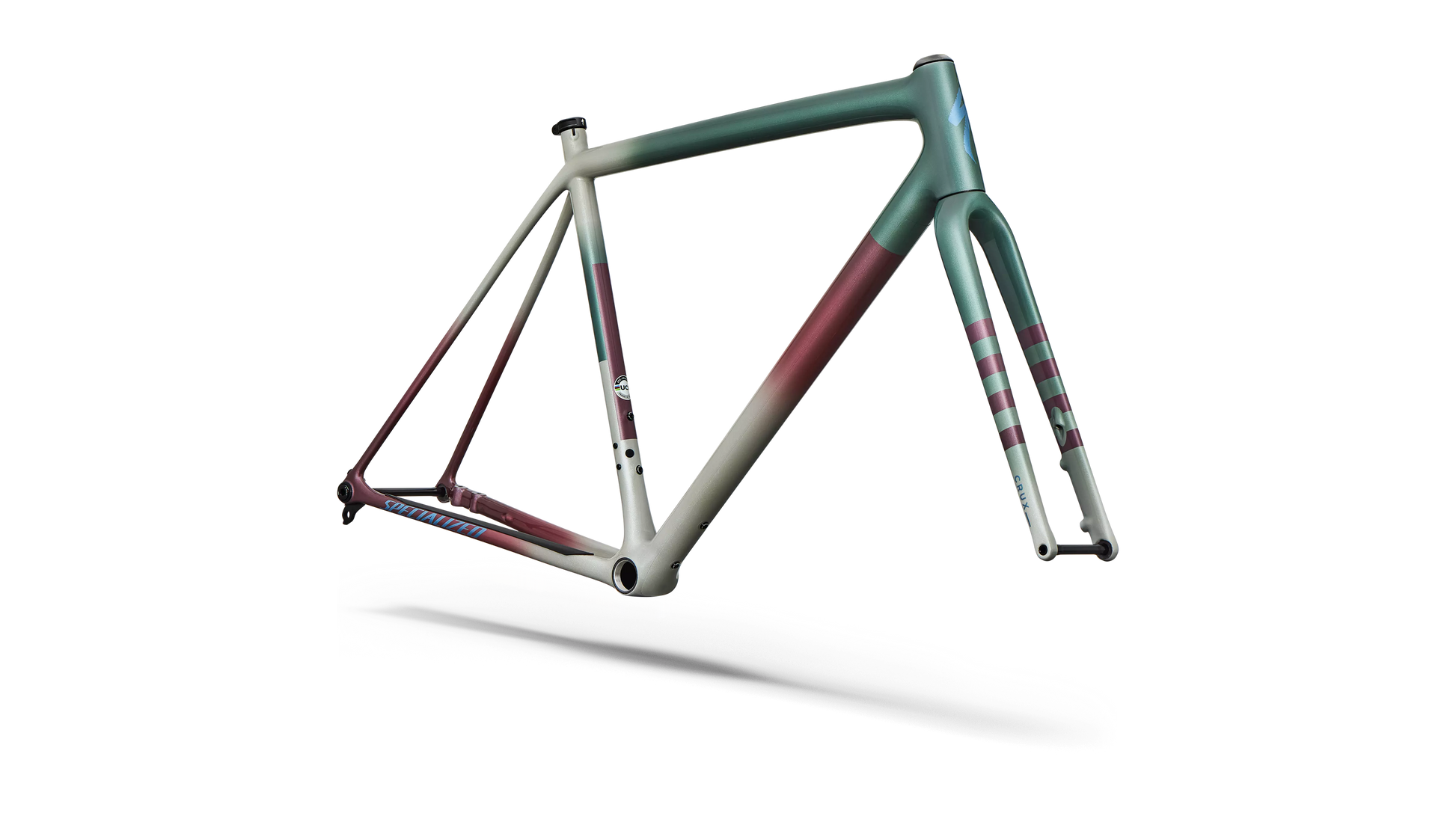

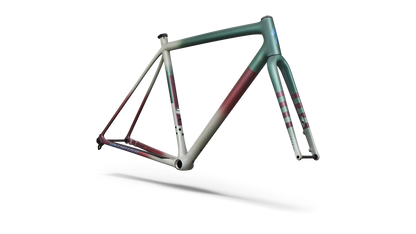

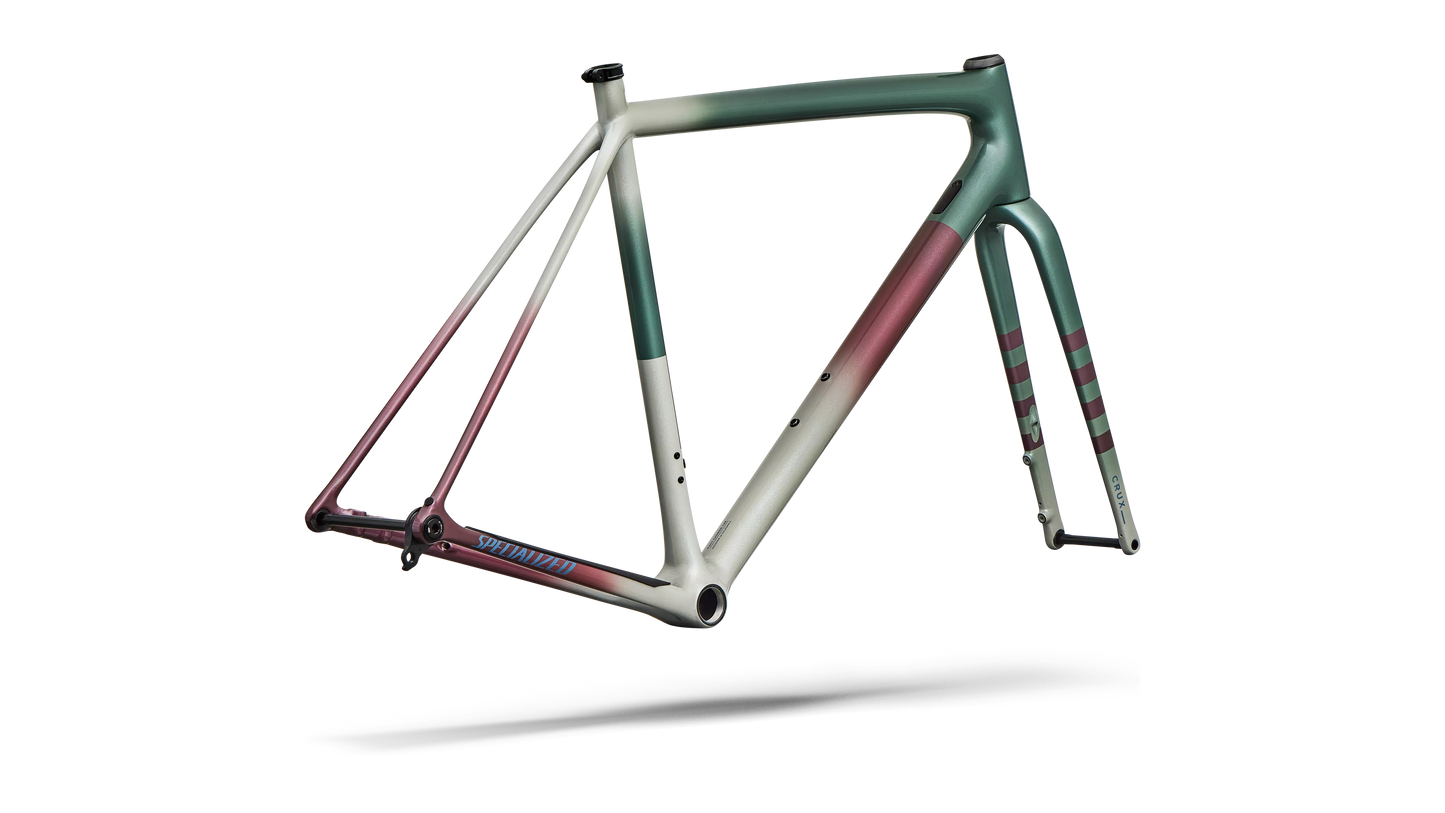

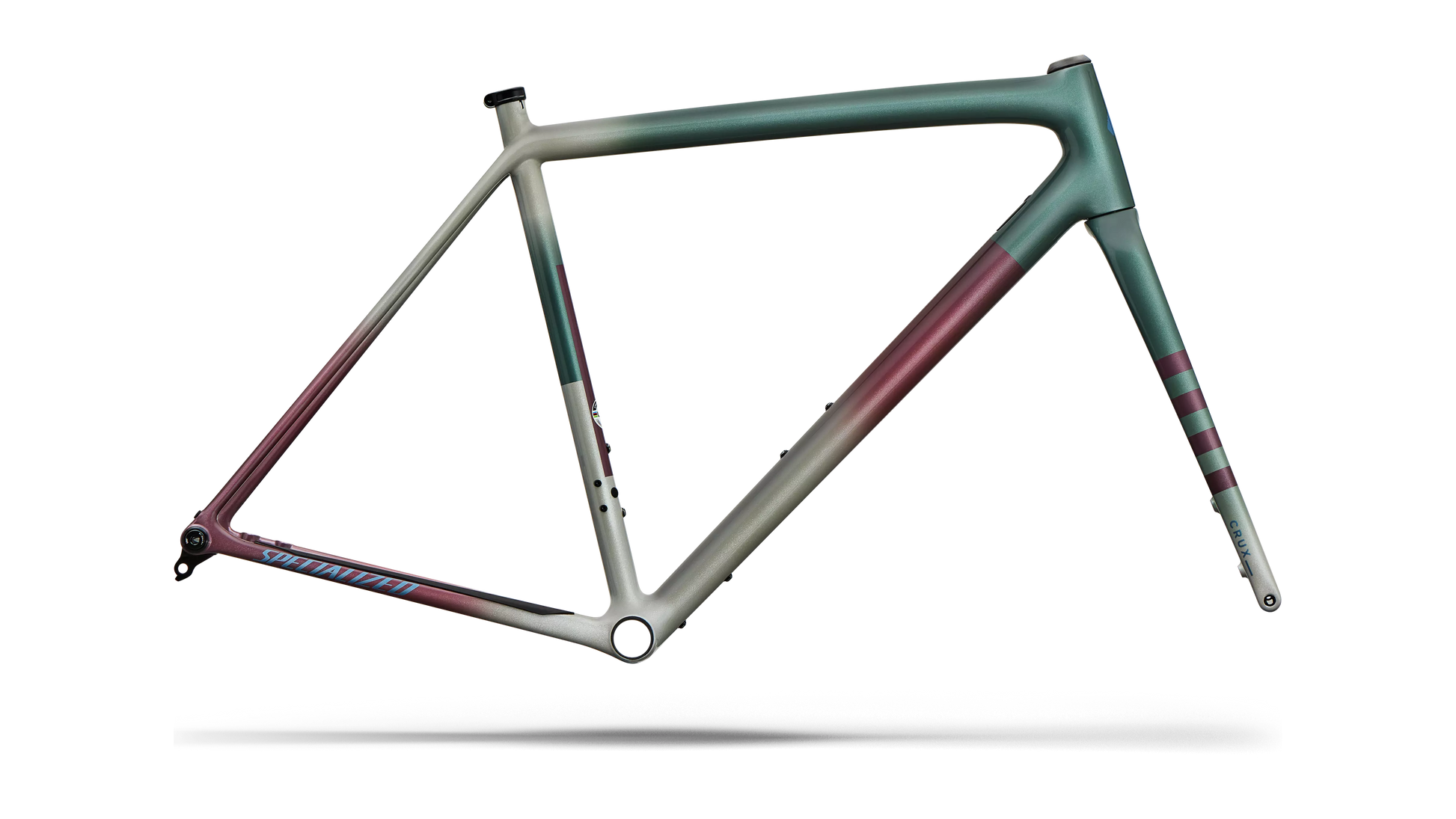

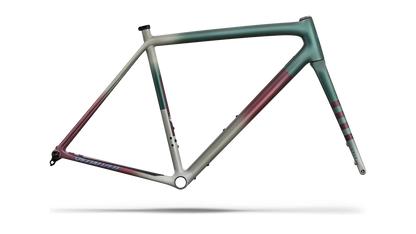

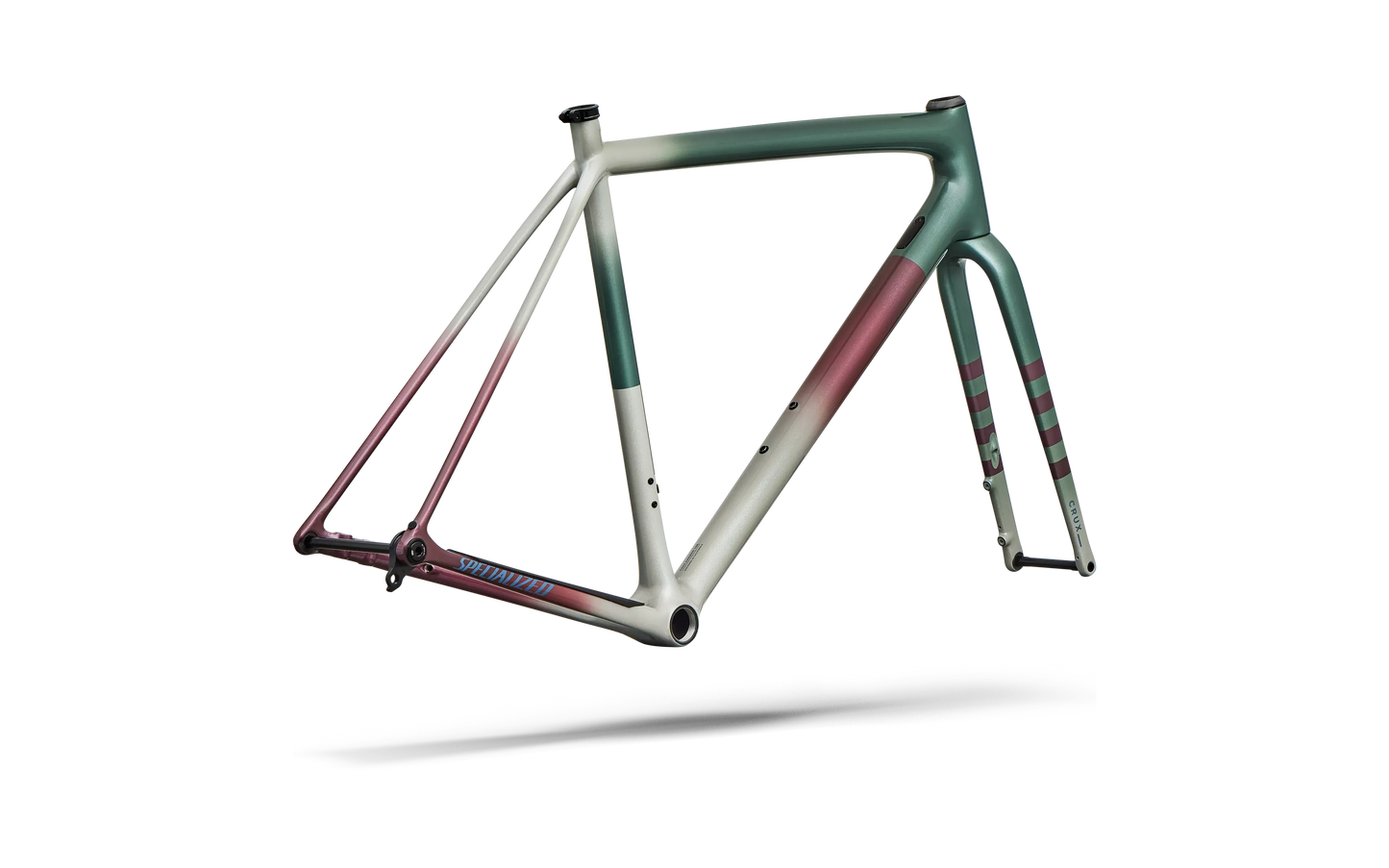

Crux 10r Frameset

Crux 10r Frameset

71426-7056

R 55,000.00
R 55,000.00 R 55,000.00
Sale Sold out
Vat Included
Size

In stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
View full details

Technical Specifications

Frameset:

Frame - Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Suspension:

Fork - S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Cockpit:

Seat Binder - Specialized Alloy, 30mm



Product details:

Product ID - 223491



Weight:

Weight Size - 56

Weight - 1.4 kg (3 lb, 1.4 oz)

Geometry

 495254565861
Stack530547560578598621
Reach375382388397405415
Head Tube Length100115130147167190
Head Tube Angle70.571.2571.57272.2572.5
BB Height284284286286286286
BB Drop747472727272
Trail746967646260
Fork Length, Full401401401401401401
Fork Rake/Offset505050505050
Front Center594600608618630644
Chainstay Length425425425425425425
Wheelbase100810141023103310451059
Top Tube Length, Horizontal512539549568582599
Bike Standover Height749772794816841866
Seat Tube Length466496521546576606
Seat Tube Angle75.5747473.573.573.5
