SPECIALIZED

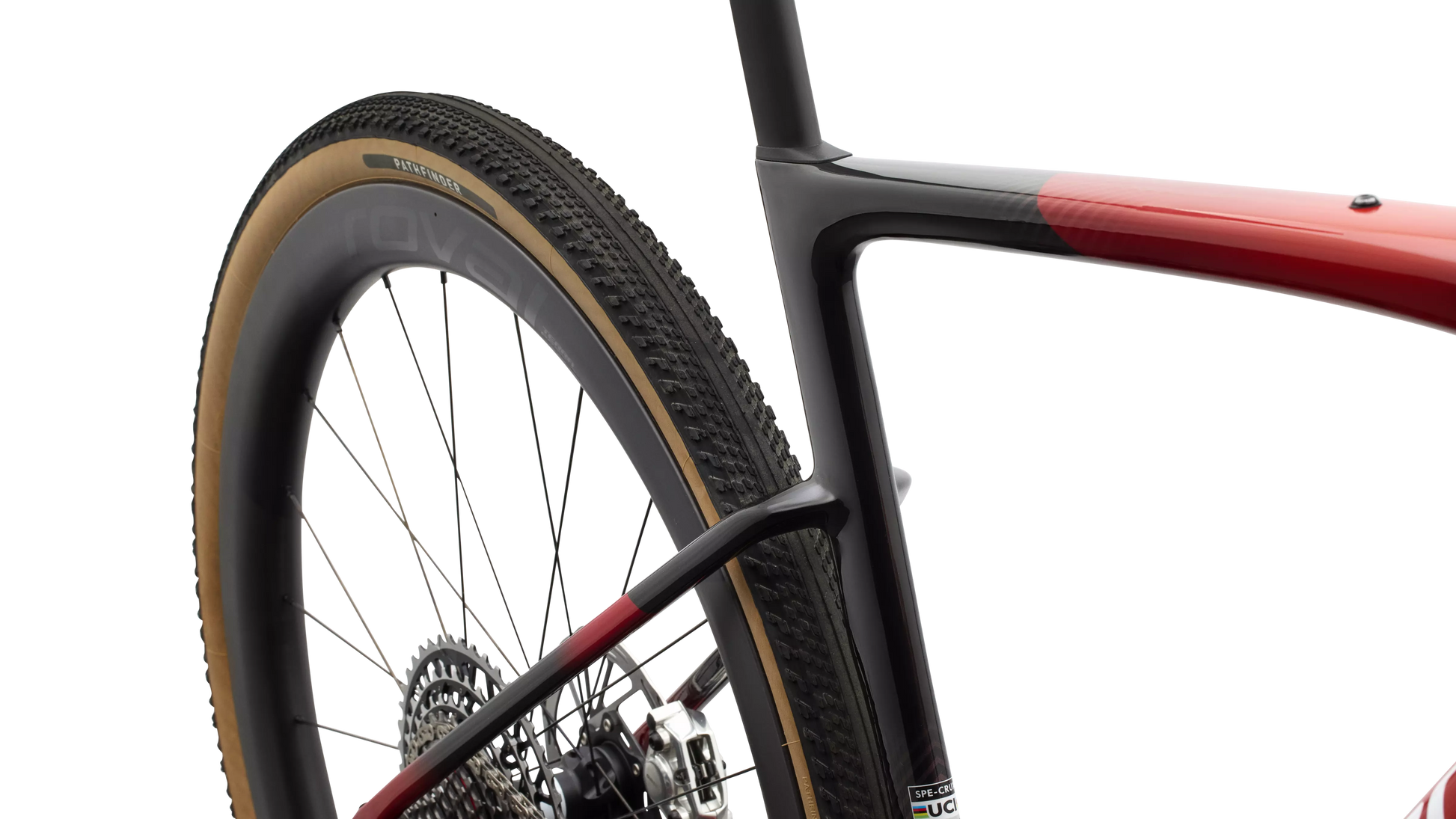

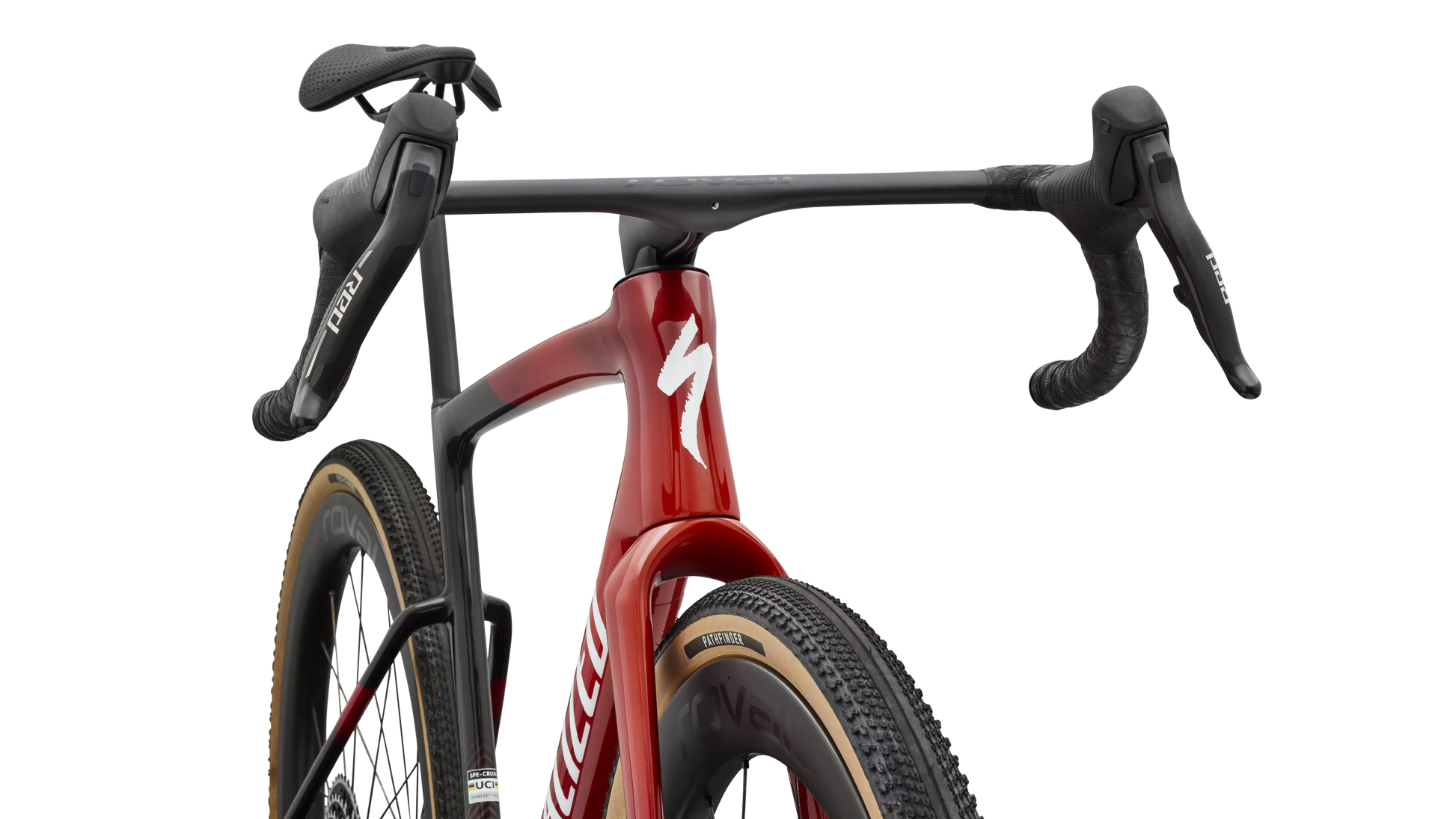

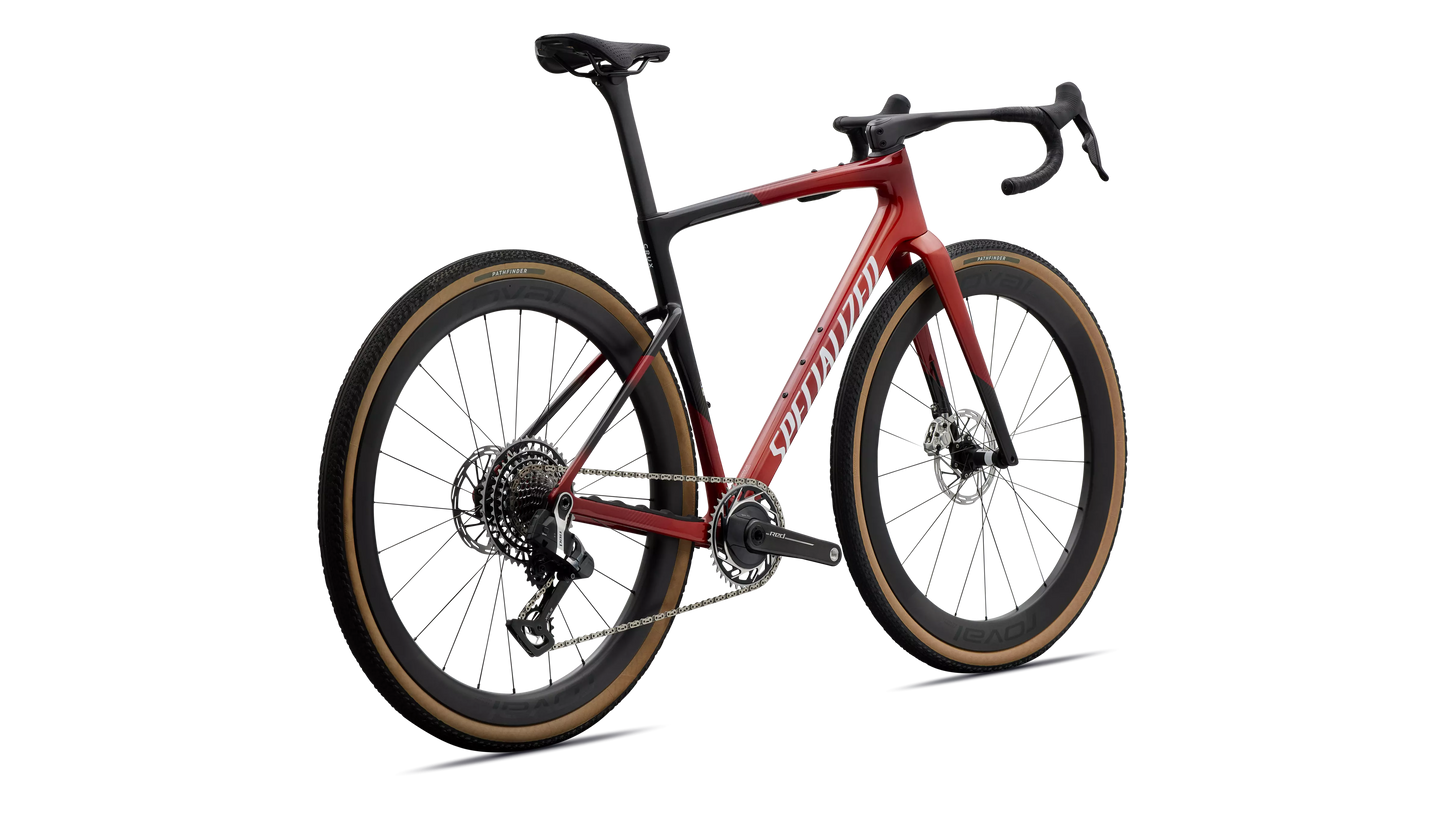

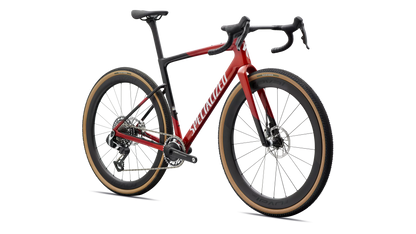

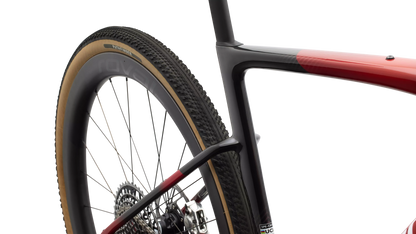

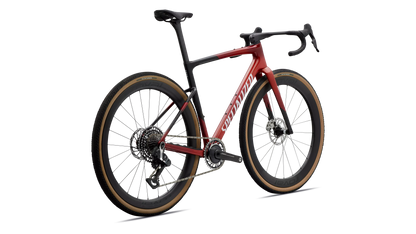

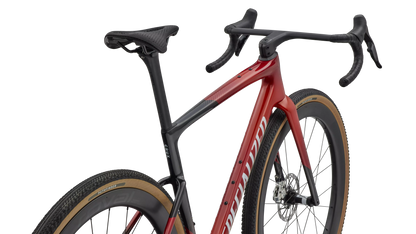

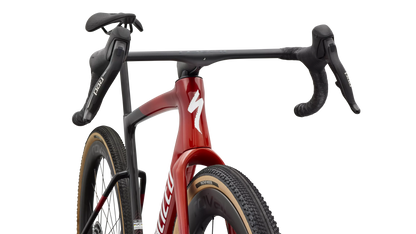

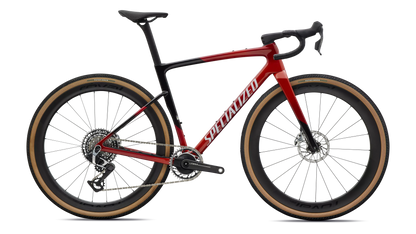

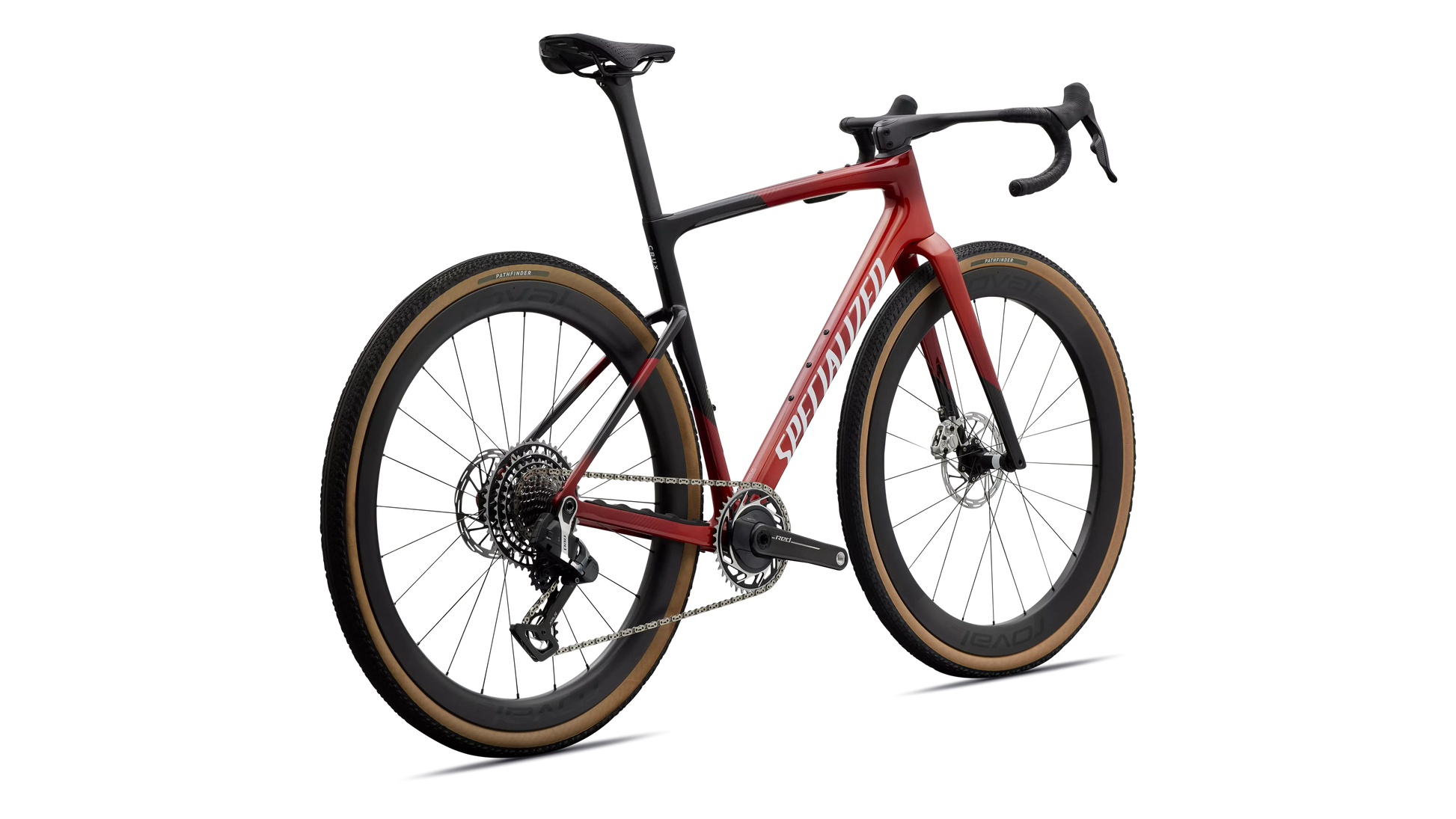

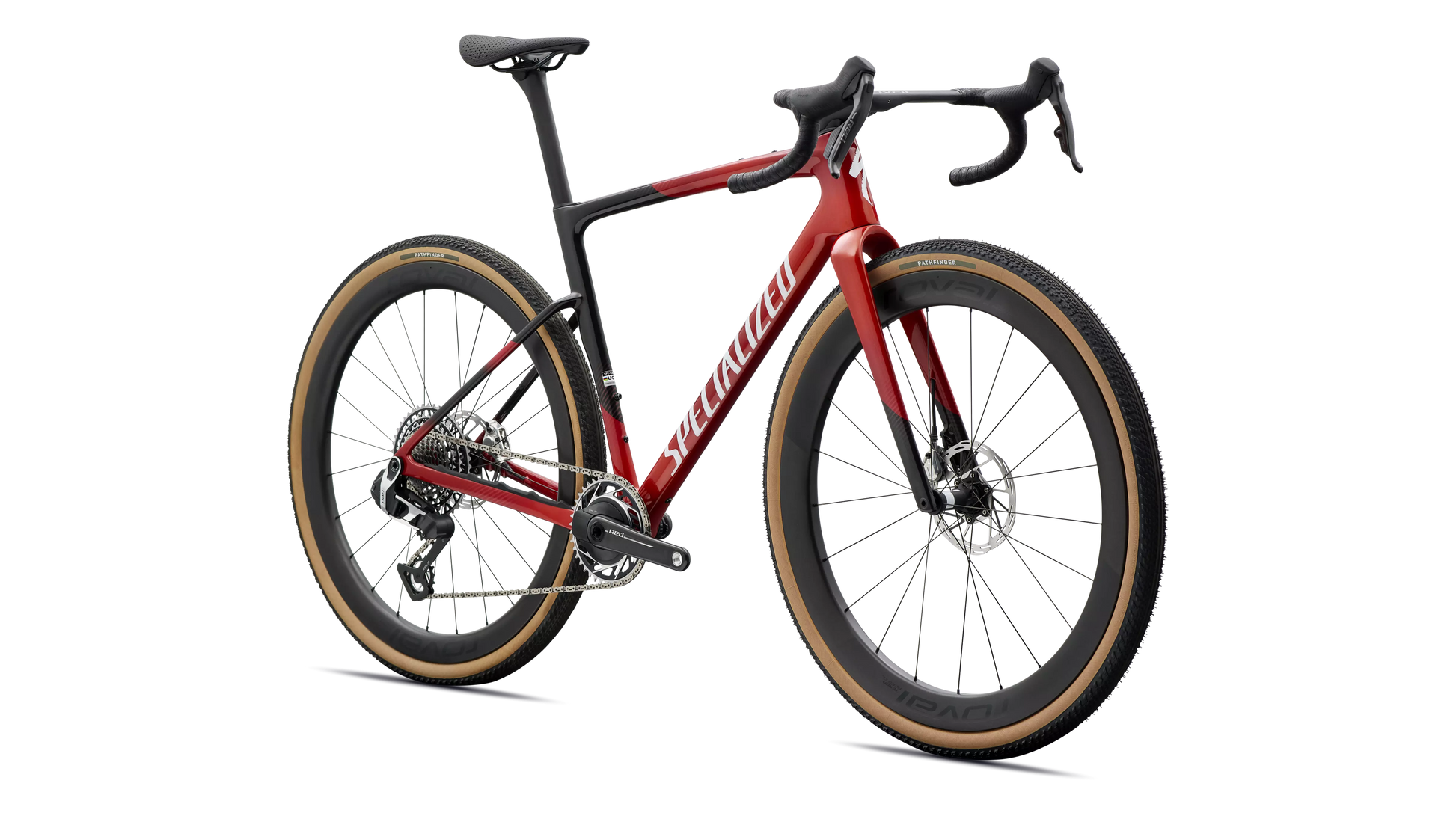

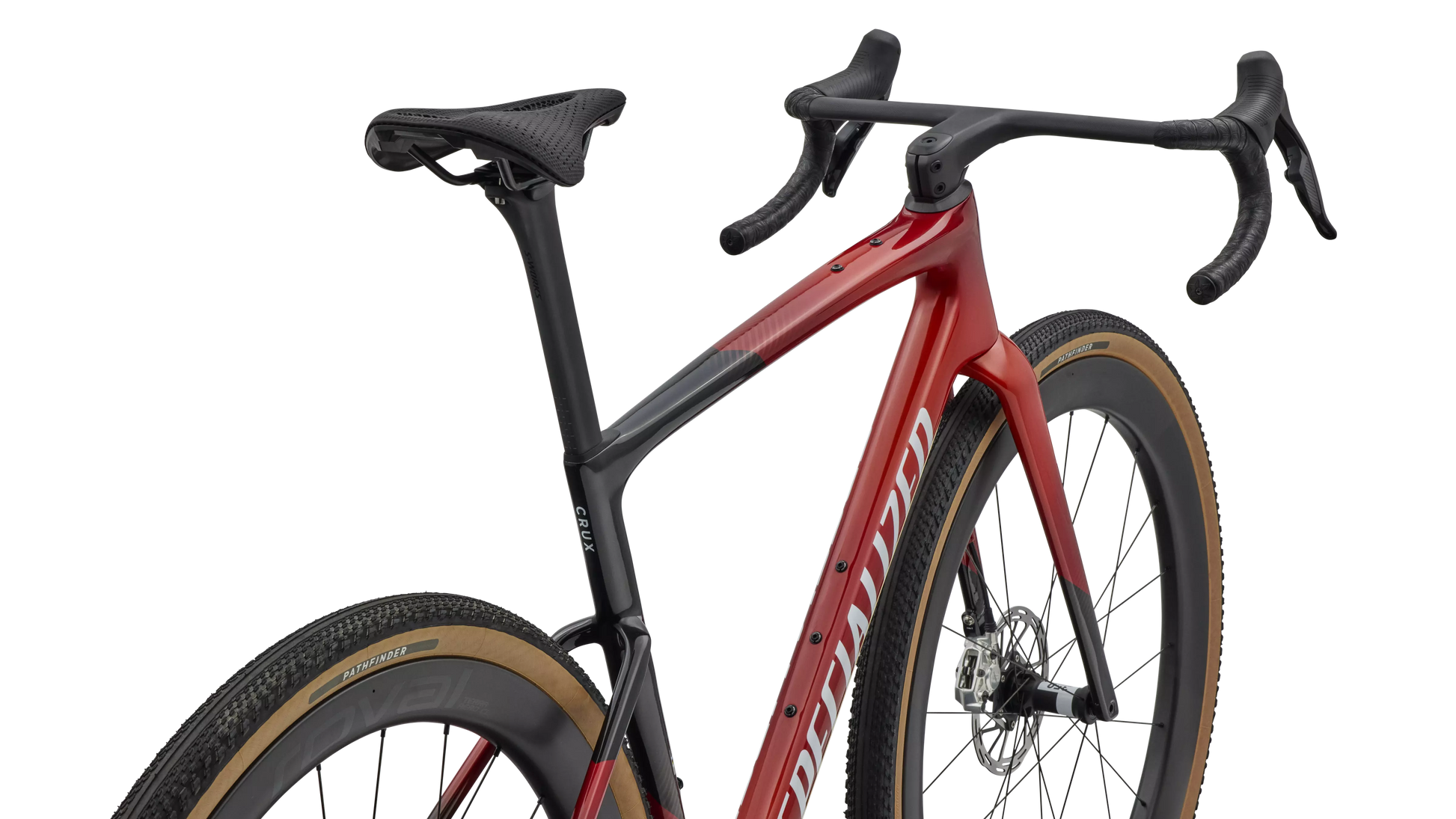

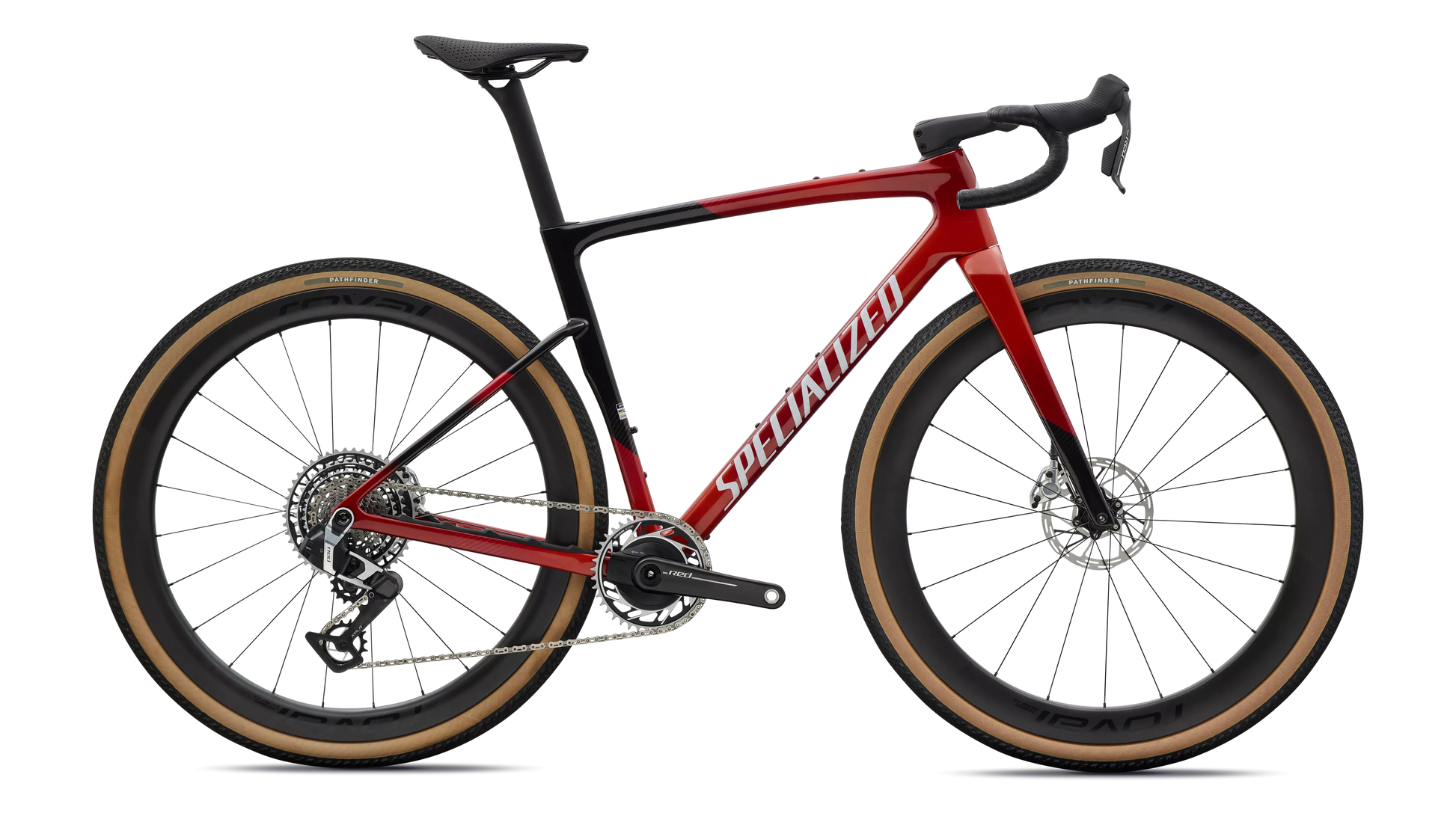

Crux 5 S-Level with SRAM RED XPLR

SKU:91427-1049

R 210,000.00

~~R 210,000.00~~ R 210,000.00

Sale Sold out

Finance from 21000000 pm

*Finance amount calculated at 10% deposit, over 48 months and at minimum interest rate

Vat Included

Color REDPRL/REDWD/BRCH

Size 49 52 54 56 58 61

Out of Stock In Store

Product Sold Out? Contact us and we will try to find it for you.

Quantity

Crux 5 S-Level

Eat My Dust

The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use: Gravel Racing

Frame: FACT 10r Carbon: 897 grams

Wheels: Roval Terra Aero CL

Cockpit: Roval Terra Integrated

Drivetrain: SRAM RED XPLR

Weight: 7.7 kg

View full details

Technical Specifications

Frameset

Frame

Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM RED E1, hydraulic disc

Rear Brake

SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket

SRAM DUB BSA 68 Wide

Shift Levers

SRAM RED AXS E1, hydraulic disc

Rear Derailleur

SRAM RED AXS XPLR E1, 13-speed

Chain

SRAM RED E1

Cassette

SRAM RED XPLR E1, 13-speed, 10-46t

Crankset

SRAM RED XPLR E1, Quarq power meter, 40t

Wheels & tires

Inner Tubes

700x32-50mm, 60mm Presta valve

Front Wheel

Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes

Rear Wheel

Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes

Front Tire

Pathfinder 700x45, Tubeless Ready

Rear Tire

Pathfinder 700x45, Tubeless Ready

Cockpit

SeatPost

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Saddle

Power Pro Mirror, Hollow Ti rails

Handlebars

Roval Terra Cockpit, Integrated Bar/Stem

Tape

Supacaz Super Sticky Kush

Seat Binder

Integrated Wedge

Weight

Weight Size

56

Weight

7.7 kg (16 lb, 15.6 oz)

Geometry

49	52	54	56	58	61
Crank Length	165	165	170	170	172.5
Handlebar Width	380	380	400	400	420
Stem Length	75	90	90	100	100
Saddle Width	155	155	143	143	143
Seatpost Length	300	300	380	380	380
Stack	530	547	560	578	598
Reach	375	382	388	400	412
Head Tube Length	95	110	125	142	163
Head Tube Angle	70.5	70.75	71	71.5	71.5
BB Height	278	278	280	280	280
BB Drop	80	80	78	78	78
Trail	72	71	69	66	66
Fork Length, Full	401	401	401	401	401
Fork Rake/Offset	51	51	51	51	51
Front Center	594	604	613	626	644
Chainstay Length	425	425	425	425	425
Wheelbase	1008	1016	1026	1039	1057
Top Tube Length, Horizontal	512	534	543	566	583
Bike Standover Height	753	766	781	803	823
Seat Tube Length	445	456	473	497	515
Seat Tube Angle	75.5	74.5	74.5	74	74
