SPECIALIZED

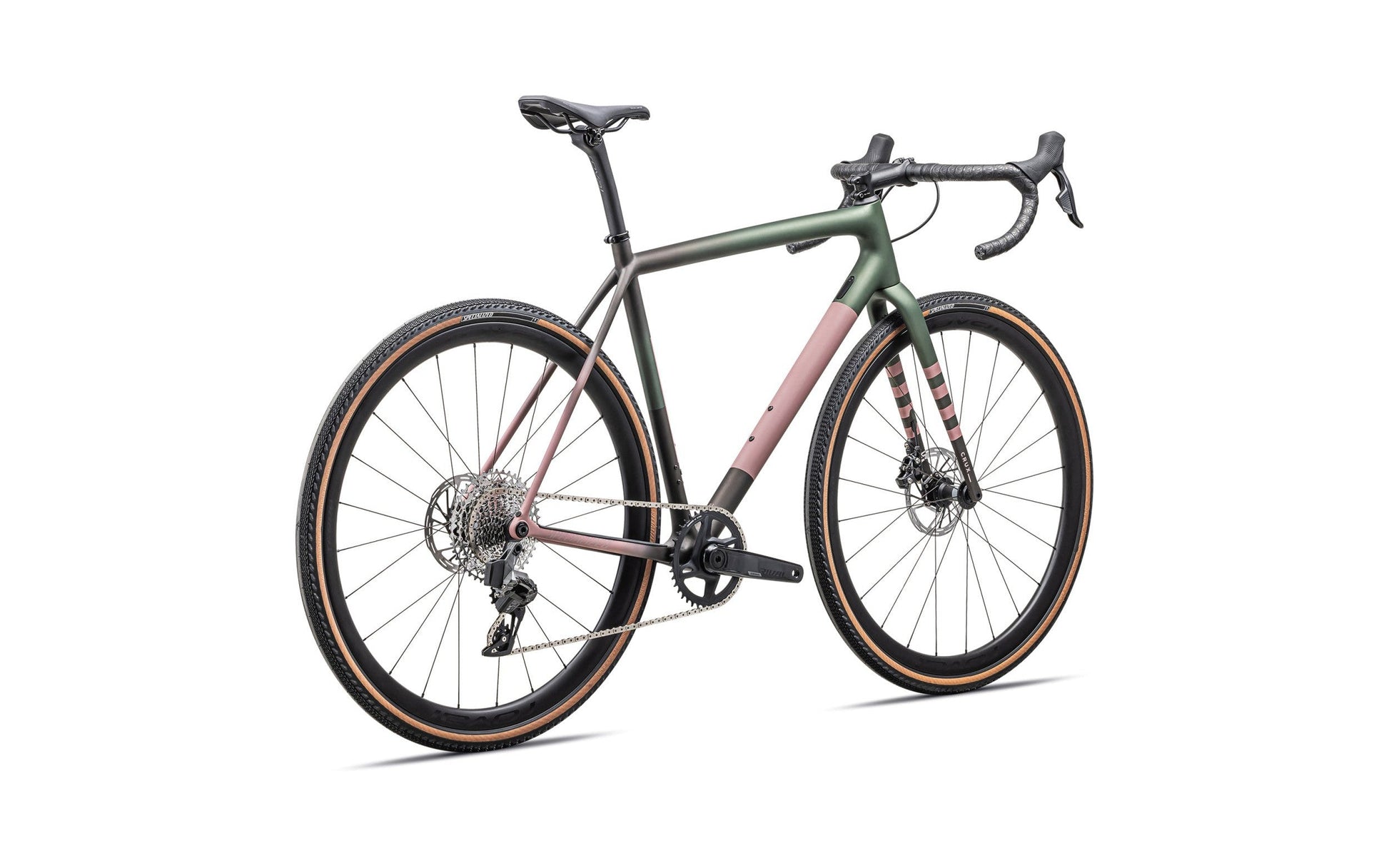

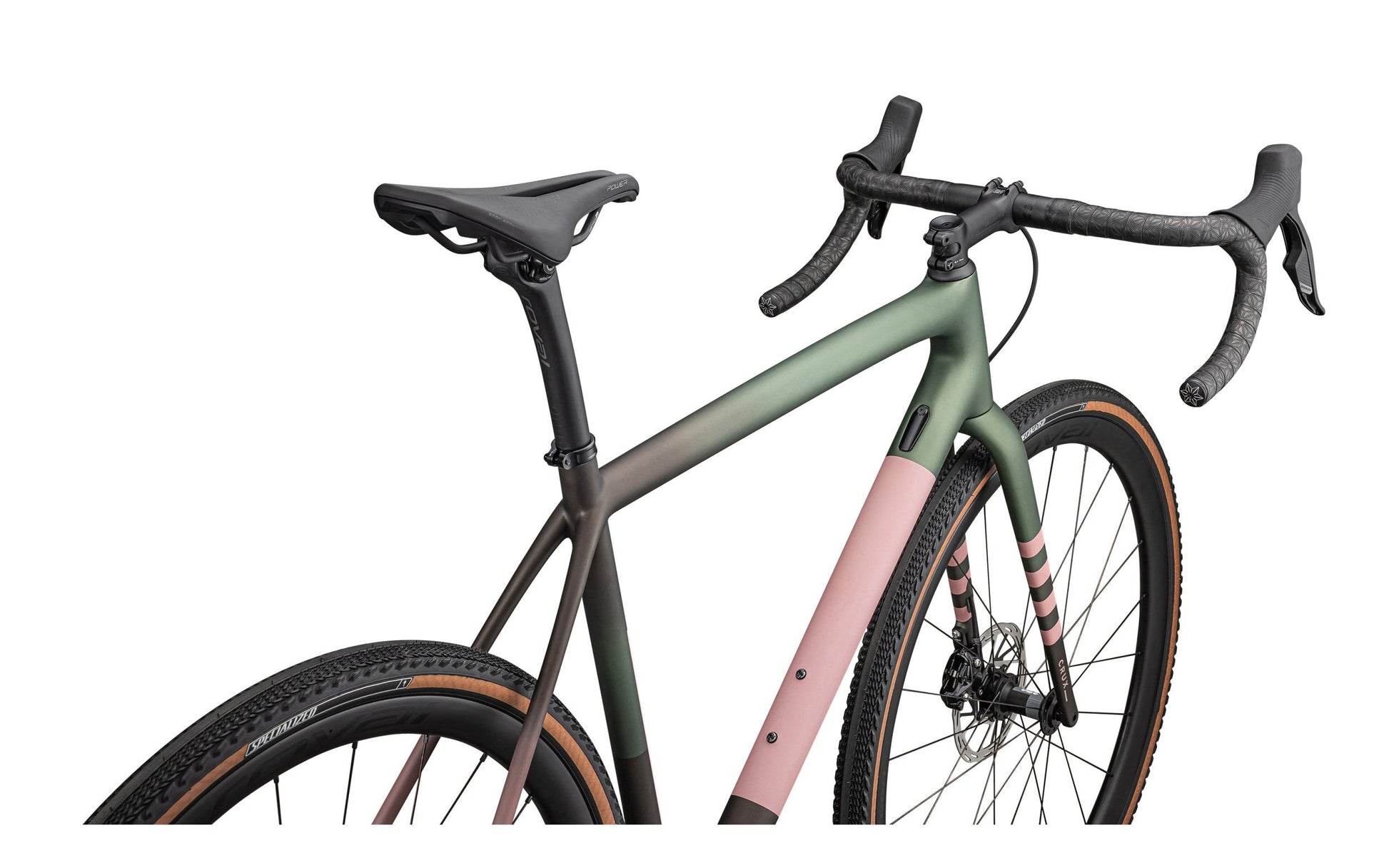

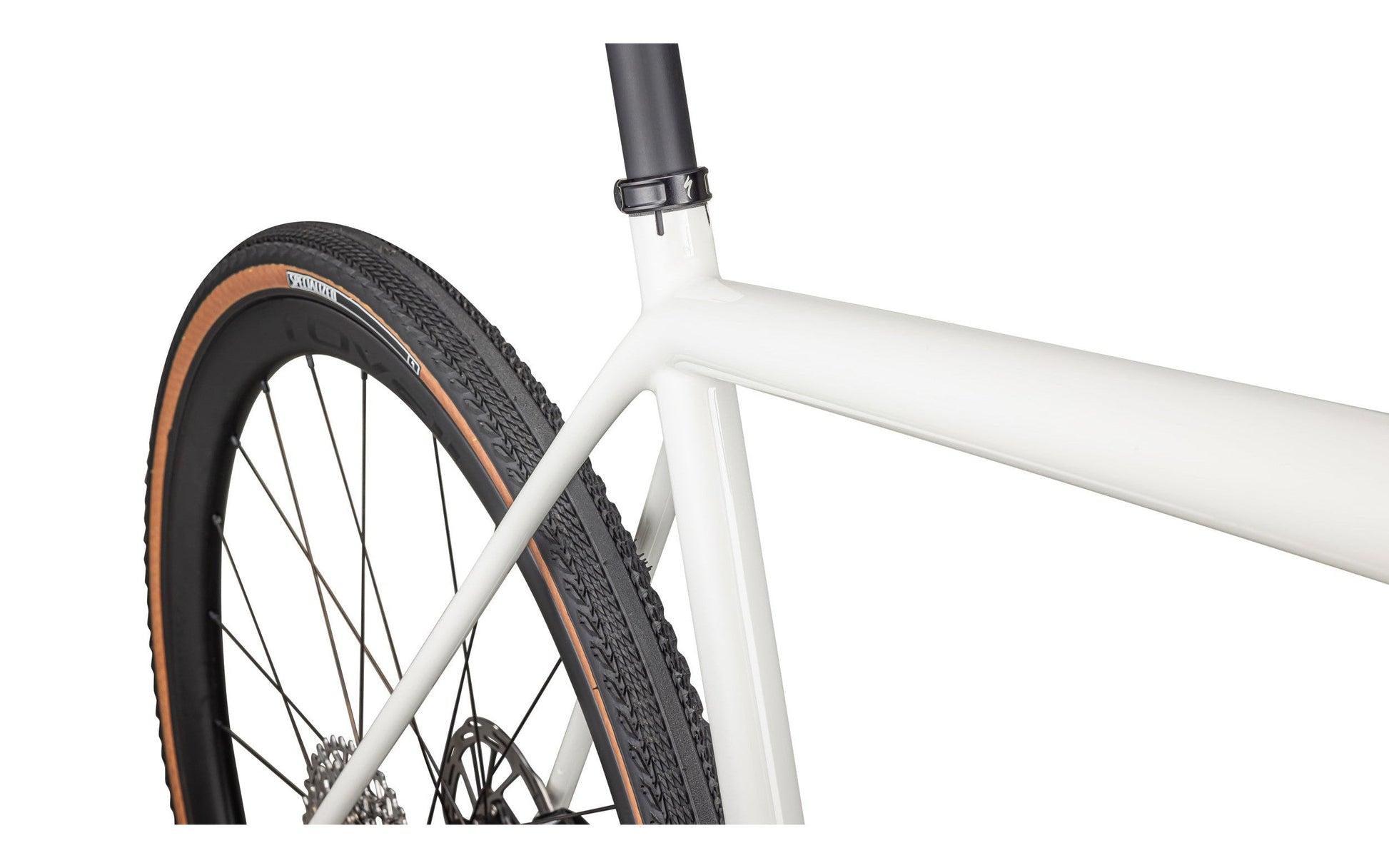

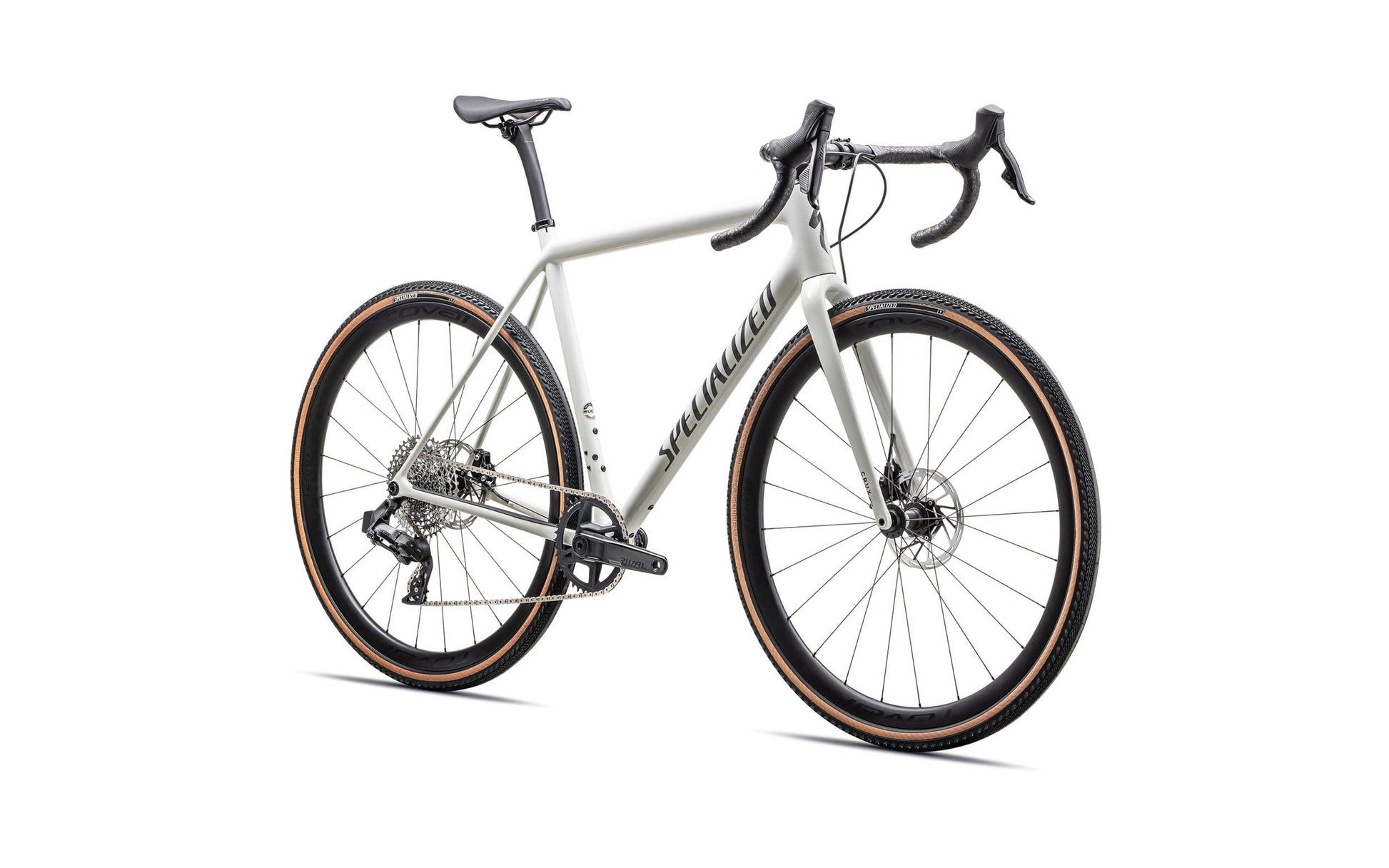

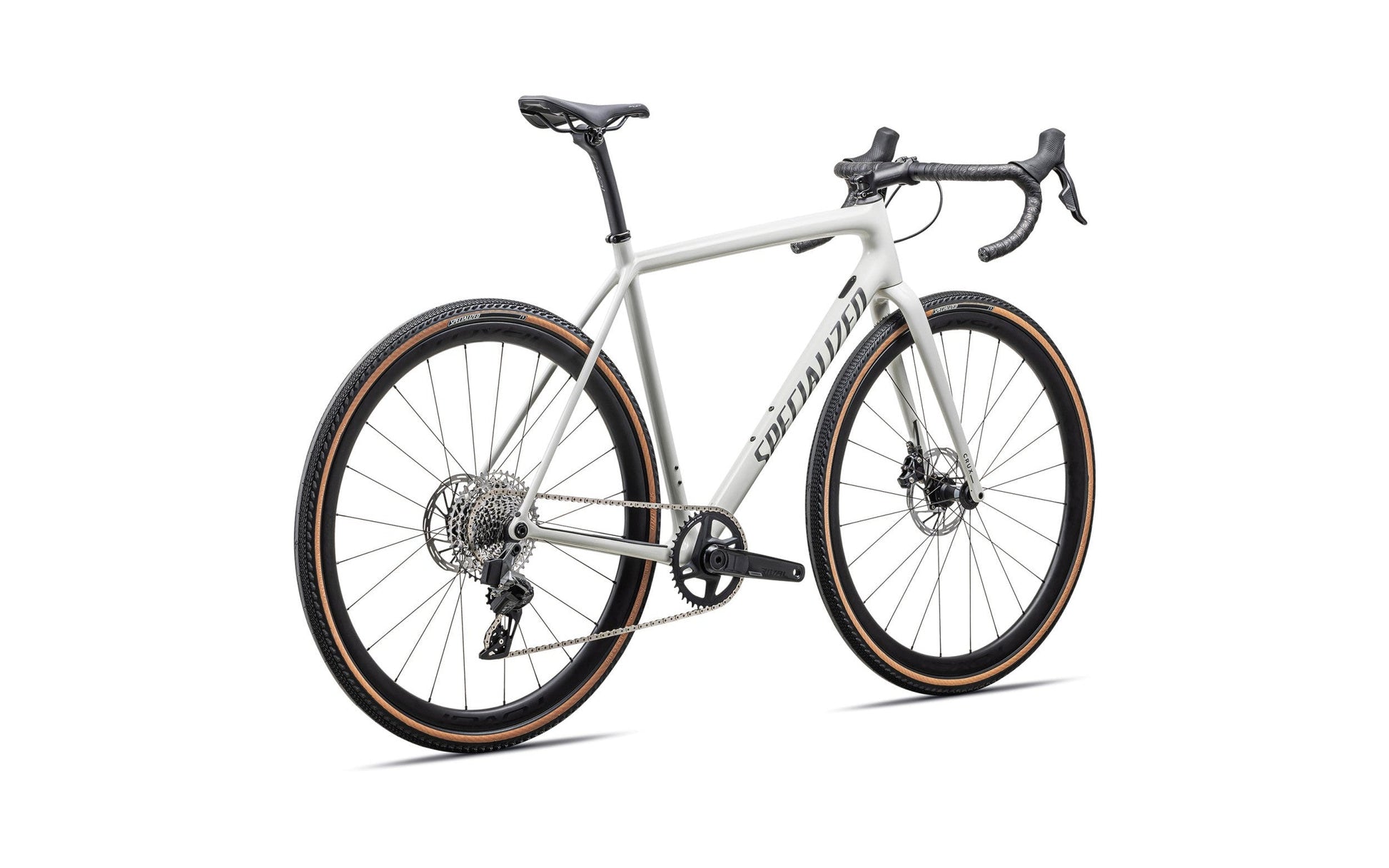

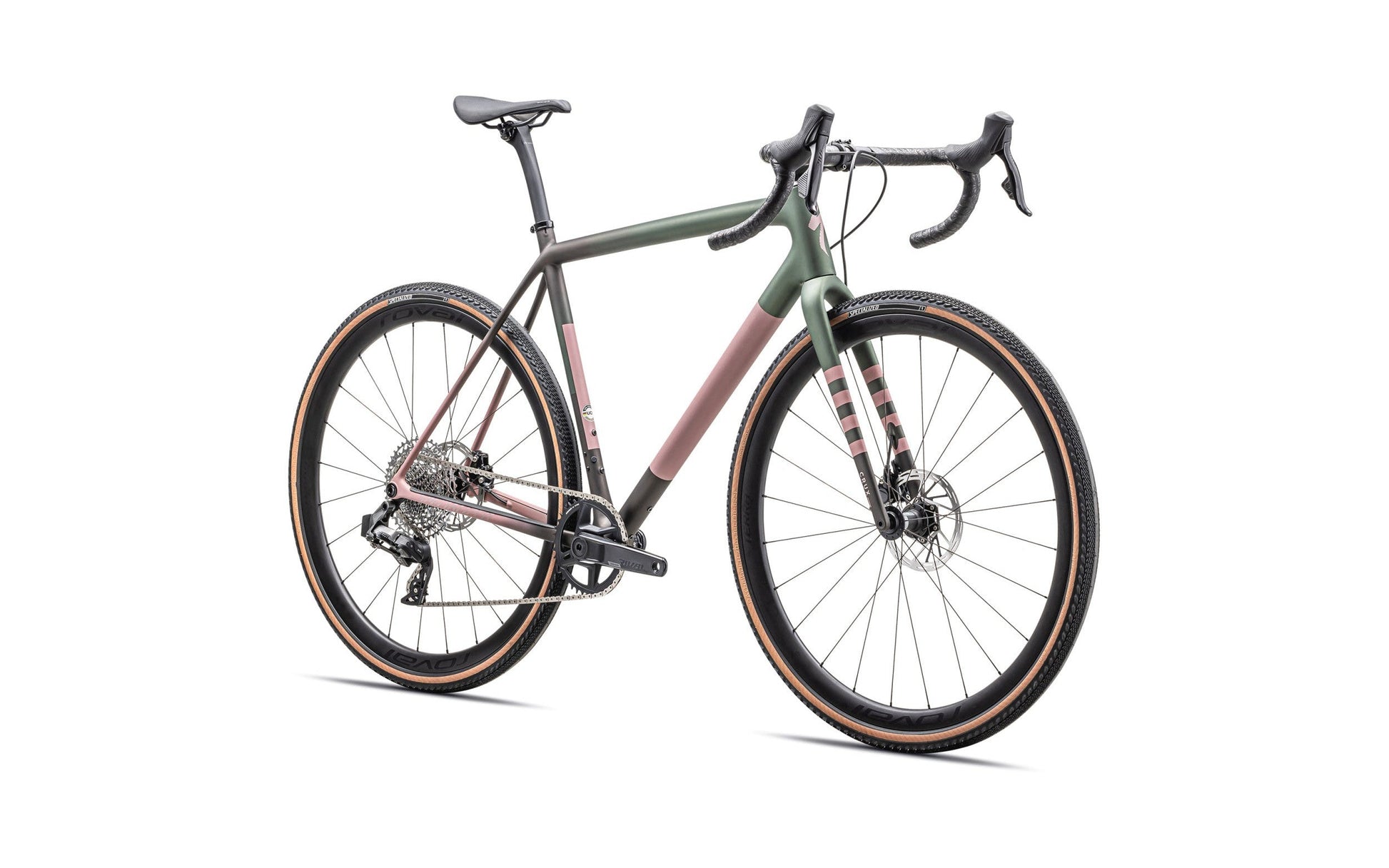

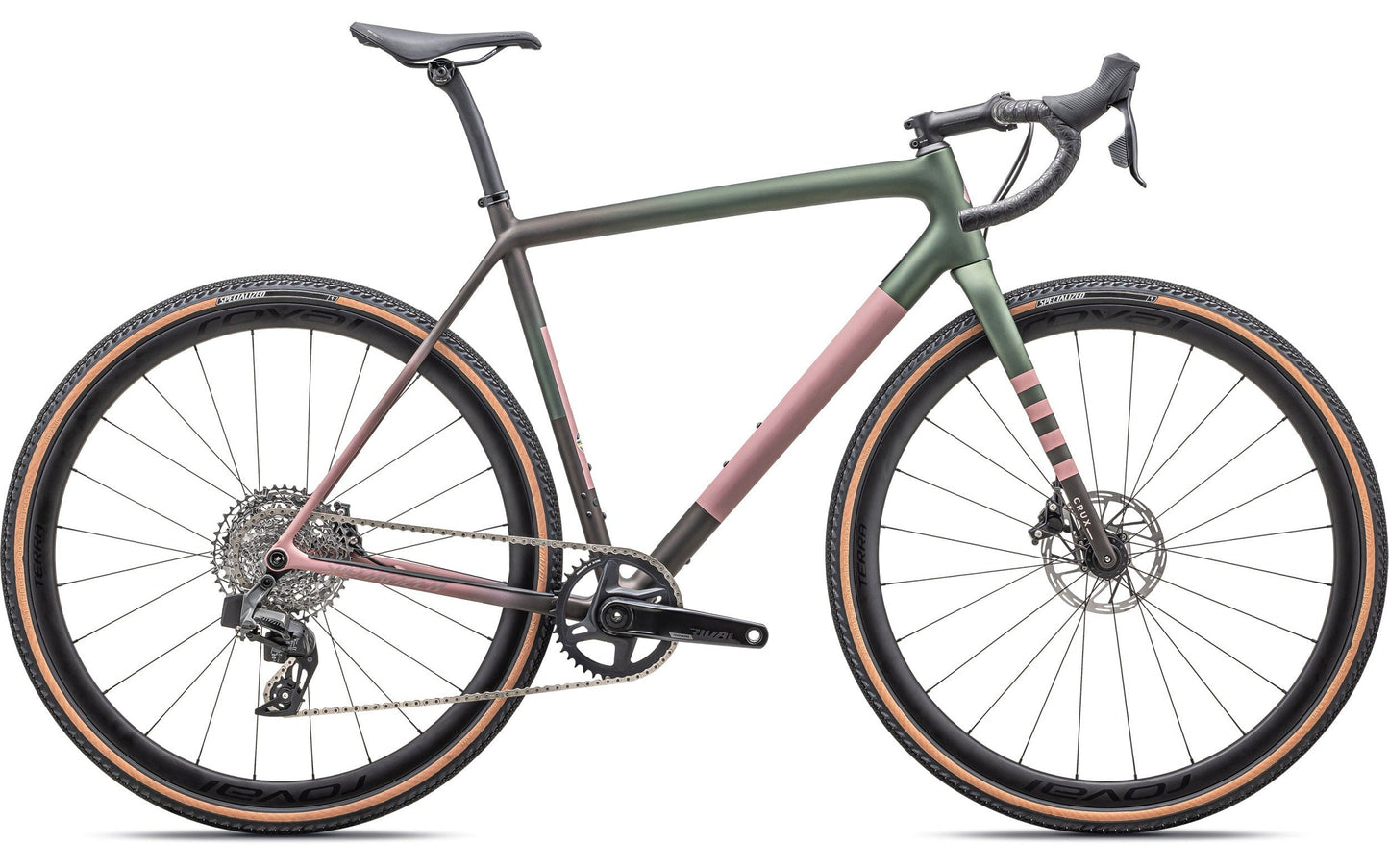

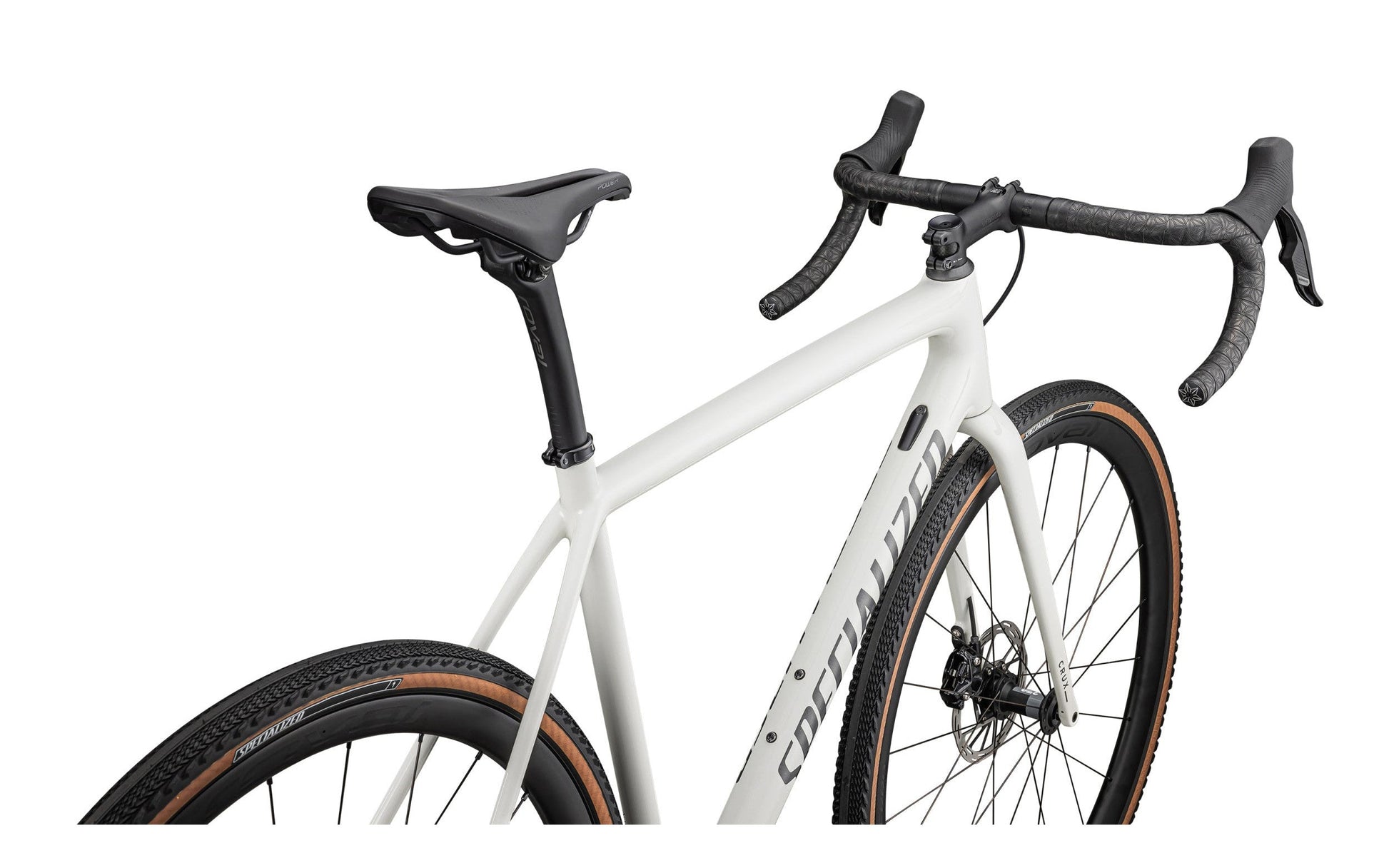

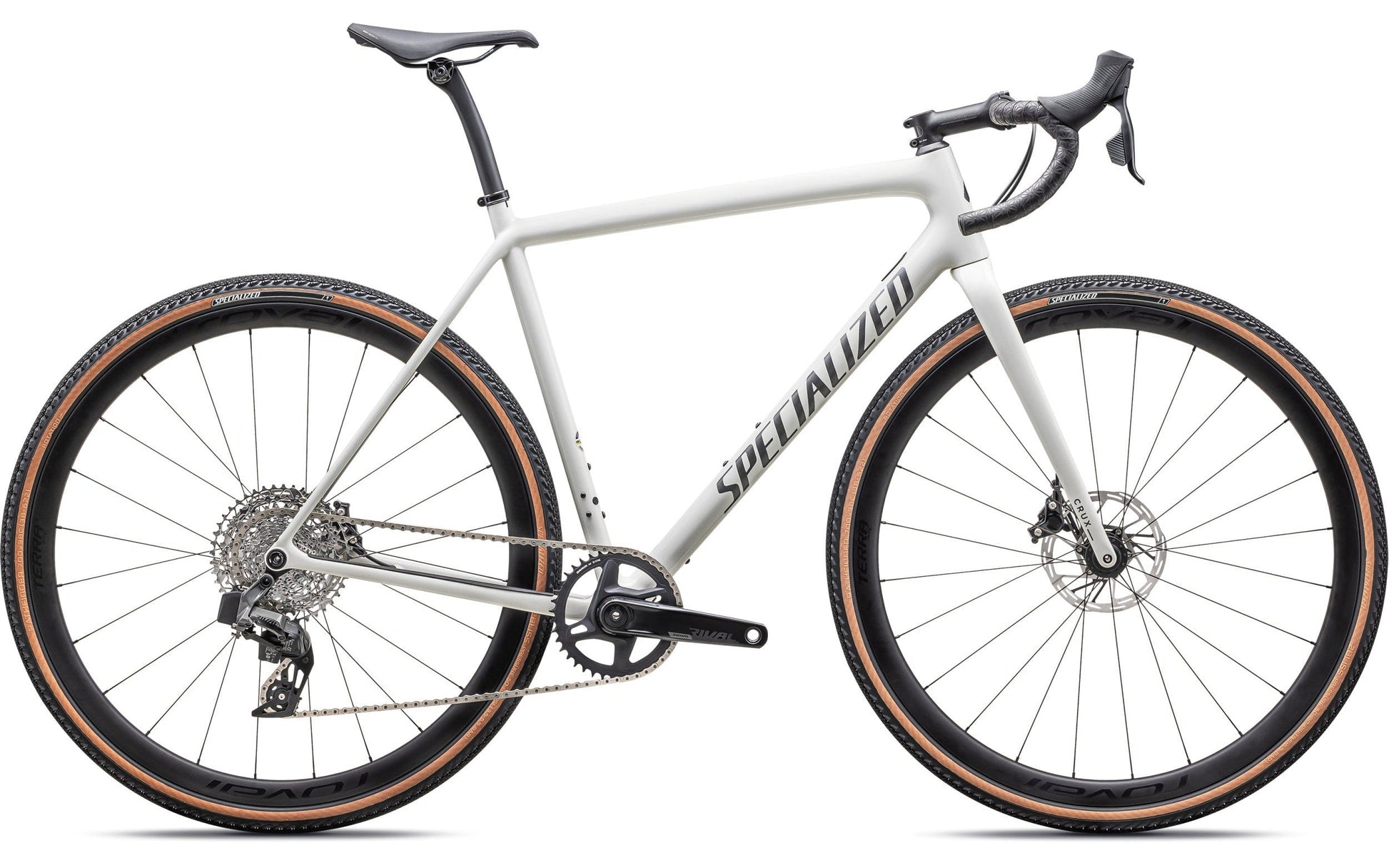

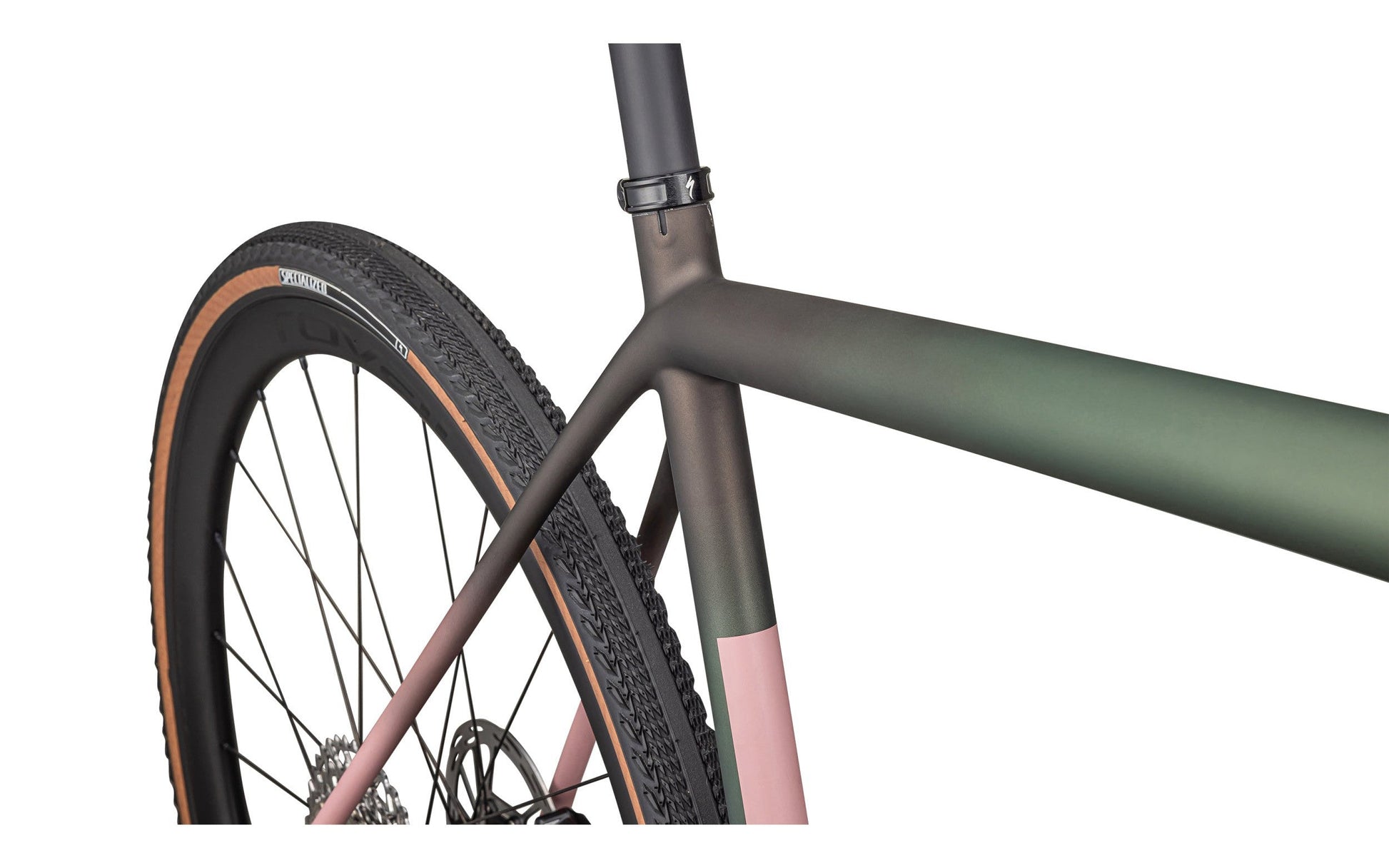

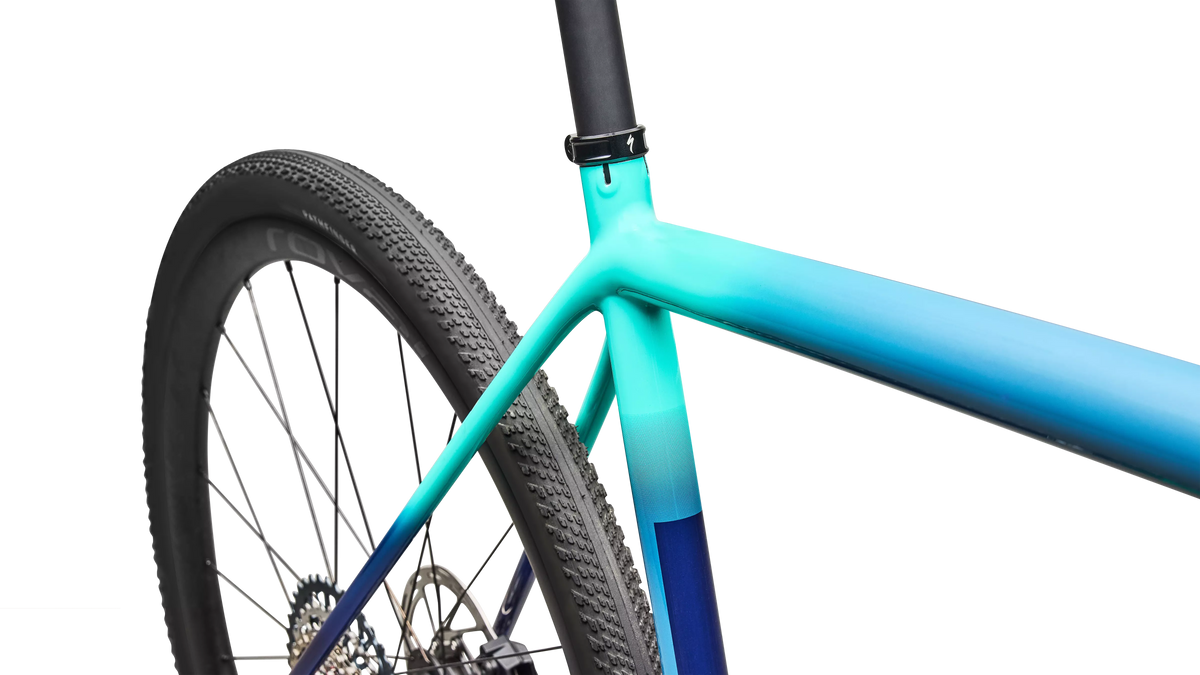

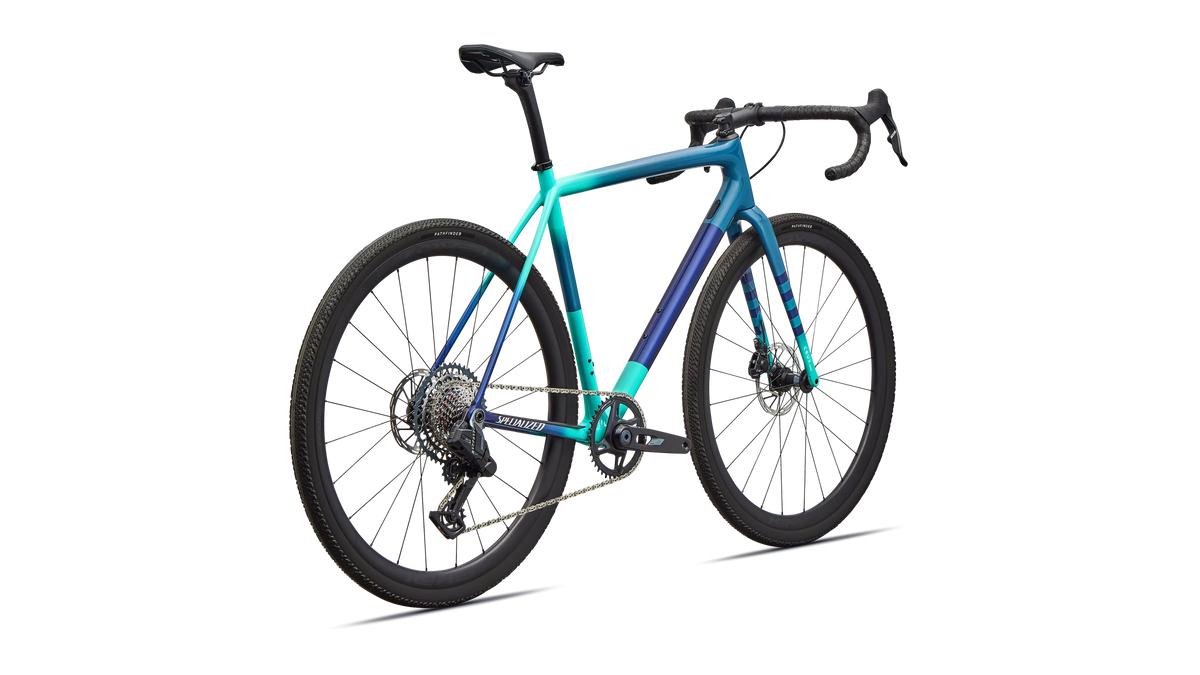

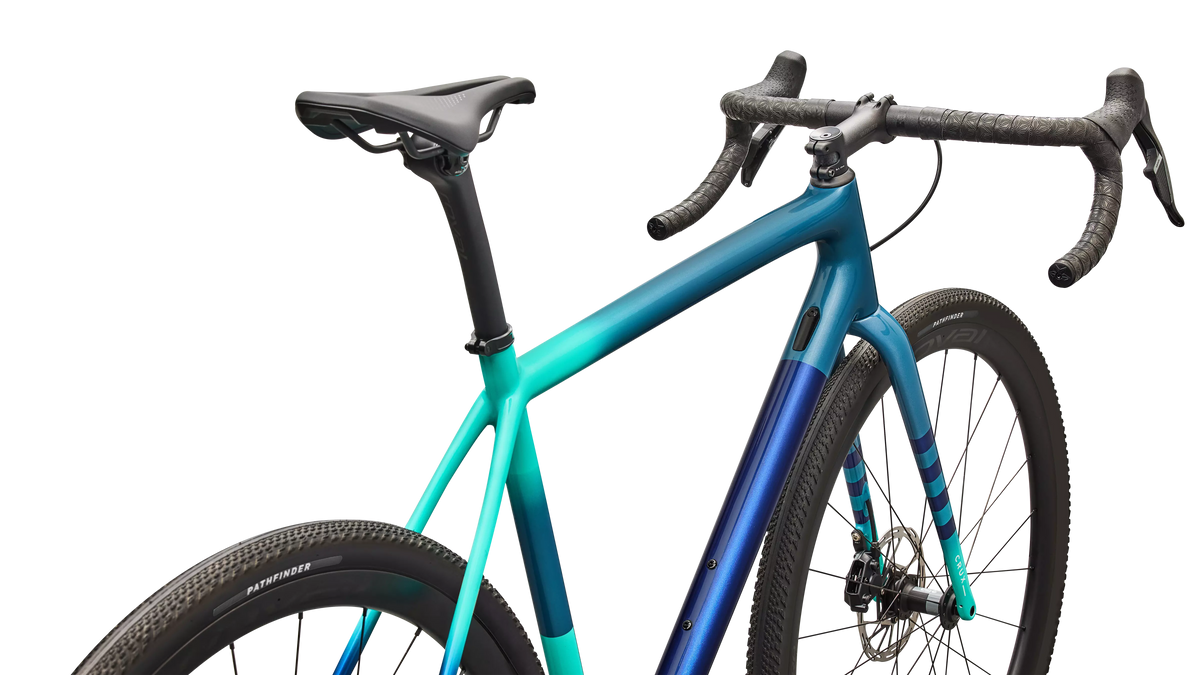

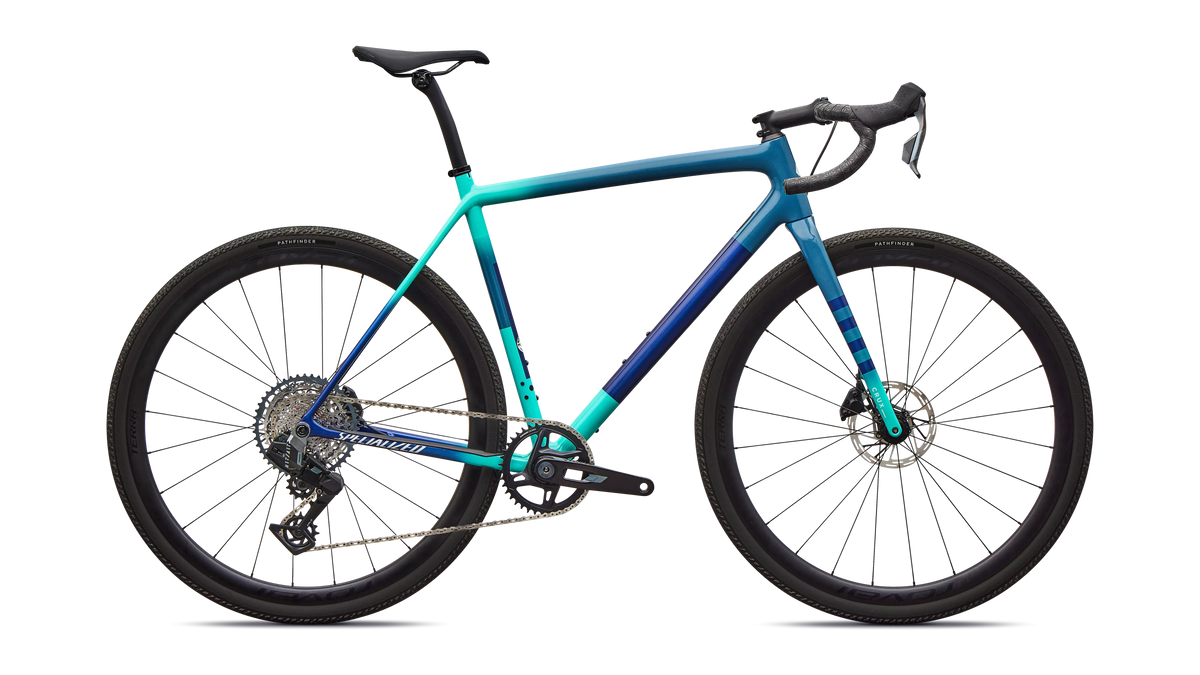

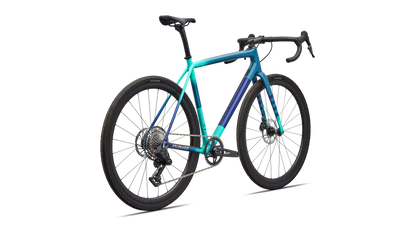

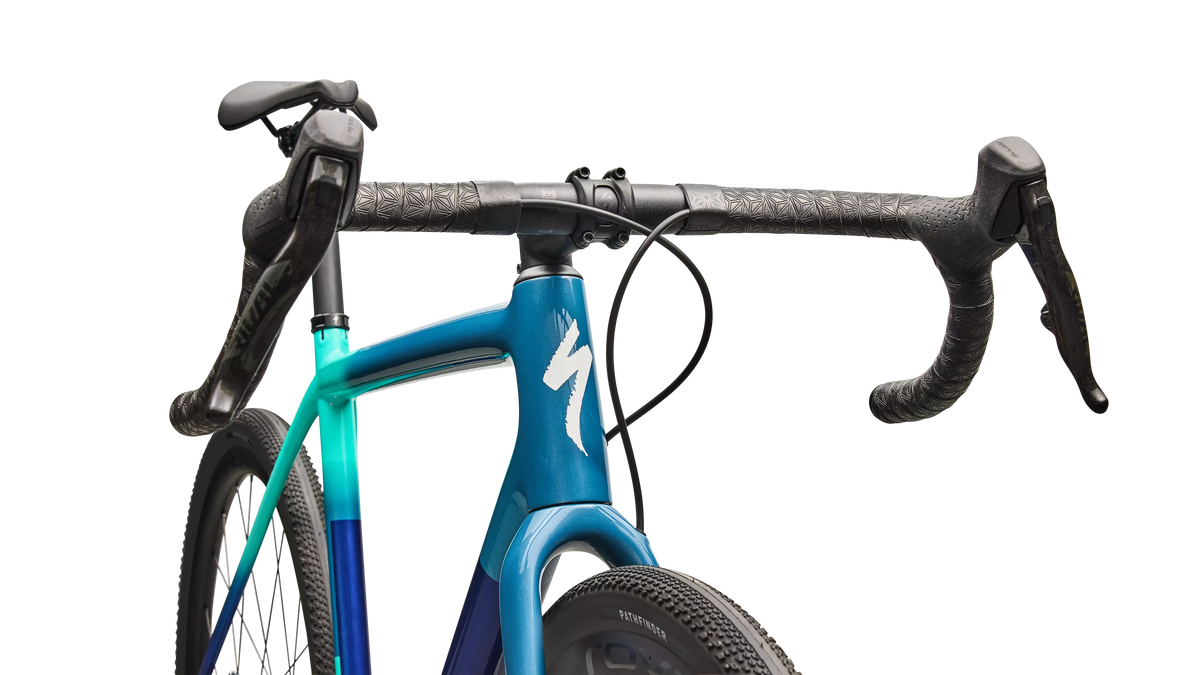

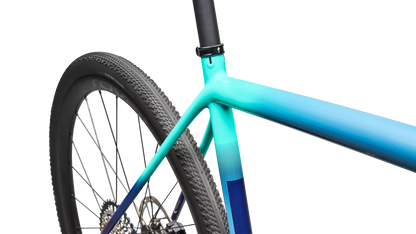

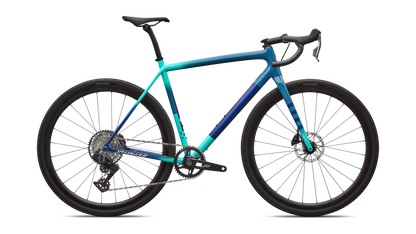

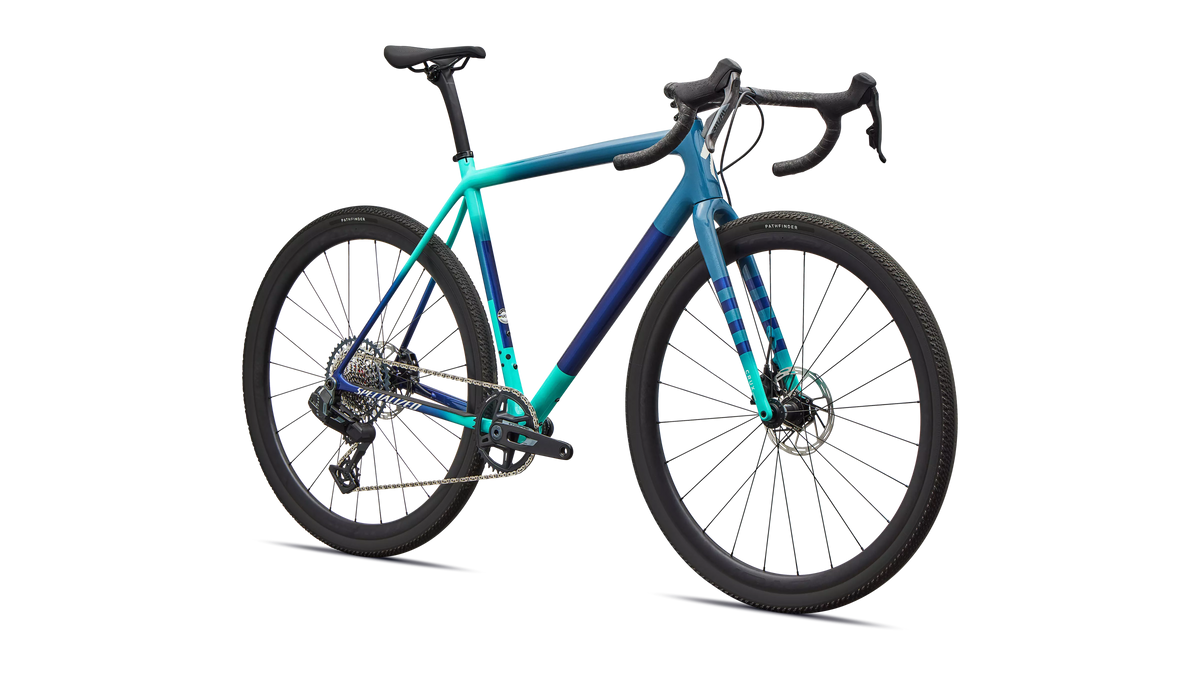

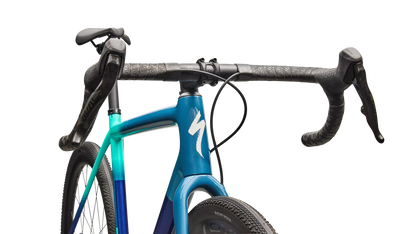

Crux Expert - SRAM Rival XPLR AXS

Crux Expert - SRAM Rival XPLR AXS

SKU:91426-3052

Regular price R 85,000.00
Regular price R 115,000.00 Sale price R 85,000.00
Sale Sold out
Vat Included
Color
Size

Out of Stock In Store

Available to order

This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.

Enquire about this item
  • Visa
  • Mastercard
Collect in store only
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.

Read More

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This Crux Expert comes spec'd with all-new SRAM Rival XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra C Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
View full details

Technical Specifications

Frameset



Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Suspension



Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Brakes



Front Brake

SRAM Rival AXS E1, hydraulic disc, 160mm rotor



Rear Brake

SRAM Rival AXS E1, hydraulic disc, 160mm rotor



Drivetrain



Shift Levers

SRAM Rival AXS E1 HRD



Rear Derailleur

SRAM Rival XPLR AXS E1



Cassette

SRAM Rival XPLR XG-1351, 13-speed, 10-46t



Chain

SRAM Rival E1



Crankset

SRAM Rival XPLR E1



Chainrings

40T



Bottom Bracket

SRAM DUB BSA



Wheels & Tires



Front Wheel

Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes



Rear Wheel

Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes



Front Tire

Pathfinder 700x40, Tubeless Ready



Rear Tire

Pathfinder 700x40, Tubeless Ready



Inner Tubes

700x32-50mm, 40mm Presta valve



Cockpit



Stem

Specialized Pro SL, alloy, 4-bolt

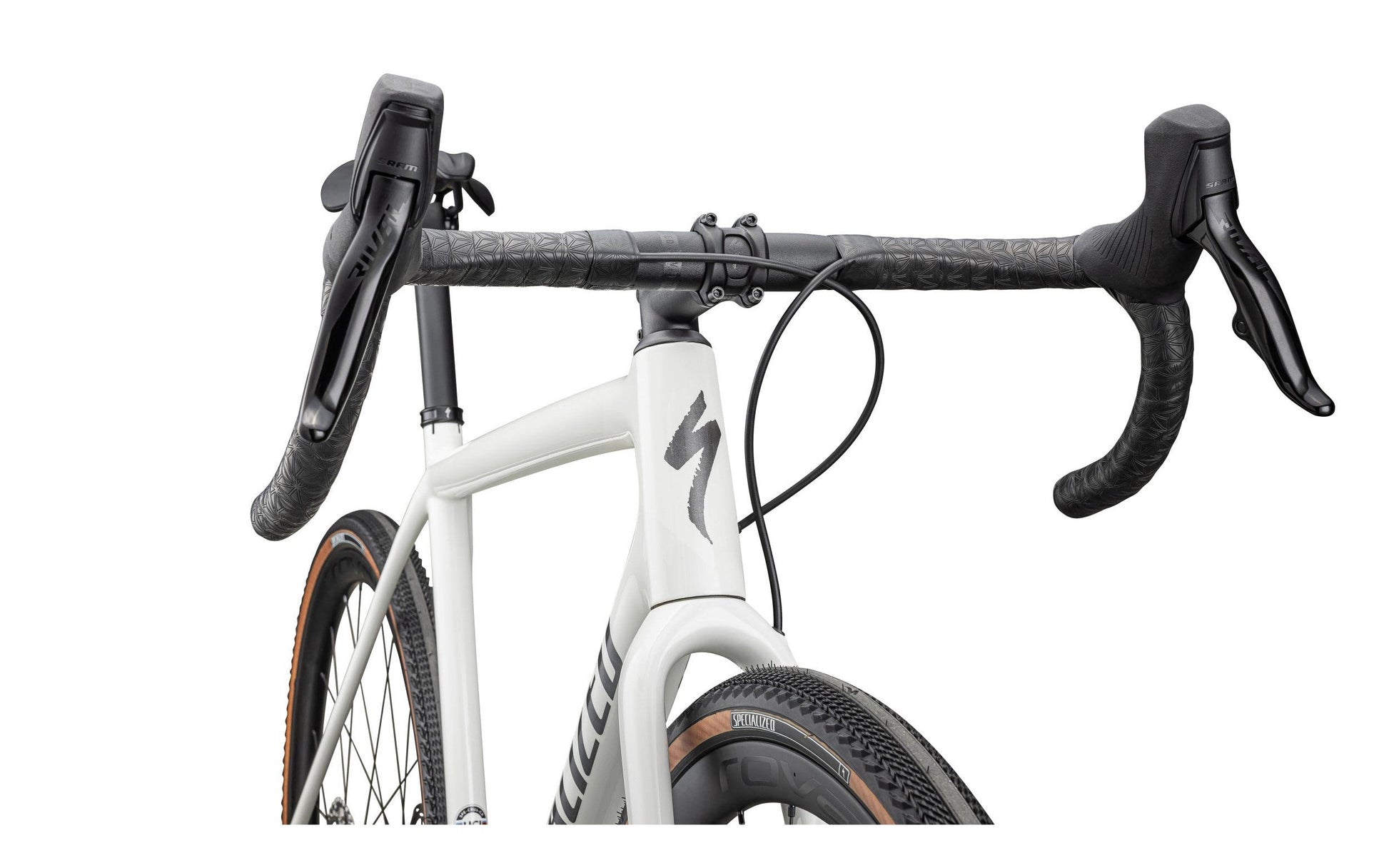

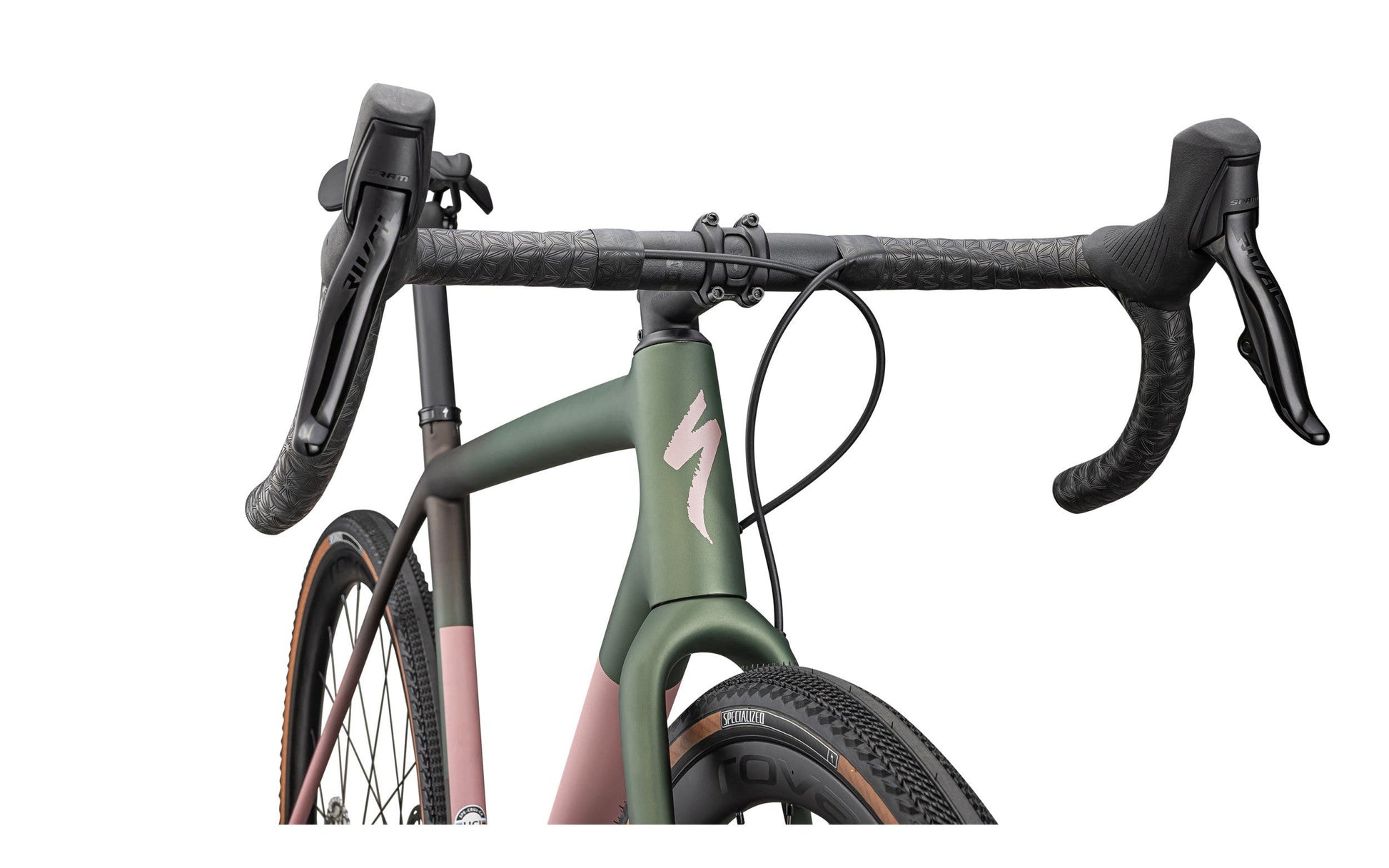

Handlebars

Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare



Tape

Supacaz Super Sticky Kush



Saddle

Body Geometry Power Expert



SeatPost

Roval Terra Carbon Seat Post, 20mm Offset



Seat Binder

Specialized Alloy, 30mm



Weight



Weight

8.1 kg (17 lb, 13.7 oz)



Weight Size

56



Geometry

 495254565861
Crank Length165170172.5172.5175175
Handlebar Width380400420420440440
Stem Length708090100110110
Saddle Width155155143143143143
Seatpost Length330330330380380380
Stack530547560578598621
Reach375382388397405415
Head Tube Length100115130147167190
Head Tube Angle70.571.2571.57272.2572.5
BB Height284284286286286286
BB Drop747472727272
Trail746967646260
Fork Length, Full401401401401401401
Fork Rake/Offset505050505050
Front Center594600608618630644
Chainstay Length425425425425425425
Wheelbase100810141023103310451059
Top Tube Length, Horizontal512539549568582599
Bike Standover Height749772794816841866
Seat Tube Length466496521546576606
Seat Tube Angle75.5747473.573.573.5
