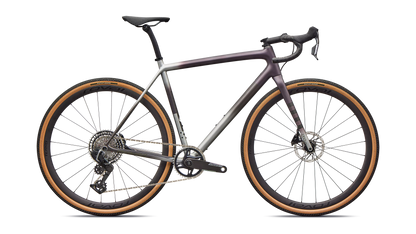

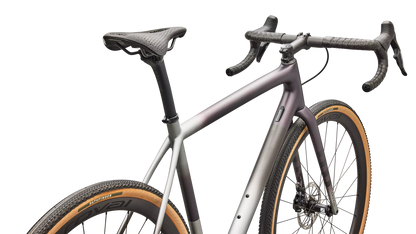

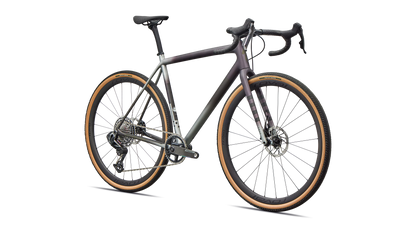

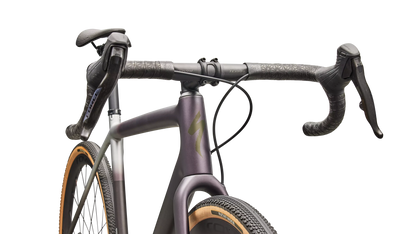

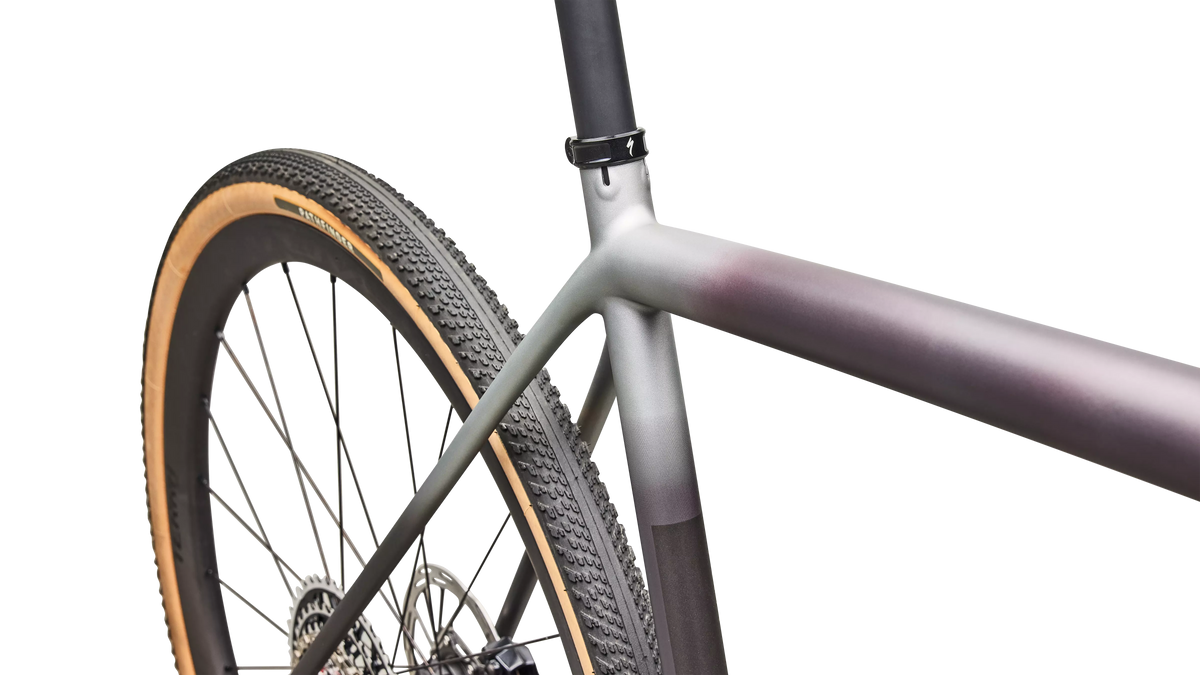

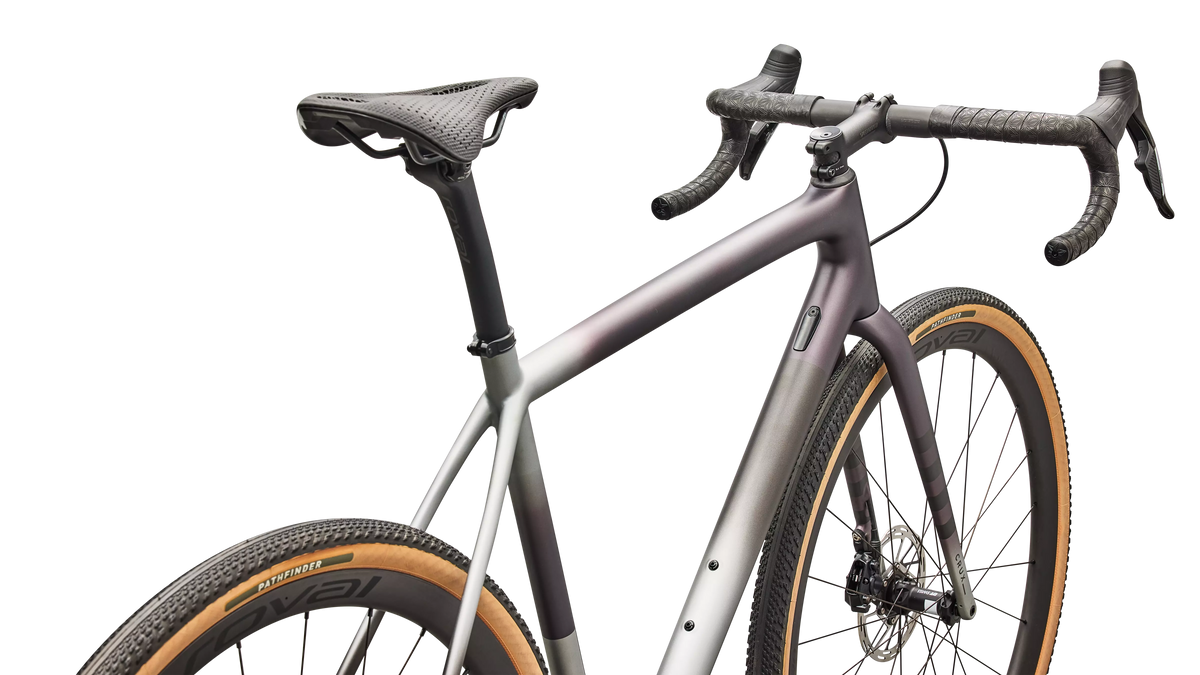

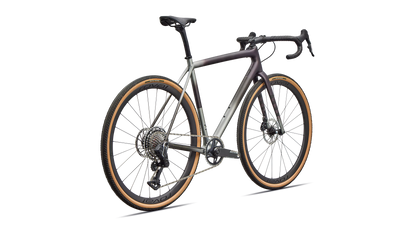

Crux Pro - SRAM Force XPLR AXS
Crux Pro - SRAM Force XPLR AXS
SKU:91426-1049
Out of Stock In Store
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Pro comes spec'd with all-new SRAM Force XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Share

Technical Specifications
Frameset
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM Force AXS E1, hydraulic disc, 160mm rotor
Rear Brake
SRAM Force AXS E1, hydraulic disc, 160mm rotor
Drivetrain
Shift Levers
SRAM Force AXS E1 HRD
Rear Derailleur
SRAM Force XPLR AXS E1
Cassette
SRAM Force XPLR XG-1371, 13-speed, 10-46t
Chain
SRAM Force E1
Crankset
SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter
Bottom Bracket
SRAM DUB BSA
Wheels & Tires
Front Wheel
Roval Terra CL rim, 25mm internal width, 32mm depth, 24h, tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Rear Wheel
Roval Terra CL rim, 25mm internal width, 32mm depth, 24h, tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Front Tire
Pathfinder 700x40, Tubeless Ready
Rear Tire
Pathfinder 700x40, Tubeless Ready
Inner Tubes
700x32-50mm, 40mm Presta valve
Cockpit
Stem
Specialized Pro SL, alloy, 4-bolt
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Saddle
Power Pro Mirror, Hollow Ti rails
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 30mm
Weight
Weight
7.64 kg (16 lb, 13.5 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 70 | 80 | 90 | 100 | 110 | 110 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 330 | 380 | 380 | 380 |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
