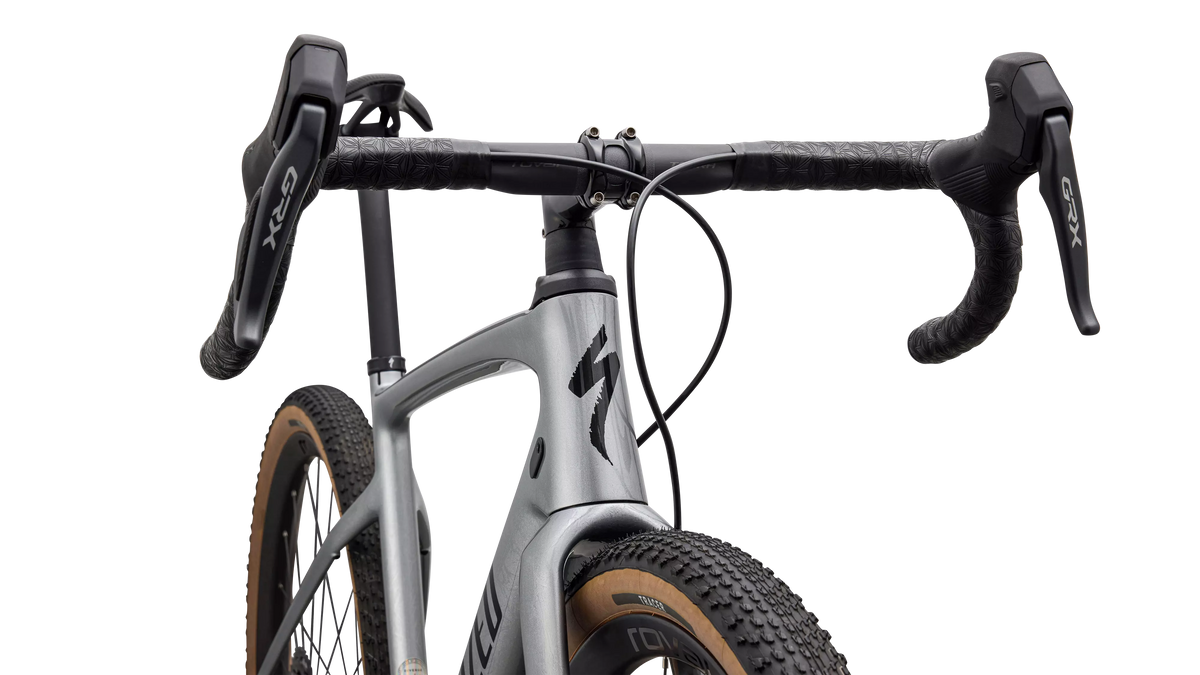

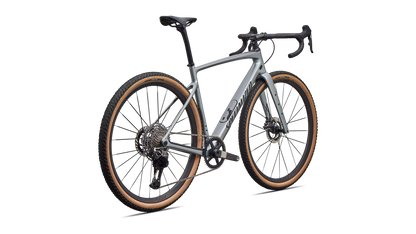

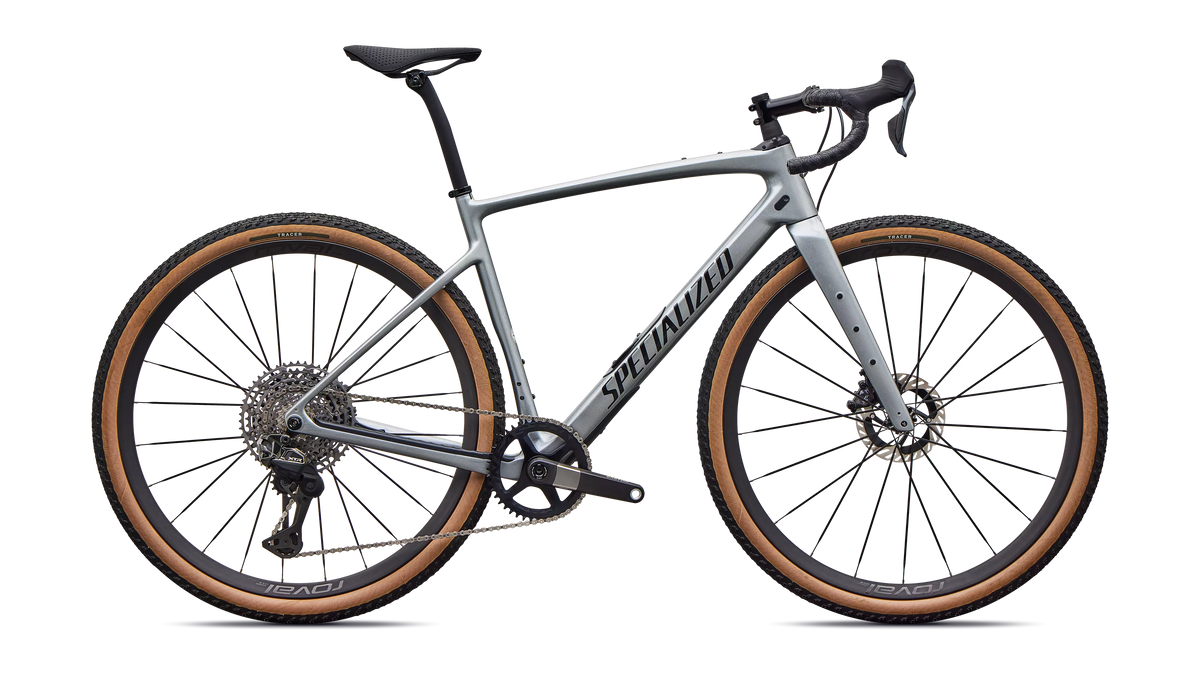

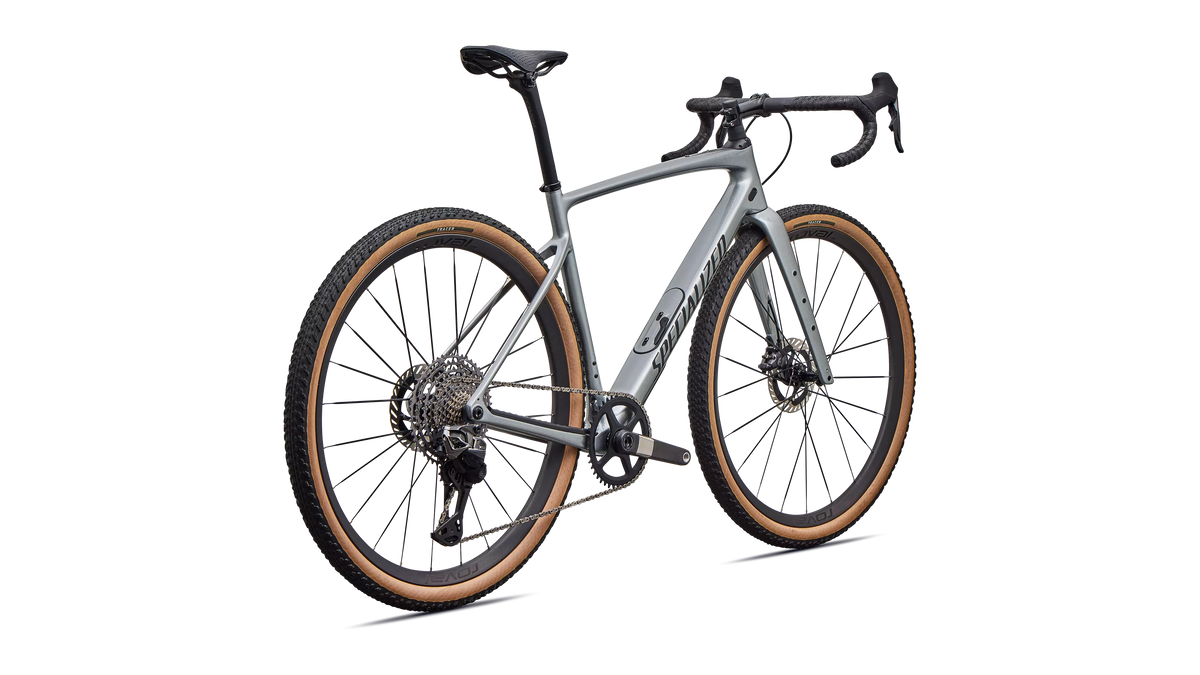

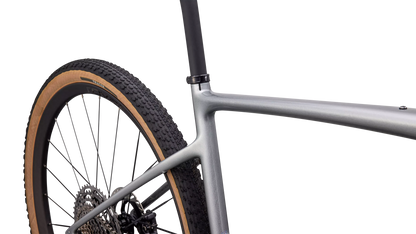

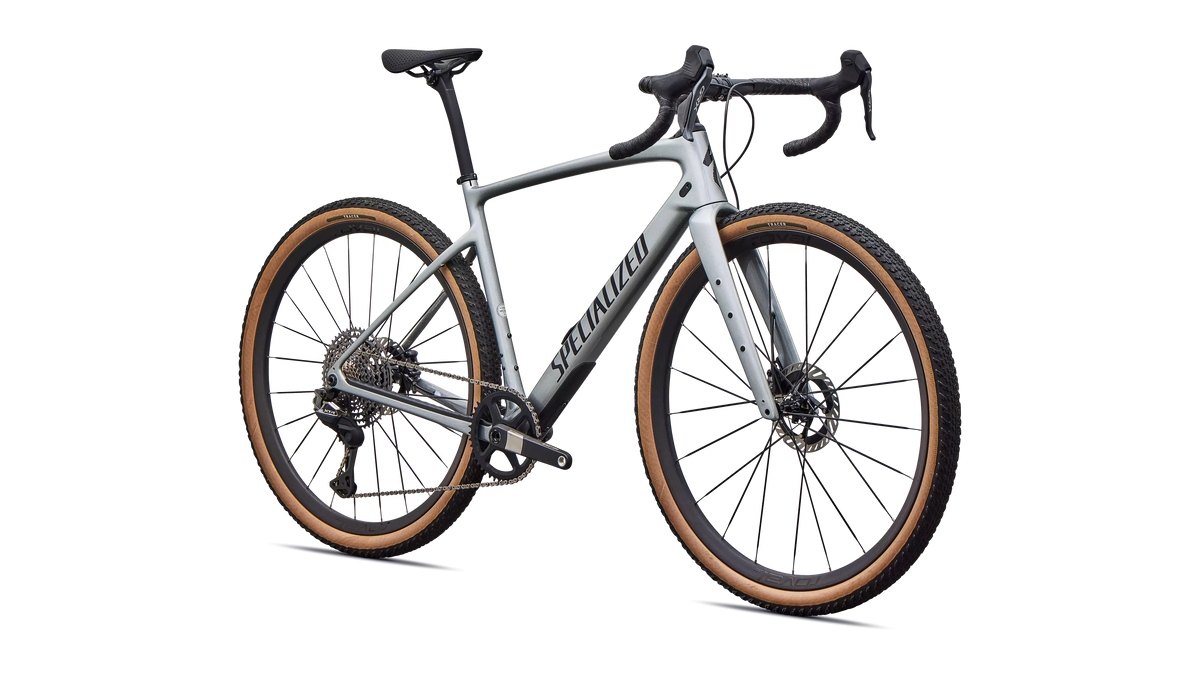

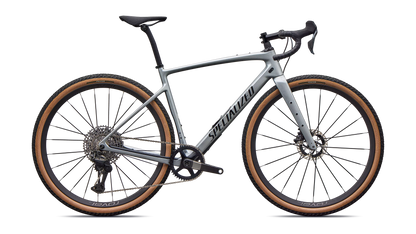

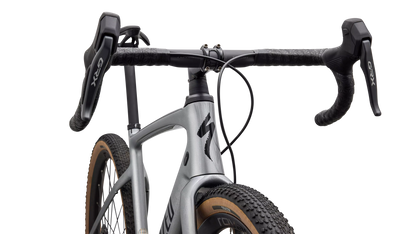

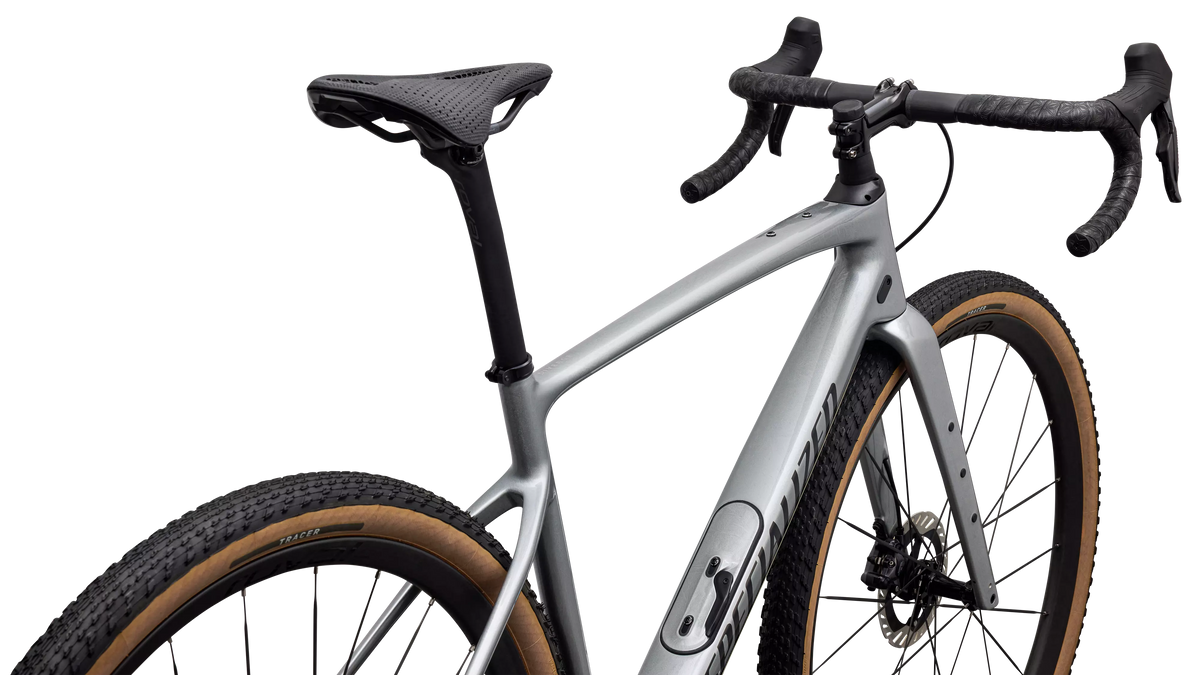

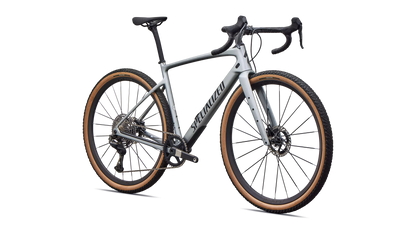

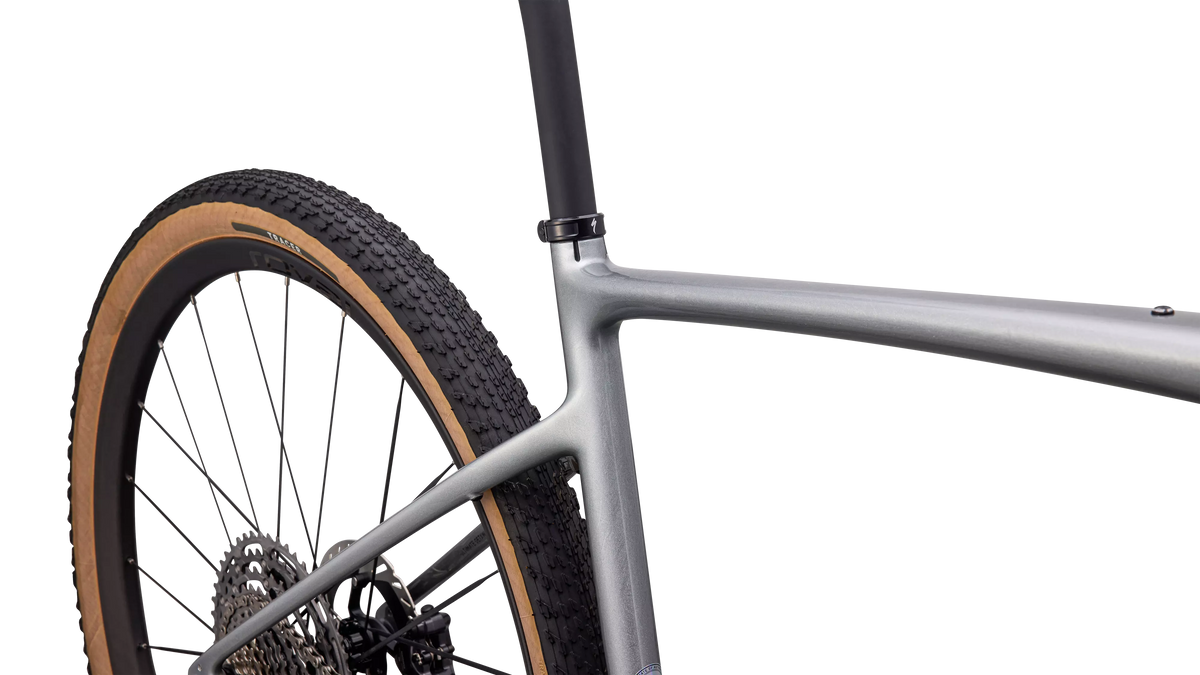

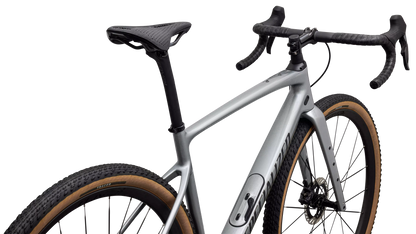

Diverge 4 Pro LTD - Shimano XTR/GRX Di2
Diverge 4 Pro LTD - Shimano XTR/GRX Di2
SKU:95427-1152
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
Race tuned and adventure approved. The Diverge 4 gravel bike is built for full gas race days and off-grid epics. With Future Shock 3.0 suspension, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon, or your rivals. It is built for both.
- Future Shock 3.3 w/ Smooth Boot front suspension
- FACT 9r carbon frame with SWAT™ Door integrated storage and UDH dropout
- Shimano GRX Di2 shifters with XTR Di2 12-speed rear derailleur and 4iiii power meter
- Roval Terra CLX III carbon wheels with 700x50c Tracer TLR tyres
Share

Technical Specifications
Frameset
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake
Shimano GRX BR-RX820, hydraulic disc
Rear Brake
Shimano GRX BR-RX820, hydraulic disc
Drivetrain
Shift Levers
Shimano GRX Di2 ST-RX825
Rear Derailleur
Shimano XTR Di2 RD-M9250, 12-speed
Cassette
Shimano XTR CS-M9200, 12-speed, 10-51t
Chain
Shimano XTR CN-M9100
Crankset
Easton EC90 ALX, 40t chainring, 4iiii power meter
Bottom Bracket
Easton Bottom Bracket, BSA 68
Wheels & Tires
Front Tire
Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready
Front Wheel
Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)
Rear Tire
Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready
Rear Wheel
Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)
Inner Tubes
700x32-50mm, 40mm Presta valve
Cockpit
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Saddle
S-Works Power with Mirror
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 30.8mm
Weight
Weight
8.5 kg (18 lb, 11.8 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 90mm | 90mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
