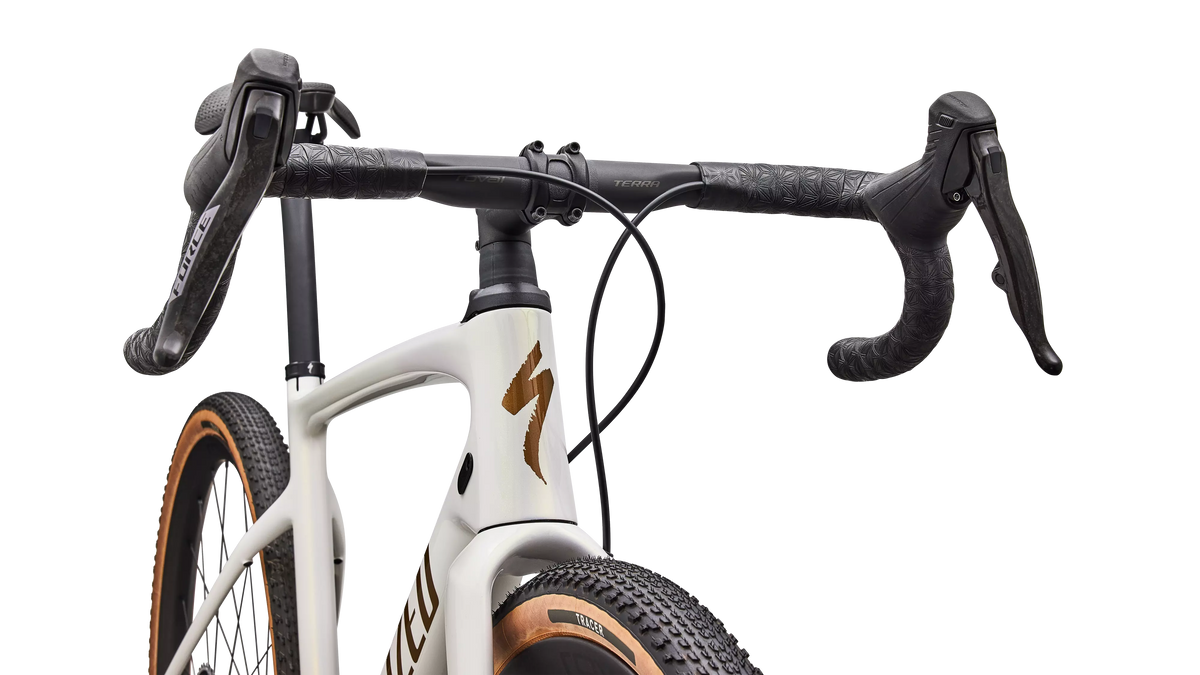

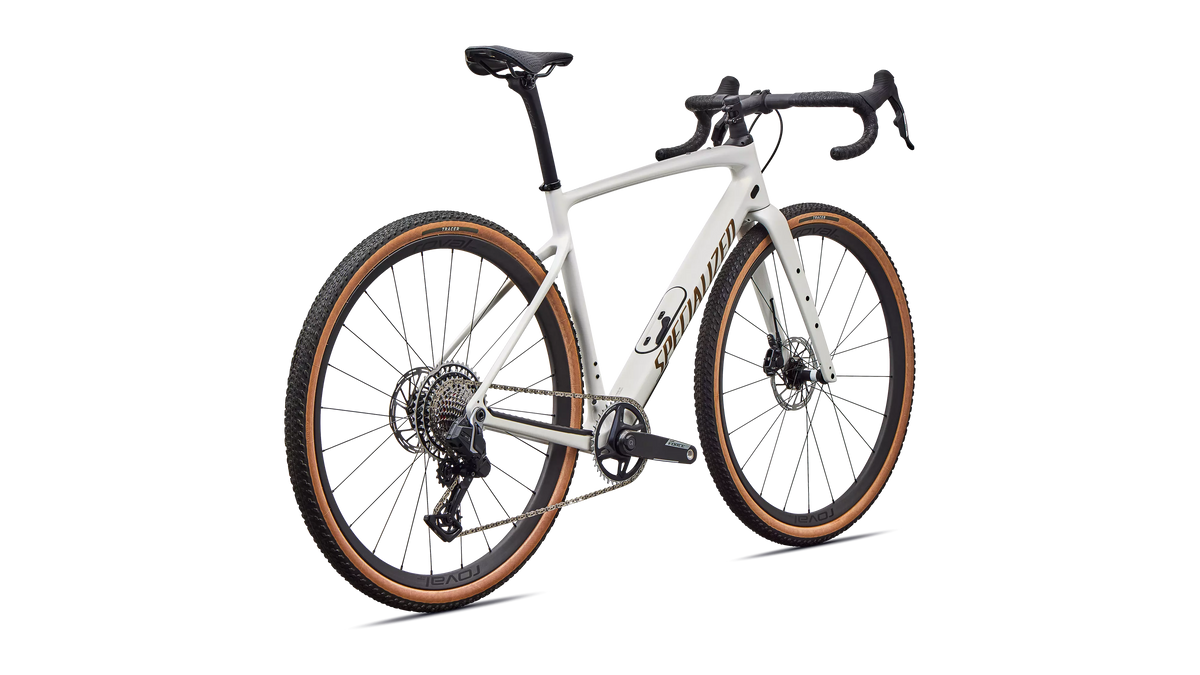

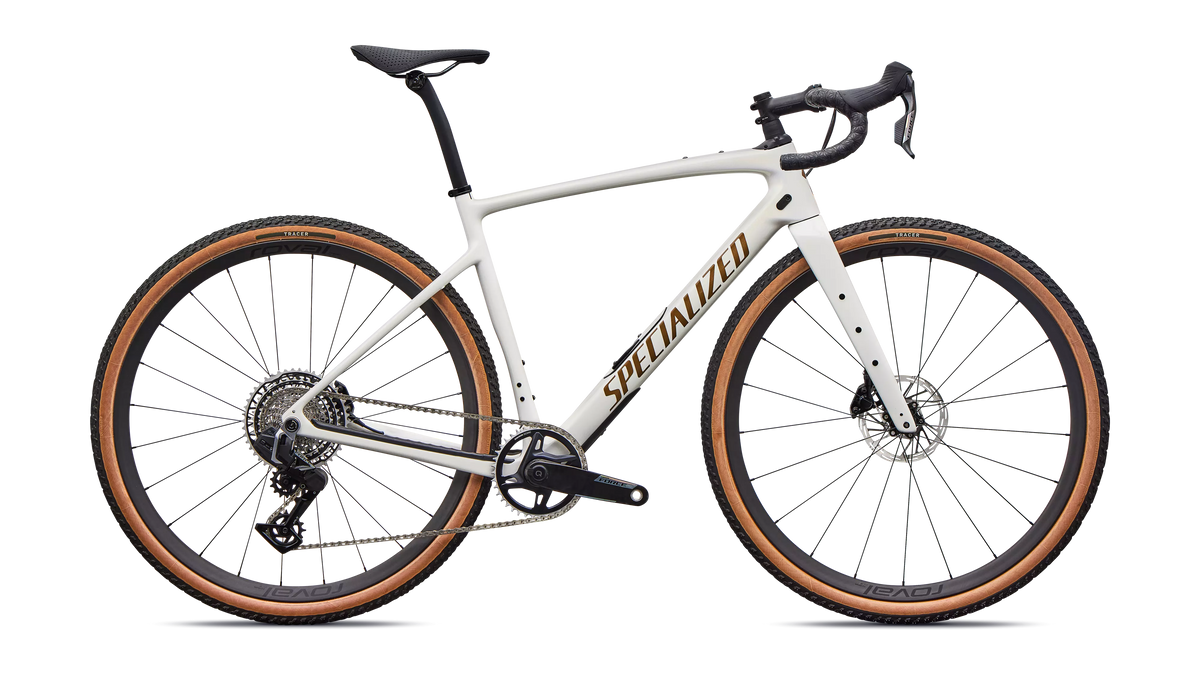

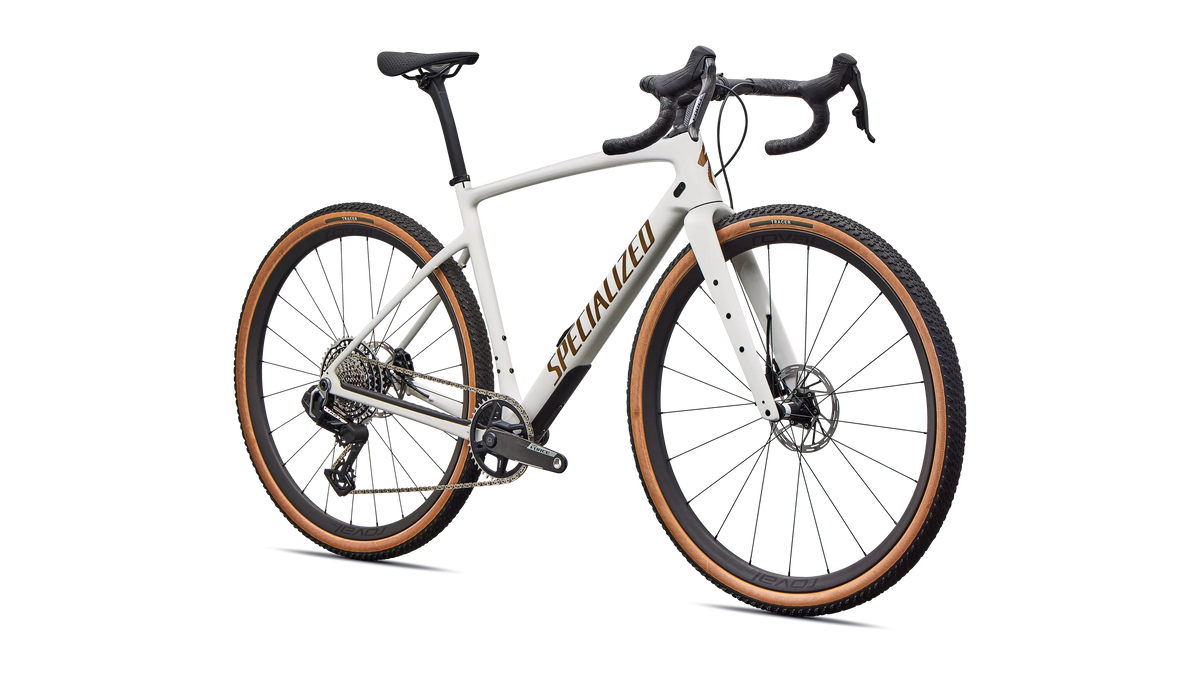

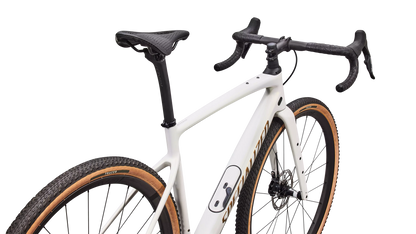

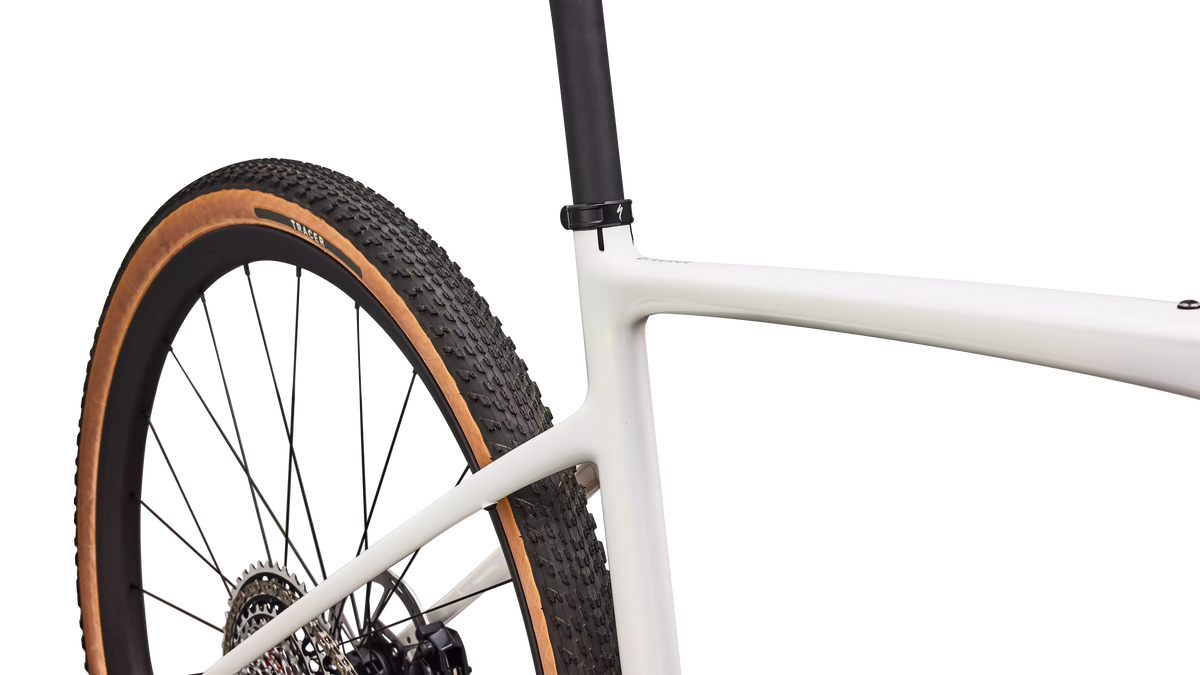

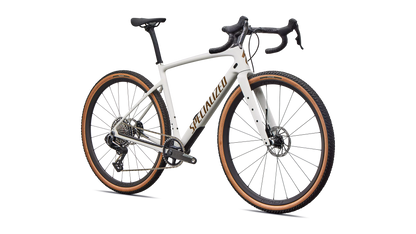

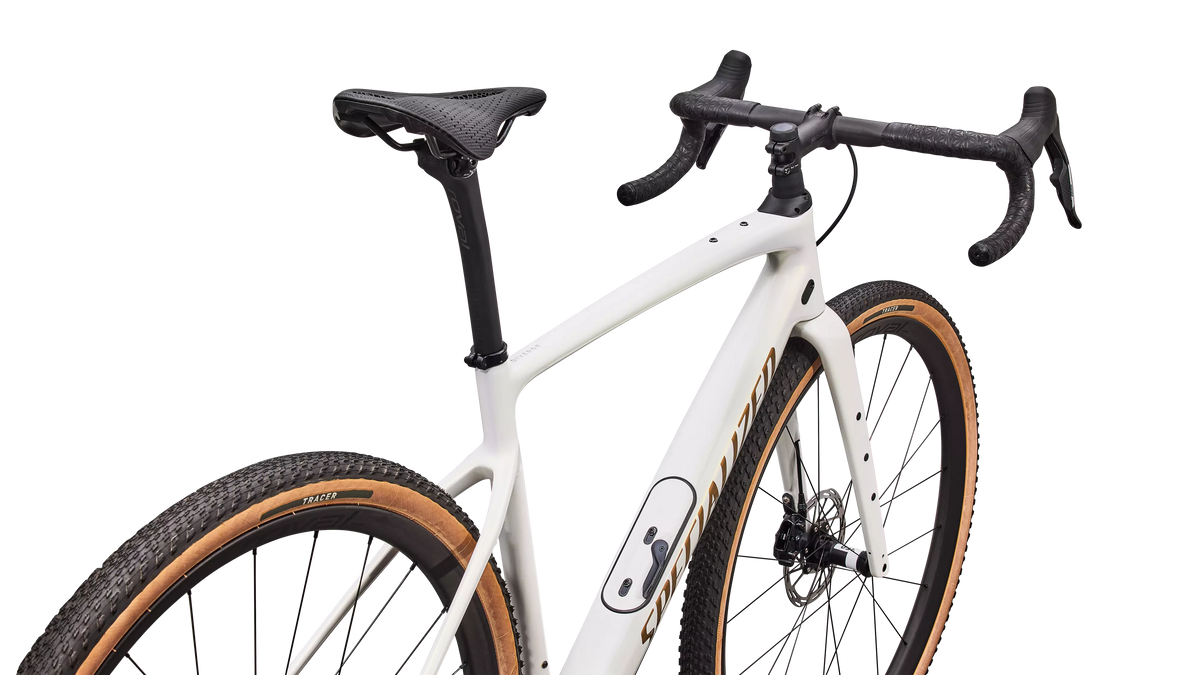

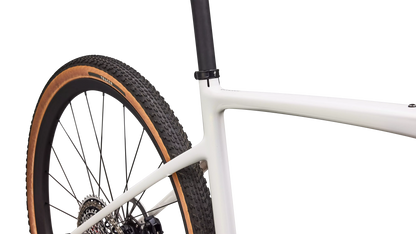

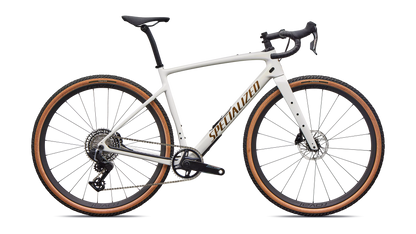

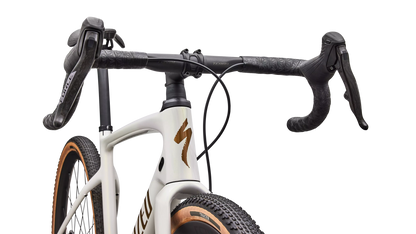

Diverge 4 Pro - SRAM Force XPLR
Diverge 4 Pro - SRAM Force XPLR
SKU:95427-1049
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
- Future Shock 3.3 w/ Smooth Boot front suspension
- FACT 9r carbon frame with SWAT™ Door integrated storage and UDH dropout
- SRAM Force AXS E1 XPLR 13-speed drivetrain with Quarq power meter
- Roval Terra CL III carbon wheels with 700x45 Tracer TLR tyres
Share

Technical Specifications
Frameset
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake
SRAM Force E1, hydraulic disc
Rear Brake
SRAM Force E1, hydraulic disc
Drivetrain
Shift Levers
SRAM Force AXS E1, hydraulic disc
Rear Derailleur
SRAM Force AXS E1 XPLR, 13-speed
Cassette
SRAM Force E1 XPLR, 13-speed, 10-46t
Chain
SRAM Force E1
Crankset
SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter
Bottom Bracket
SRAM DUB BSA 68 Wide
Wheels & Tires
Front Tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Front Wheel
Roval Terra CL III, 27mm internal width, tubeless ready, 25.5mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Revolution spokes
Rear Tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear Wheel
Roval Terra CL III, 27mm internal width, tubeless ready, 25.5mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Revolution spokes
Inner Tubes
700x32-50mm, 40mm Presta valve
Cockpit
Stem
Specialized Pro SL, alloy, 4-bolt
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Saddle
Power Pro Mirror, hollow Ti rails
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 30.8mm
Weight
Weight
8.72 kg (19 lb, 3.6 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 90mm | 90mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
