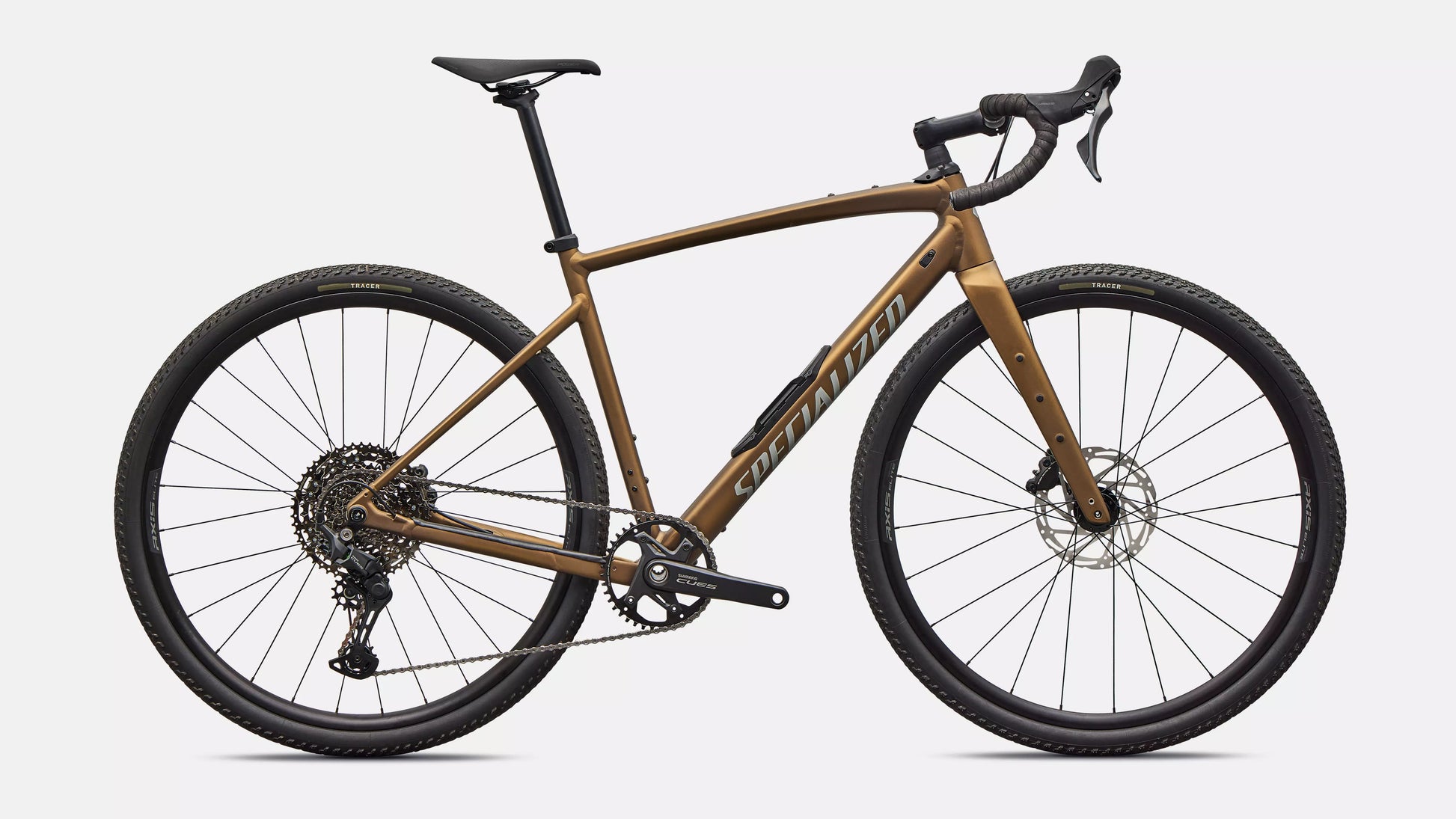

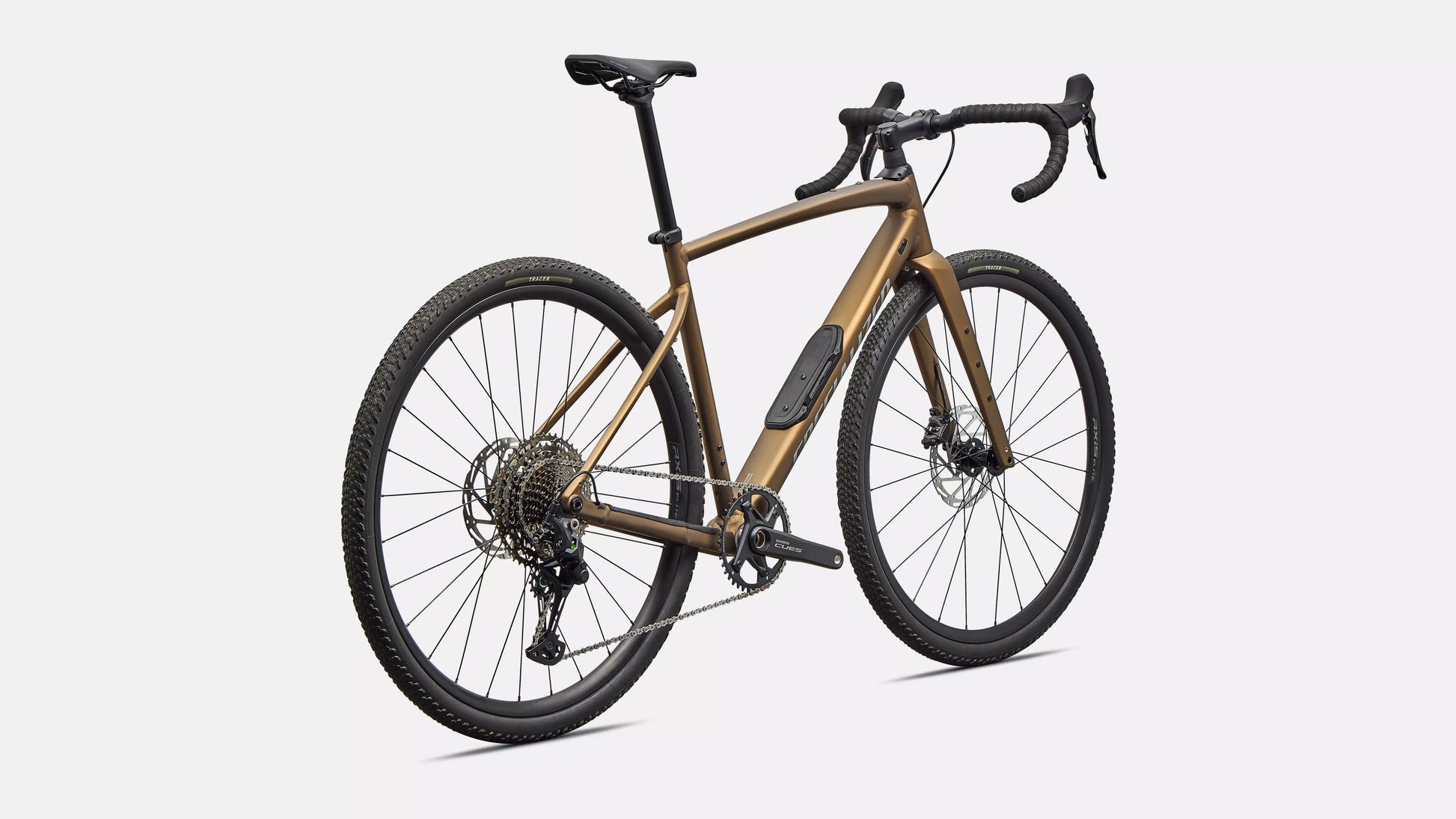

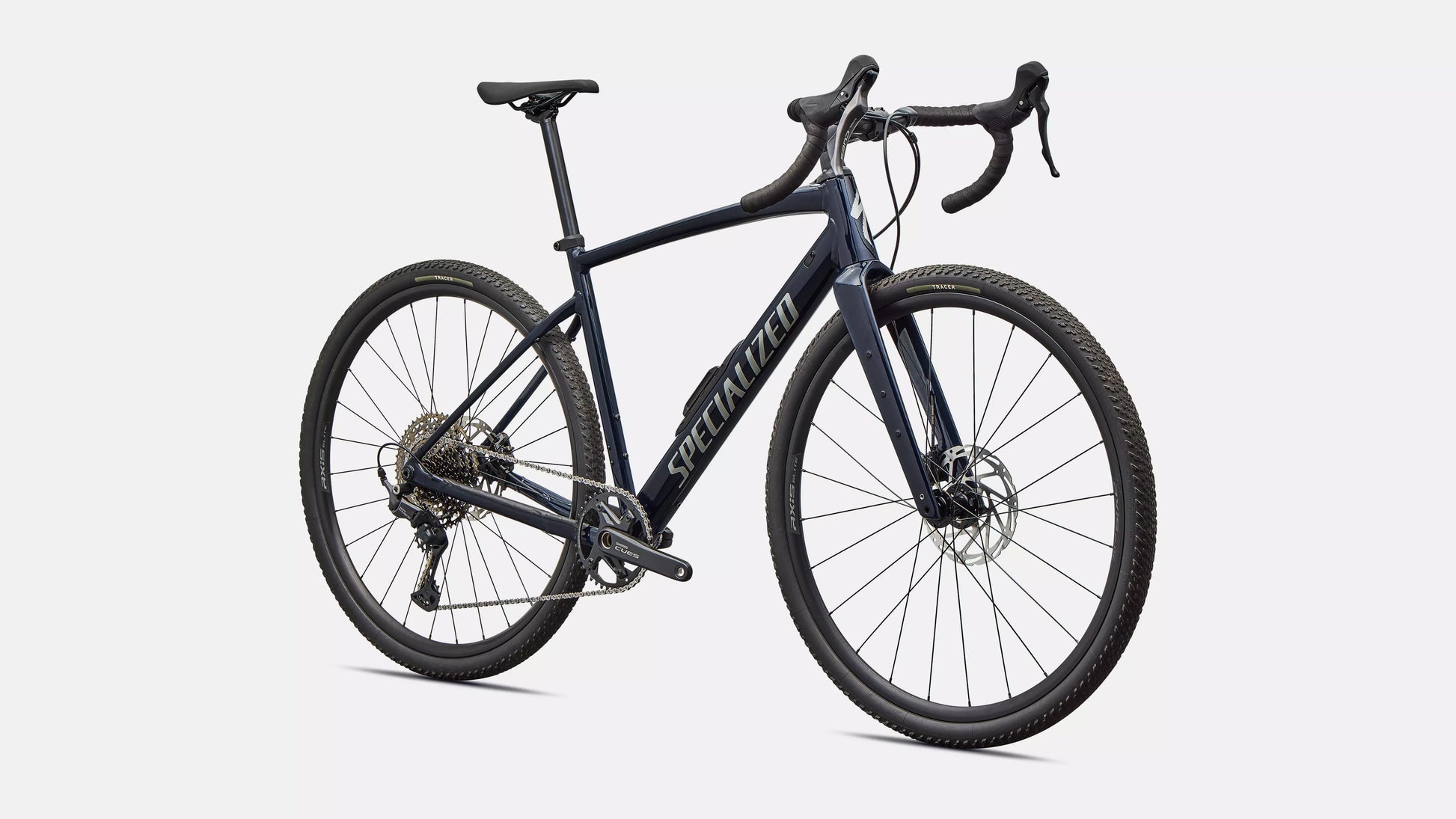

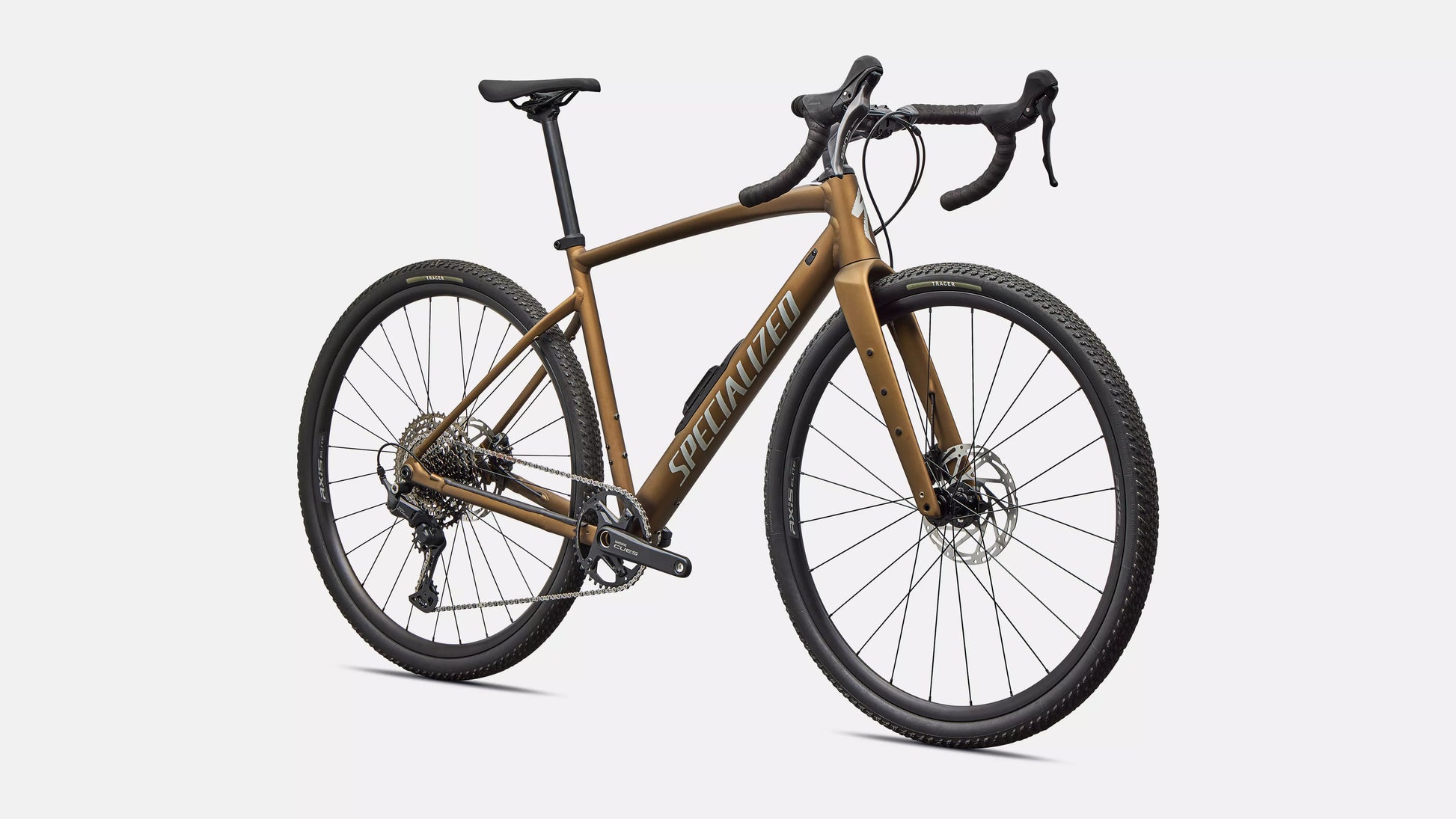

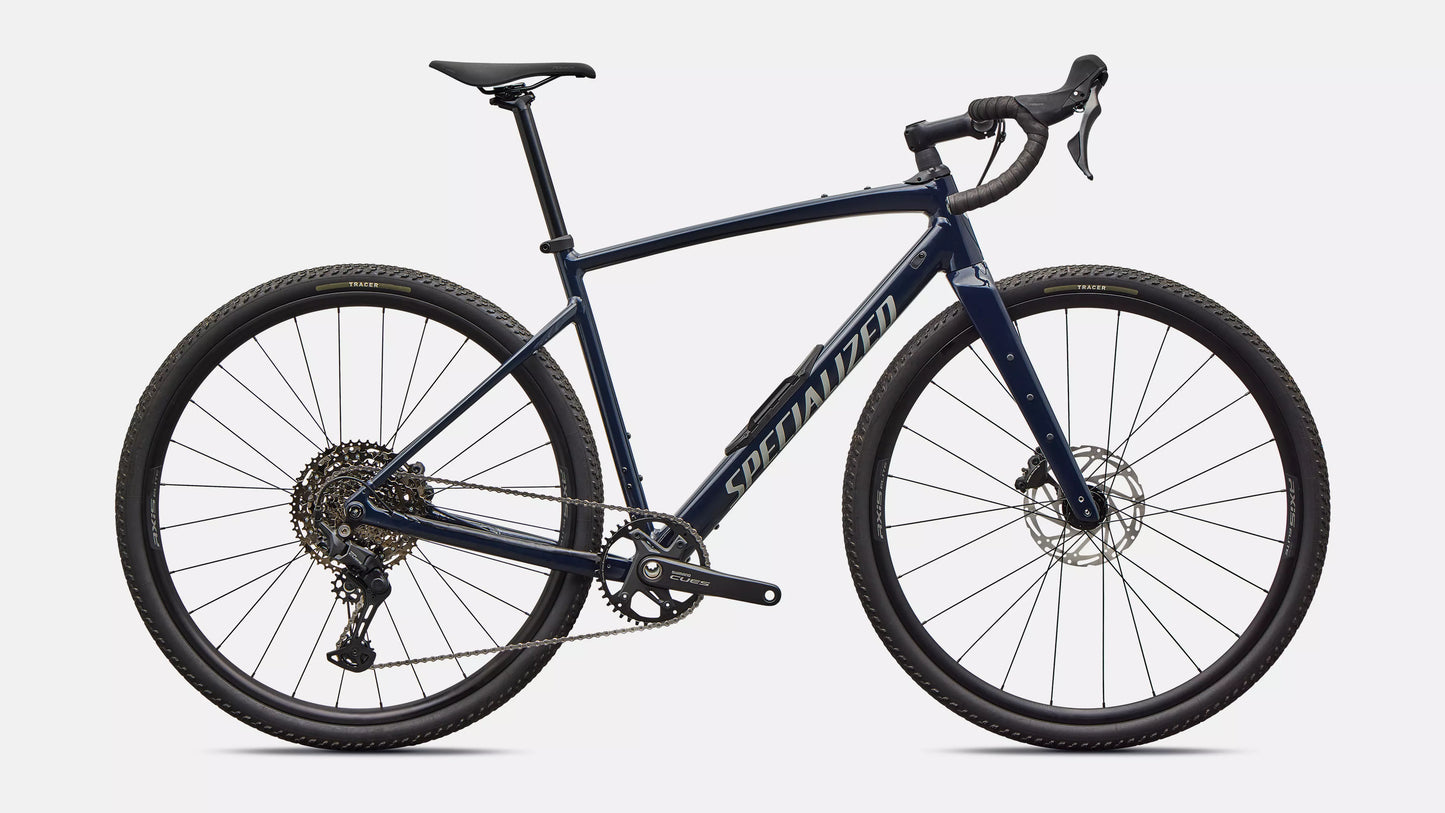

Diverge 4 Sport Alloy Shimano CUES
Diverge 4 Sport Alloy Shimano CUES
SKU:95426-6249
Out of stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use: Gravel Adventure/Race
Frameset: E5 Premium Alloy
Suspension: Future Shock 3.1
Drivetrain/Wheels: New Shimano CUES 1x11 / Axis
Storage: SWAT 3.0
Weight: Diverge Alloy Sport: 10.74kg
Technical Specifications
Frameset
Frame: Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork: Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake: Shimano CUES Hydraulic Brake
Rear Brake: Shimano CUES Hydraulic Brake
Drivetrain
Shift Levers: Shimano CUES ST-U6030
Rear Derailleur: Shimano CUES 11-speed w/ Shadow Plus
Cassette: Shimano, CS-LG400-11, CUES, 11-Speed, 11-50t
Chain: Shimano CN-LG500
Crankset: Shimano CUES FC-U6040, 40t
Bottom Bracket: Shimano Threaded BSA BB
Wheels & Tires
Front Tire: Tracer 700x45, Tubeless Ready
Front Wheel: AXIS Elite Disc
Rear Tire: Tracer 700x45, Tubeless Ready
Rear Wheel: AXIS Elite Disc
Inner Tubes: Presta, 700x32-50mm
Cockpit
Stem: Future Stem, Comp
Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape: Supacaz Suave
Saddle: Body Geometry Power Sport, steel rails
SeatPost: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Seat Binder: Alloy, 30.8mm
Accessories
SWAT: SWAT 3.0 internal downtube storage
Product Details
Product ID: 223511
Weight
Weight: 10.74 kg (23 lb, 10.8 oz)
Weight Size: 56
Geometry
49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° |
