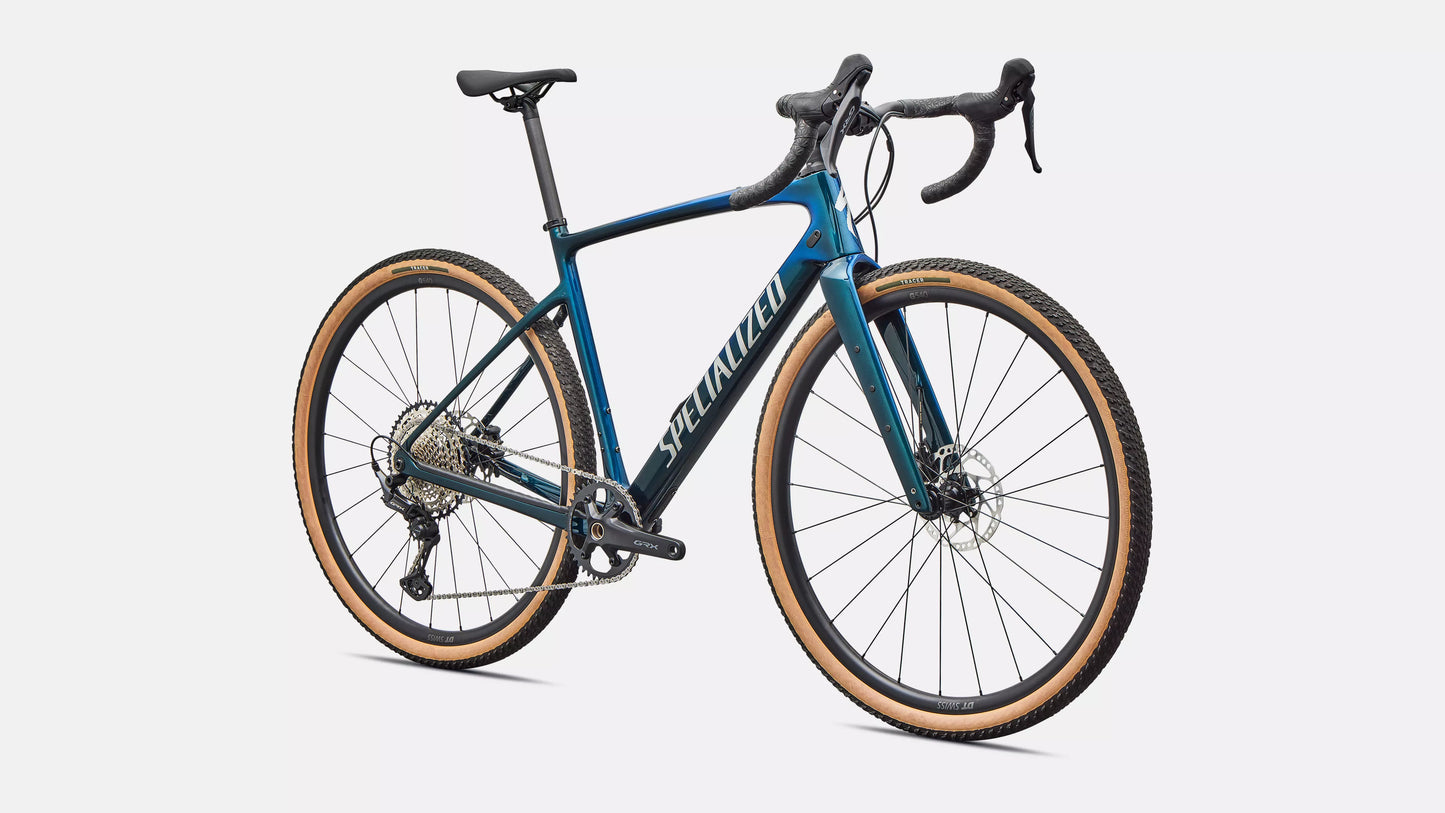

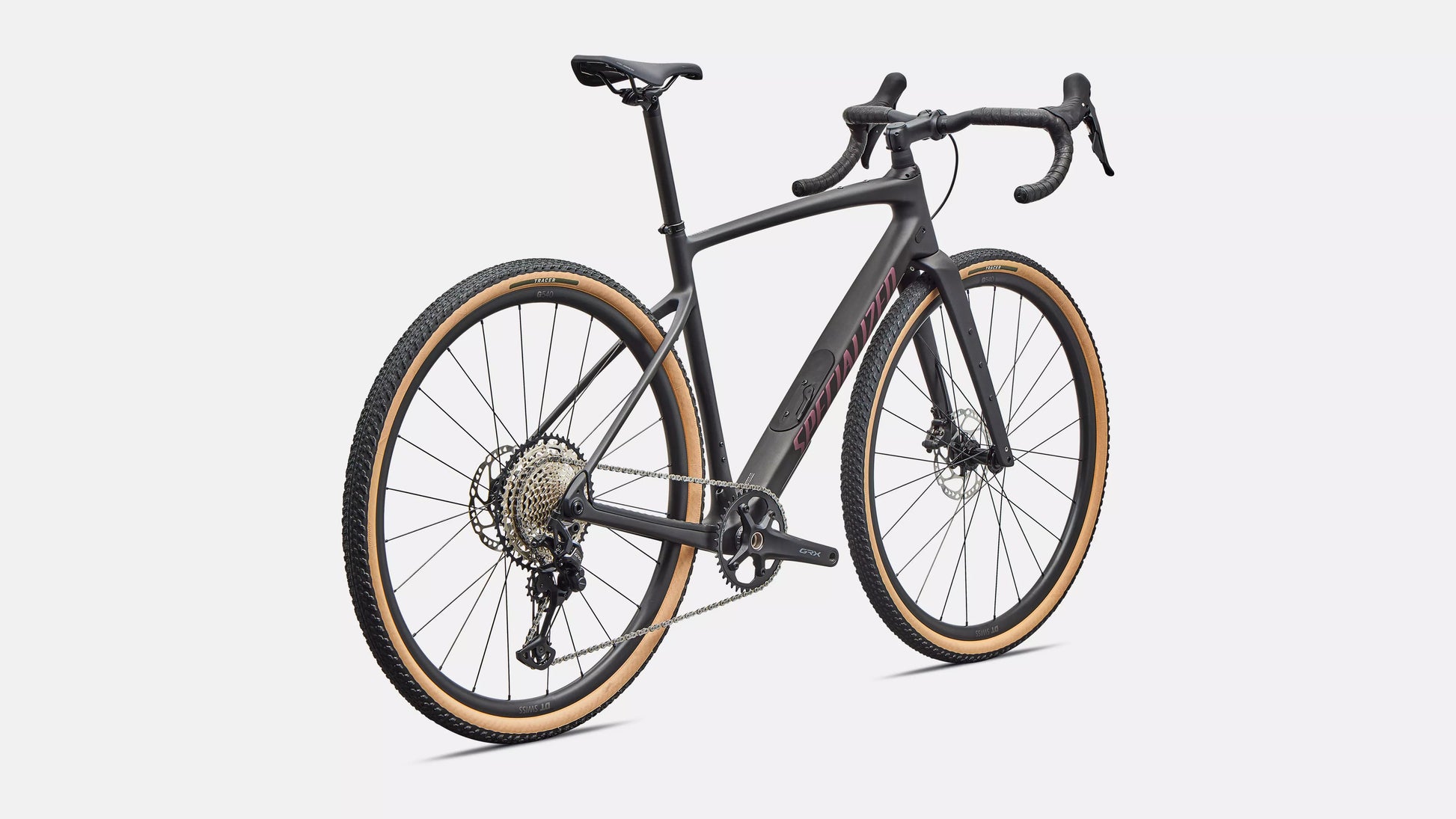

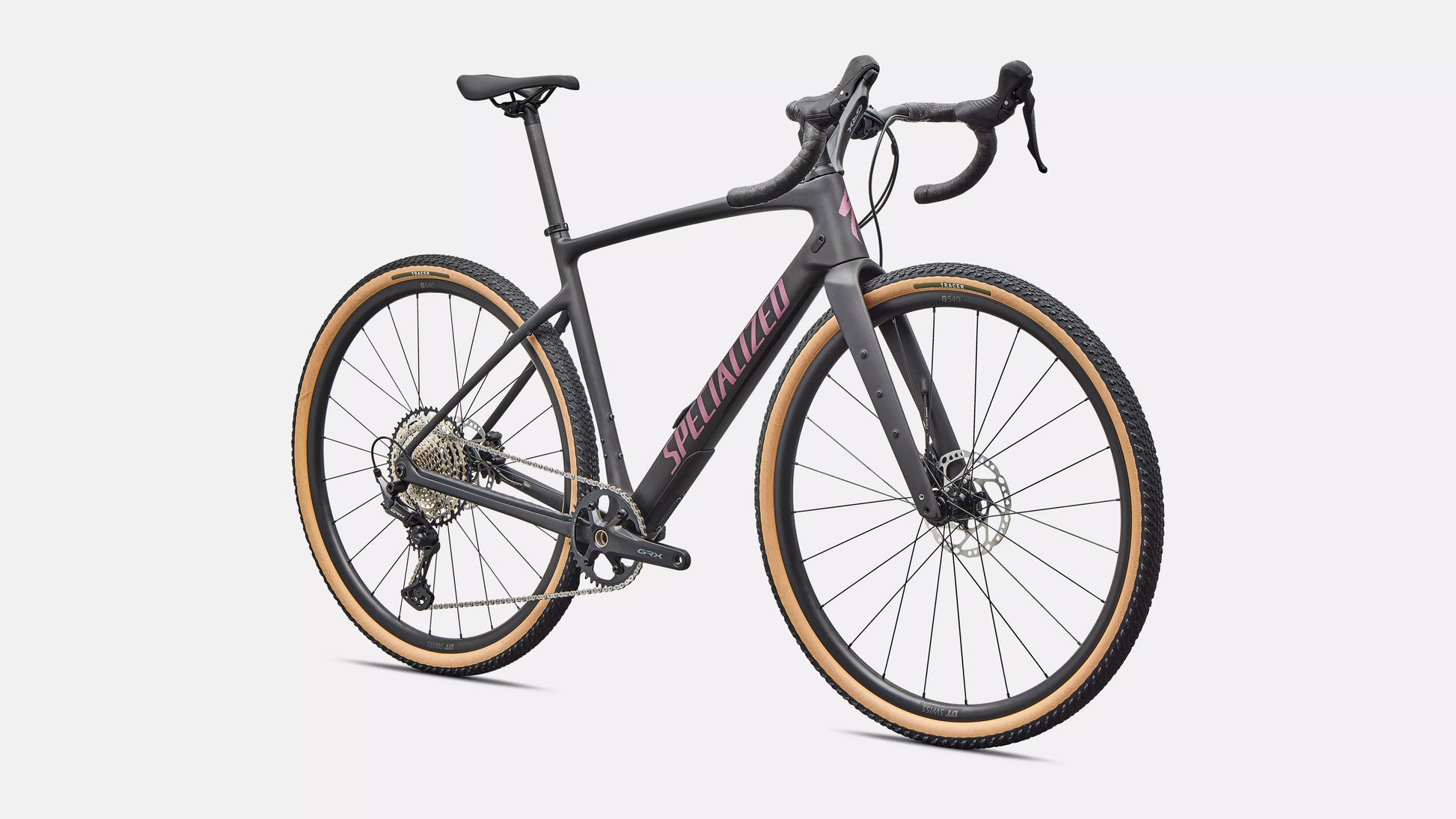

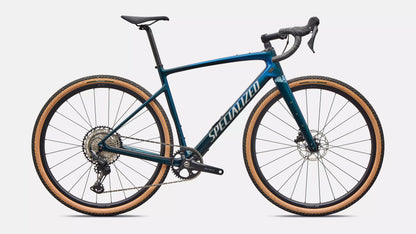

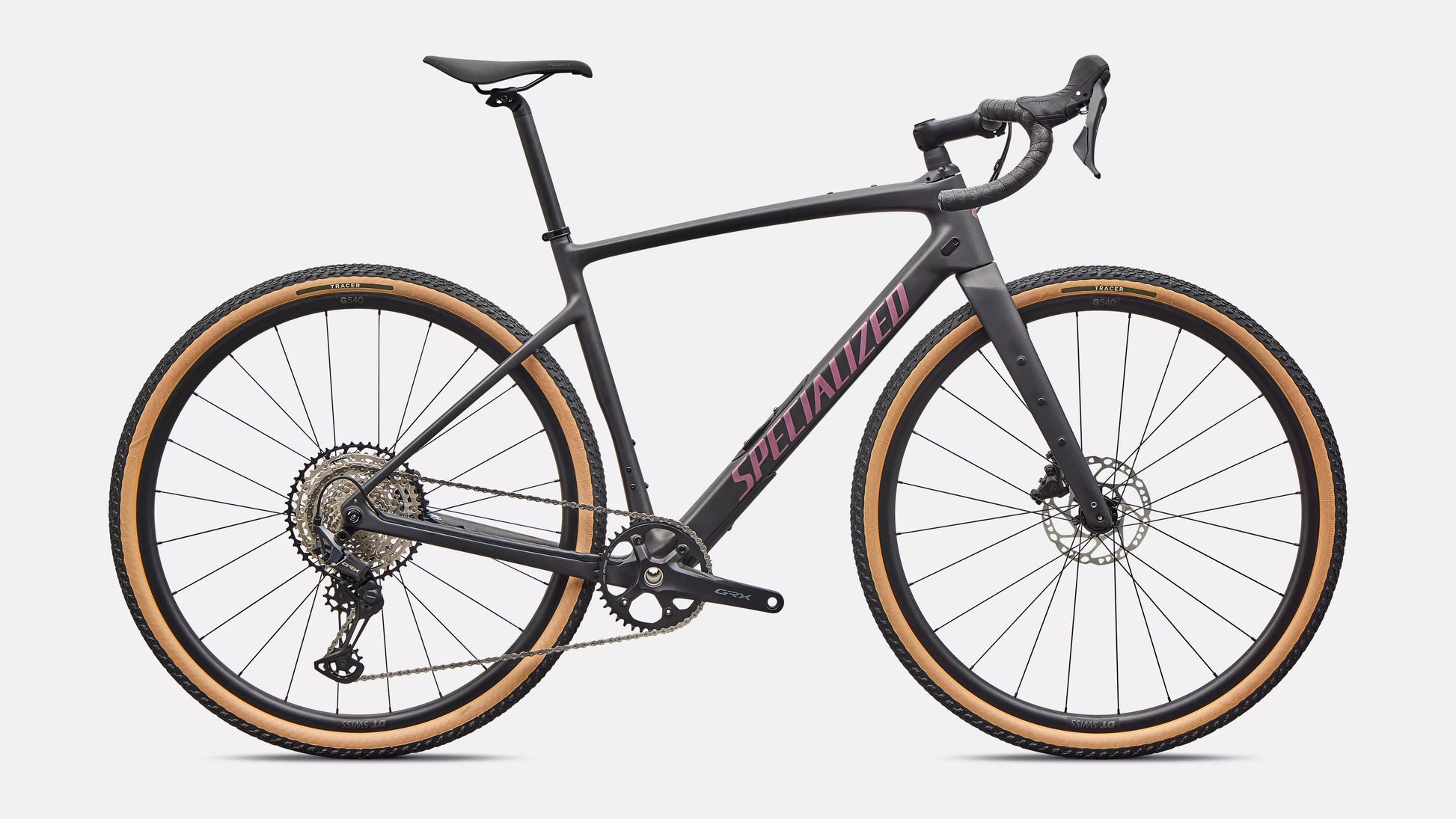

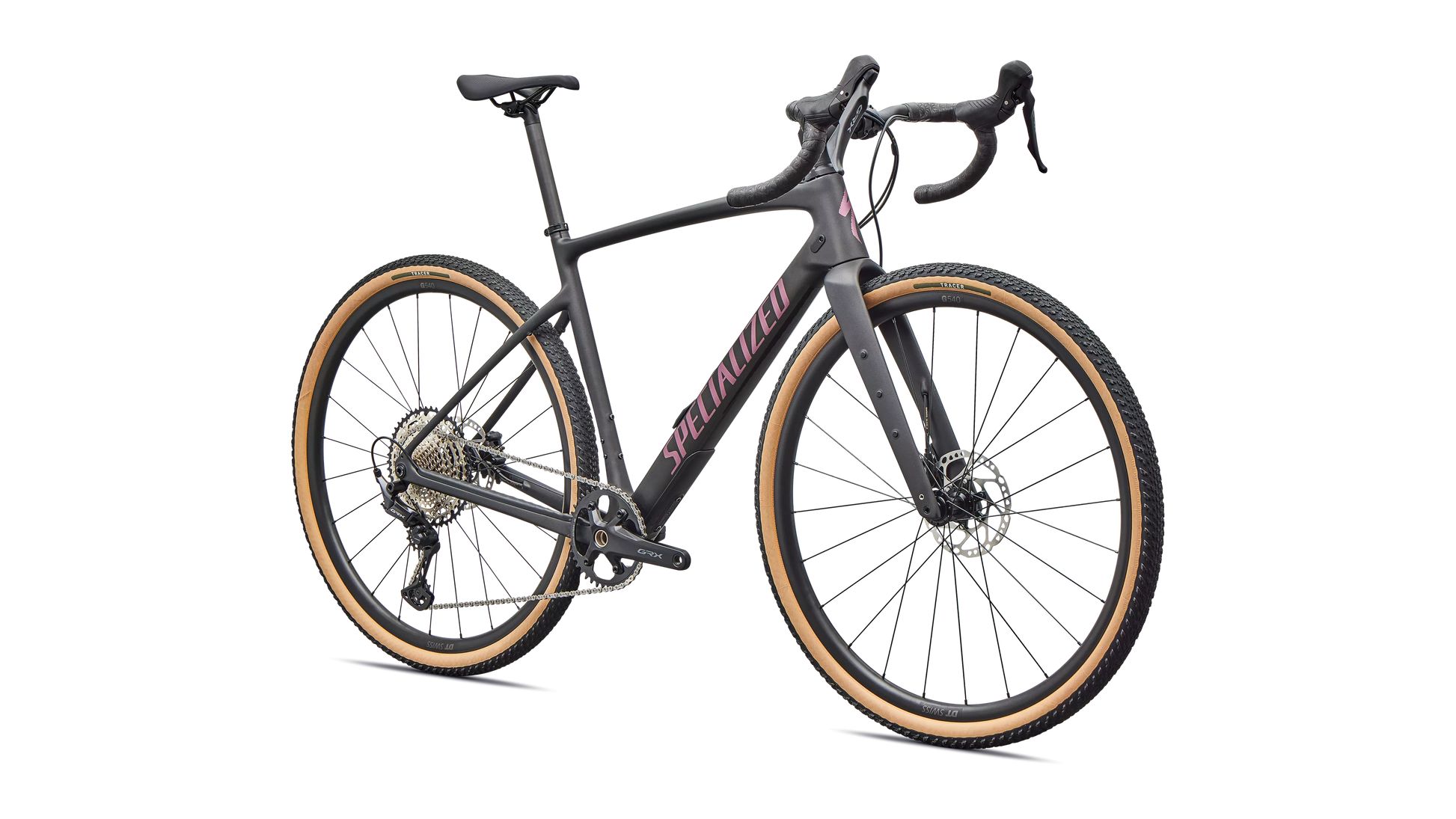

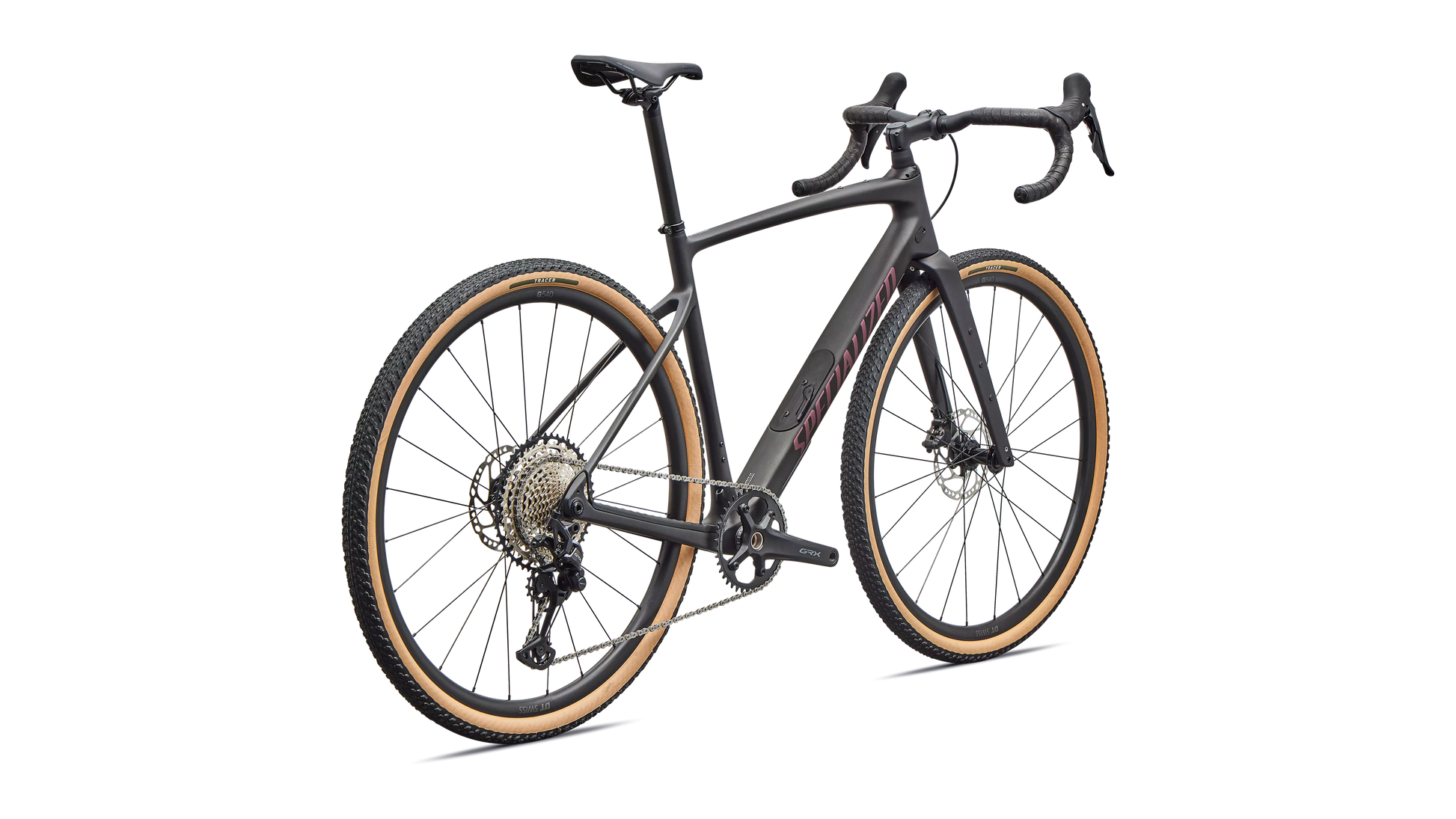

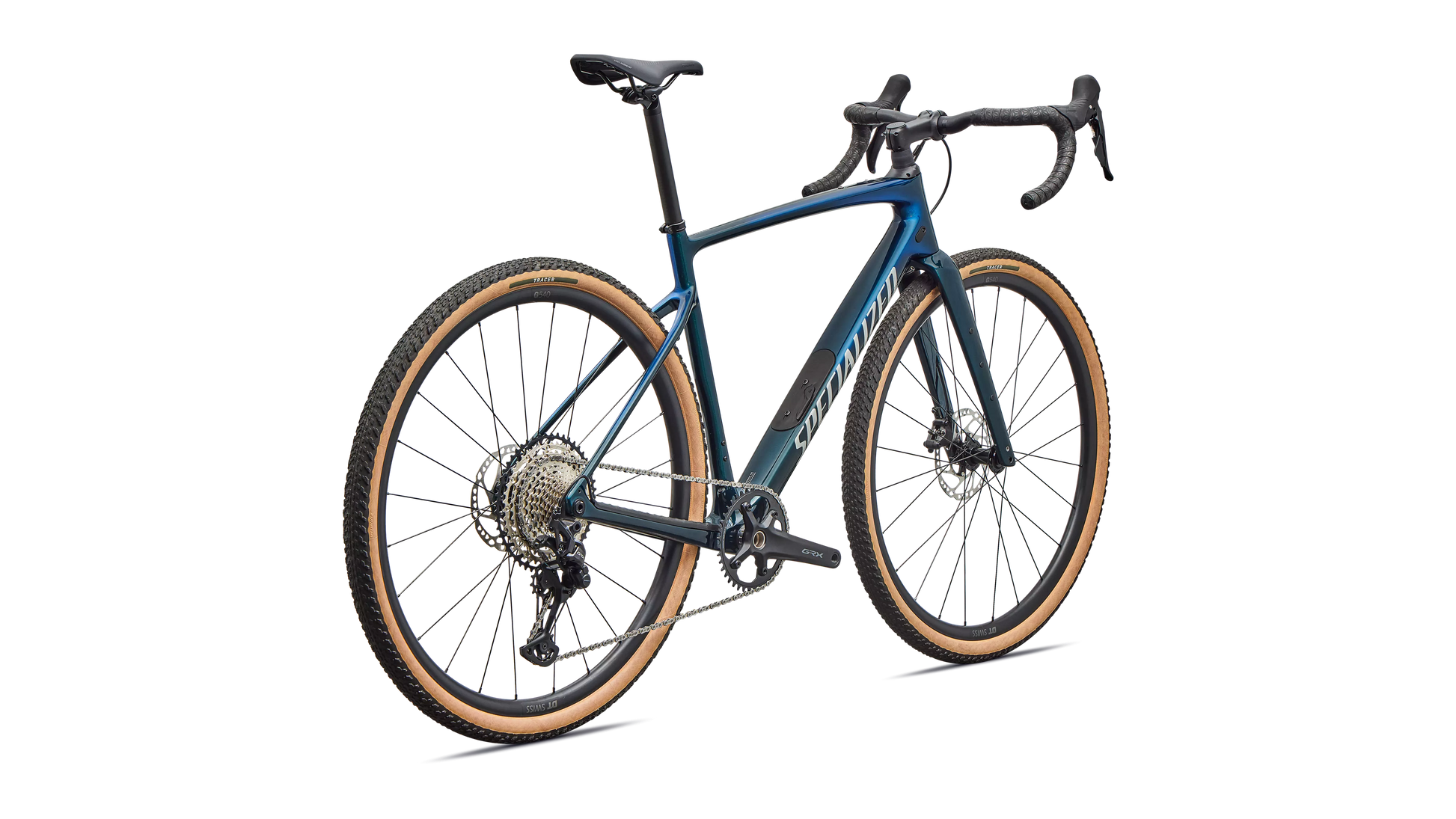

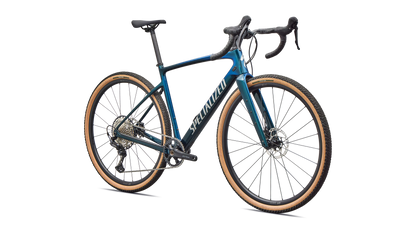

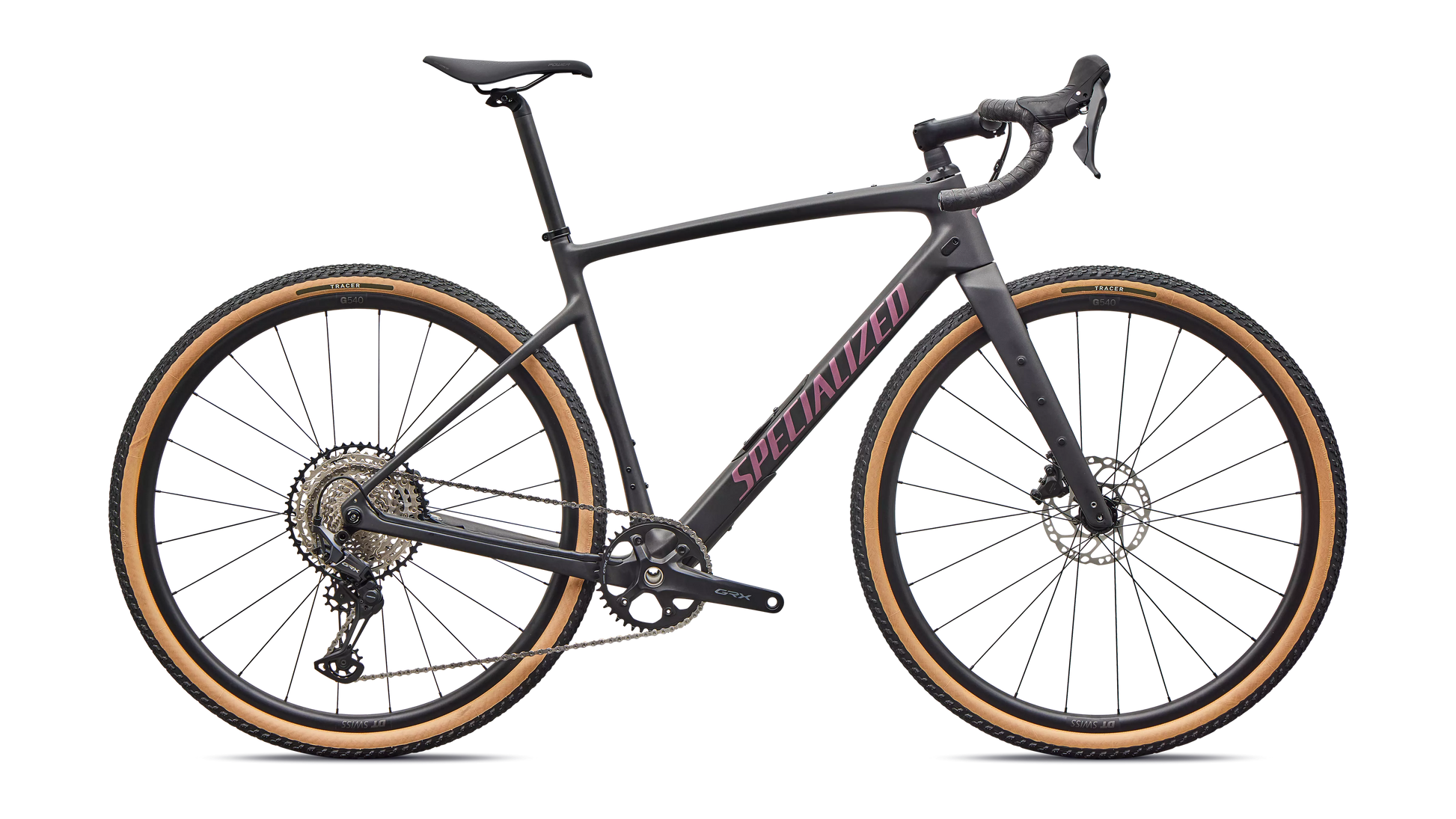

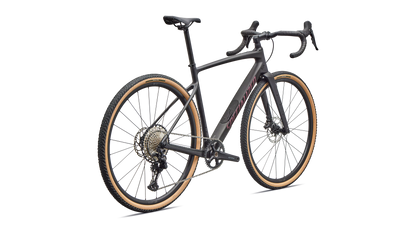

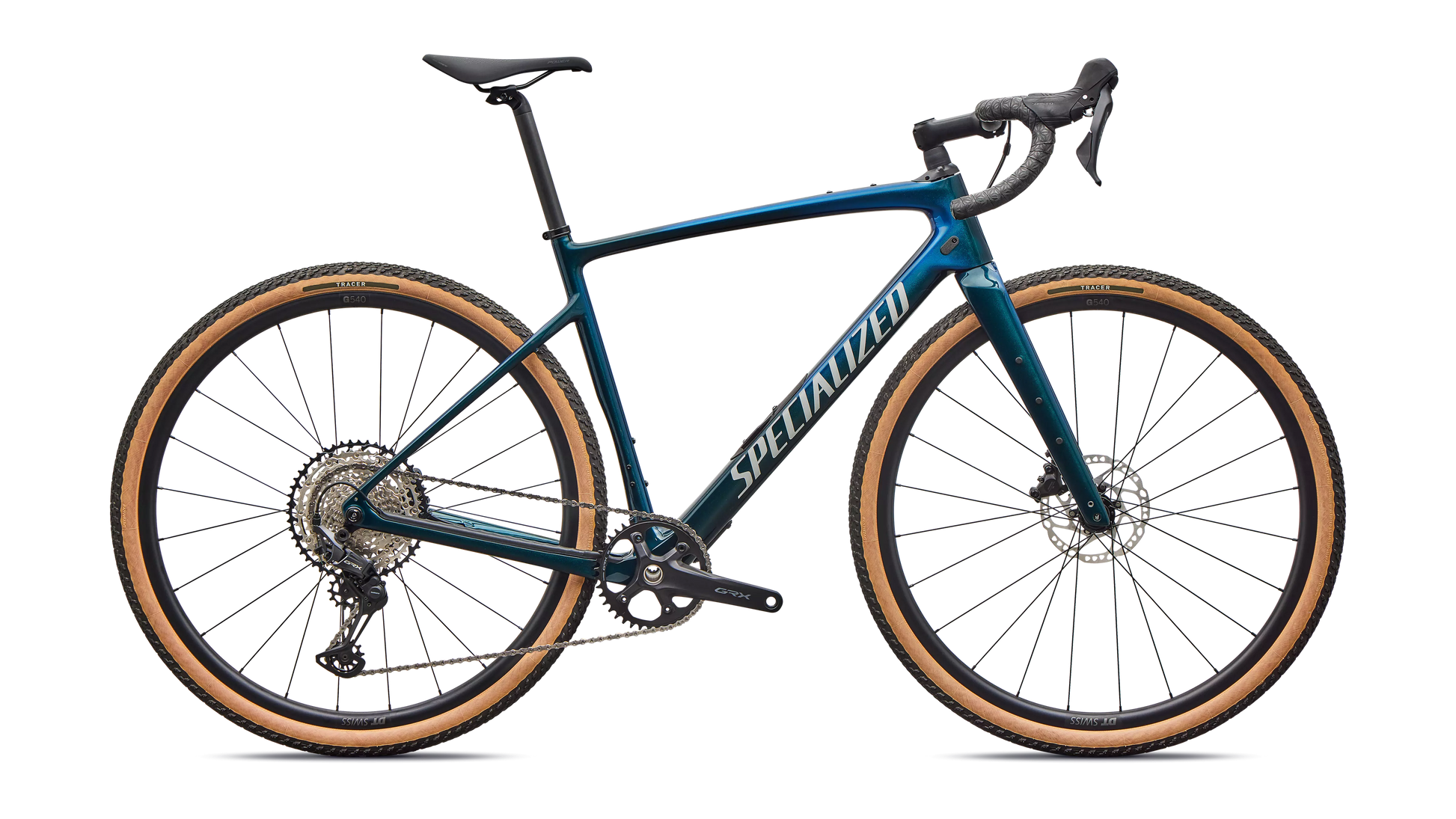

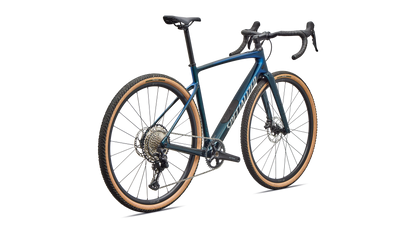

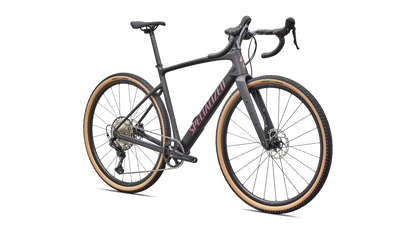

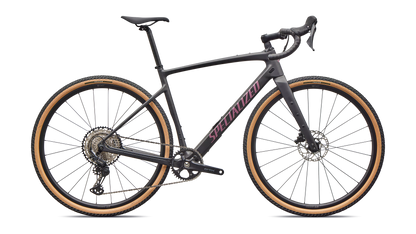

Diverge 4 Sport Carbon Shimano GRX 600
Diverge 4 Sport Carbon Shimano GRX 600
SKU:95426-6556
In stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use: Gravel Adventure/Race
Frameset: FACT 9r Carbon
Suspension: Future Shock 3.1
Drivetrain/Wheels: Shimano GRX 600 1x12 / DT G540
Storage: SWAT 4.0
Weight: Diverge Sport: 9.79kg
Share

Technical Specifications
Frameset
Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork: Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake: Shimano GRX 600, Hydraulic Disc
Rear Brake: Shimano GRX 600, Hydraulic Disc
Drivetrain
Shift Levers: Shimano GRX RX820 12-speed
Rear Derailleur: Shimano GRX RX822-SGS, 12-speed
Cassette: Shimano SLX, CS-M7100, 12-speed, 10-51t
Chain: Shimano SLX, M7100, 12-speed
Crankset: Shimano GRX FC-RX610, 40t
Bottom Bracket: Shimano BSA Threaded 68mm
Wheels & Tires
Front Tire: Tracer 700x45, Tan Sidewall, Tubeless Ready
Front Wheel: DT Swiss G540 700c, Center Lock Disc
Rear Tire: Tracer 700x45, Tan Sidewall, Tubeless Ready
Rear Wheel: DT Swiss G540 700c, Center Lock Disc
Inner Tubes: Presta, 700x32-50mm
Cockpit
Stem: Future Stem, Comp
Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape: Supacaz Super Sticky Kush
Saddle: Body Geometry Power Sport, steel rails
SeatPost: Carbon, single-bolt, 27.2mm
Seat Binder: Specialized Alloy, 30.8mm
Accessories
SWAT: SWAT 4.0 internal downtube storage
Product Details
Product ID: 223514
Geometry
49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° |
