SPECIALIZED

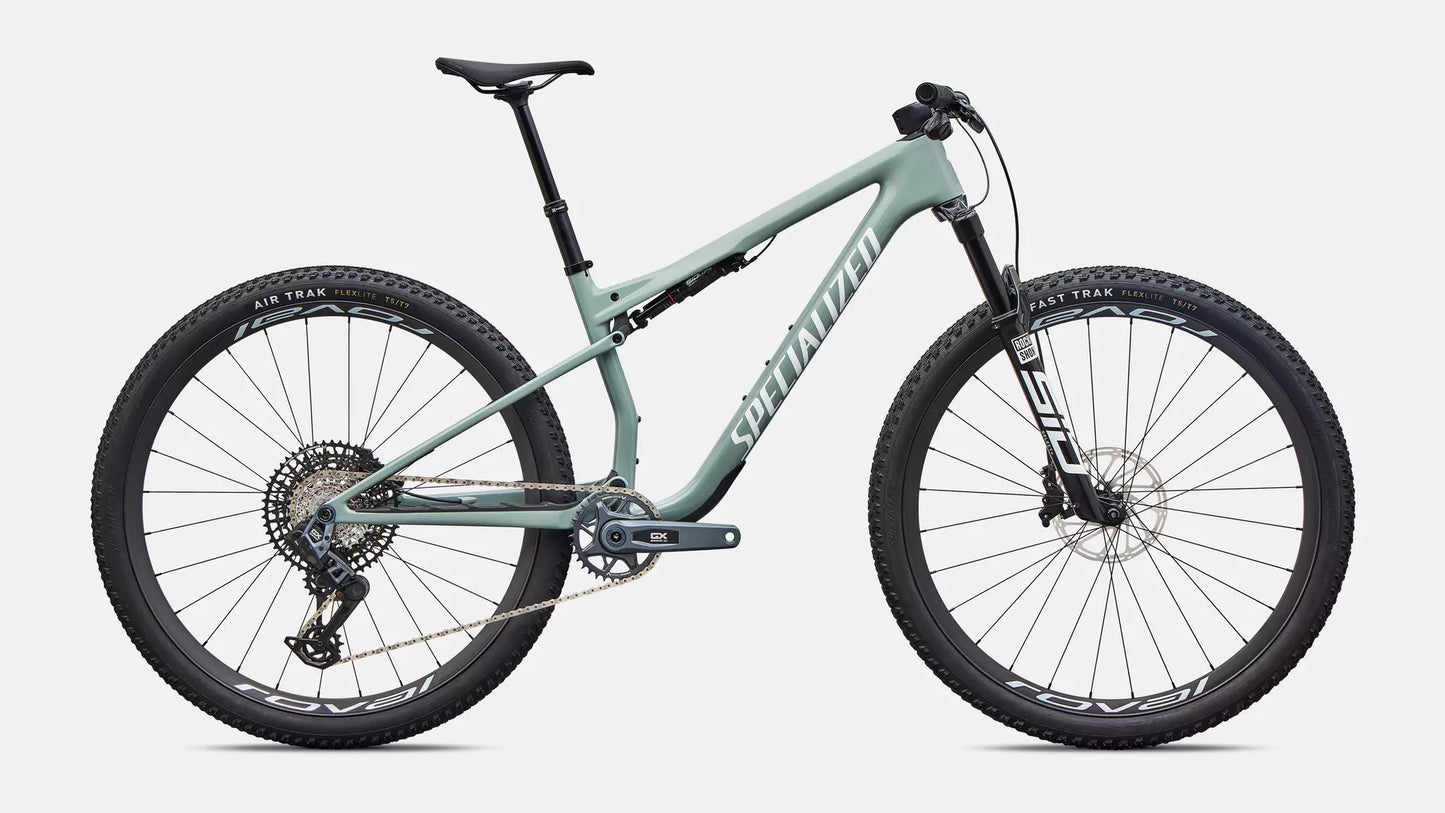

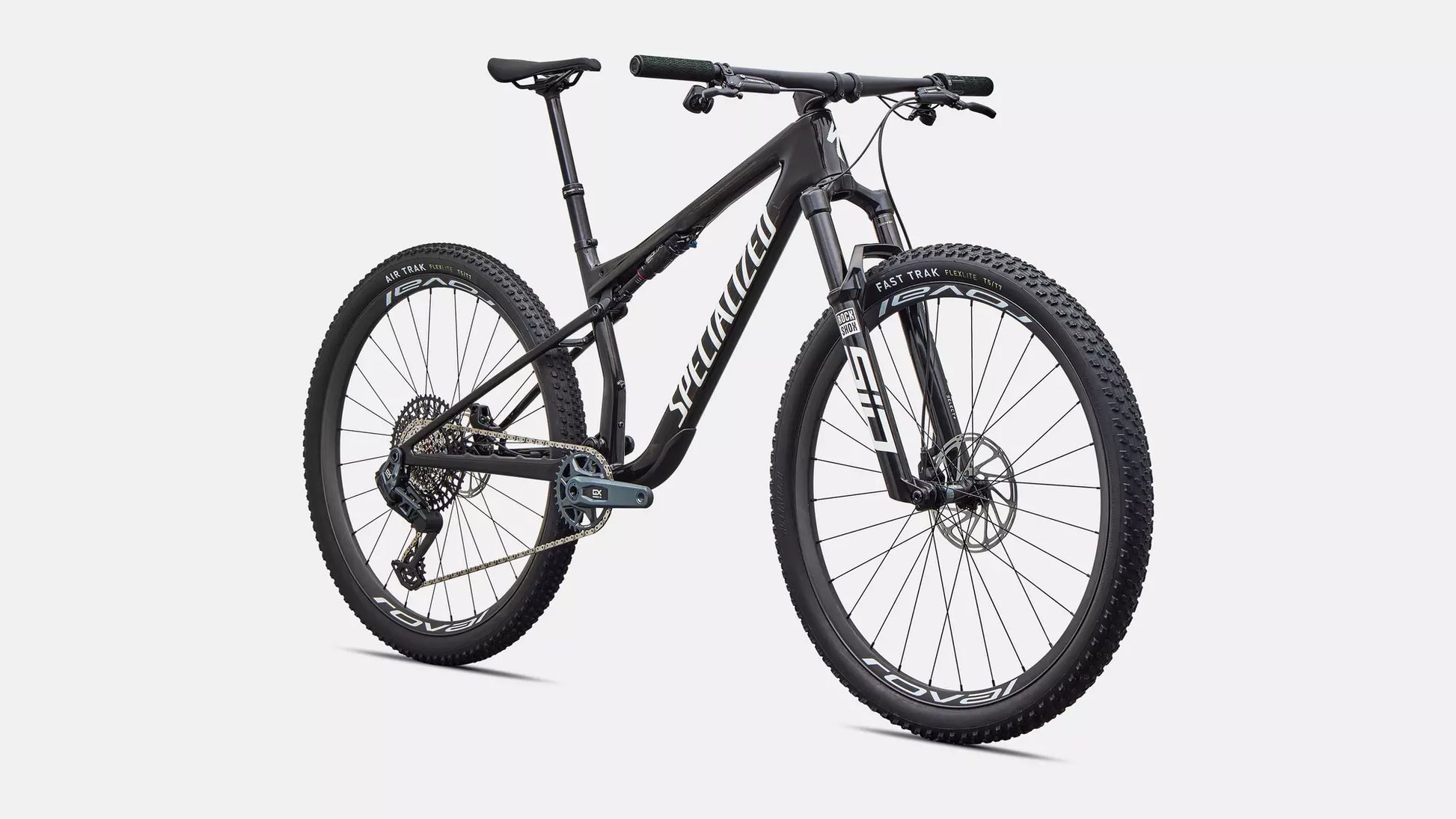

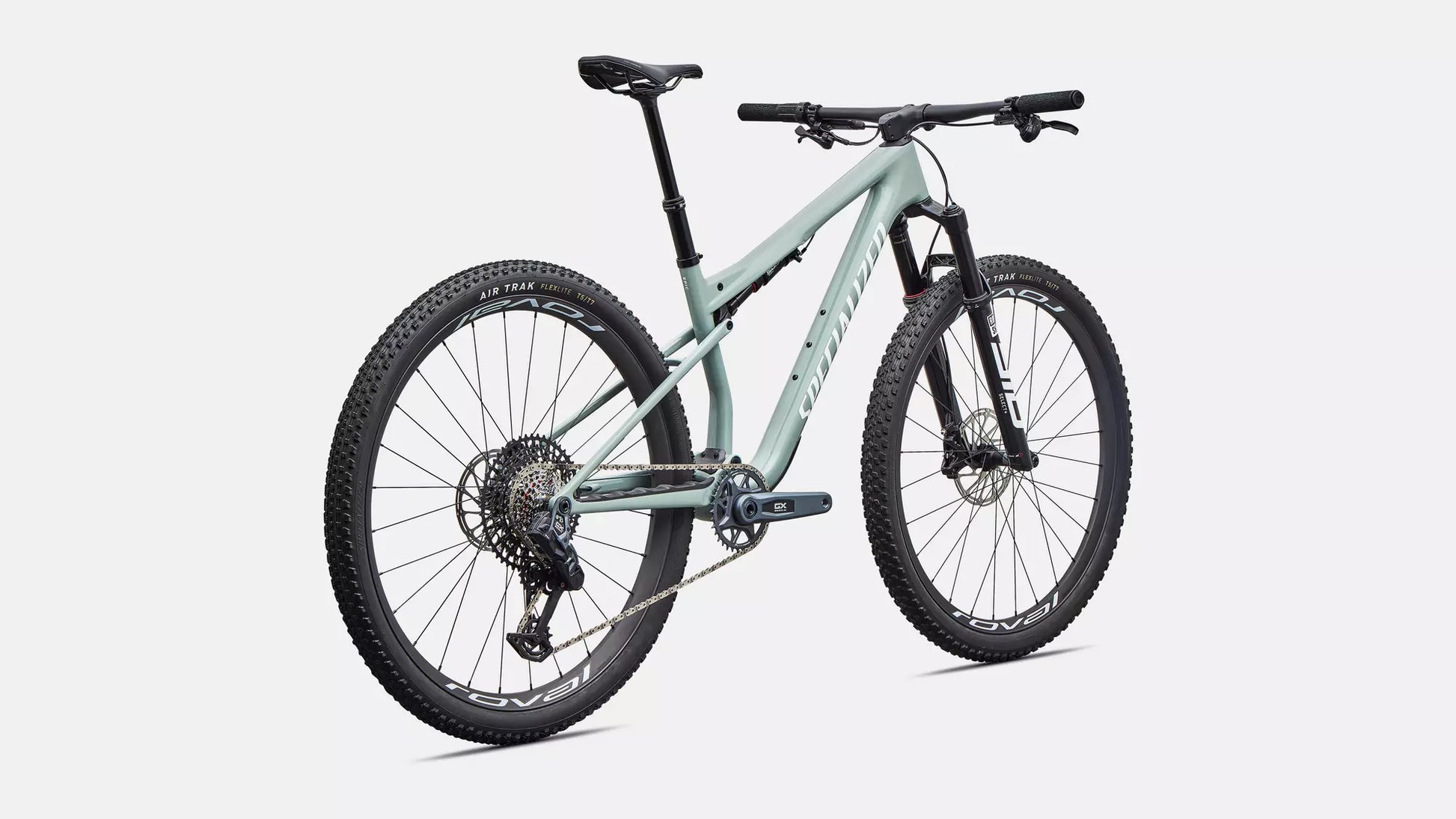

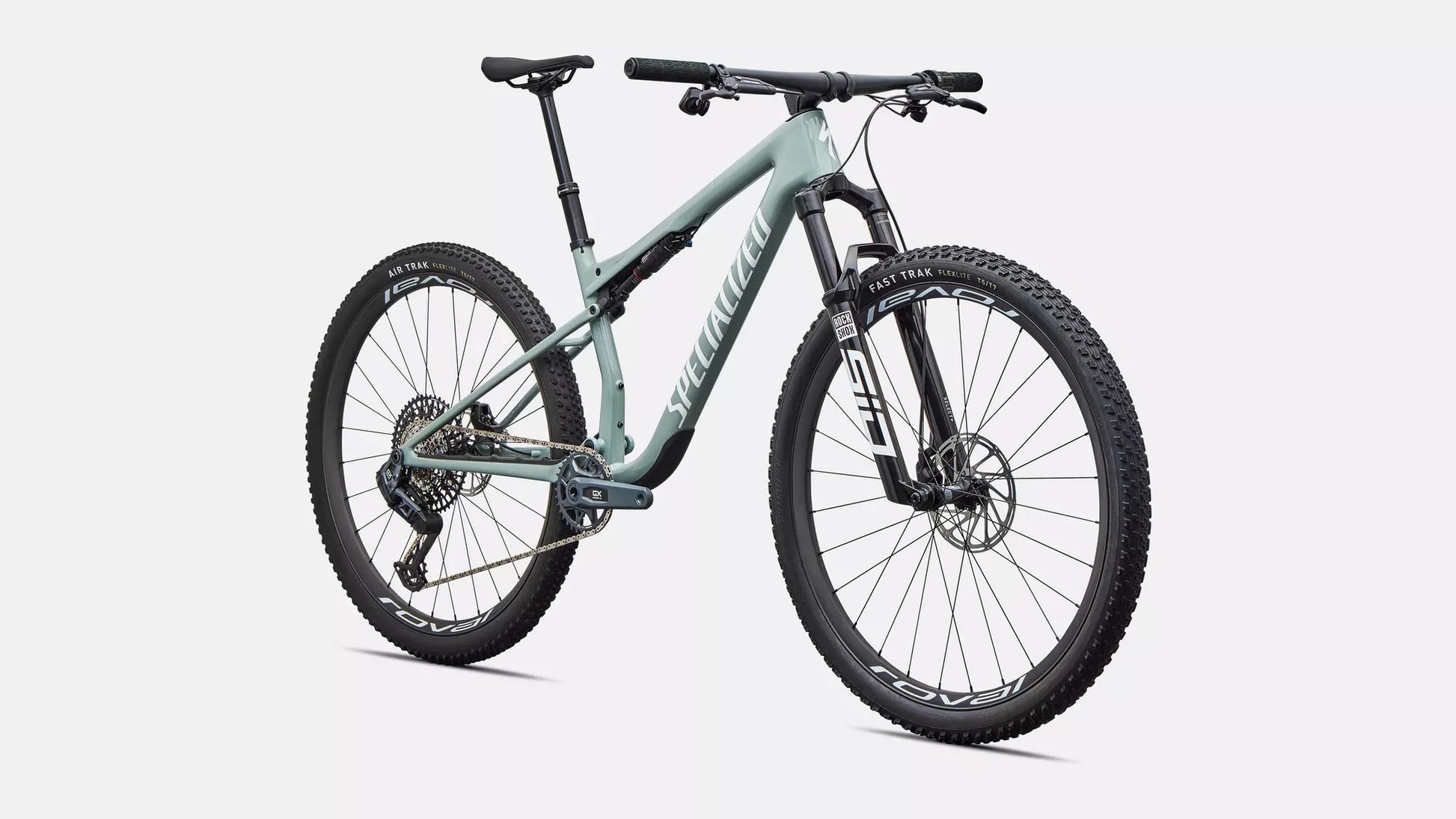

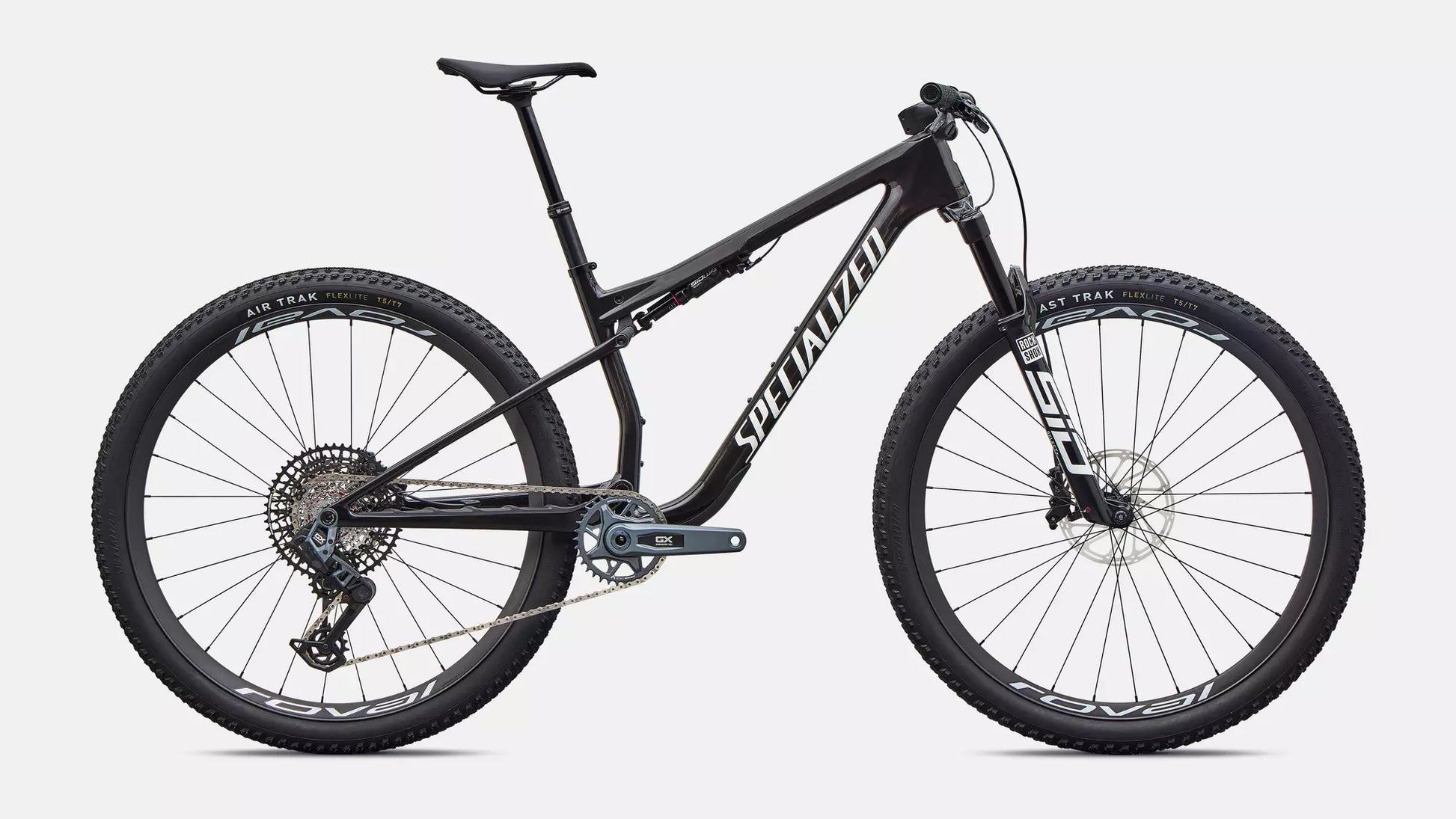

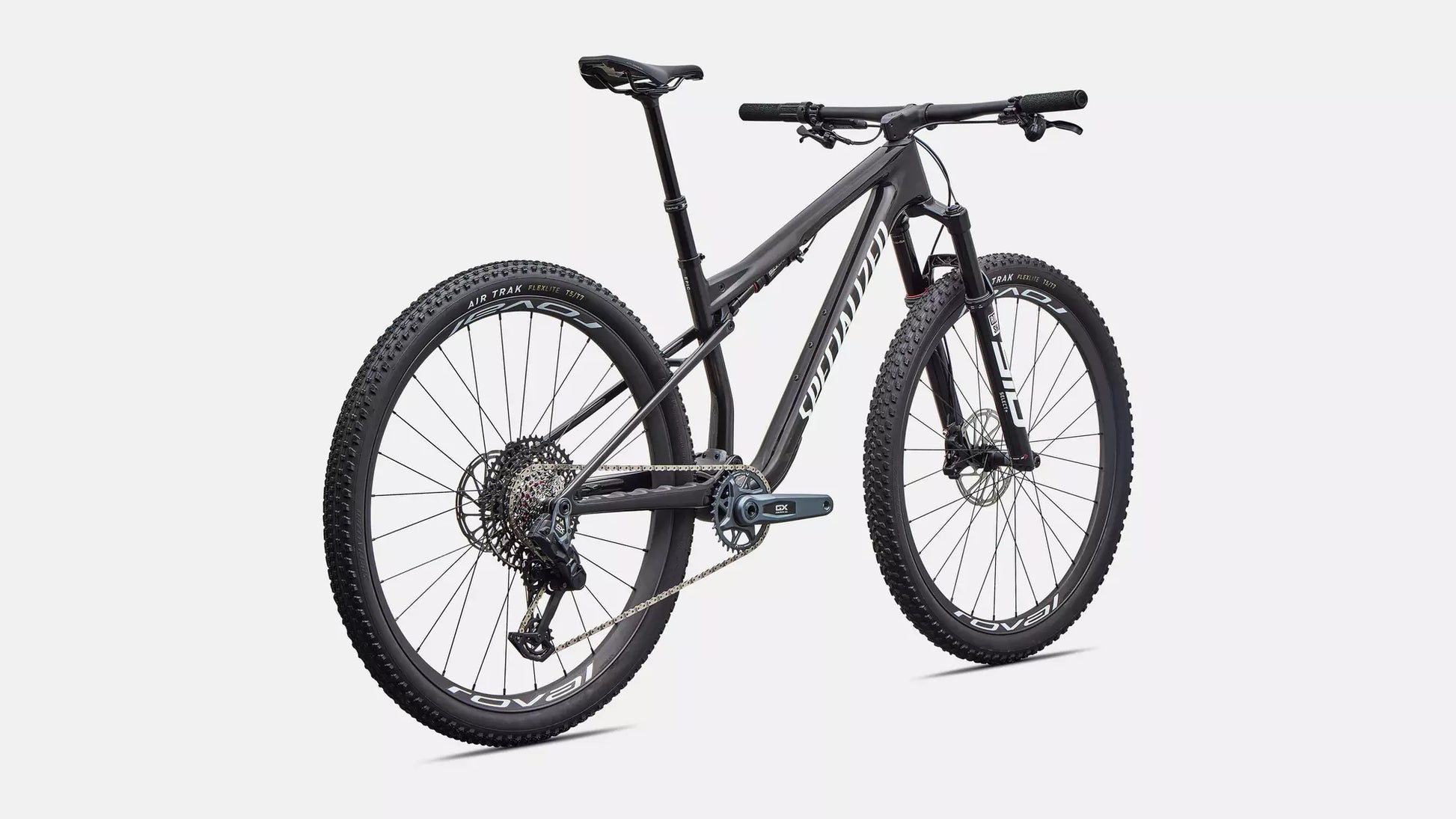

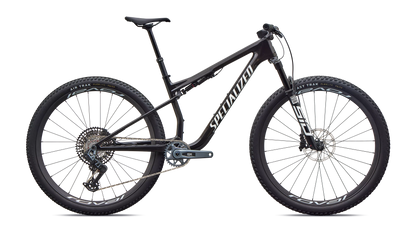

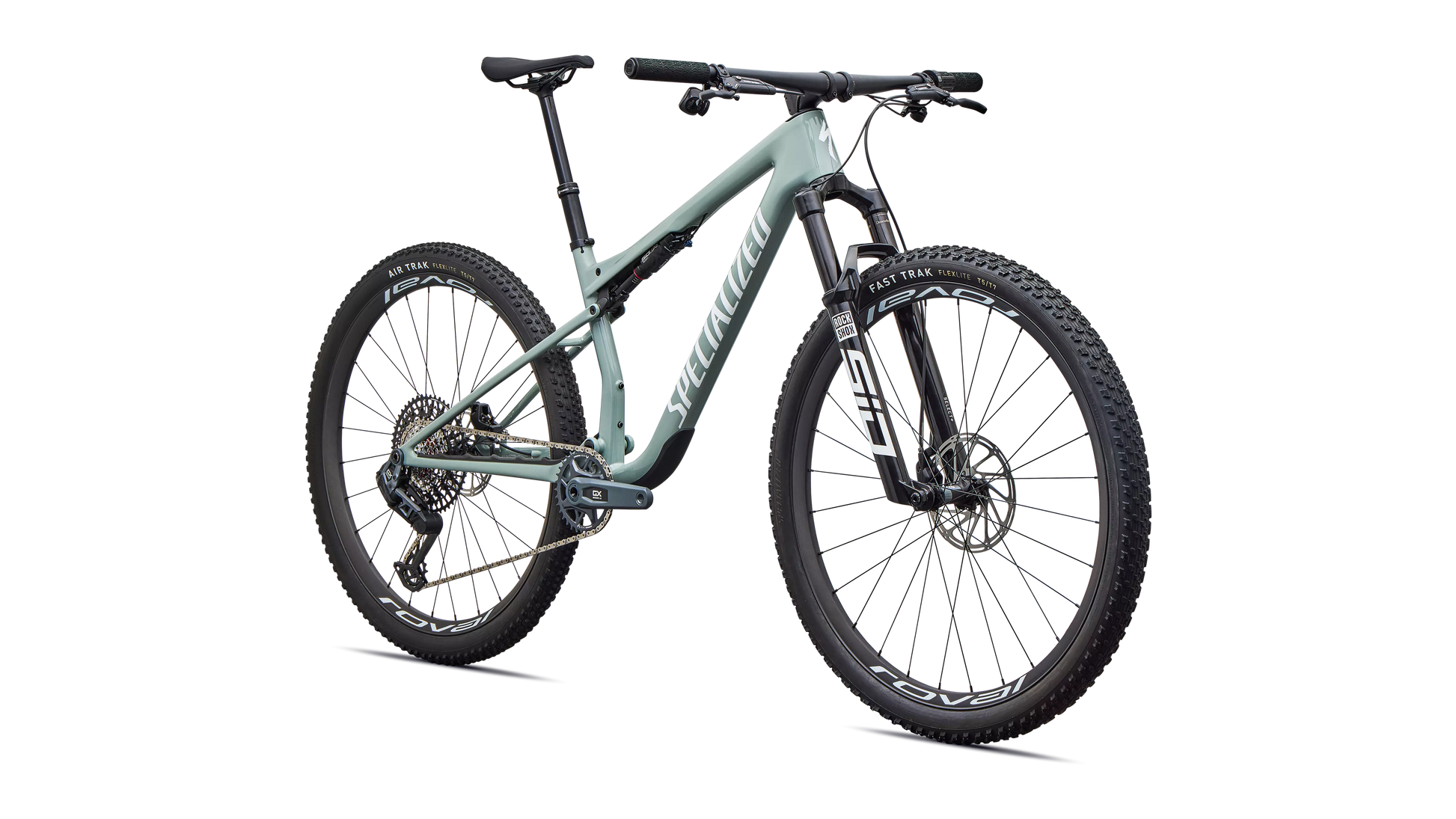

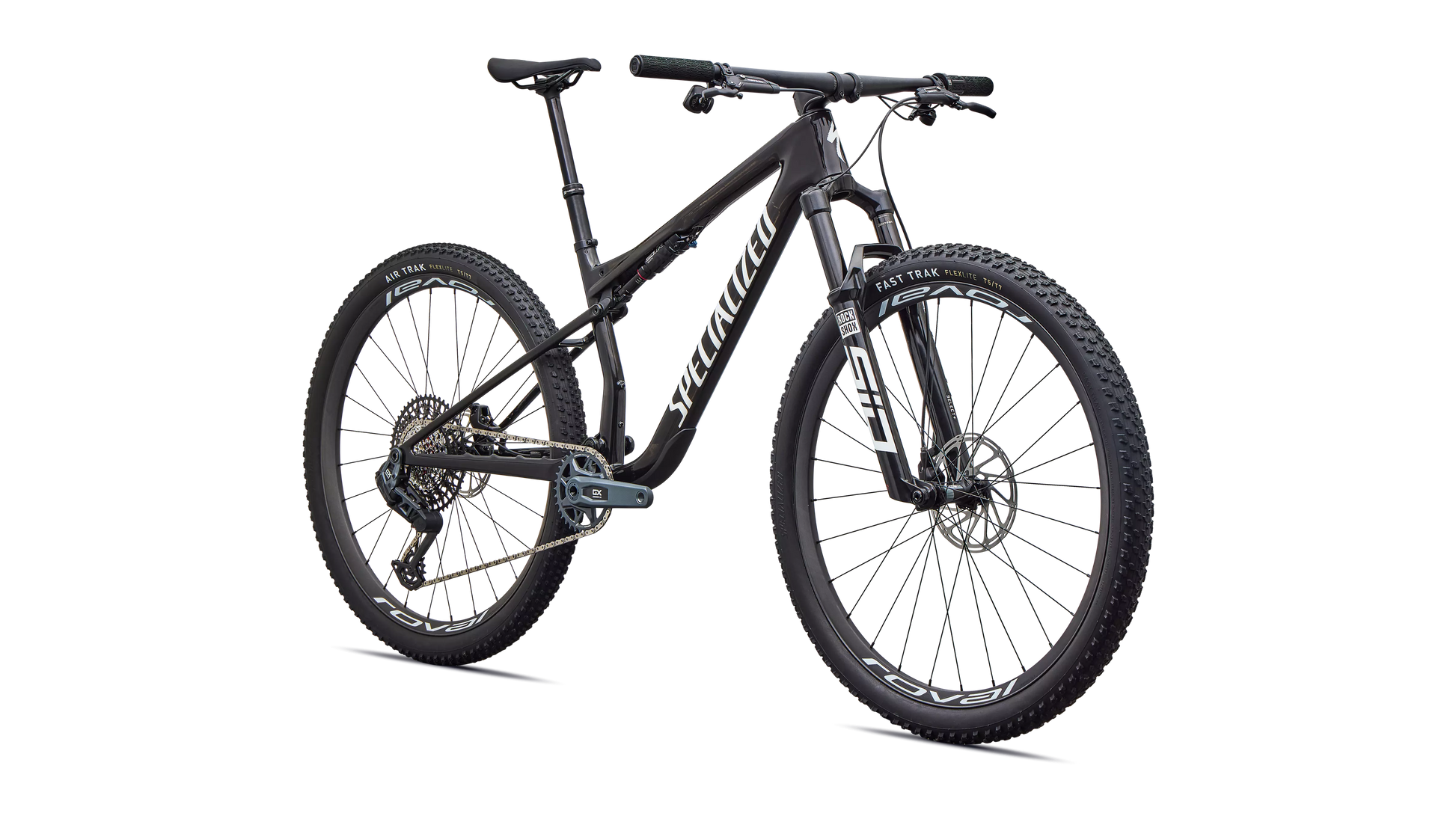

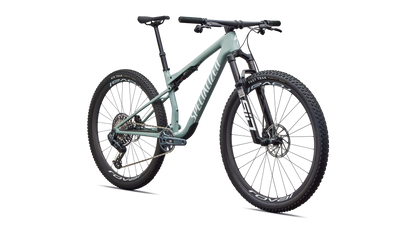

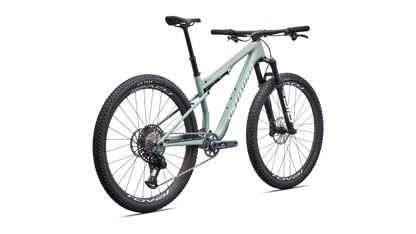

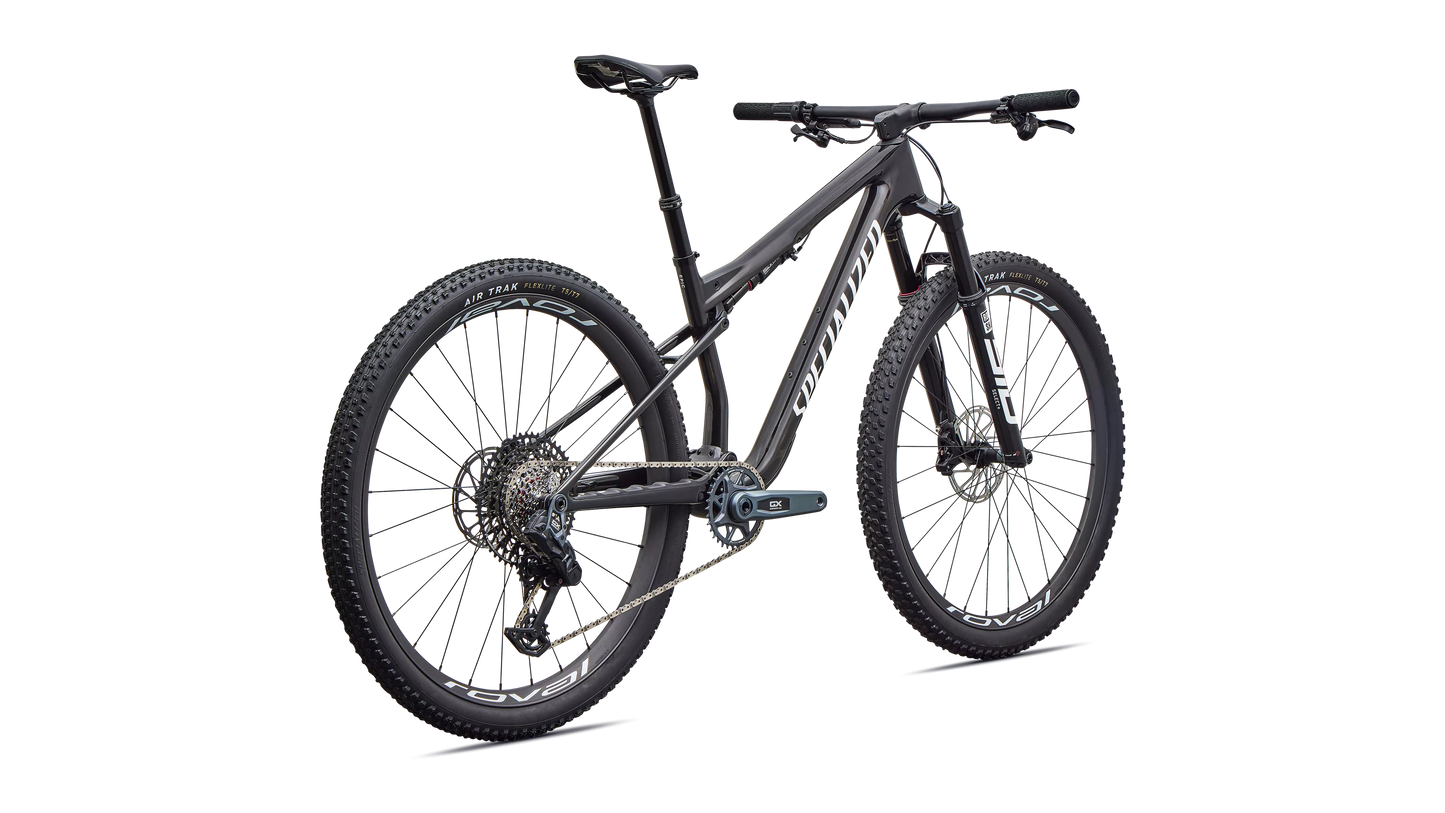

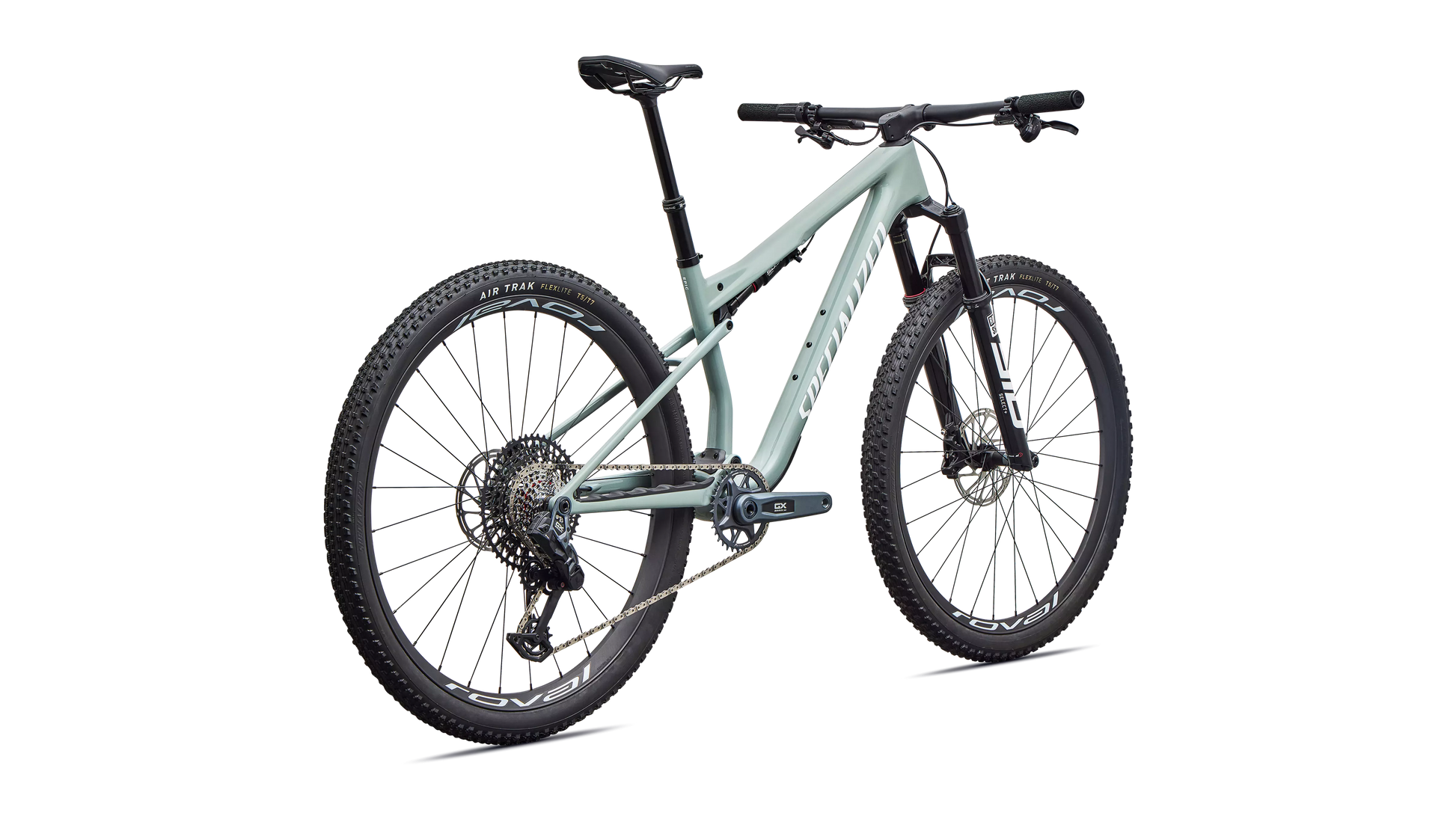

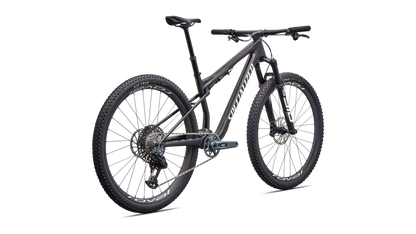

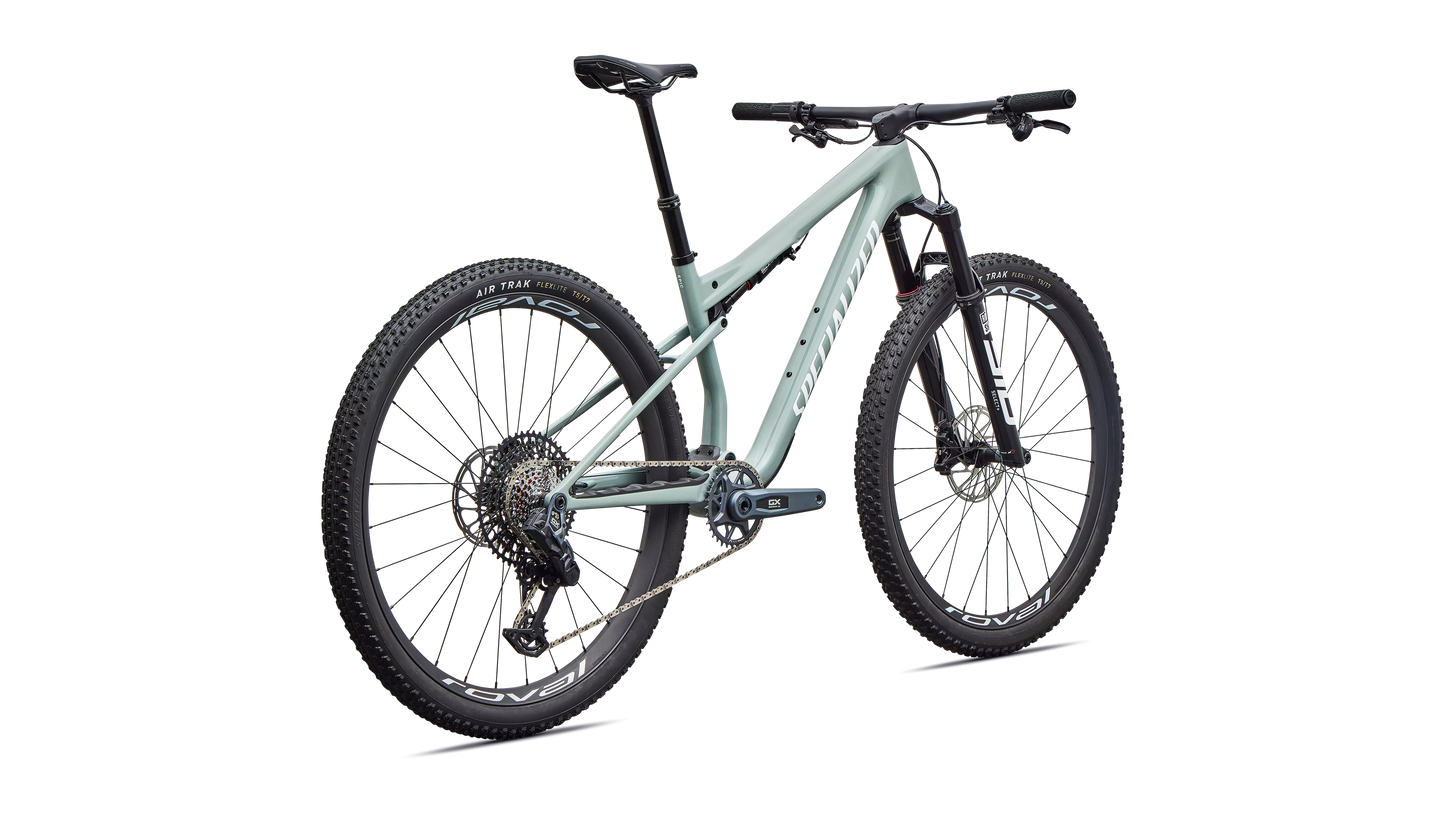

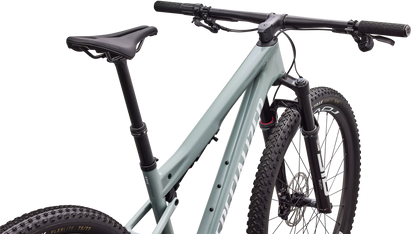

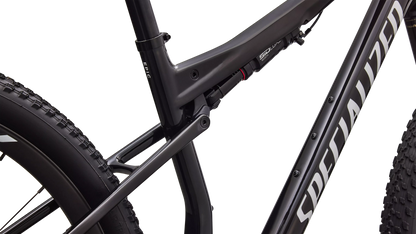

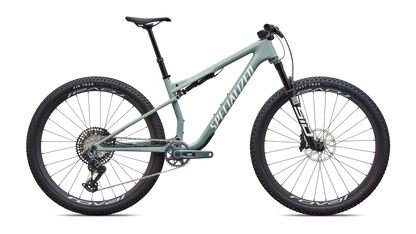

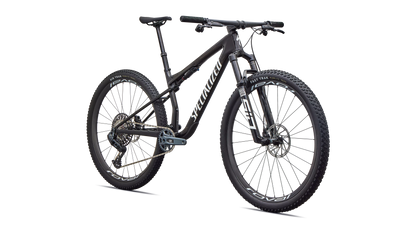

Epic 9 Expert
Epic 9 Expert
SKU:90327-3004
In stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
Evolution of the Fastest
The Lightest, Fastest, Most Capable XC Race Bike Ever
Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.
We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.
Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.
Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.
At a Glance
Use: XC Racing
Frame: FACT 11m Carbon, Progressive XC Race Geometry, 120mm of travel
Suspension
Front: RockShox SID Select+
Rear: RockShox SidLuxe Select+
Drivetrain: SRAM GX Eagle Transmission
Wheels: Roval Control SL VI w/ DT Swiss 370 Hubs
Weight: 24 lbs. 2.2 oz. (10.95 kg)
Technical Specifications
Frameset
Frame
FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
Seat Binder
Specialized Alloy 34.9, Steel Bolt
SWAT
SWAT Box 2.0

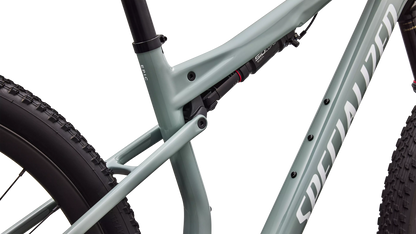

Suspension

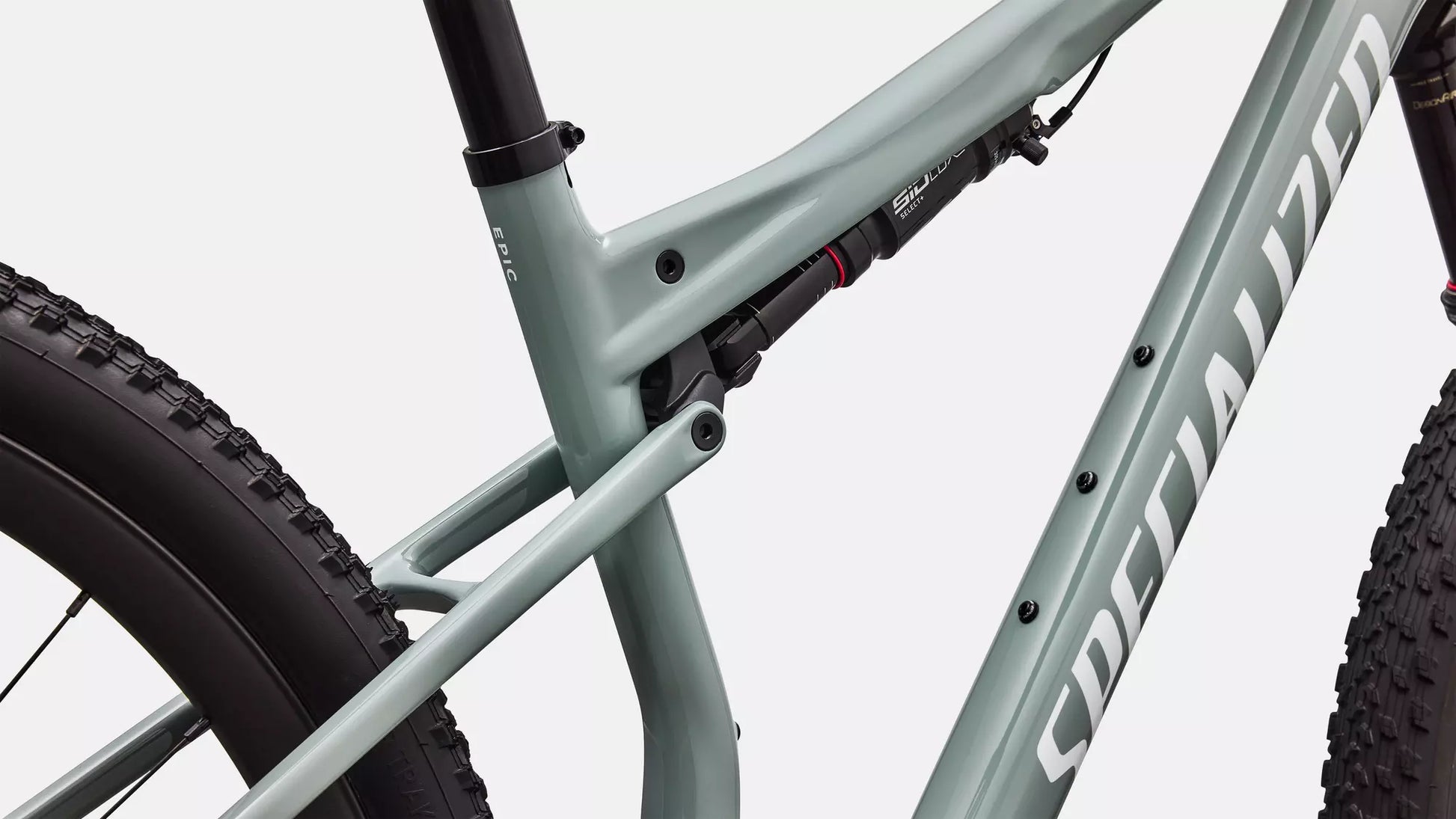

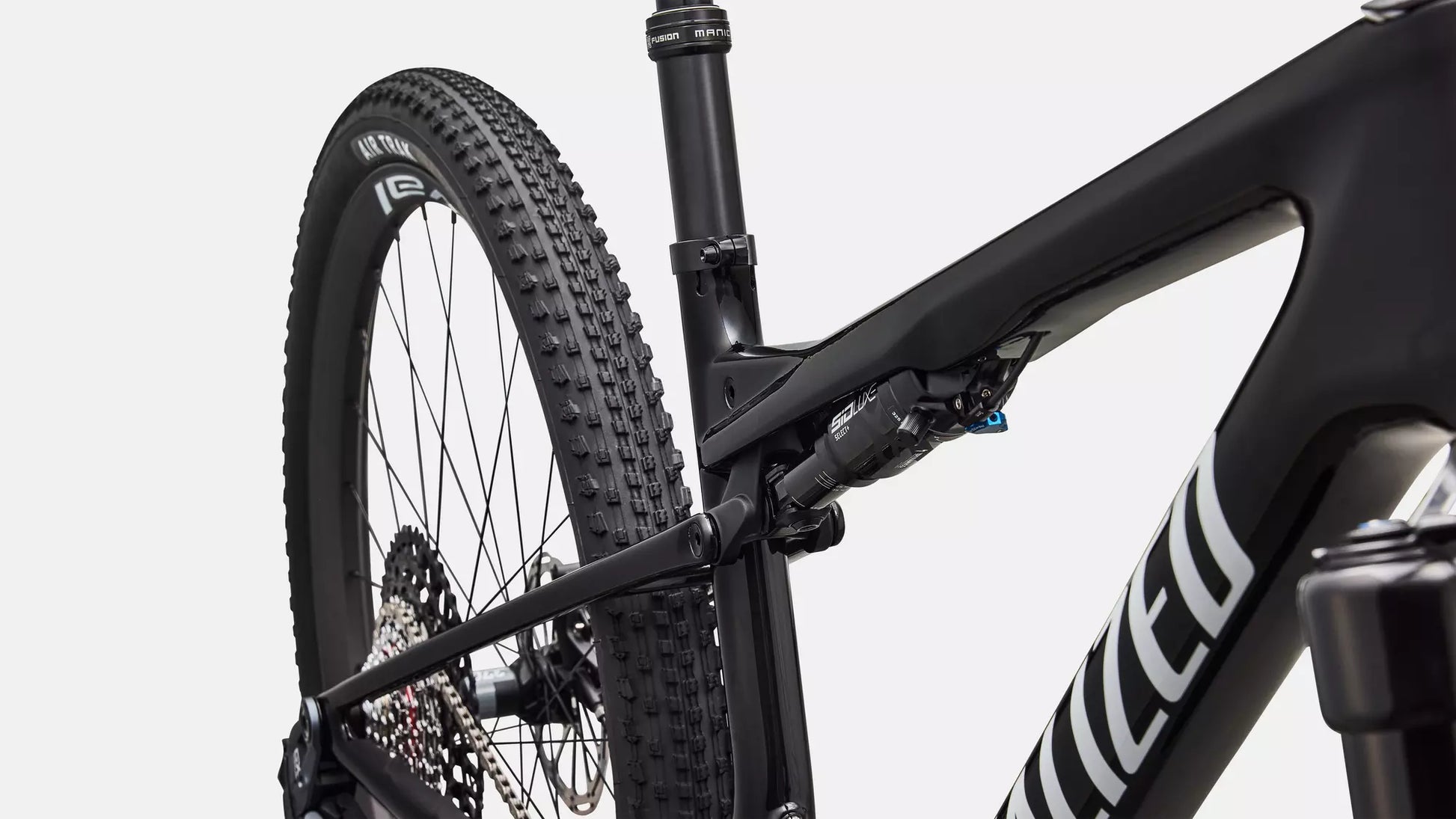

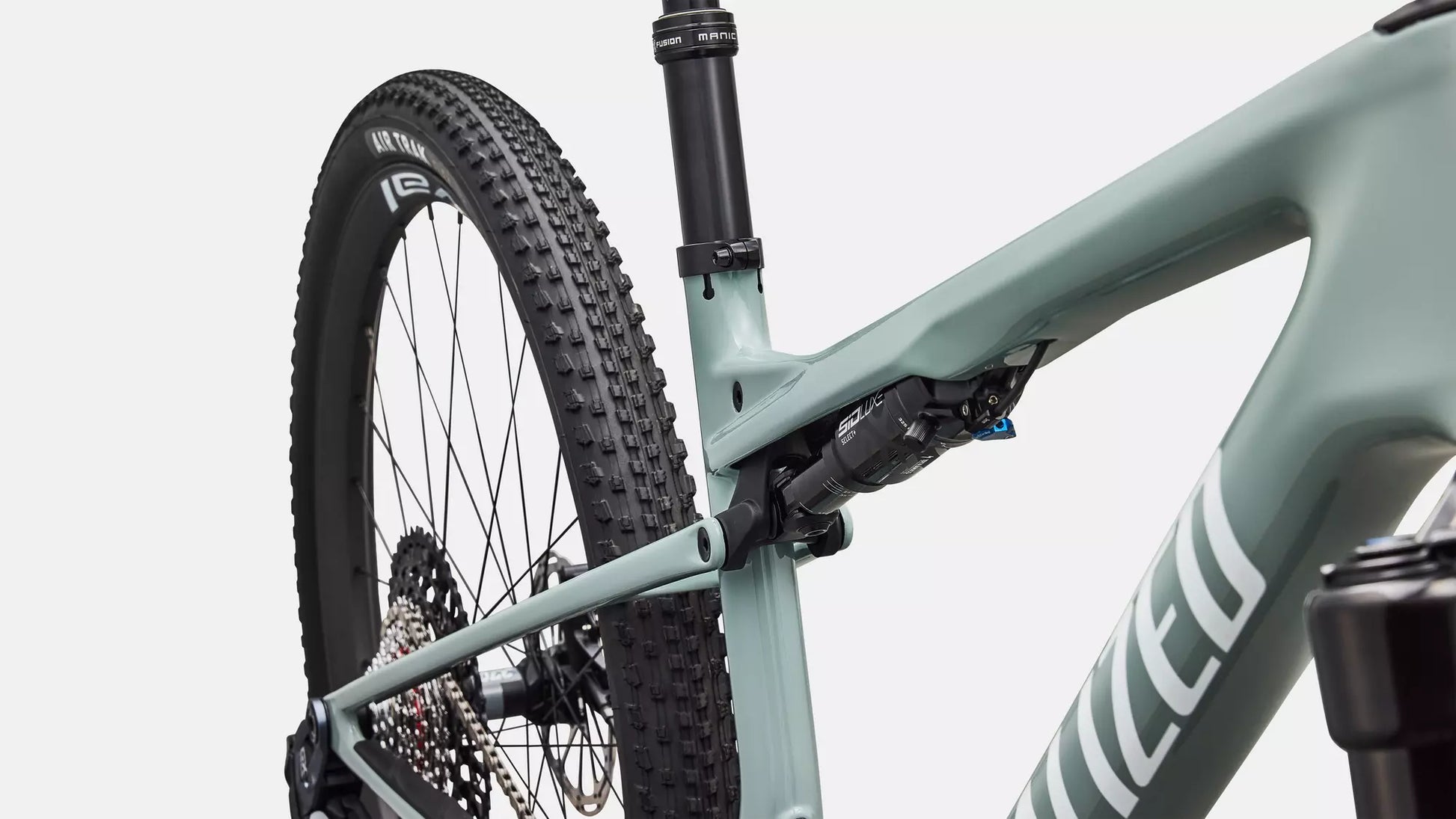

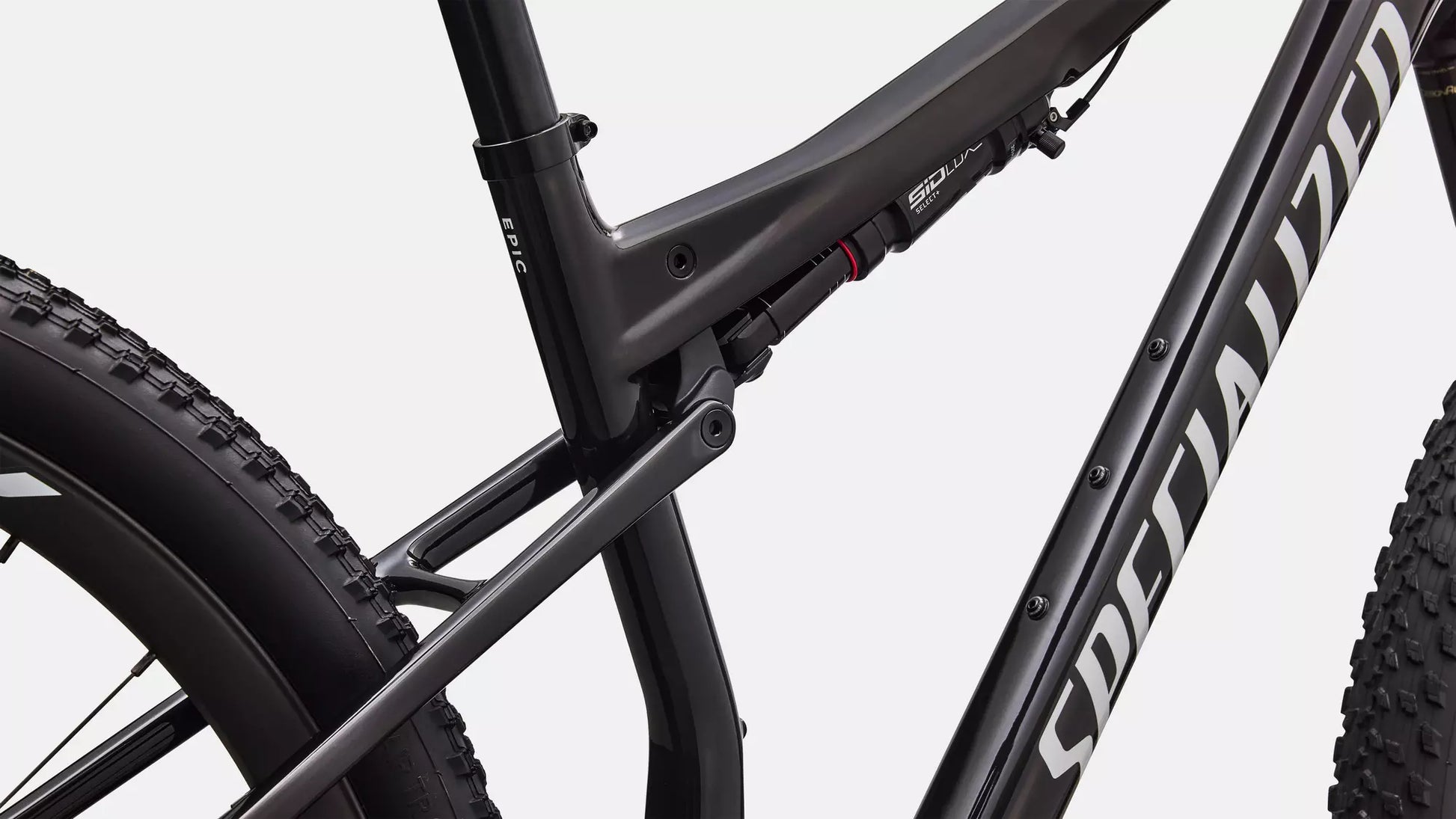

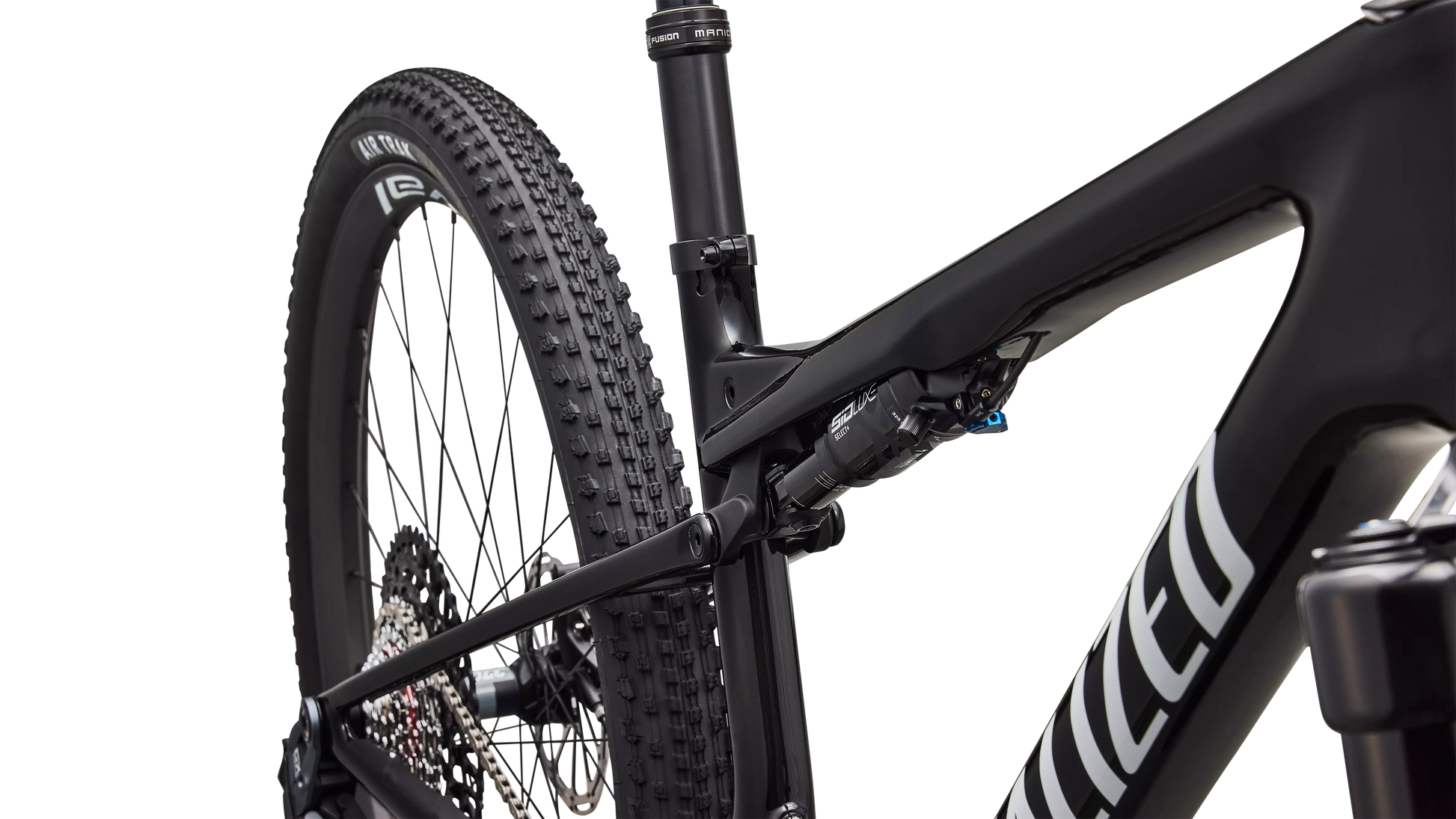

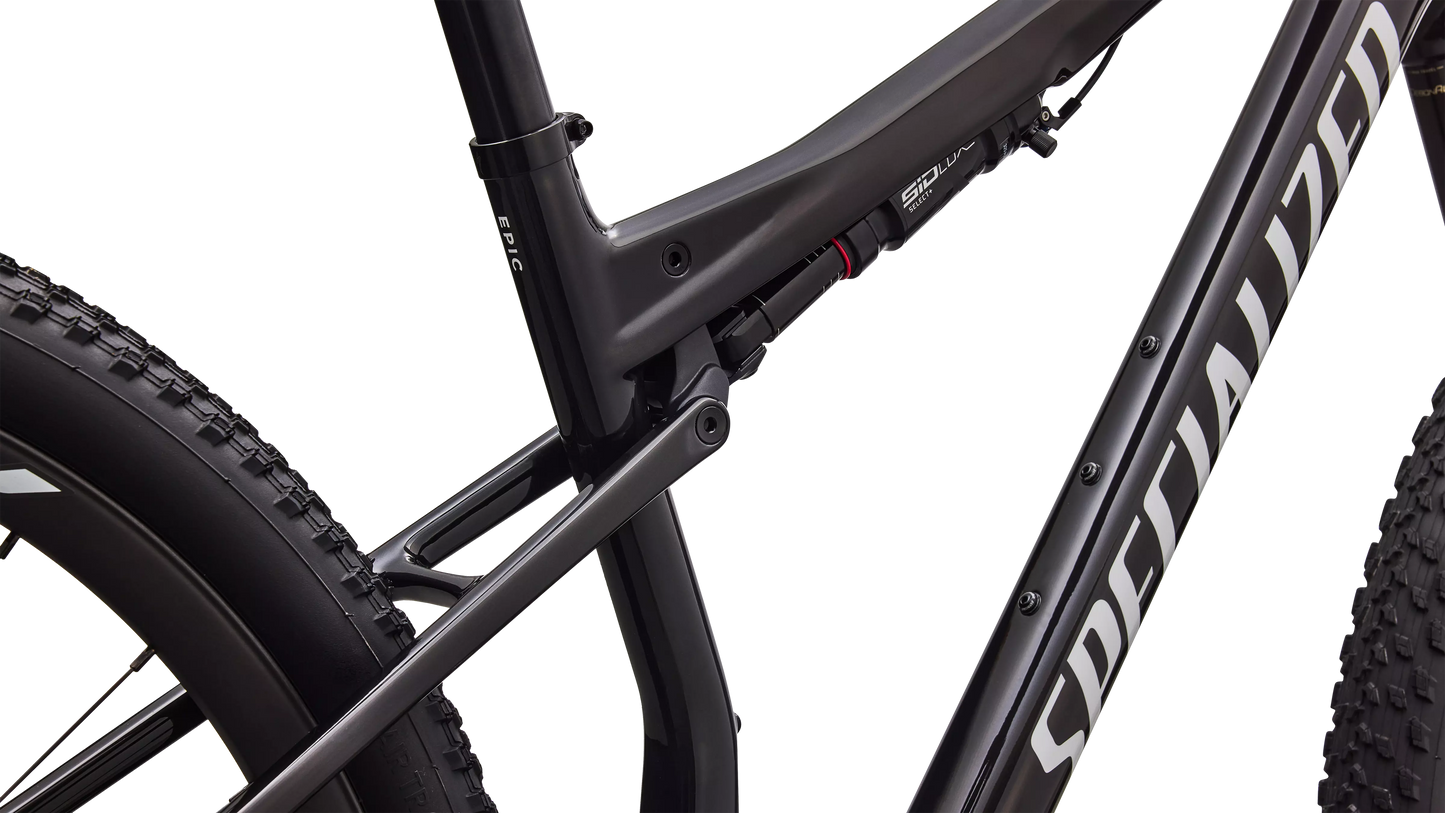

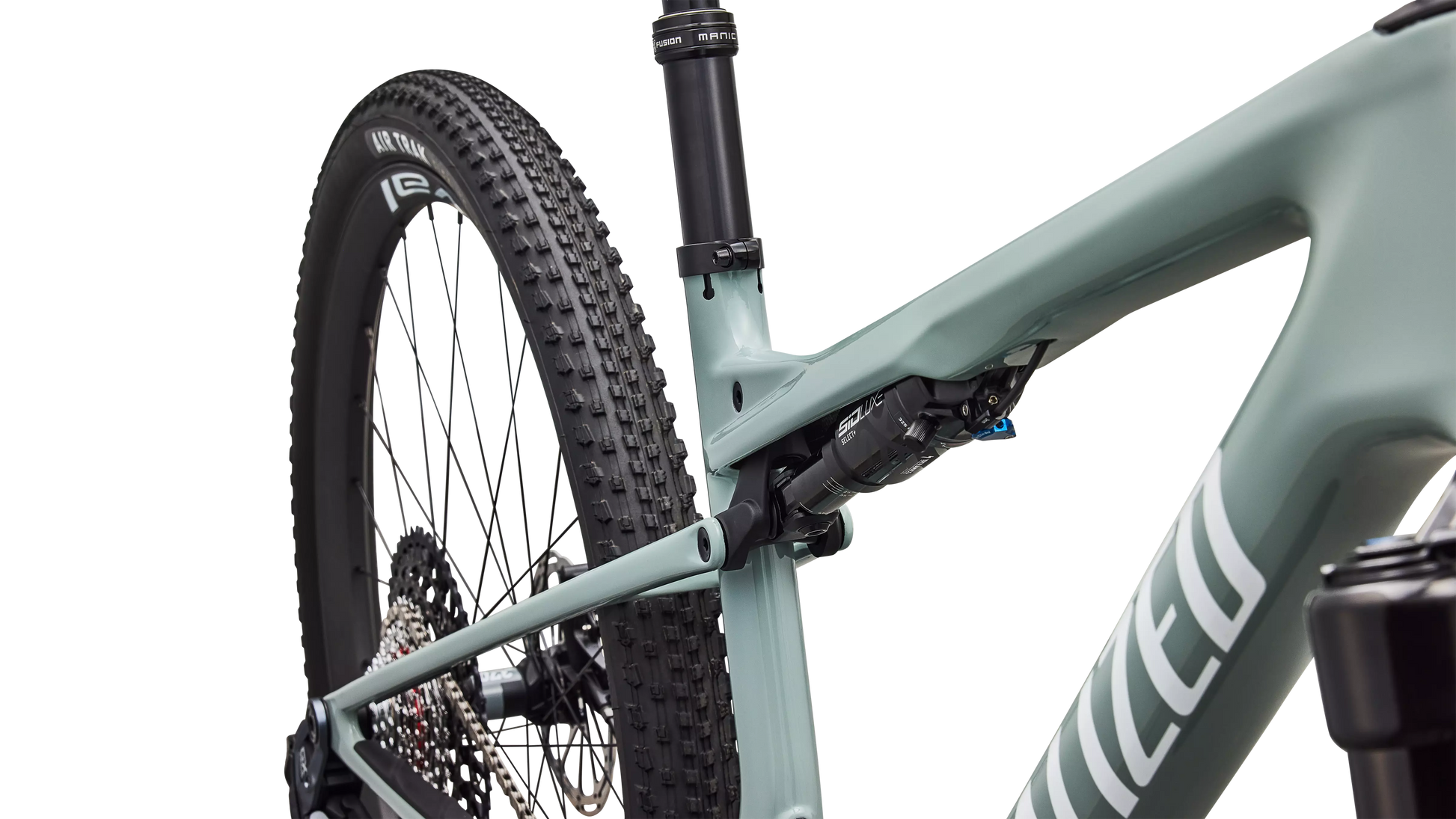

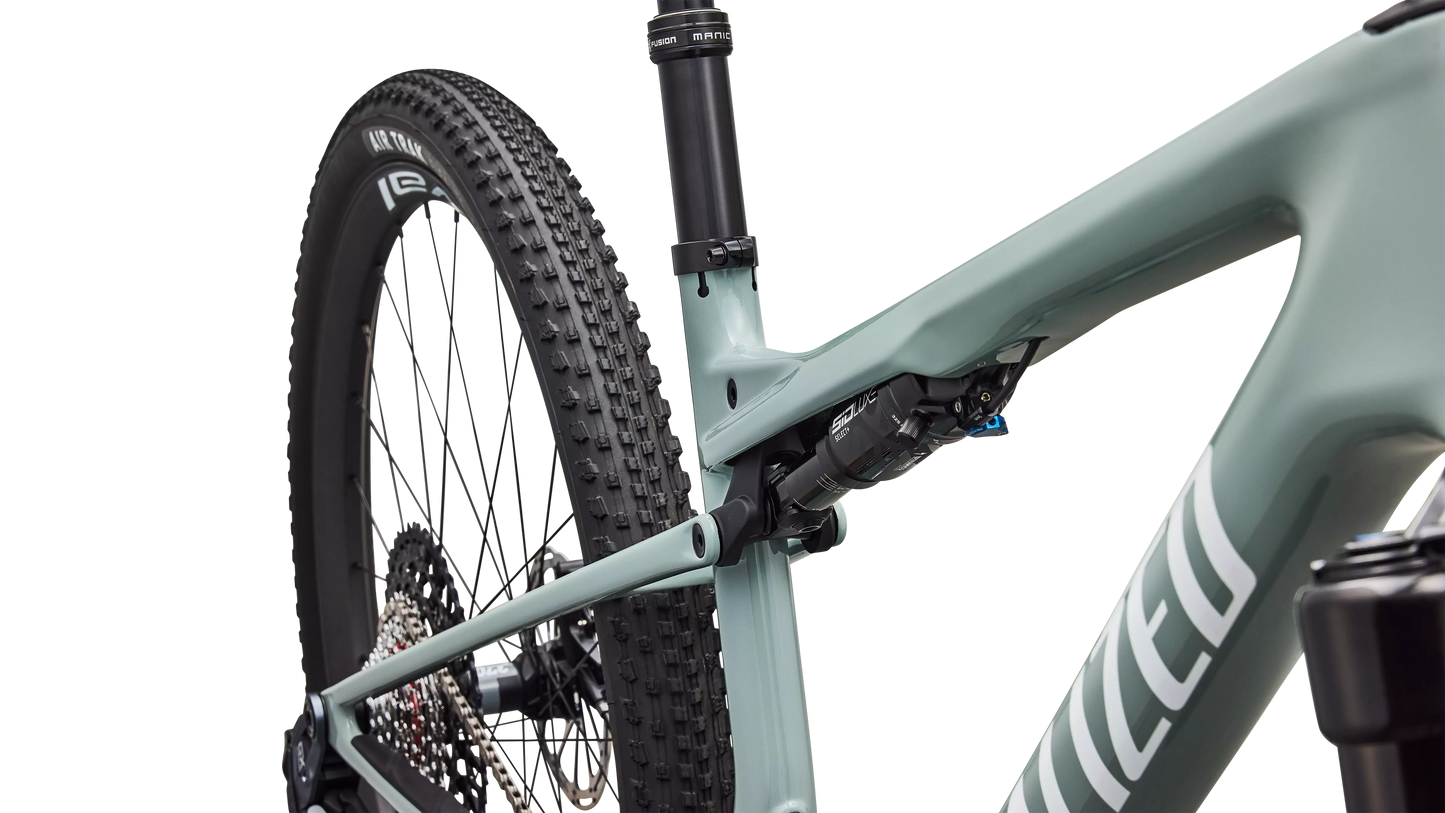

Rear Shock
RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
Fork
RockShox SID Select+, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Brakes
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 160mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM GX Eagle AXS Transmission
Cassette
SRAM XG-1275 Transmission 12-Speed 10-52t
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM GX Eagle, DUB, SM:165mm, M-XL:170mm, 34T
Bottom Bracket
SRAM DUB Threaded Wide
Wheels & Tires
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Front Wheel
Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear Tire
Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Wheel
Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Inner Tubes
Specialized Turbo Tube 48MM Presta valve, 29x1.75/2.4

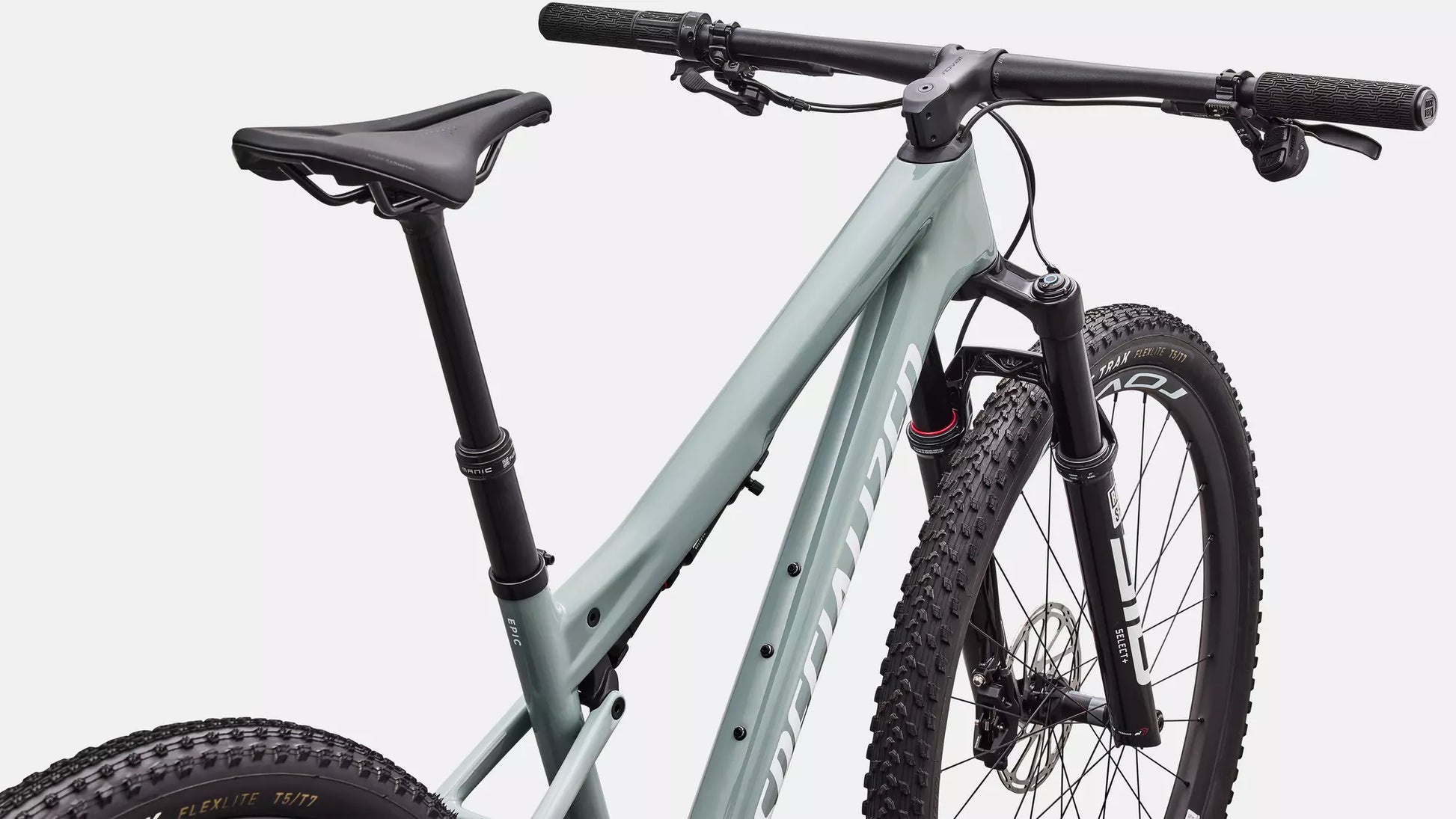

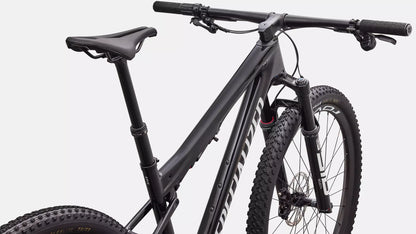

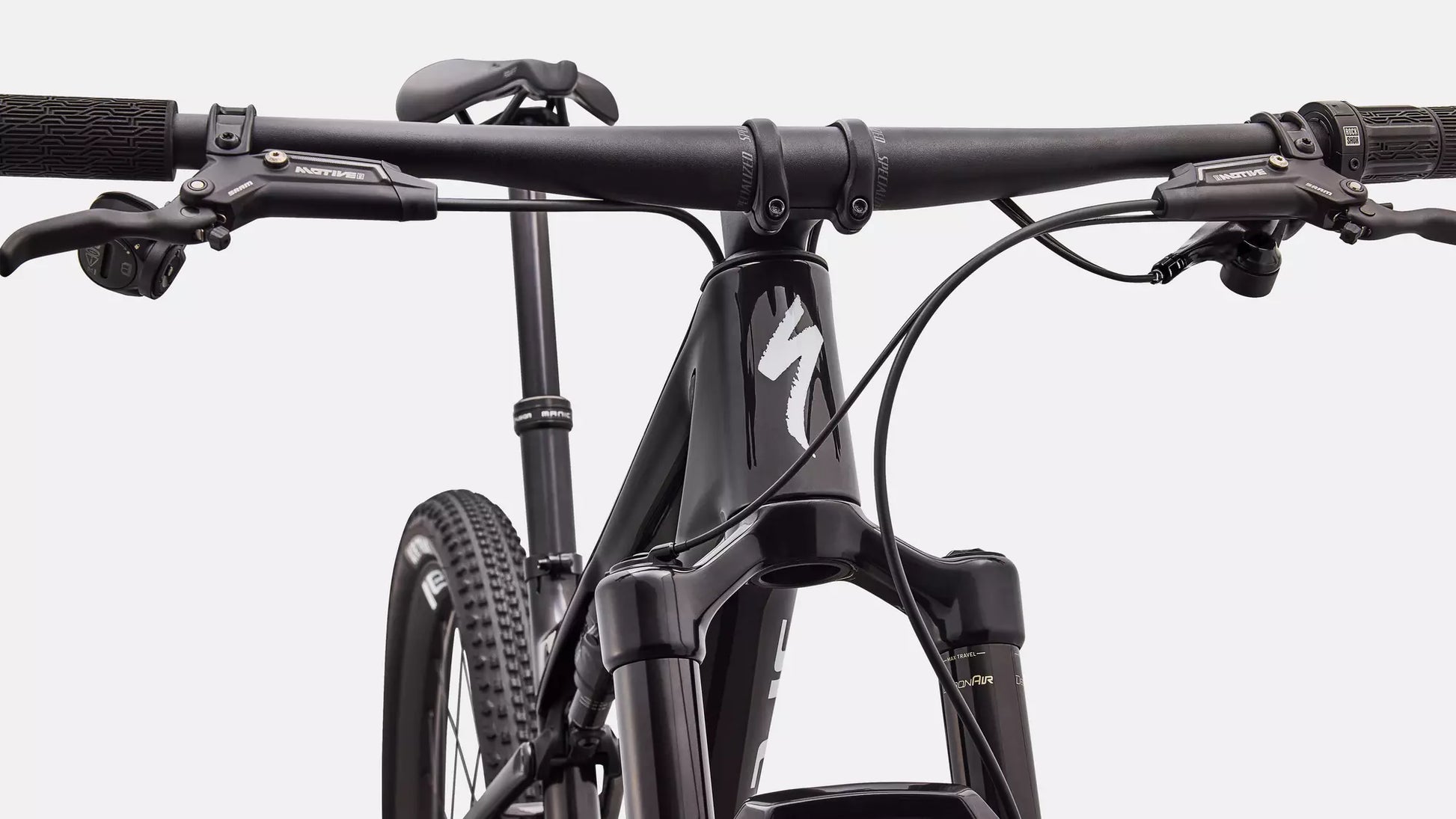

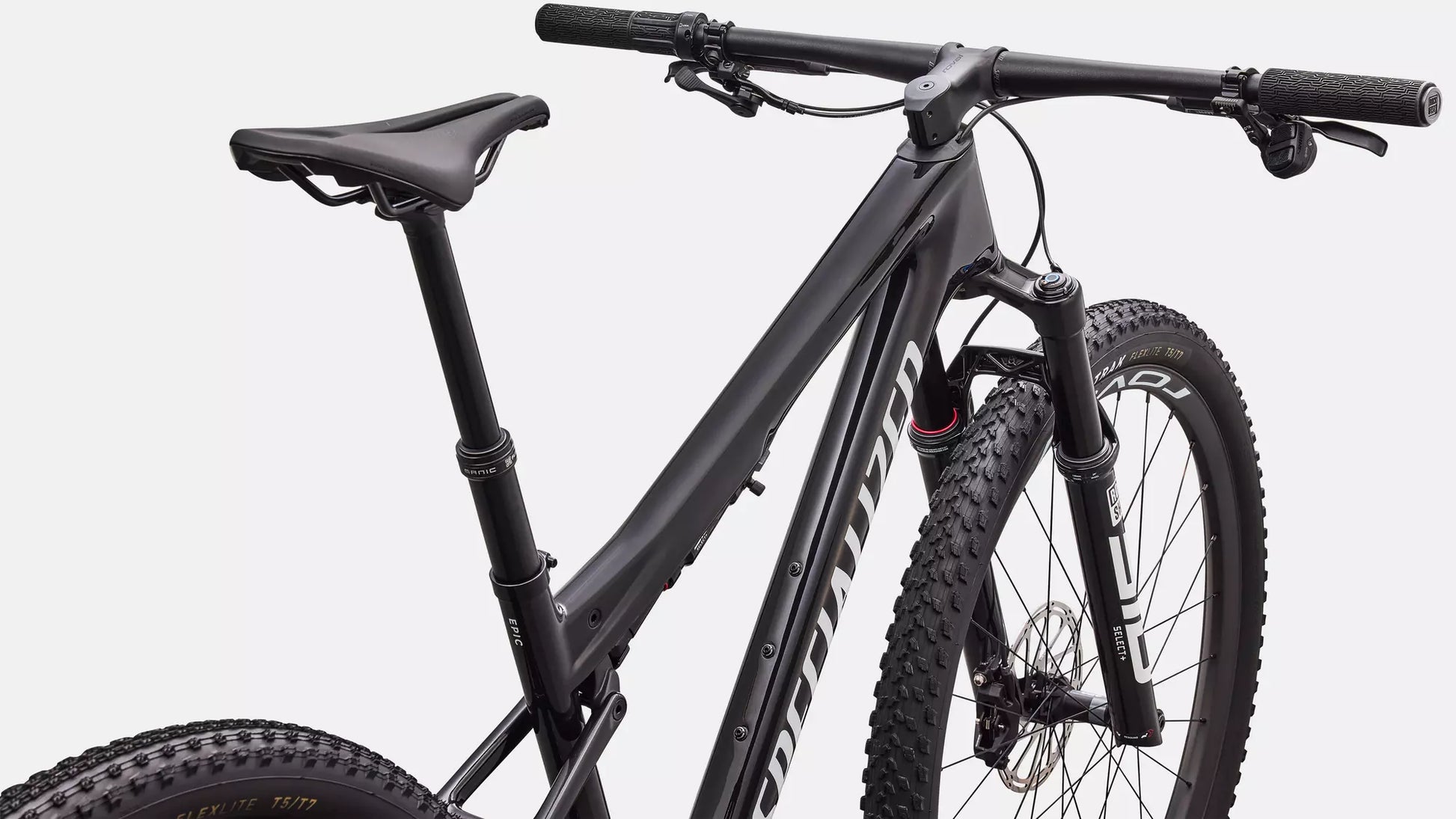

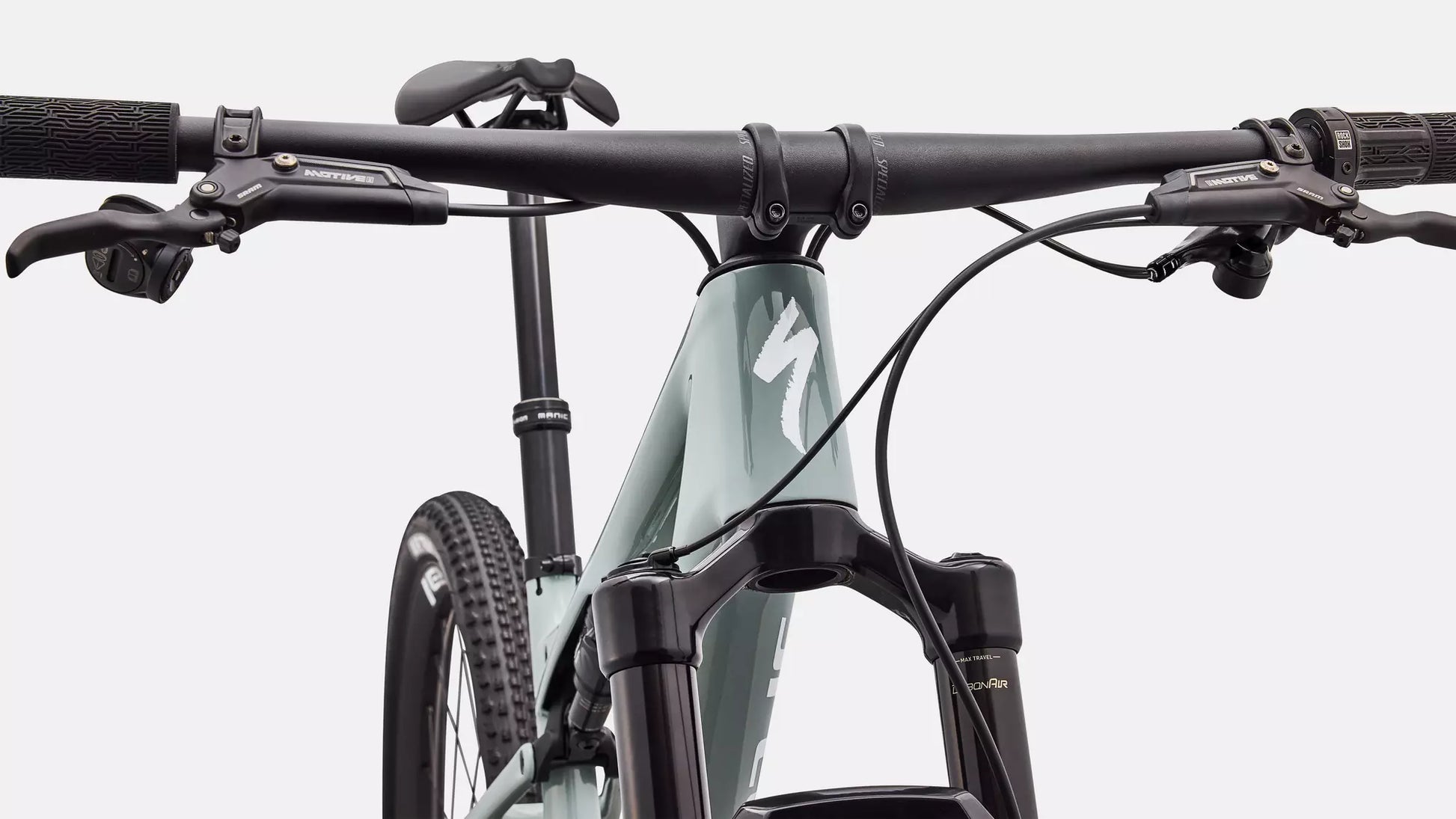

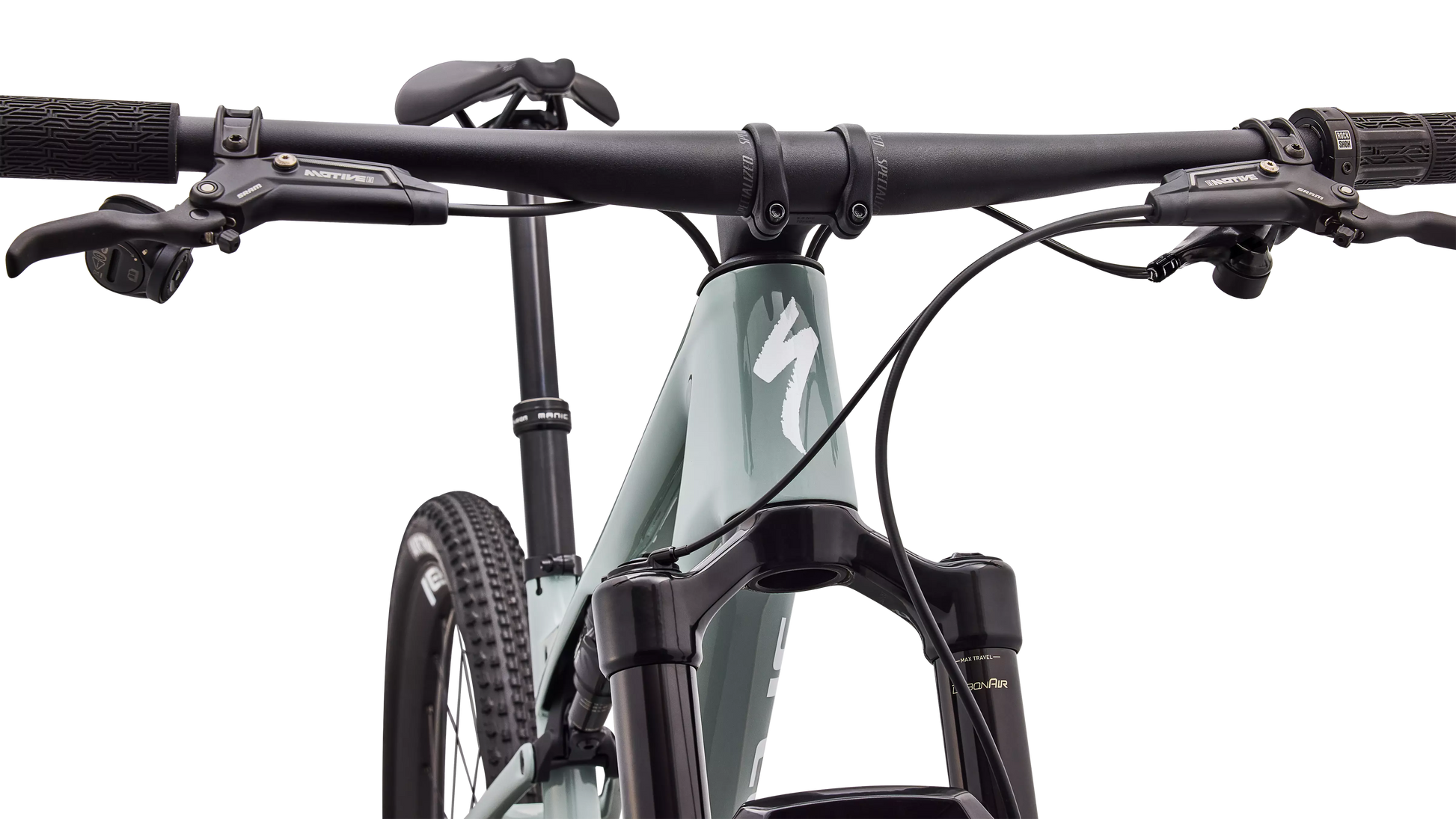

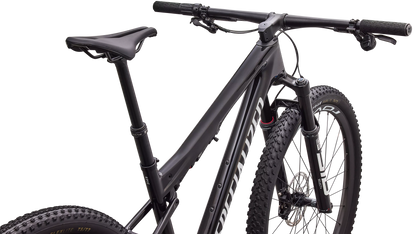

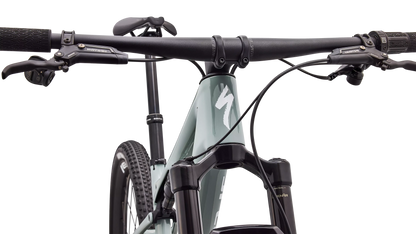

Cockpit
Stem
Roval Alloy XC 2-bolt stem, 60mm/70mm
Handlebars
Specialized Alloy Minirise, 10mm rise, 750mm, 35mm clamp
Grips
SRAM Slip on with Twist-Loc
Saddle
Body Geometry Power Sport, steel rails
SeatPost
X-Fusion Manic, 30.9, SM: 125mm, M: 150mm, L-XL: 170mm Travel, 0mm offset
Product Details
Weight
Weight
10.95 kg (24 lb, 2.2 oz)
Weight Size
MD
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| s | m | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Stem Length | 60mm | 70mm | 70mm | 70mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 125mm | 125mm |
| Stack | 589mm | 599mm | 612mm | 639mm |
| Reach (Low) | 427mm | 457mm | 487mm | 512mm |
| Reach (High) | 432mm | 462mm | 492mm | 517mm |
| Head-Tube Length | 92mm | 105mm | 120mm | 150mm |
| Head-Tube Angle (Low) | 66.5° | 66.5° | 66.5° | 66.5° |
| Head-Tube Angle (High) | 66.9° | 66.9° | 66.9° | 66.9° |
| B-B Height | 328mm | 330mm | 330mm | 330mm |
| B-B Drop (Low) | 47mm | 45mm | 45mm | 45mm |
| B-B Drop (High) | 42mm | 40mm | 40mm | 40mm |
| Trail | 115mm | 115mm | 115mm | 115mm |
| Fork Length (full) | 516mm | 516mm | 516mm | 516mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 711mm | 746mm | 782mm | 819mm |
| Chain-Stay Length | 435mm | 435mm | 438mm | 442mm |
| Wheelbase | 1142mm | 1178mm | 1217mm | 1258mm |
| Top-Tube Length (horizontal) | 566mm | 599mm | 632mm | 664mm |
| Frame Stand-Over Height | 740mm | 746mm | 749mm | 756mm |
| Seat-Tube Length | 390mm | 410mm | 455mm | 505mm |
| Seat-Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Post Max Insertion | 190mm | 220mm | 260mm | 315mm |
| Seat Post Min Insertion | 80mm | 80mm | 80mm | 80mm |
| Saddle Height for Effective STA | 690mm | 735mm | 780mm | 825mm |
