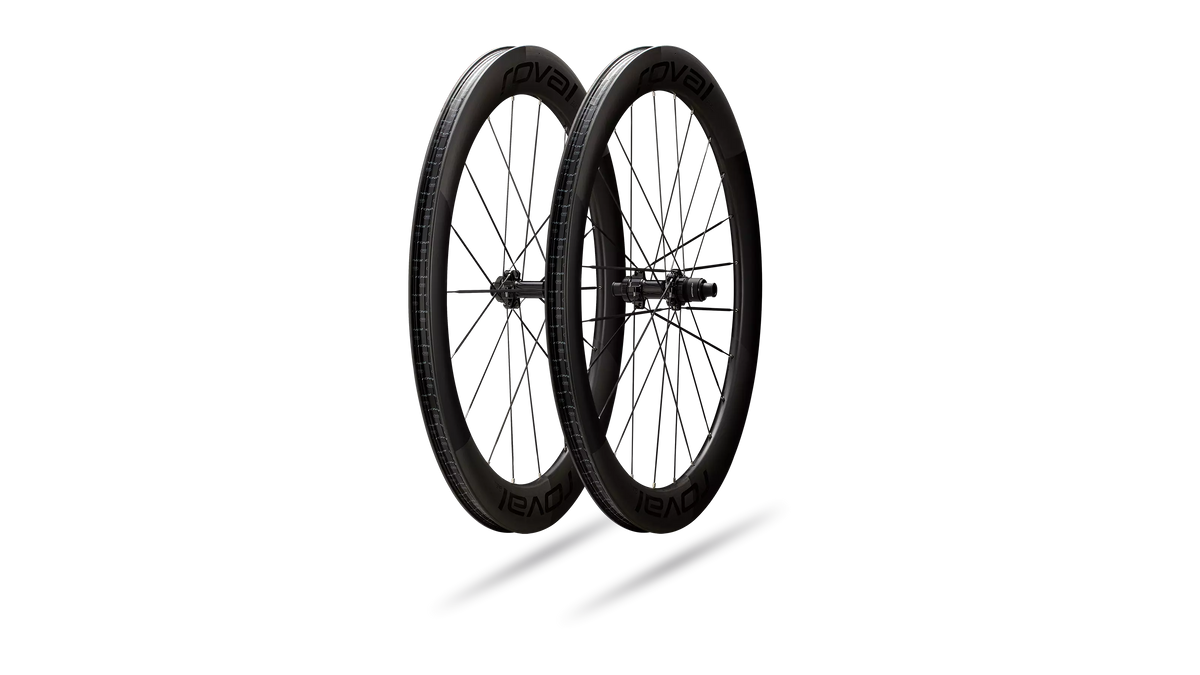

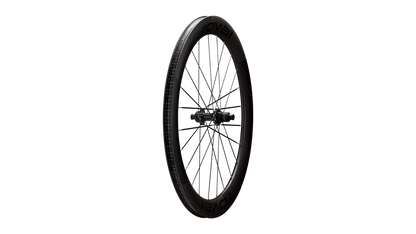

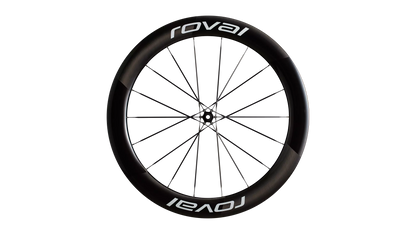

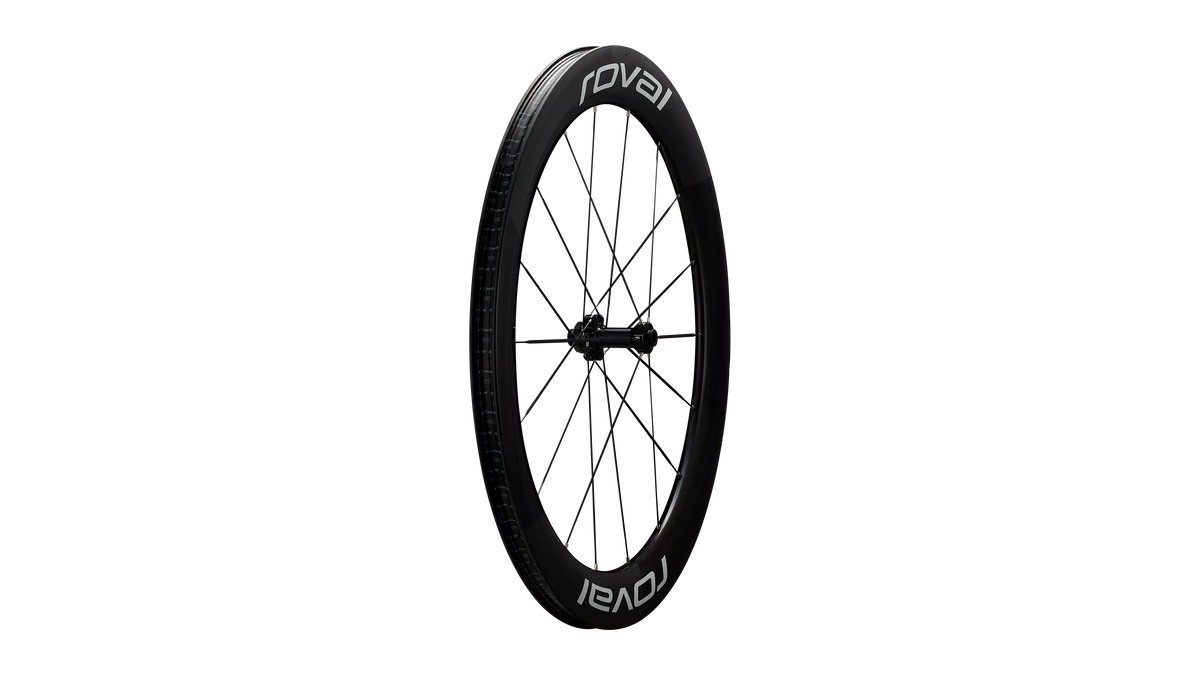

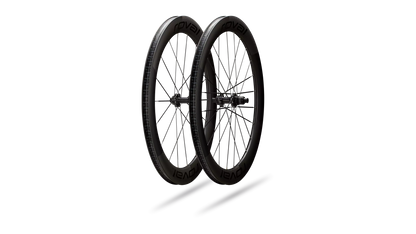

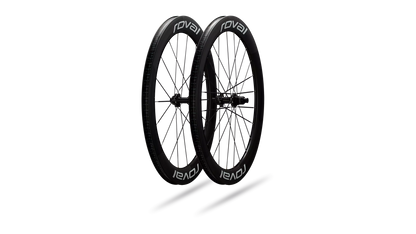

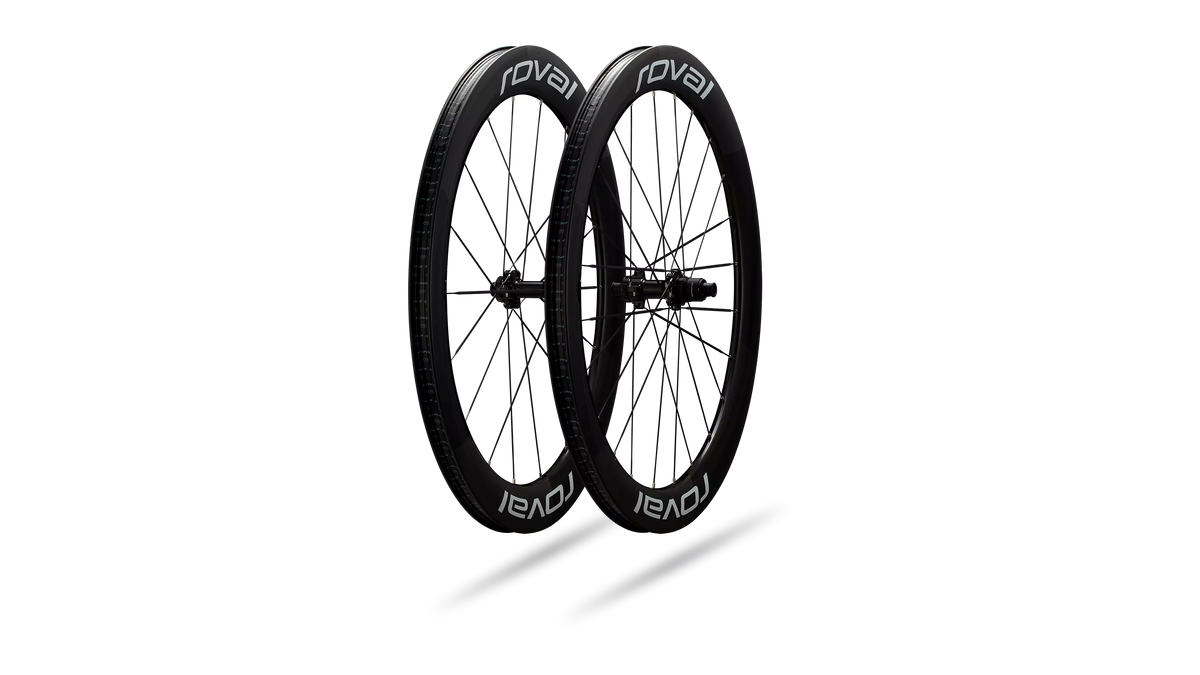

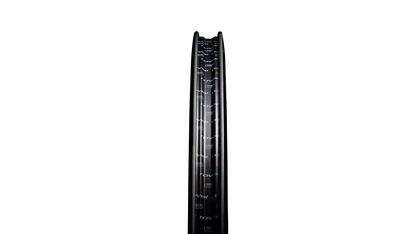

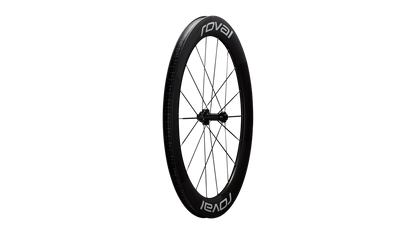

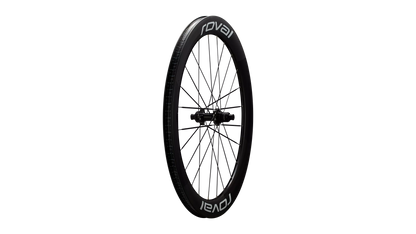

Roval Rapide Sprint CLX

Meet the Roval Rapide Sprint CLX—built to get to the finish line first. Since 90% of aero benefit comes from the front wheel, Roval went all-in with a 63mm deep front rim to slice through the wind, and a lightweight 58mm rear with carbon spokes for blistering acceleration when it counts. Charge full gas with confidence: FlatStop bead hooks demand 39% more force to flat, delivering race-day reliability that lasts to the line.

At a Glance

• Use: Road Racing
• Weight: 1,395 grams
• Hub & Engagement: DT Swiss 180 EXP internals, 36T
• Rim Depth: 63mm front, 58mm rear
• Spokes: 18F / 24R Carbon
• Tire Size: 28mm Optimized

Wheels sold individually (front or rear).

Technical Specifications

Rims

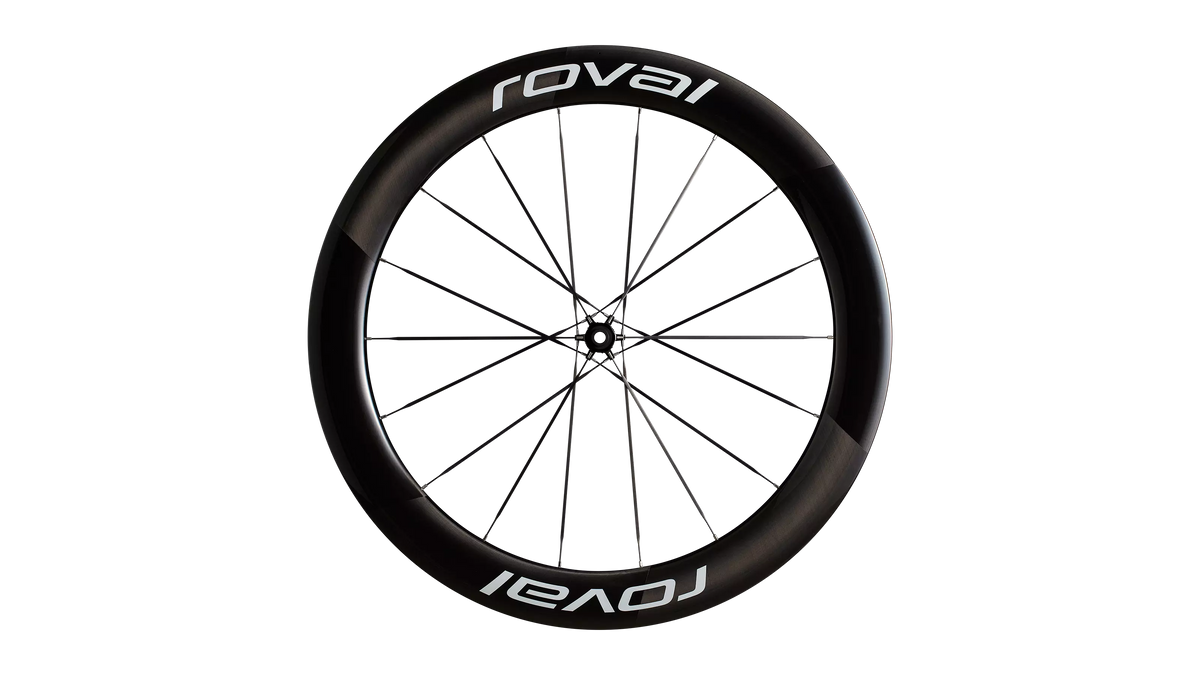

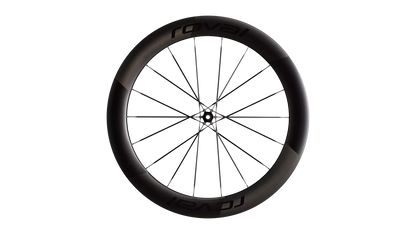

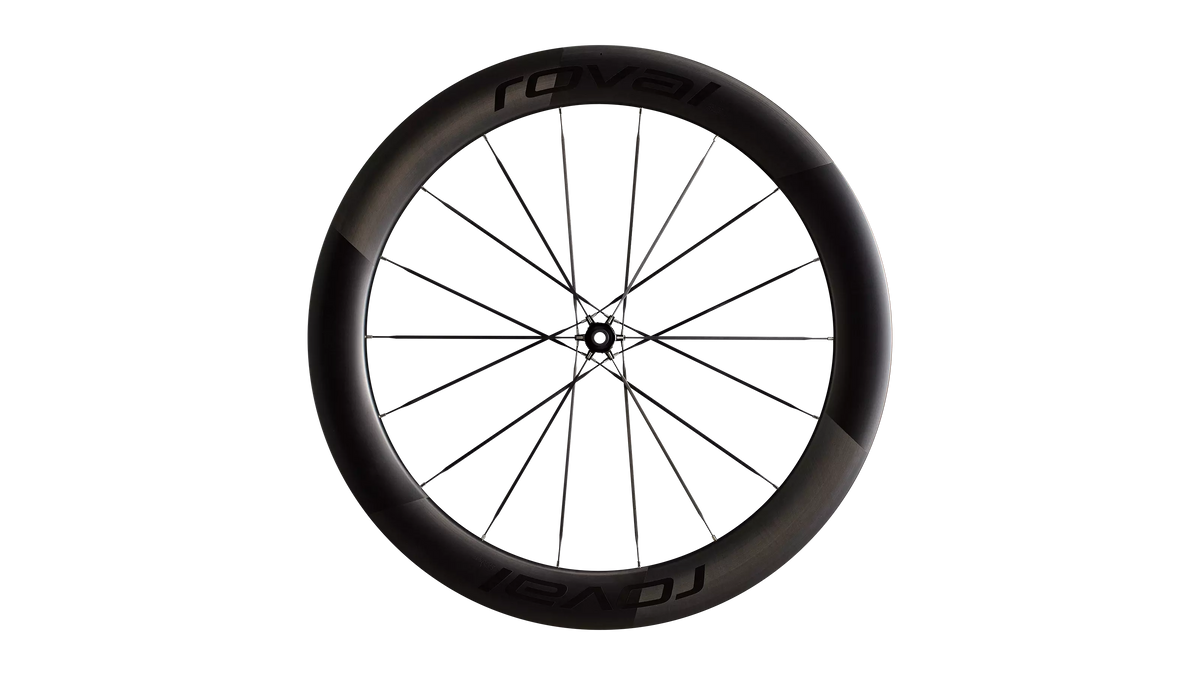

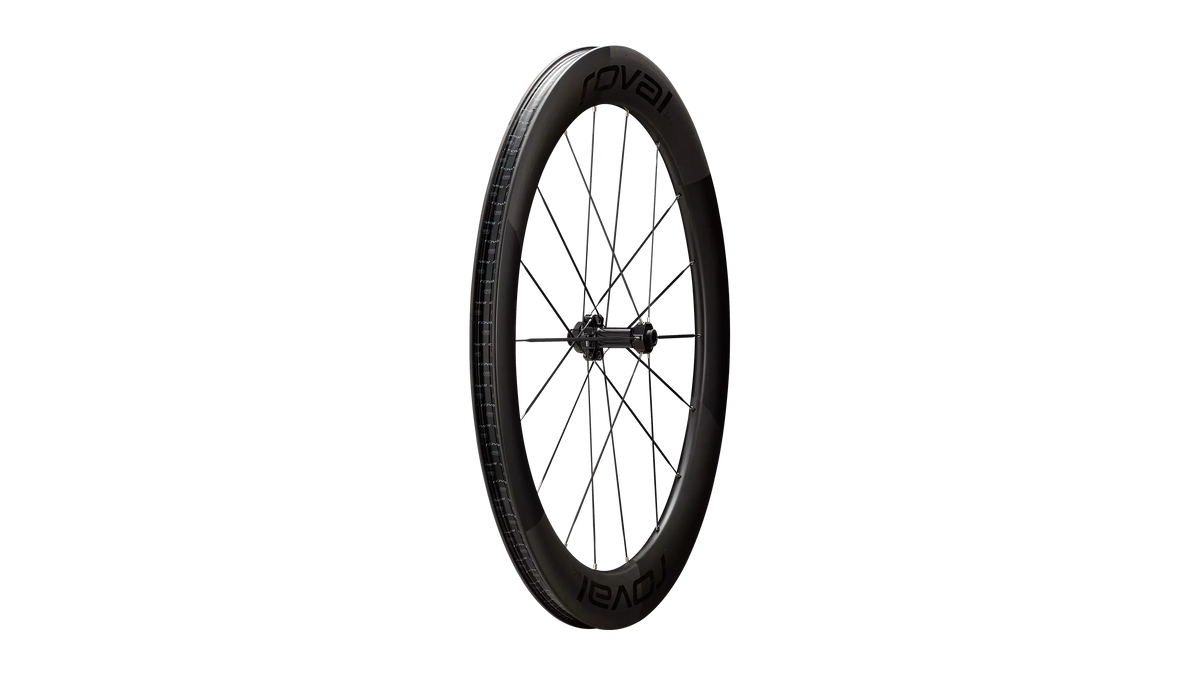

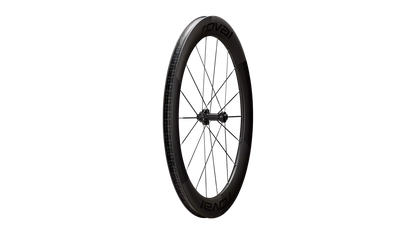

• Front Rim: Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)

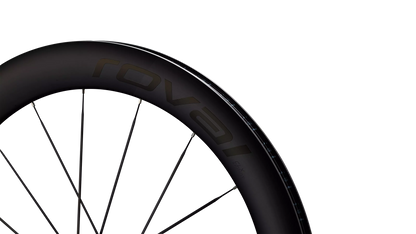

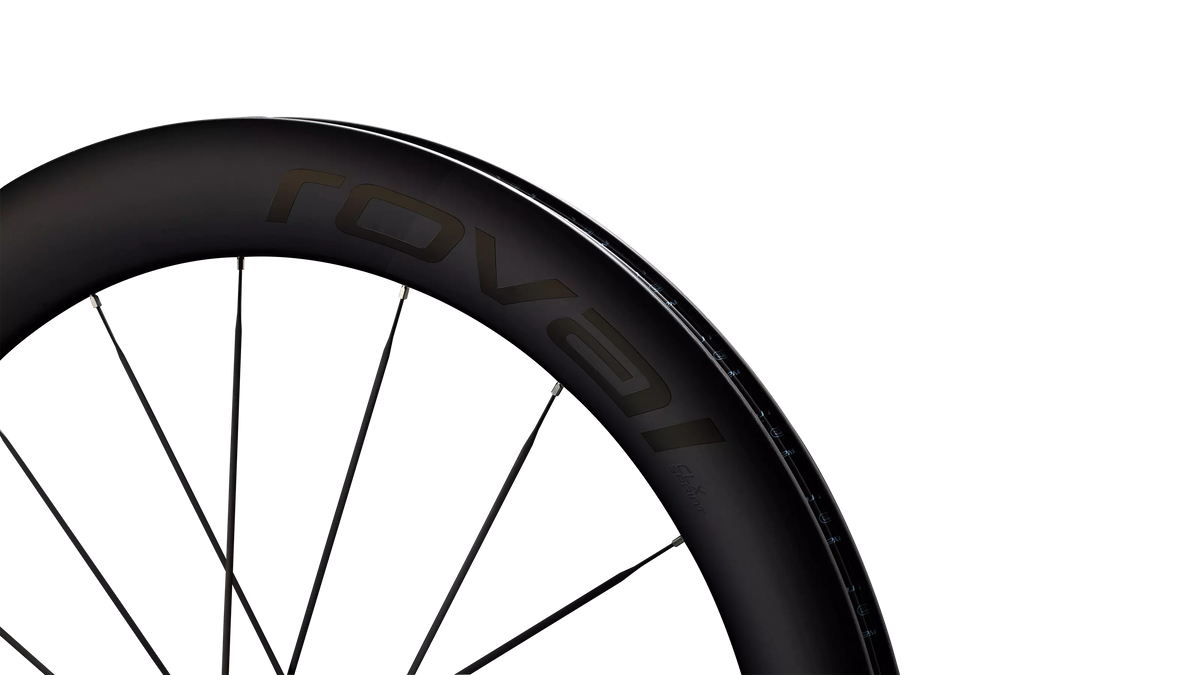

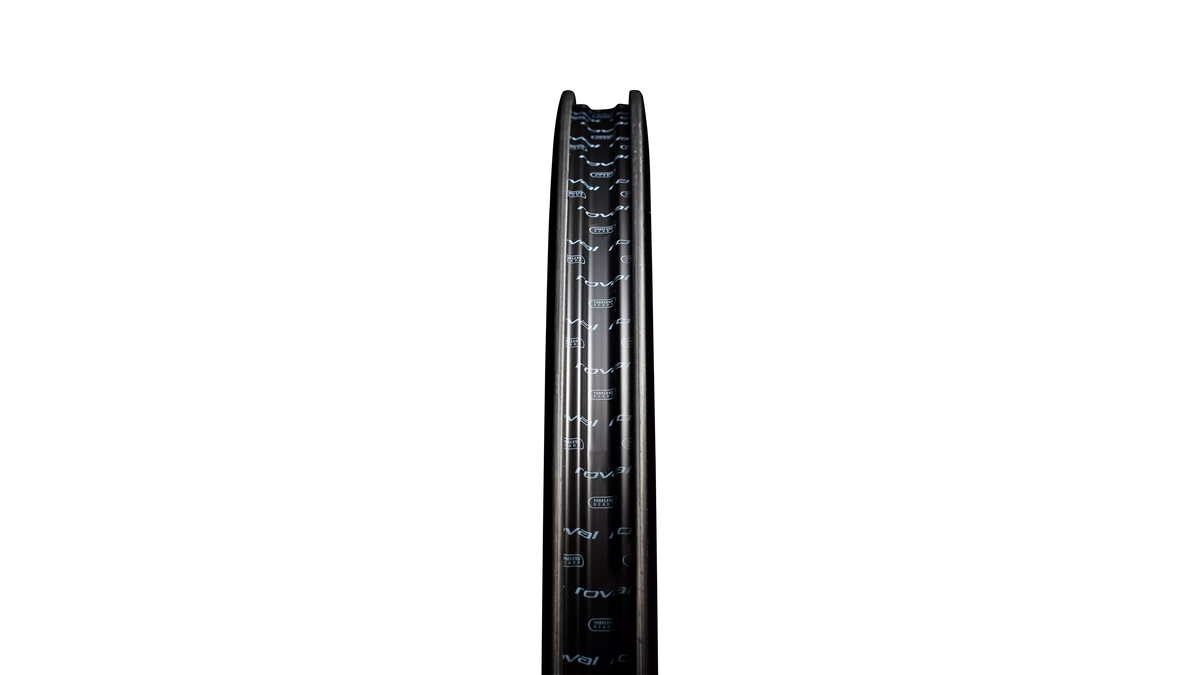

• Front Rim Dimensions: Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm

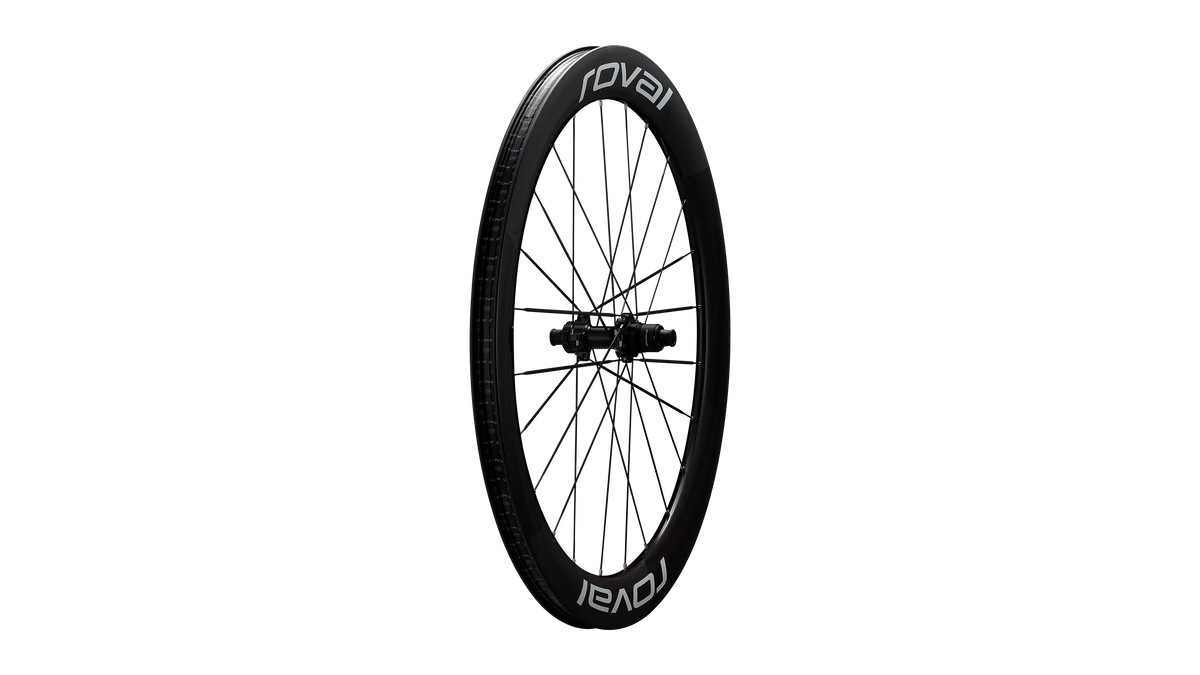

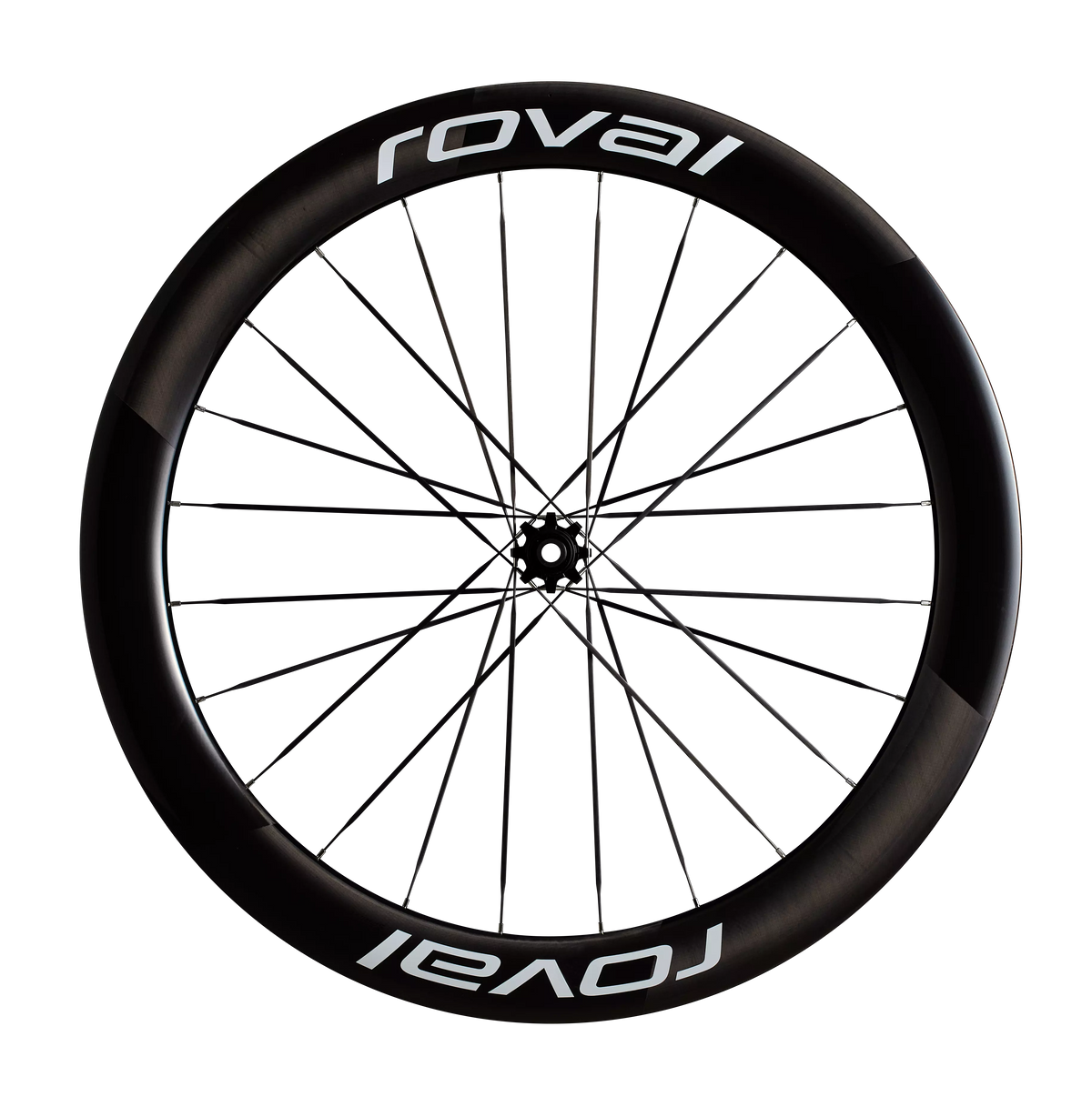

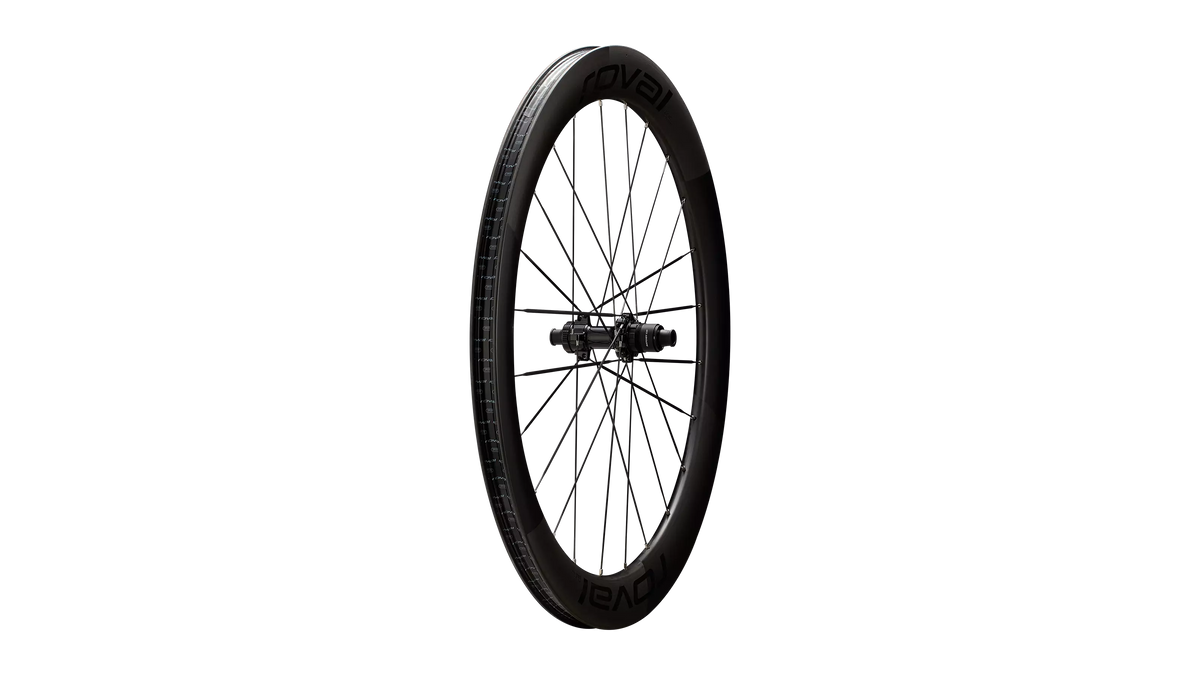

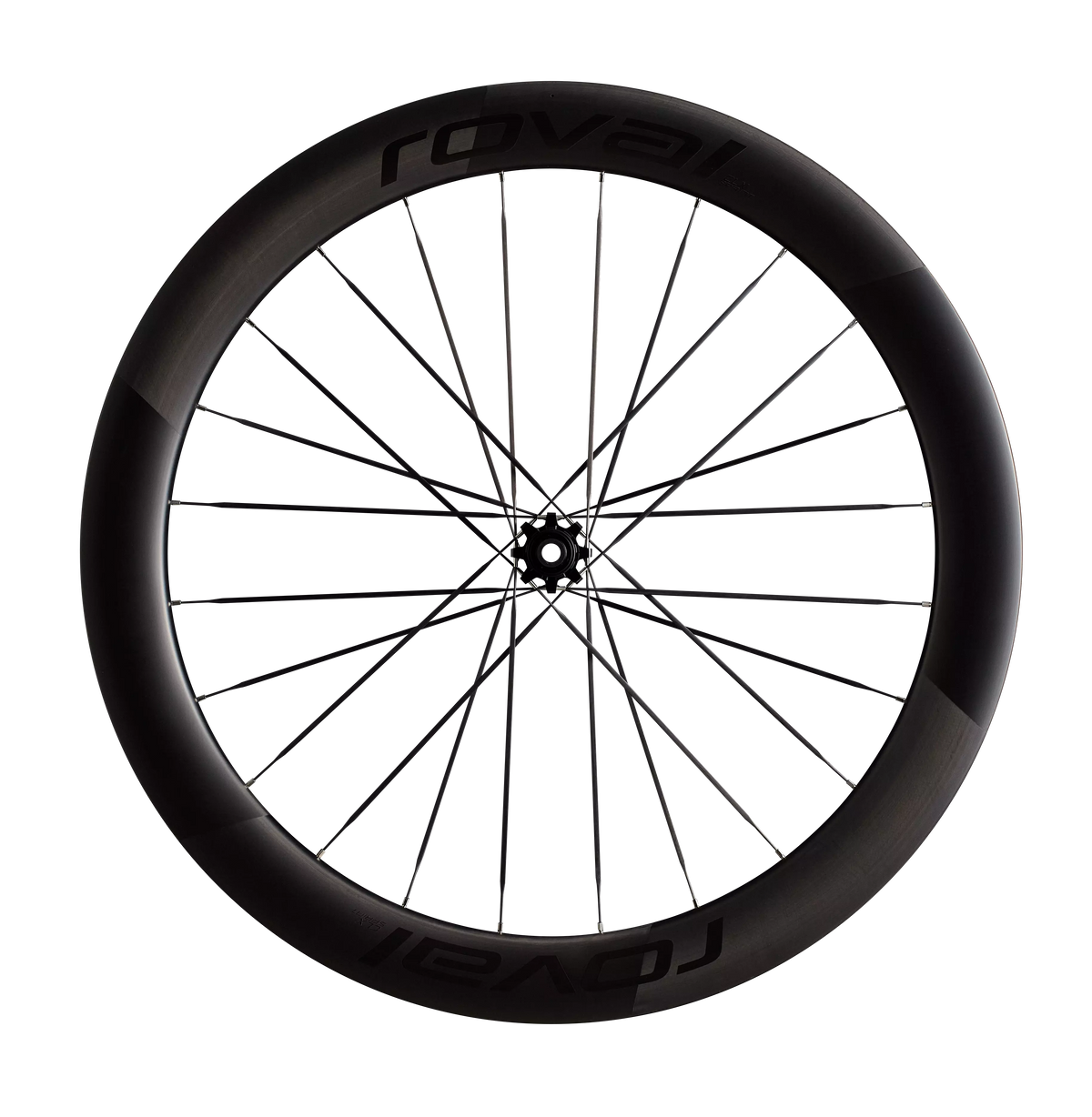

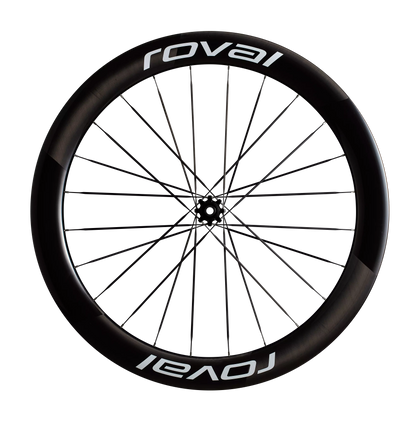

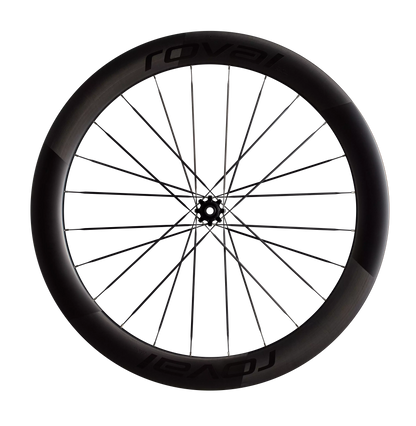

• Rear Rim: Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)

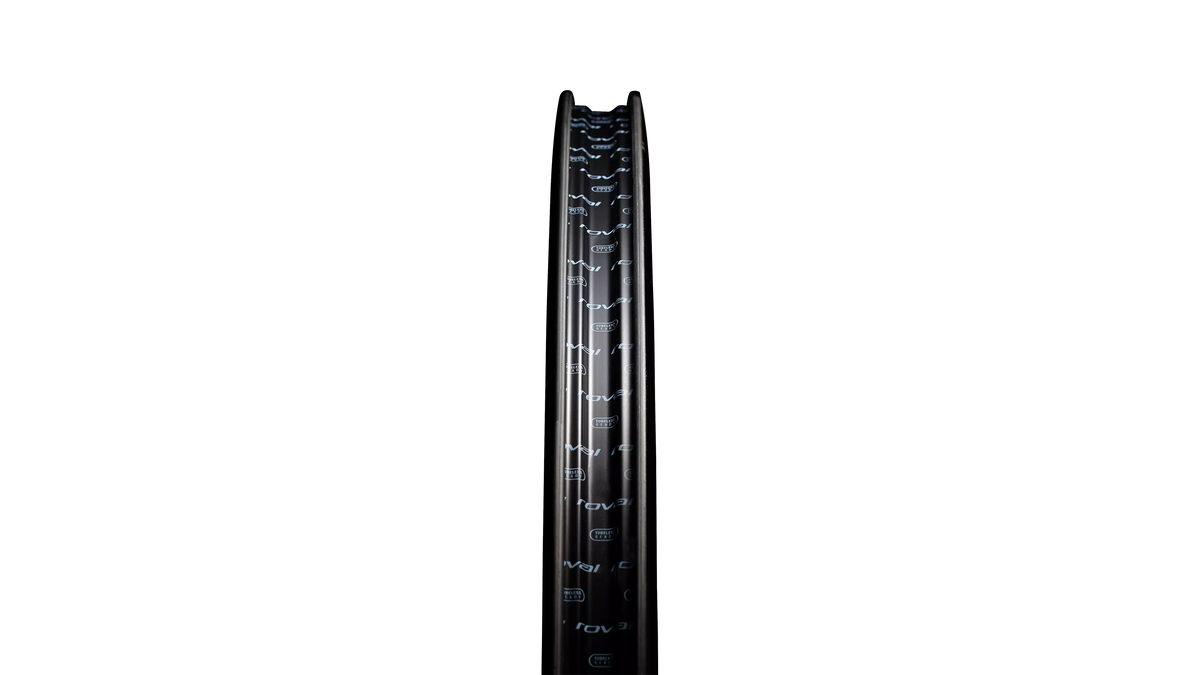

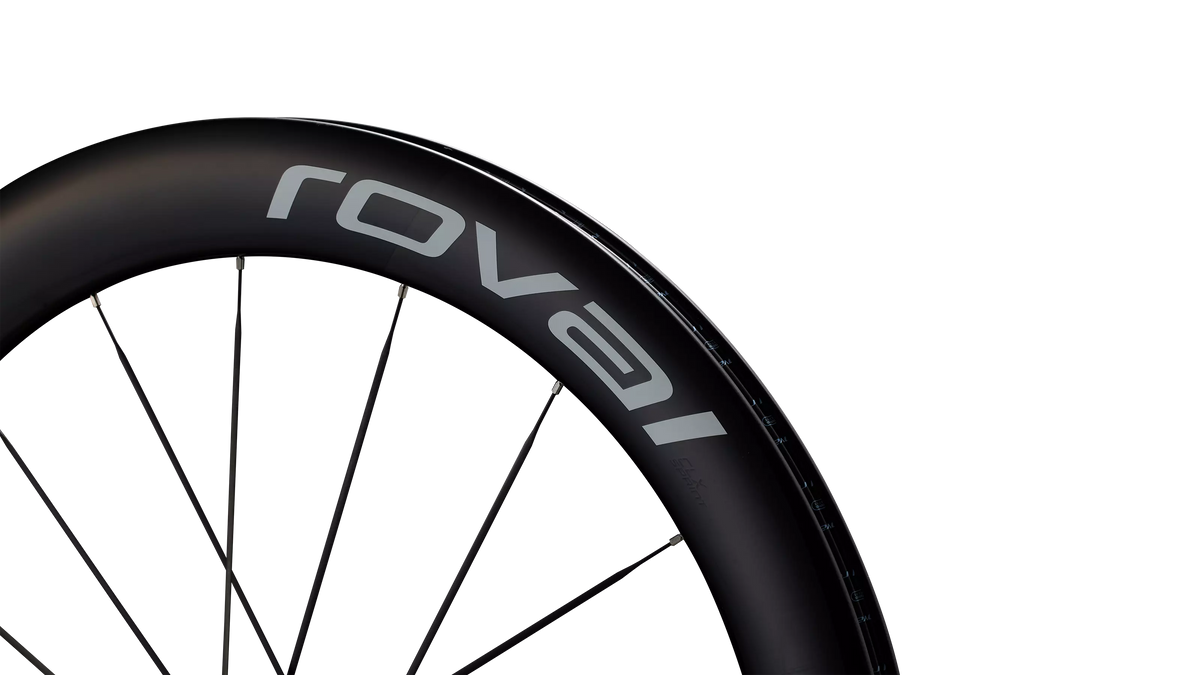

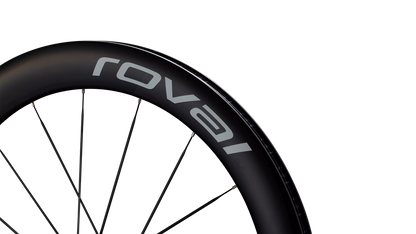

• Rear Rim Dimensions: Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm
• Rim Construction: Carbon Clincher Hooked
• Wheel Size / ETRTO: 622 × 21 (700c)
• Hole Count: Front: 18H, Rear: 24H
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (Centerlock)
• Valve Stem Length: Roval Tubeless Valve, Alloy 80mm

Hubs

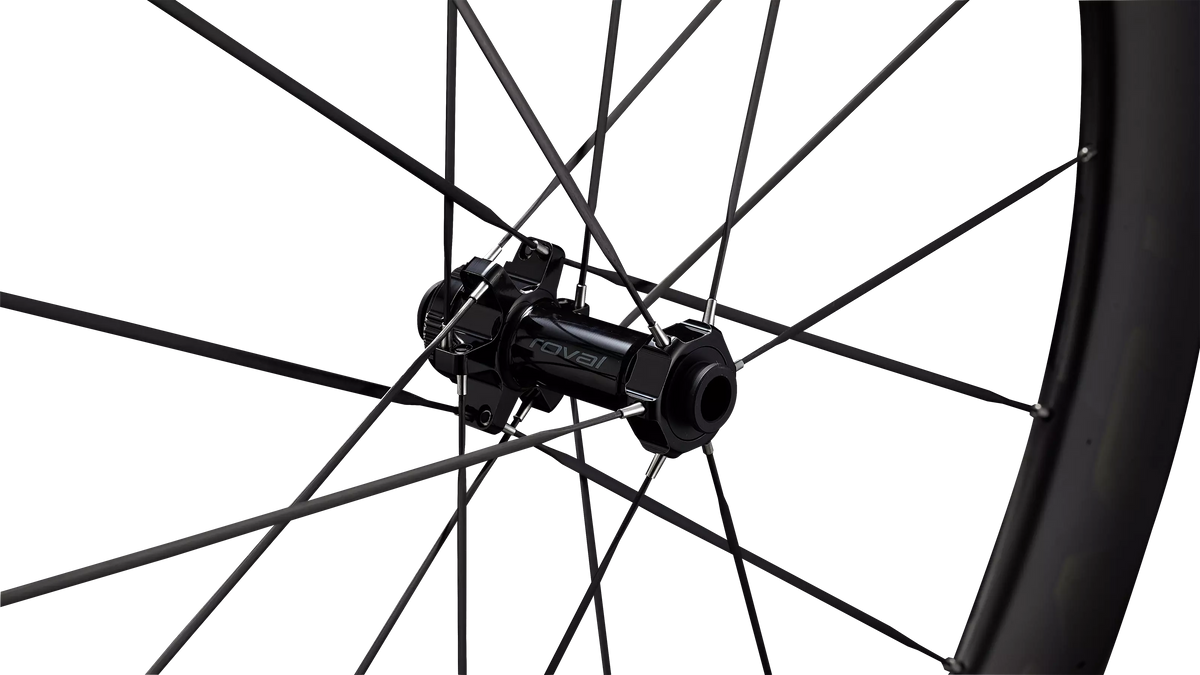

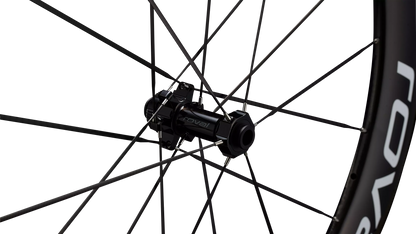

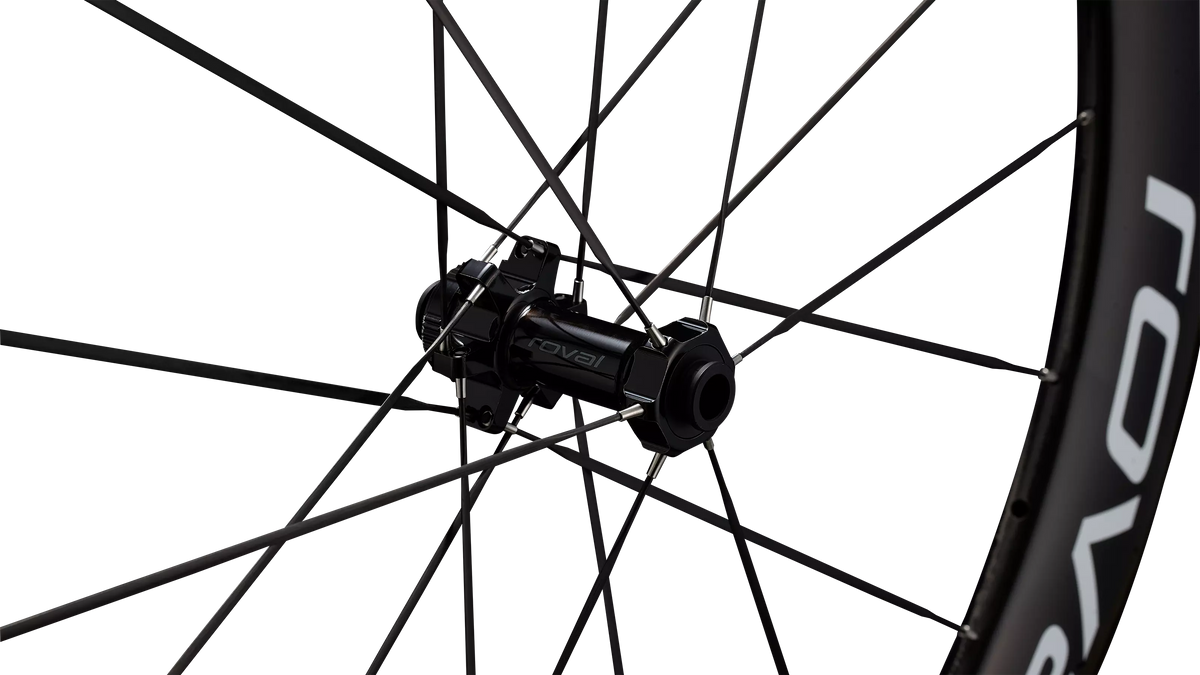

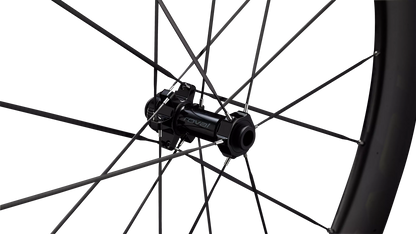

• Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)

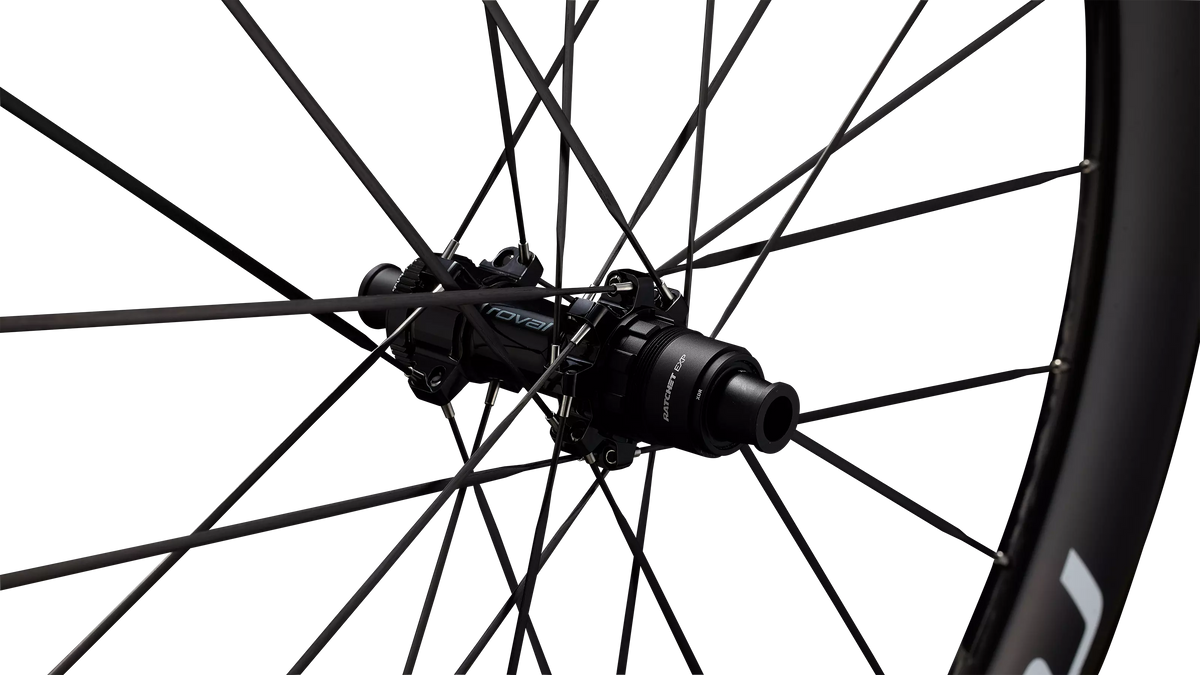

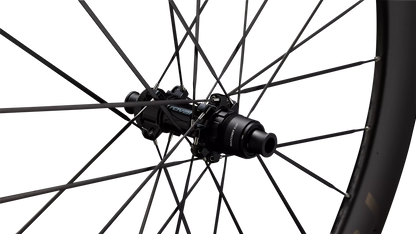

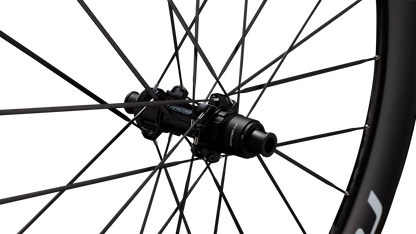

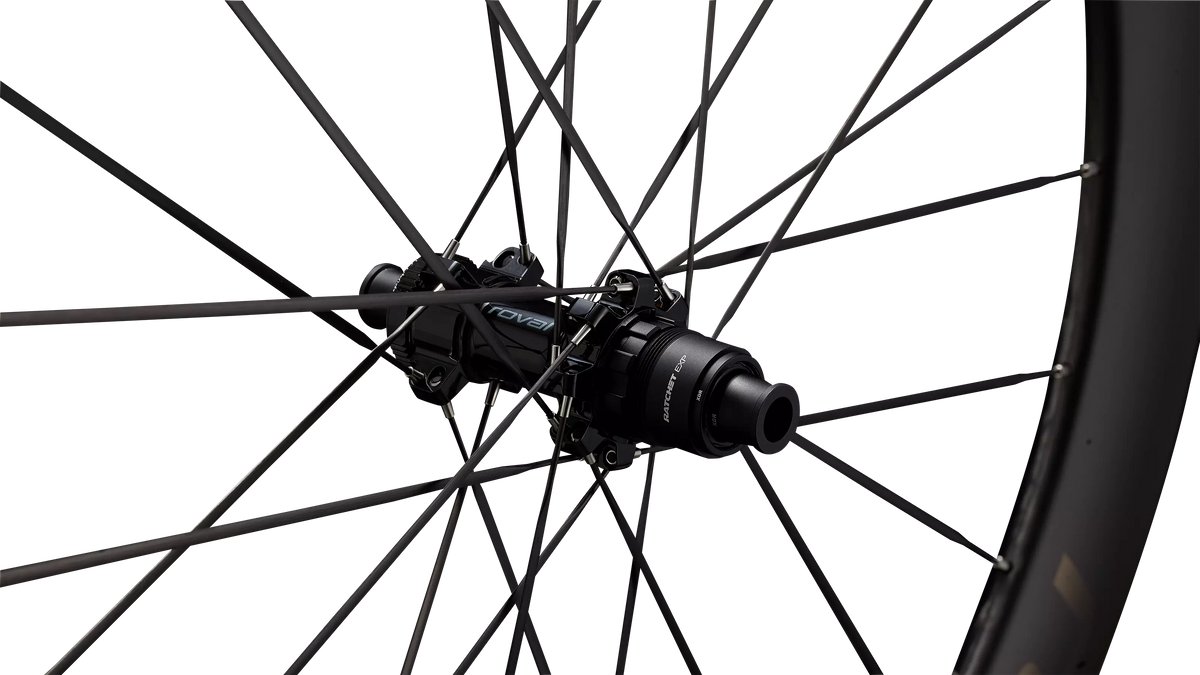

• Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
• Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
• Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
• Rear Freehub Body: DT Swiss Ratchet EXP (36T): Sram XD-R

Spokes & Nipples

• Front Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
• Rear Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
• Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
• Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
• Nipples: Arris MK4 Spoke Nipple Alloy, 6 mm

Tire Info

• Approved Tire Widths: 24mm-38mm
• Max Pressure: Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
• Tire Type: Clincher Tubeless and Clincher Tube Type
• Tubeless Tape Width: 25mm
• Design Tire: RapidAir TLR, 28mm

Weight

• Front Weight: 640g (with valves and tape)
• Rear Weight: 755g (with valves and tape)
• Wheelset Weight: 1,395g (with valves and tape)

General

• Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub (Steel Bearings) & end Caps (rear wheel only)
• E-bike Approved: No
• Certifications: ISO 5775-2, UCI Approved
• Weight Limit: 275 lbs. / 125 kg.
• Assembly Method: Hand Built
• Warranty: Limited Lifetime Warranty
