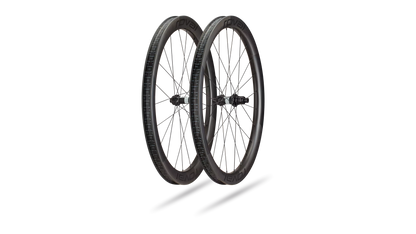

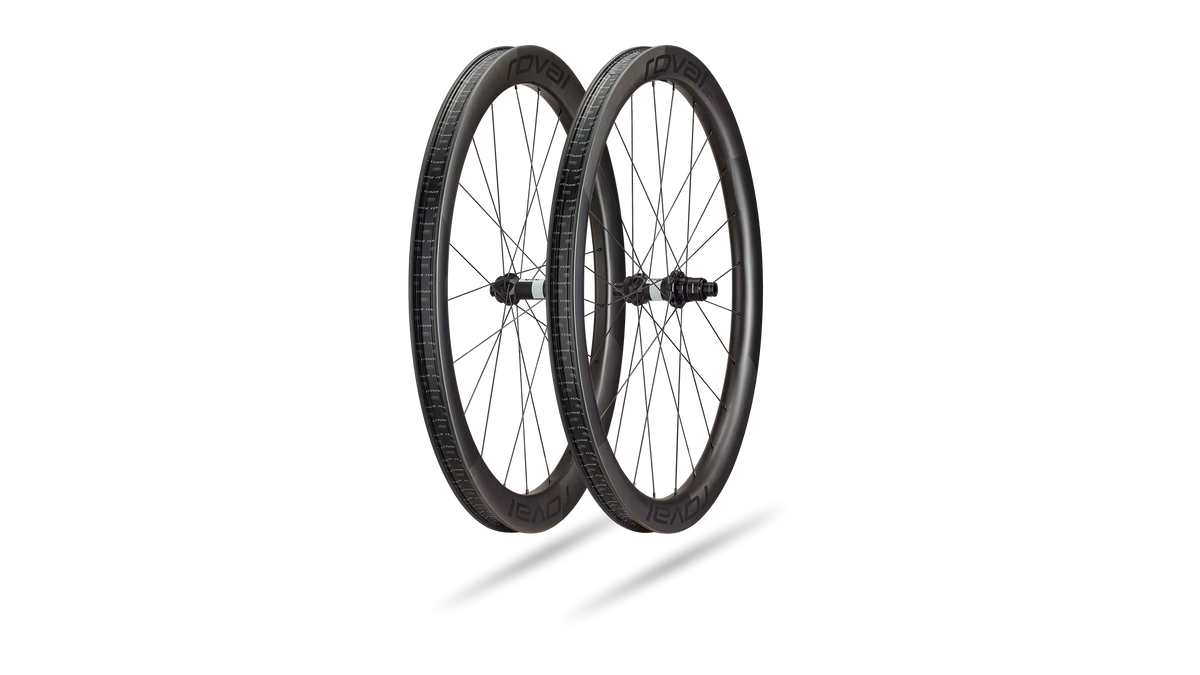

Roval Terra Aero CL

Featuring the same Chopped Aero Speed design as the Terra Aero CLX wheelset, the all-new Terra Aero CL delivers the performance demanded by today’s best gravel racers, packaged for the everyday rider. The 5.38mm bead hook delivers FlatStop protection to keep you focused on what’s important—delivering your best no matter the terrain.

At a Glance

• Use: Gravel Racing and Riding
• Weight: 1,608g with tape and valves
• Rim Depth & Width: 50mm / 45mm F/R depth, 38.5mm external width
• Bead Hook Width: 5.38mm
• Hub & Engagement: DT Swiss 350, 36T
• Tire Recommendation: Tracer TLR - 45mm

Wheels sold individually (front or rear).

Technical Specifications

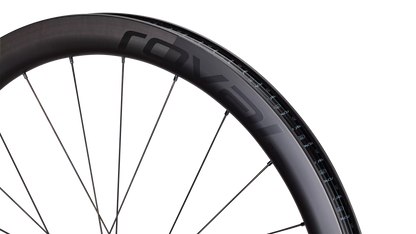

Rims

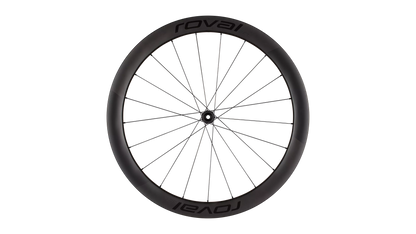

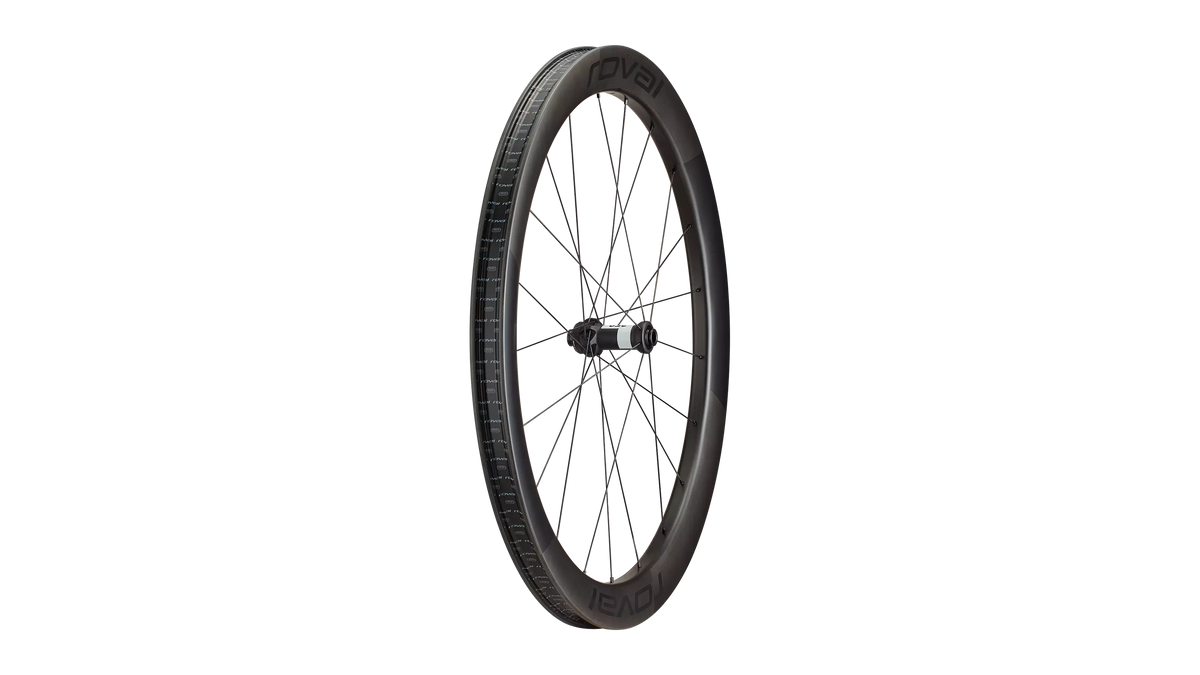

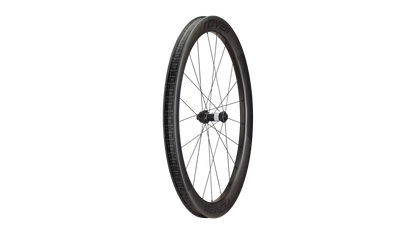

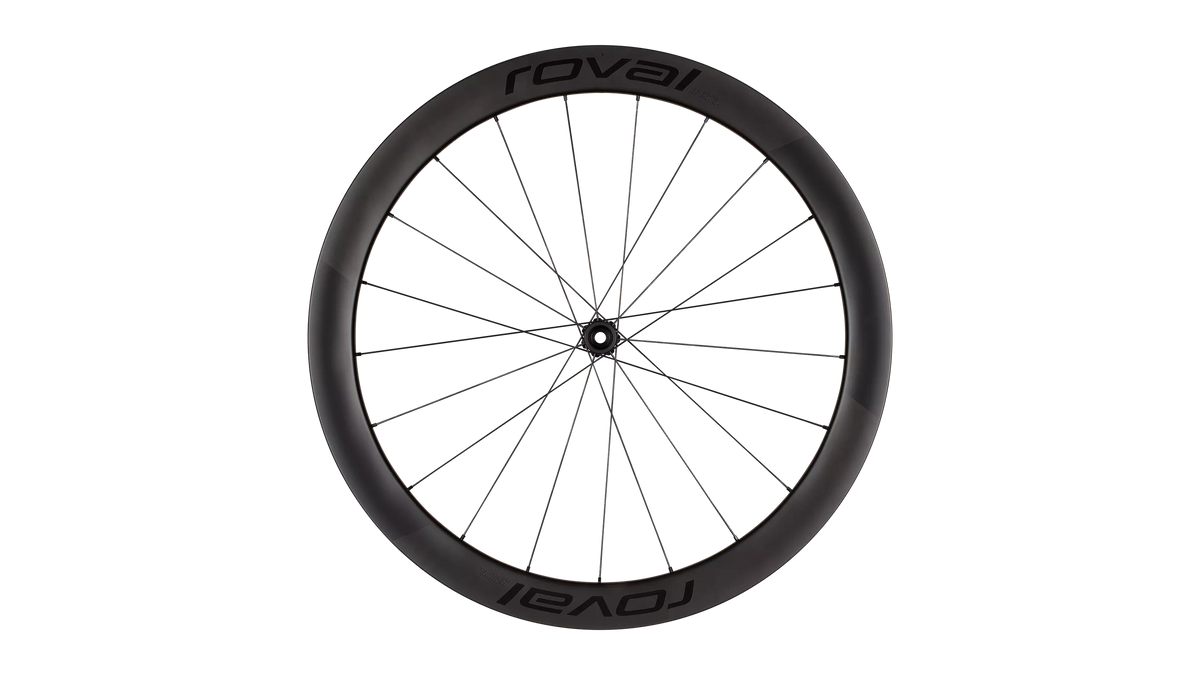

• Front Rim: Terra Aero CL Carbon Clincher, 700c (CR2478)

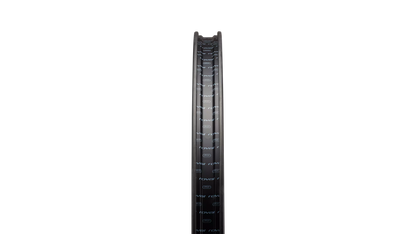

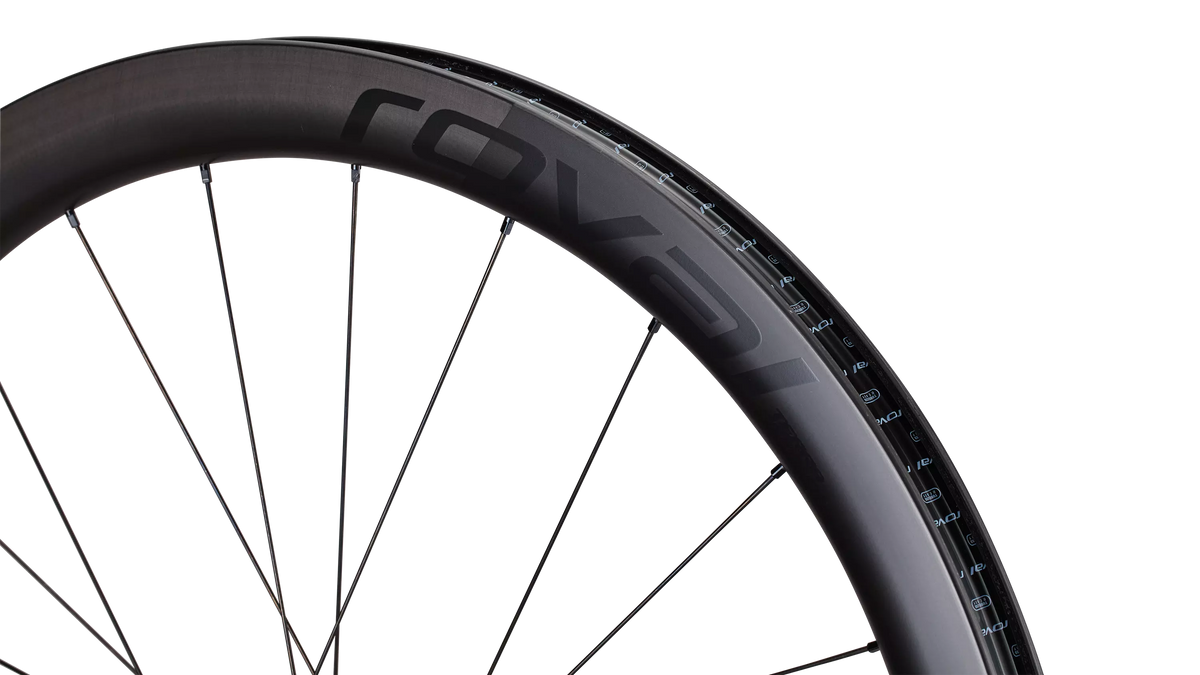

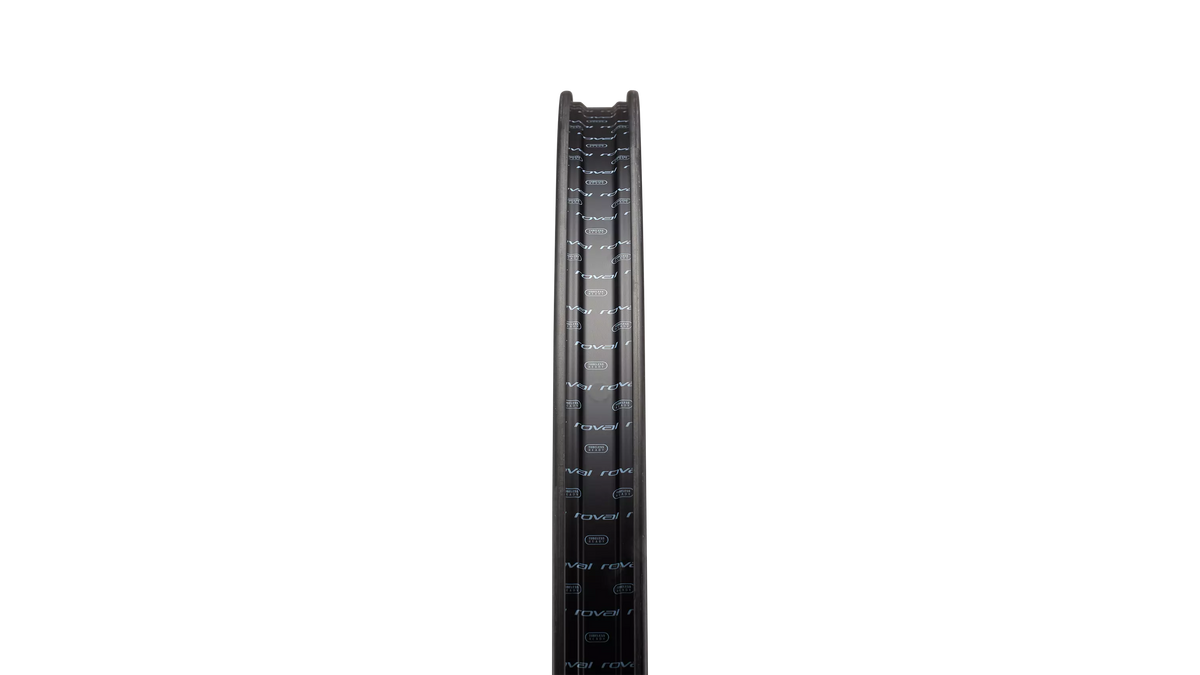

• Front Rim Dimensions: Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

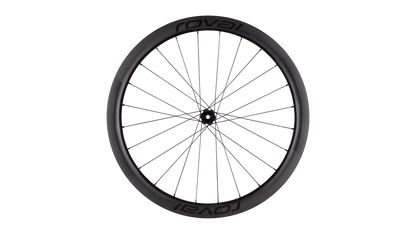

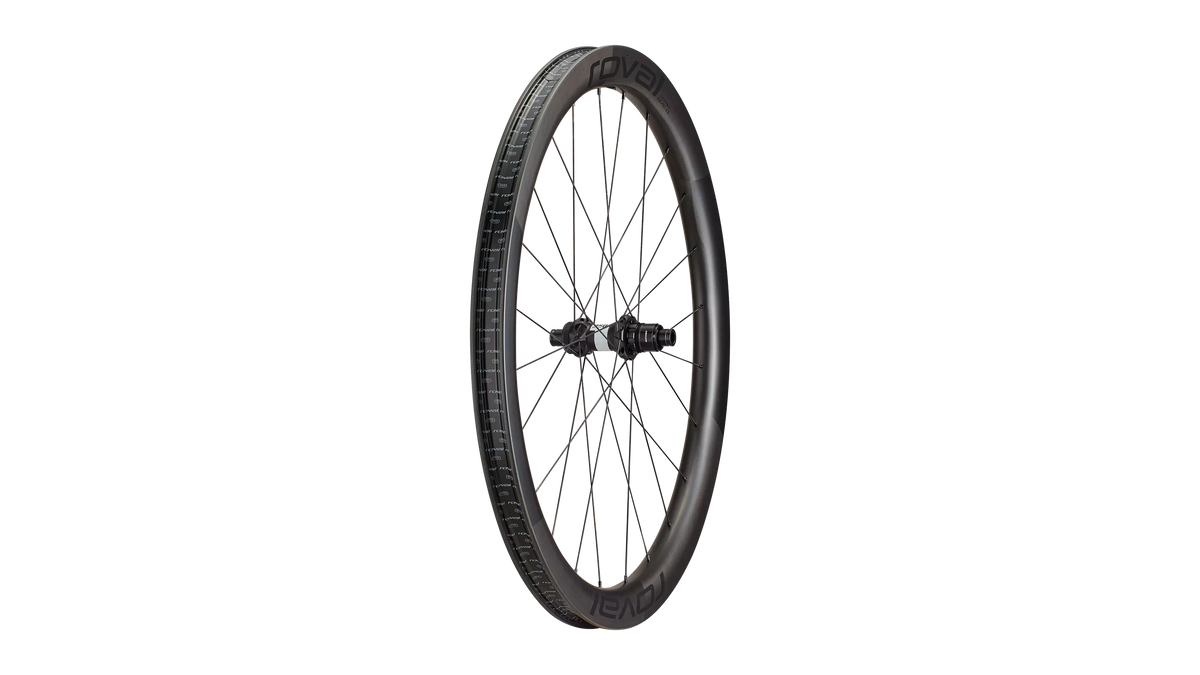

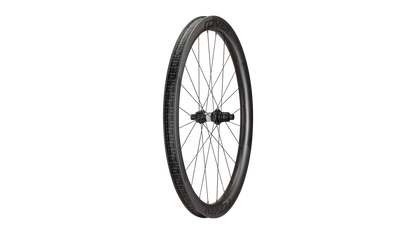

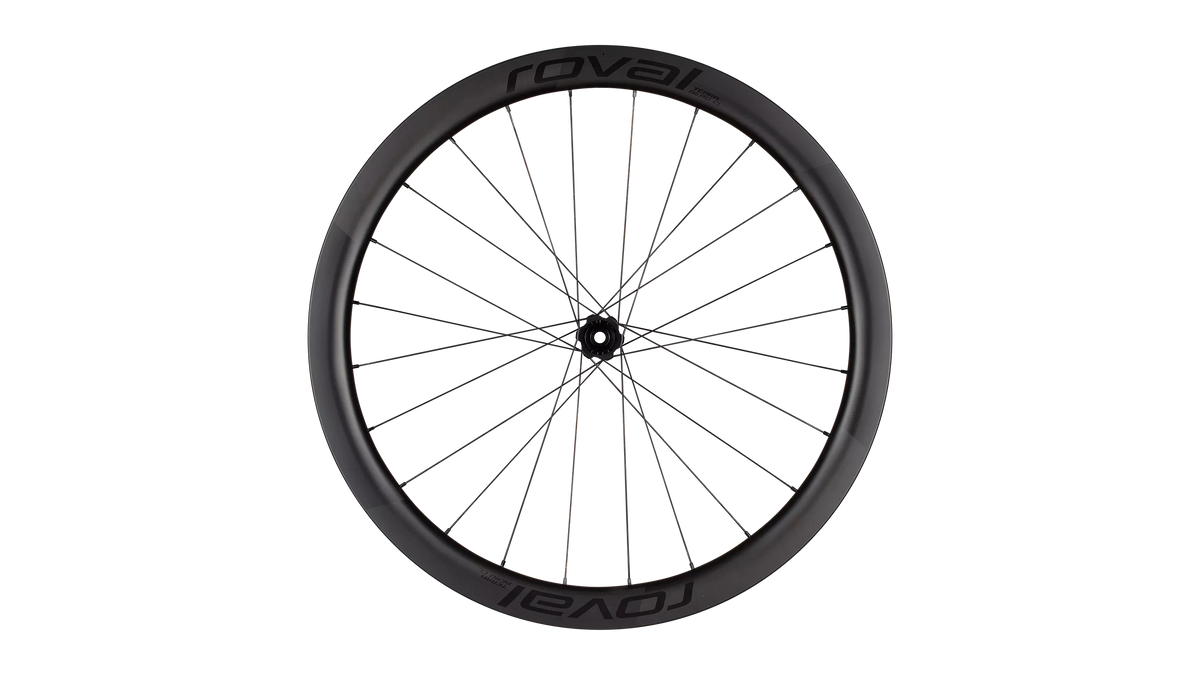

• Rear Rim: Terra Aero CL Carbon Clincher, 700c (CR2477)
• Rear Rim Dimensions: Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
• Rim Construction: Carbon Clincher Hooked
• Wheel Size / ETRTO: 622 × 27 (700c)
• Hole Count: Front: 21H, Rear: 24H
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (Centerlock)
• Valve Stem Length: Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)

Hubs

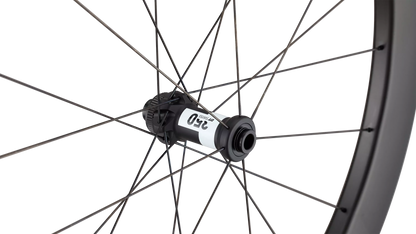

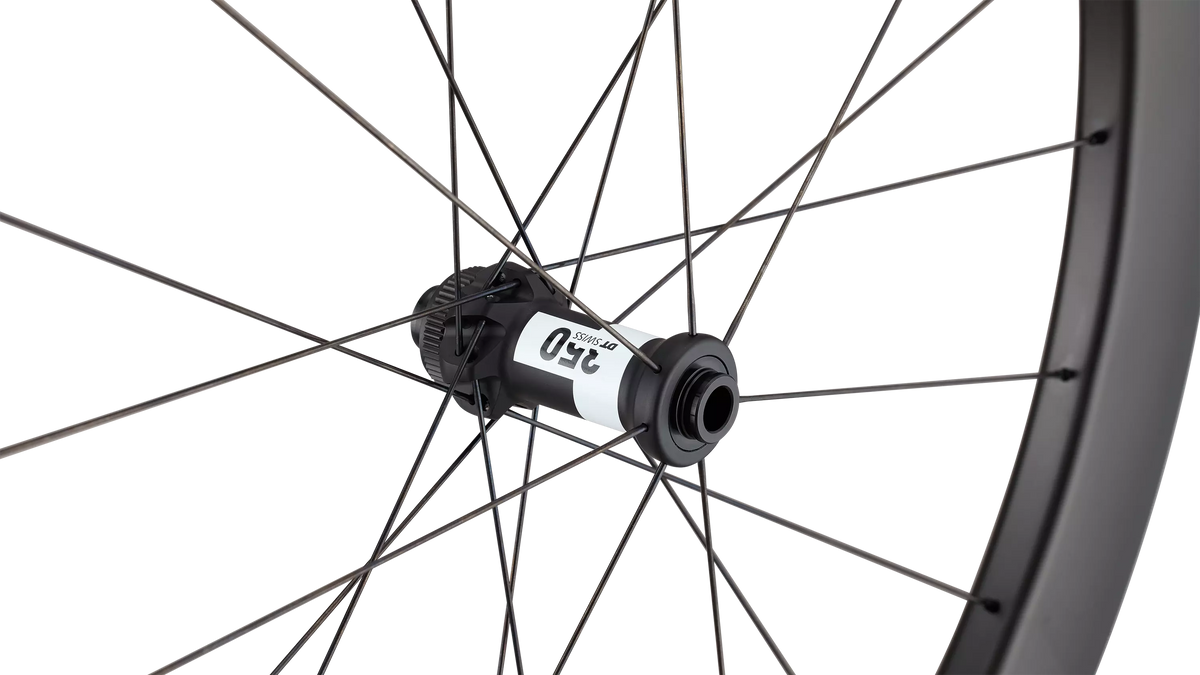

• Front Hub: DT Swiss 350 Straight Pull, Center Lock, 12x100mm

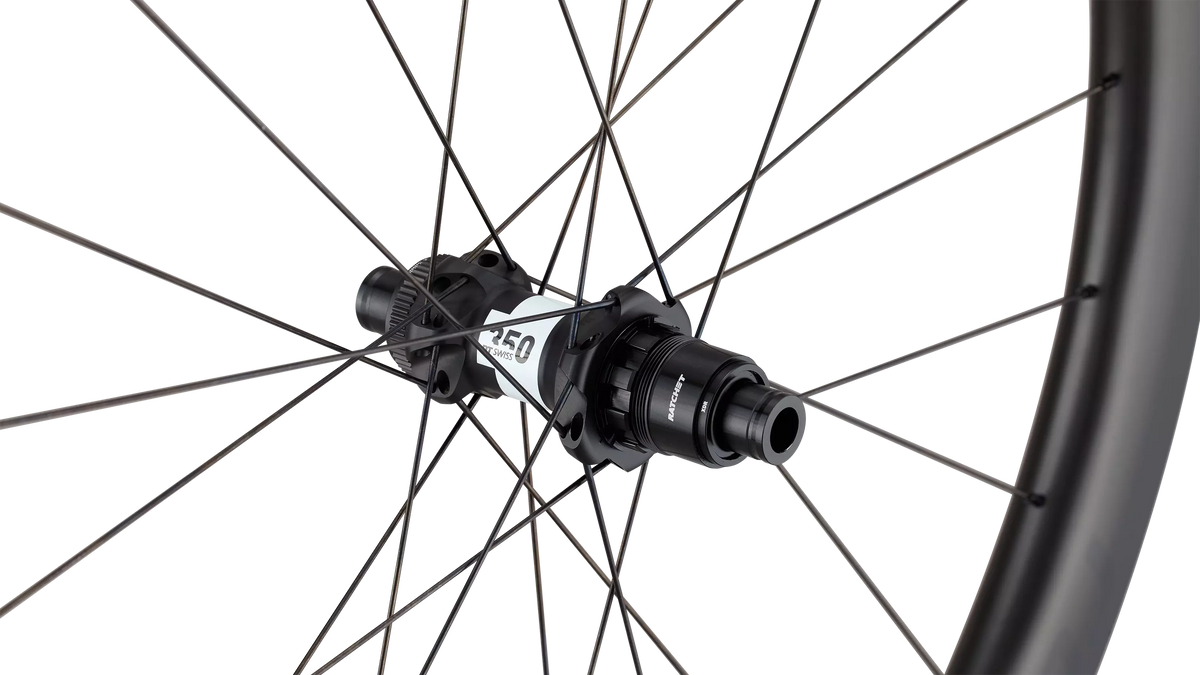

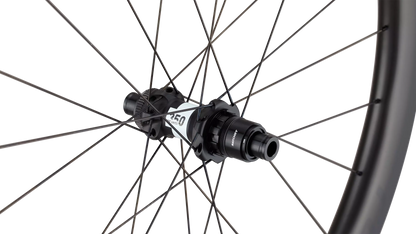

• Rear Hub: DT Swiss 350 Straight Pull, Center Lock, 12x142mm
• Front Hub Bearing: DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
• Rear Hub Bearing: DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
• Rear Freehub Body: DT Swiss Ratchet (36T): Sram XD-R

Spokes & Nipples

• Front Spokes: DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 21qty, (DS: 260mm, NDS: 273mm)
• Rear Spokes: DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 270mm, NDS: 274mm)
• Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
• Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
• Nipples: DT Swiss Hex Prolock Al 2.0x14mm

Tire Info

• Approved Tire Widths: 35mm-60mm (2.2")
• Max Pressure: 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
• Tire Type: Clincher Tubeless and Clincher Tube Type
• Tubeless Tape Width: 30mm
• Design Tire: Tracer TLR 45mm

Weight

• Front Weight: 770g (with valves and tape)
• Rear Weight: 838g (with valves and tape)
• Wheelset Weight: 1,608g (with valves and tape)

General

• Extras: 4 Extra Spokes and Nipples
• E-bike Approved: Yes, SL style systems or max 350W
• Certifications: ISO 5775-2, UCI Approved
• Weight Limit: 275 lbs. / 125 kg.
• Assembly Method: Hand Built
• Warranty: Limited Lifetime Warranty
