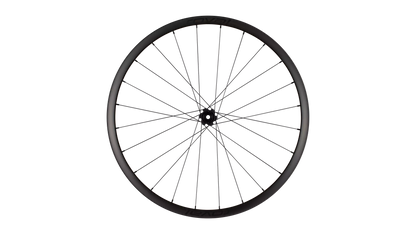

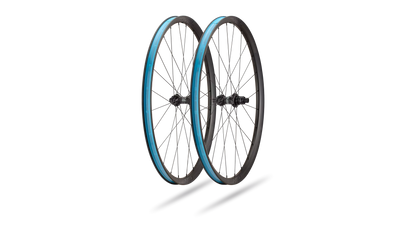

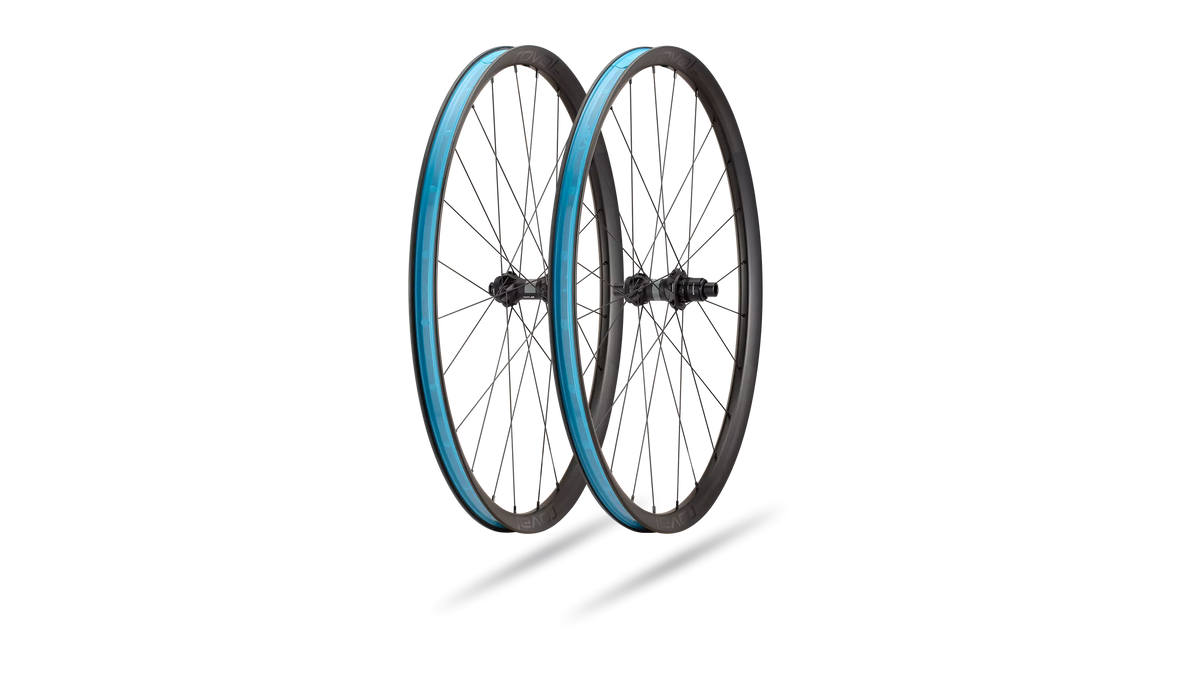

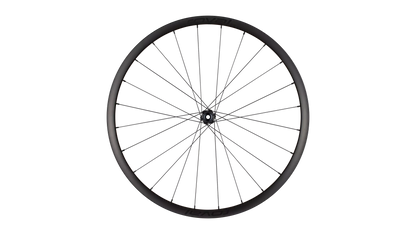

Roval Terra C III

Inspired by Roval's flagship model and built for durability, the Terra C III is the perfect match for your desire to push farther and explore deeper. Using the same FlatStop protection as Terra CLX III and built to work with tyres from 35–60mm wide, your weekend adventures just levelled up.

At a Glance

• Use: Gravel Riding
• Weight: 1,594g with tape and valves

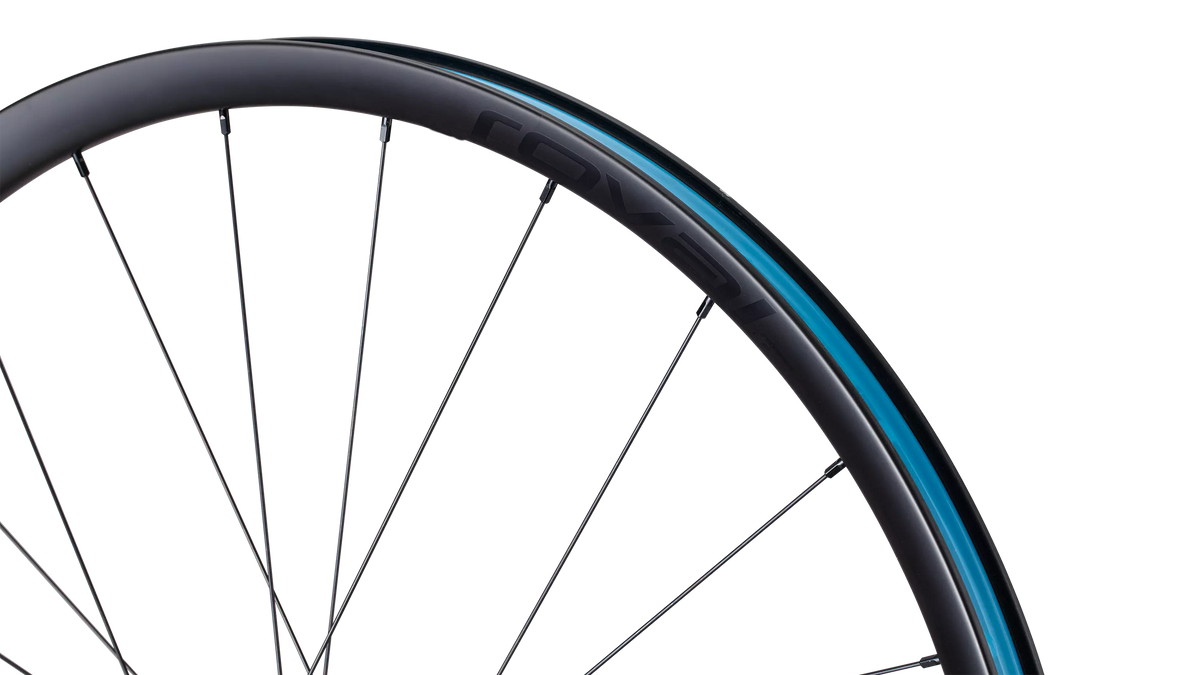

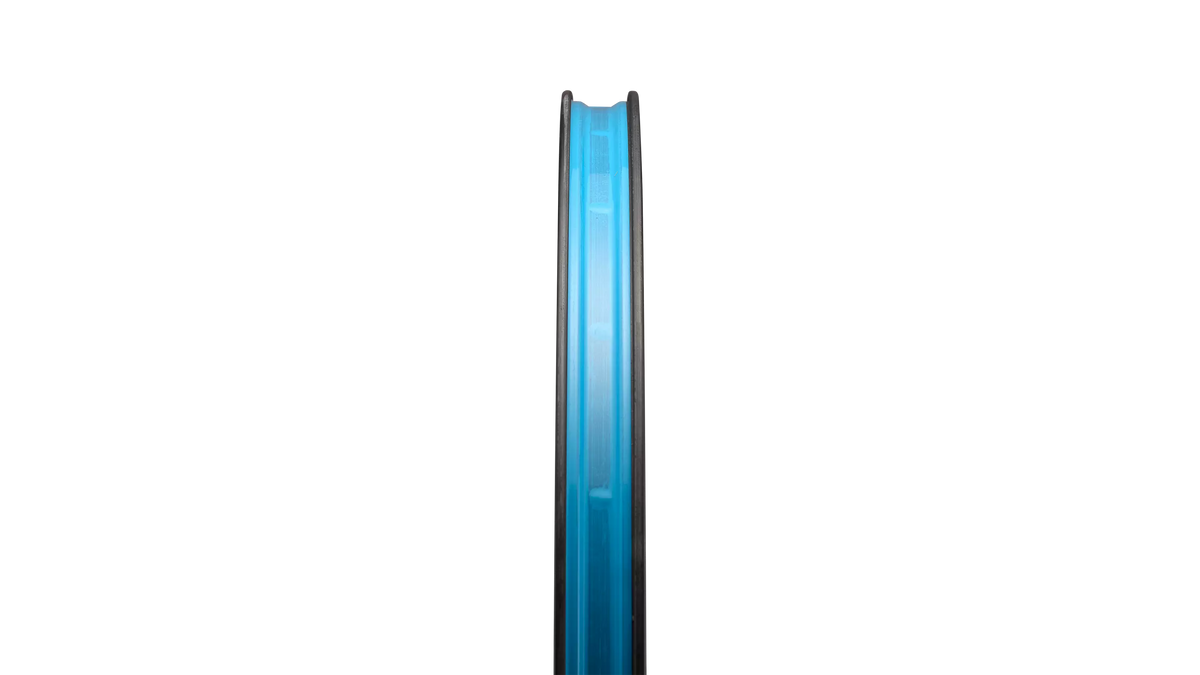

• Rim Depth & Width: 25.5mm depth, 38mm external width, 27mm internal width
• Bead Hook Width: 4.9mm
• Hub & Engagement: DT Swiss 370, 18T
• Tire Recommendation: Pathfinder TLR Fast Gravel - 45mm

Wheels sold individually (front or rear).

Technical Specifications

Rims

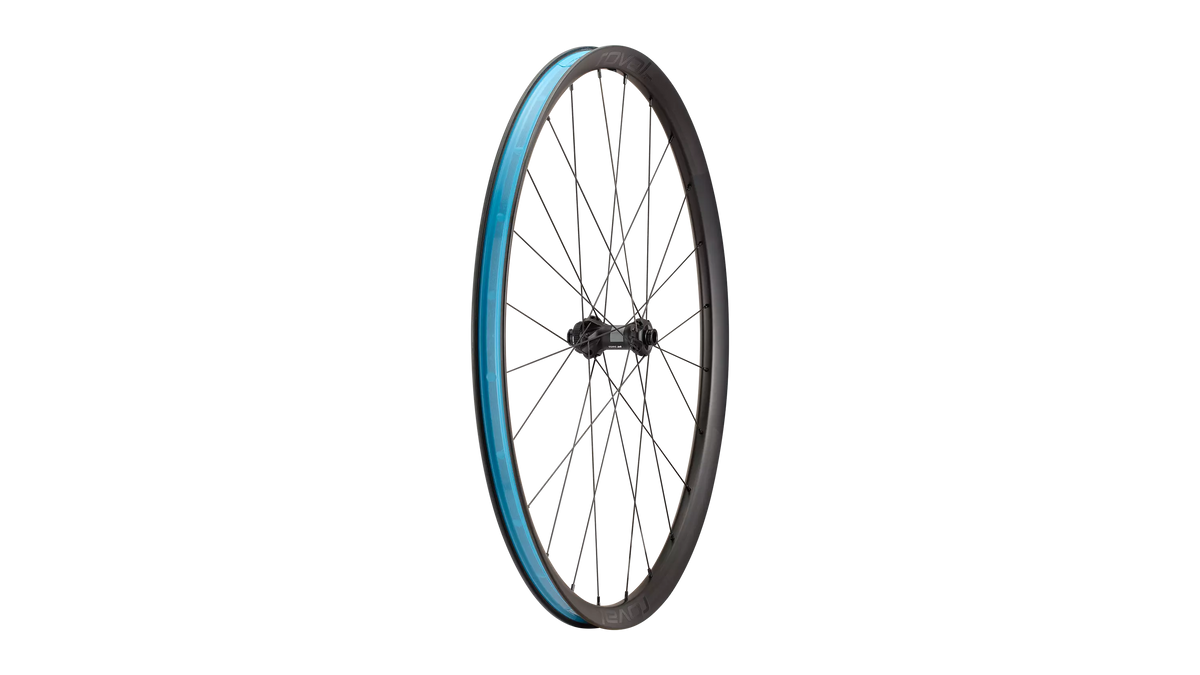

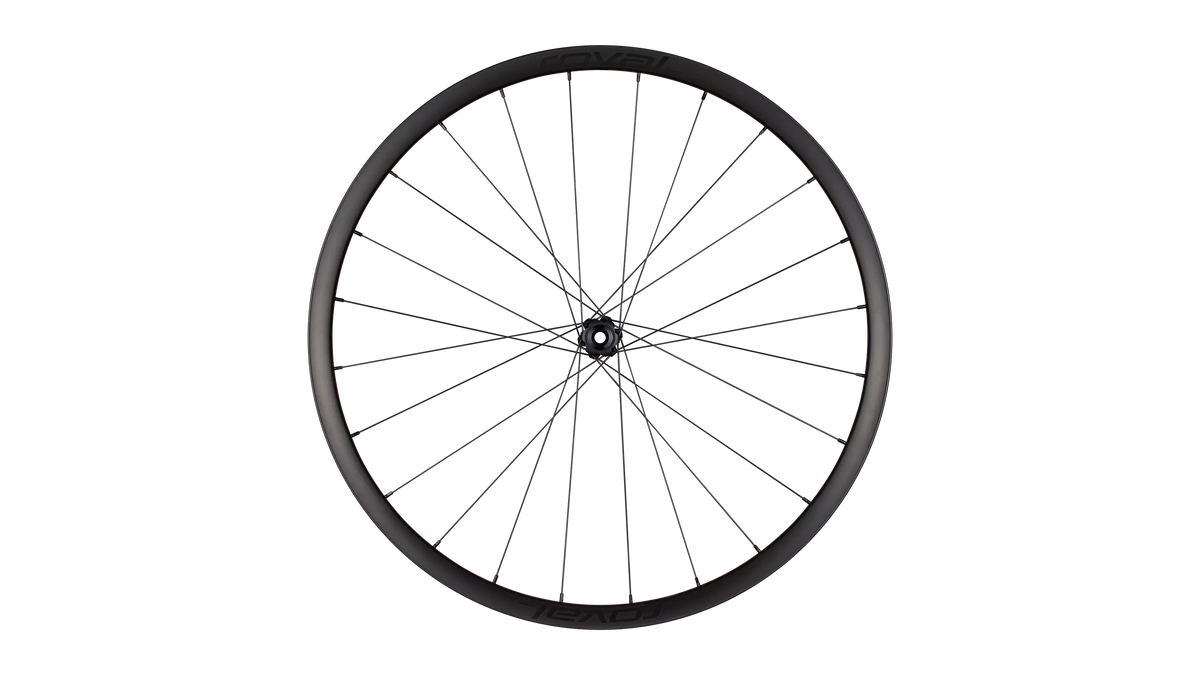

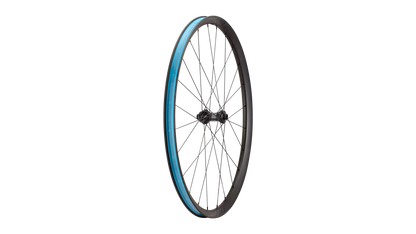

• Front Rim: Terra C III Carbon Clincher, 700c (CR2479)

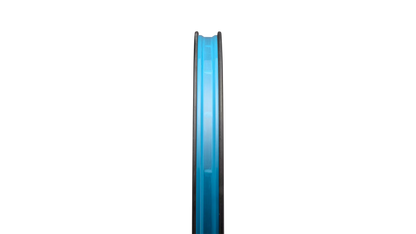

• Front Rim Dimensions: Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm

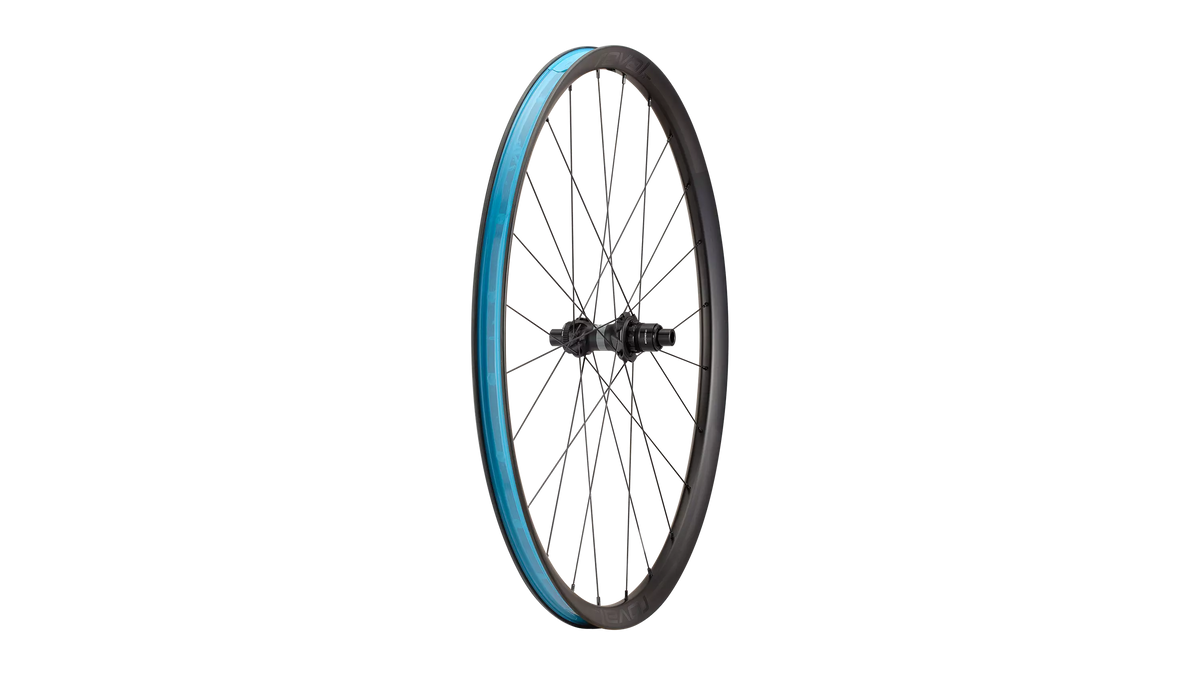

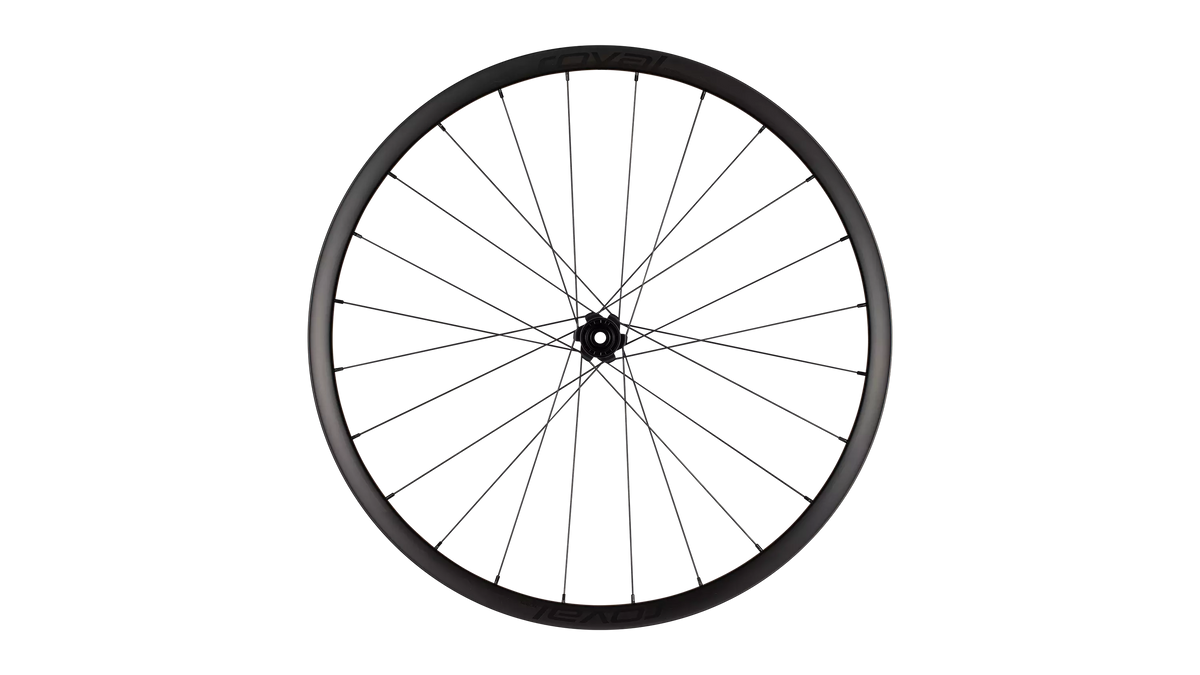

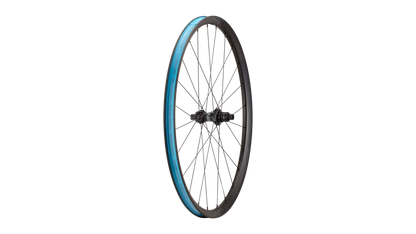

• Rear Rim: Terra C III Carbon Clincher, 700c (CR2479)
• Rear Rim Dimensions: Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm
• Rim Construction: Carbon Clincher Hooked
• Wheel Size / ETRTO: 622 x 27 (700c)
• Hole Count: Front: 24H, Rear: 24H
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (Centerlock)
• Valve Stem Length: Roval Tubeless Valve, Alloy 35mm

Hubs

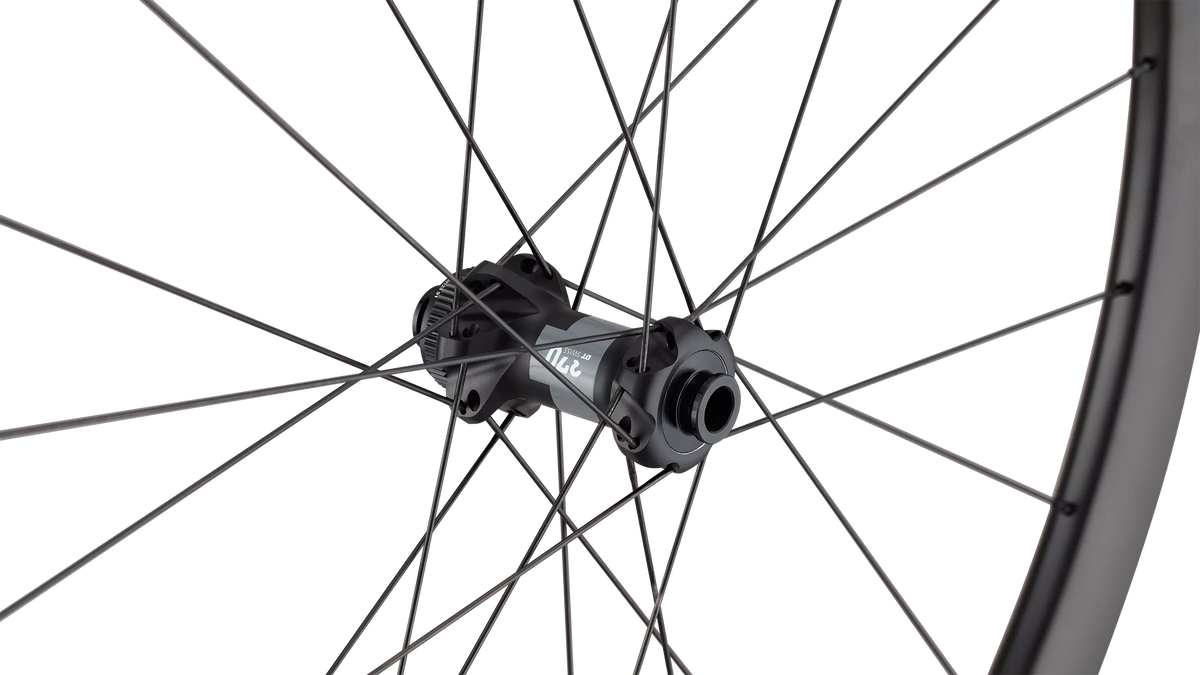

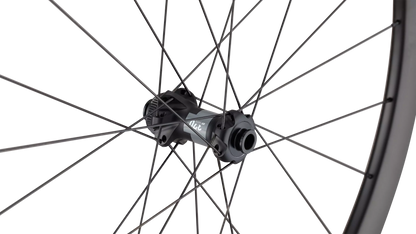

• Front Hub: DT Swiss 370 Straight Pull, Center Lock, 12x100mm

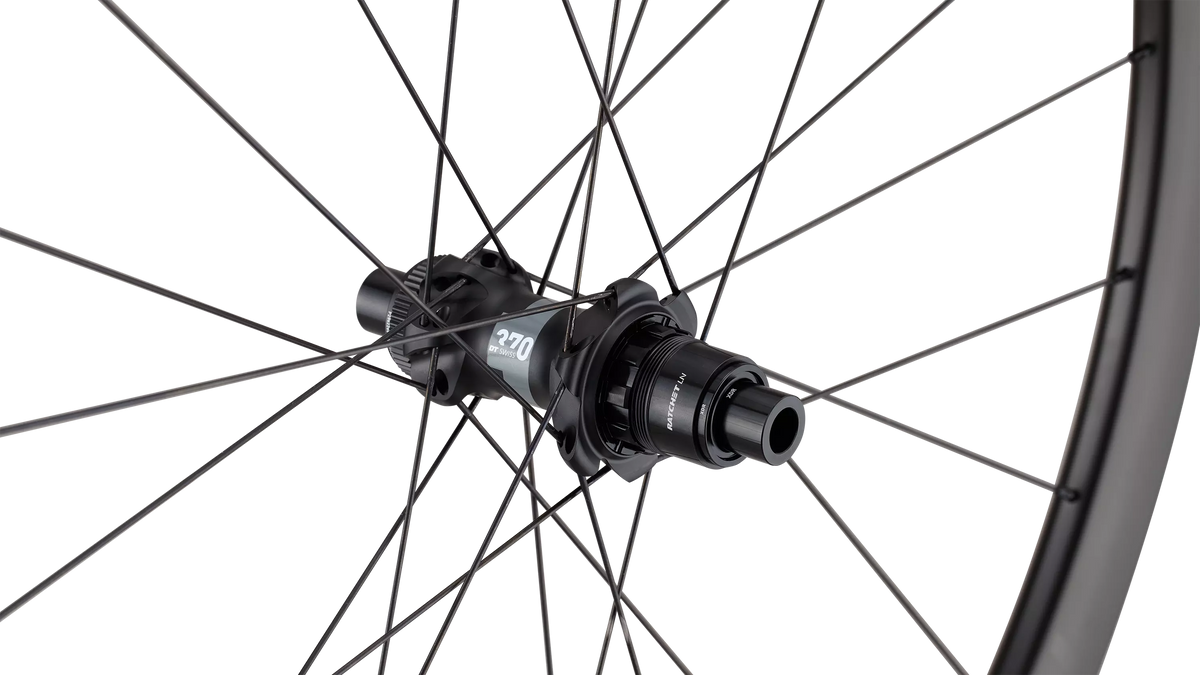

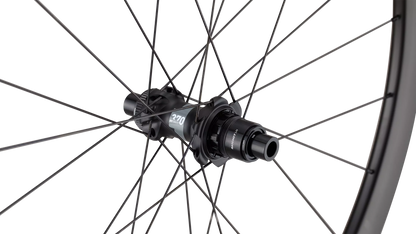

• Rear Hub: DT Swiss 370 Straight Pull, Center Lock, 12x142mm
• Front Hub Bearing: DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
• Rear Hub Bearing: DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
• Rear Freehub Body: DT Swiss Ratchet LN (18T): Sram XD-R

Spokes & Nipples

• Front Spokes: Sapim D-Light Straightpull, 2.0x1.65mm: 24qty, (DS: 292mm, NDS: 292mm)
• Rear Spokes: Sapim D-Light Straightpull, 2.0x1.65mm: 24qty, (DS: 289mm, NDS: 293mm)
• Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
• Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
• Nipples: Sapim Secure Lock Double Square Alloy Blk, 2.0 x 18mm, 16cNm

Tire Info

• Approved Tire Widths: 35mm-60mm
• Max Pressure: 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
• Tire Type: Clincher Tubeless and Clincher Tube Type
• Tubeless Tape Width: 29mm
• Design Tire: Pathfinder TLR Fast Gravel Tire 45mm

Weight

• Front Weight: 745g (with valves and tape)
• Rear Weight: 849g (with valves and tape)
• Wheelset Weight: 1,594g (with valves and tape)

General

• Extras: 4 Extra Spokes and Nipples
• E-bike Approved: Yes, SL style systems or max 350W
• Certifications: ISO 5775-2, UCI Approved
• Weight Limit: 275 lbs. / 125 kg.
• Assembly Method: Hand Built
• Warranty: Limited Lifetime Warranty
