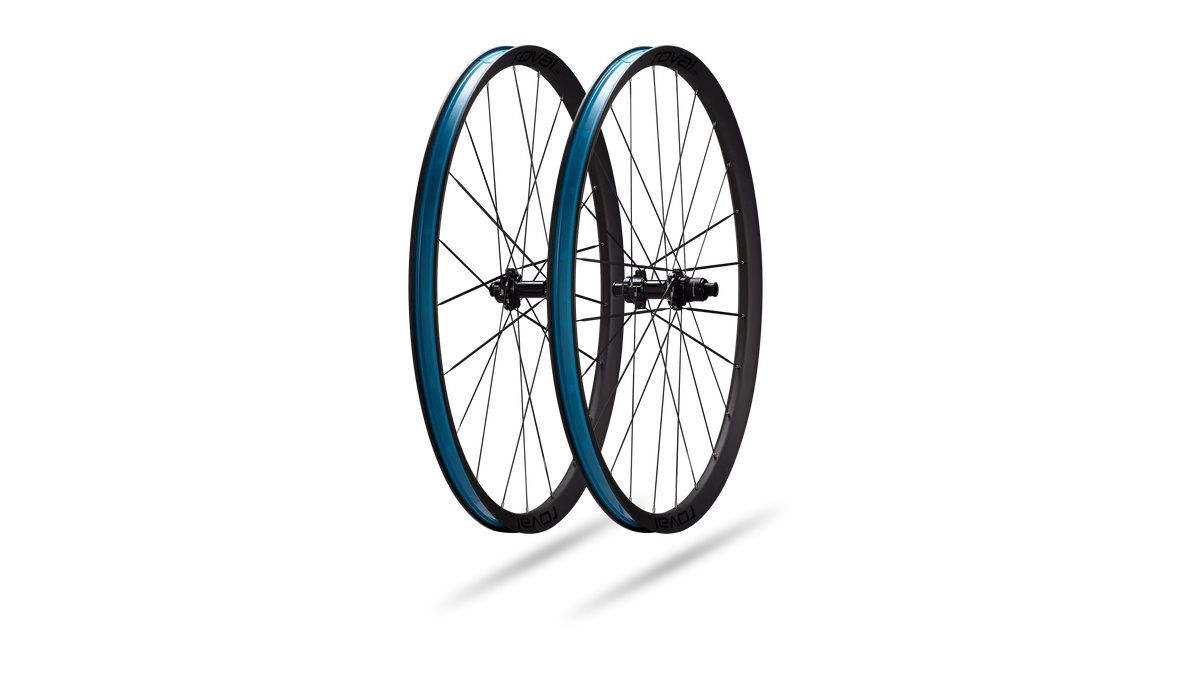

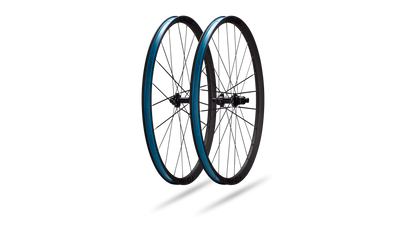

Roval Terra CLX III

When the terrain turns violent, this is the lightest, most compliant competitive gravel wheelset available. At 1,079g, these are the lightest gravel wheels in their class, paired with ARRIS Composite spokes for compliance, while the largest bead hooks in the category can take an absolute pounding and still keep air in the tyres.

At a Glance

• Use: Gravel Racing & Riding
• Weight: 1,079g with tape & valves
• Rim Depth & Width: 38mm F/R external, 27mm internal width
• Hub & Engagement: DT Swiss 180 EXP internals, 36T
• Spokes: Roval Aero Composite Spokes by ARRIS

Wheels sold individually (front or rear).

Technical Specifications

Rims

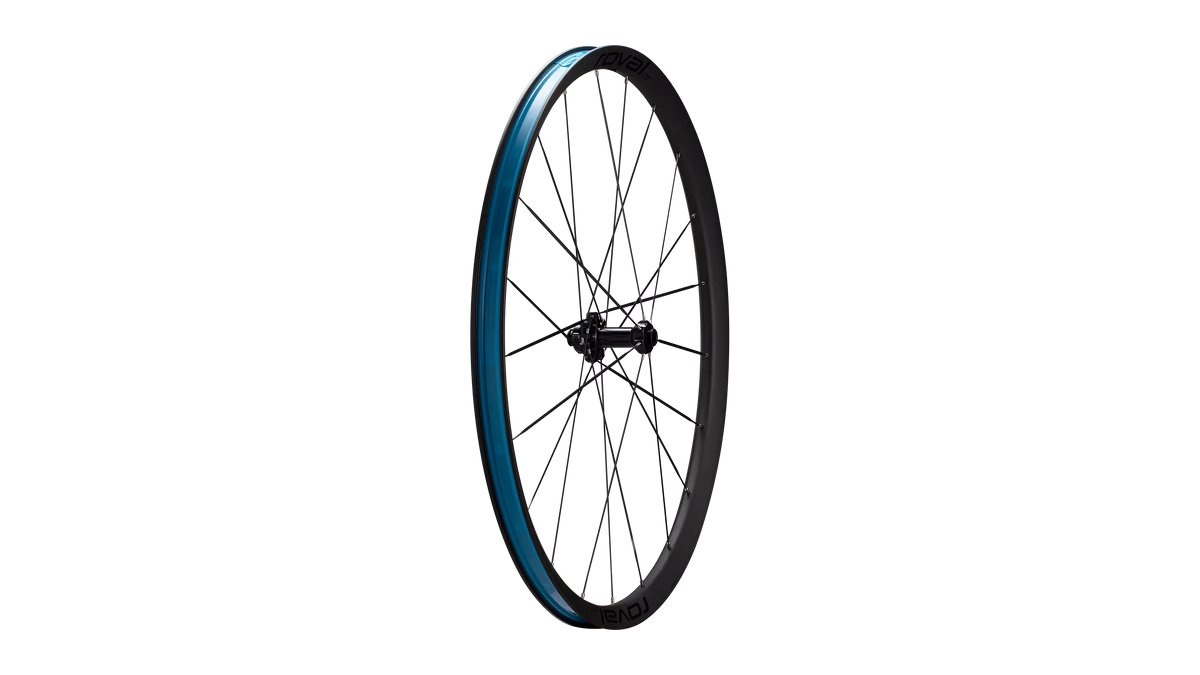

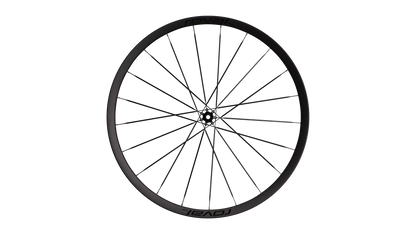

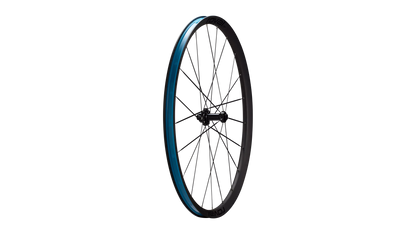

• Front Rim: Terra CLX III Carbon Clincher, 700c (WC043-1)

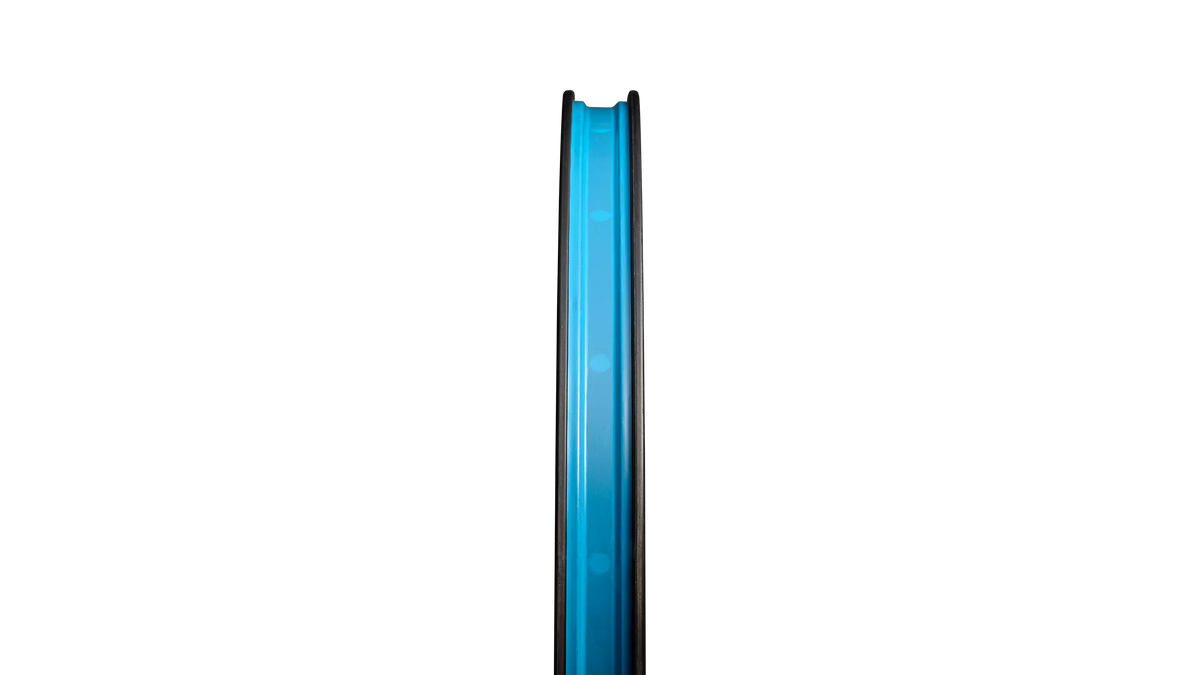

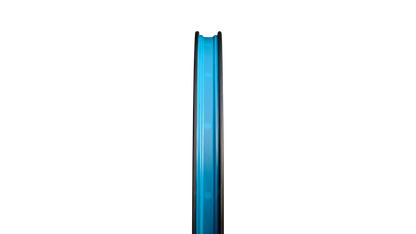

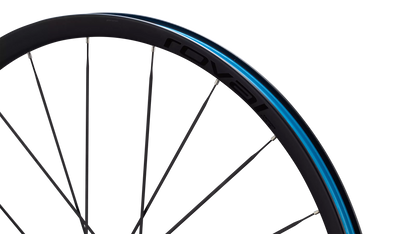

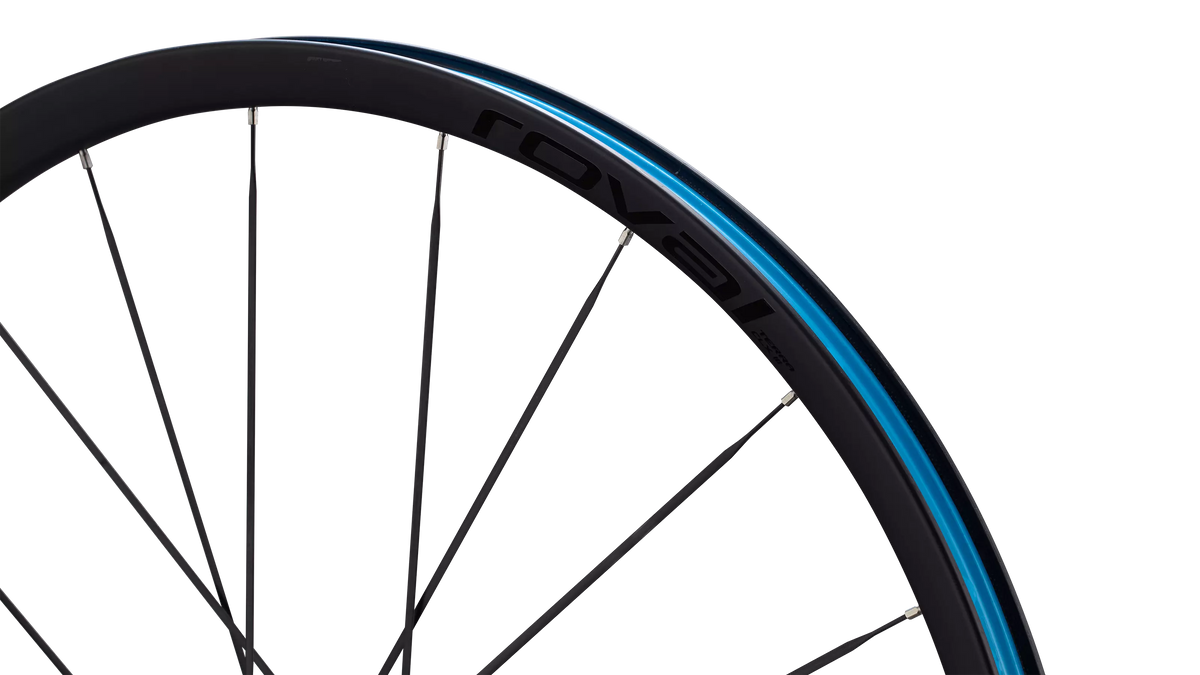

• Front Rim Dimensions: Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: 4.9mm

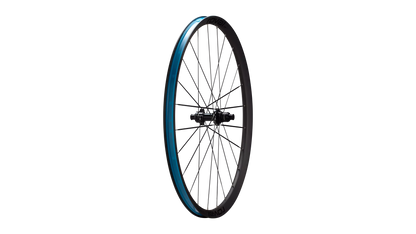

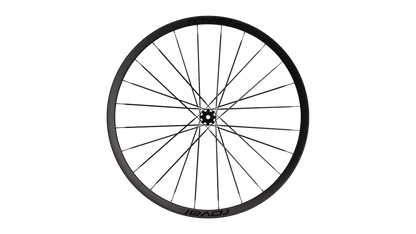

• Rear Rim: Terra CLX III Carbon Clincher, 700c (WC043-2)
• Rear Rim Dimensions: Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: 4.9mm
• Rim Construction: Carbon Clincher Hooked
• Wheel Size / ETRTO: 622 × 27 (700c)
• Hole Count: Front: 21H, Rear: 24H
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (Centerlock)
• Valve Stem Length: Roval Tubeless Valve, Alloy 40mm

Hubs

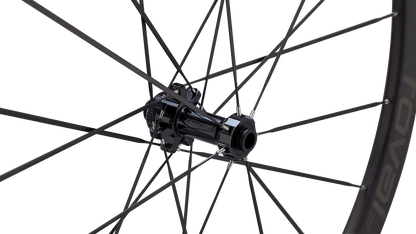

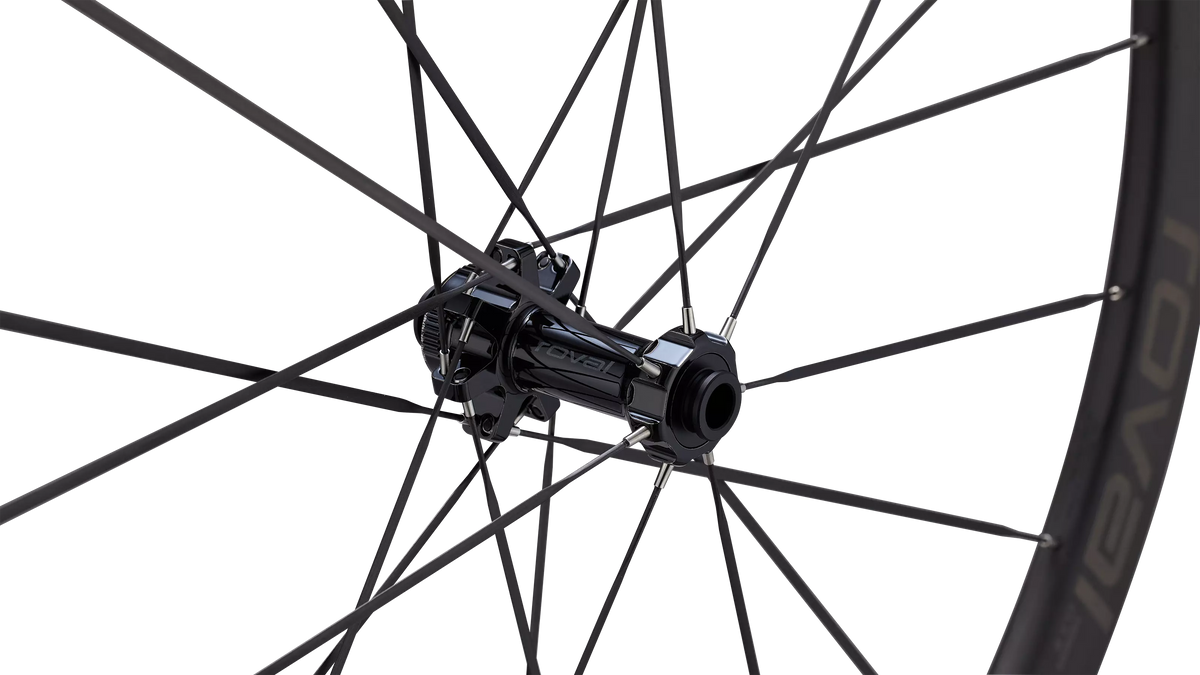

• Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)

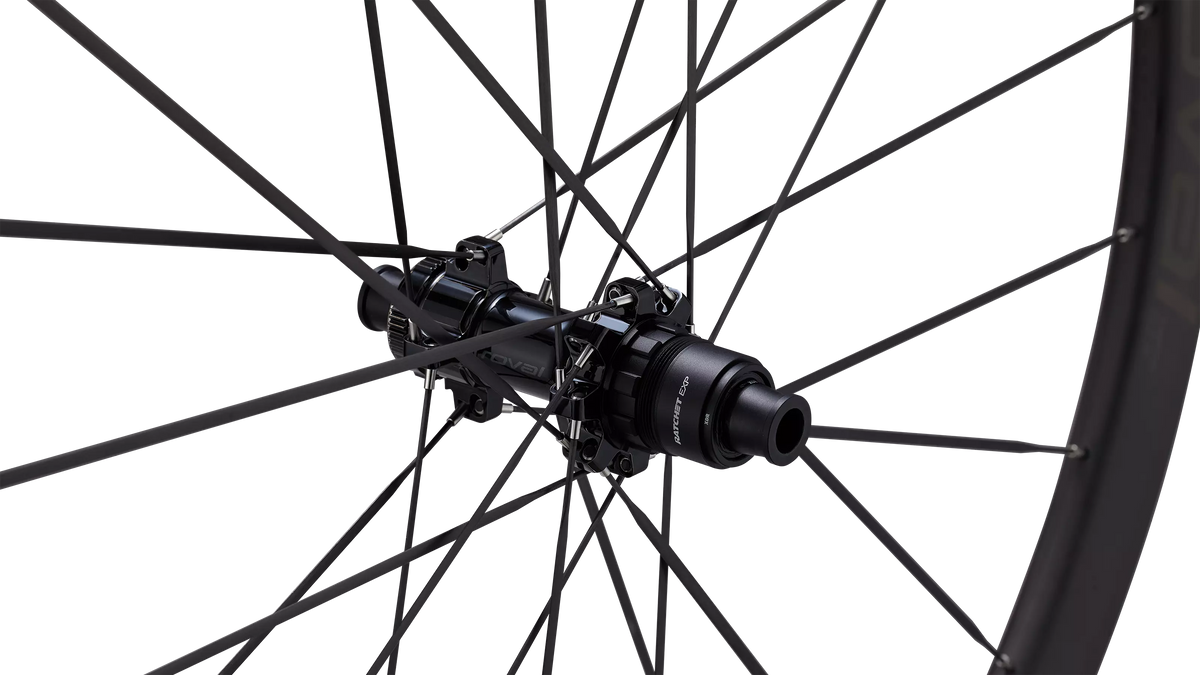

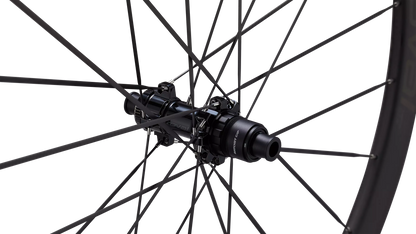

• Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
• Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
• Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)
• Rear Freehub Body: DT Swiss Ratchet EXP (36T): Sram XD-R

Spokes & Nipples

• Front Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 21qty, (DS: 287mm, NDS: 300mm)
• Rear Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 299mm, NDS: 294mm)

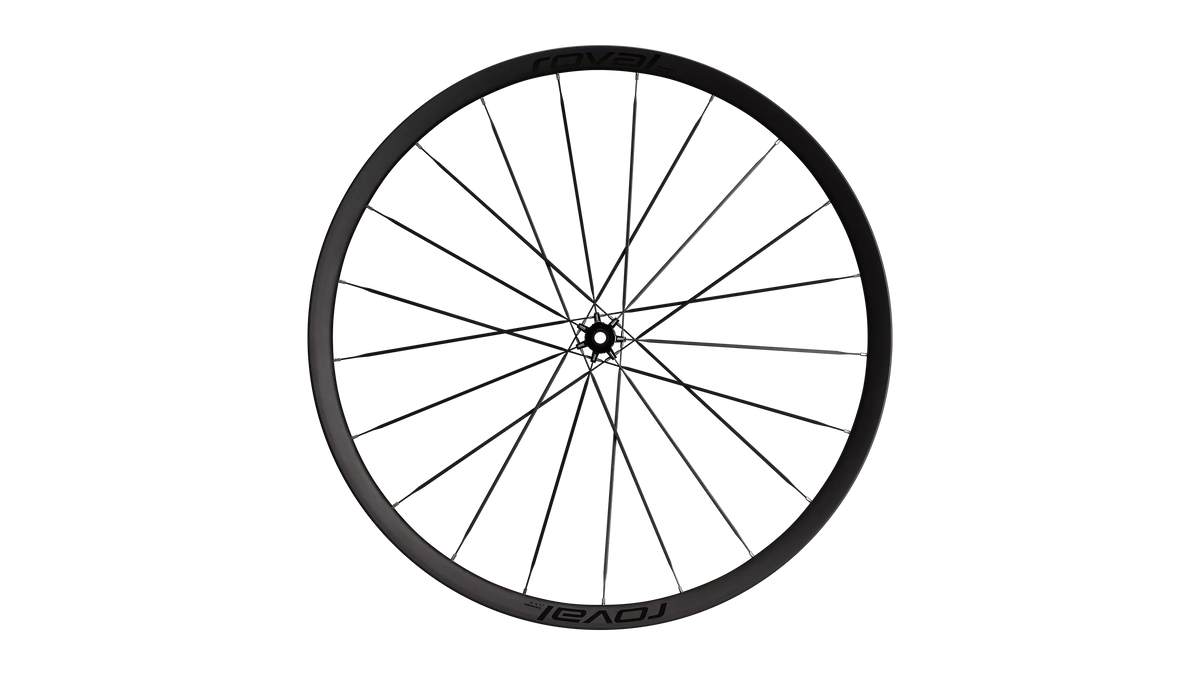

• Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked

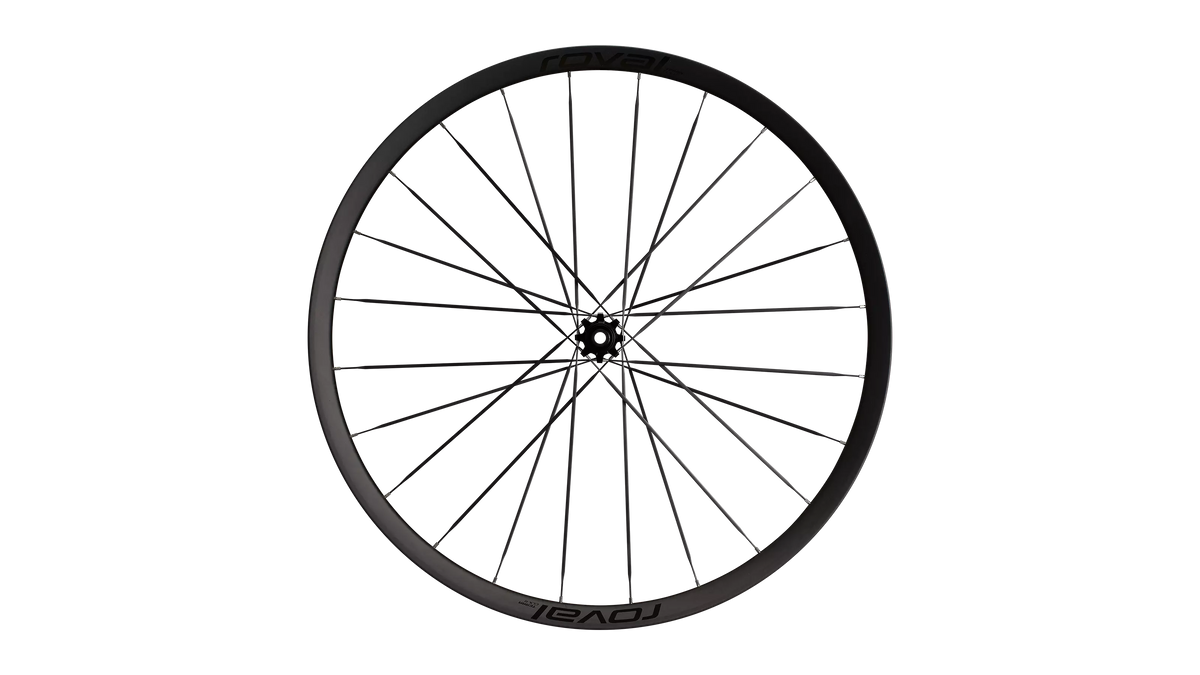

• Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
• Nipples: ARRIS MK4 Spoke Nipple Alloy, 6mm

Tire Info

• Approved Tire Widths: 35mm-60mm (2.2")
• Max Pressure: 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
• Tire Type: Clincher Tubeless and Clincher Tube Type
• Tubeless Tape Width: 30mm
• Design Tire: Tracer TLR 45mm

Weight

• Front Weight: 489g (with valves and tape)
• Rear Weight: 590g (with valves and tape)
• Wheelset Weight: 1,079g (with valves and tape)

General

• Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
• E-bike Approved: No
• Certifications: ISO 5775-2, UCI Approved
• Weight Limit: 275 lbs / 125 kg
• Assembly Method: Hand Built
• Warranty: Limited Lifetime Warranty
