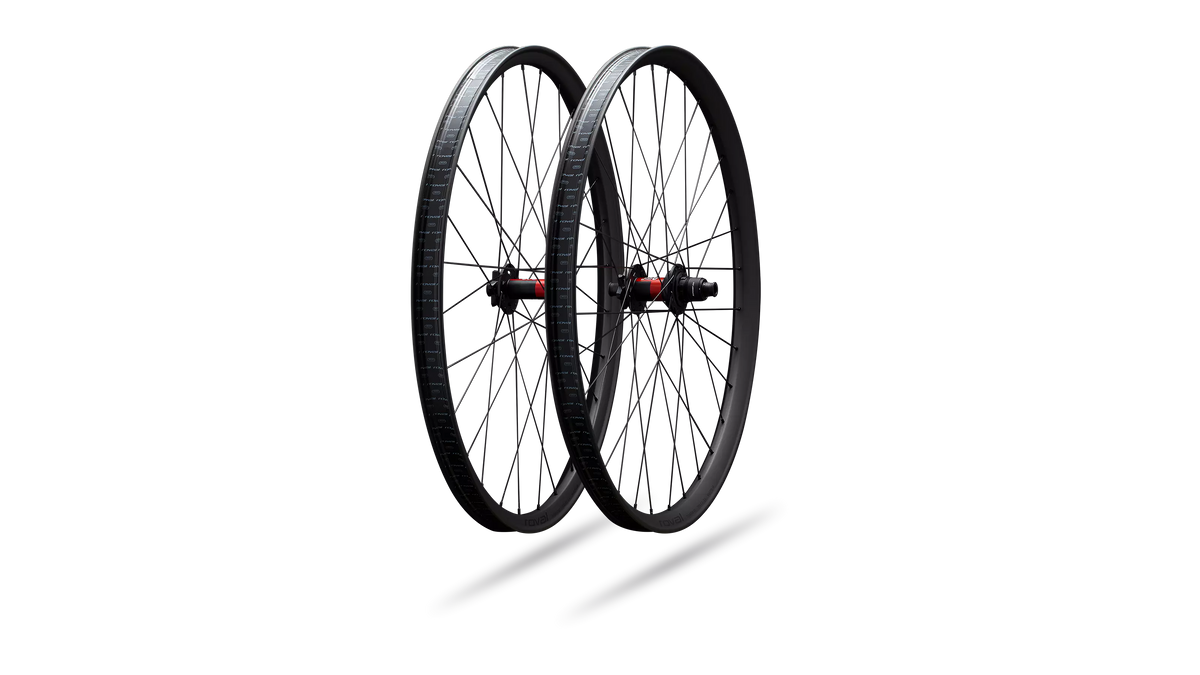

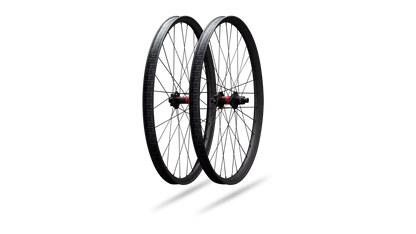

Roval Traverse HD 240 DEG 6B

The Traverse HD is the strongest carbon trail wheel Roval has ever tested, engineered for those who live to send it—maybe harder than they should. Designed to handle big hits and rowdy lines, the Traverse HD 240 DEG is built to keep rolling no matter how hard you charge.

At a Glance

• Use: Aggressive Trail, Enduro
• Weight (29"): 1,795 grams (with valves and tape) Front: 780g Rear: 1,015g
• Recommended Tires: Butcher and Eliminator
• Internal Width: 30mm
• Hub: DT Swiss 240 DEG, 90 Teeth / 4 Degrees
• Spoke Count: 29 Front: 28H; 29 & 27.5 Rear: 32H

Wheels sold individually: 29" front (28H) and 27.5" rear (32H), ideal for mixed-wheel (mullet) builds.

Technical Specifications

Rims

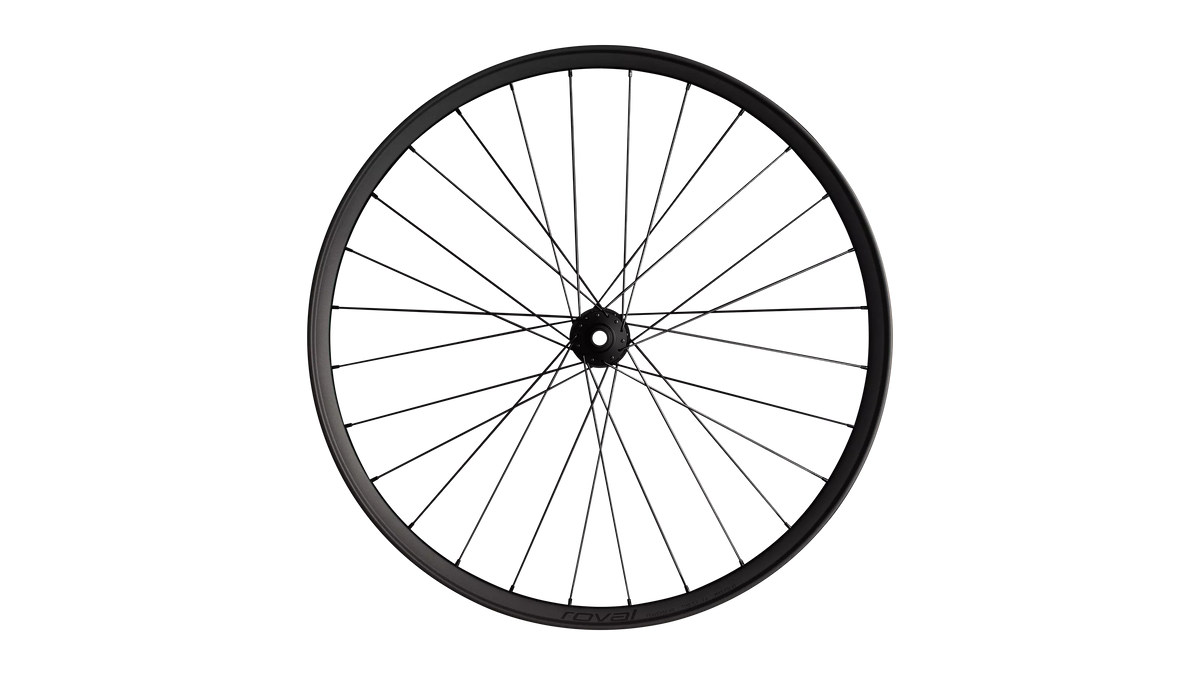

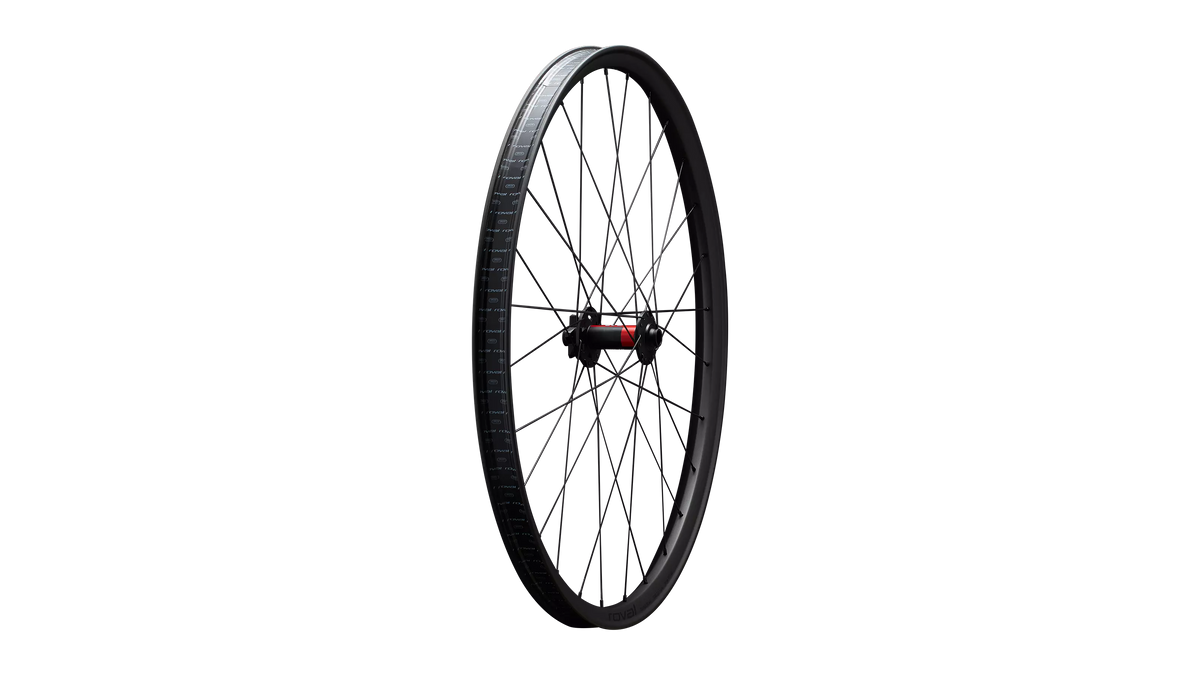

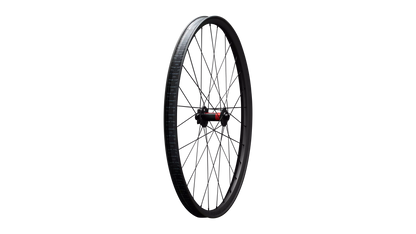

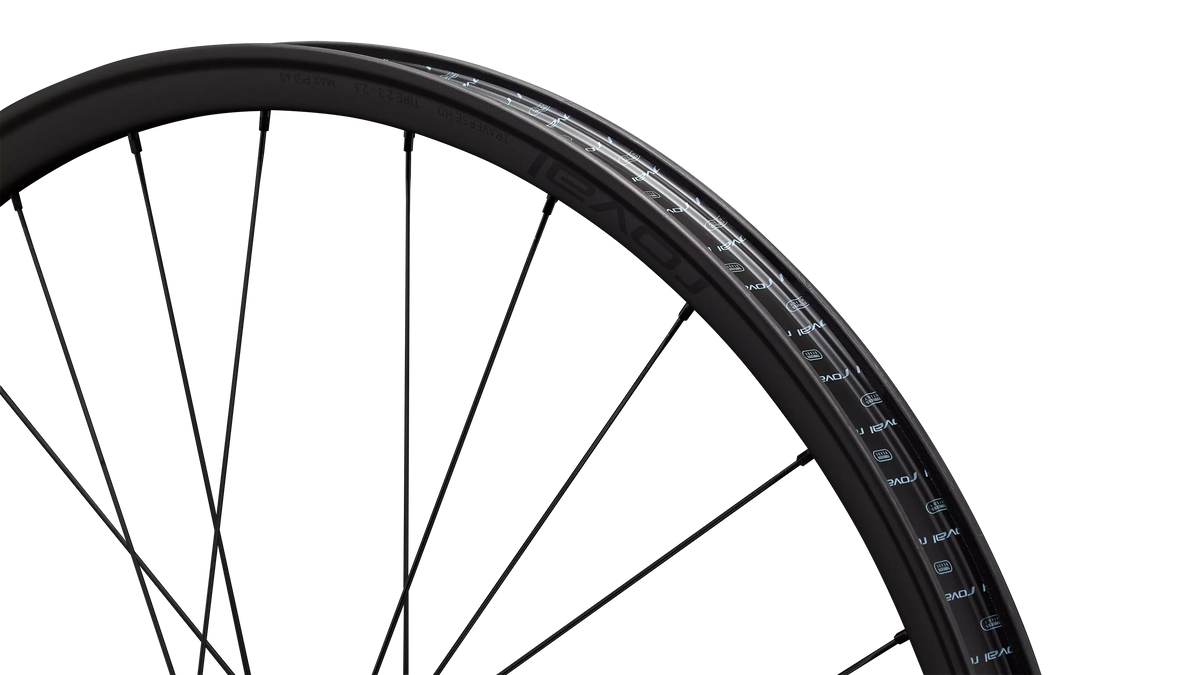

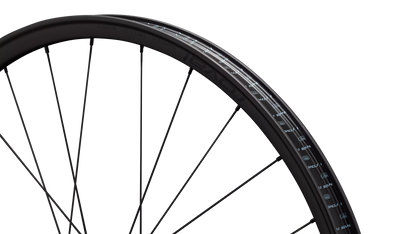

• Front Rim: Traverse HD Asymmetric Carbon 29" (WC037-1)
• Front Rim Dimensions: Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm

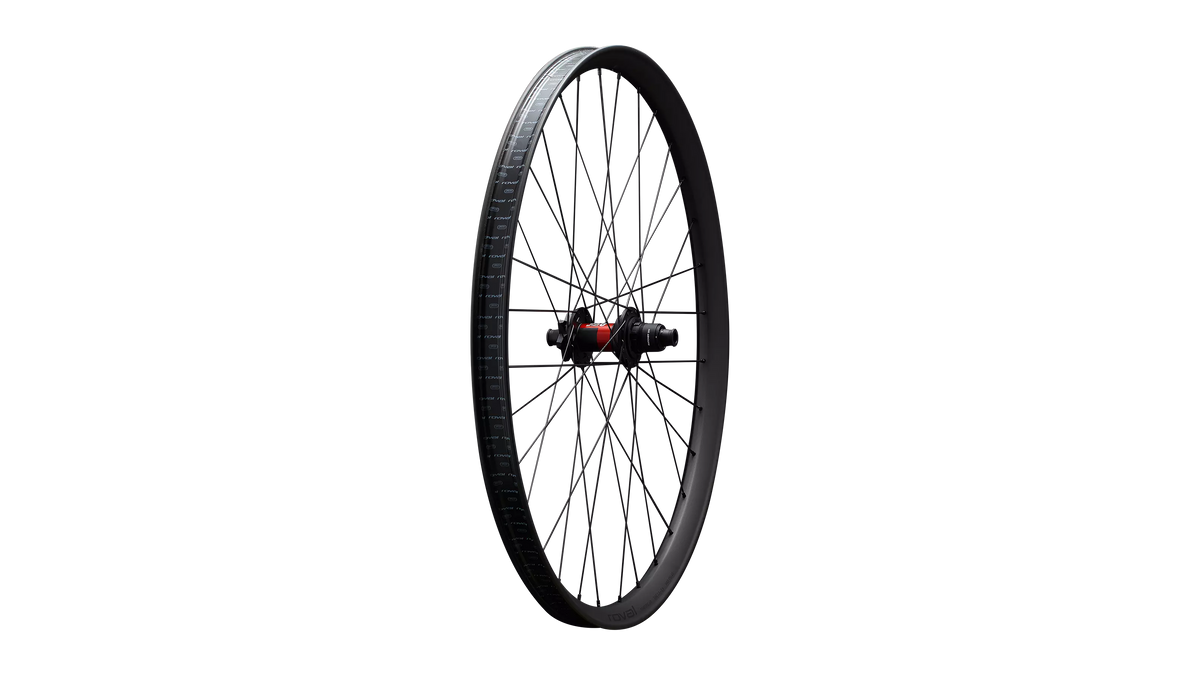

• Rear Rim: Traverse HD Asymmetric Carbon 29" (WC037-3), 27.5" (WC041-3)
• Rear Rim Dimensions: Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm
• Rim Construction: Carbon Clincher Hookless
• Wheel Size / ETRTO: Front: 29"/622 mm, Rear: 29"/622 mm, 27.5"/584 mm
• Hole Count: Front: 28H, Rear: 32H
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (6-Bolt)
• Valve Stem Length: Roval Thread Bead 37mm, greater than Standard Presta 37mm

Hubs

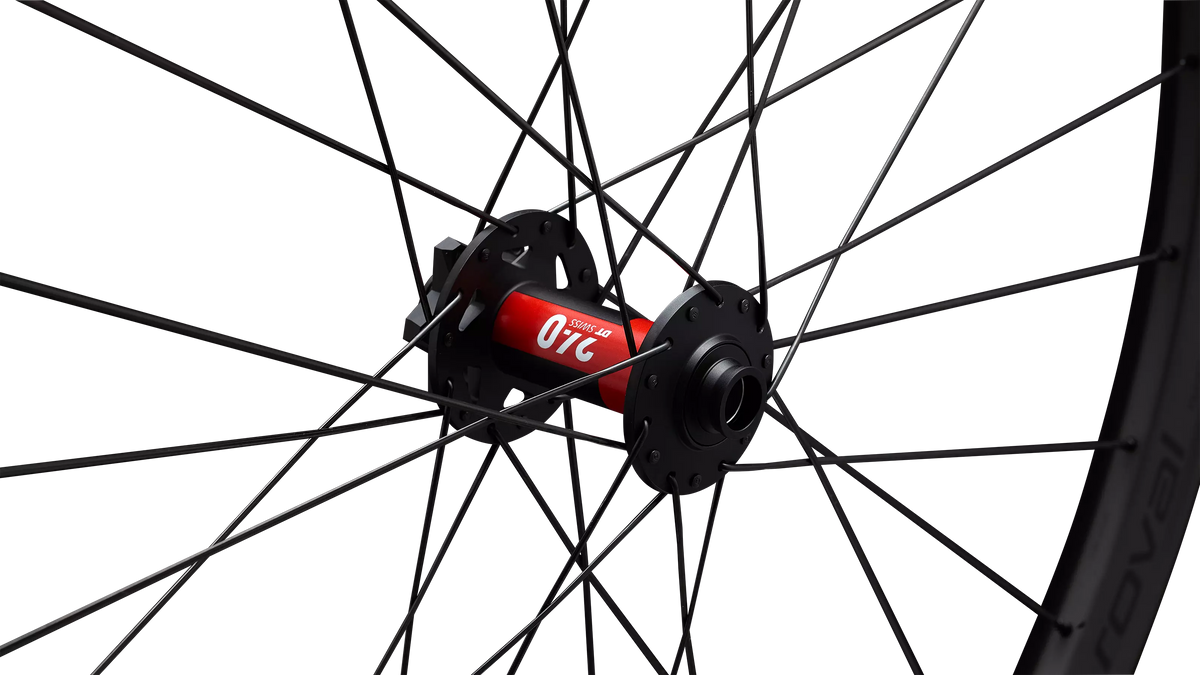

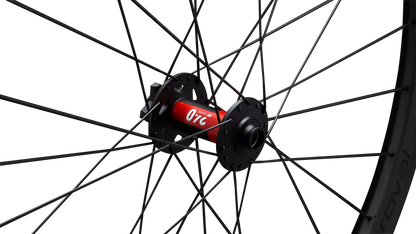

• Front Hub: DT Swiss 240 J-Bend, 6-Bolt, 15x110mm, 19mm OD End Caps Installed

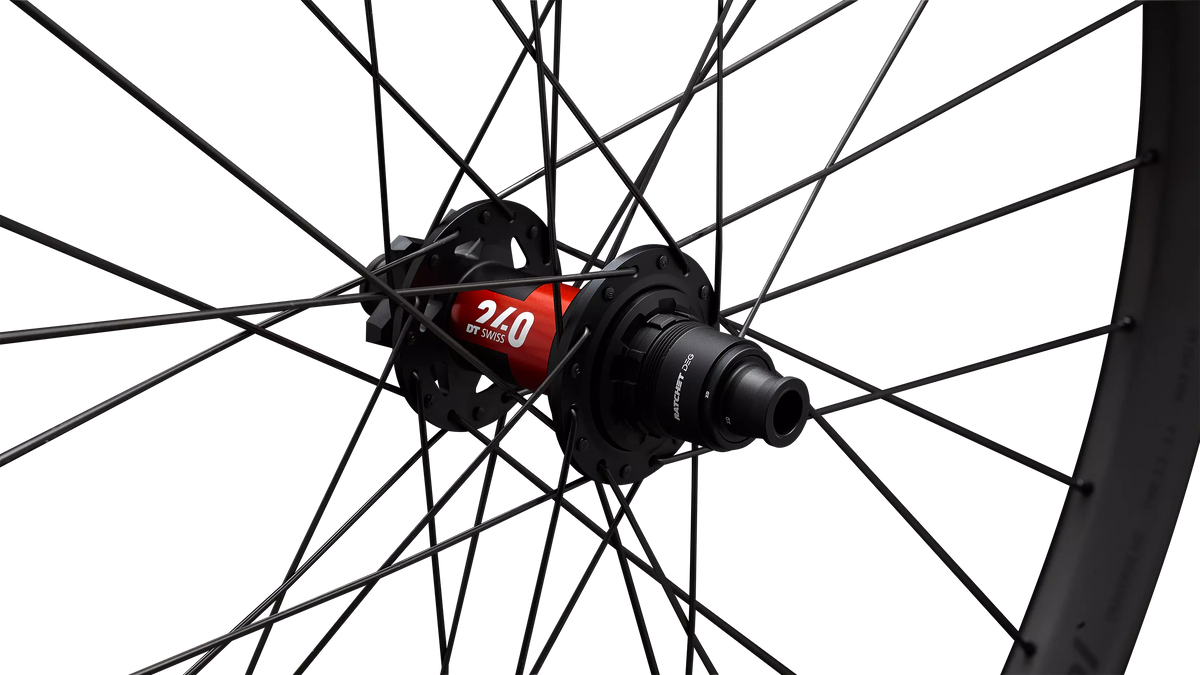

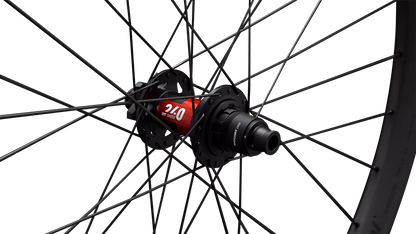

• Rear Hub: DT Swiss 240 J-Bend, 6-Bolt, 12x148mm
• Front Hub Bearing: DT Swiss Stainless Steel - DS: 1728 (17 x 28 x 7 mm), NDS: 1728 (17 x 28 x 7 mm)
• Rear Hub Bearing: DT Swiss Stainless Steel - DS: 1526 (15 x 26 x 7 mm), NDS: 1526 (15 x 26 x 7 mm)
• Rear Freehub Body: DT Swiss Ratchet DEG (90T): Sram XD

Spokes & Nipples

• Front Spokes: DT Swiss Revolite
• Rear Spokes: DT Swiss Revolite
• Front Lacing Pattern: Two-cross / Two-cross (1:1) Tucked
• Rear Lacing Pattern: Three-cross / Three-cross (1:1) Tucked
• Nipples: DT Swiss Pro Lock, Hexagonal, Alloy

Tire Info

• Approved Tire Widths: 2.3” - 2.6”
• Max Pressure: Tubeless 40 psi, Tubes 40 psi
• Tire Type: Tubeless, Tube Type Clincher
• Tubeless Tape Width: 32 mm
• Design Tire: Butcher Grid Trail T9 TLR Tire 29 x 2.4

Weight

• Front Weight: 780g (with valves and tape)
• Rear Weight: 1,015g (with valves and tape) - 29" / 902g (with tape and valves) - 27.5"
• Wheelset Weight: 1,795g (with valves and tape) - 29" / 1,682g (with valves and tape) - 29/27.5"

General

• Extras: 4 Extra Spokes and Nipples, 31mm OD End Caps
• E-bike Approved: Yes
• Weight Limit: 275 lbs. / 125 kg.
• Assembly Method: Hand Built
• Warranty: Limited Lifetime Warranty
