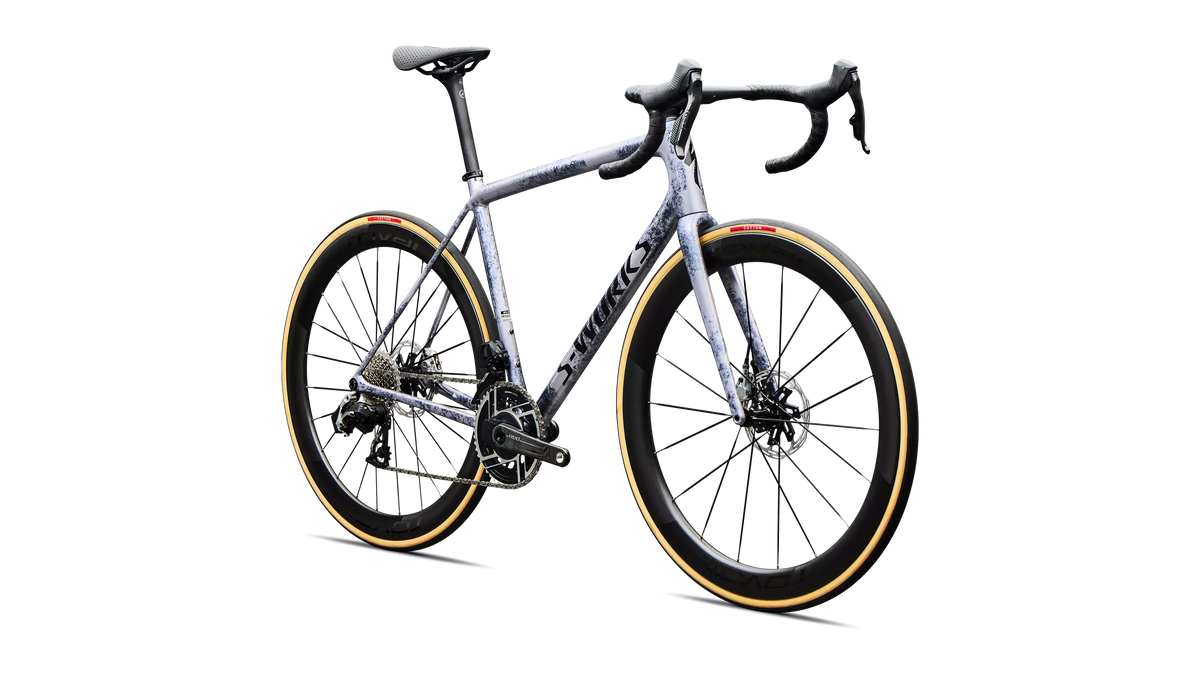

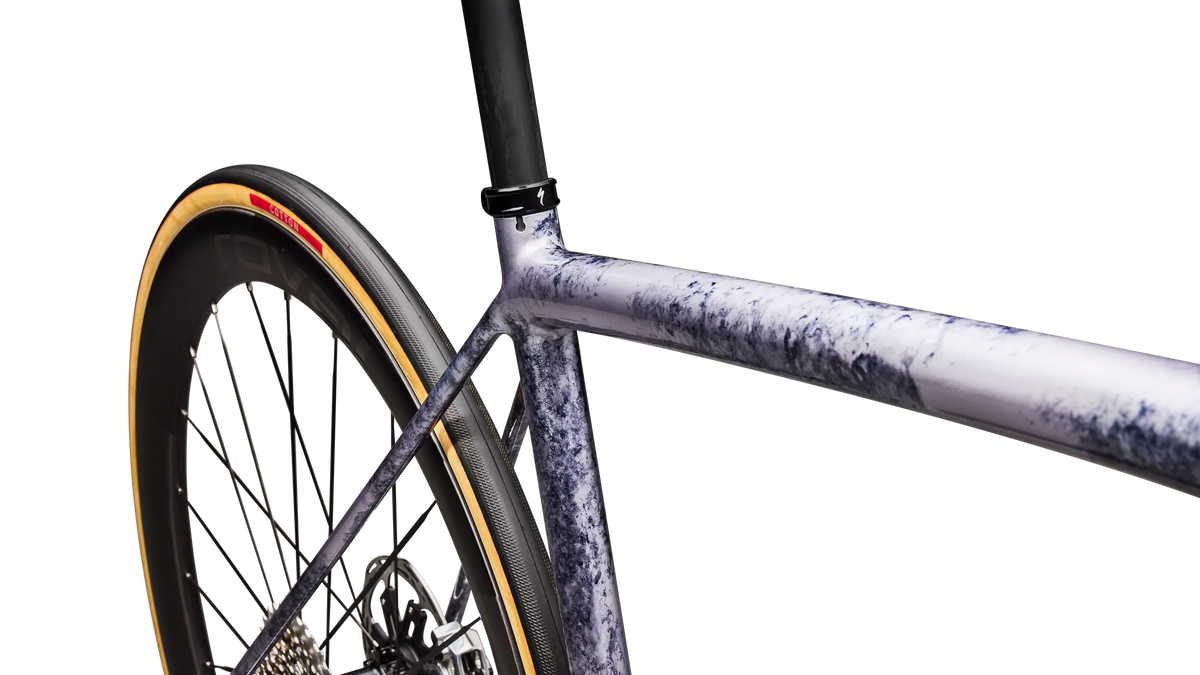

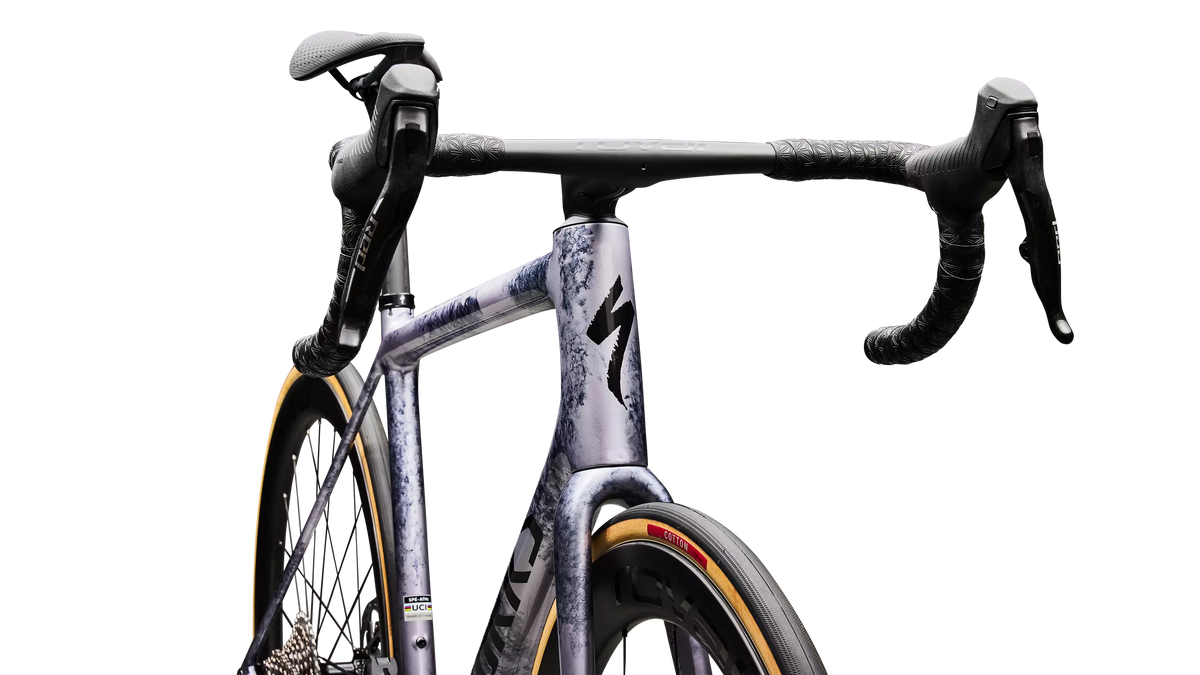

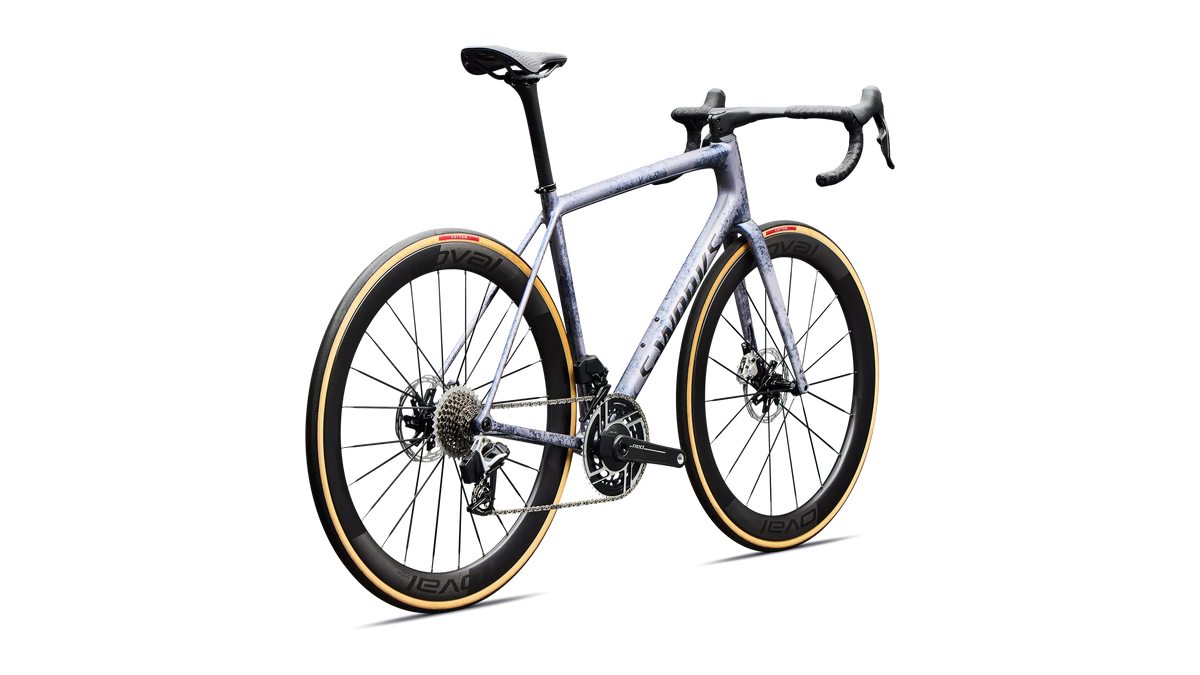

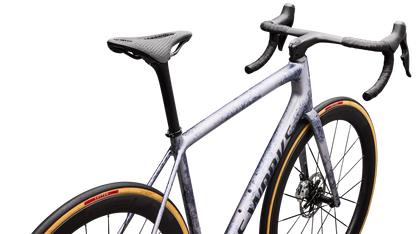

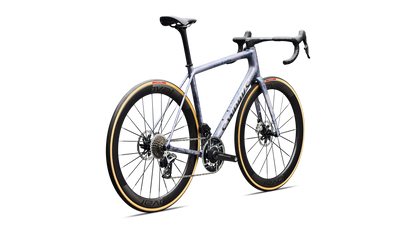

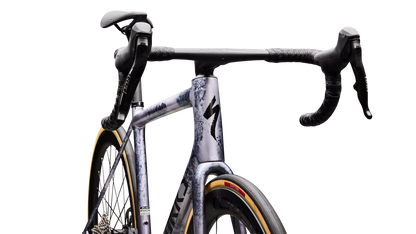

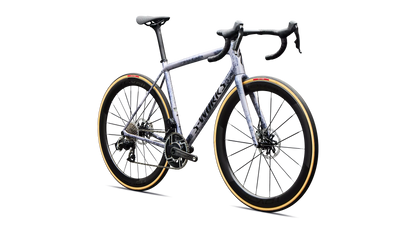

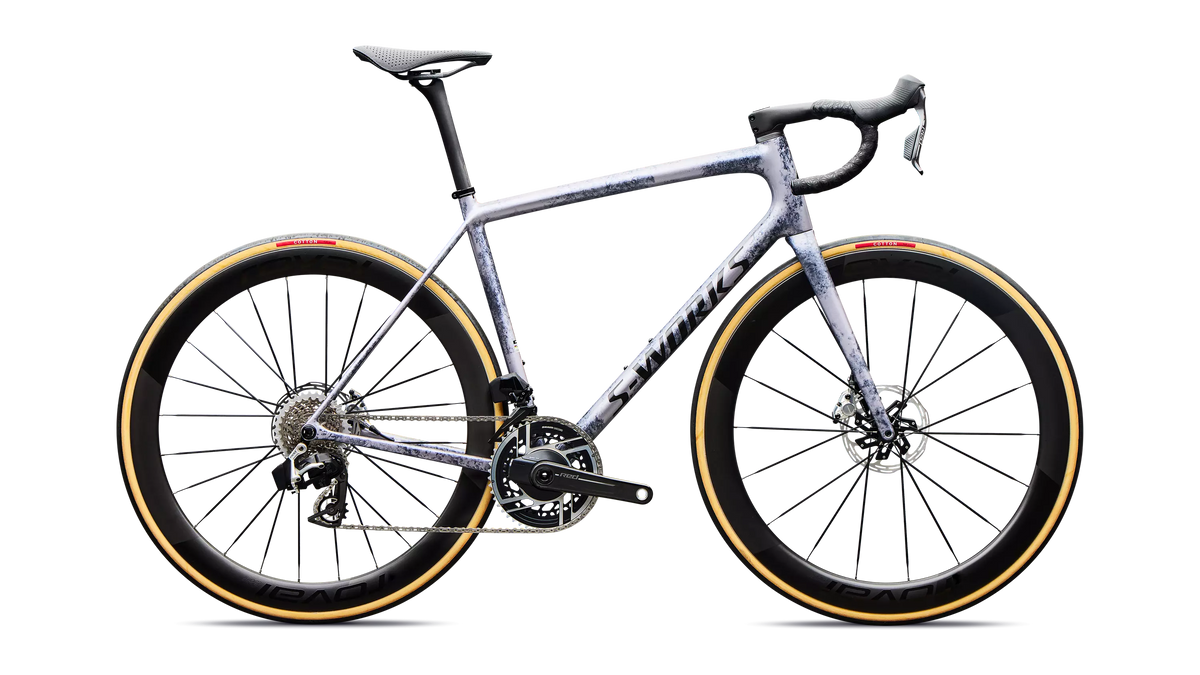

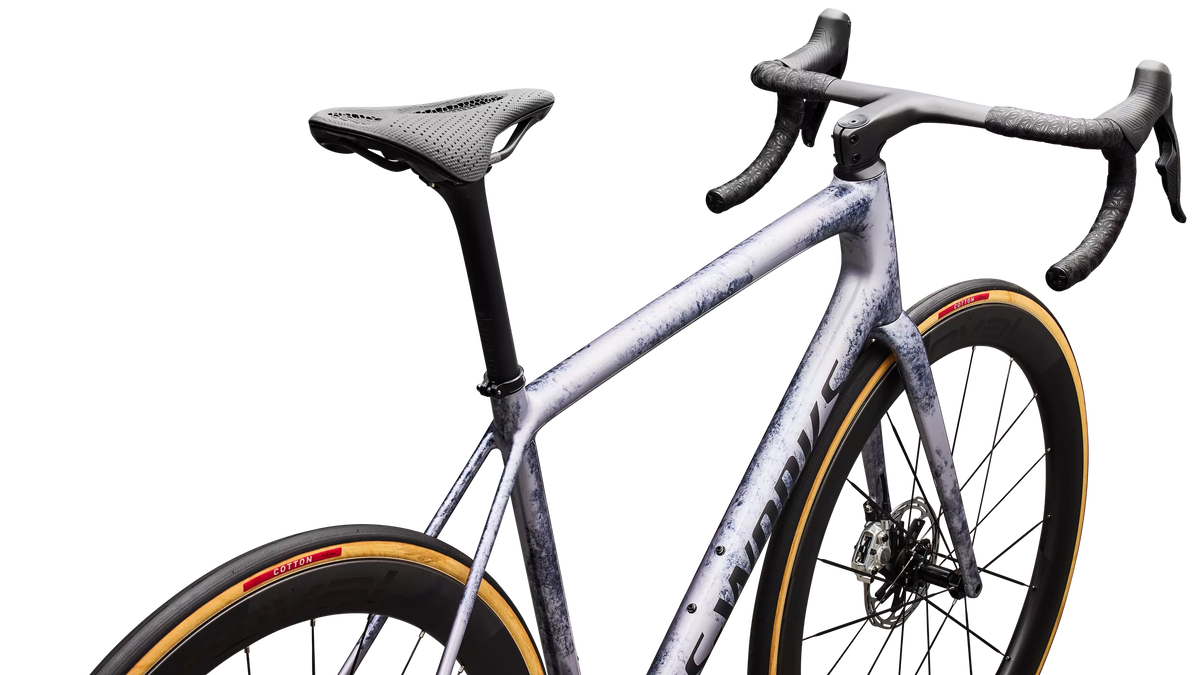

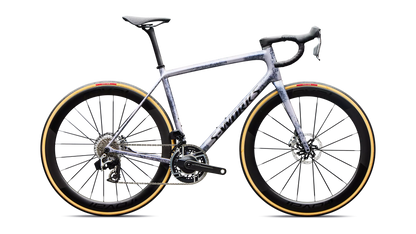

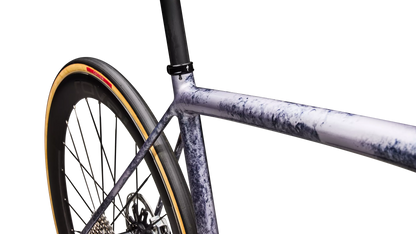

S-Works Aethos 2 - SRAM RED AXS (2027)
S-Works Aethos 2 - SRAM RED AXS (2027)
SKU:97227-0452
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
At just 595 grams, the S-Works Aethos 2 is the lightest production road frame in the world. But that was never the point. Built by breaking the rules of racing to deliver pure road riding bliss, Aethos 2 is engineered to disappear beneath you. Impossibly responsive, supple, and sublime. Now with increased tire clearance, refined components, and data-based fit-enhancing geometry, it brings that transcendent ride feel to more riders than ever. Aethos 2 breaks the rules, for the love of the ride.
- Roval Alpinist Integrated Cockpit II and Roval Rapide CLX III wheels
- SRAM RED AXS E1 groupset with Quarq power meter
- S-Works Aethos 2 FACT 12r Carbon frame with Ceramic Speed SLT headset bearings
Share

Technical Specifications
Frameset
Frame
S-Works Aethos 2 FACT 12r Carbon, Rider First Engineered™, Ceramic Speed SLT Headset Bearings, Threaded BB, Hidden Cable Routing, 12x142mm thru-axle, flat-mount disc
Suspension
Fork
S-Works Aethos 2 FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Shift Levers
SRAM RED AXS E1, hydraulic disc
Front Derailleur
SRAM RED AXS E1, braze-on
Rear Derailleur
SRAM RED AXS E1, 12-speed
Cassette
SRAM RED XG-1290 E1, 12-speed, 10-33t
Chain
SRAM RED E1 Flattop 12-speed
Crankset
SRAM RED AXS E1 with Quarq Power Meter, 48/35
Bottom Bracket
Ceramic Speed BB Alpha, BSA DUB
Wheels & Tires
Front Tire
Cotton TLR, 700x30
Front Wheel
Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18-F hub, 18h, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Rear Tire
Cotton TLR, 700x30
Rear Wheel
Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R hub, 24h, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Inner Tubes
700x25-35mm, 65mm Presta valve, TPU tube
Cockpit
Handlebars
Roval Alpinist Cockpit II, Integrated Bar/Stem
Tape
Supacaz Super Sticky Kush
Saddle
S-Works Power with Mirror
Seatpost
Roval Alpinist Carbon Seatpost, light weight clamp
Seat Binder
Specialized Alloy, 30.0mm, titanium bolt
Weight
Weight
6.28 kg (13 lb, 13.5 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Handlebar Width | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 360mm | 360mm | 360mm | 360mm |
| Stack | 522mm | 538mm | 559mm | 580mm | 606mm | 627mm |
| Reach | 373mm | 377mm | 384mm | 391mm | 398mm | 404mm |
| Head Tube Length | 114mm | 128mm | 150mm | 169mm | 198mm | 218mm |
| Head Tube Angle | 71.4° | 72.1° | 72.5° | 73° | 73° | 73.5° |
| BB Height | 265.5mm | 265.5mm | 267mm | 267mm | 268.5mm | 268.5mm |
| BB Drop | 76.5mm | 76.5mm | 75mm | 75mm | 73.5mm | 73.5mm |
| Trail | 62mm | 58mm | 55mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 372mm | 372mm | 372mm | 372mm | 372mm | 372mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 47mm | 47mm | 47mm |
| Front Centre | 581mm | 584mm | 594mm | 599mm | 614mm | 621mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 978mm | 981mm | 992mm | 998mm | 1013mm | 1020mm |
| Top Tube Length, Horizontal | 508mm | 526mm | 544mm | 557mm | 572mm | 584mm |
| Bike Standover Height | 719mm | 737mm | 759mm | 779mm | 805mm | 834mm |
| Seat Tube Length | 450mm | 470mm | 490mm | 510mm | 535mm | 570mm |
| Seat Tube Angle | 75.5° | 74.5° | 74° | 74° | 74° | 74° |
