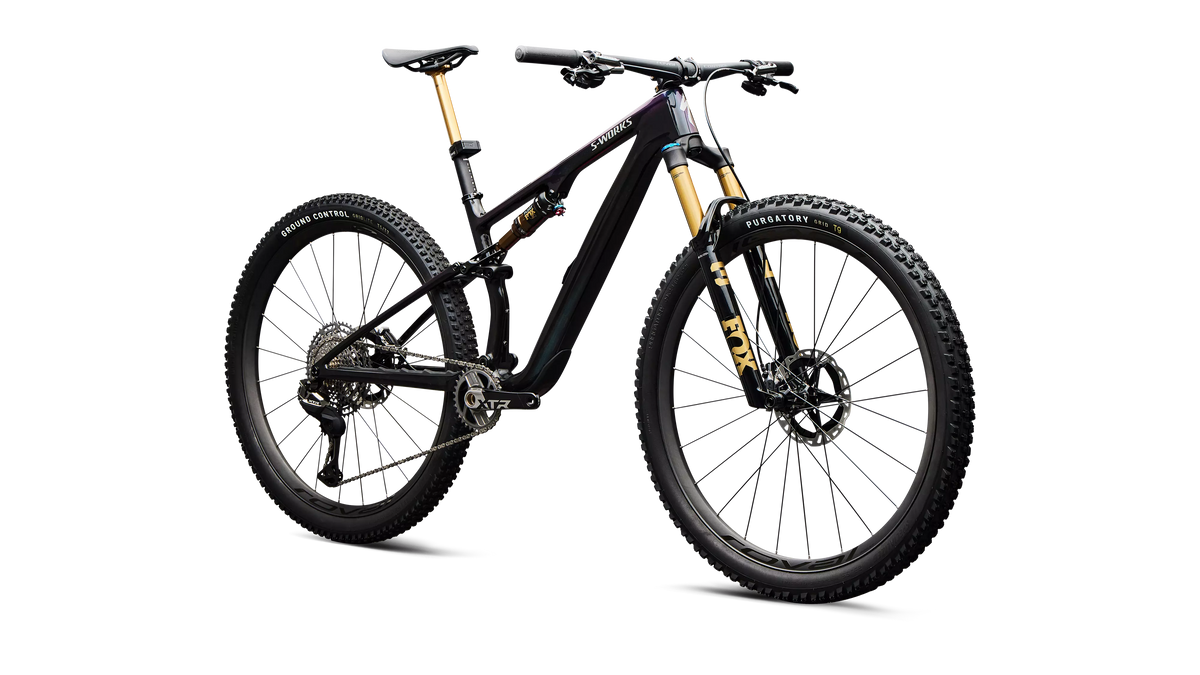

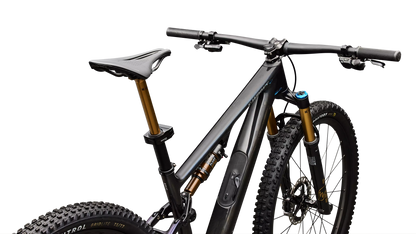

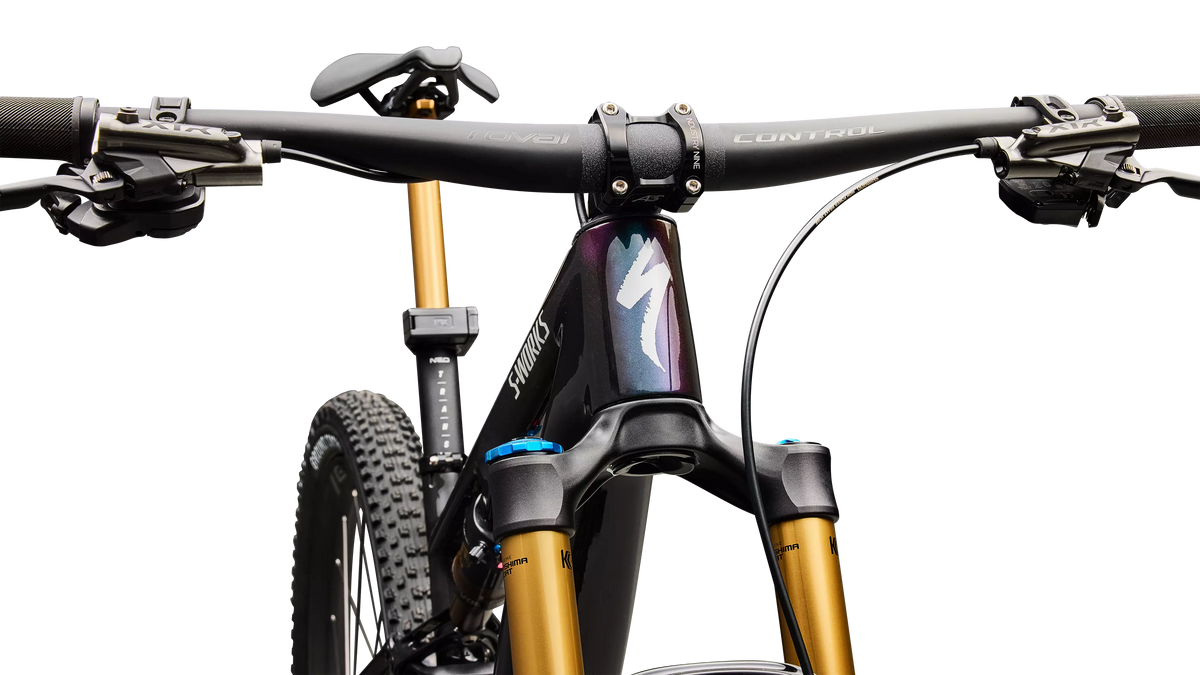

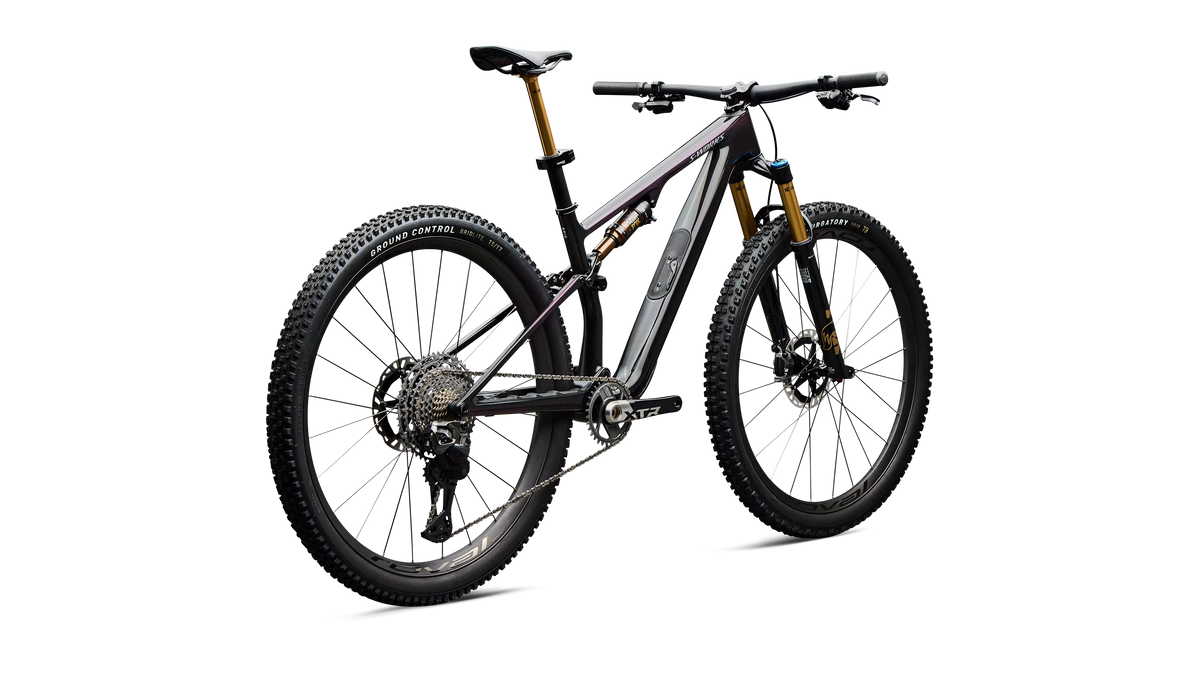

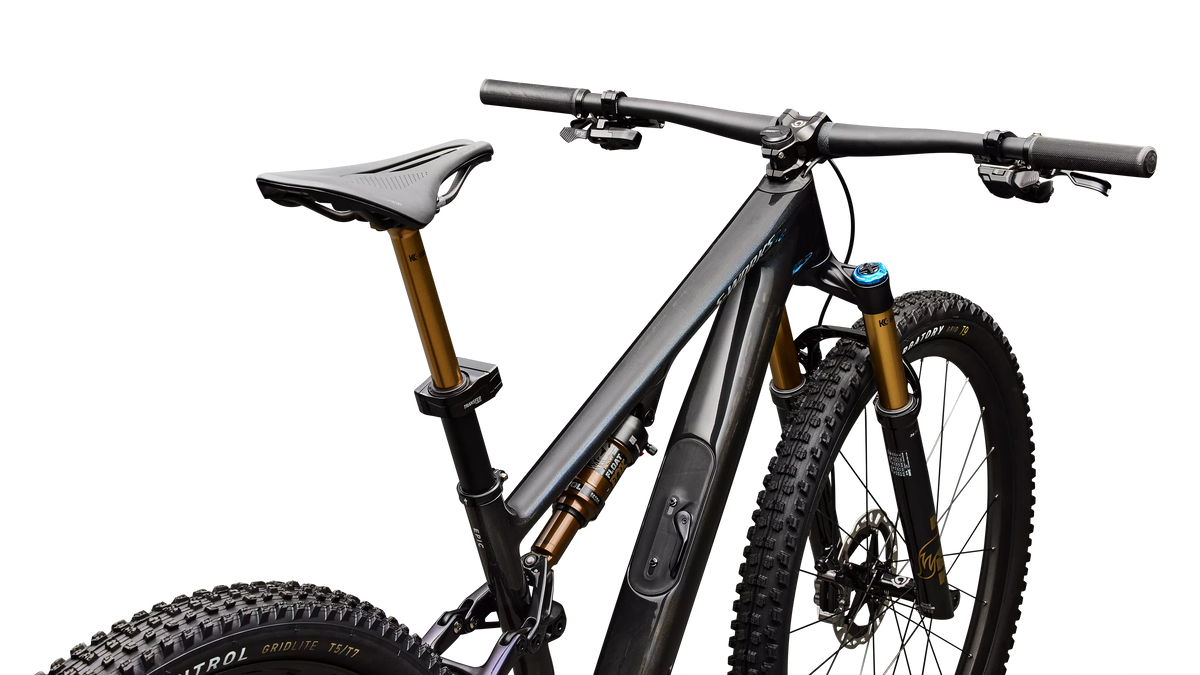

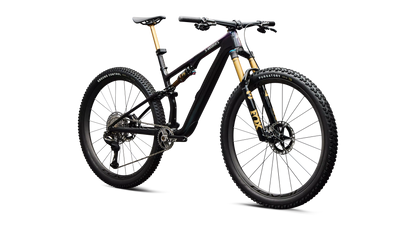

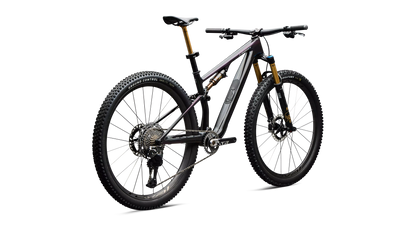

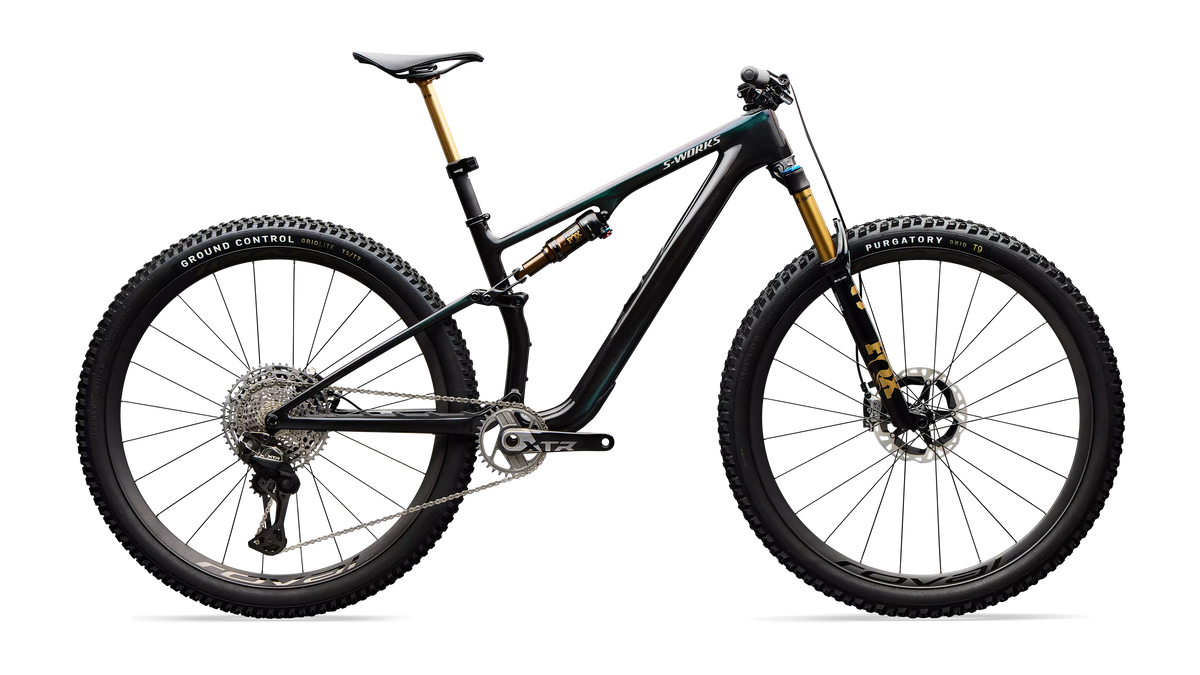

S-Works Epic 8 EVO - Shimano XTR Di2
S-Works Epic 8 EVO - Shimano XTR Di2
SKU:90326-0303
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
The fastest downcountry bike in the world. Epic 8 EVO is the dressed up, cranked-to-11 expression of the new Epic 8. Spec’d to slay downcountry terrain with its unmatched combo of capability, efficiency, and light weight, Epic 8 EVO’s updated kinematics allow for insanely efficient climbing—while the Ride Dynamics-tuned shock eats up rough terrain on the way down.
If ripping single track at blazing fast speeds and high fiving your friends is your idea of fun, the Epic 8 EVO is the bike for you.
UNMATCHED CAPABILITY: The most capable 120mm bike on the planet, made even more capable. You’ll be blown away by how Epic 8 EVO’s progressive geometry delivers technical terrain capability alongside fast and efficient climbing and acceleration performance. The absurd lateral and torsional rigidity of the chassis translates to some seriously precision handling, too. With a bump up to 130mm of travel up front to eat up the chunk and a slew of trail-friendly specs, Epic 8 EVO feels right at home on the rough stuff.
WHAT BUMP?: Compared to the previous generation, the new Epic 8 EVO absorbs 12% more bump and vibration forces, leaving you less fatigued and more powerful over time. That opens the options for another lap (or 3).
RIDE DYNAMICS TUNED: The Specialized Ride Dynamics team developed custom valving for Epic 8 EVO’s new shock. Our team prescribes the special damping characteristics to holistically elevate the riding experience. By tuning the dampers alongside the chassis’ leverage rates and new kinematics, we’re able to deliver a bike that rides above the sum of its parts.
BIOMECHANICAL EFFICIENCY: By optimizing the kinematics of the suspension, Specialized’s Ride Dynamics team reduced inefficient pedal-induced bobbing by 20%, maintaining active suspension for effective bump force management, to ensure you remain in the most efficient pedaling position. It’s the most efficient pedaling suspension bike we’ve ever tested.
FULLY LOADED: All models now feature SWAT 4.0 to carry all your trail essentials, and an integrated steering stop to prevent the ubiquitous top tube scar the first time you crash and your bars spin.
- The most capable 120mm bike on the planet. 12% more bump absorption and 20% less pedal bob
- SWAT 4.0 in down tube to carry trail essentials
- Compatible with electronic drivetrains only
Share

Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon with Carbon Shock Extension, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
Suspension
Rear Shock

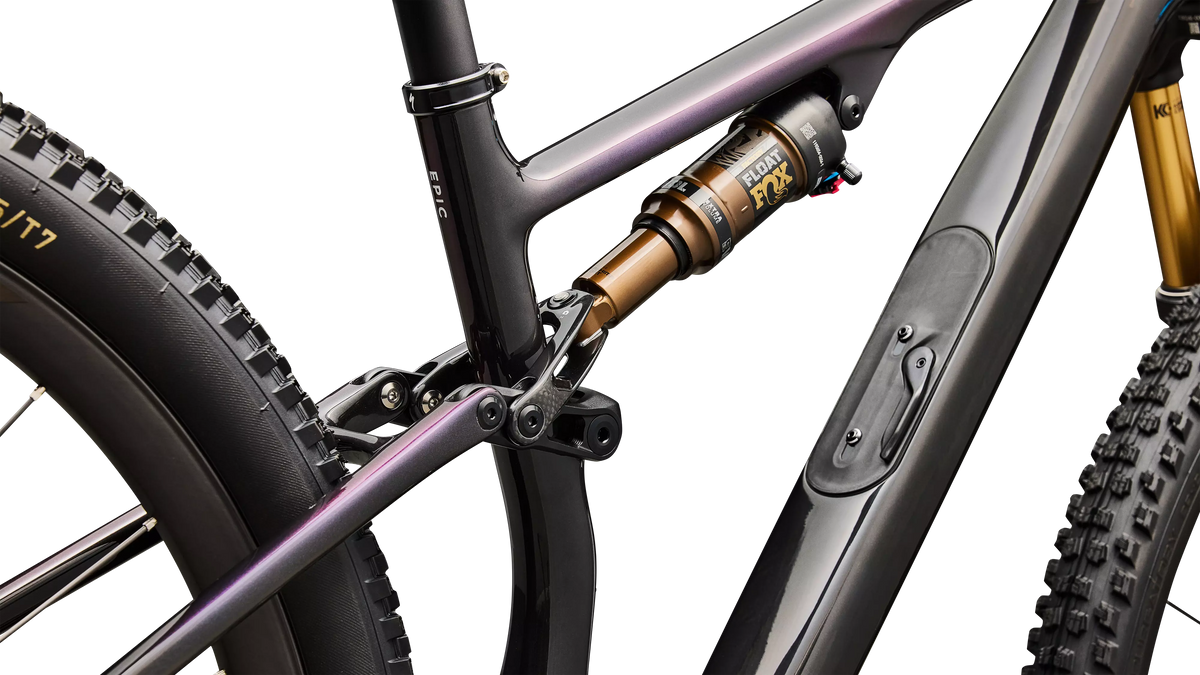

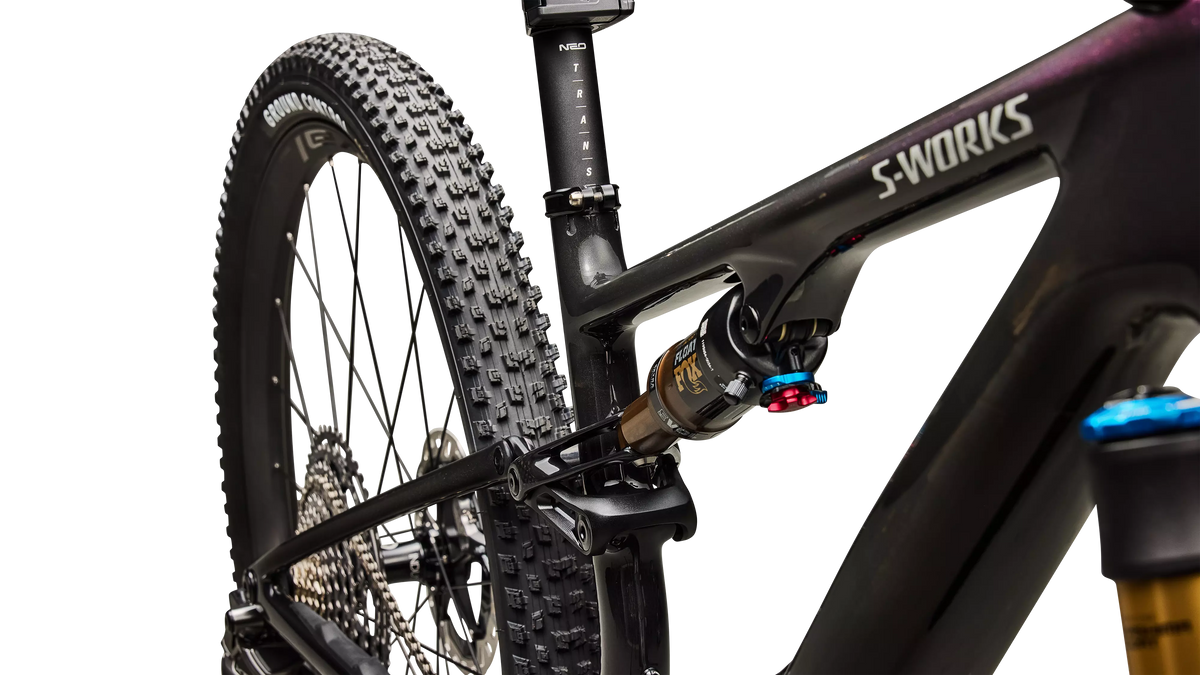

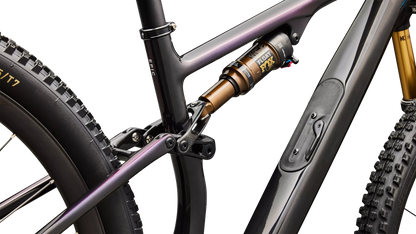

FOX FLOAT Factory, EVOL LV, Ride Dynamics Tuned, 2-position compression adjust, 190x45mm
Fork
FOX 34 SL Factory, GRIP X Damper, HSC, LSC, LSR adjust, 130mm travel, 44mm offset, 15x110mm
Brakes
Front Brake
Shimano XTR 9220, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
Shimano XTR 9220, 4-piston caliper, hydraulic disc, 180mm rotor
Drivetrain
Shift Levers
Shimano XTR Di2
Rear Derailleur
Shimano XTR Di2, 12-speed
Cassette
Shimano XTR, 12 Speed, 10-51T
Chain
Shimano XTR
Crankset
Shimano XTR 9200, 4iiii power meter, 170mm
Chainrings
32T
Bottom Bracket
Shimano, BB-MT801, Threaded
Wheels & Tires
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, TLR, 29x2.4
Front Wheel
Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, 24H, Industry 9 Solix hub, Roval Carbon spokes w/ Ti end pieces, centerlock
Rear Tire
Specialized Ground Control, Grid Lite Casing, T5/T7 Compound, TLR, 29x2.35
Rear Wheel
Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, 24H, Industry 9 Solix hub, Roval Carbon spokes w/ Ti end pieces, centerlock
Inner Tubes
Specialized Turbo Tube
Cockpit
Stem
Industry Nine A35, 50mm, 35mm clamp
Handlebars

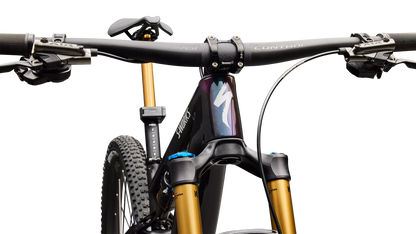

Roval Control Rise Carbon Handlebar, 780mm wide, 20mm rise, 35mm clamp
Grips
Specialized Trail Grips
Saddle
Specialized S-Works Power, Carbon Rails
SeatPost
FOX Factory Transfer Neo, 30.9mm, S: 125mm, M:150mm, L/XL: 175mm
Accessories
SWAT
SWAT internal downtube storage
Weight
Weight
11.17 kg (24 lb, 10.0 oz)
Weight Size
MD
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 175mm | 175mm |
| Head Tube Angle (high) | 65.9° | 65.9° | 65.9° | 65.9° |
| Trail | 120mm | 120mm | 120mm | 120mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Seat Tube Angle | 75.5° | 75° | 75° | 75° |
| Stack | 600mm | 601mm | 613mm | 632mm |
| BB Height (low) | 327mm | 329mm | 331mm | 331mm |
| Fork Length, Full | 540mm | 540mm | 540mm | 540mm |
| Reach | 415mm | 445mm | 470mm | 495mm |
| Top Tube Length, Horizontal | 569mm | 605mm | 633mm | 662mm |
| Wheelbase | 1151mm | 1183mm | 1214mm | 1247mm |
| BB Height (high) | 333mm | 335mm | 337mm | 337mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Bike Standover Height | 761mm | 766mm | 775mm | 779mm |
| Head Tube Length | 92mm | 95mm | 110mm | 130mm |
| BB Drop (low) | 43mm | 41mm | 39mm | 39mm |
| Front Center | 720mm | 751mm | 782mm | 815mm |
| Head Tube Angle (low) | 65.4° | 65.4° | 65.4° | 65.4° |
| Seat Tube Length | 390mm | 410mm | 450mm | 500mm |
