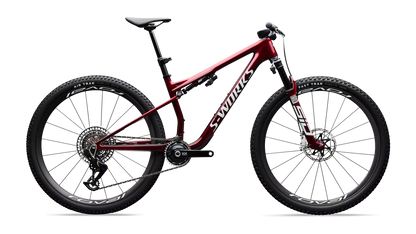

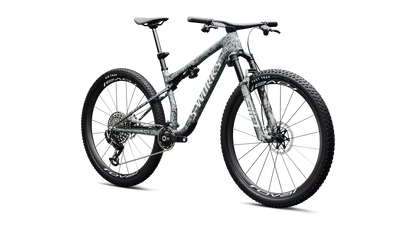

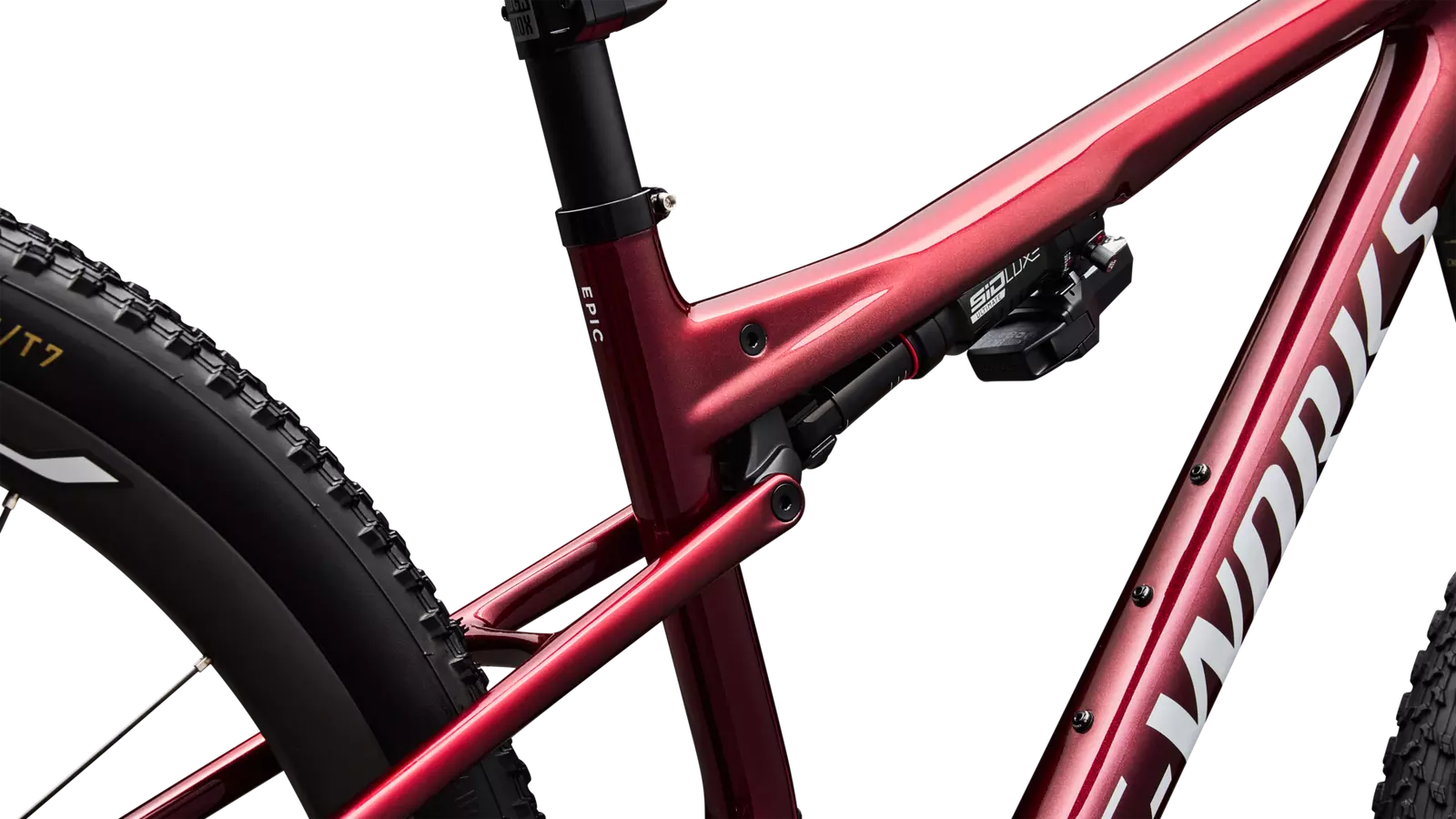

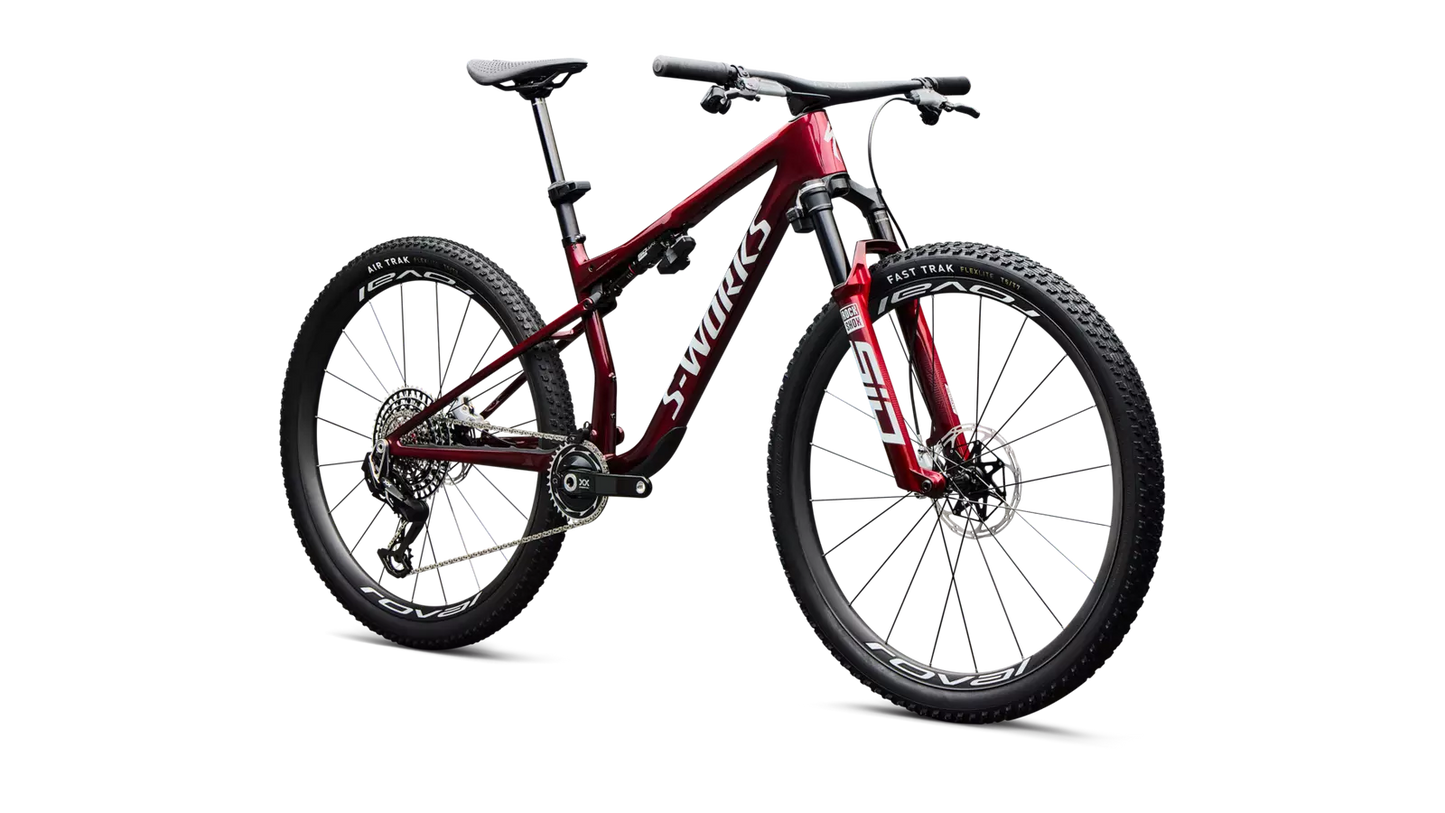

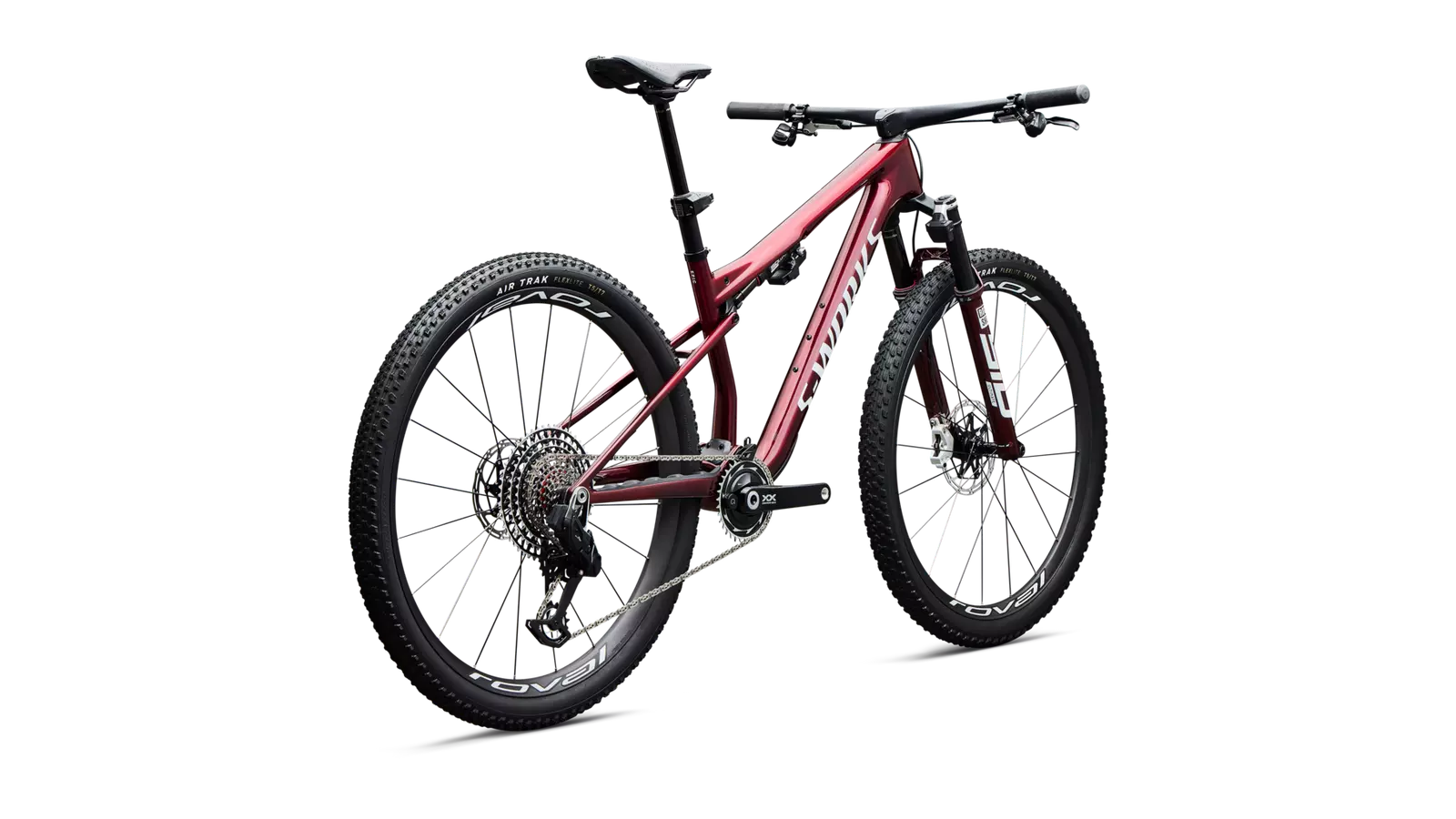

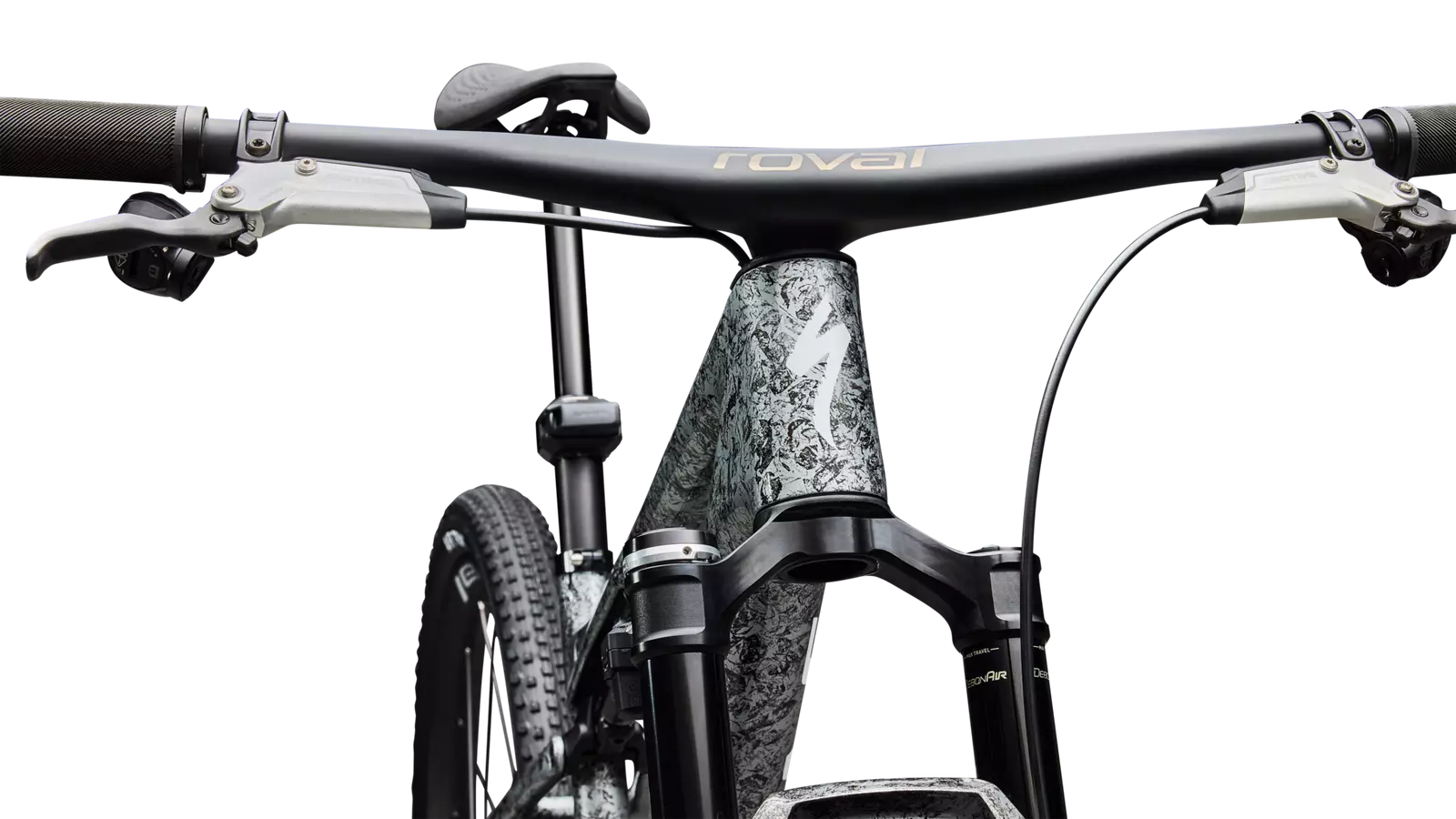

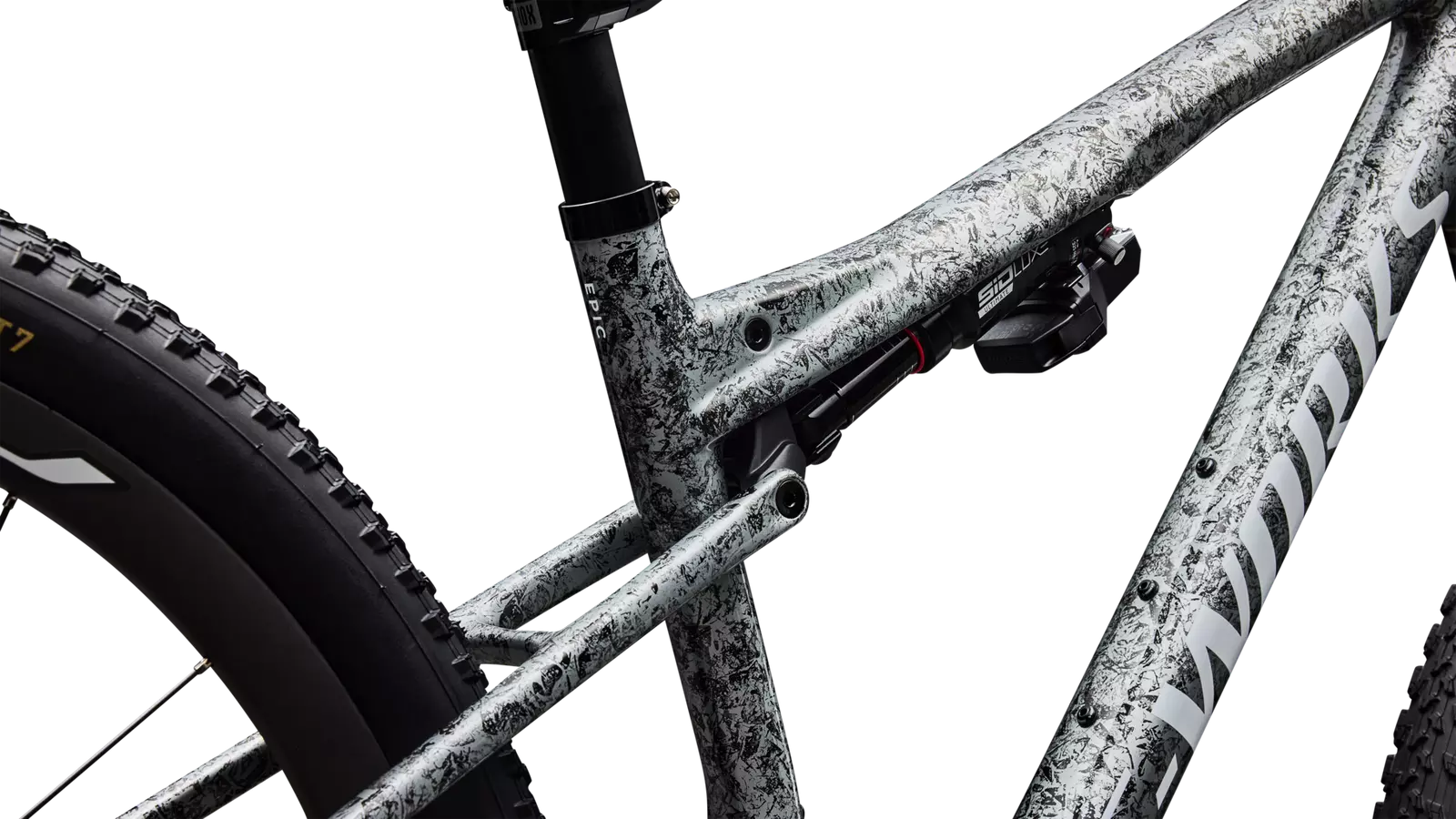

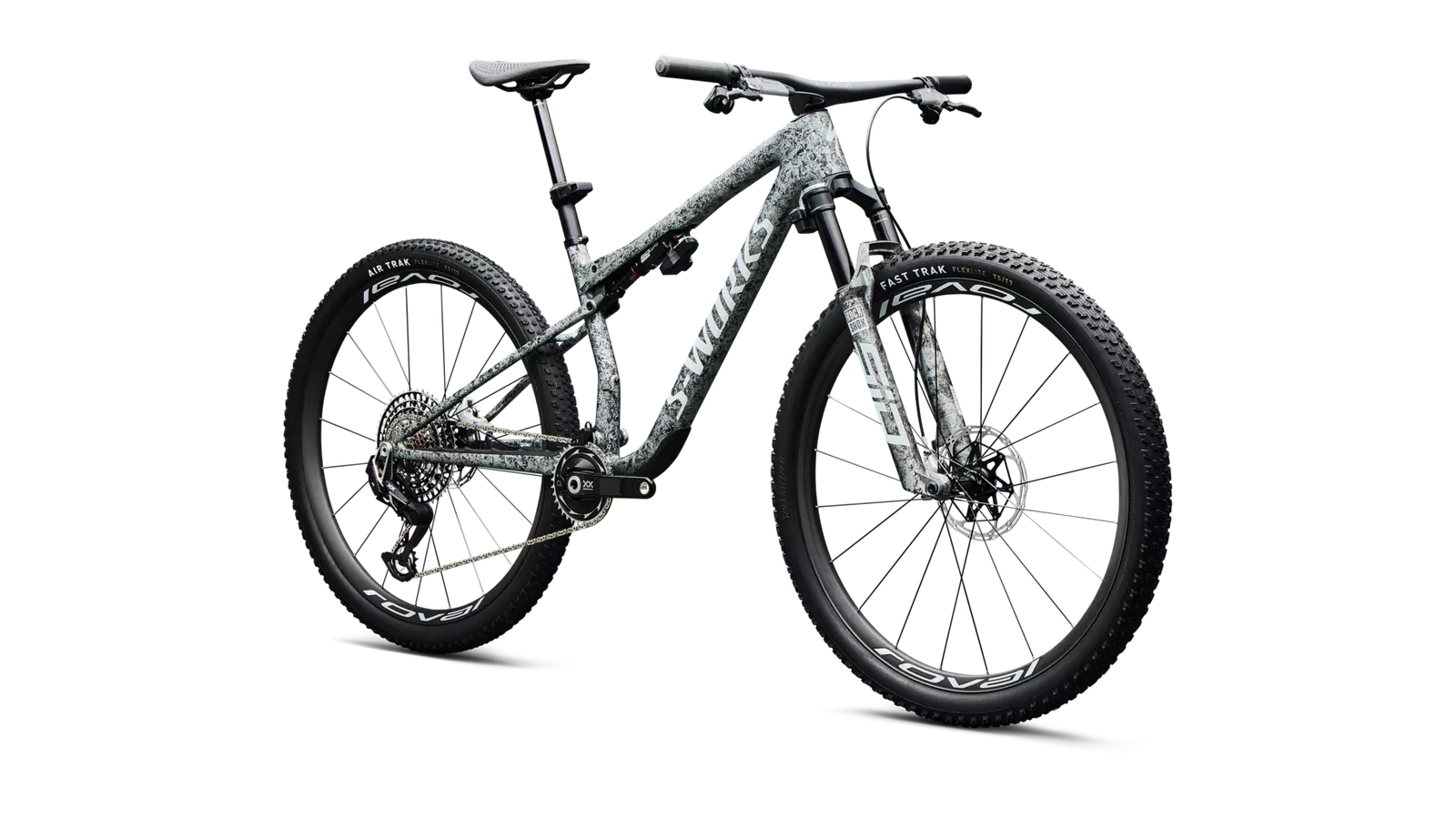

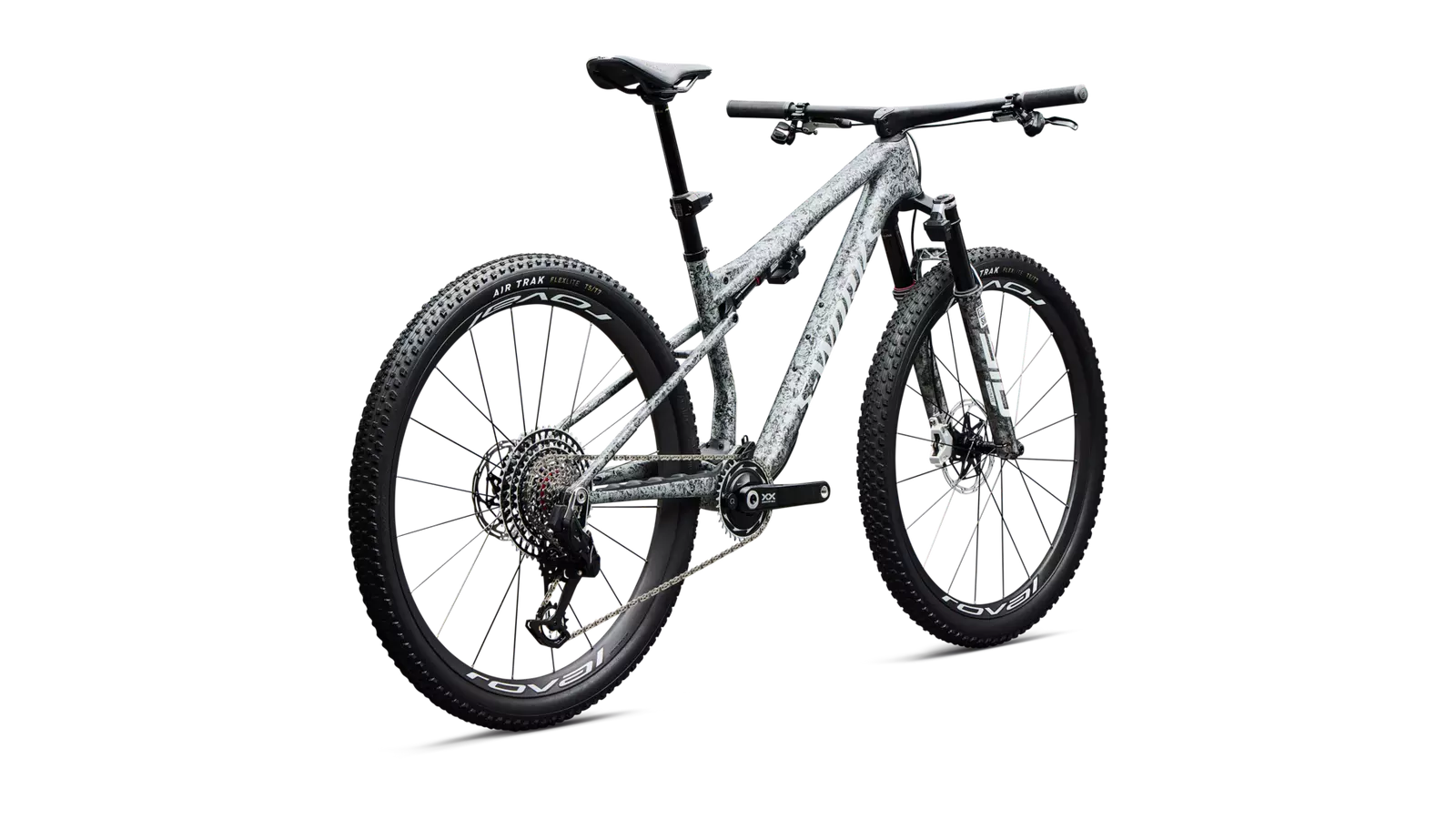

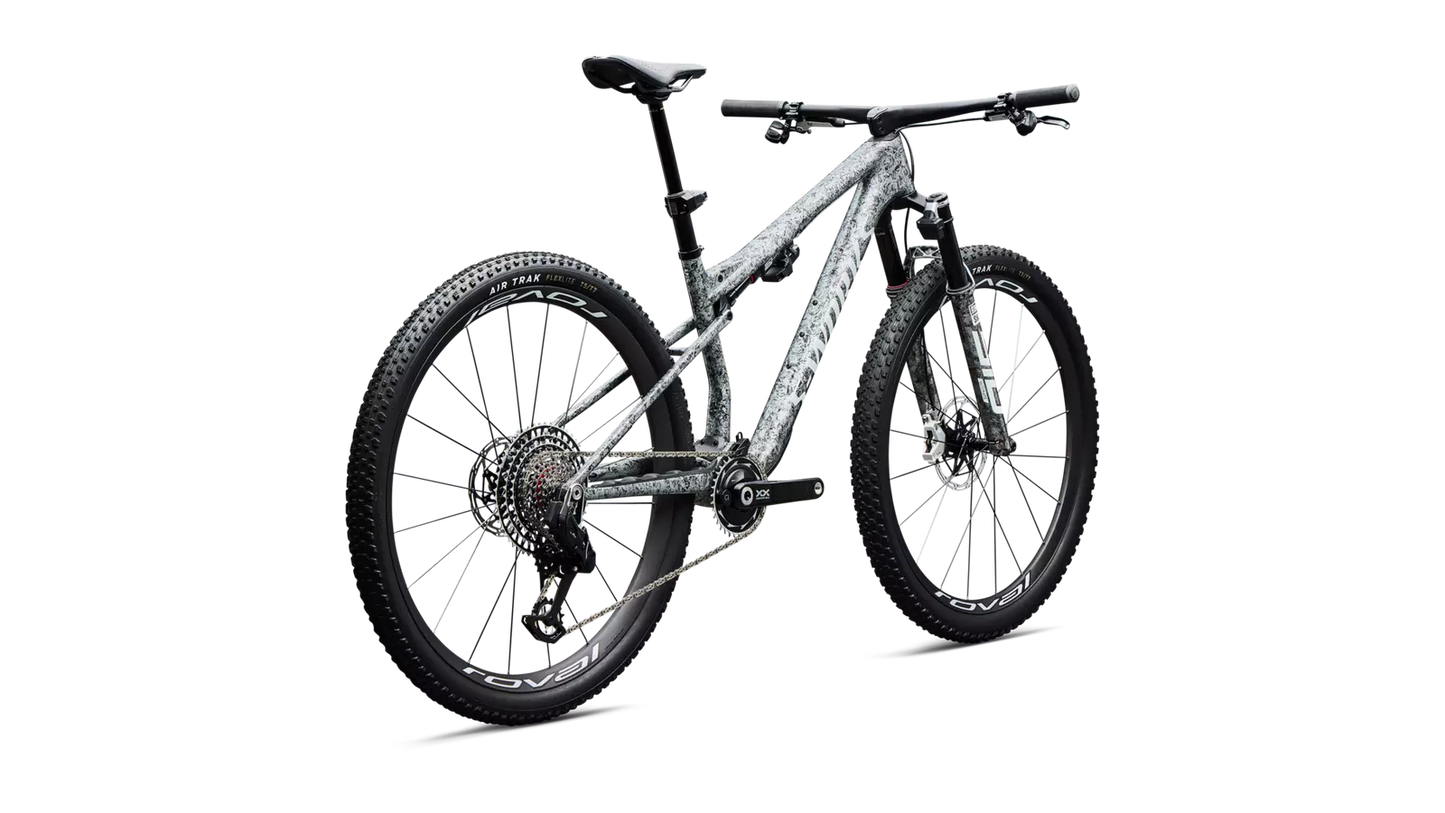

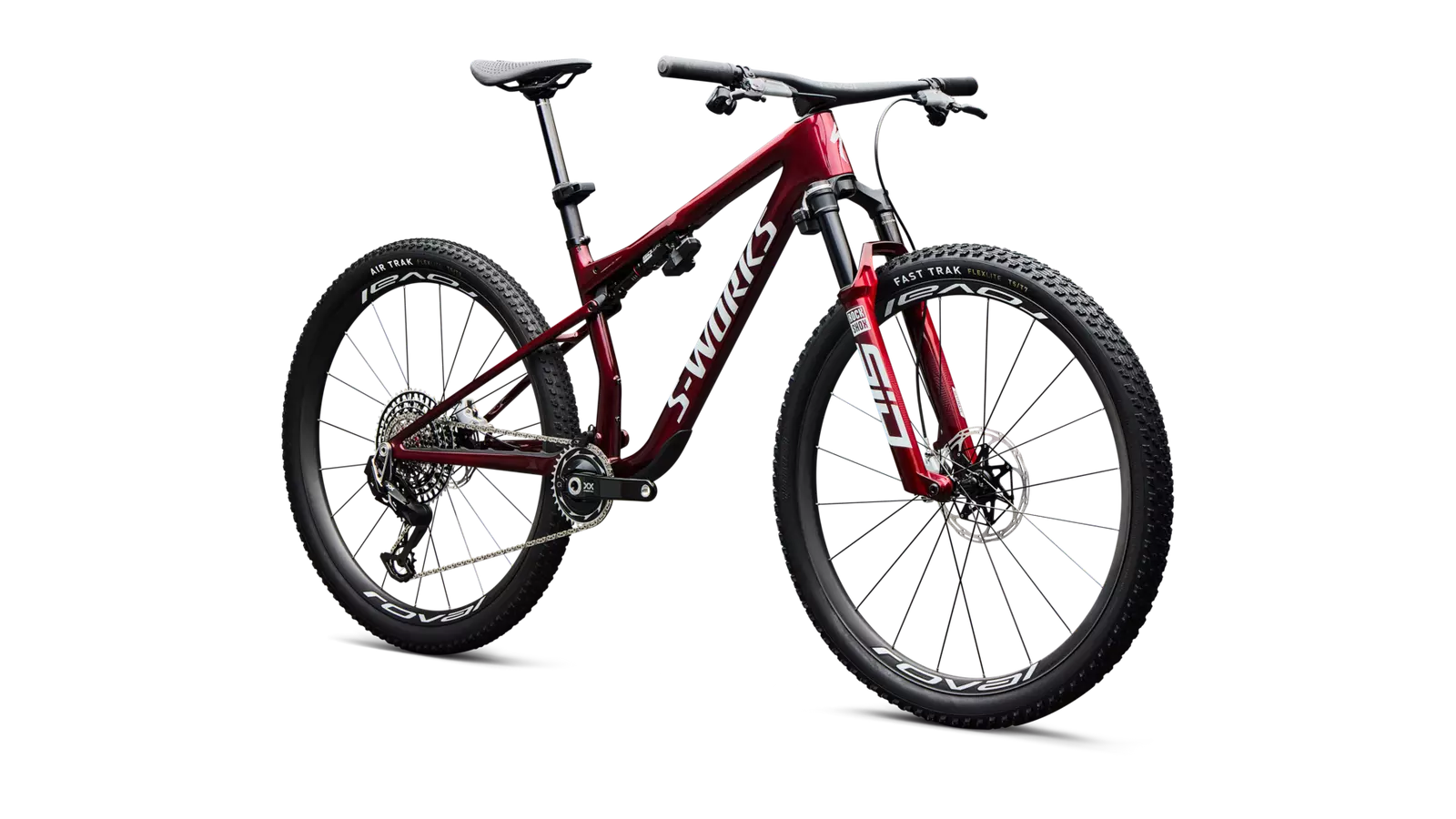

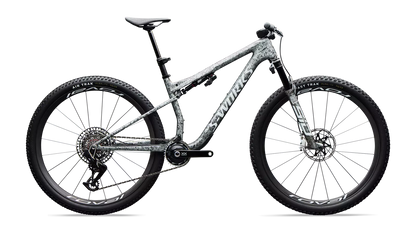

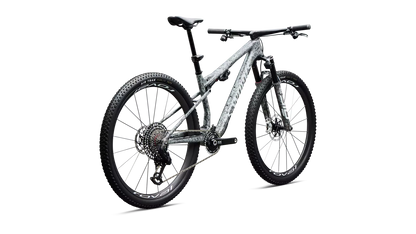

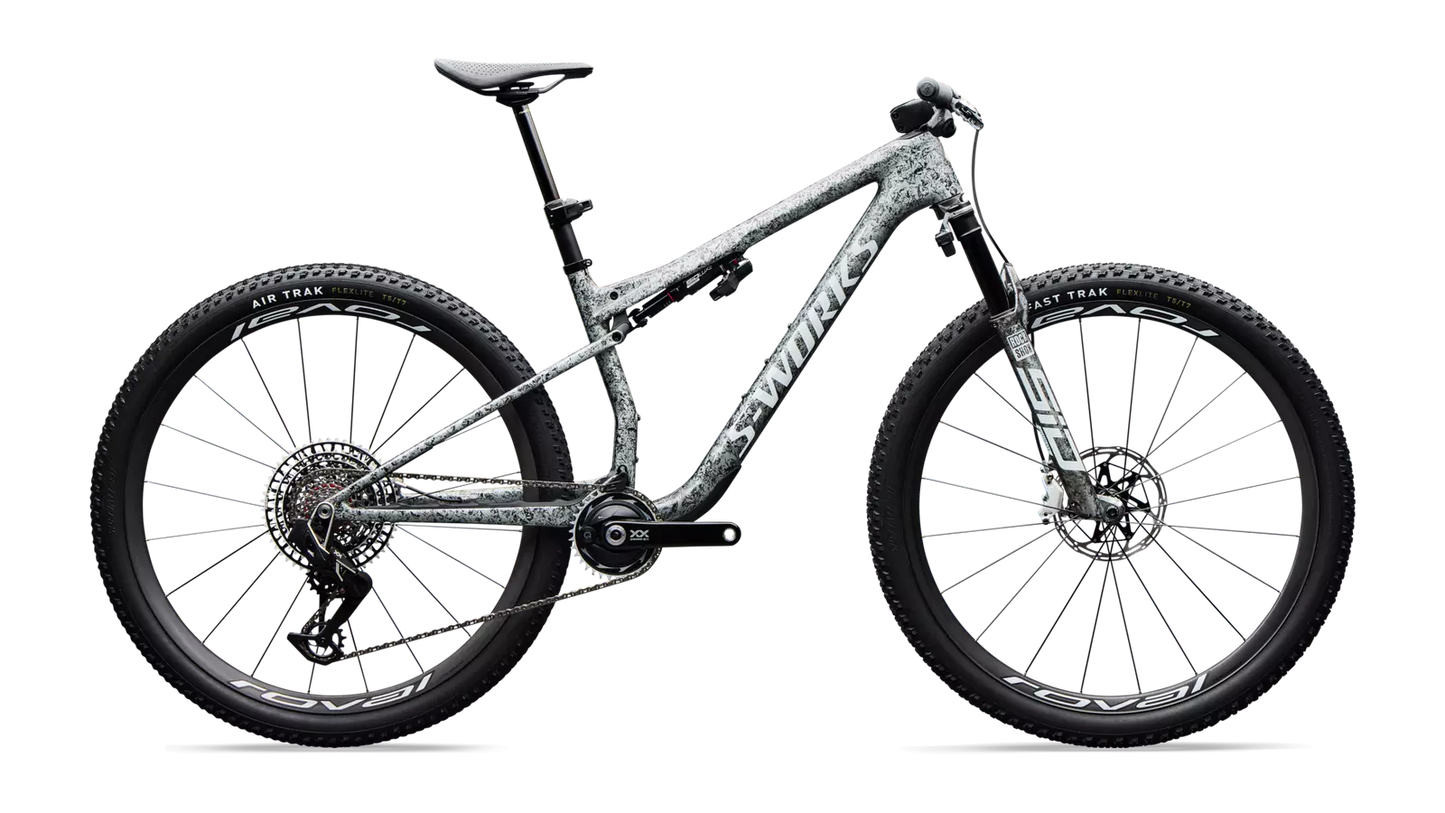

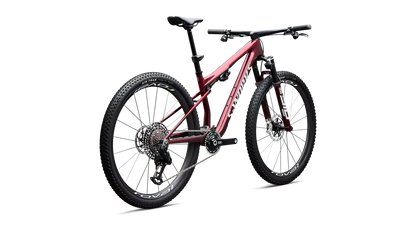

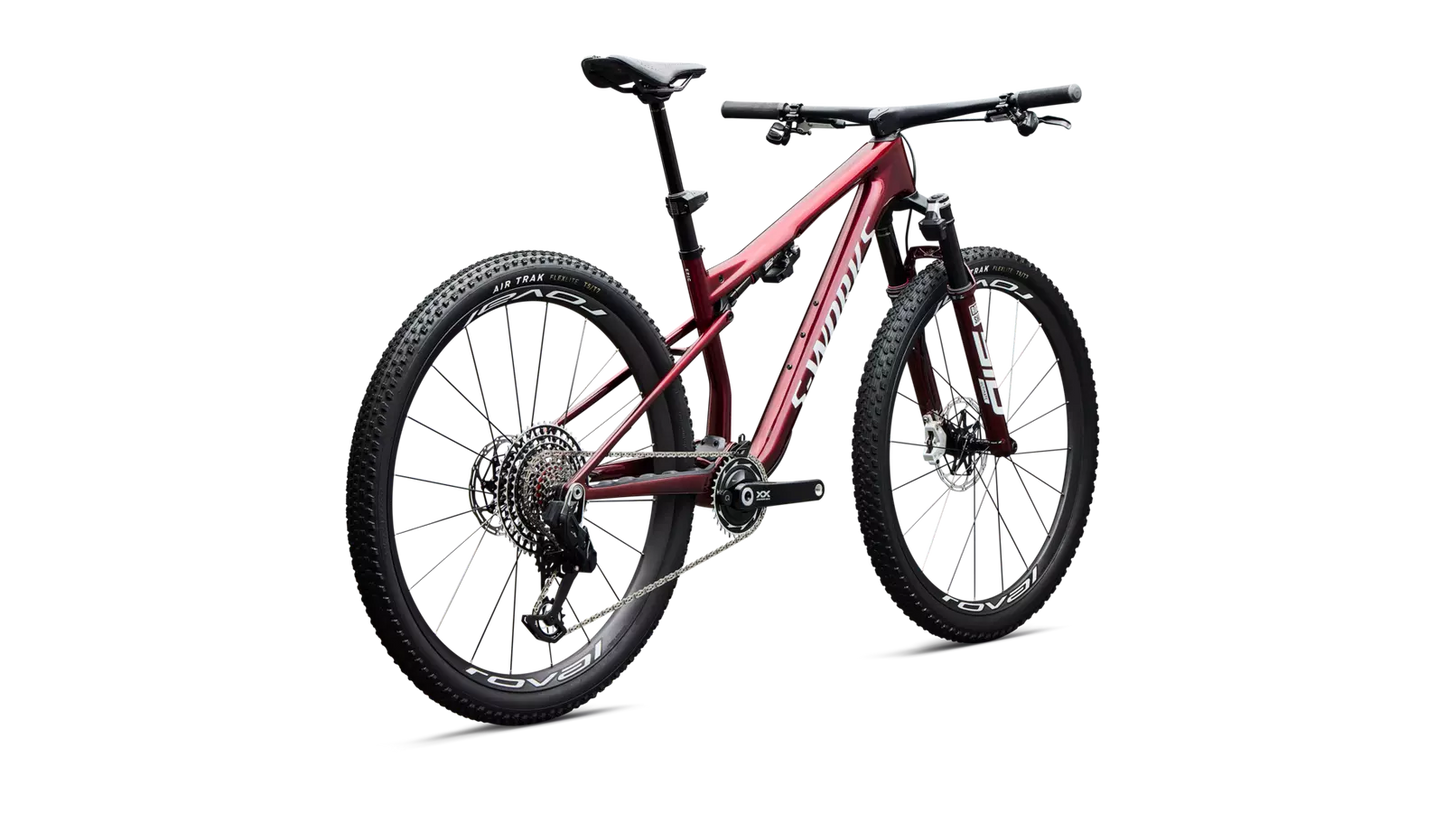

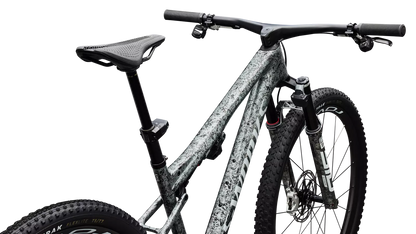

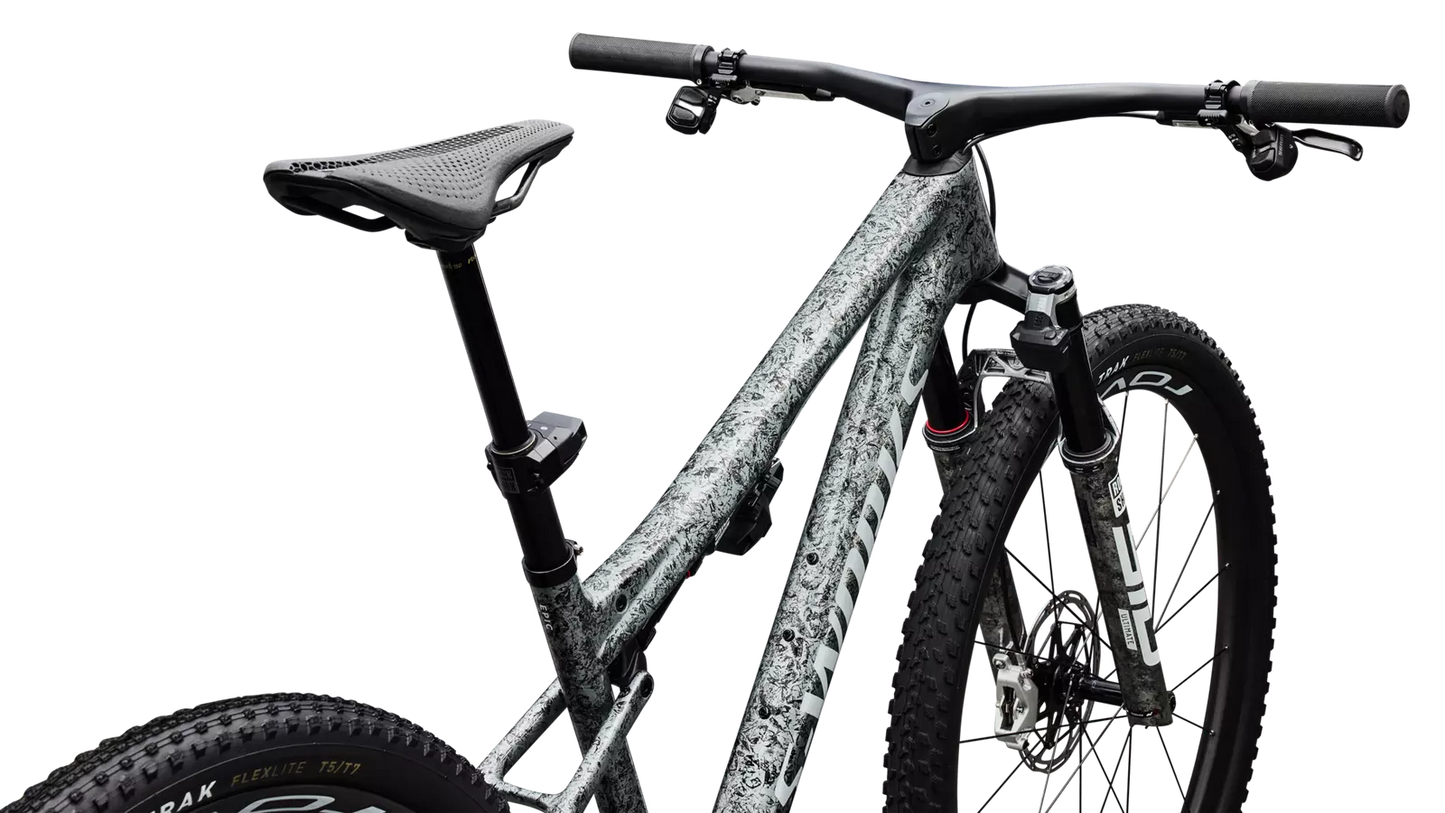

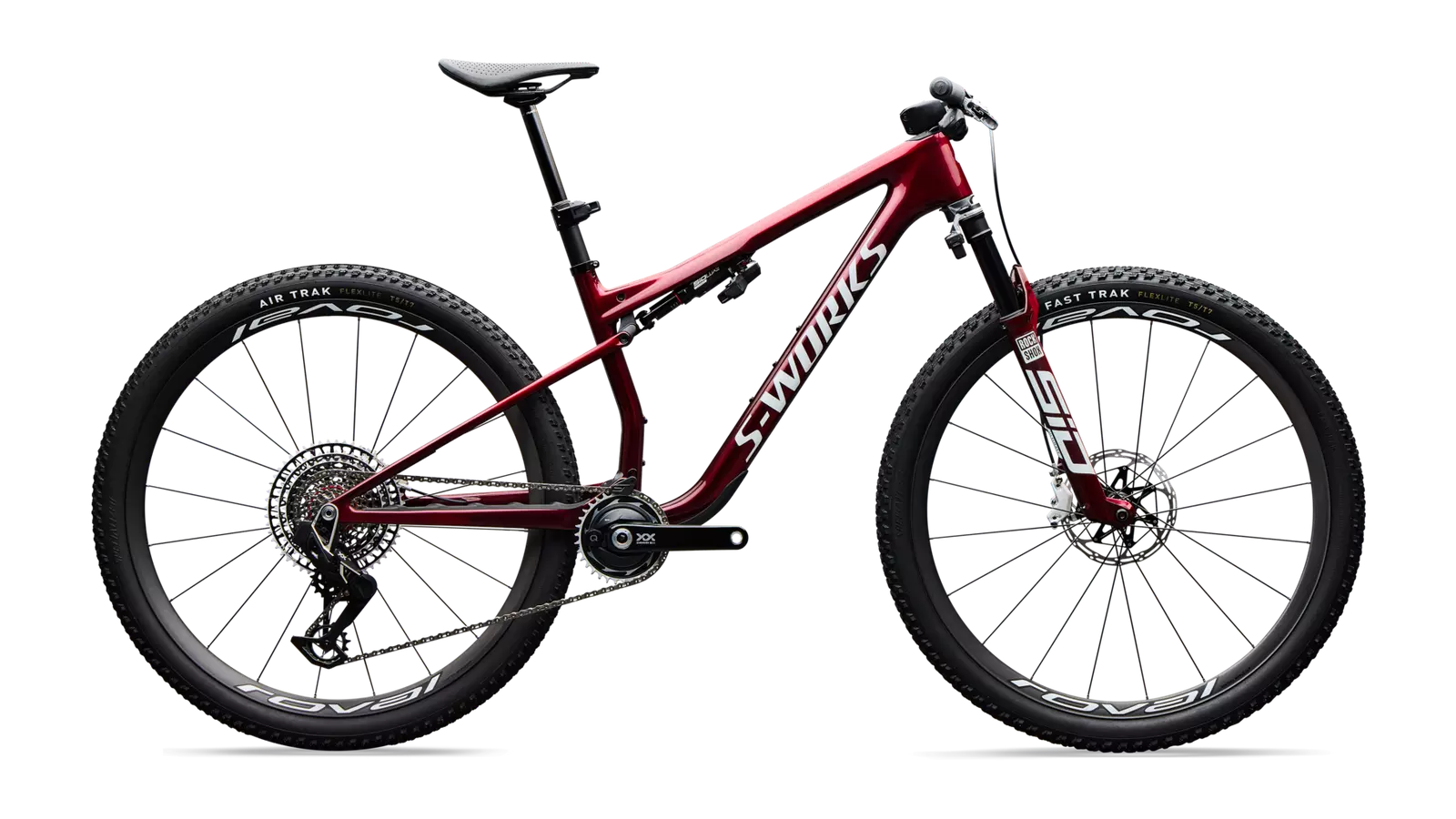

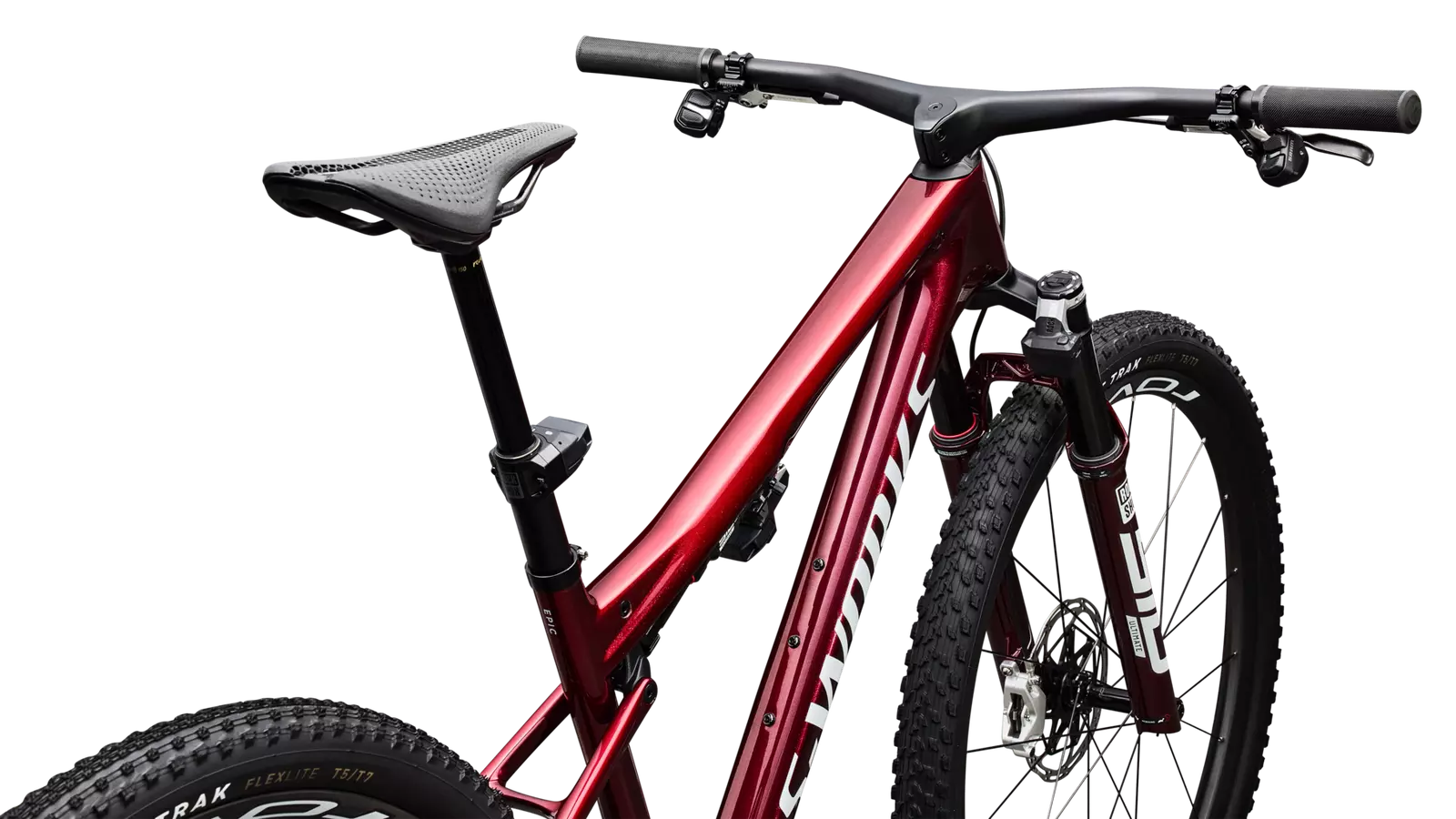

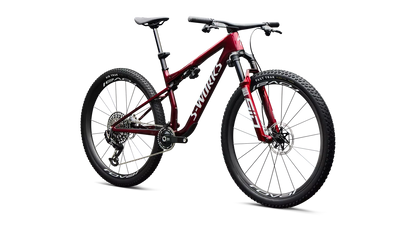

S-Works Epic 9
S-Works Epic 9
SKU:90327-0102
Out of Stock In Store
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
Evolution of the Fastest
The Lightest, Fastest, Most Capable XC Race Bike Ever. Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.
We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.
Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.
Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.
At a Glance
Use: XC Racing
Frame: S-Works FACT 12m Carbon, Progressive XC Race Geometry, 120mm of travel
Suspension
Front: RockShox SID Ultimate Flight Attendant
Rear: RockShox SIDLuxe Ultimate Flight Attendant
Drivetrain: SRAM XX SL Eagle Transmission
Wheels: Roval World Cup w/ DT Swiss 180 Hub
Weight: 21 lbs. 4.7 oz. (9.66 kg)
Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
Seat Binder
Specialized Alloy 34.9, Ti Bolt
SWAT
SWAT Box 2.0
Suspension

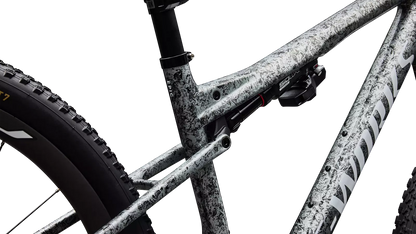

Rear Shock
RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Fork
RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Brakes
Front Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller
Rear Derailleur
SRAM XX SL Eagle AXS
Cassette
SRAM CS-1299, 12 speed, 10-52t
Chain
SRAM XX SL Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB SM:165mm, M-XL:170mm, 34T
Bottom Bracket
CeramicSpeed Alpha, DUB
Wheels & Tires
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Front Wheel
Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces
Rear Tire
Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Wheel
Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss 180 internals, Roval Carbon spokes w/ Ti end pieces
Inner Tubes
Specialized TPU inner tube
Cockpit

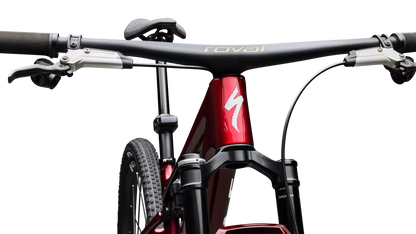

Handlebars

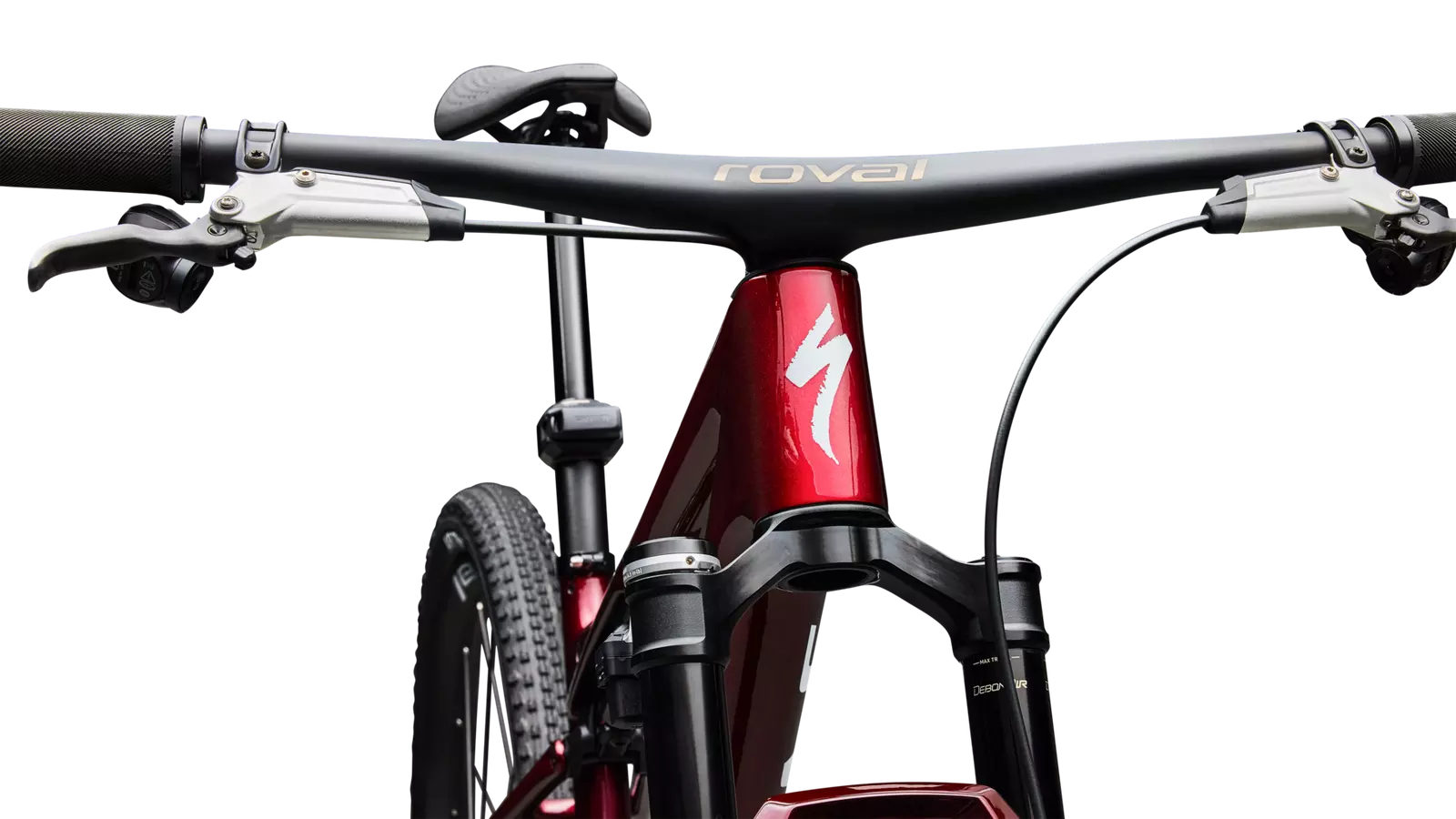

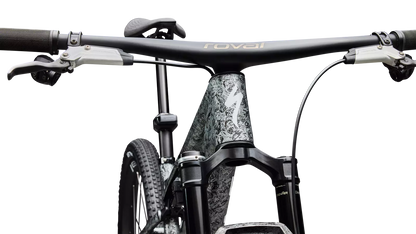

Roval Control SL Integrated cockpit, 60mm/70mm X- 6 degree integrated stem, 8-degree backsweep, 2 degree upsweep, 760mm wide
Grips
Specialized Trail Grips
Saddle
Specialized S-Works Power EVO Mirror, Carbon Rails, SM: 155mm, M-XL: 143mm
SeatPost
RockShox Reverb AXS, 30.9mm, S: 125mm, M/L:150mm, XL: 175mm
Product Details
Weight
Weight
9.66 kg (21 lb, 4.7 oz)
Weight Size
MD
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| s | m | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Stem Length | 60mm | 70mm | 70mm | 70mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 125mm | 125mm |
| Stack | 589mm | 599mm | 612mm | 639mm |
| Reach (Low) | 427mm | 457mm | 487mm | 512mm |
| Reach (High) | 432mm | 462mm | 492mm | 517mm |
| Head-Tube Length | 92mm | 105mm | 120mm | 150mm |
| Head-Tube Angle (Low) | 66.5° | 66.5° | 66.5° | 66.5° |
| Head-Tube Angle (High) | 66.9° | 66.9° | 66.9° | 66.9° |
| B-B Height | 328mm | 330mm | 330mm | 330mm |
| B-B Drop (Low) | 47mm | 45mm | 45mm | 45mm |
| B-B Drop (High) | 42mm | 40mm | 40mm | 40mm |
| Trail | 115mm | 115mm | 115mm | 115mm |
| Fork Length (full) | 516mm | 516mm | 516mm | 516mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 711mm | 746mm | 782mm | 819mm |
| Chain-Stay Length | 435mm | 435mm | 438mm | 442mm |
| Wheelbase | 1142mm | 1178mm | 1217mm | 1258mm |
| Top-Tube Length (horizontal) | 566mm | 599mm | 632mm | 664mm |
| Frame Stand-Over Height | 740mm | 746mm | 749mm | 756mm |
| Seat-Tube Length | 390mm | 410mm | 455mm | 505mm |
| Seat-Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Post Max Insertion | 190mm | 220mm | 260mm | 315mm |
| Seat Post Min Insertion | 80mm | 80mm | 80mm | 80mm |
| Saddle Height for Effective STA | 690mm | 735mm | 780mm | 825mm |
