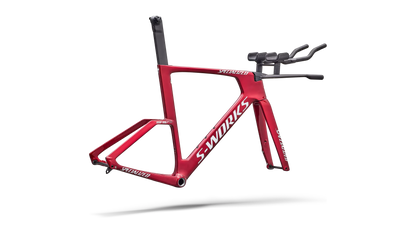

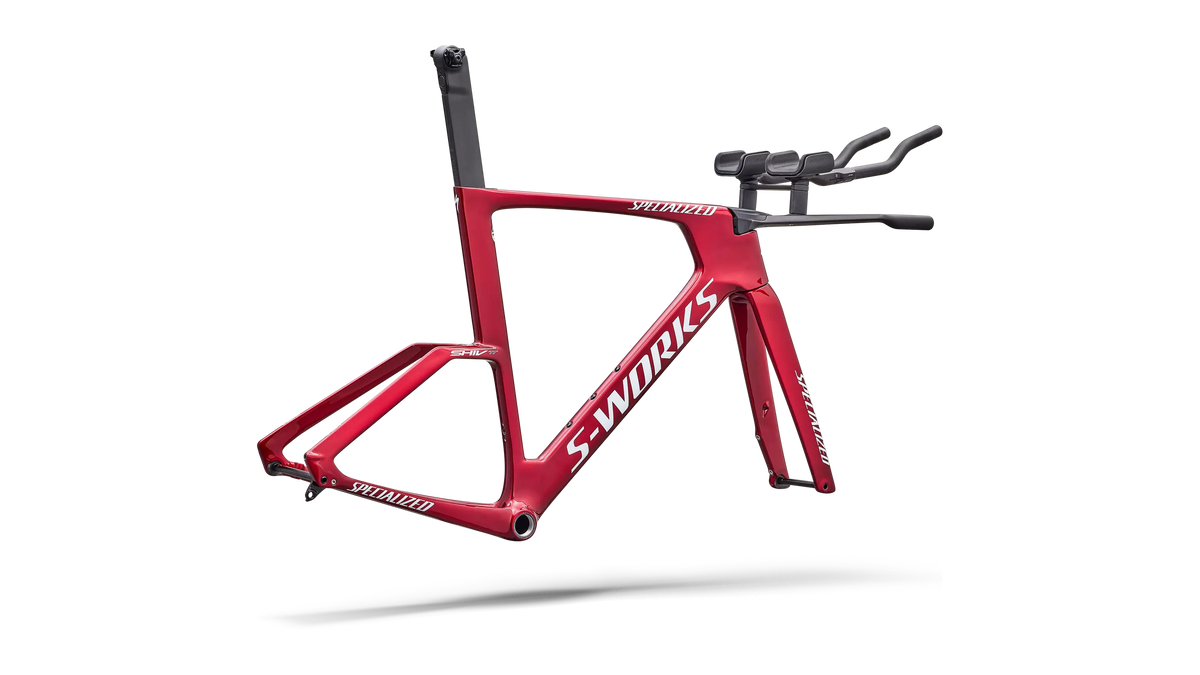

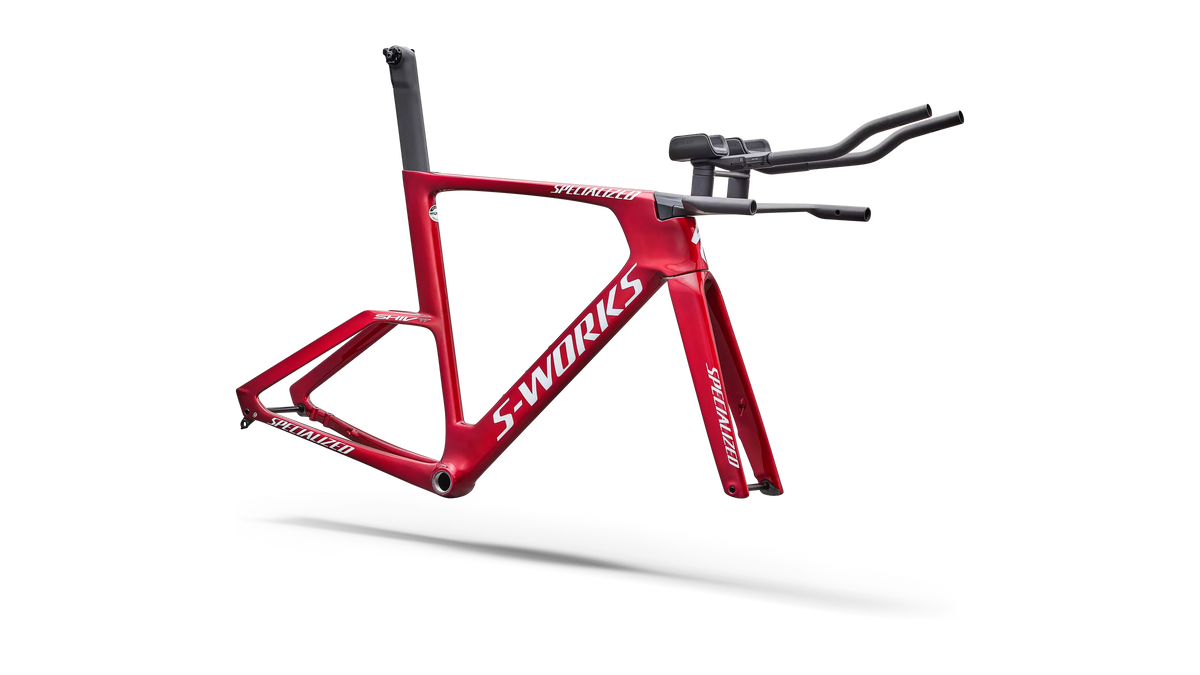

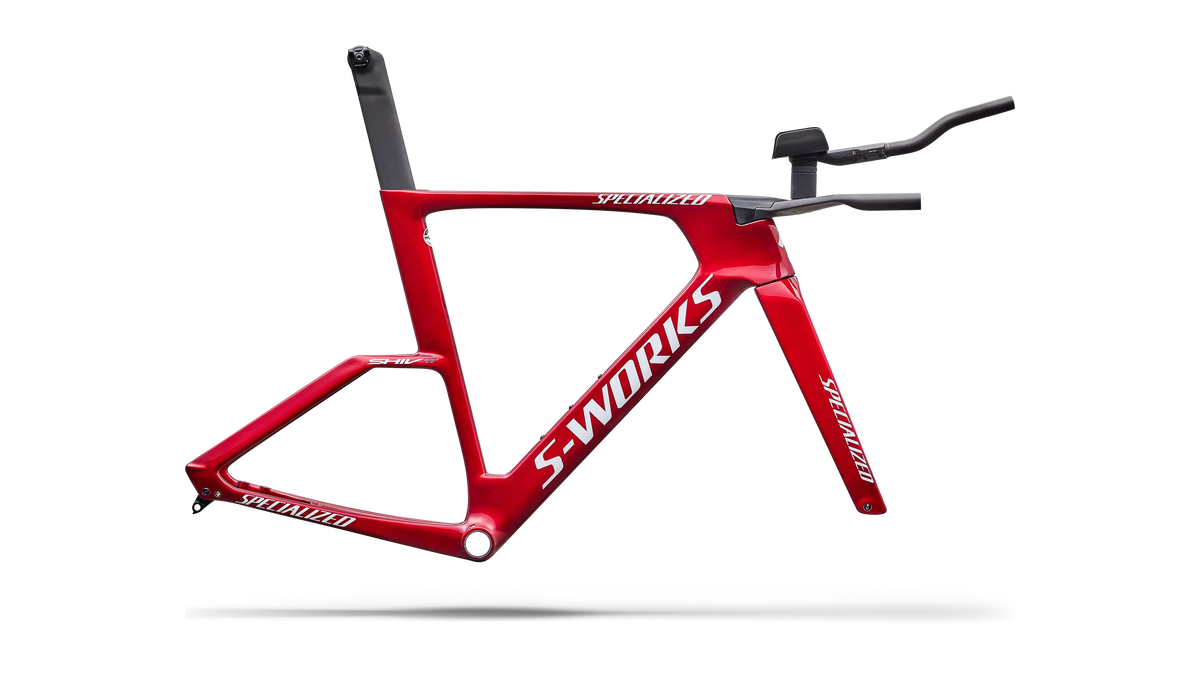

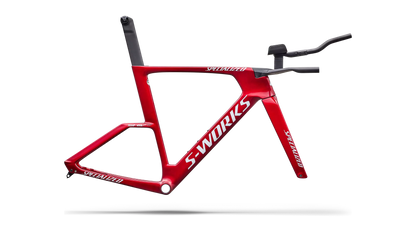

S-Works Shiv TT Disc Module - FACT 11r Carbon (2027)

S-Works Shiv TT Disc Module - FACT 11r Carbon (2027)

SKU:77427-0001

Regular price R 109,000.00
Regular price Sale price R 109,000.00
Sale Sold out
Vat Included
Color
Size

Out of Stock In Store

Available to order

This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.

Enquire about this item
  • Visa
  • Mastercard
Collect in store only
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.

Read More

For years, time trial bikes have had very similar attributes—skinny, deep airfoils, sketchy handling, subpar braking, and heavy frames. For the 'flat and fast' courses of yesteryear, these qualities may have been acceptable, but with today's technically demanding courses, TT bikes needed a change. And with this in mind, we've pushed UCI regulations to their limits adding disc brakes, dropping weight, and dialing in the fit for the new Shiv TT. Is it the most adjustable TT bike out there? Yeah, but don't think it gave anything up to aerodynamics. Here's to another decade of gold medals.

  • As time-trial courses have become more technical and demanding, it's important to capitalize on years of R&D and pro rider feedback to create the fastest time trial bike—for all courses.
  • Fit was also one of the biggest design pillars of the new Shiv TT. With years of Retül data, and professional rider data, we've completely re-done the geometry and front-end of the bike.
  • Disc brakes are now a necessity in TTs with variable weather, tight corners, and rough surfaces.
View full details

Technical Specifications

Frameset



Frame

S-Works FACT 11r carbon, Win Tunnel Engineered, UCI Legal, internal electric only cable routing, BSA Threaded, 12x142mm thru-axle, flat-mount disc



Suspension



Fork

S-Works FACT carbon, UCI Legal, 100x12mm thru-axle, flat-mount disc



Cockpit



Stem

Shiv TT Basebar stem cover



Handlebars

Specialized Shiv TT Integrated bar/stem aerobar



SeatPost

2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible



Seat Binder

Shiv TT integrated wedge



Weight



Weight

2.69 kg (5 lb, 14.9 oz)



Weight Size

MD



Geometry

 XSSML
Handlebar Width340mm340mm400mm400mm
Stem Length75mm75mm75mm75mm
Seatpost Length390mm390mm390mm390mm
Effective Reach to Center of Pad, REARWARD Position436mm448mm463mm478mm
Effective Stack to Pad Holder, HIGHEST Position680mm690mm690mm690mm
Trail70mm63mm63mm63mm
Stack485mm495mm495mm495mm
Fork Length (full)363mm363mm363mm363mm
Top-Tube Length (horizontal)512mm527mm538mm546mm
Seat-Tube Length504mm564mm563mm562mm
Reach378mm390mm405mm420mm
Head-Tube Angle71°72°72°72°
B-B Drop70mm72mm72mm72mm
Front-Center573mm579mm594mm609mm
Head-Tube Length90mm95mm95mm95mm
Chain-Stay Length410mm410mm410mm410mm
Effective Stack to Pad Holder, LOWEST Position535mm545mm545mm545mm
Bike Stand-Over Height769mm802mm802mm802mm
Effective Reach to Center of Pad, FORWARD Position464mm476mm491mm506mm
B-B Height269mm270mm270mm270mm
Wheelbase972mm978mm993mm1008mm
Fork Rake/Offset45mm45mm45mm45mm
Seat-Tube Angle74.5°74.5°75°75.75°
