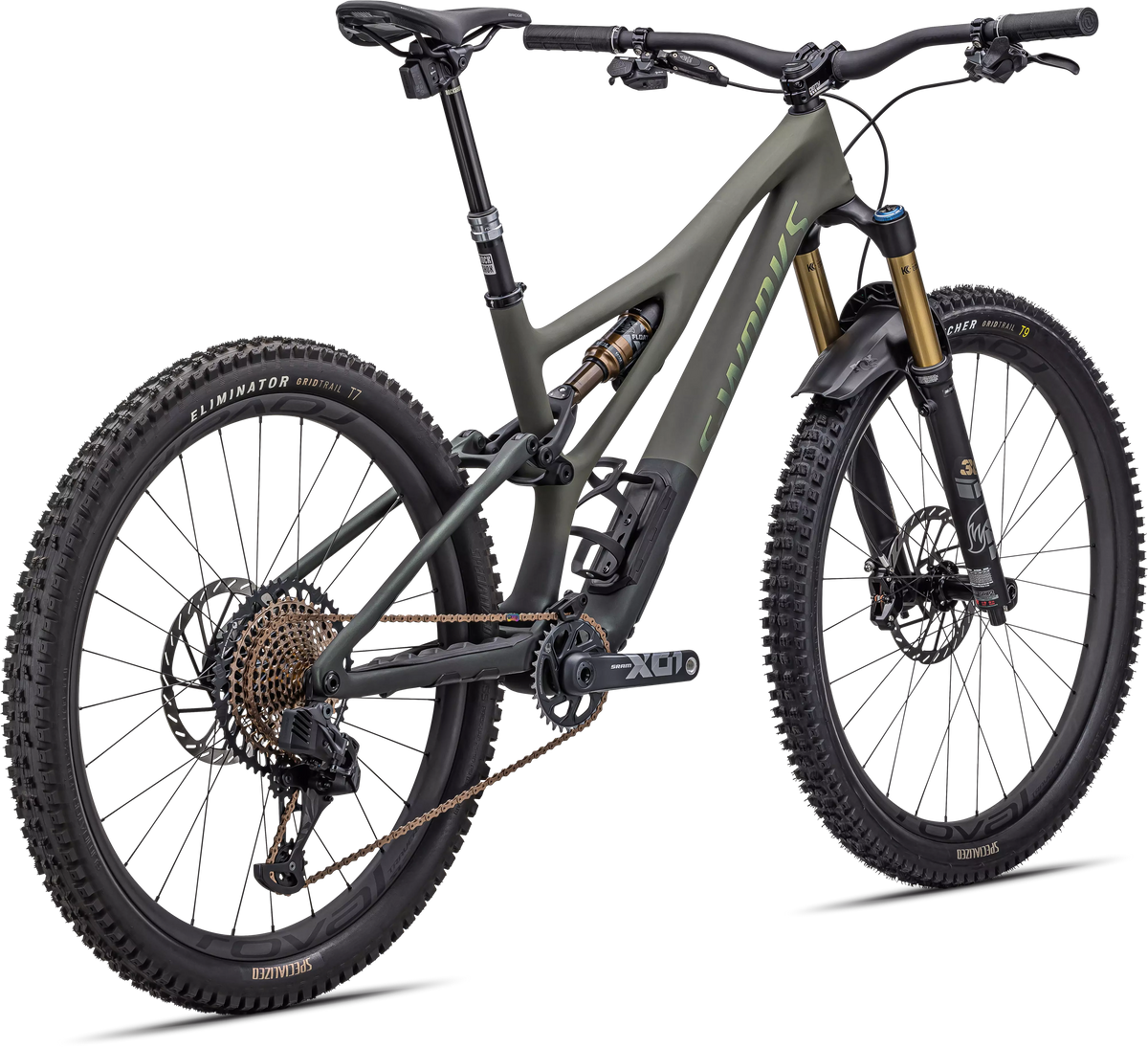

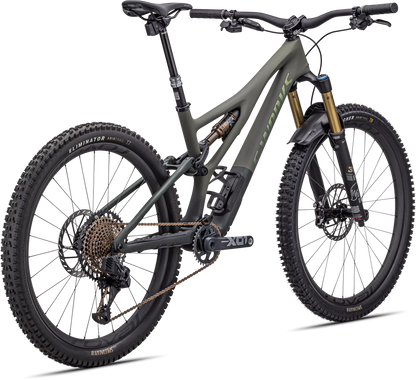

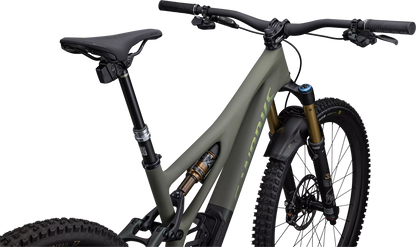

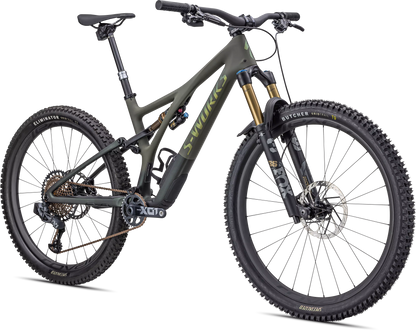

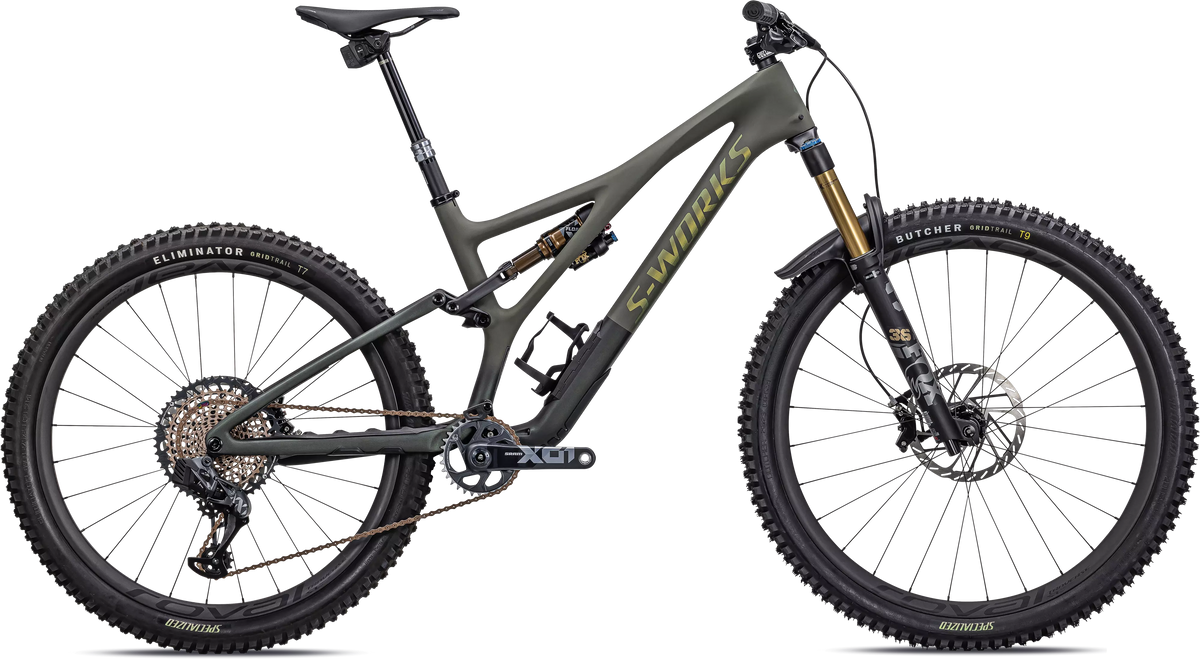

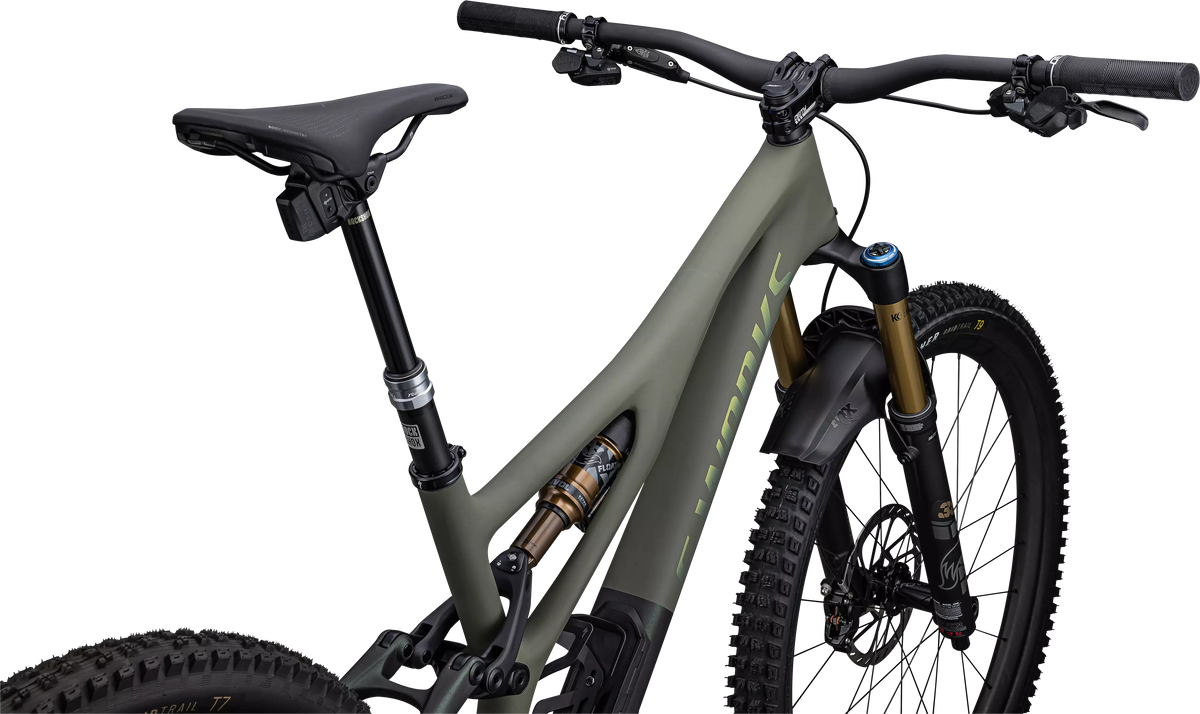

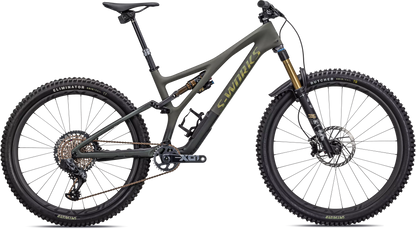

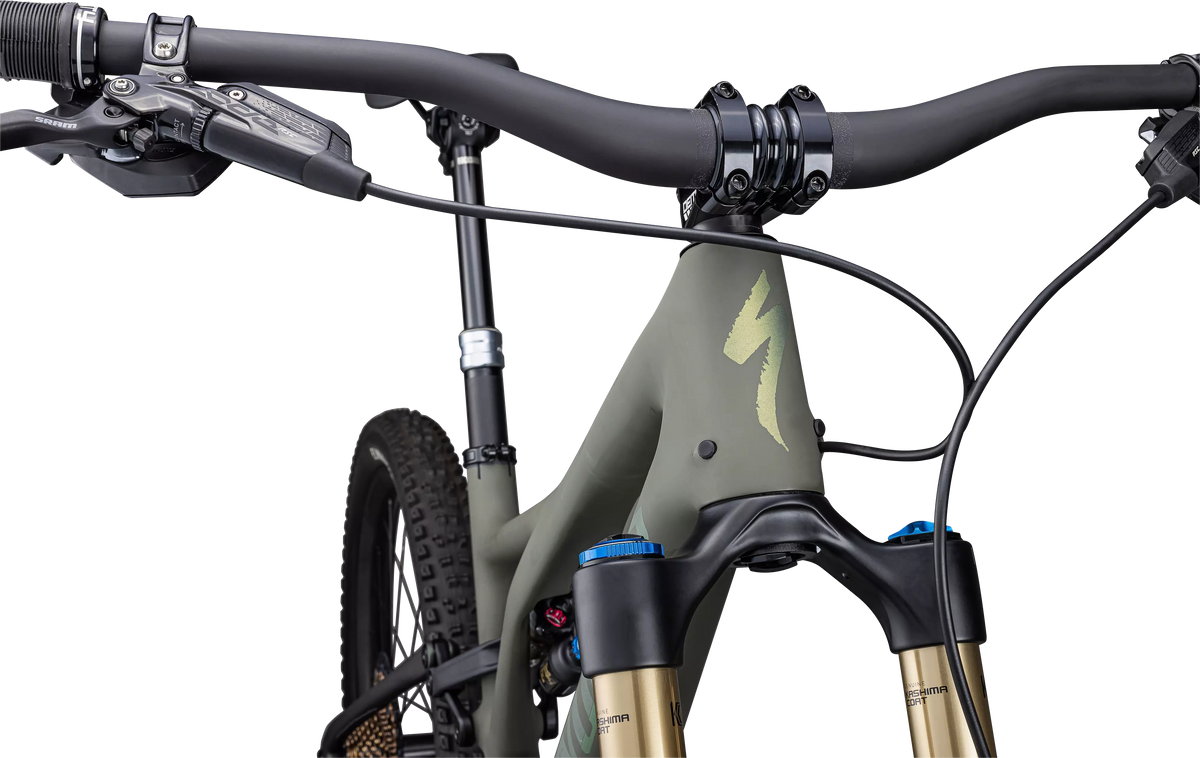

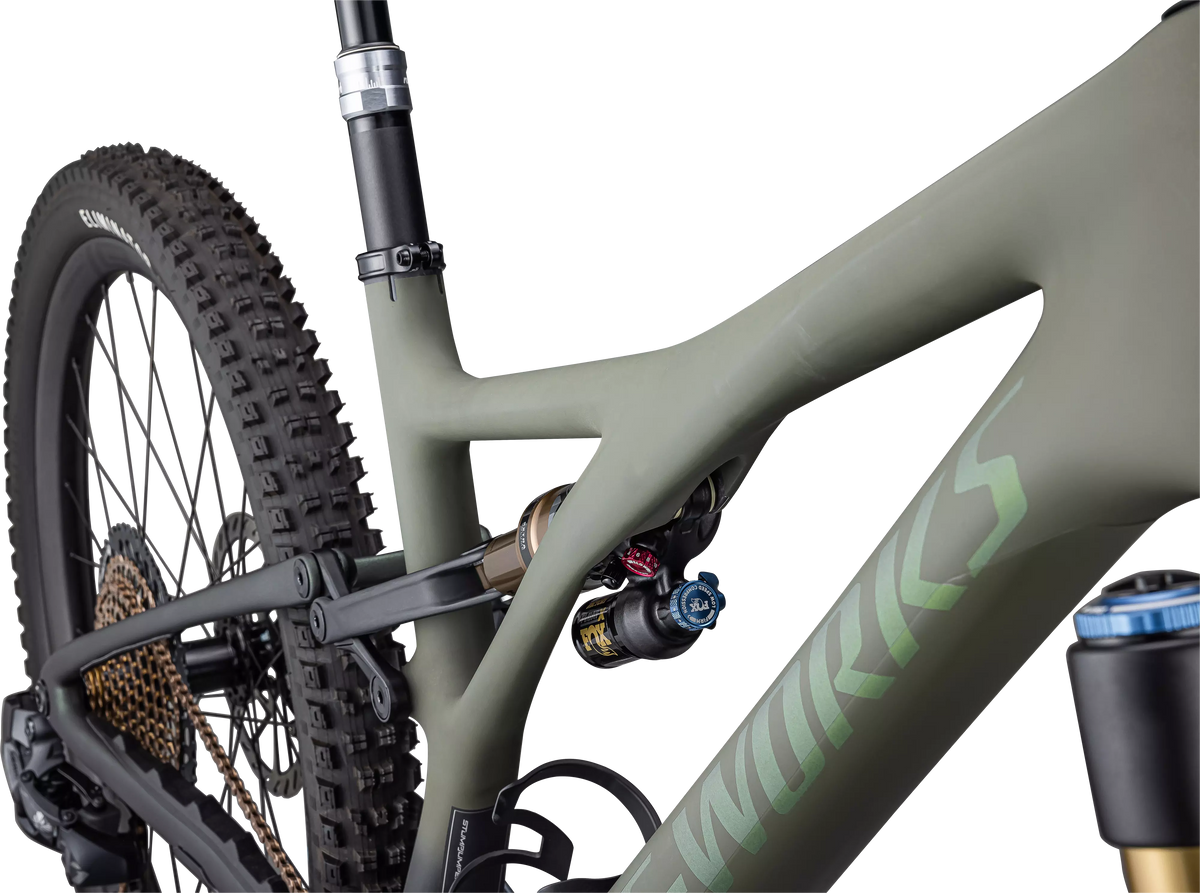

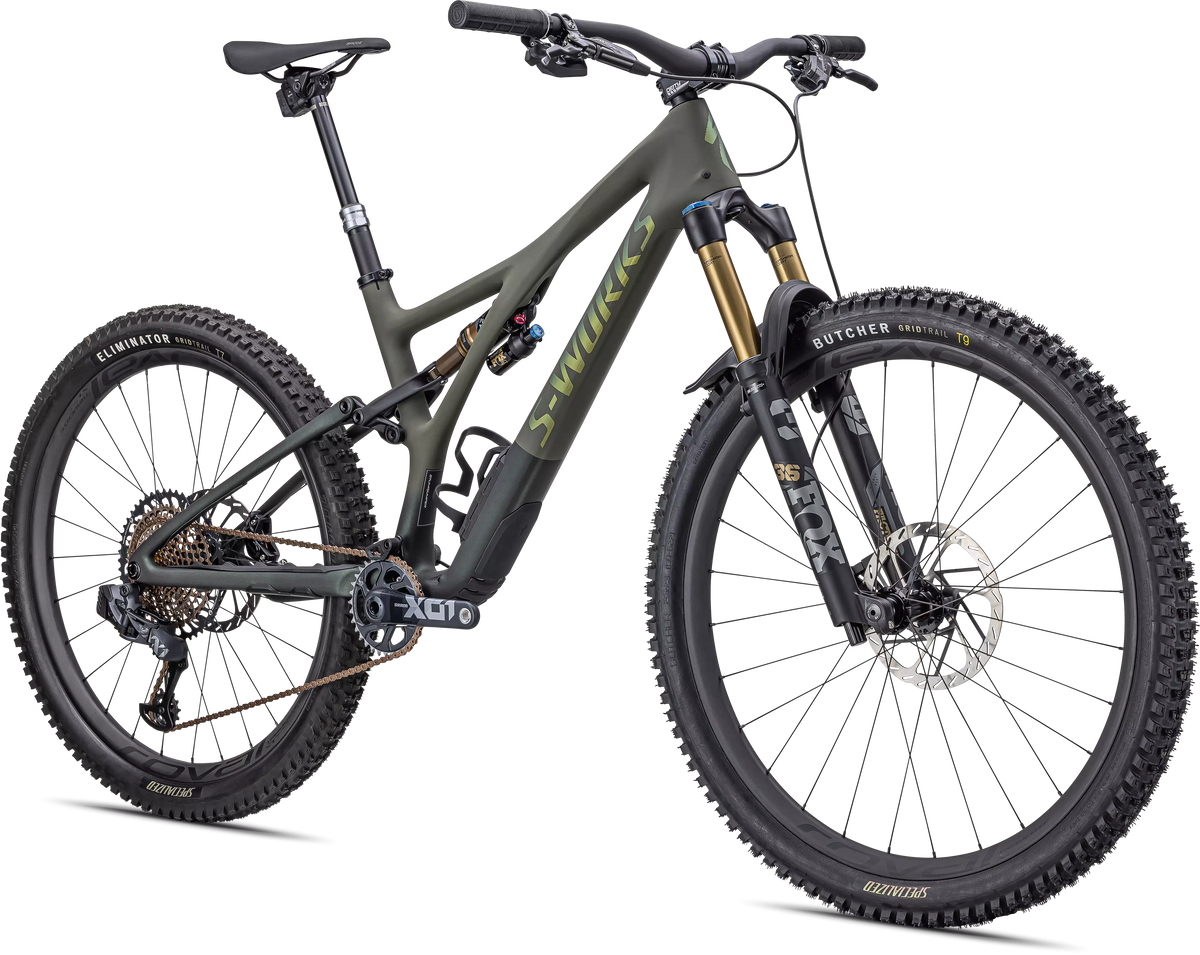

S-Works Stumpjumper LTD
S-Works Stumpjumper LTD
SKU:93322-3201
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design—paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight—turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.
Just when we thought we couldn’t possibly outdo ourselves, we did. The S-Works Stumpjumper LTD will take your trail riding to a whole new level with a mixed wheel setup, SRAM XX1 Eagle AXS wireless electronic groupset, FOX FLOAT 36 Factory fork and FOX FLOAT X Factory shock, and SRAM Code RSC 4-piston brakes.
- THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design.

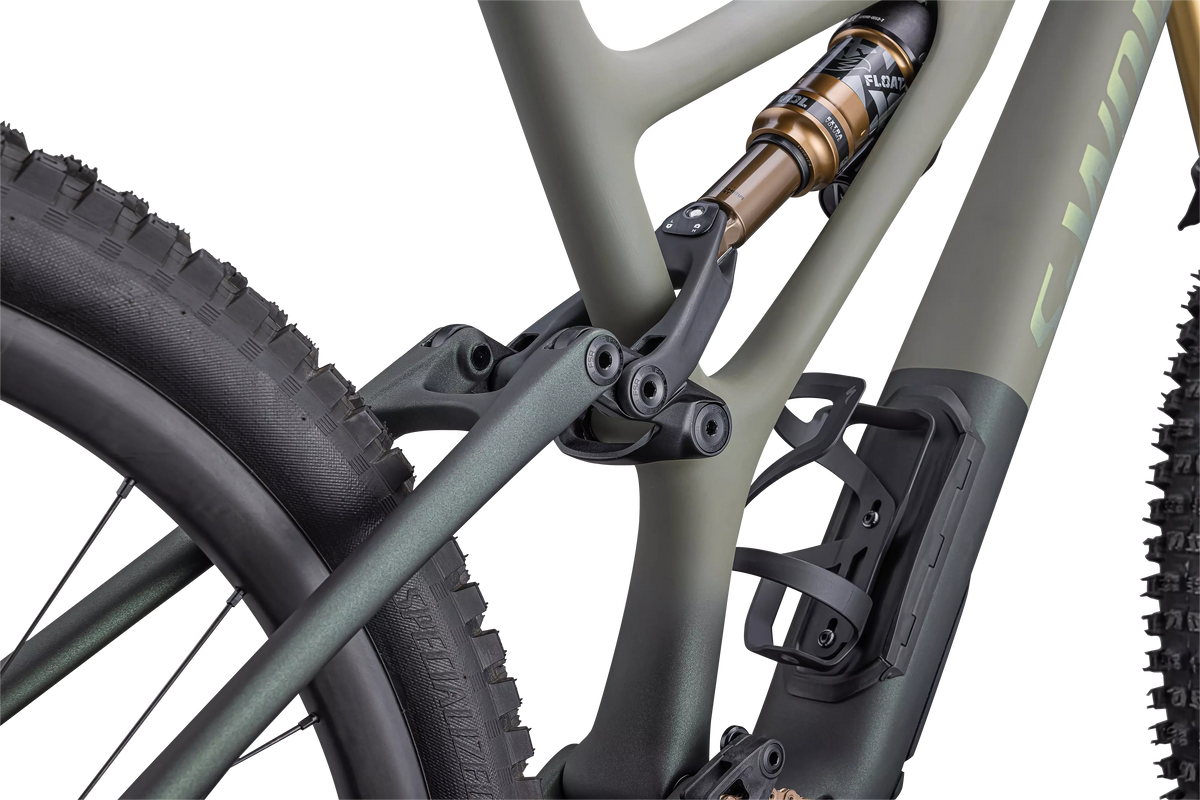

- THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
- PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
- RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size.
- SWAT™—The SWAT™ door adds room in your frame for trail necessities like pumps and spare tubes.
Share

Technical Specifications
Frameset
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, Mixed wheel Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder
Alloy, 38.6mm
Suspension

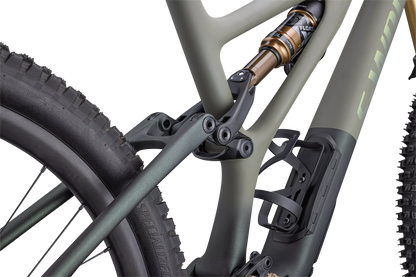

Rear Shock
FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, 190x45mm
Fork
FOX FLOAT 36 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
Brakes
Front Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM Eagle AXS Rocker Paddle
Rear Derailleur
SRAM XX1 Eagle AXS
Cassette
Sram XG-1299, 12-Speed, 10-52t
Chain
SRAM XX1 Eagle
Crankset
SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Chainrings
Alloy, 30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tires
Rims
Roval Traverse SL Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Spokes
DT Swiss Competition Race
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Deity, 35.0mm

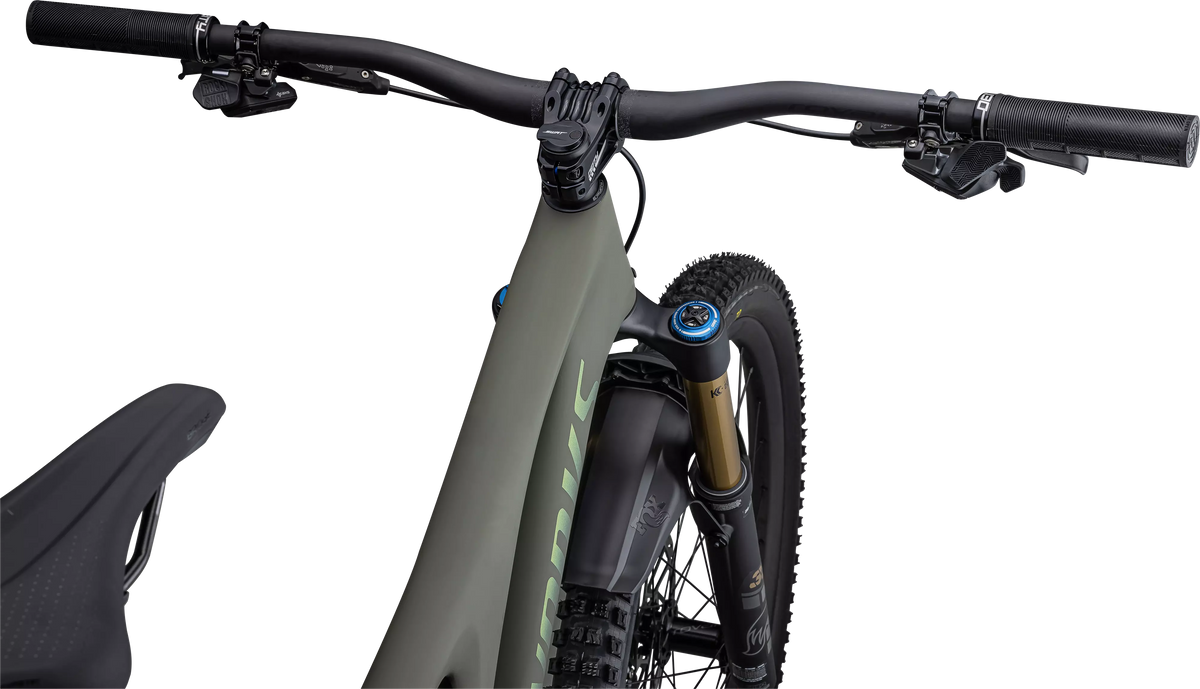

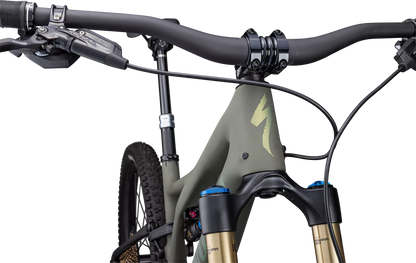

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
Grips
Deity, Knuckleduster, Black
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm | 175mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 35mm | 35mm | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 170mm |
| Stack (Low BB) | 614mm | 613mm | 622mm | 632mm | 641mm | 650mm |
| Stack (High BB) | 610mm | 609mm | 618mm | 627mm | 636mm | 646mm |
| Reach (Low BB) | 410mm | 430mm | 450mm | 475mm | 500mm | 530mm |
| Reach (High BB) | 415mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
| Headtube Angle (Low BB) | 65° | 65° | 65° | 65° | 65° | 65° |
| Headtube Angle (High BB) | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| BB Height (Low BB) | 328mm | 333mm | 333mm | 333mm | 333mm | 333mm |
| BB Height (High BB) | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
| BB Drop (Low BB) | 47mm | 42mm | 42mm | 42mm | 42mm | 42mm |
| BB Drop (High BB) | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Trail (Low BB) | 126mm | 126mm | 126mm | 126mm | 126mm | 126mm |
| Trail (High BB) | 123mm | 123mm | 123mm | 123mm | 123mm | 123mm |
| Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 724mm | 746mm | 770mm | 800mm | 829mm | 863mm |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm | 442mm | 442mm |
| Wheelbase | 1152mm | 1175mm | 1200mm | 1228mm | 1268mm | 1302mm |
| Top-tube Length (horizontal) | 563mm | 583mm | 605mm | 632mm | 660mm | 692mm |
| Bike Standover Height | 730mm | 734mm | 744mm | 749mm | 757mm | 757mm |
| Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle (Low BB) | 76° | 76° | 76° | 76° | 76° | 76° |
| Seat Tube Angle (High BB) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Max Seatpost Insertion | 220mm | 220mm | 240mm | 260mm | 280mm | 300mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
