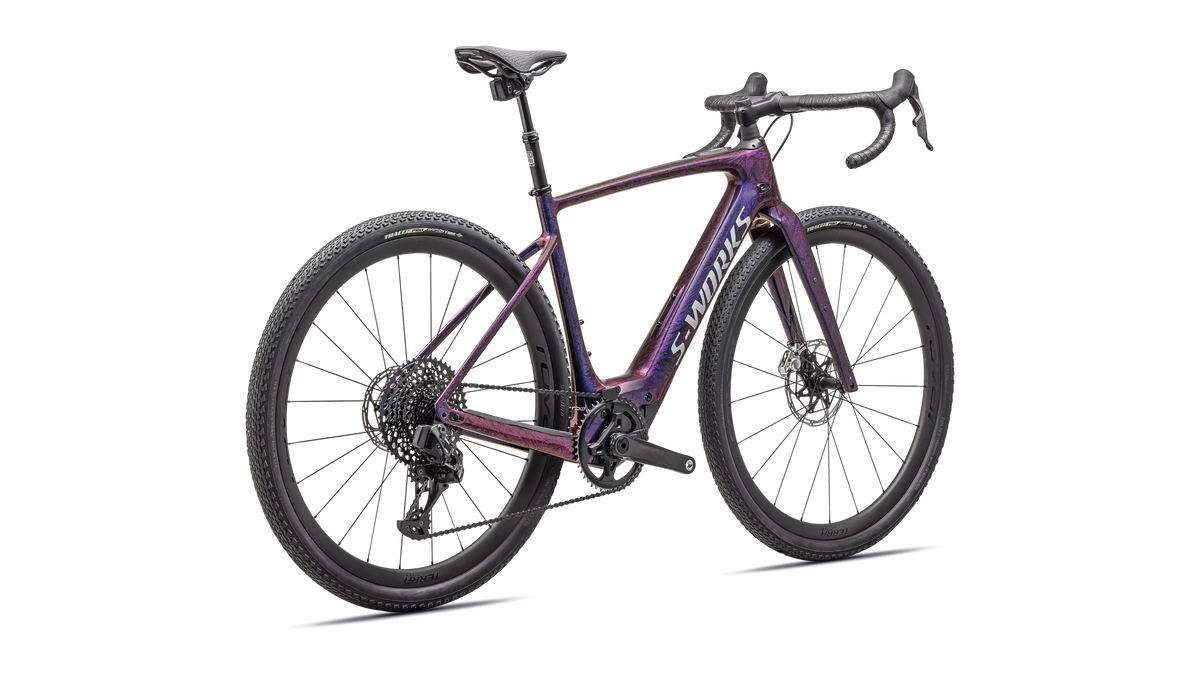

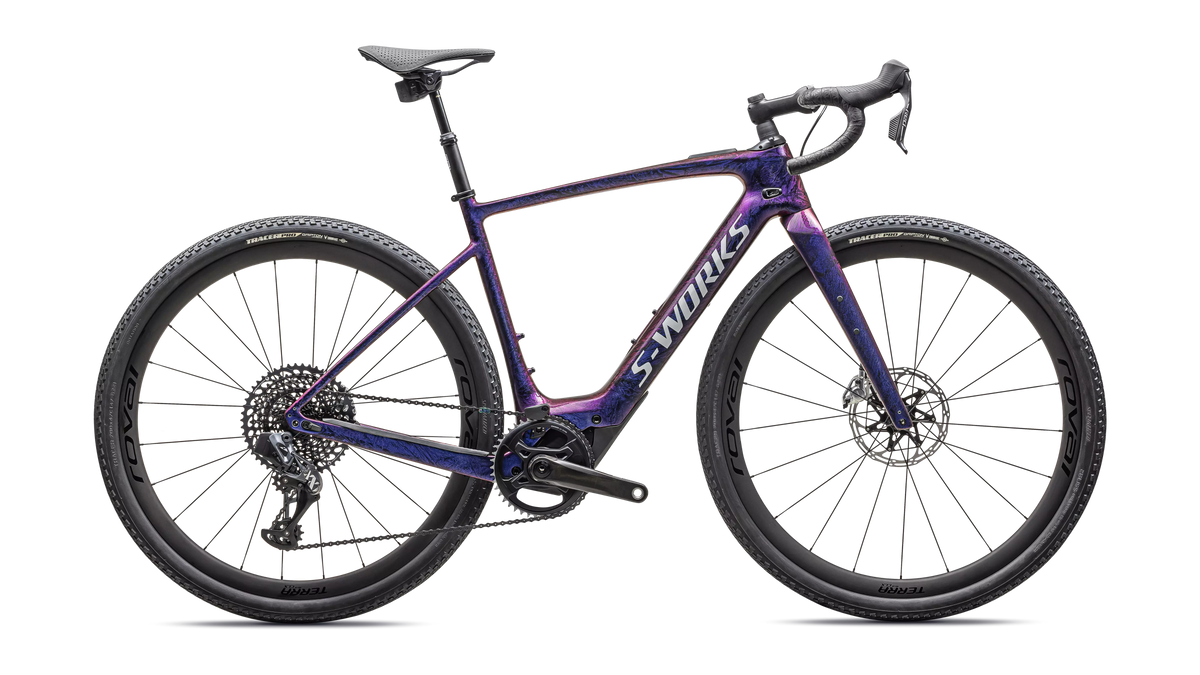

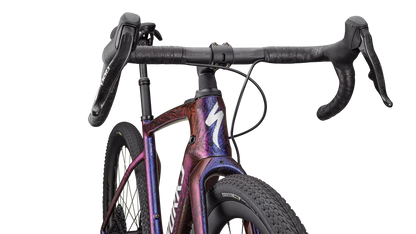

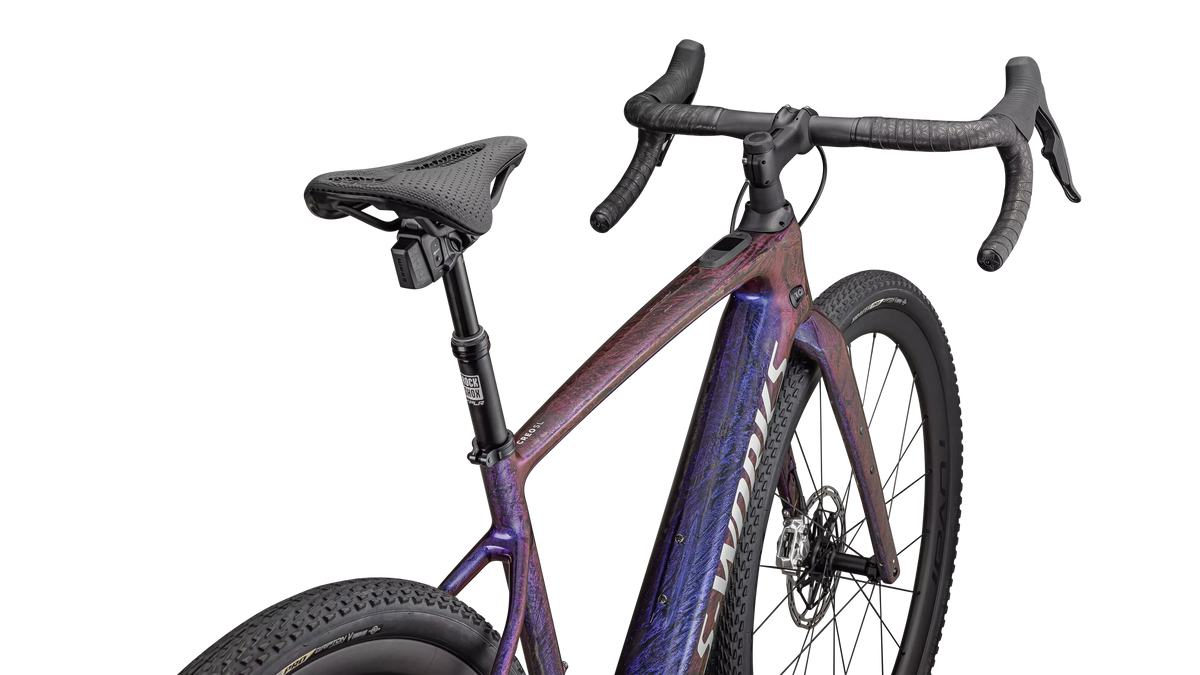

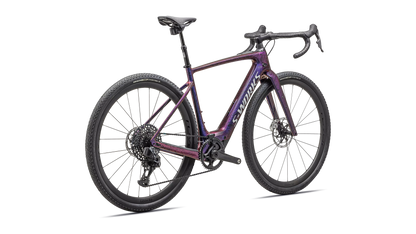

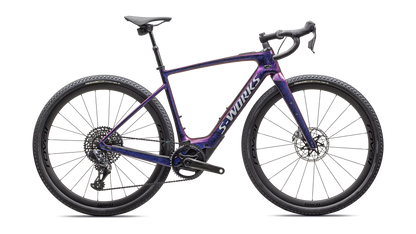

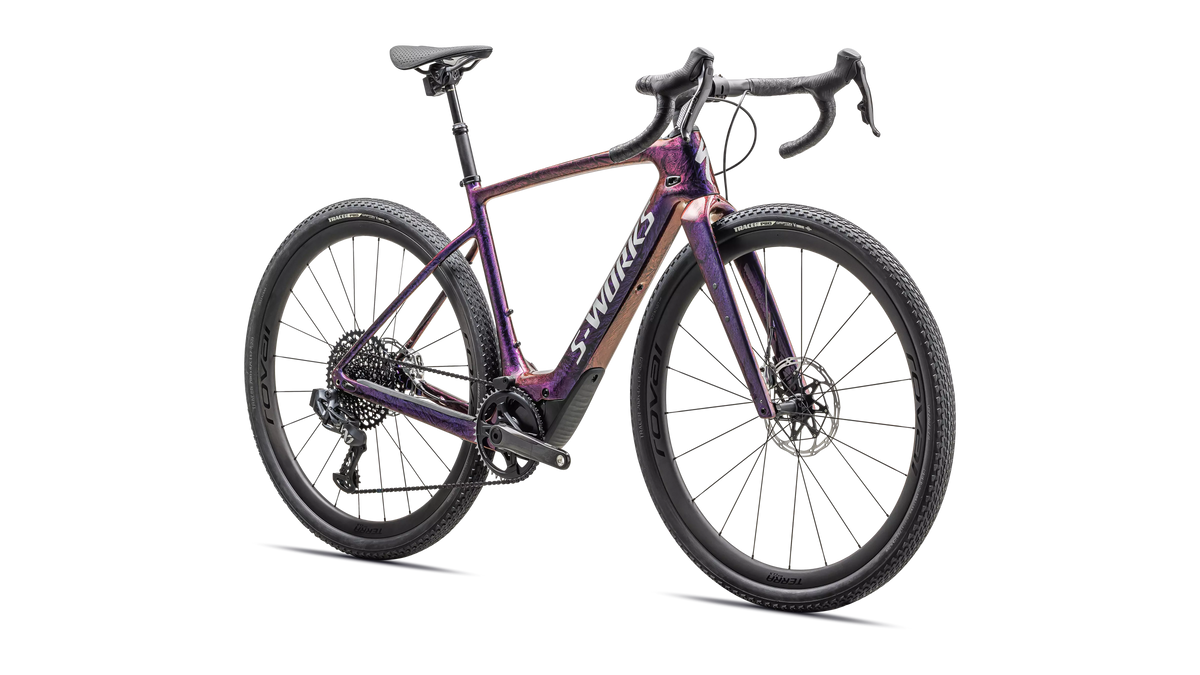

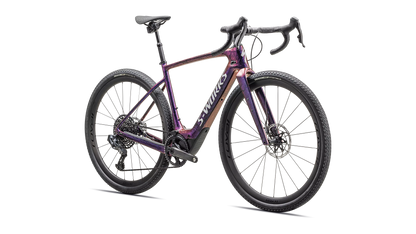

S-Works Turbo Creo 2 - SRAM RED / XX1 Eagle AXS
S-Works Turbo Creo 2 - SRAM RED / XX1 Eagle AXS
SKU:98125-0054
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
Road or Gravel? 5 miles or 5 hours? Climb or Descend? Suffer or Smile? More power or less weight? Creo 2 isn’t about having to choose. It’s about having it all. With more power, big range, lightweight, huge tire clearance, and Future Shock 3.0, it’s category defying, making previously impossible rides possible.
- SUPERNATURAL AMPLIFICATION: The all-new TURBO SL 1.2 system delivers industry-leading efficiency for a range of up to 5 hours.
- RE-TIRED FOR CONFIDENCE: 700 x 47c Tires Spec’d but up to 29" x 2.2 Tire Clearance. The big tire volume delivers a smooth and confident ride on the roughest of terrain.
- FUTURE SHOCK 3.0: The Creo 2 features Future Shock 3.0 with 20mm of smooth travel at the handlebars that reduces impacts by 53%.
Share

Technical Specifications
E-Bike

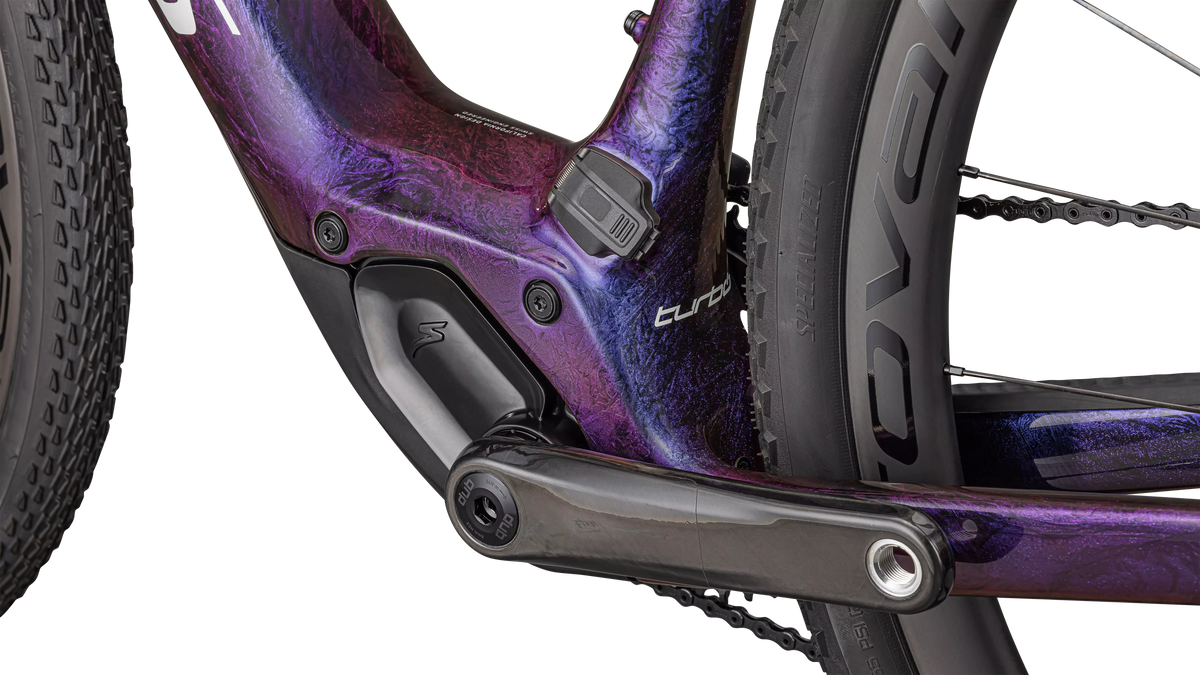

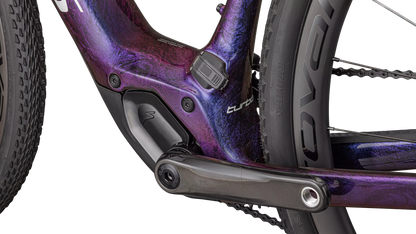

Motor
New Specialized 1.2 SL Custom Lightweight Motor
Battery
Specialized SL1-320, fully integrated, 320Wh

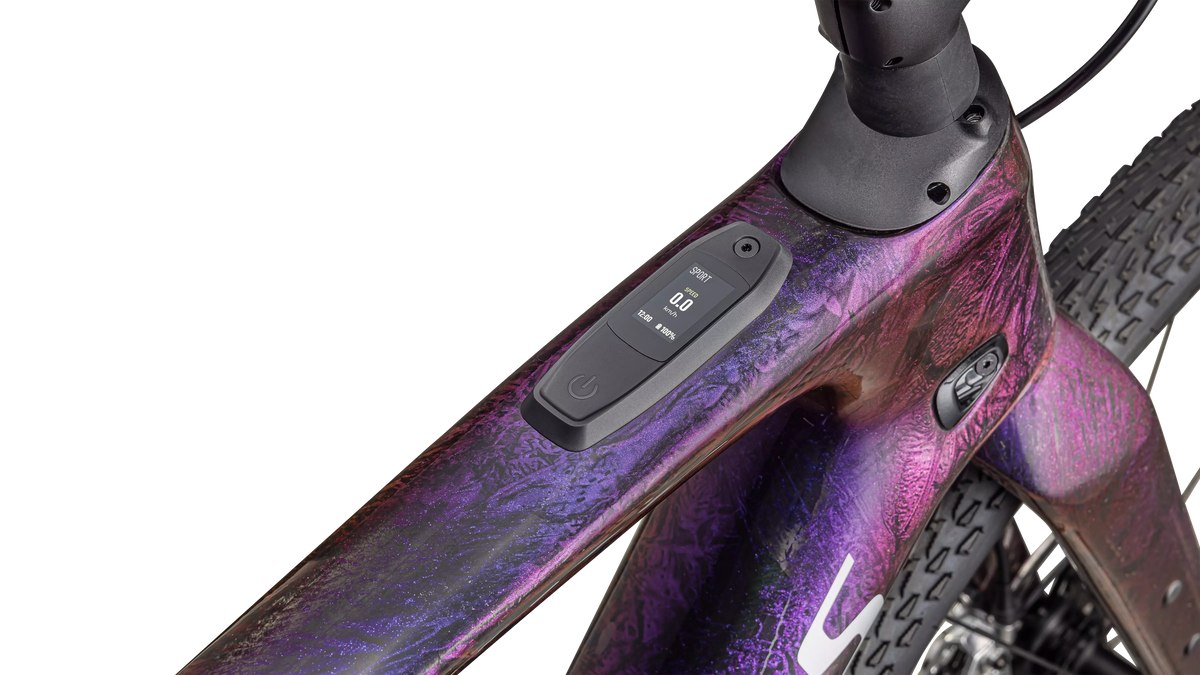

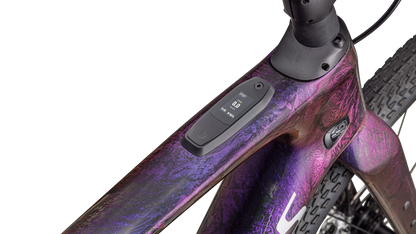

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness w/ charge port
Frameset
Frame
FACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm
Seat Binder
Specialized Alloy, 31.8
Suspension
Fork
Future Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM Red, hydraulic disc, 180mm
Rear Brake
SRAM Red, hydraulic disc, 160mm
Drivetrain
Shift Levers
SRAM Red AXS
Rear Derailleur
SRAM Red AXS
Cassette
SRAM XG 1295, 12-Speed, 10-50t
Chain
SRAM XX1 Eagle
Crankset
SRAM Carbon DUB Crank Arms
Chainrings
SRAM X-Sync Eagle, 107 BCD, 44T
Wheels & Tires
Front Tire
Tracer Pro, 700x42c
Front Wheel
Roval Terra CLX II, 25mm internal width, 32mm depth, 21h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear Tire
Tracer Pro, 700x42c
Rear Wheel
Roval Terra CLX II, 25mm internal width, 32mm depth, 24h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Inner Tubes
700x32/50mm, 48mm Presta valve
Cockpit
SeatPost
SRAM Reverb AXS XPLR Dropper, 49cm-52cm: 50mm drop
Stem
S-Works Future Stem w/ Integrated Computer mount

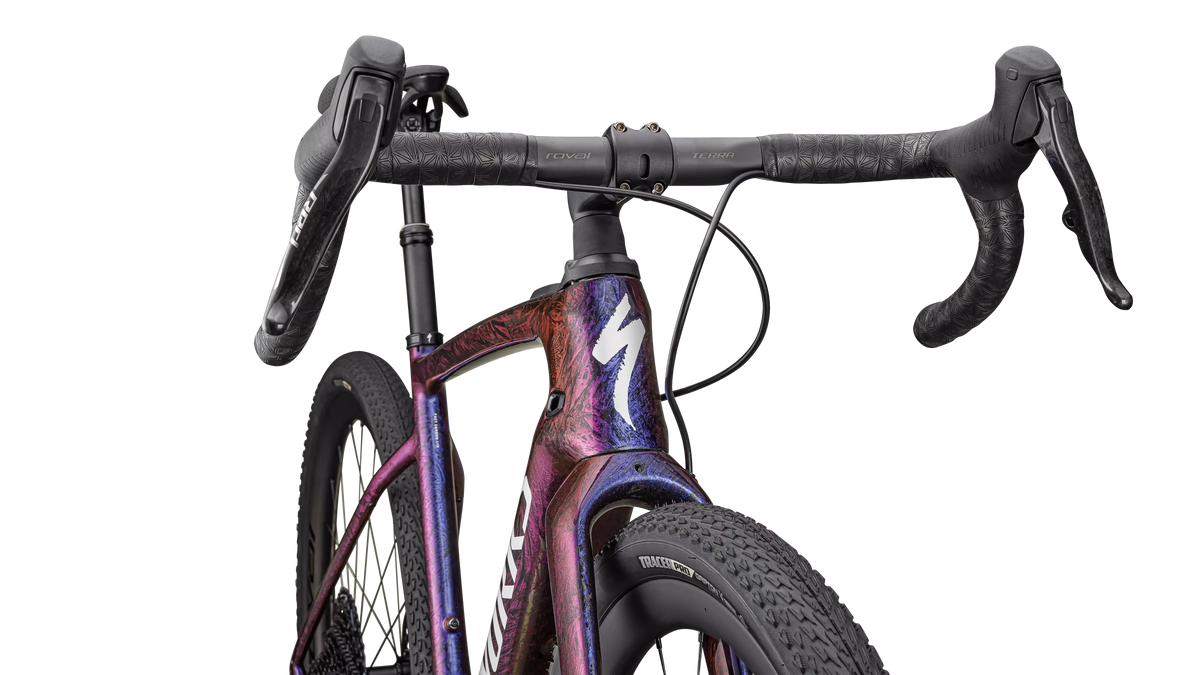

Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Saddle
Body Geometry S-Works Power
Weight
Weight
12.96kg (28 lb, 9.2 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm | 400mm |
| Stack | 578mm | 578mm | 595mm | 607mm | 638mm | 663mm |
| Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm |
| Head-Tube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| B-B Height | 270mm | 270mm | 270mm | 270mm | 270mm | 270mm |
| B-B Drop | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Trail | 62mm | 62mm | 62mm | 62mm | 62mm | 62mm |
| Fork Length (full) | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front-Center | 600.1mm | 609mm | 623.8mm | 636.6mm | 656.2mm | 673.8mm |
| Chain-Stay Length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1022mm | 1031mm | 1046mm | 1059mm | 1079mm | 1097mm |
| Top-Tube Length (horizontal) | 531mm | 540mm | 554mm | 572mm | 590mm | 613mm |
| Bike Stand-Over Height | 731mm | 743mm | 773mm | 793mm | 824mm | 852mm |
| Seat-Tube Length | 410mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat-Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
