SPECIALIZED

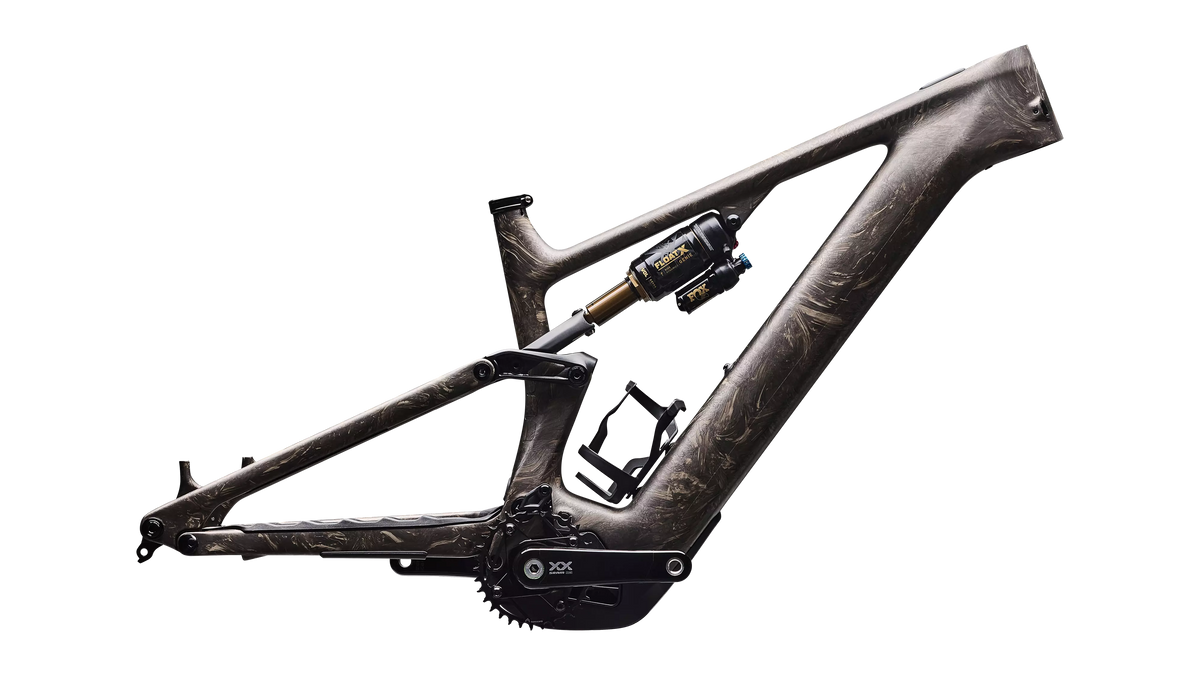

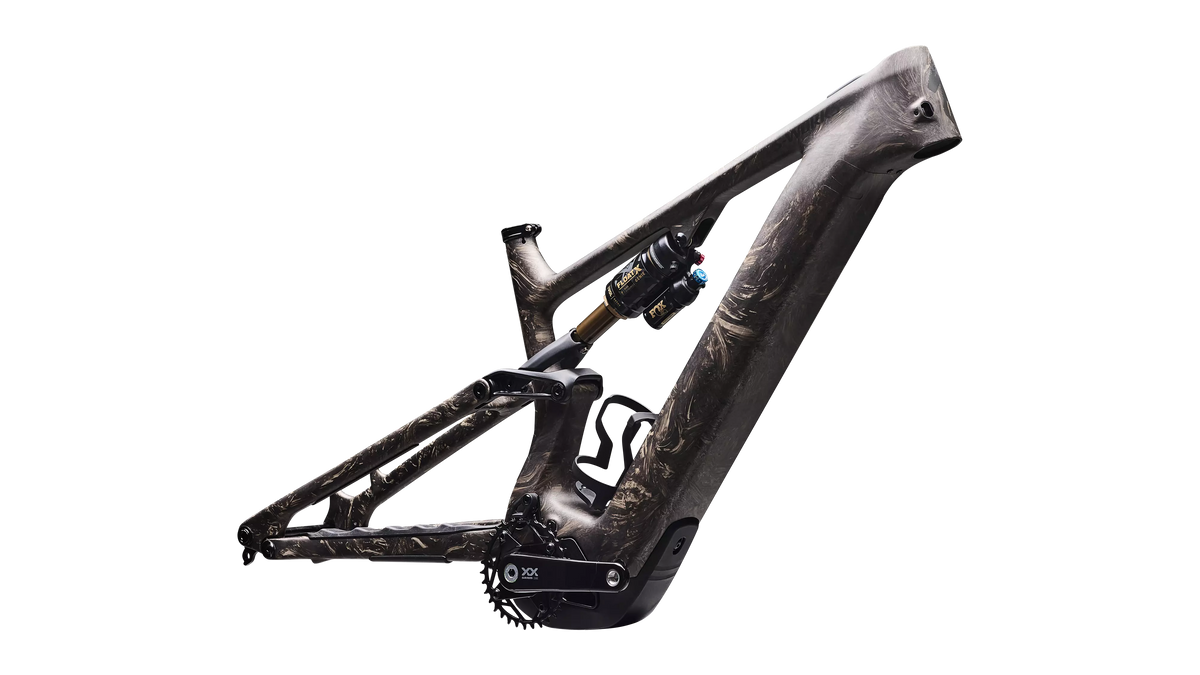

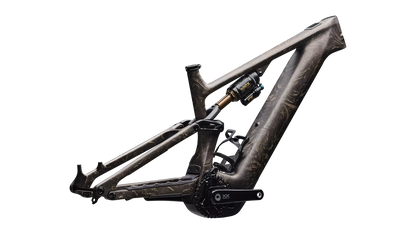

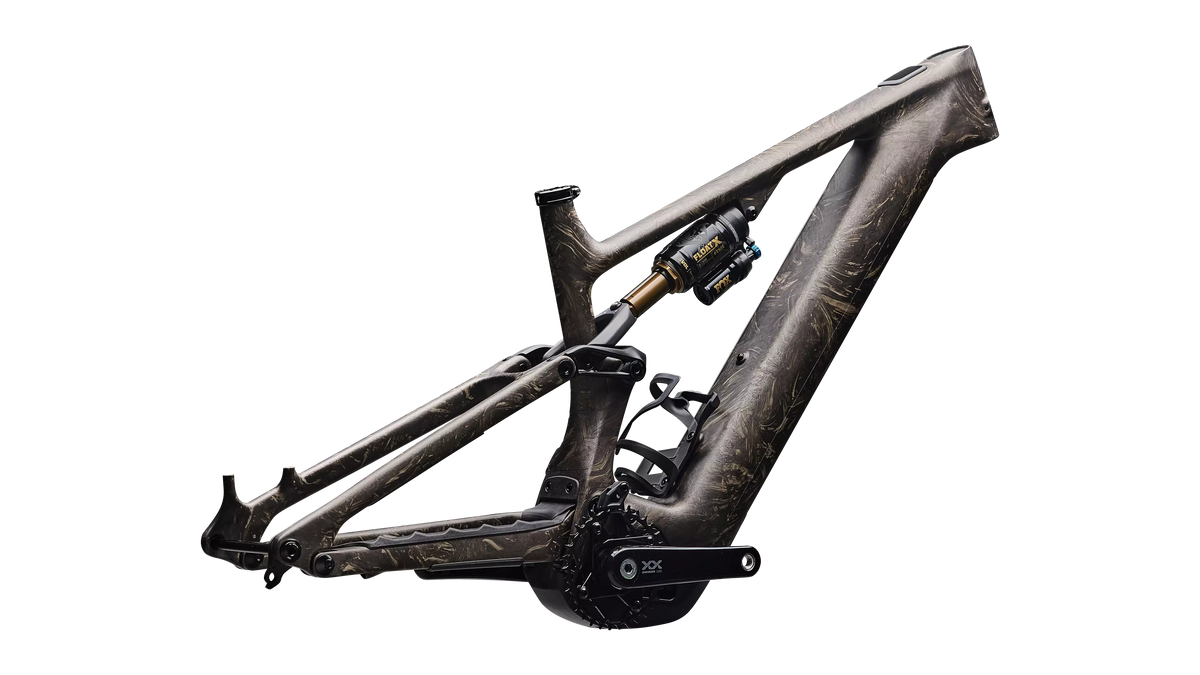

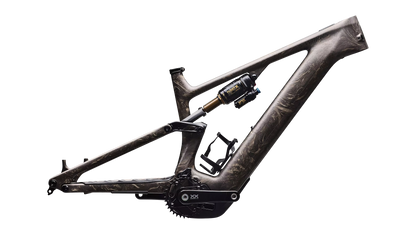

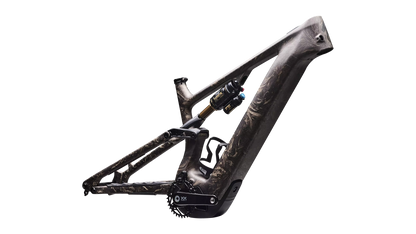

S-Works Turbo Levo 4 Frameset

S-Works Turbo Levo 4 Frameset

75224-0002

R 150,000.00
R 150,000.00
Sale Sold out
Vat Included
Color
Size

Out of Stock In Store

Available to order

This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.

Enquire about this item
  • Visa
  • Mastercard
Collect in store only
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.

Read More

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

  • Class-Leading S-Works 3.1 Motor w/ 850 Watts & 111 Nm, up to 4.40 hour range
  • FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
  • Up to 4.40 hour range, configurable battery system
View full details

Technical Specifications

E-Bike



Motor

Specialized 3.1 S-Works motor, 111Nm power, 850W power



Battery

840wh battery



UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app



Charger

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%



Frameset



Frame

All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm



Seat Binder

Alloy, 38.6mm



Suspension



Rear Shock

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm



Drivetrain



Crankset

SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm



Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel



Accessories



SWAT

SWAT internal downtube storage



Weight



Weight

12.36 kg (27 lb, 4.0 oz)



Weight Size

S4



Geometry

 S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm
Stack618mm626mm638mm652mm667mm
Reach435mm455mm480mm505mm535mm
Headtube Length95mm103mm117mm132mm149mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°
BB Height350mm350mm350mm350mm350mm
BB Drop29.5mm29.5mm29.5mm29.5mm29.5mm
Trail132mm132mm132mm132mm132mm
Fork Length (full)577mm577mm577mm577mm577mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center765mm789mm820mm851mm888mm
Chainstay Length435mm435mm435mm435mm435mm
Wheelbase1200mm1223mm1254mm1286mm1323mm
Top-tube Length (horizontal)578mm599mm627mm655mm689mm
Bike Standover Height753mm754mm753mm758mm761mm
Seat Tube Length390mm405mm425mm445mm465mm
Seat Tube Angle77°77°77°77°77°
Saddle Height for Effective ST Angle690mm735mm780mm825mm870mm
Max Seatpost Insertion274mm289mm313mm337mm357mm
Min Seatpost Insertion80mm80mm80mm80mm80mm
