SPECIALIZED

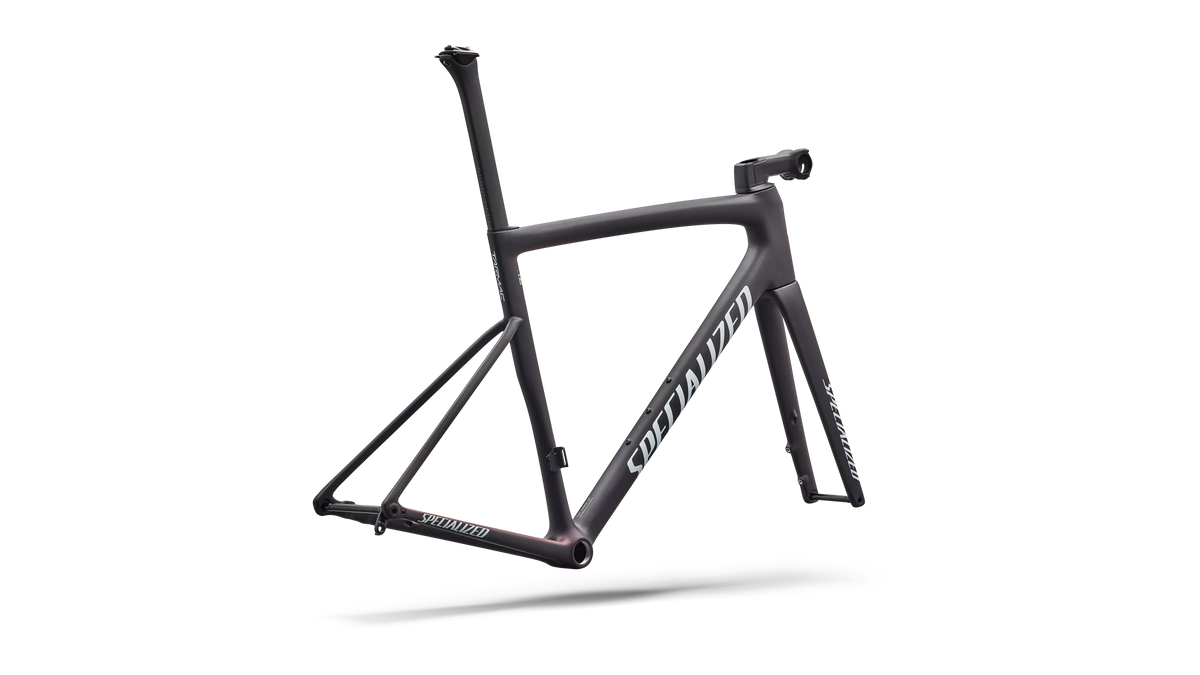

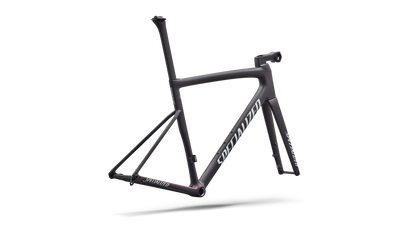

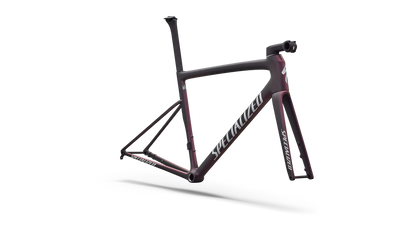

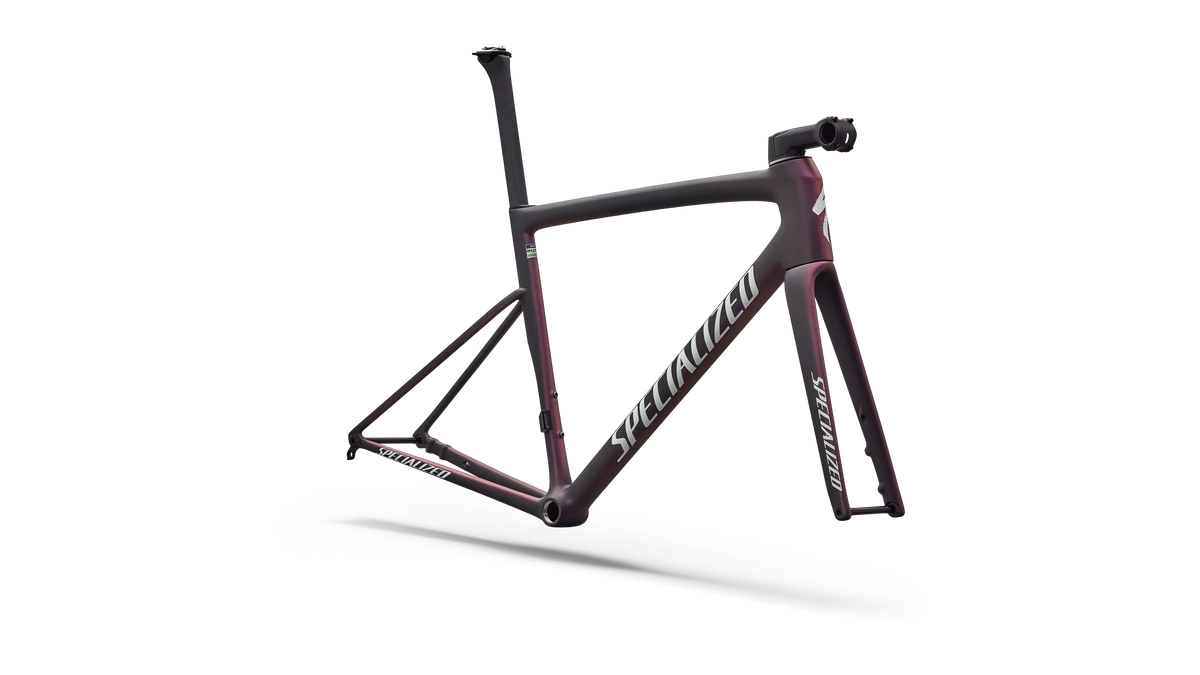

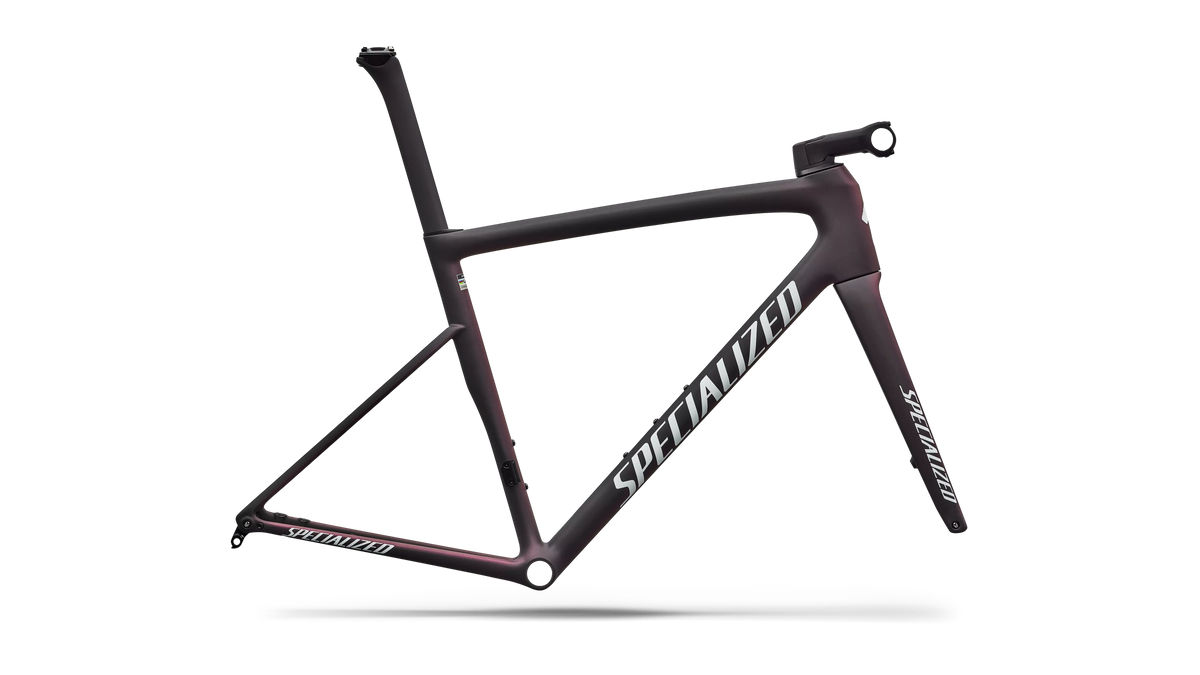

Tarmac SL8 Frameset - FACT 10r Carbon
Tarmac SL8 Frameset - FACT 10r Carbon
SKU:74926-1161
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
Nothing is faster than the Tarmac SL8 thanks to a combination of aerodynamics, lightweight, and ride quality previously thought impossible. After eight generations and over two decades of development, it’s more than the fastest Tarmac ever - it’s the world’s fastest race bike. Your legs up for it? Aerodynamics or lightweight alone don’t win races - speed is what matters. Delivering that speed requires creating an uncompromising combination of aerodynamics, lightweight, stiffness, and compliance.
- AERO IN EVERYTHING: We’re putting aero where it matters - the leading edge - not just where it looks good. In the process we’ve created our most aerodynamic road bike ever. Yes, it’s more aero than the Venge.
- MINIMUM WEIGHT, MAXIMUM AERO: Tarmac SL8 took learnings from Aethos to be easily built at the UCI minimum with a full aero set up.
- GOES LIKE HELL, RIDES LIKE HEAVEN: With massive gains in stiffness-to-weight - an improvement of 33% over the SL7 - the Tarmac SL8 takes legendary handling, aggressive responsiveness and World Championship proven geometry to the next level.
Share

Technical Specifications
Frameset
Frame
Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension
Fork
FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
Stem
Tarmac integrated stem, 6-degree
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
Weight
Weight
1.69 kg (3 lb, 11.6 oz)
Weight Size
56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Stem Length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
| Frame Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
| Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
| Head Tube Length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
| Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
| Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
| Bike Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
| Seat Tube Length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
| Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
