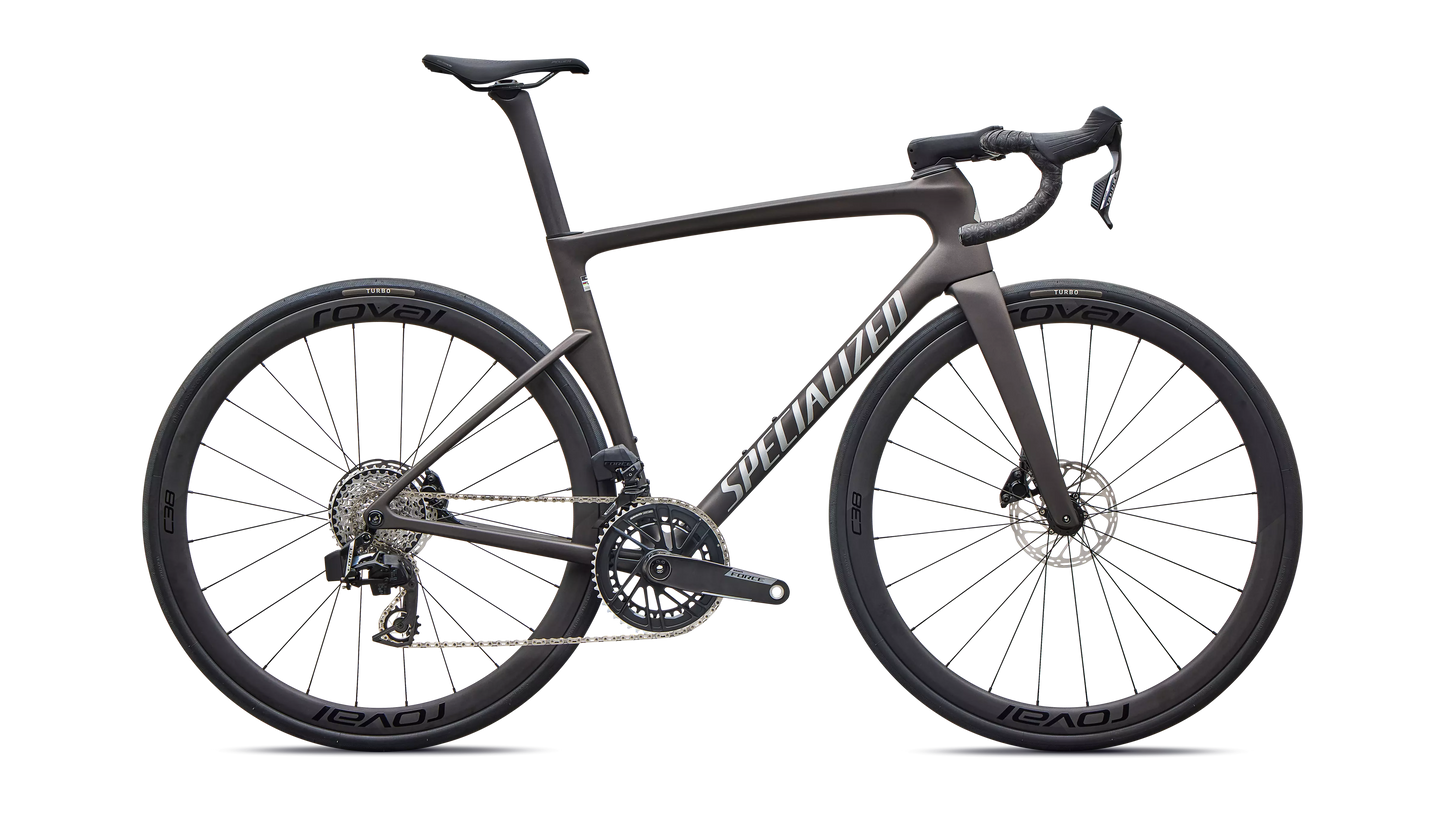

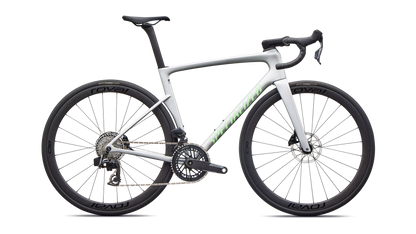

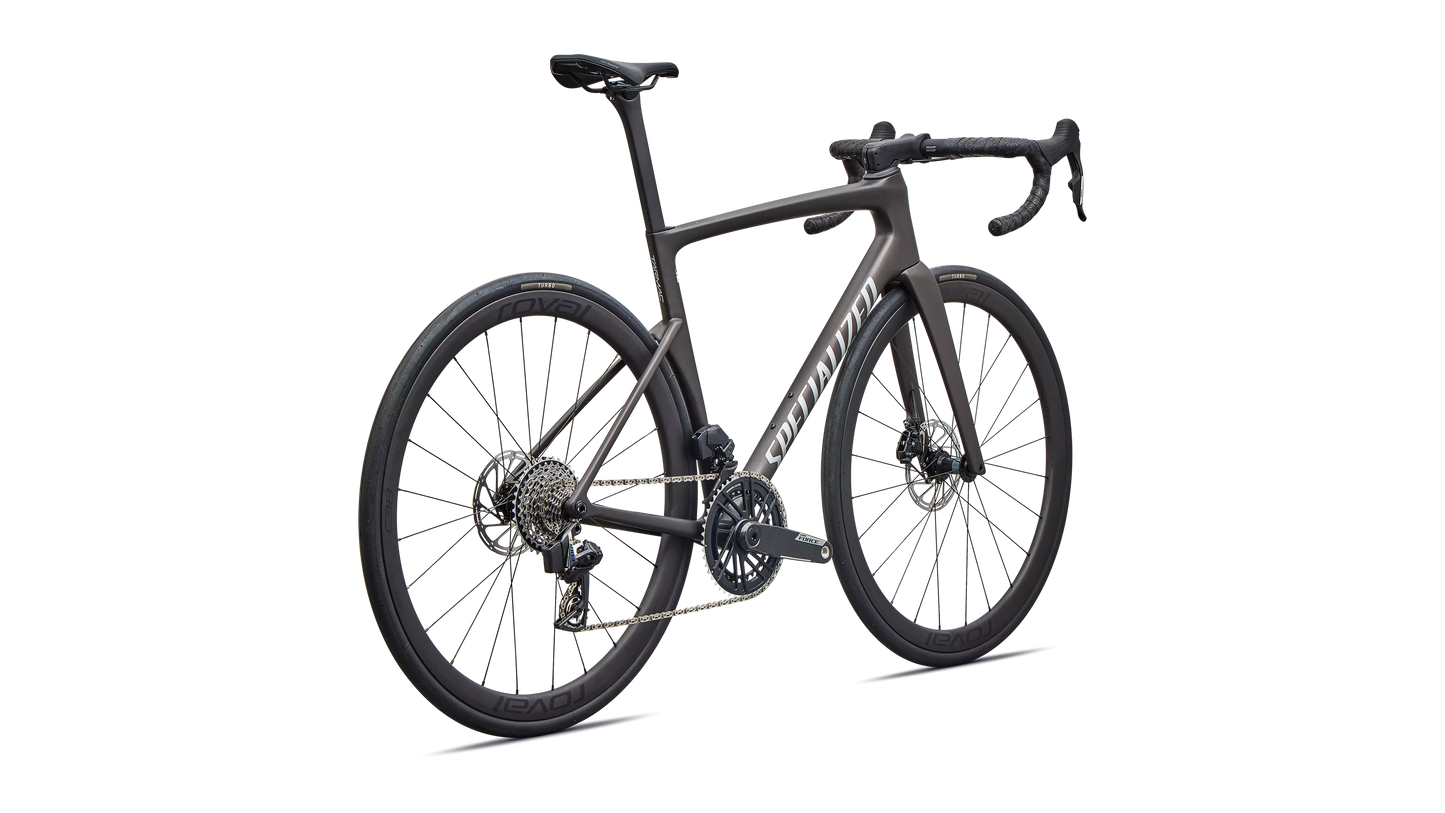

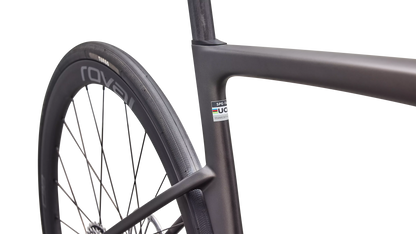

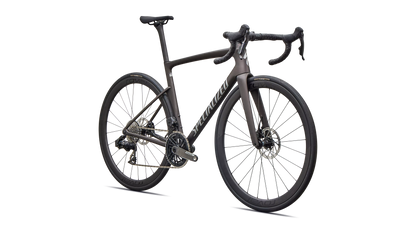

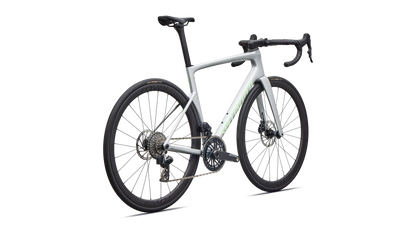

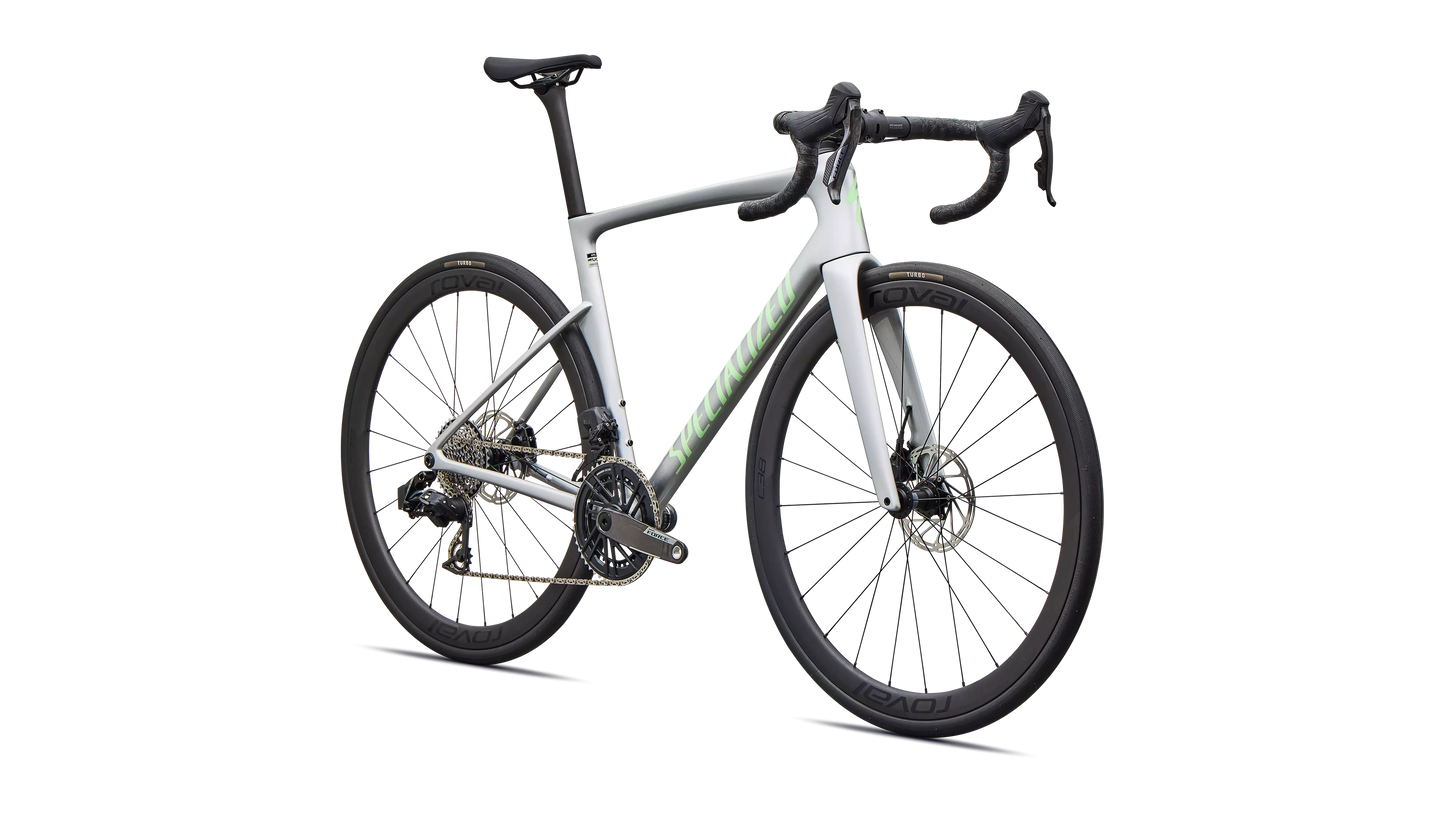

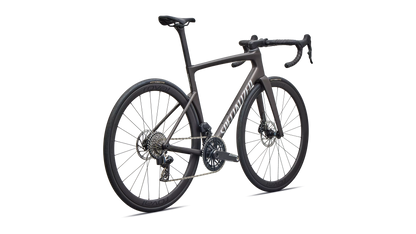

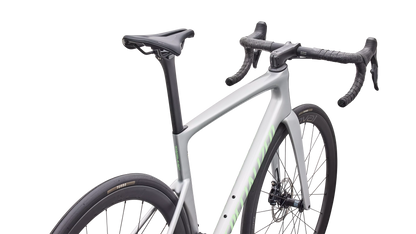

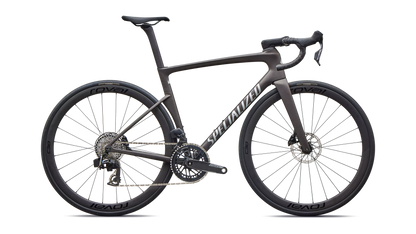

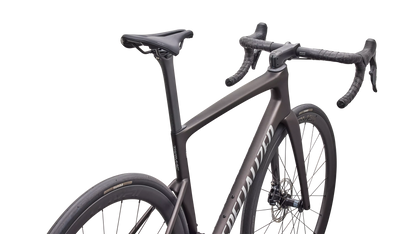

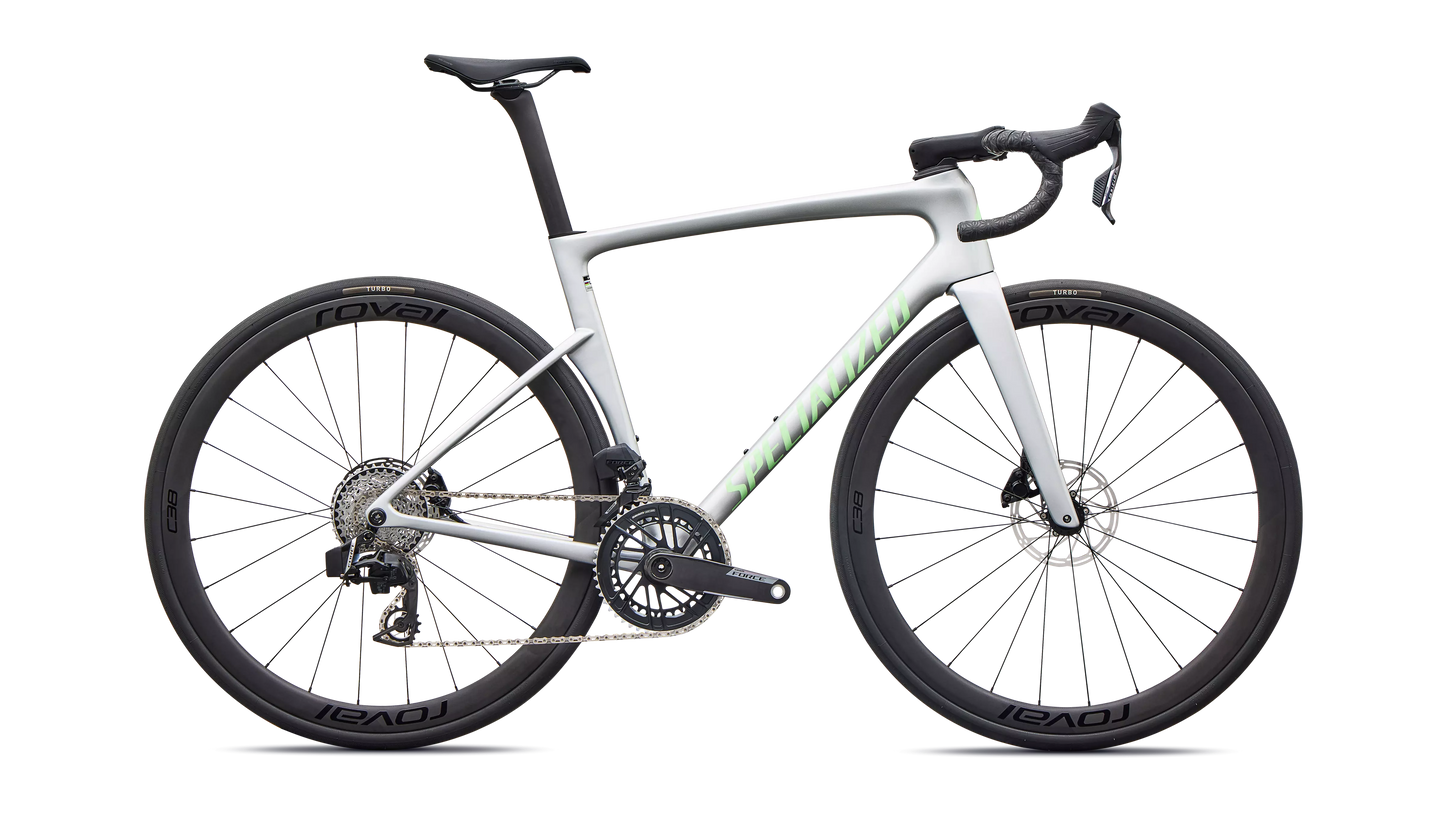

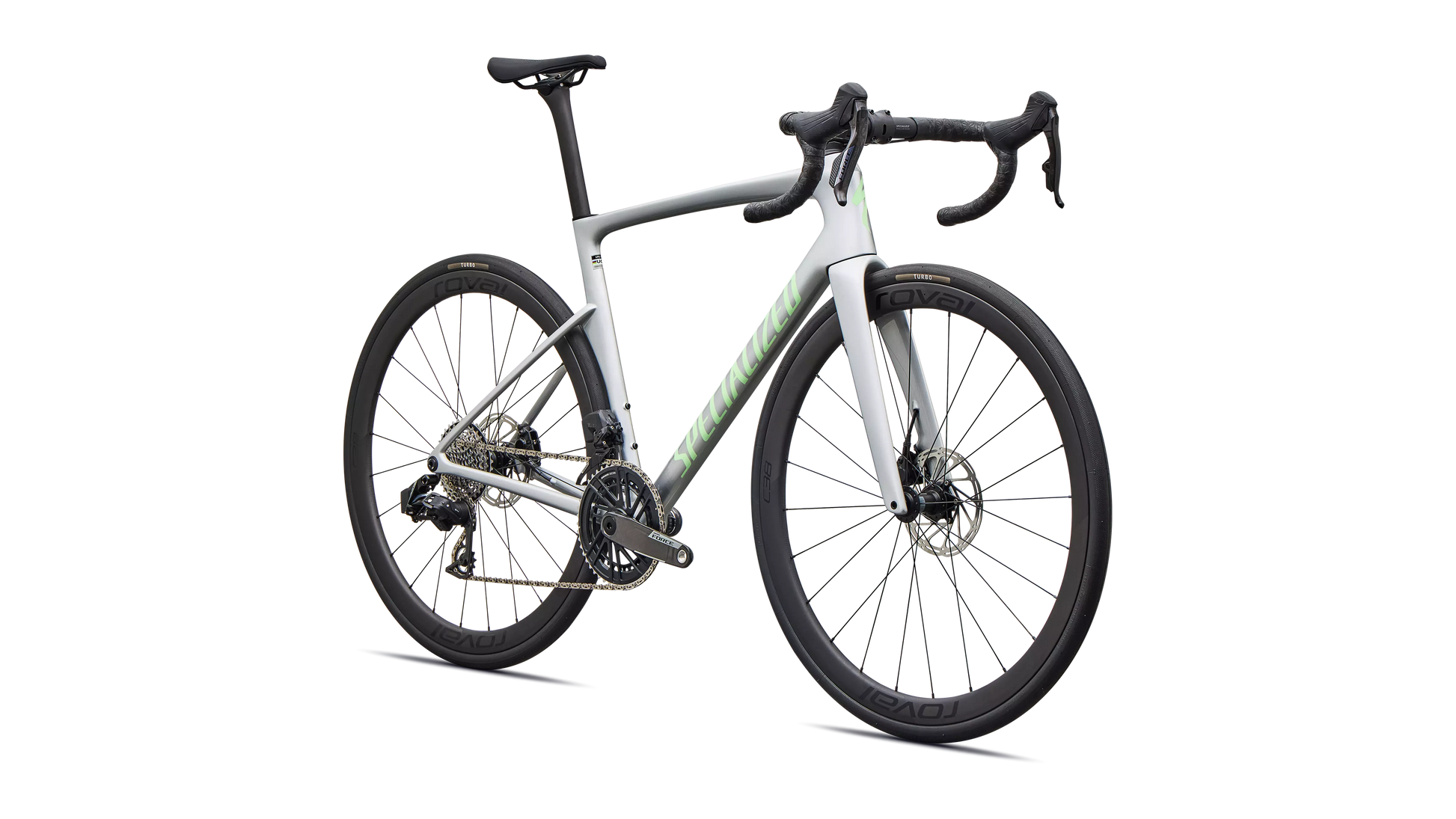

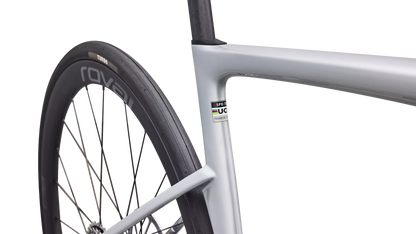

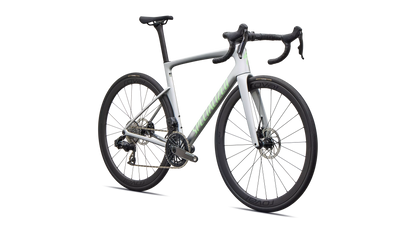

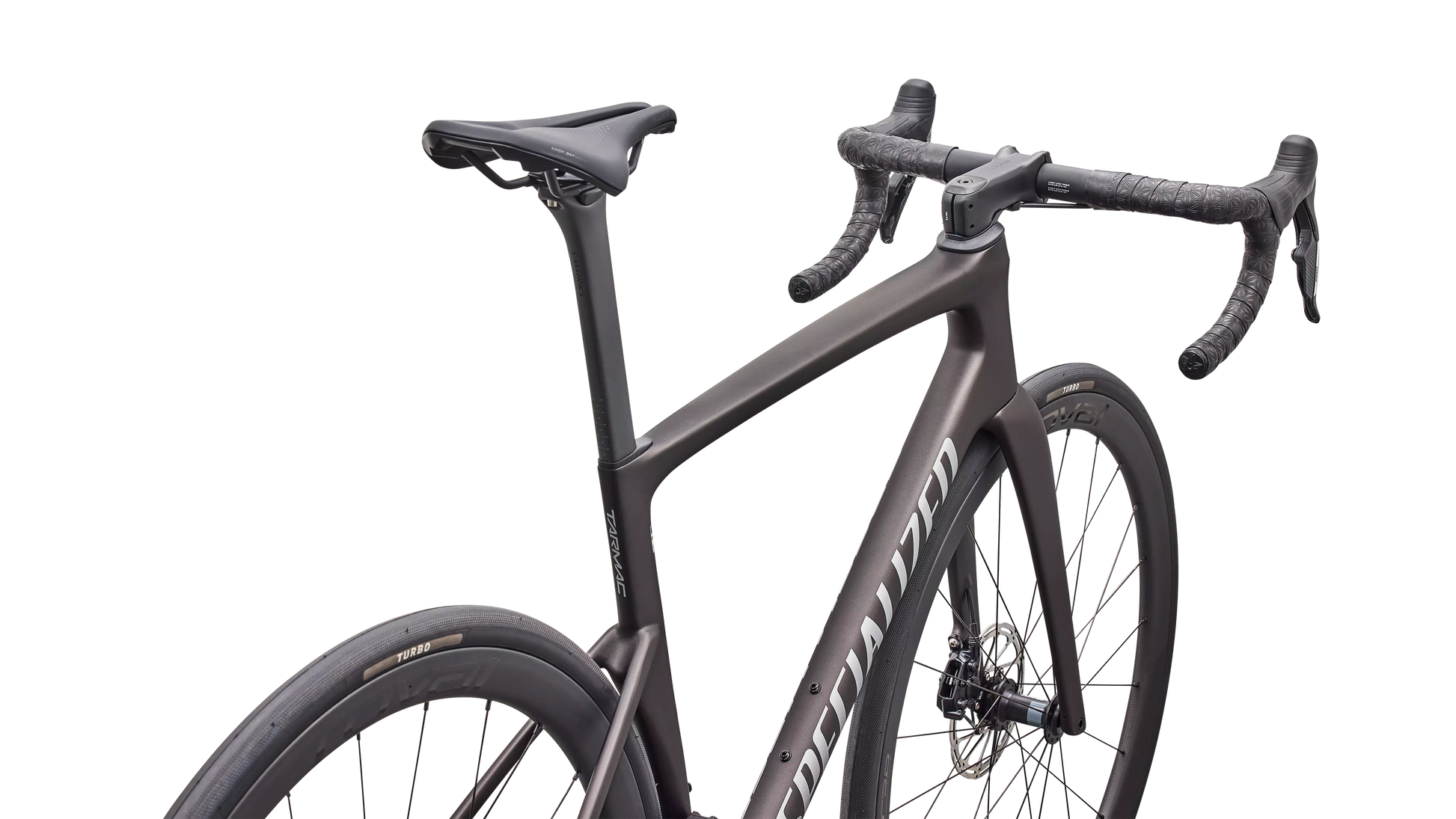

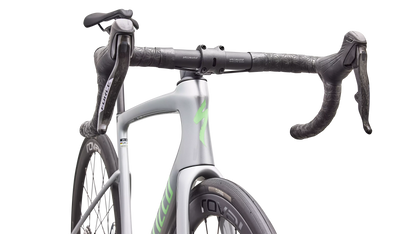

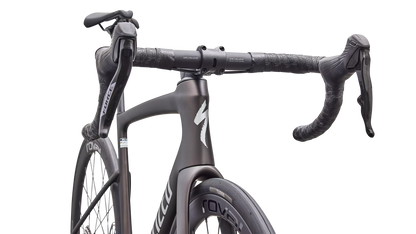

Tarmac SL9 Expert with SRAM Force AXS
Tarmac SL9 Expert with SRAM Force AXS
SKU:94927-3044
Out of Stock In Store
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
Tarmac SL9 Expert
One Bike To Rule Them All
The Tarmac SL9 was born from the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
At a Glance
Use - Road Racing
Frame - FACT 10r Carbon
Wheels - Roval C38
Cockpit - Rapide Stem/Alloy Bar
Drivetrain - SRAM Force AXS
Weight - 7.55 kg
Share

Technical Specifications
Frameset
Frame
Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM Force E1, hydraulic disc
Rear Brake
SRAM Force E1, hydraulic disc
Drivetrain
Shift Levers
SRAM Force AXS E1
Front Derailleur
SRAM Force AXS E1, braze-on
Rear Derailleur
SRAM Force AXS E1, 12-speed
Cassette
SRAM Force XG-1270 E1, 12 speed 10-36
Crankset
SRAM Force E1 Crankset, 48/35t
Bottom Bracket
SRAM DUB BSA 68
Chain
SRAM Force E1, Flattop
Wheels & tires
Front Wheel
Roval C38, 21mm internal width carbon rim, tubeless ready
Rear Wheel
Roval C38, 21mm internal width carbon rim, tubeless ready
Front Tire
S-Works Turbo, 700x30
Rear Tire
S-Works Turbo, 700x30
Inner Tubes
700x24-34, 60mm presta valve
Cockpit
Handlebars
Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach
Stem
Roval Rapide, alloy, 4 bolt, -6 degrees
Tape
Supacaz Super Sticky Kush
Saddle
Body Geometry Power Expert, hollow Ti rails
Seatpost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
Weight
Weight
7.55 kg (16 lb, 10.3 oz)
Weight Size
56
Geometry
44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 165 | 170 | 170 | 172.5 |
| Handlebar Width | 380 | 380 | 380 | 380 | 400 | 420 |
| Stem Length | 80 | 80 | 90 | 100 | 100 | 110 |
| Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 |
| Seatpost Length | 300 | 300 | 300 | 380 | 380 | 380 |
| Frame Stack | 501 | 514 | 527 | 544 | 565 | 591 |
| Frame Reach | 366 | 375 | 380 | 384 | 395 | 402 |
| Stack to Stem | 509 | 522 | 535 | 552 | 573 | 599 |
| Reach to Stem | 363 | 372 | 377 | 381 | 393 | 400 |
| Head Tube Length | 99 | 109 | 120 | 140 | 157 | 184 |
| Head Tube Angle | 70.5 | 71.75 | 72.5 | 72.5 | 73.5 | 73.5 |
| BB Height | 266 | 266 | 266 | 268 | 268 | 268 |
| BB Drop | 74 | 74 | 74 | 72 | 72 | 72 |
| Trail | 71 | 63 | 58 | 58 | 55 | 55 |
| Fork Length, Full | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork Rake/Offset | 47 | 47 | 47 | 47 | 44 | 44 |
| Front Center | 567 | 570 | 572 | 582 | 587 | 602 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 970 | 973 | 975 | 986 | 991 | 1006 |
| Top Tube Length, Horizontal | 496 | 509 | 531 | 540 | 563 | 577 |
| Bike Standover Height | 722 | 734 | 745 | 767 | 785 | 807 |
| Seat Tube Length | 433 | 445 | 456 | 473 | 494 | 515 |
| Seat Tube Angle | 75.5 | 75.5 | 74 | 74 | 73.5 | 73.5 |
