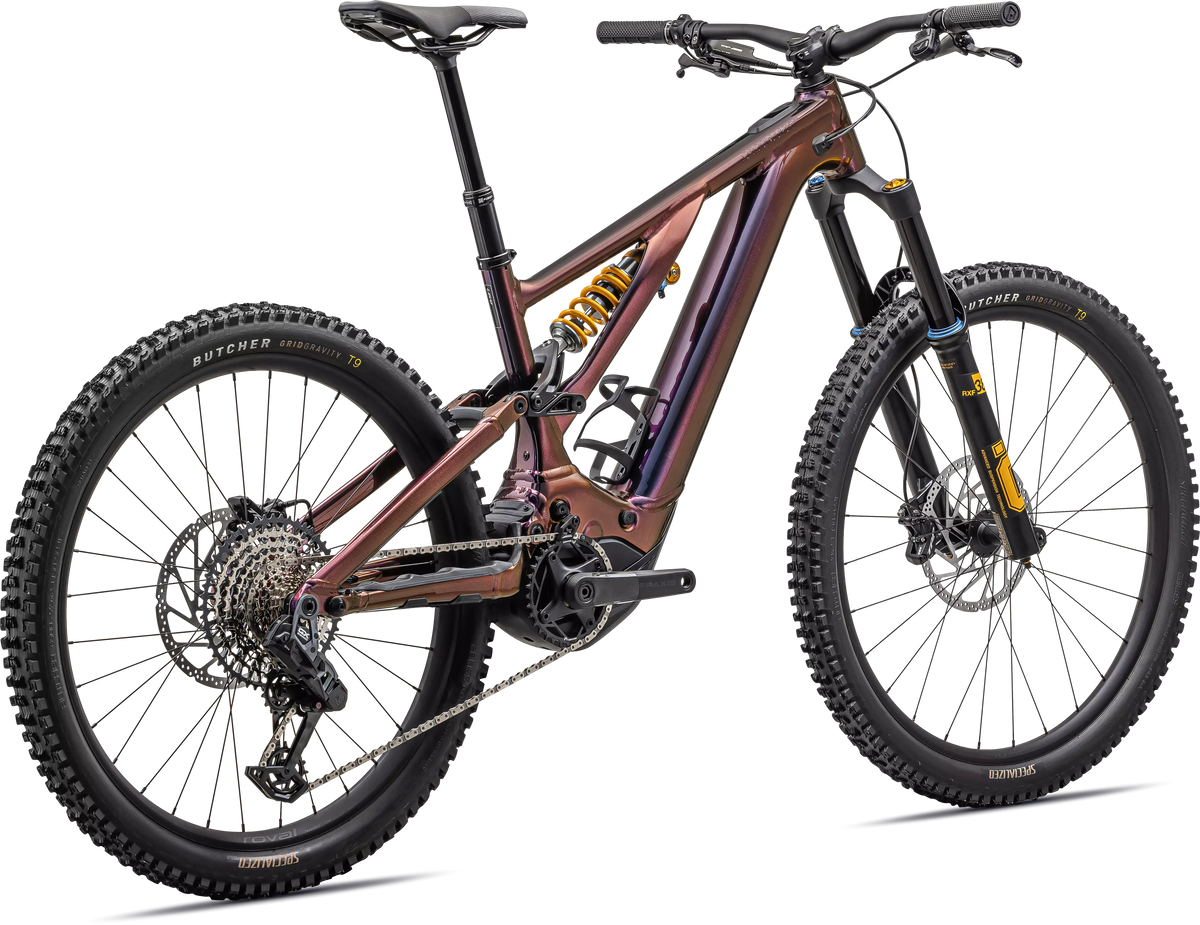

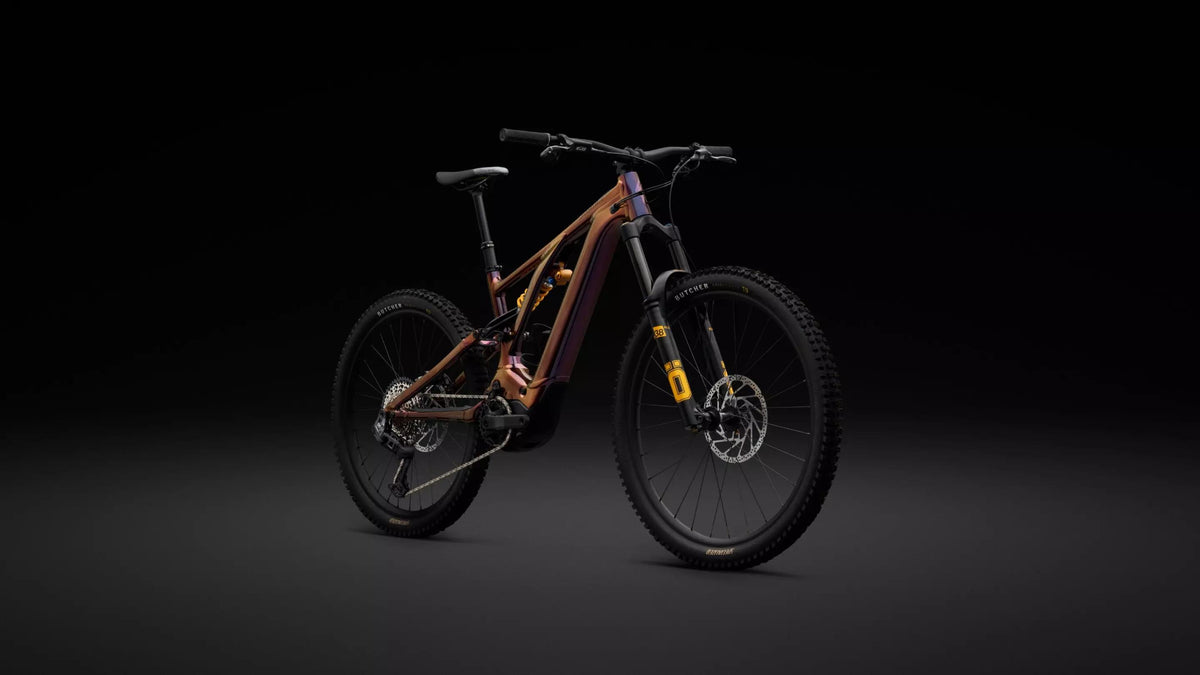

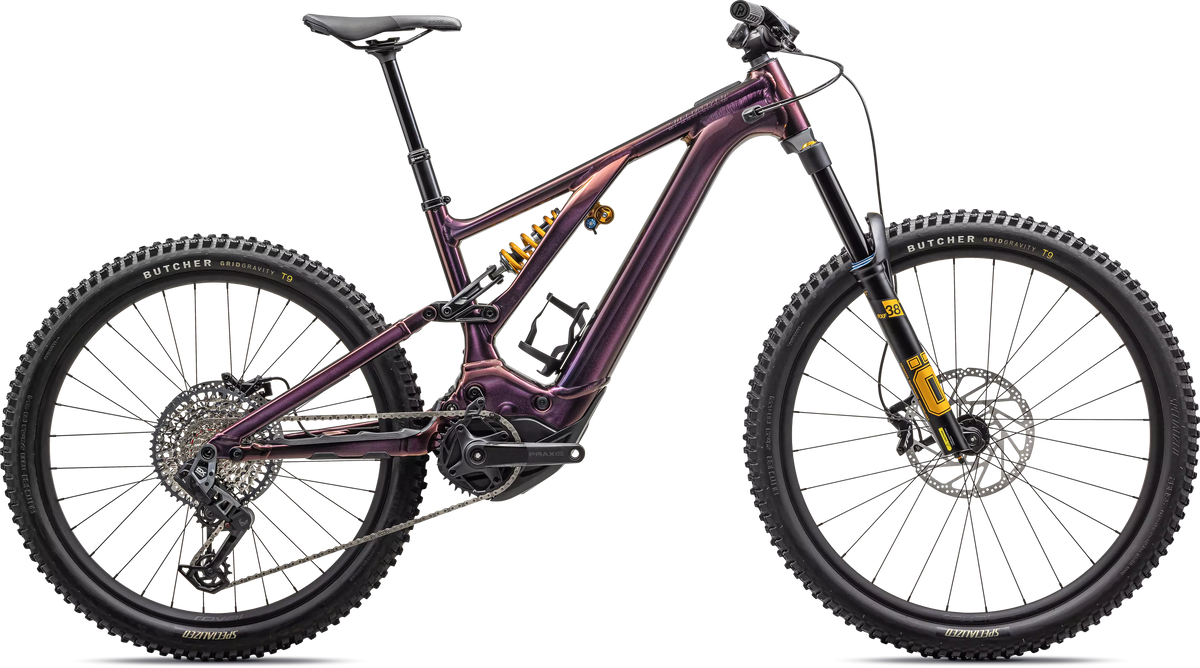

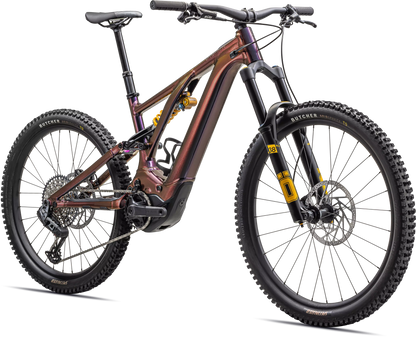

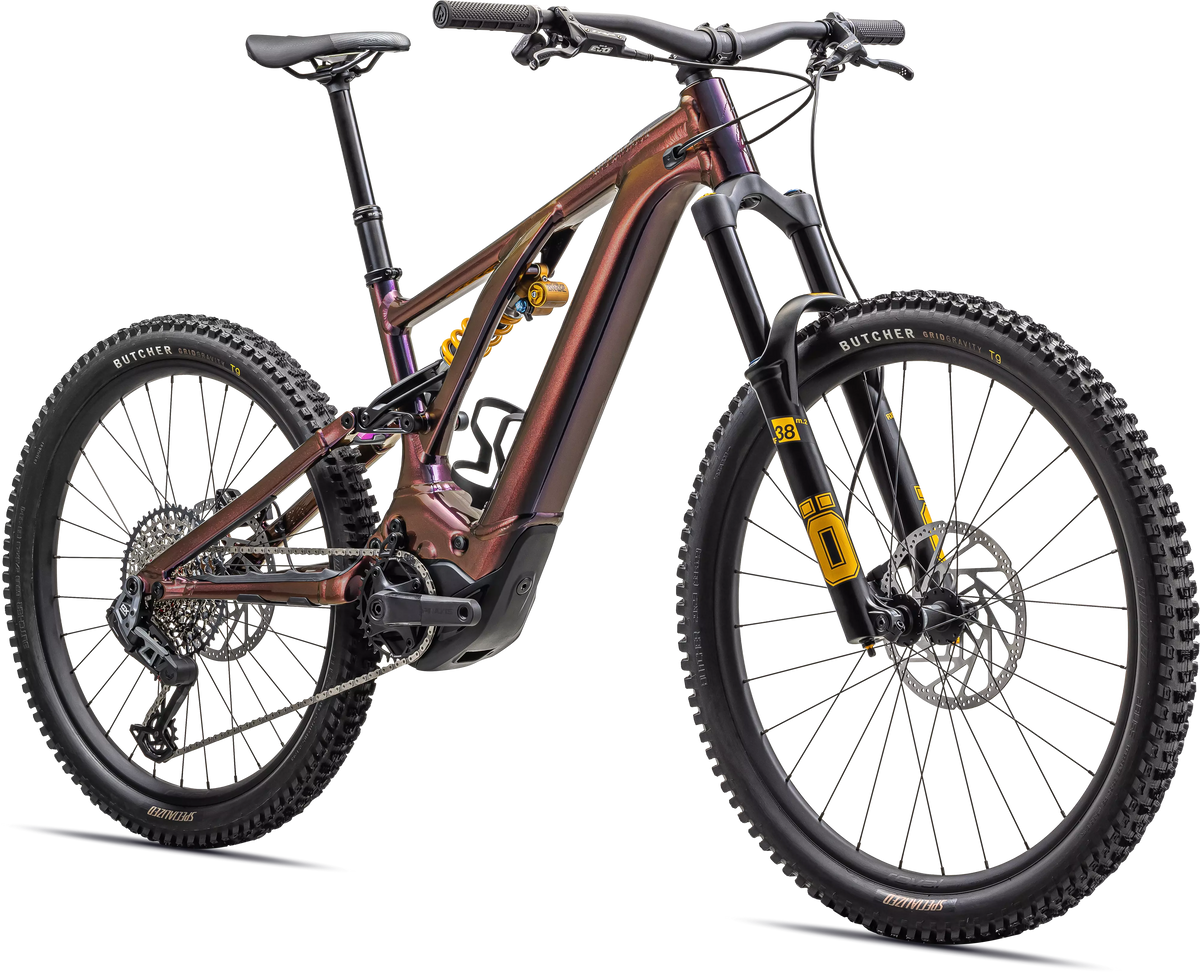

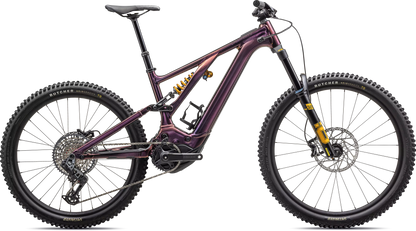

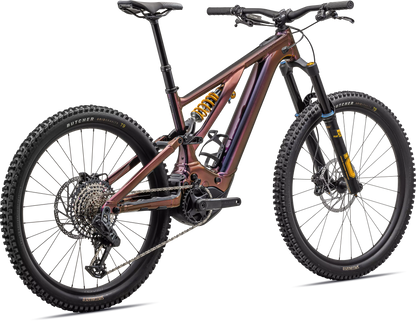

Turbo Levo 3 Alloy Öhlins Coil LTD
Turbo Levo 3 Alloy Öhlins Coil LTD
SKU:95224-9206
Out of Stock In Store
Available to order
This item isn't in store right now, but it's in stock at our warehouse. Send us an enquiry and we'll order it in for you.
Couldn't load pickup availability
In order to preserve the bike safety check, set-up and specialist handover, as well as the in-store experience, bikes can't be shipped to you. Choose Pick up at checkout and we'll let you know as soon as it's ready.
Read More
Read More
The Levo Alloy Öhlins Coil LTD delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo Alloy build raises that bar again.

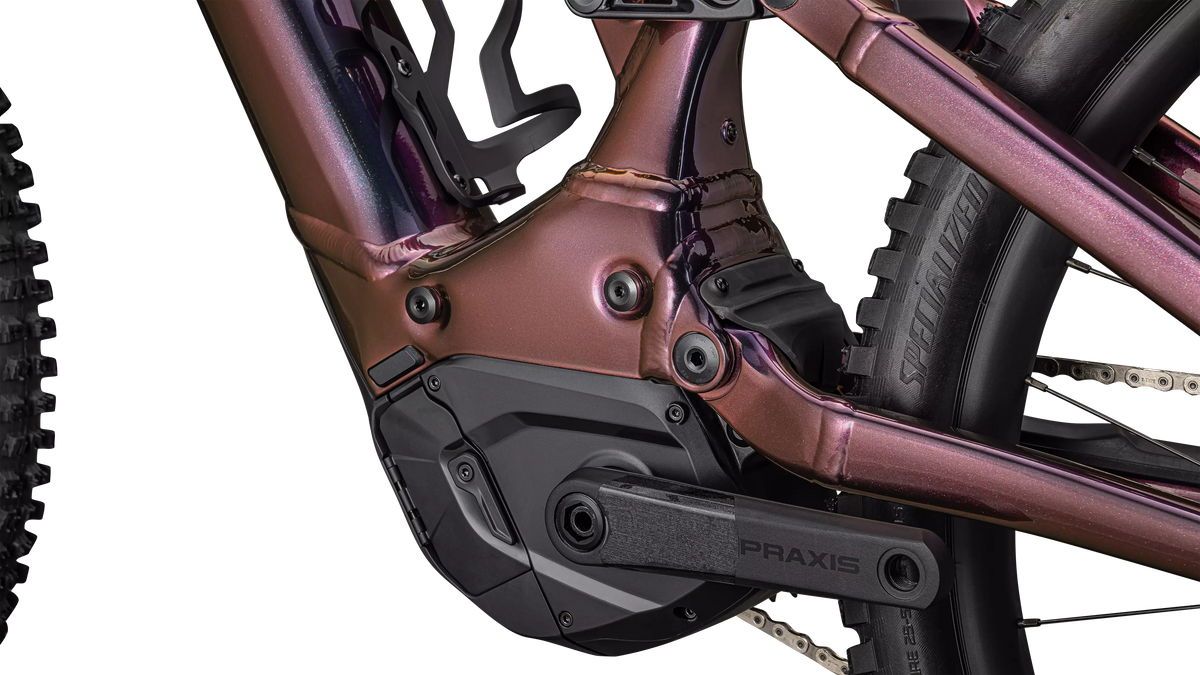

- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time.

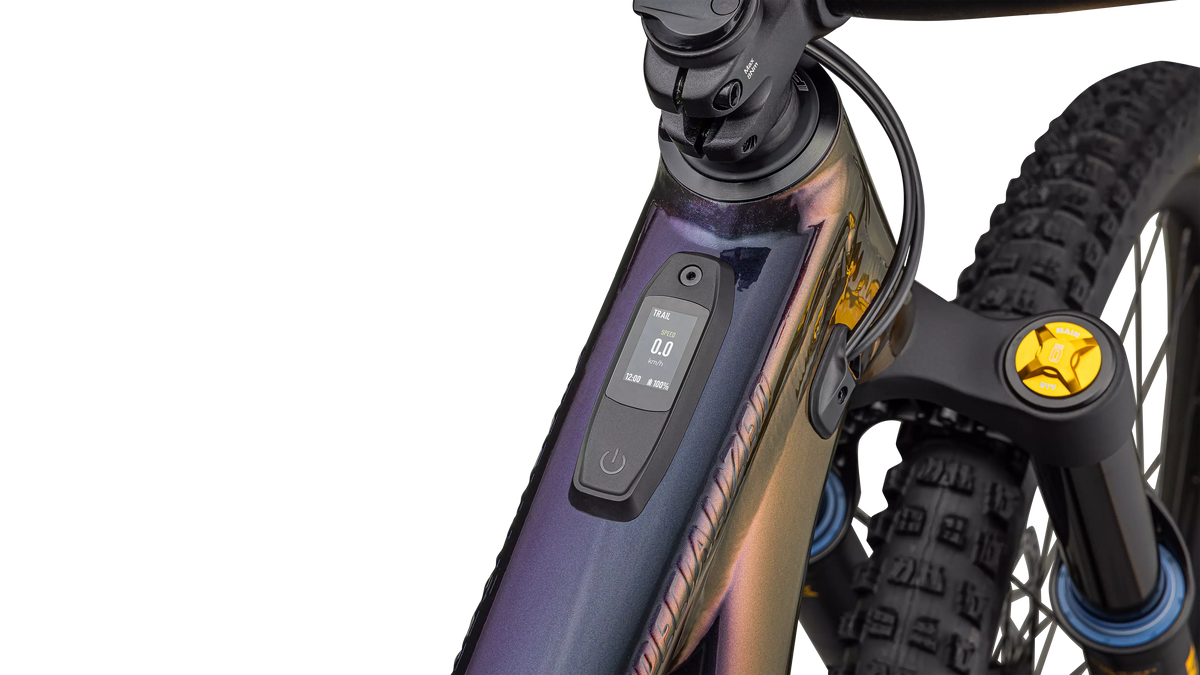

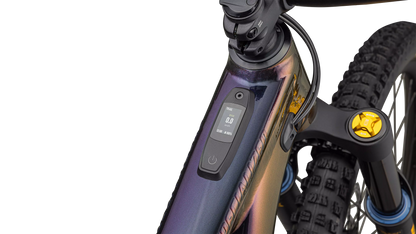

- The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs.
Share

Technical Specifications
E-Bike
Motor

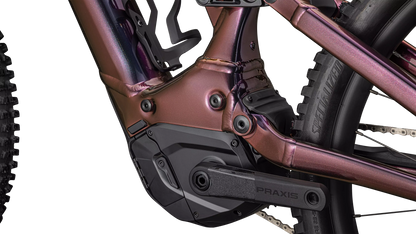

Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
Frameset
Frame

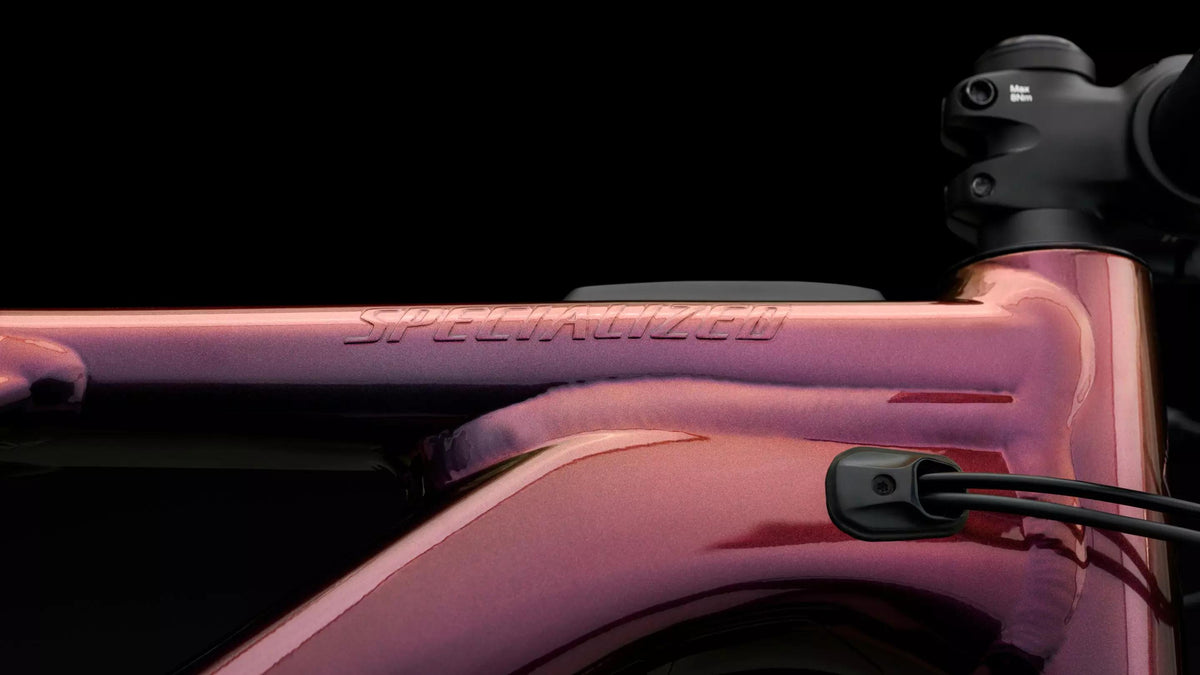

Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock

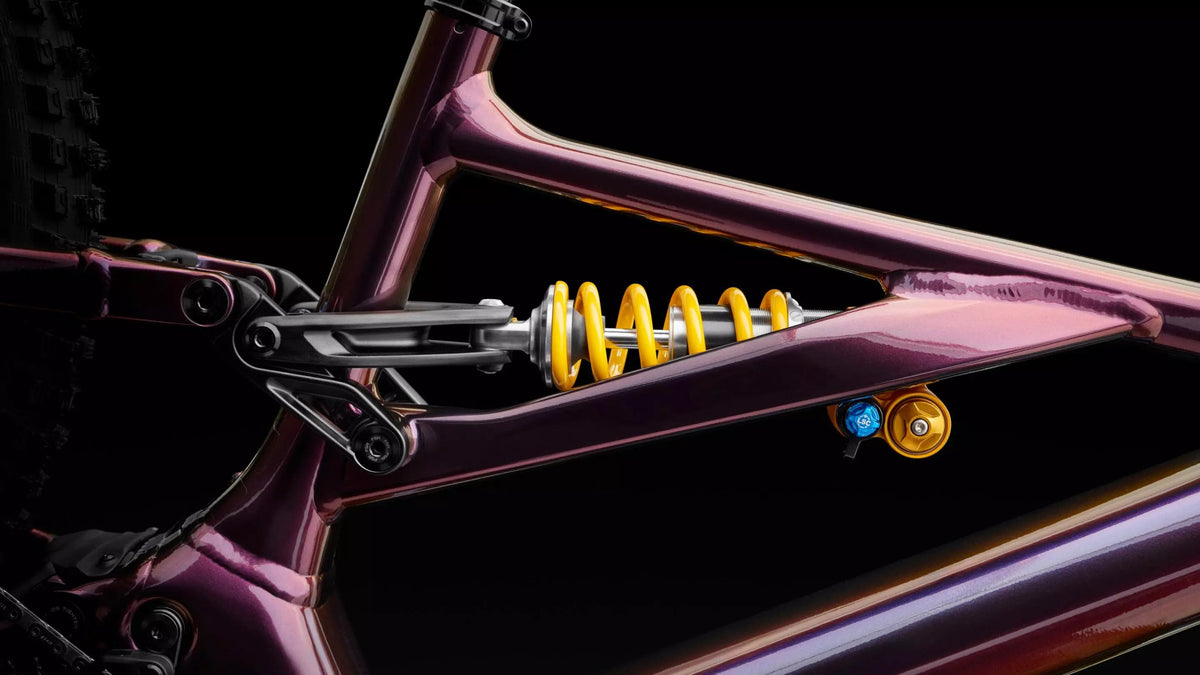

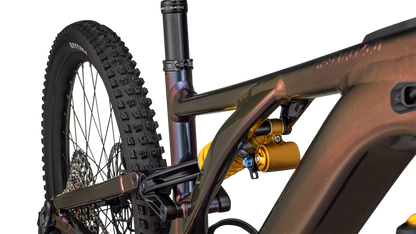

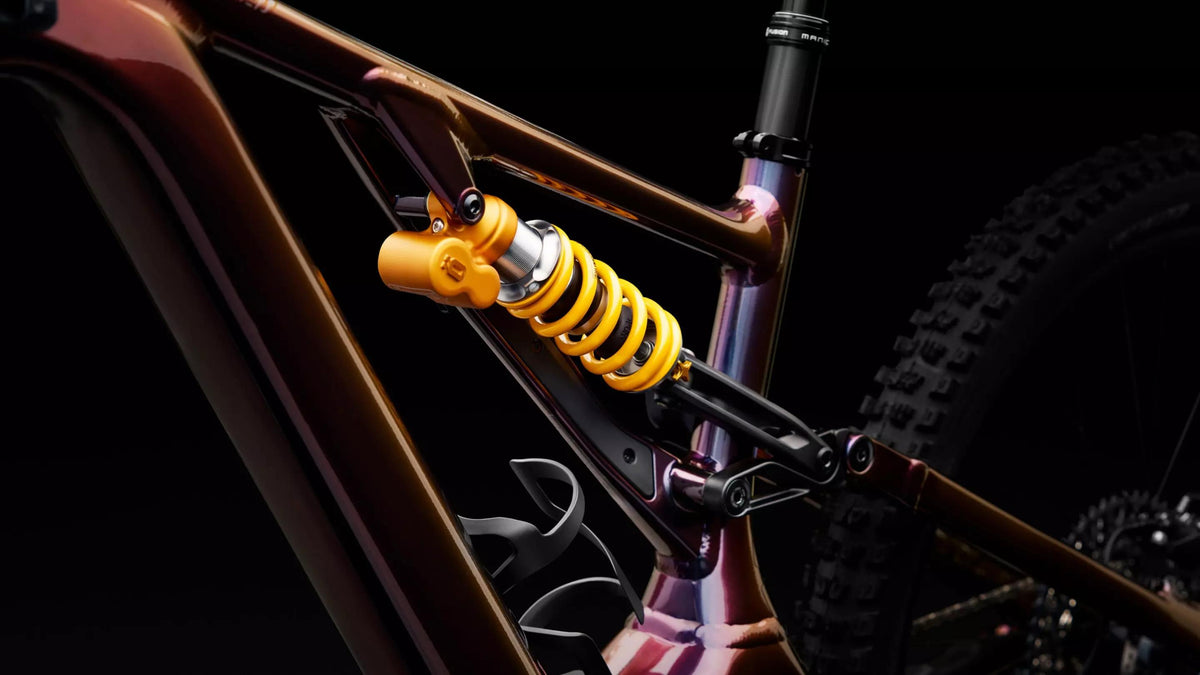

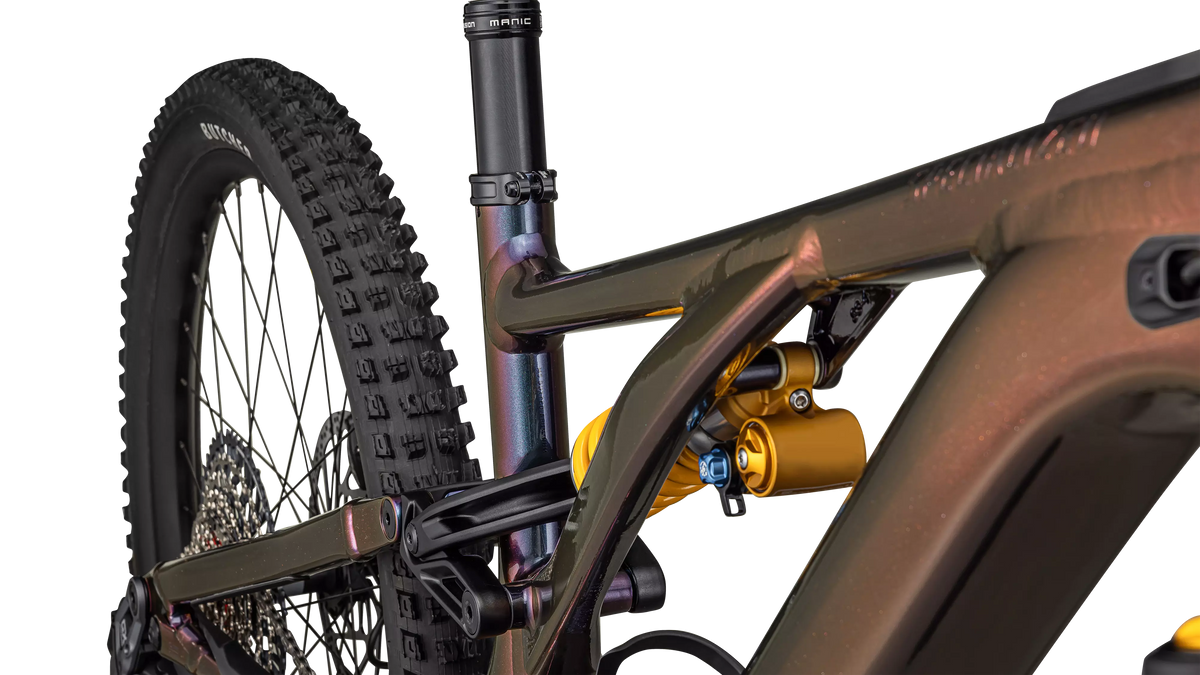

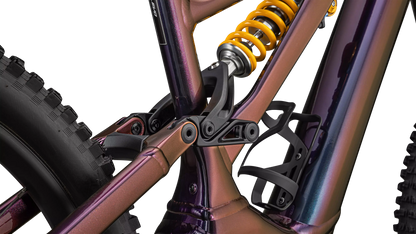

Ohlins TTX coil, 210x55mm S2: 411lbs, S3: 457lbs, S4: 502lbs, S5: 548lbs, S6: 605lbs
Fork
Ohlins RXF38, 29", 160mm travel
Brakes
Front Brake
TRP DH-R Evo brakes, 220mm rotor
Rear Brake
TRP DH-R Evo brakes, 220mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain
Crankset
Praxis forged M30, custom offset, 160mm
Chainrings
SRAM Eagle Transmission 34t Steel, 104BCD
Wheels & Tires
Rims
Roval Traverse 29 Alloy, 30mm internal width, 28h: Roval Traverse 27.5 Alloy, 30mm internal width, 32h
Front Hub
DT Swiss 370, 28h, 15x110
Rear Hub
DT Swiss 370, 32h, 12x148
Spokes
Sapim Force
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 27.5x2.3"
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars

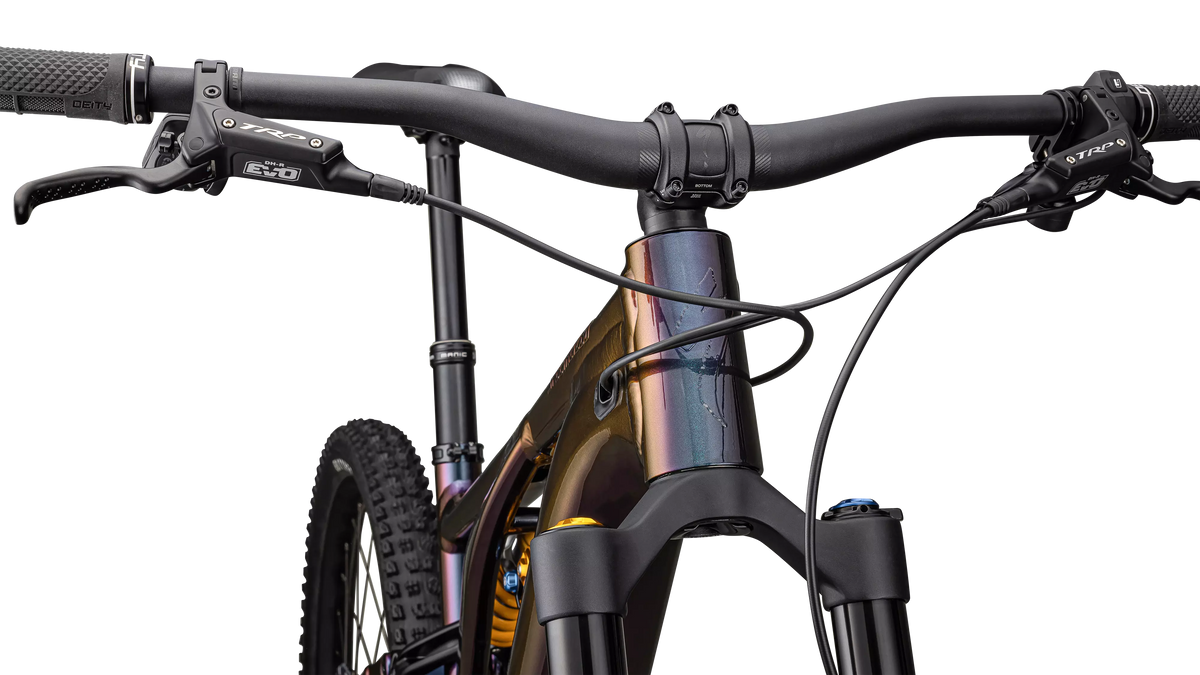

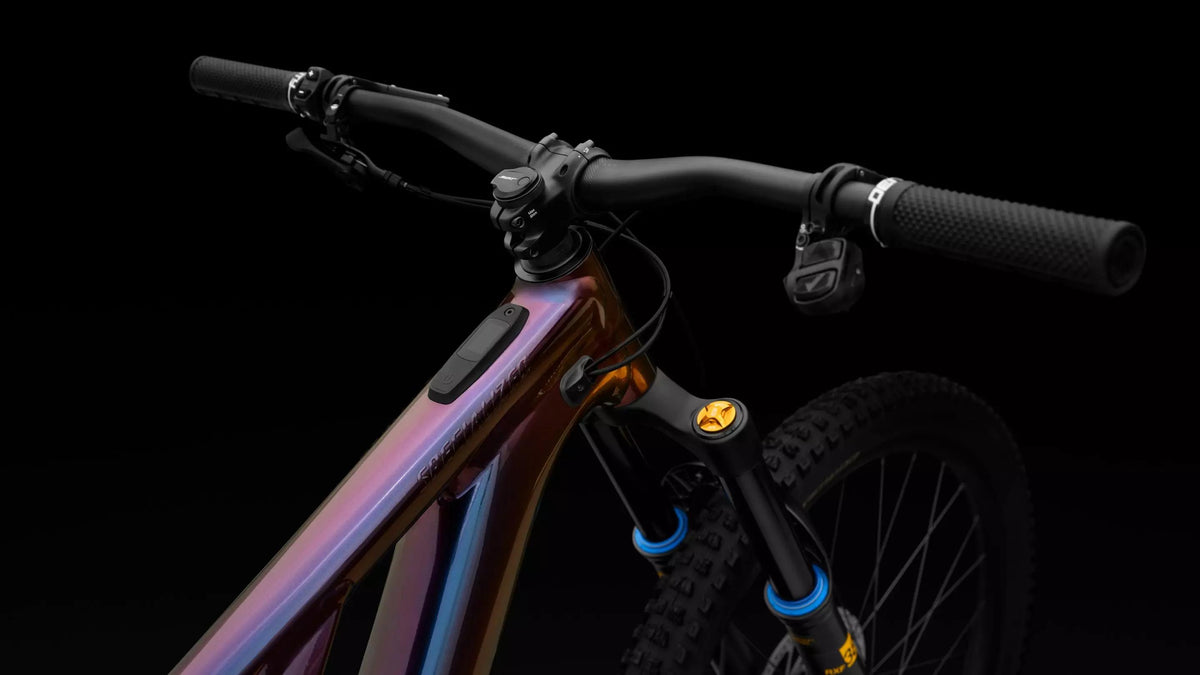

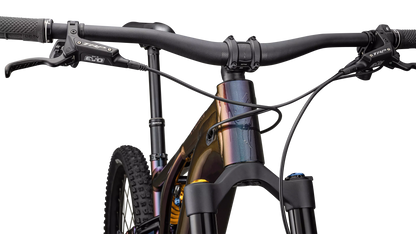

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Grips
Diety Lockjaw grips
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 40mm | 40mm | 40mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 170mm | 170mm | 190mm |
| Stack | 617mm | 626mm | 635mm | 644mm | 653mm |
| Reach | 432mm | 452mm | 477mm | 502mm | 532mm |
| Headtube Length | 105mm | 115mm | 125mm | 135mm | 145mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 27mm | 27mm | 27mm | 27mm | 27mm |
| Trail | 130mm | 130mm | 130mm | 130mm | 130mm |
| Fork Length (full) | 567mm | 567mm | 567mm | 567mm | 567mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 760mm | 784mm | 814mm | 843mm | 878mm |
| Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
| Wheelbase | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
| Bike Standover Height | 776mm | 783mm | 787mm | 788mm | 790mm |
| Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
| Max Seatpost Insertion | 220mm | 240mm | 255mm | 275mm | 295mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
