E-Bike

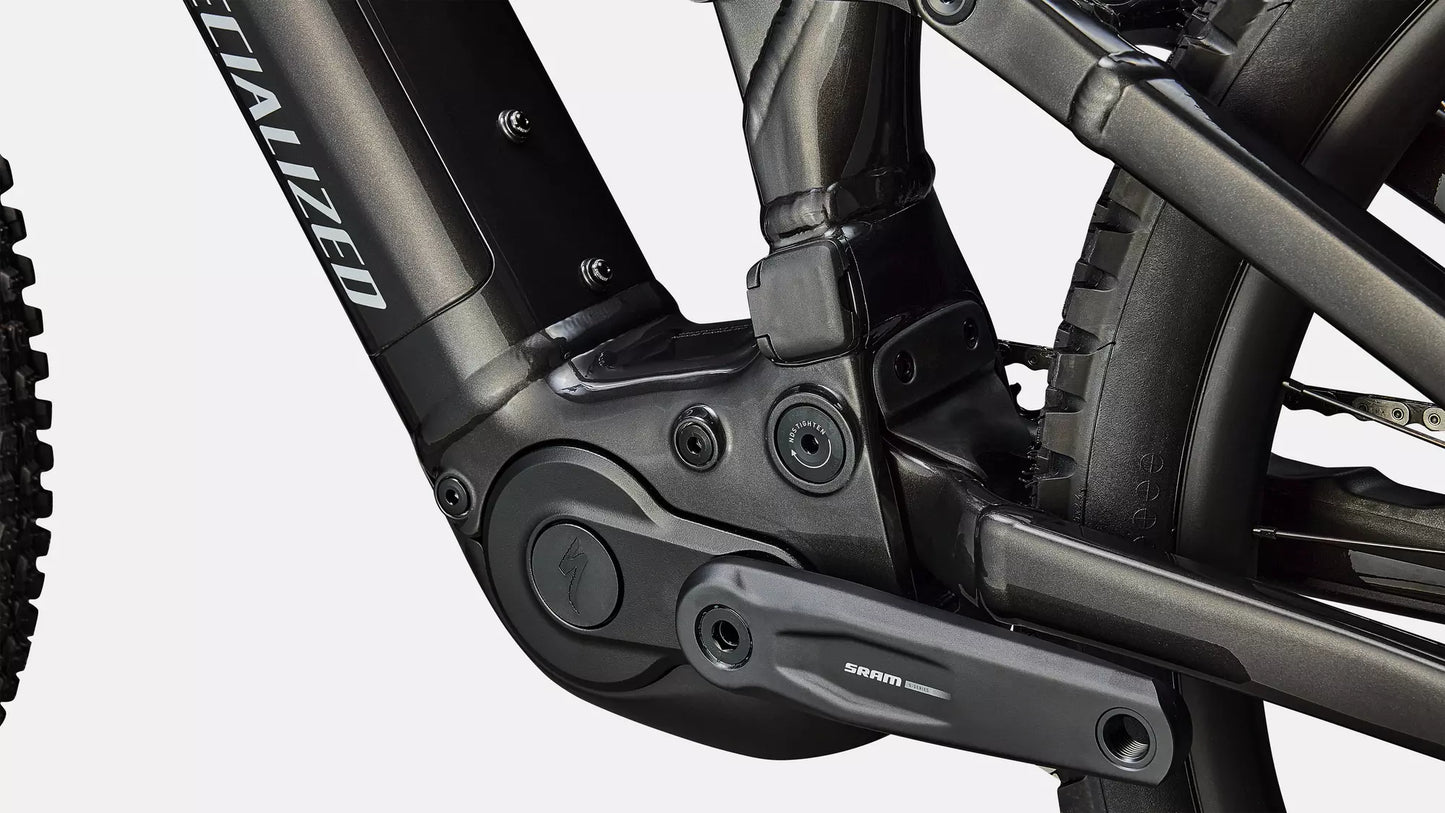

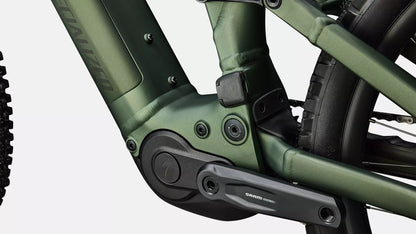

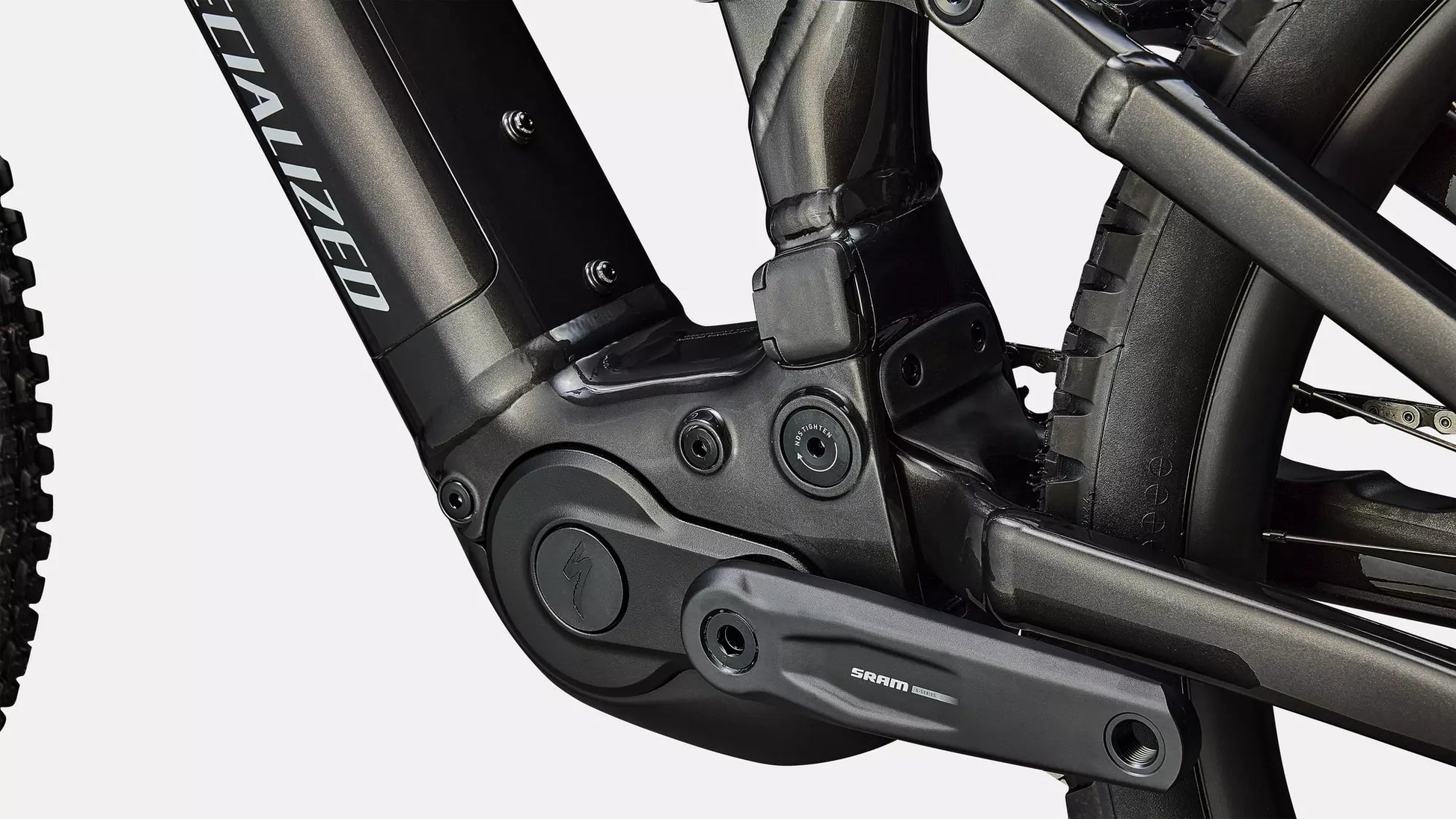

Motor

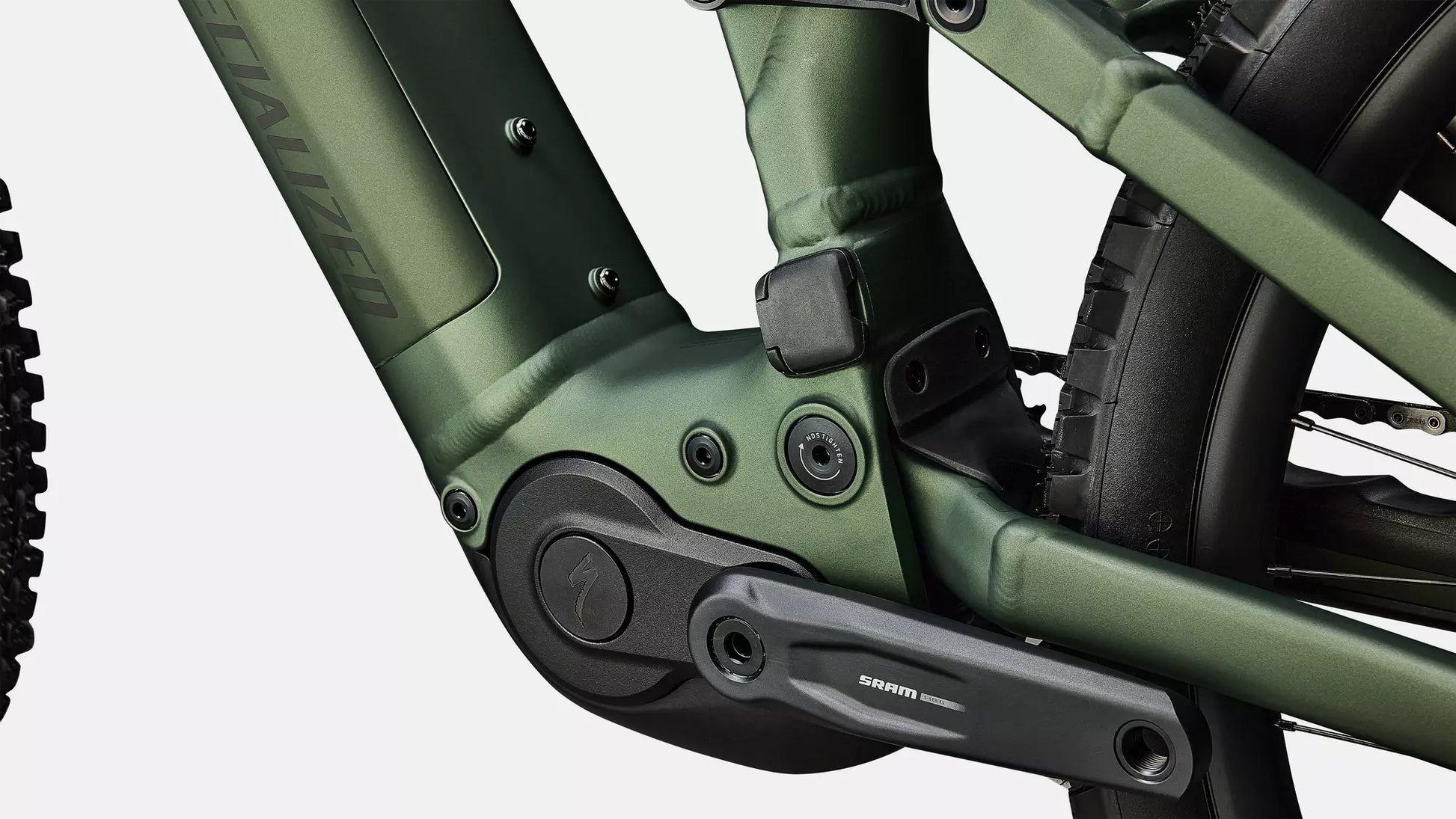

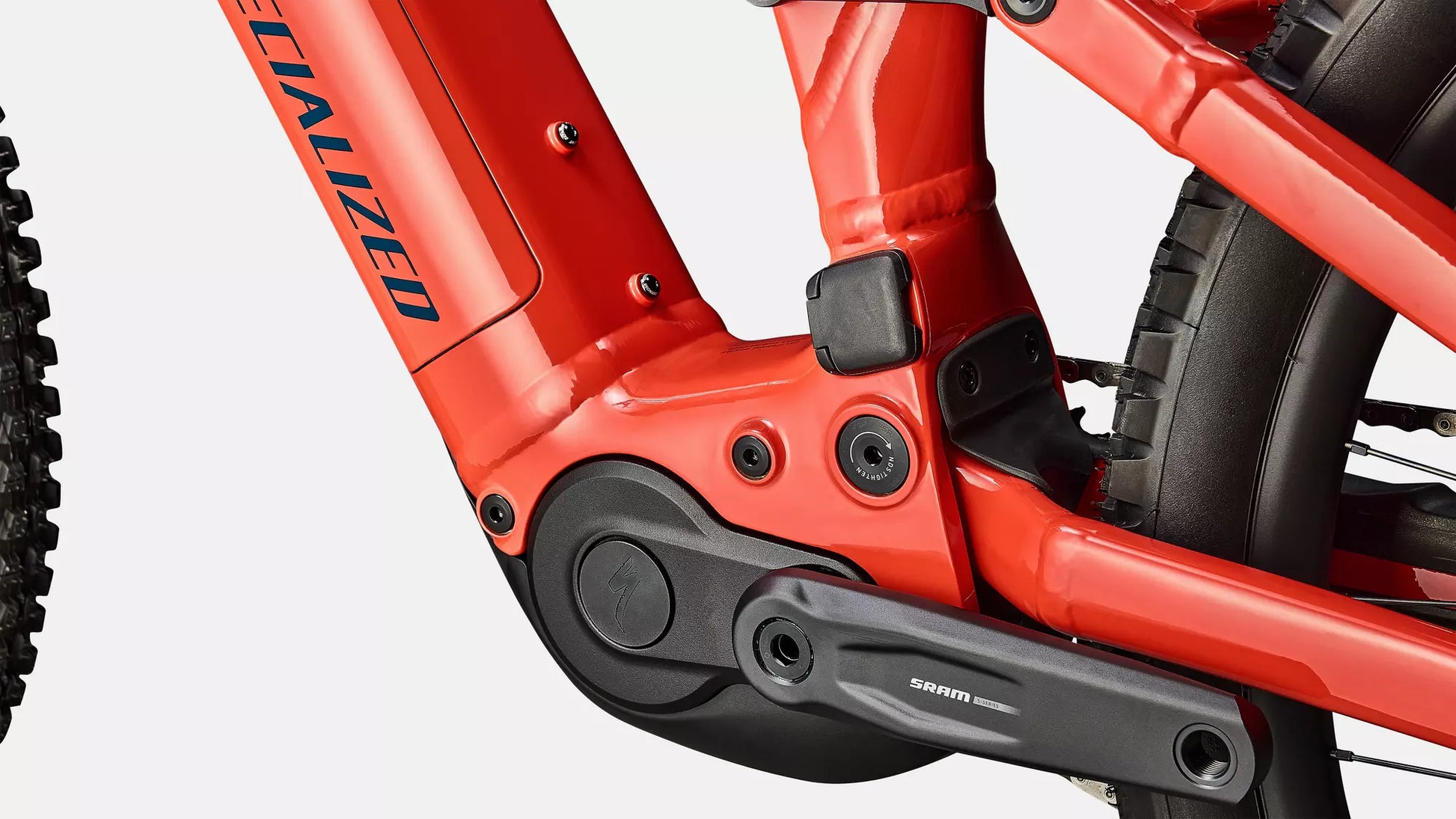

• All New Specialized 3.1 Motor, 101Nm torque, 666Nm power

Battery

• 840Wh battery

UI/Remote

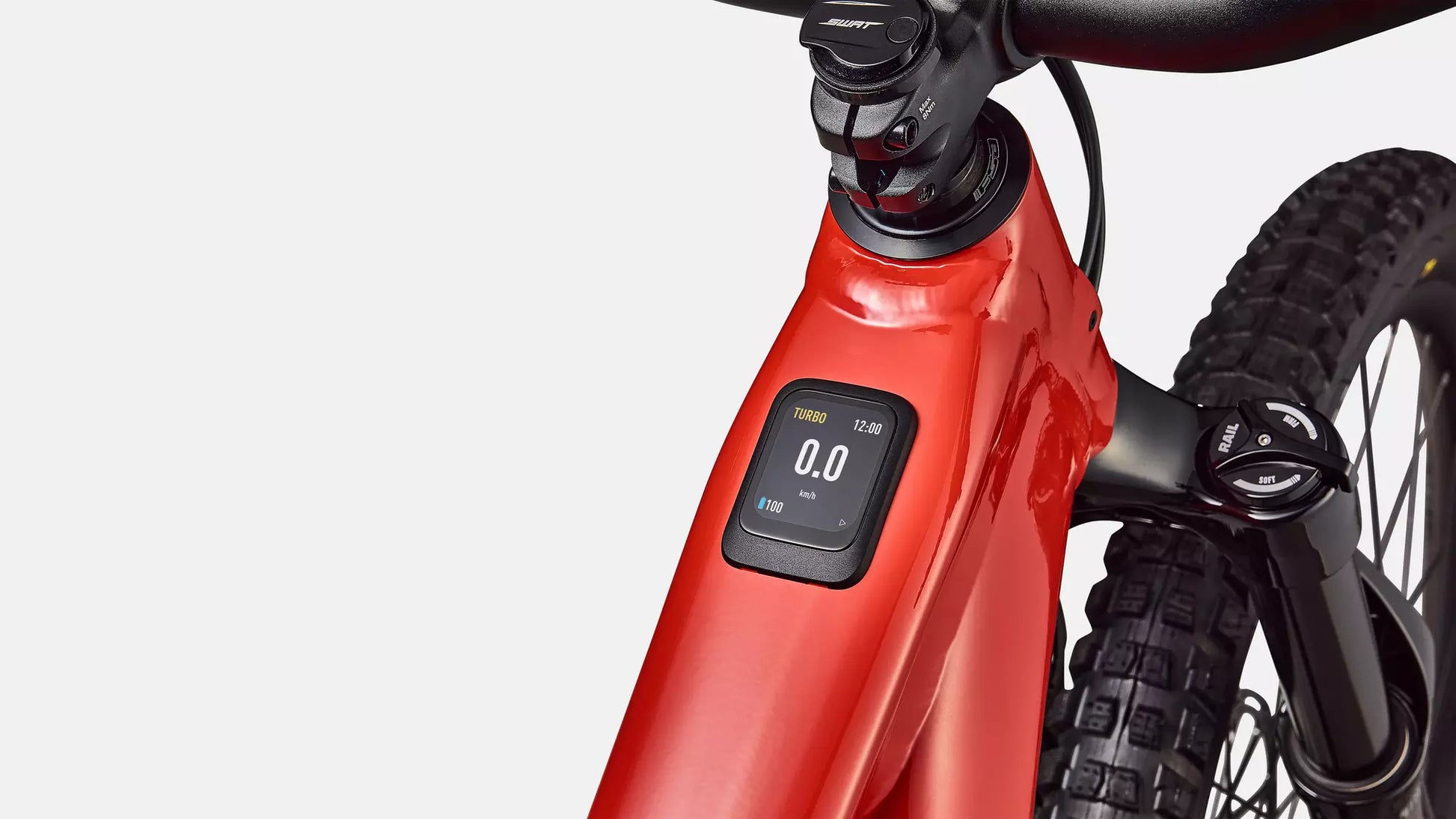

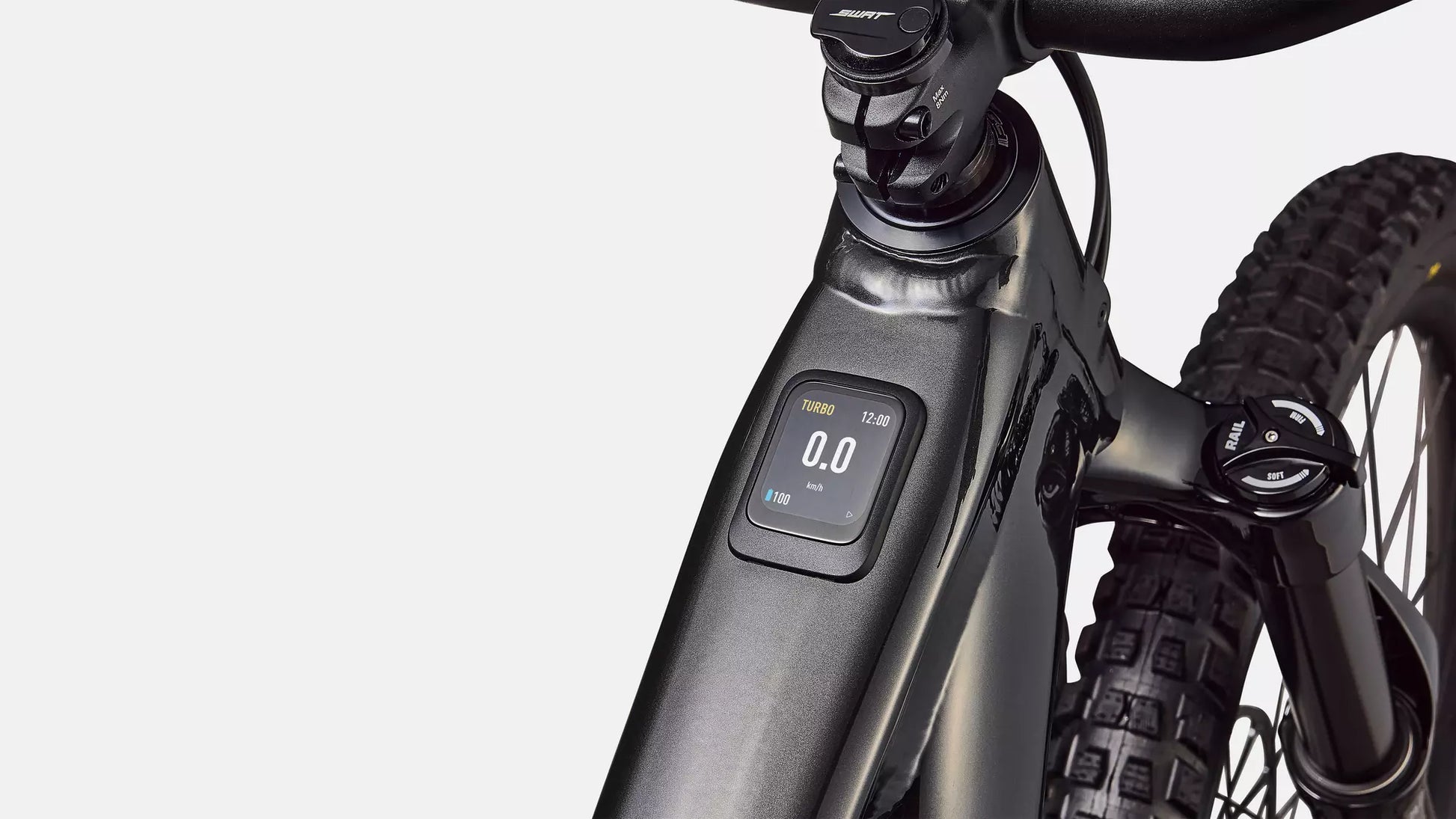

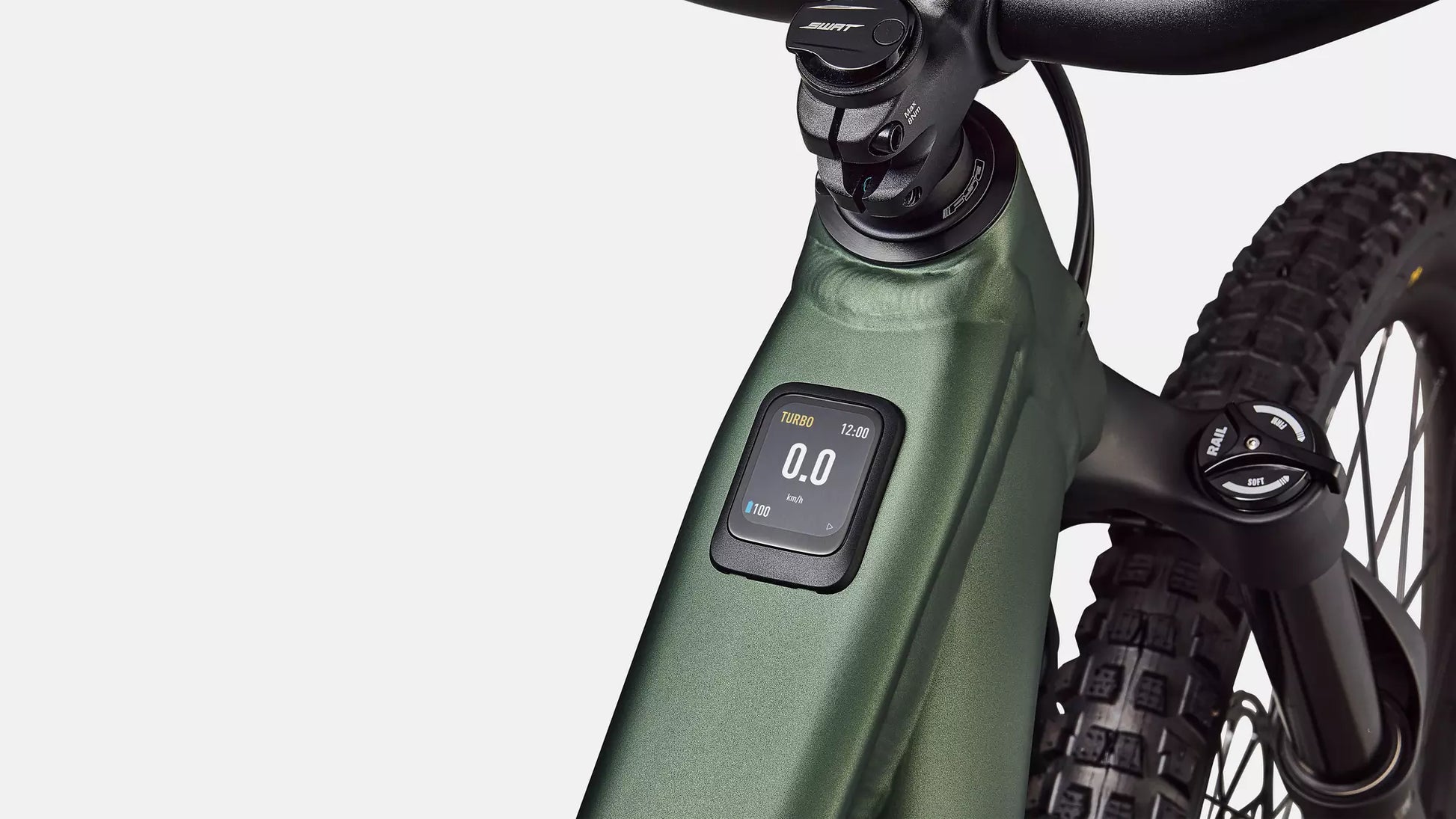

• All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger

• Specialized 4amp charger

Frameset

Frame

• All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Seat Binder

• Alloy, 38.6mm

Suspension

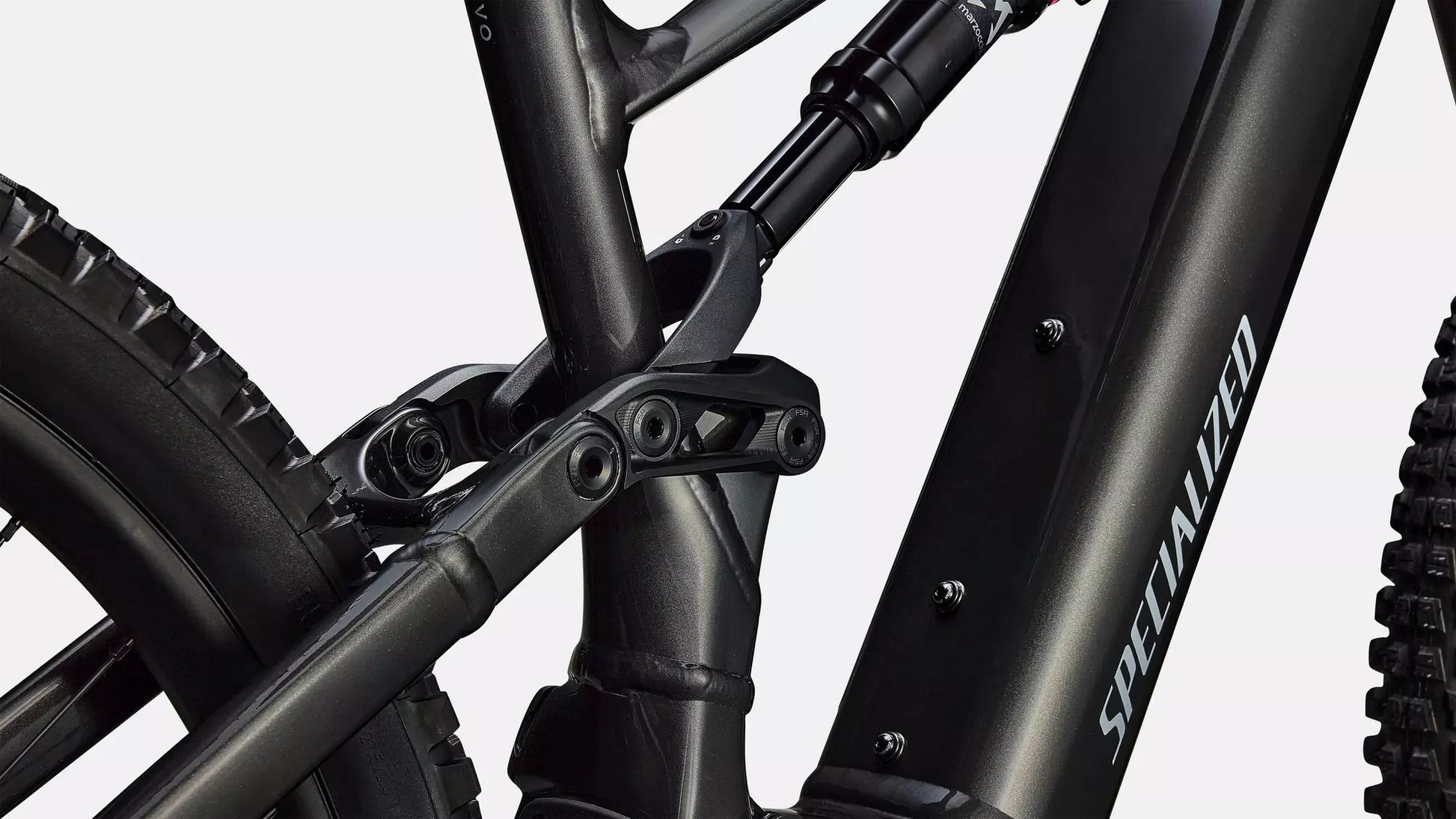

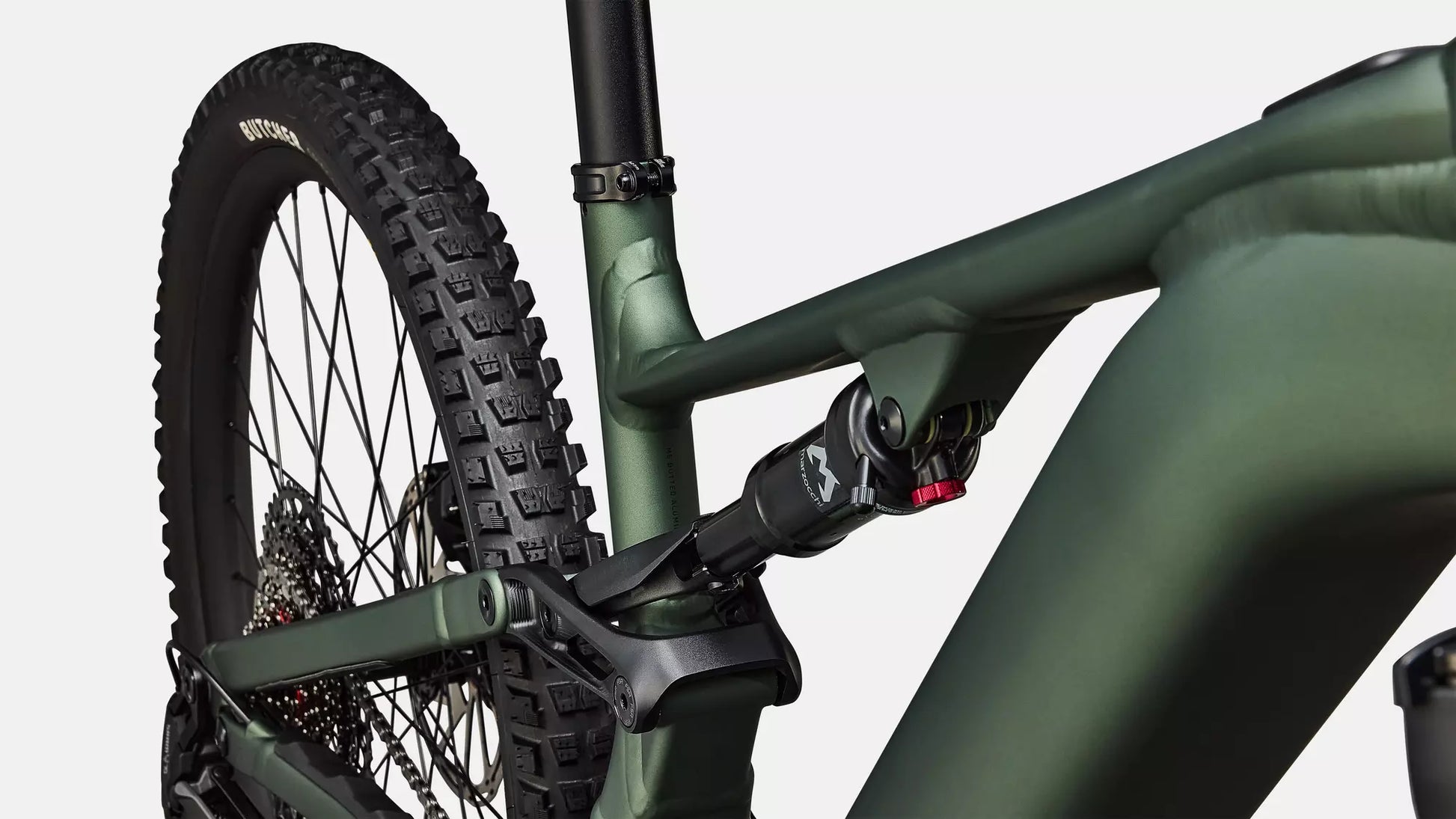

Rear Shock

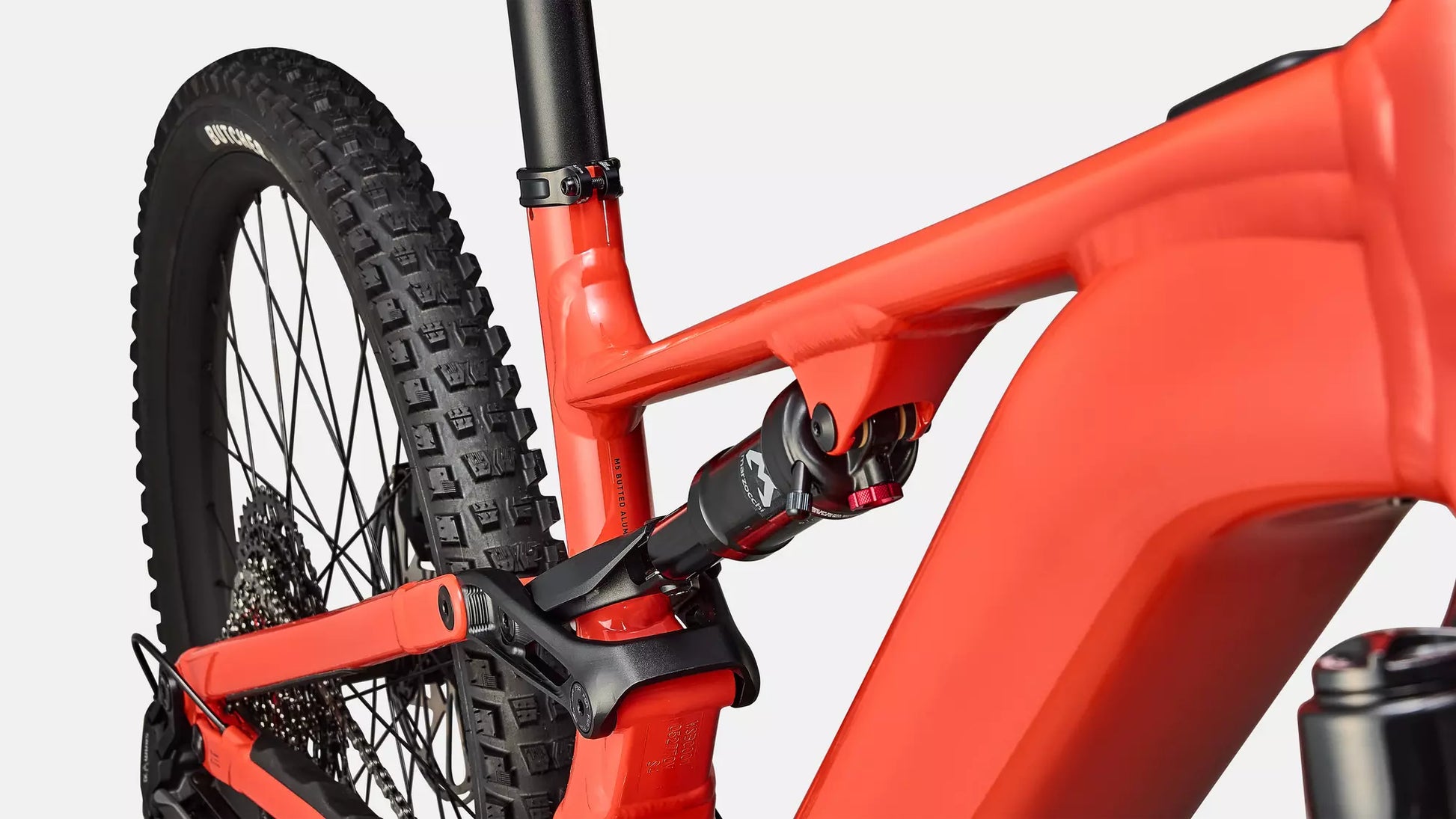

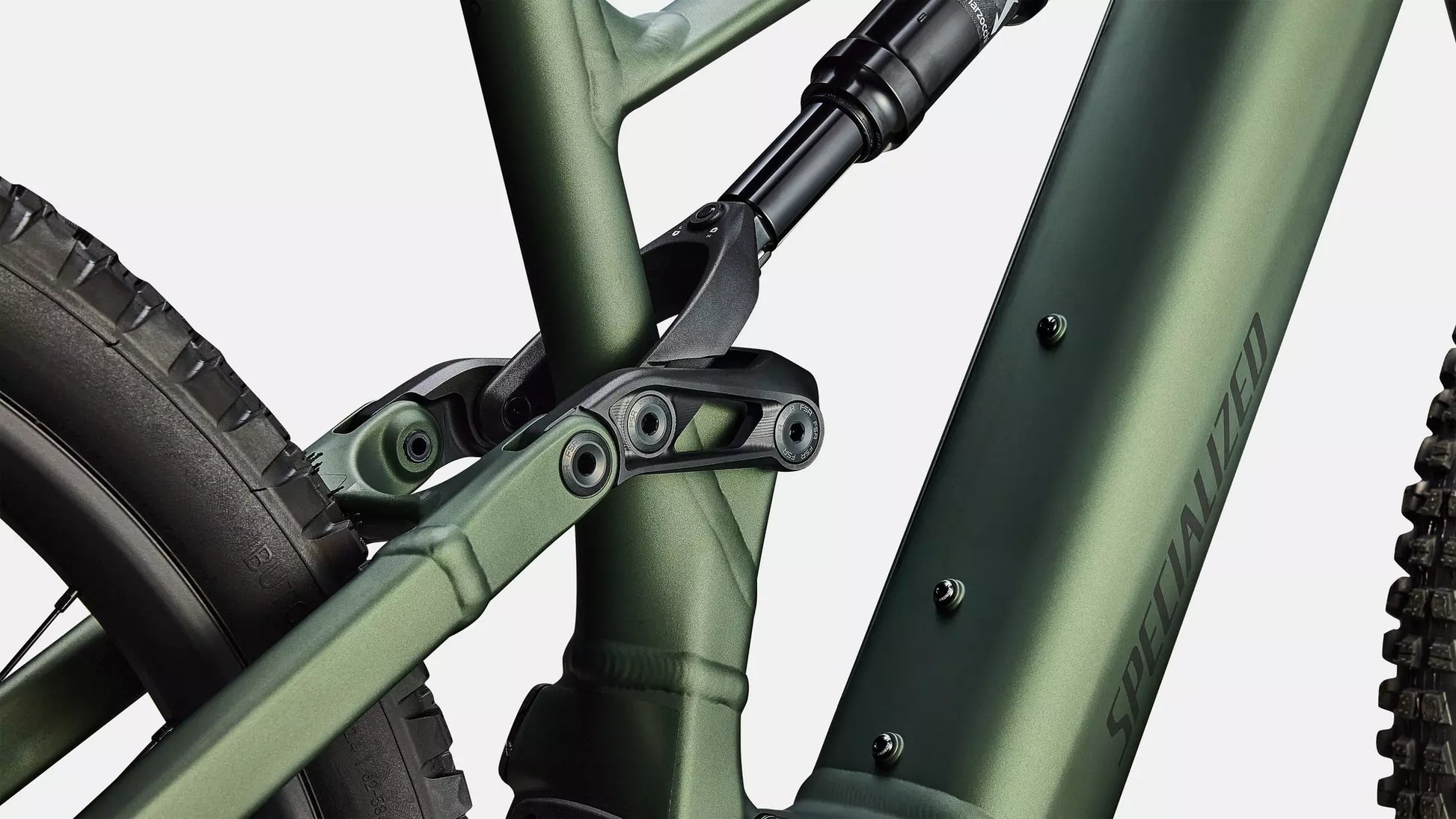

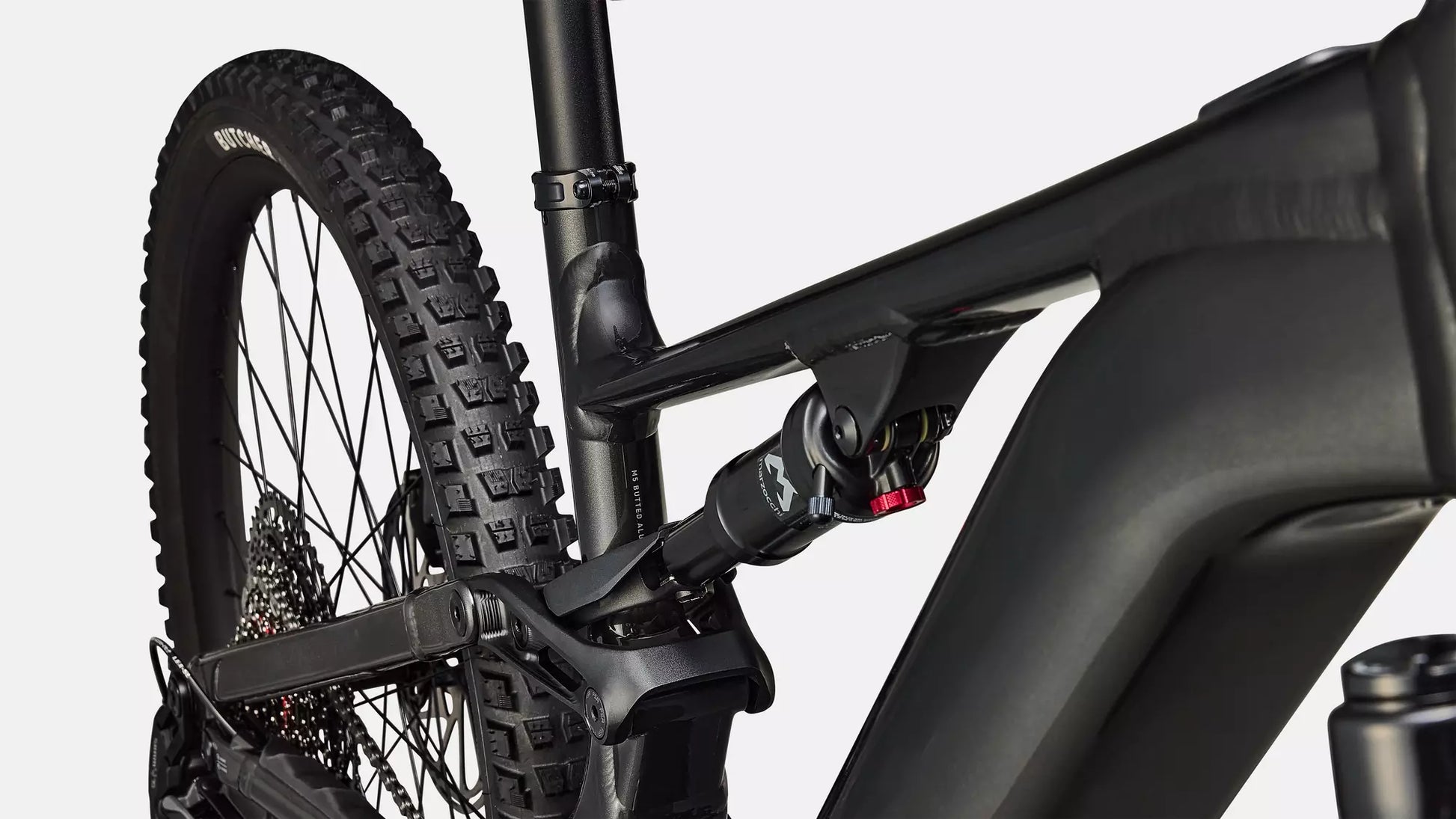

• *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Fork

• Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes

Front Brake

• SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake

• SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain

Shift Levers

• SRAM 70 trigger, 12-speed, single click

Rear Derailleur

• SRAM Eagle 70 T-Type

Cassette

• XS-1270, 12-speed, 10-52t

Chain

• SRAM Eagle 70 T-Type Flattop Chain

Crankset

• SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Chainrings

• SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

Rims

• Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Front Hub

• Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

• Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes

• DT Swiss Industry

Front Tire

• Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Rear Tire

• Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Inner Tubes

• Standard, Presta valve

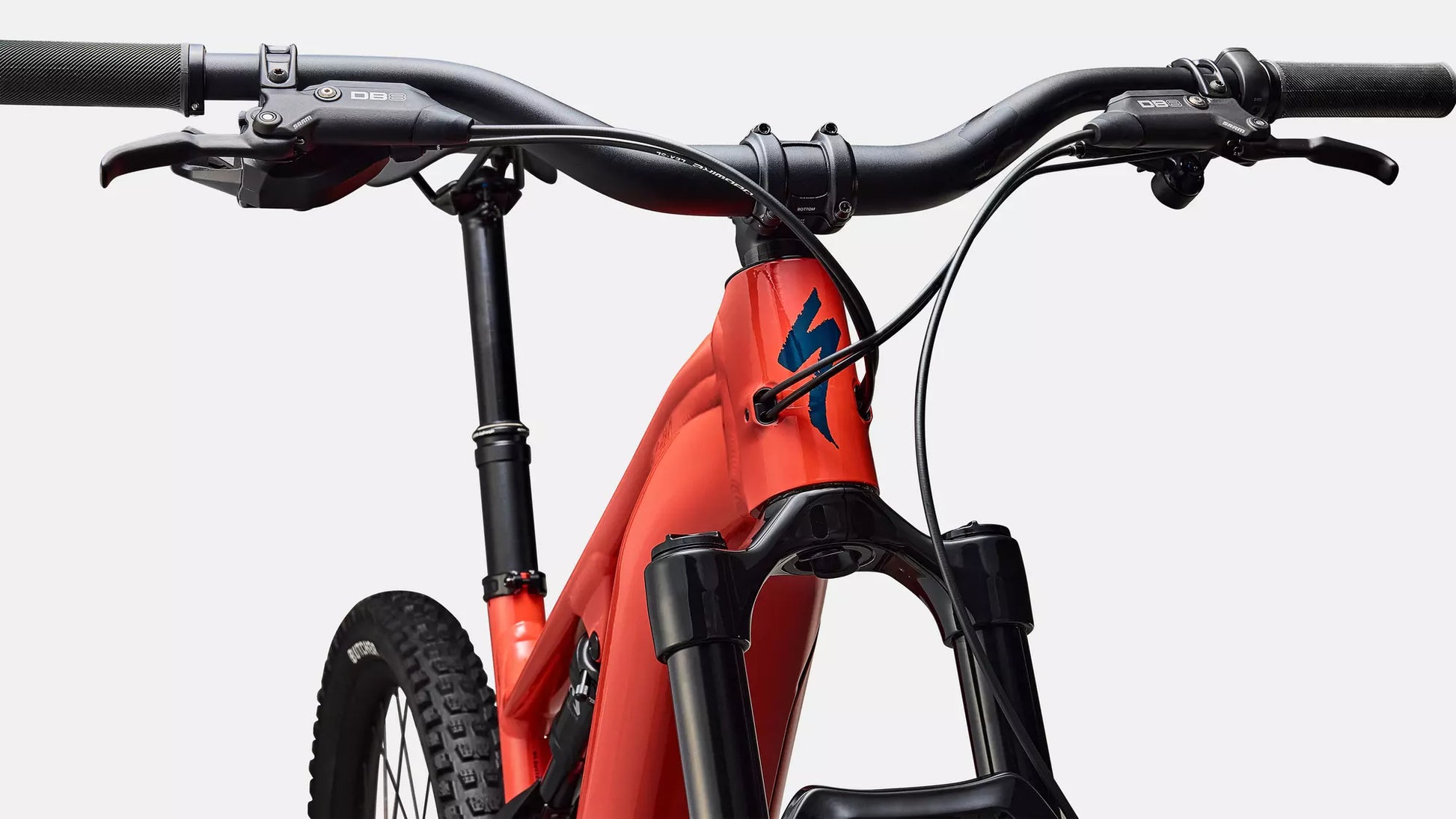

Cockpit

Stem

• Alloy Trail Stem, 35mm bar bore

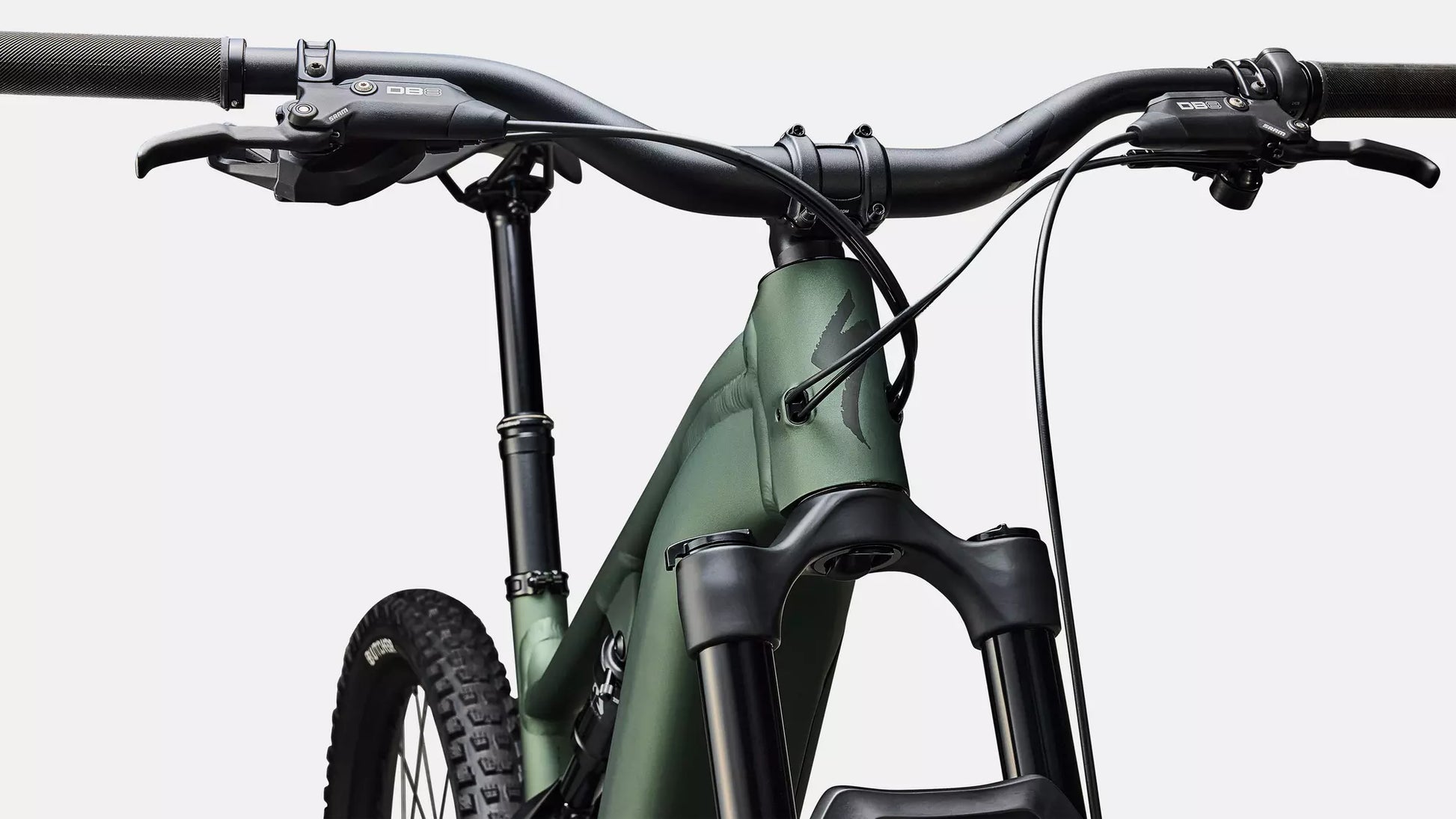

Handlebars

• Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Grips

• Specialized Trail Grips

Saddle

• Body Geometry Bridge Saddle, steel rails

SeatPost

• TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Accessories

SWAT

• SWAT internal downtube storage

Product Detail

Compliance Certification

• As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

Weight

Weight

• 26.08 kg (57 lb, 7.8 oz)

Weight Size

• S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
