SPECIALIZED

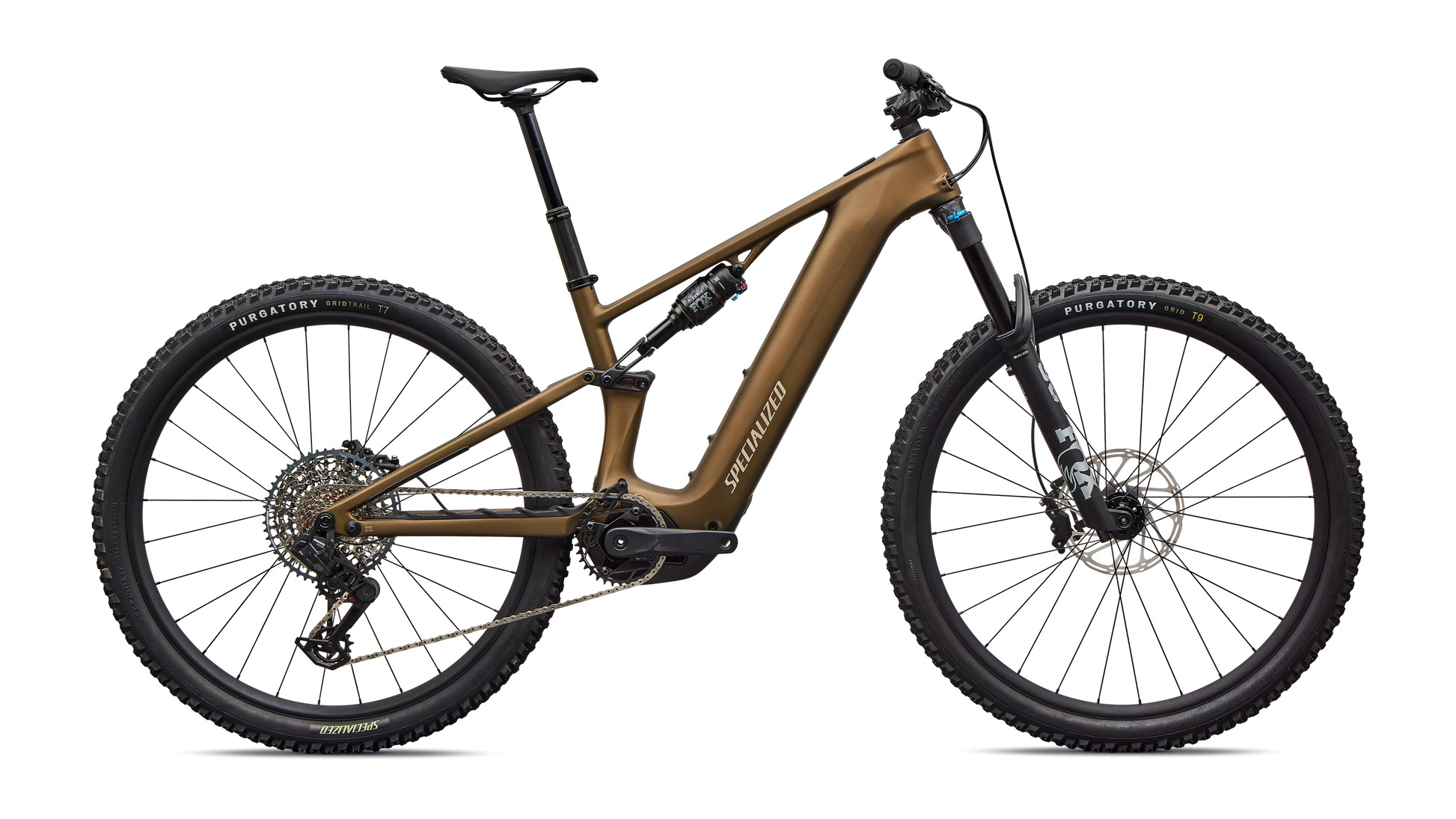

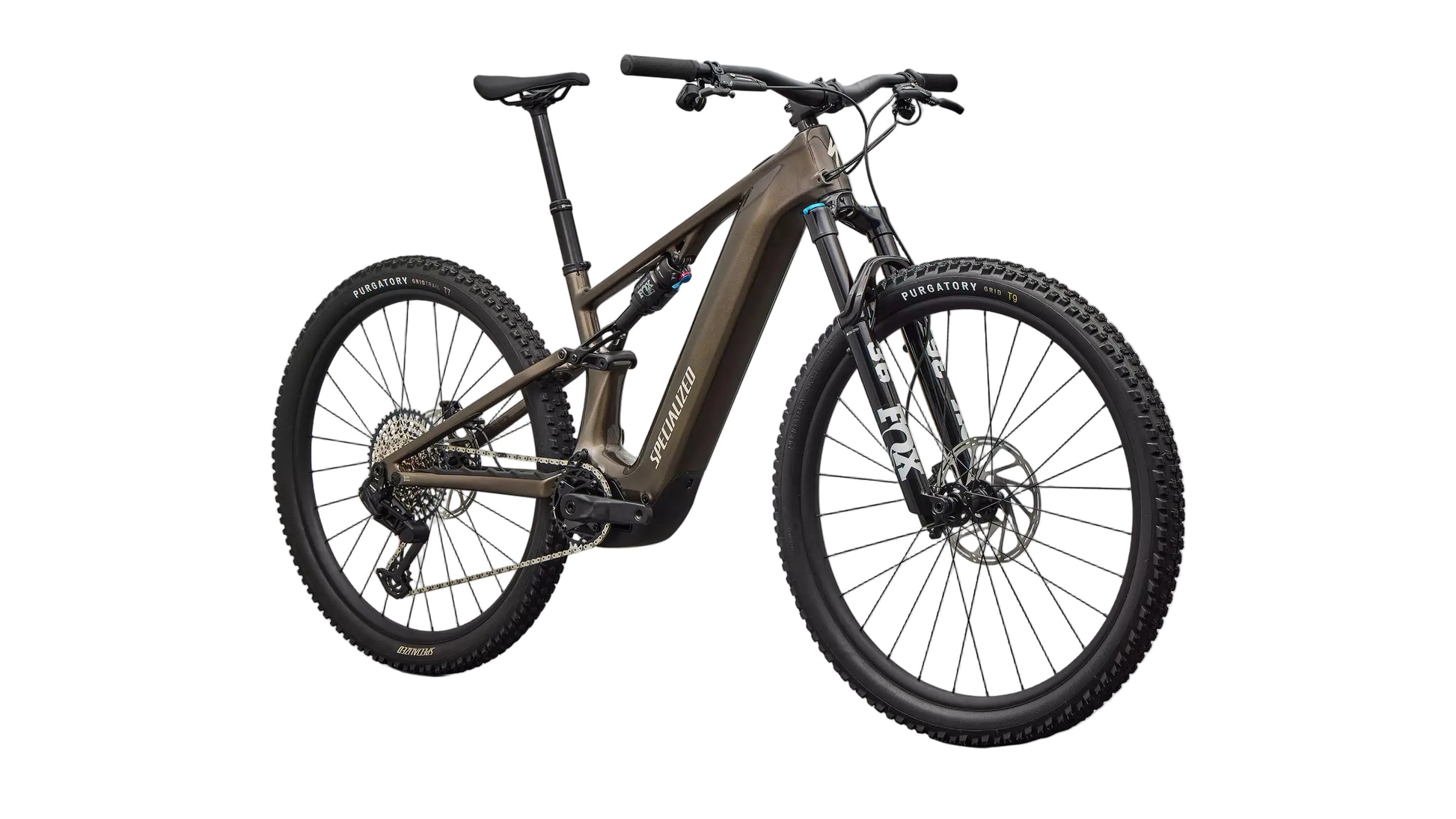

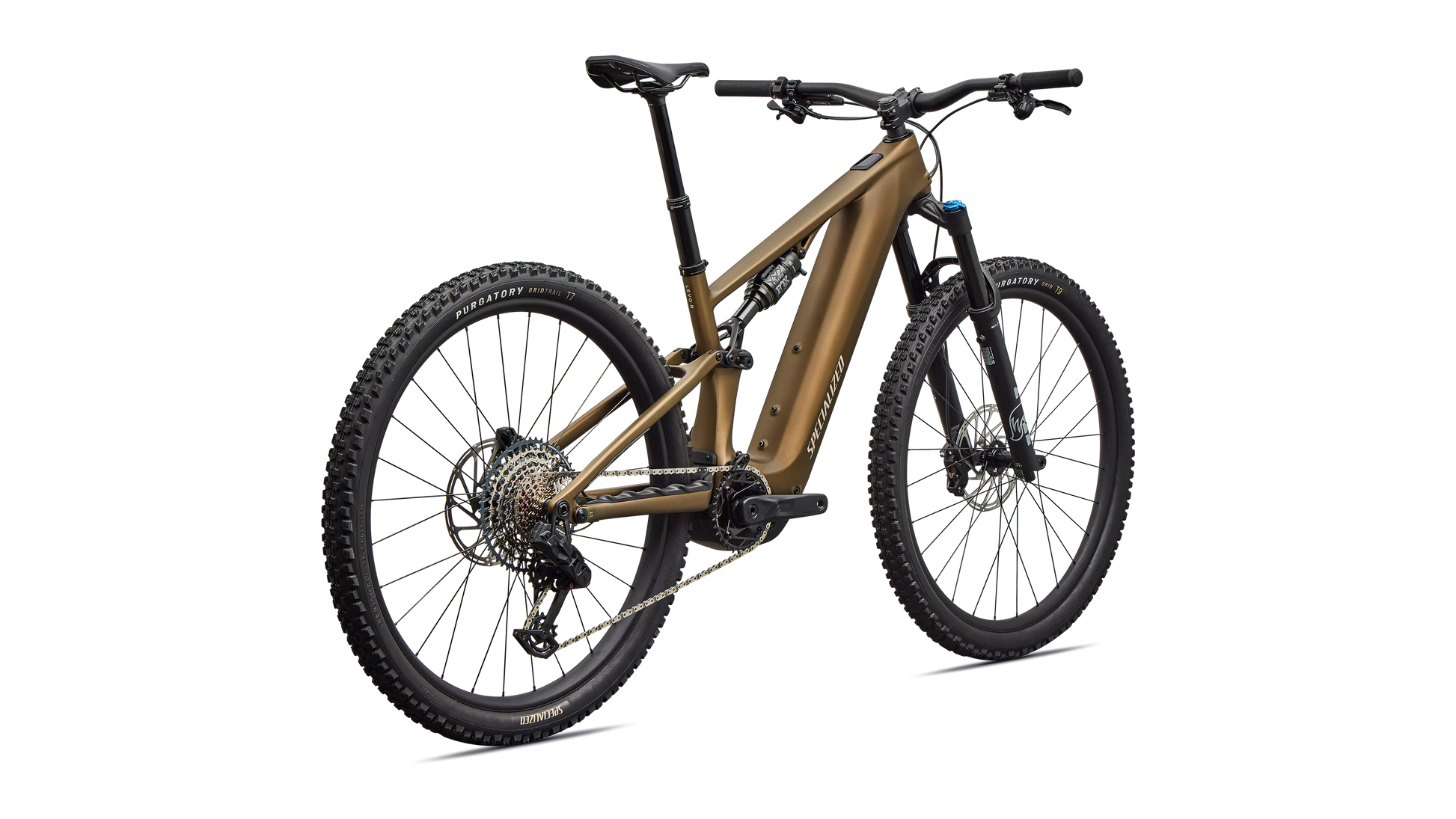

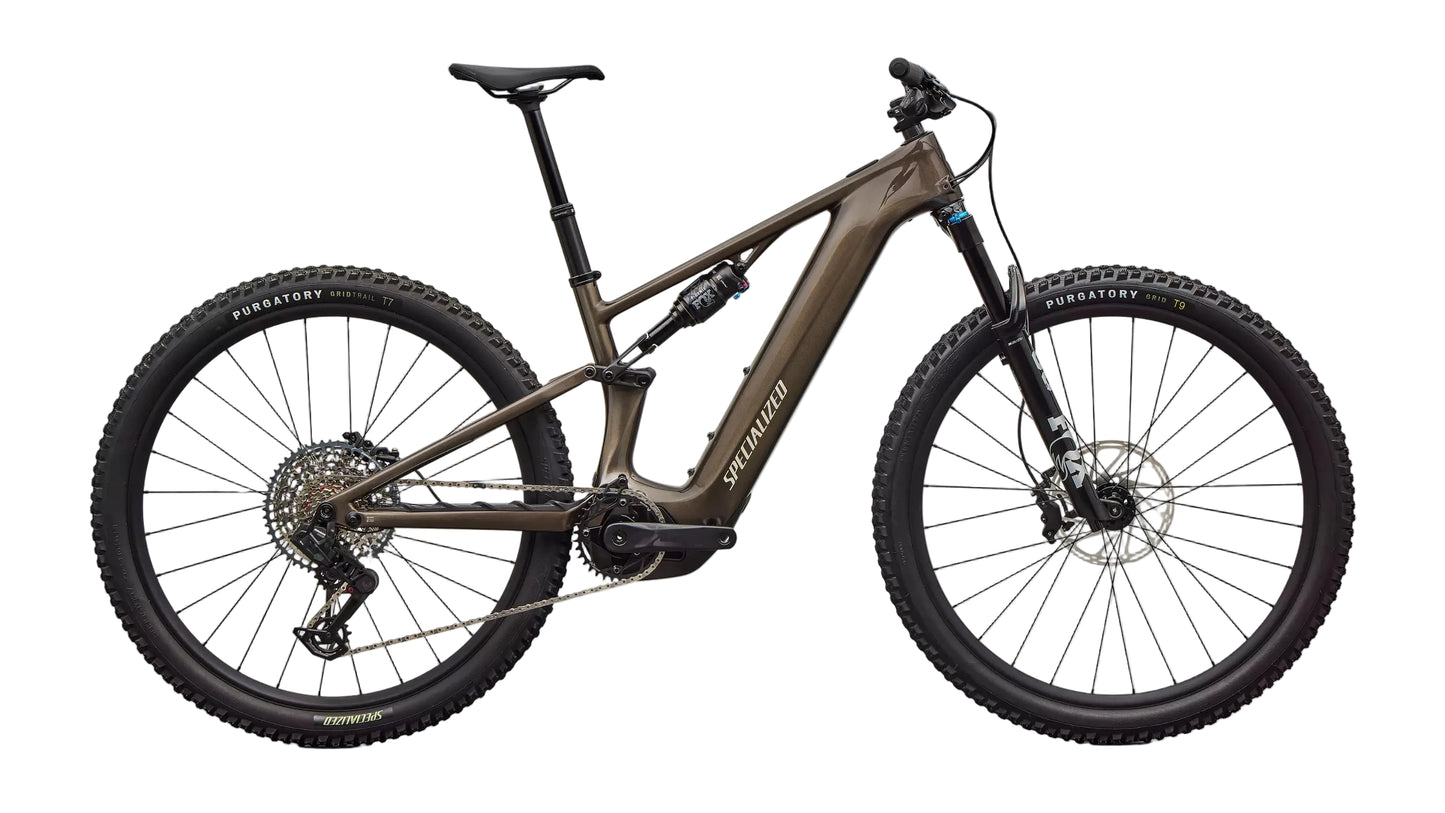

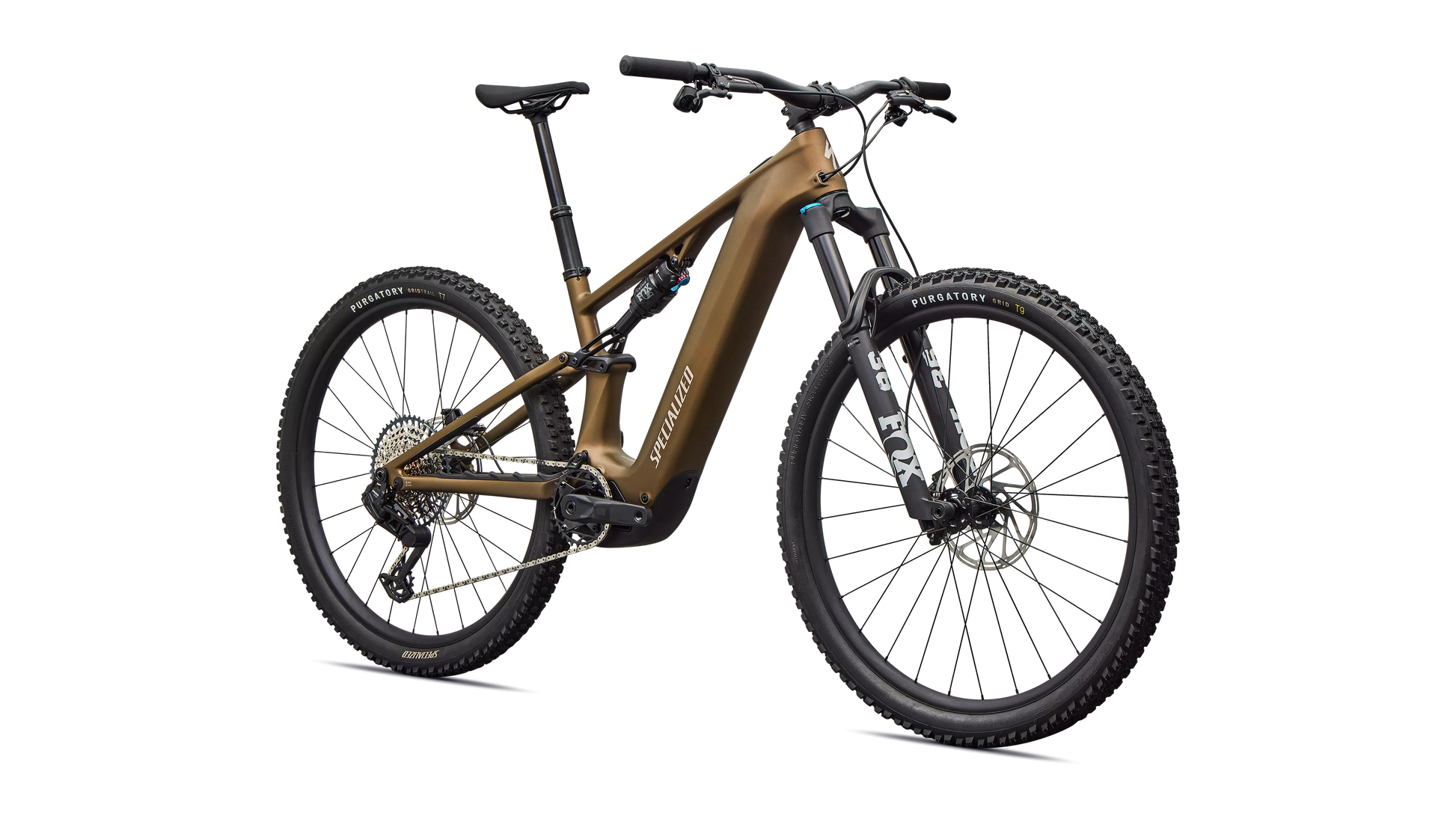

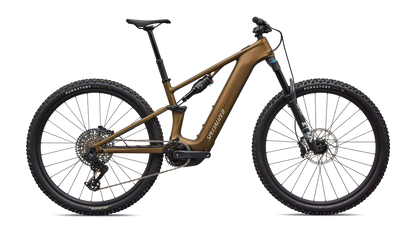

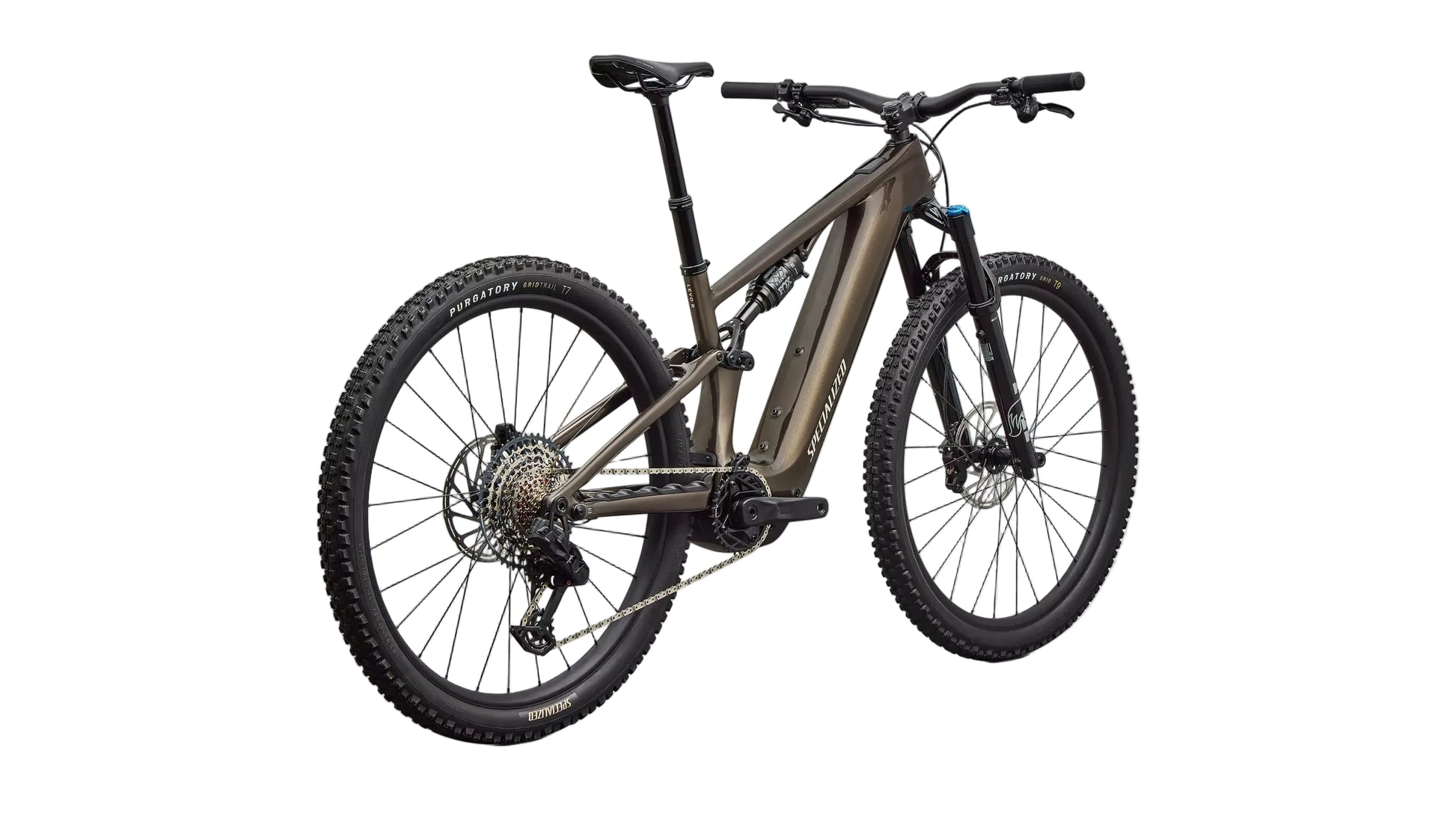

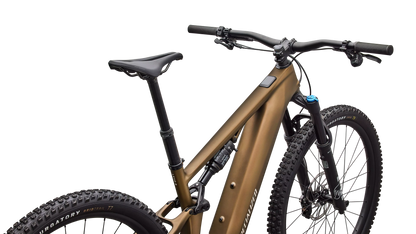

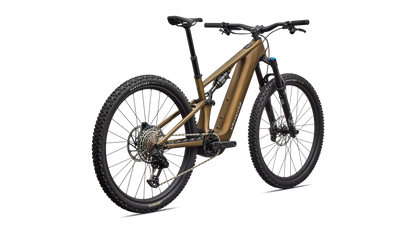

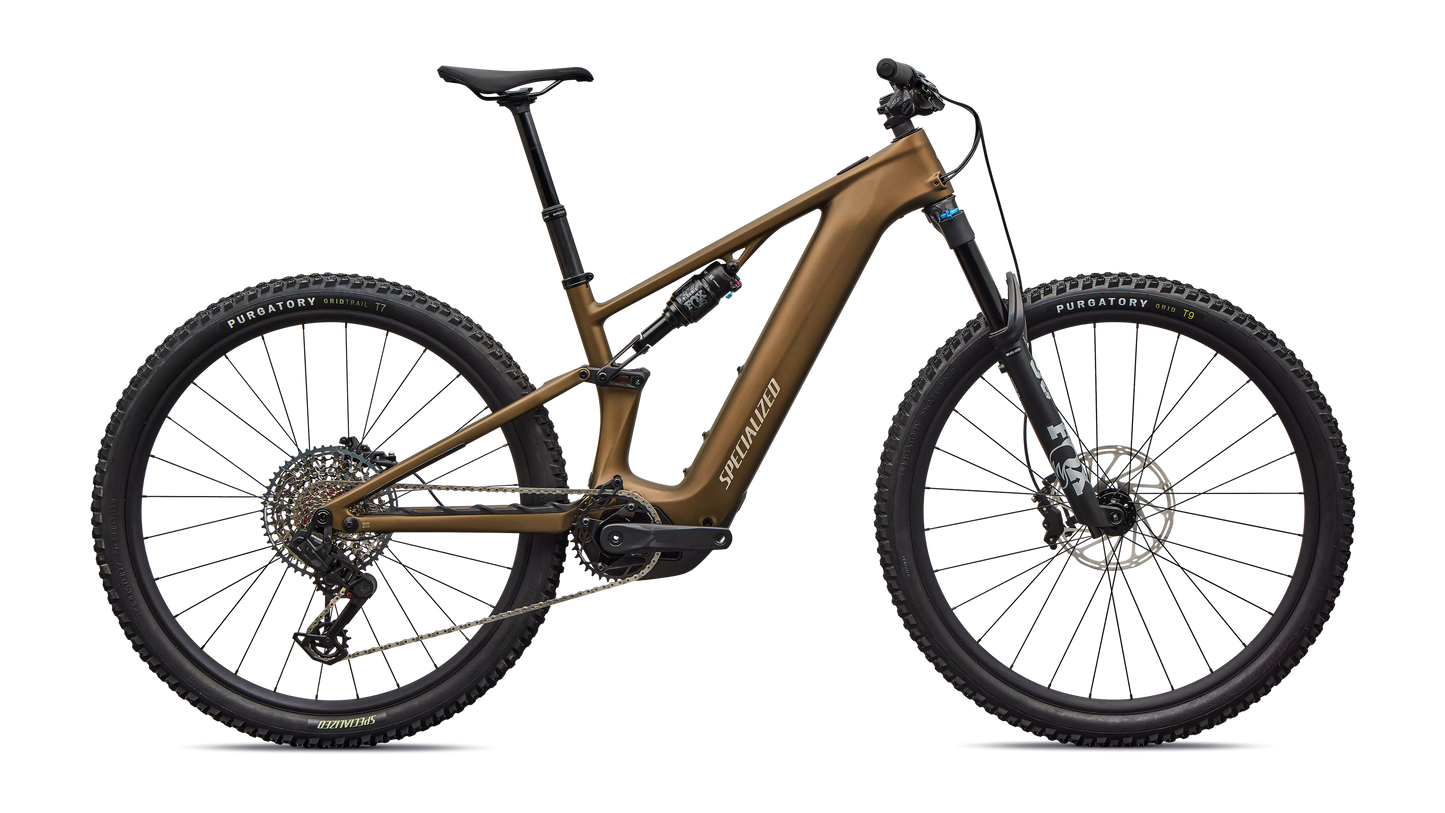

Turbo Levo R Comp
Turbo Levo R Comp
SKU:95226-8102
Out of Stock In Store
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
SuperNatural Power, Agility, and Range
Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 but sheds its manners. Like a rally car unleashed on dirt, you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean. This is Electric Rally.
At a Glance
Use
Full Power Electric Rally
E-System
Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame
FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension
Front: 140mm FOX 36 SL Performance GRIP
Rear: 130mm GENIE - FOX FLOAT Performance
Drivetrain
SRAM S-1000 Eagle Transmission
Wheels
Specialized Alloy Wheels
Technical Specifications
E-Bike
Battery
840Wh battery

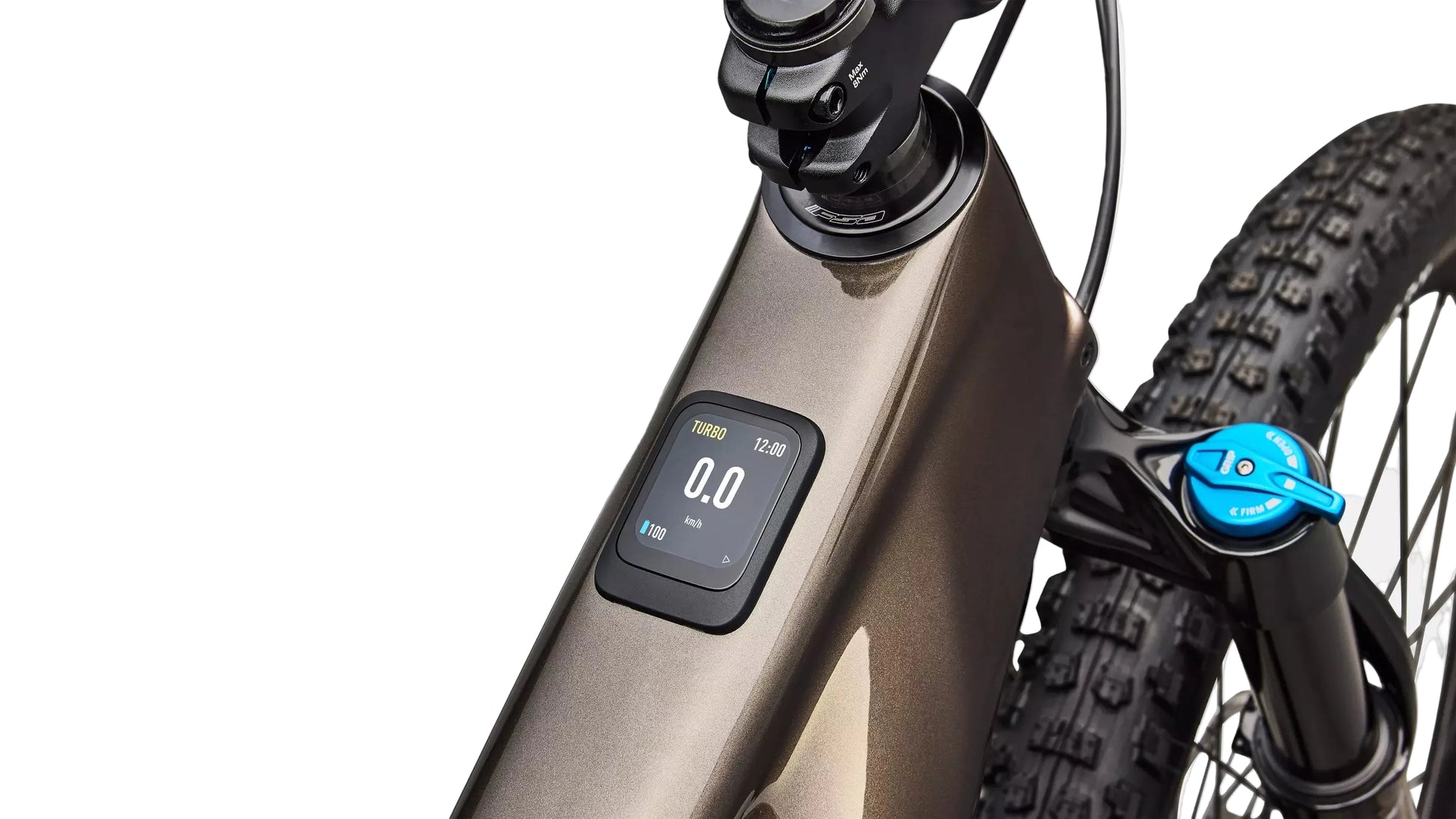

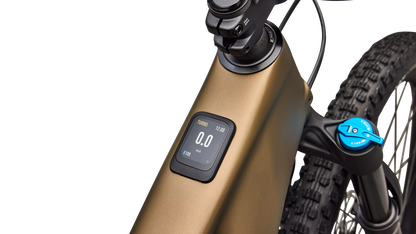

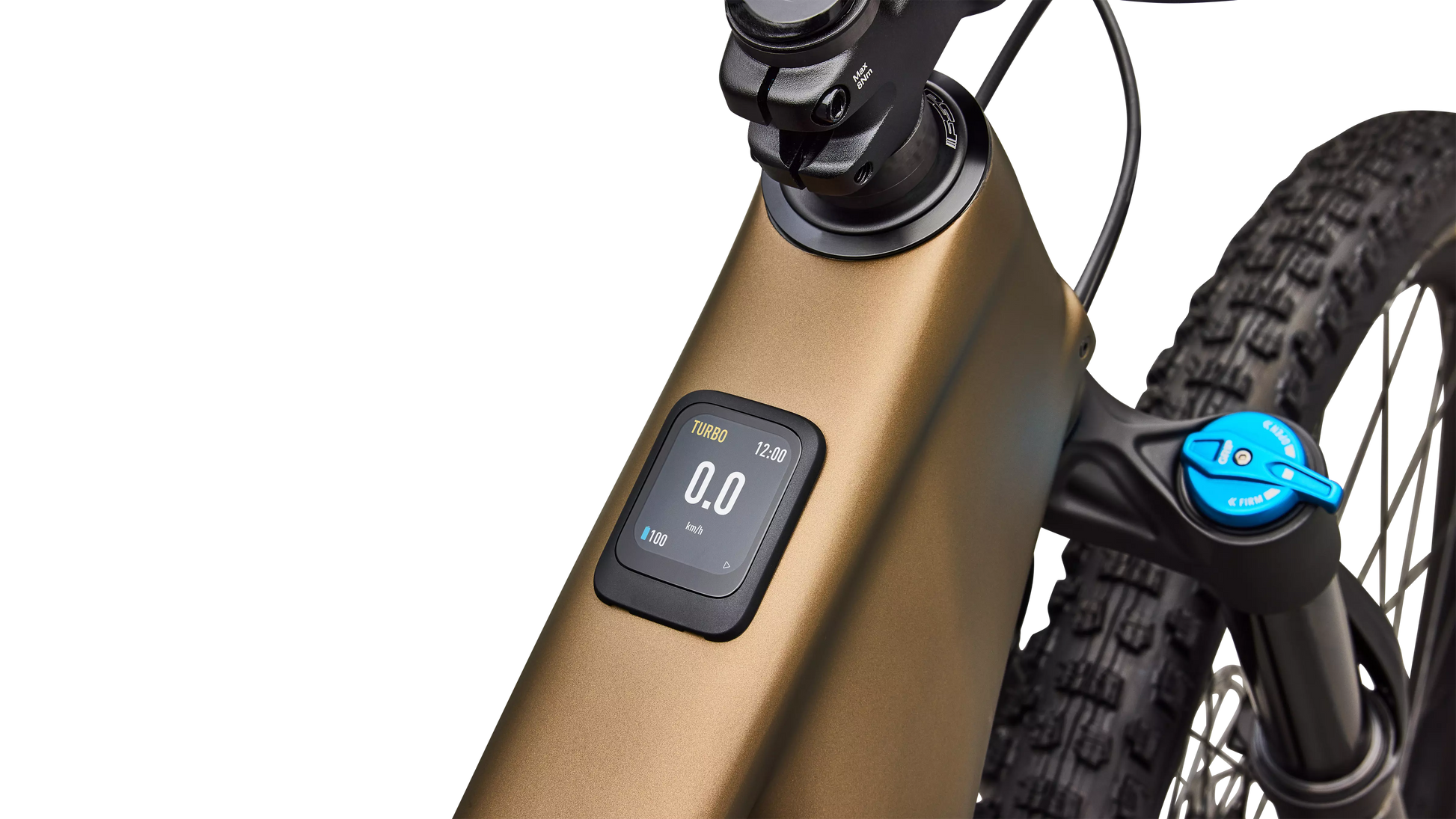

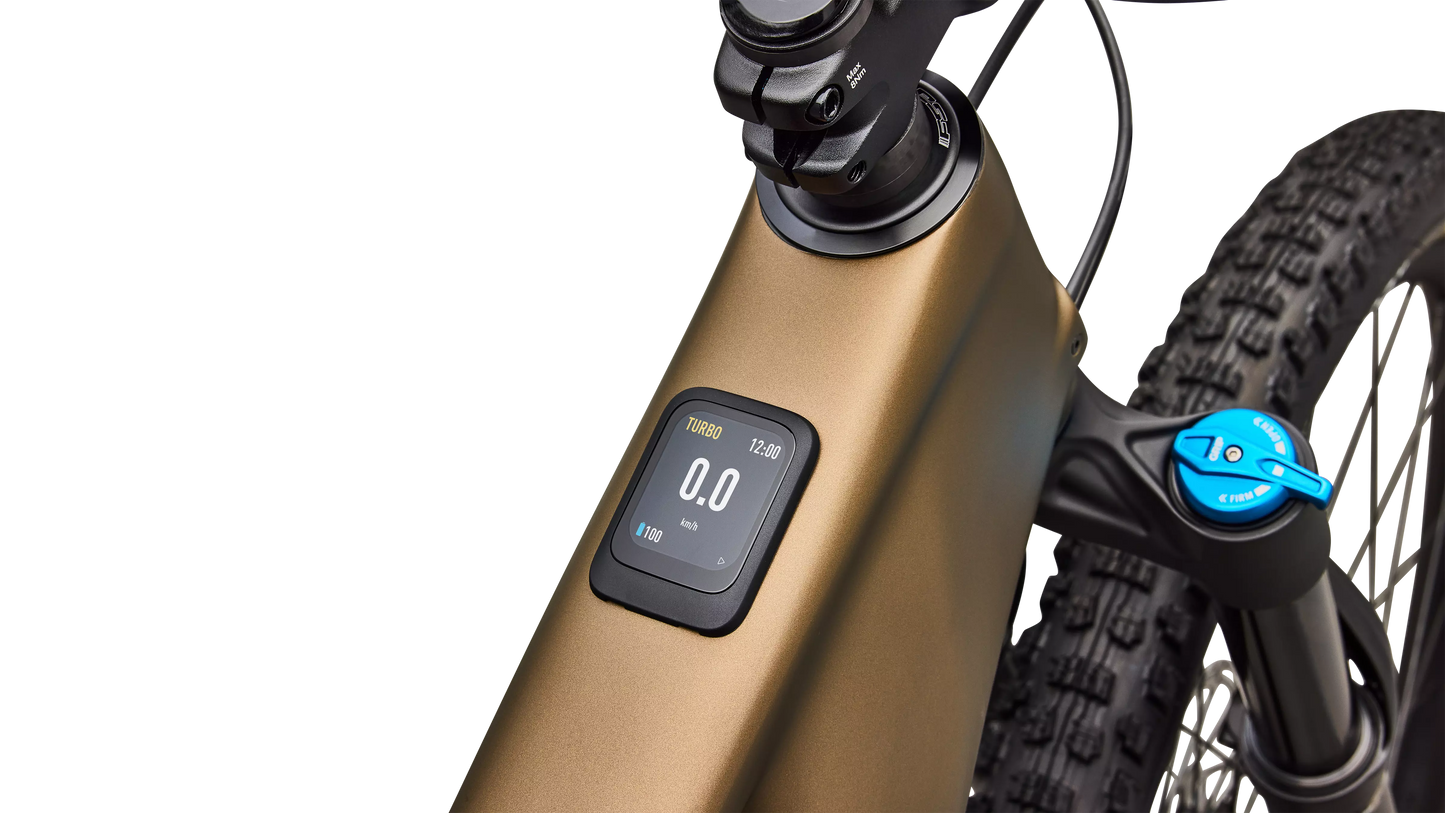

UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

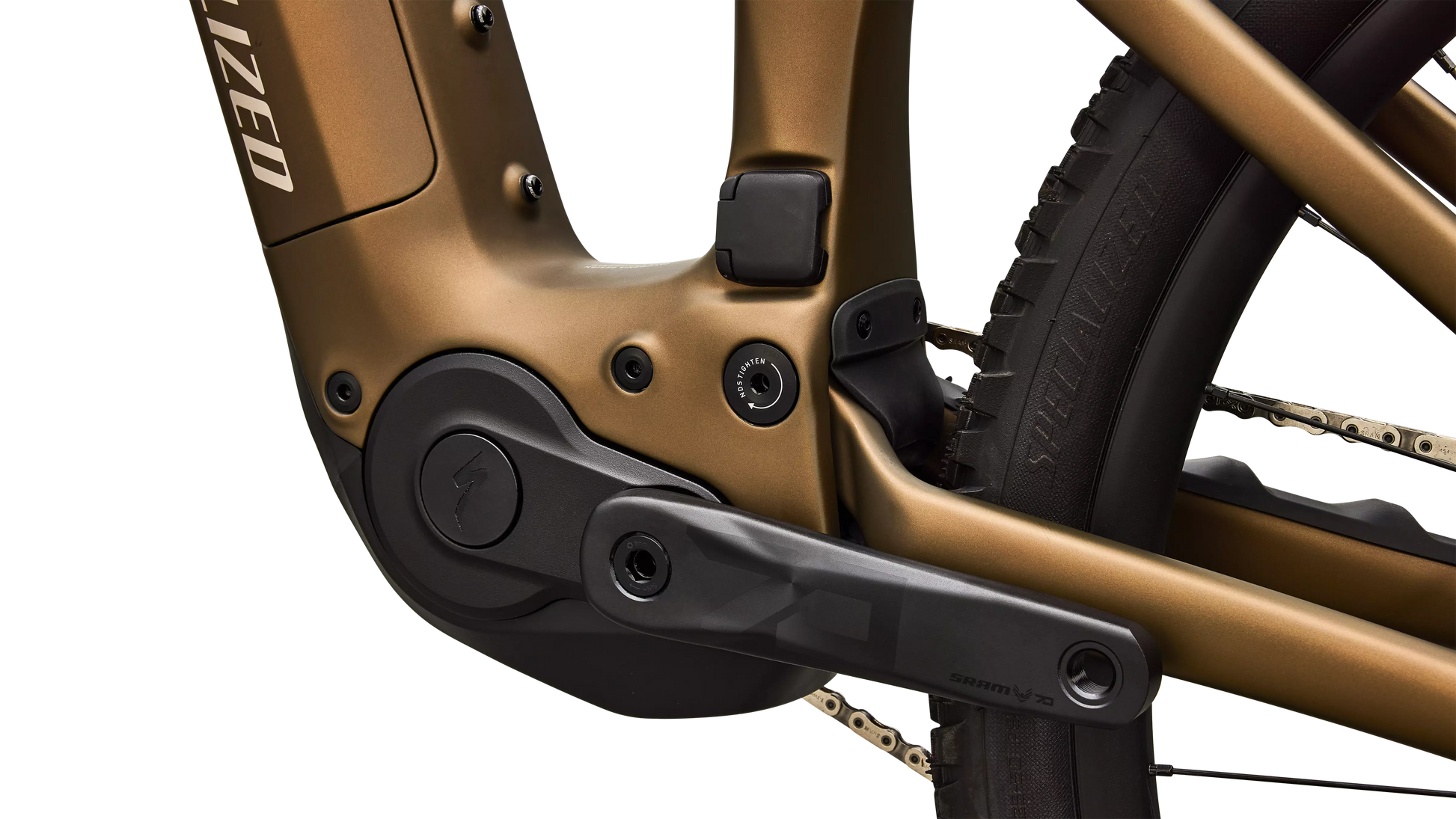

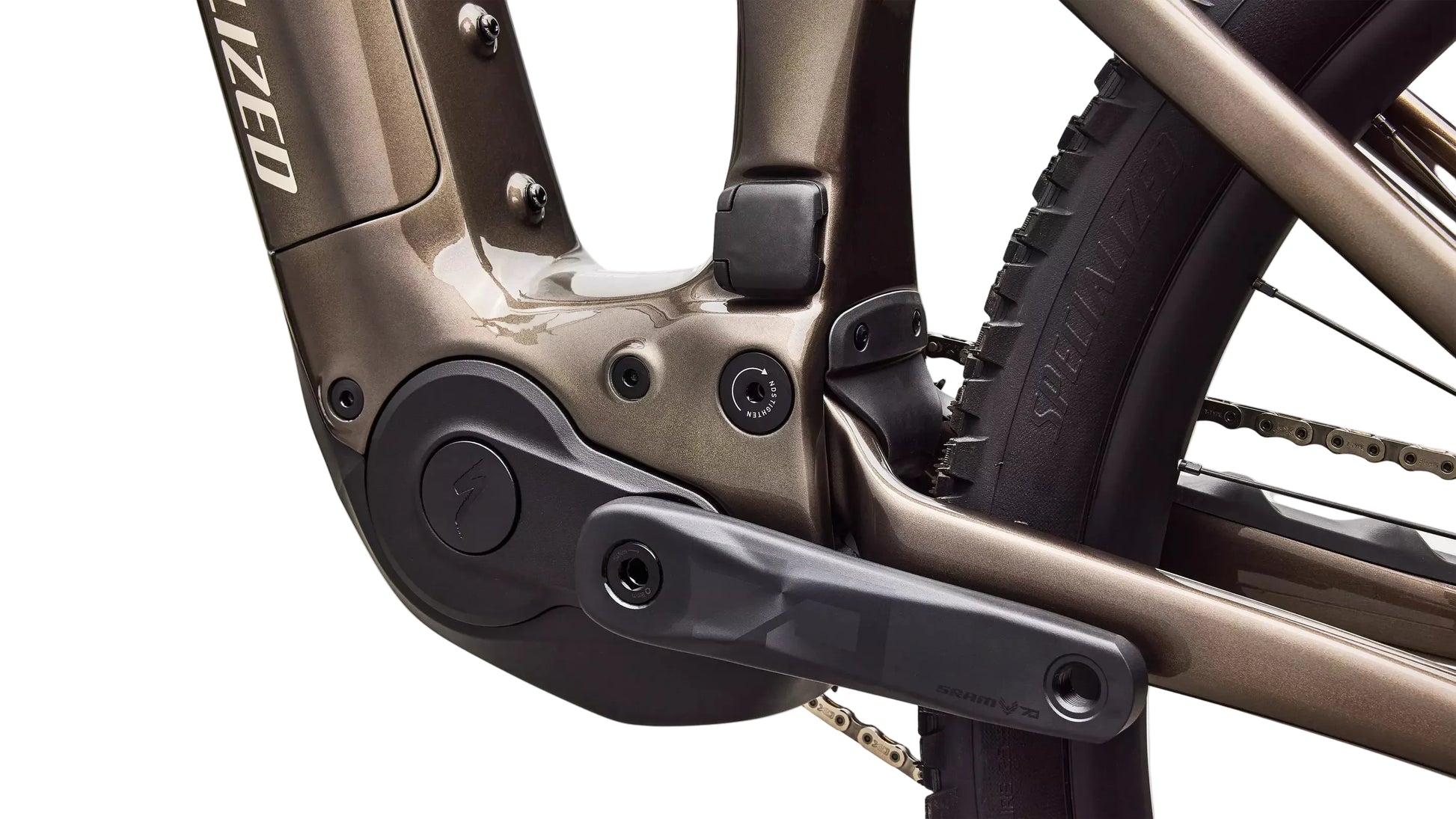

Motor
Specialized 3.1 Motor, 101Nm torque, 666W power
Charger
Specialized 4amp charger
Frameset
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
Fork
FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

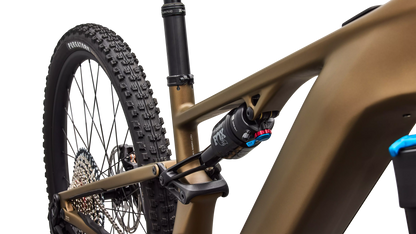

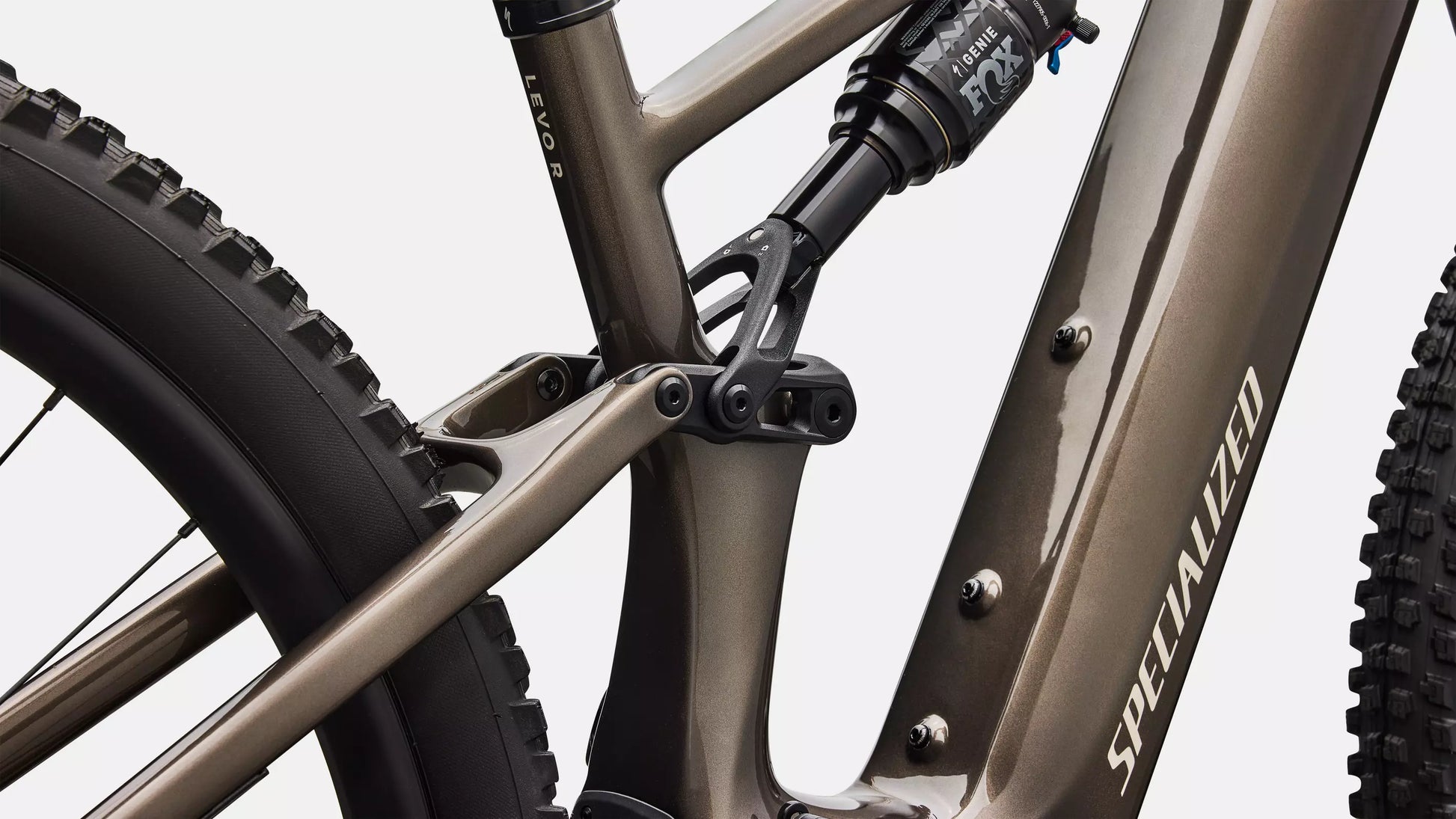

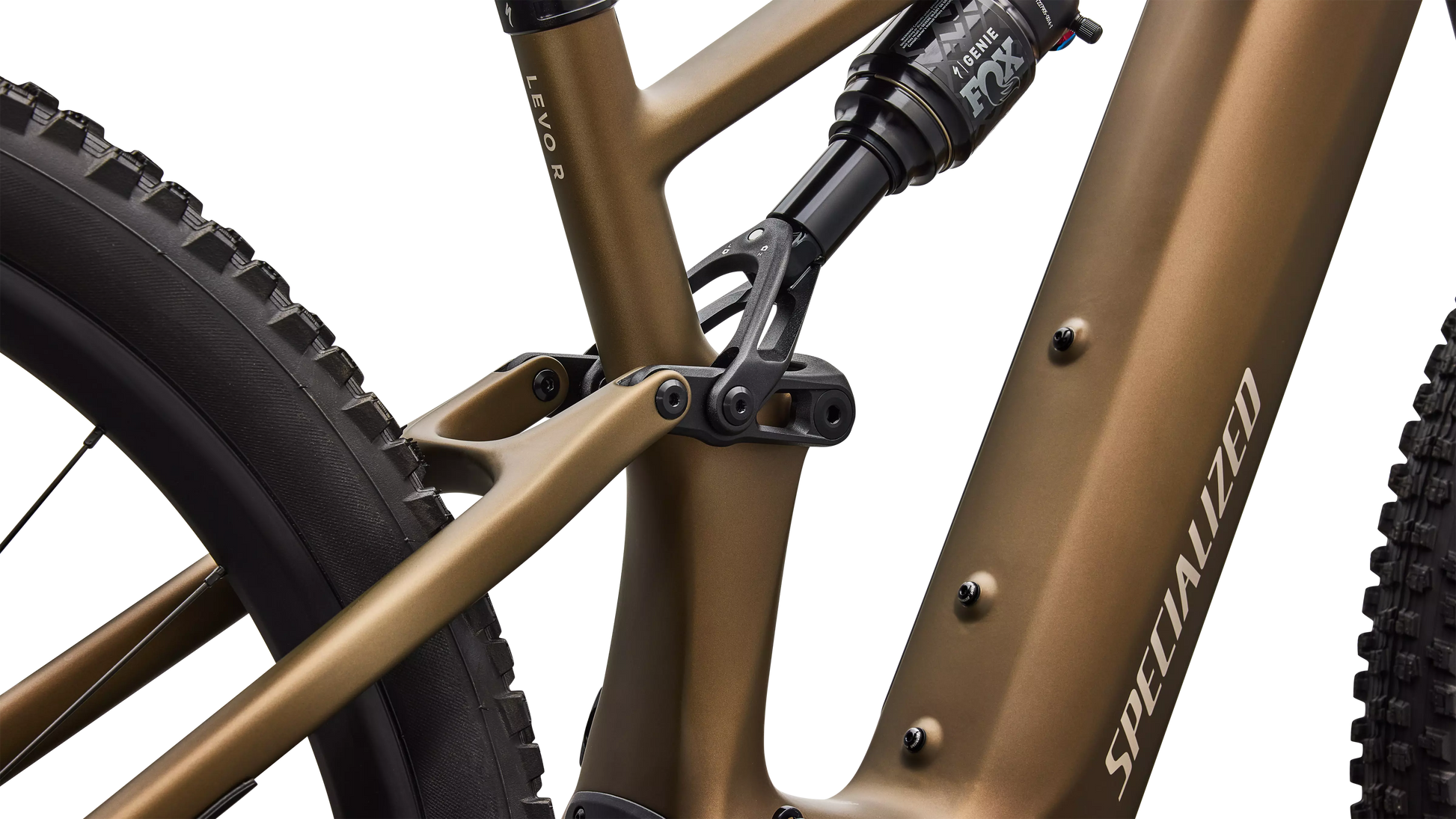

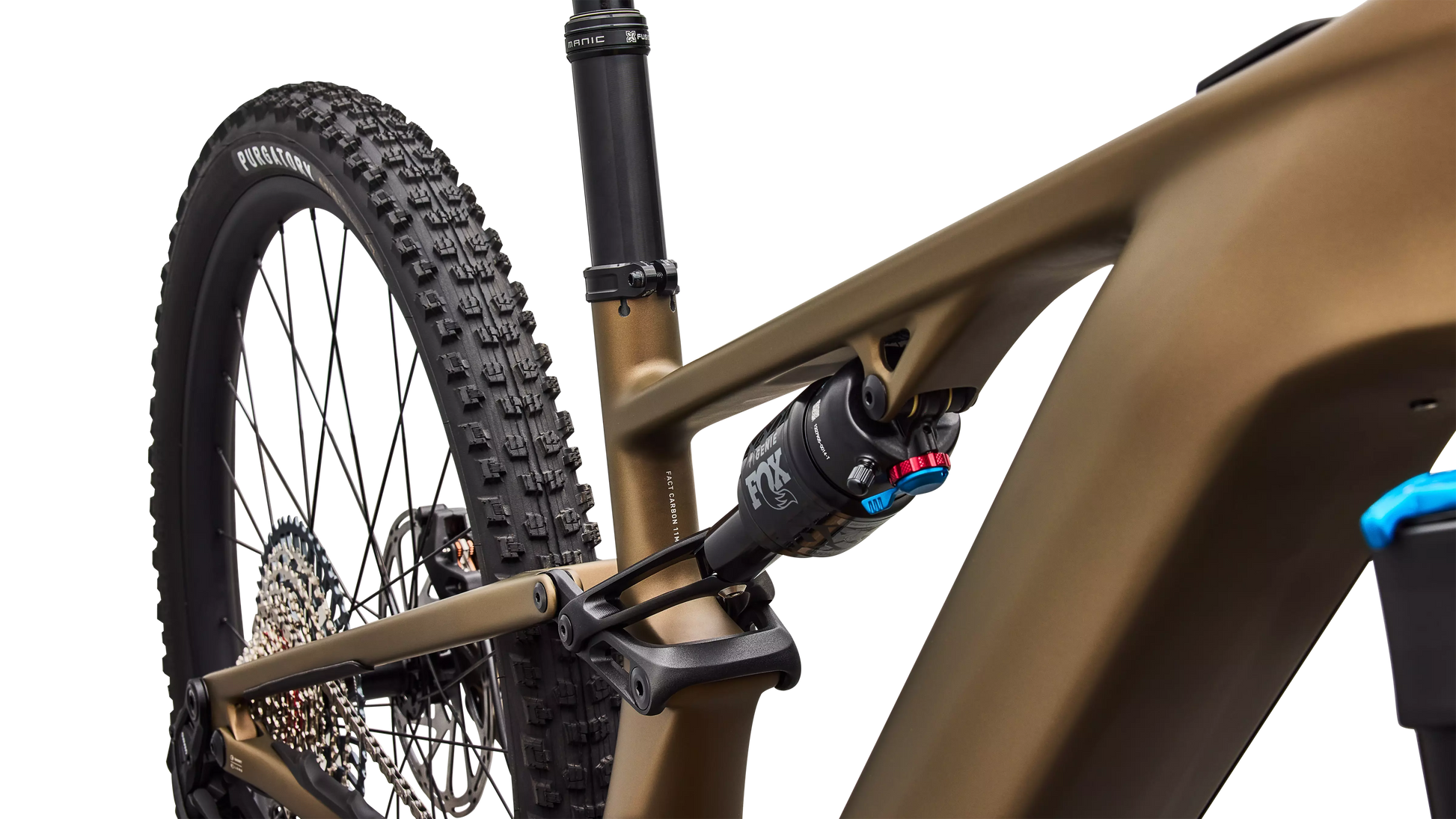

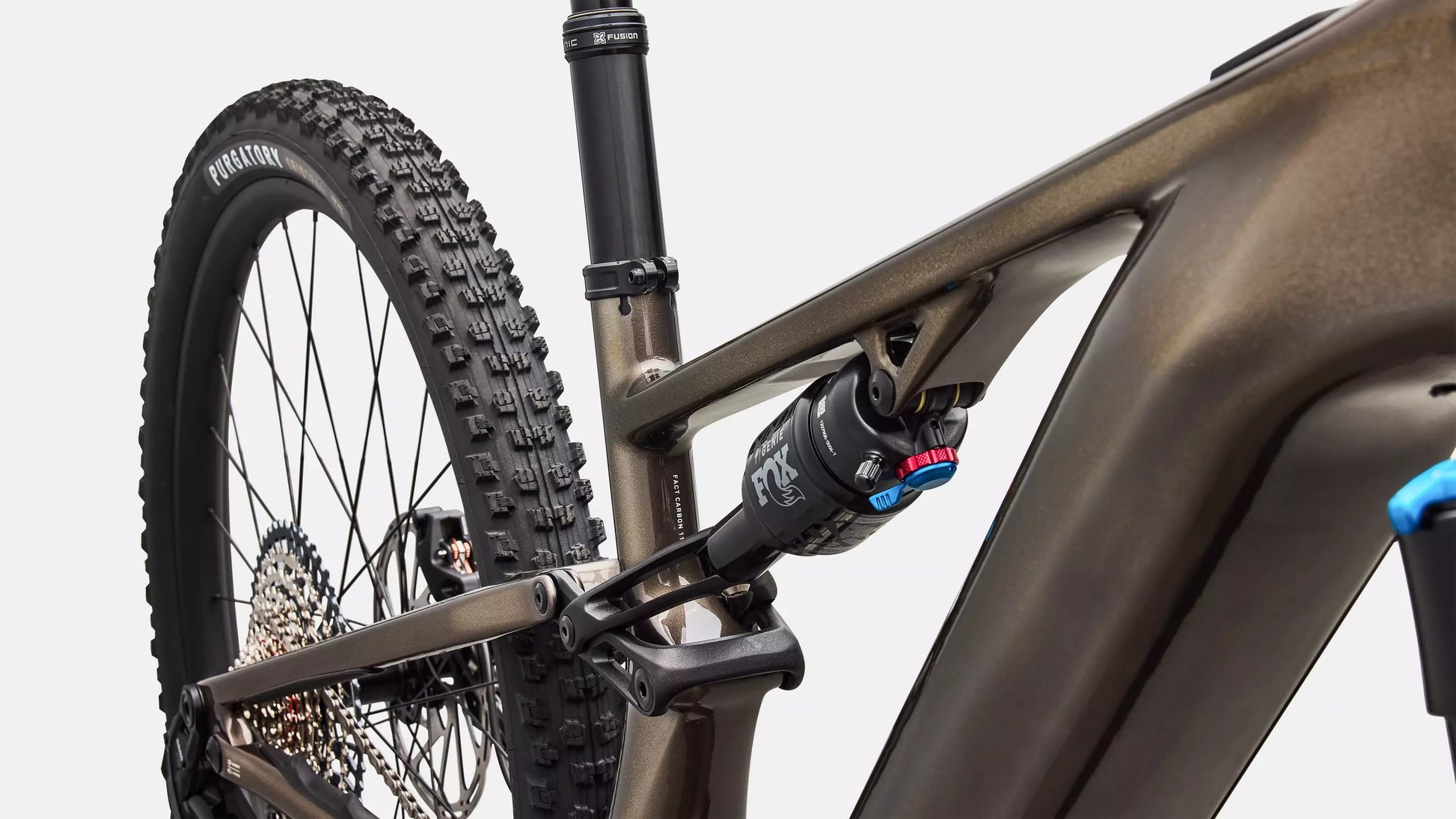

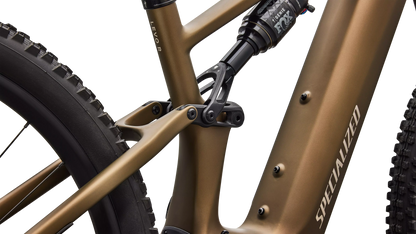

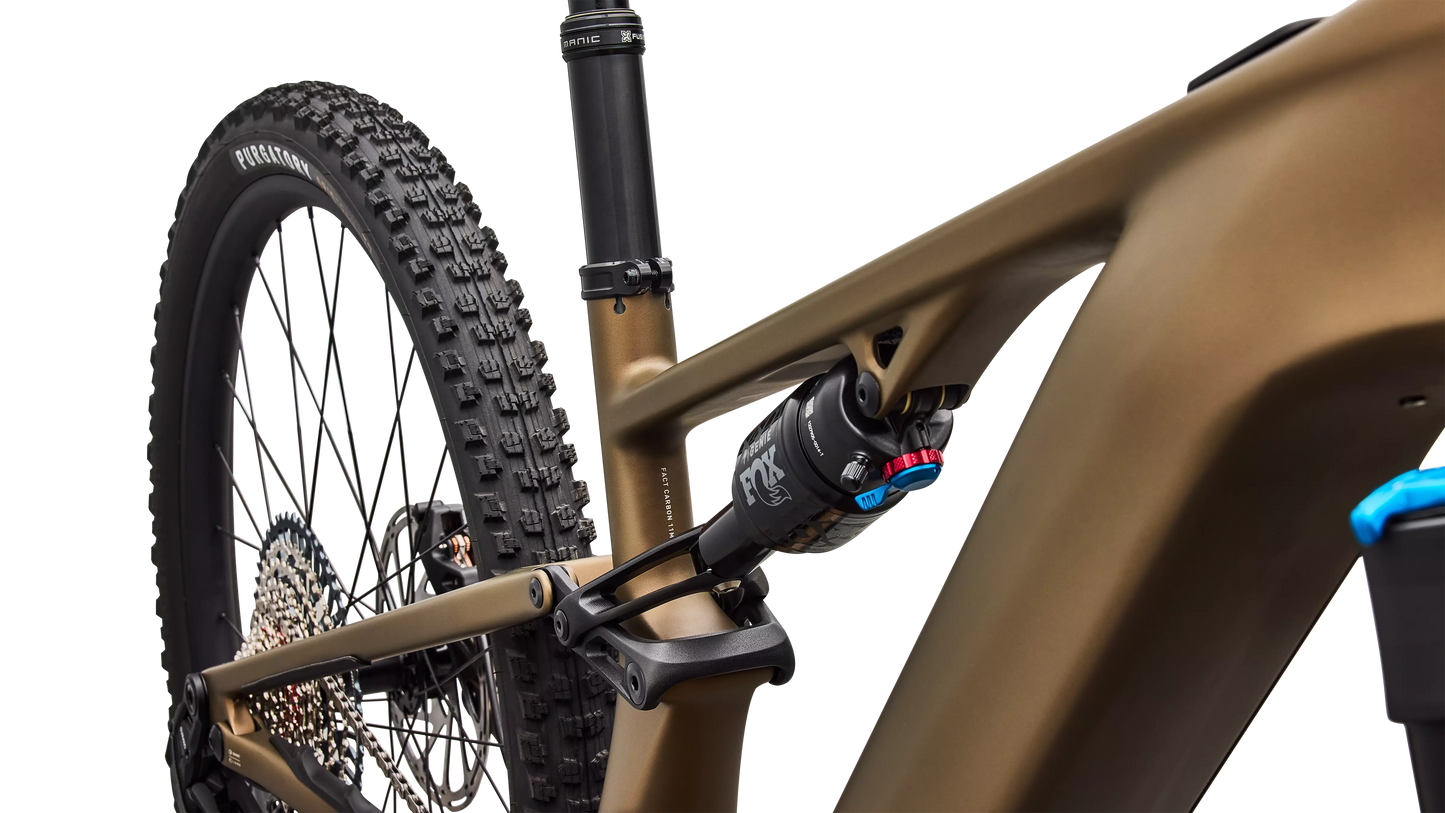

Rear Shock
FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Cassette
SRAM GX Transmission, XS 1275, 10-52t
Rear Derailleur
SRAM S-1000 Eagle AXS Transmission
Wheels & tires
Spokes
DT Swiss Elemental
Rear Hub
Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire
Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve

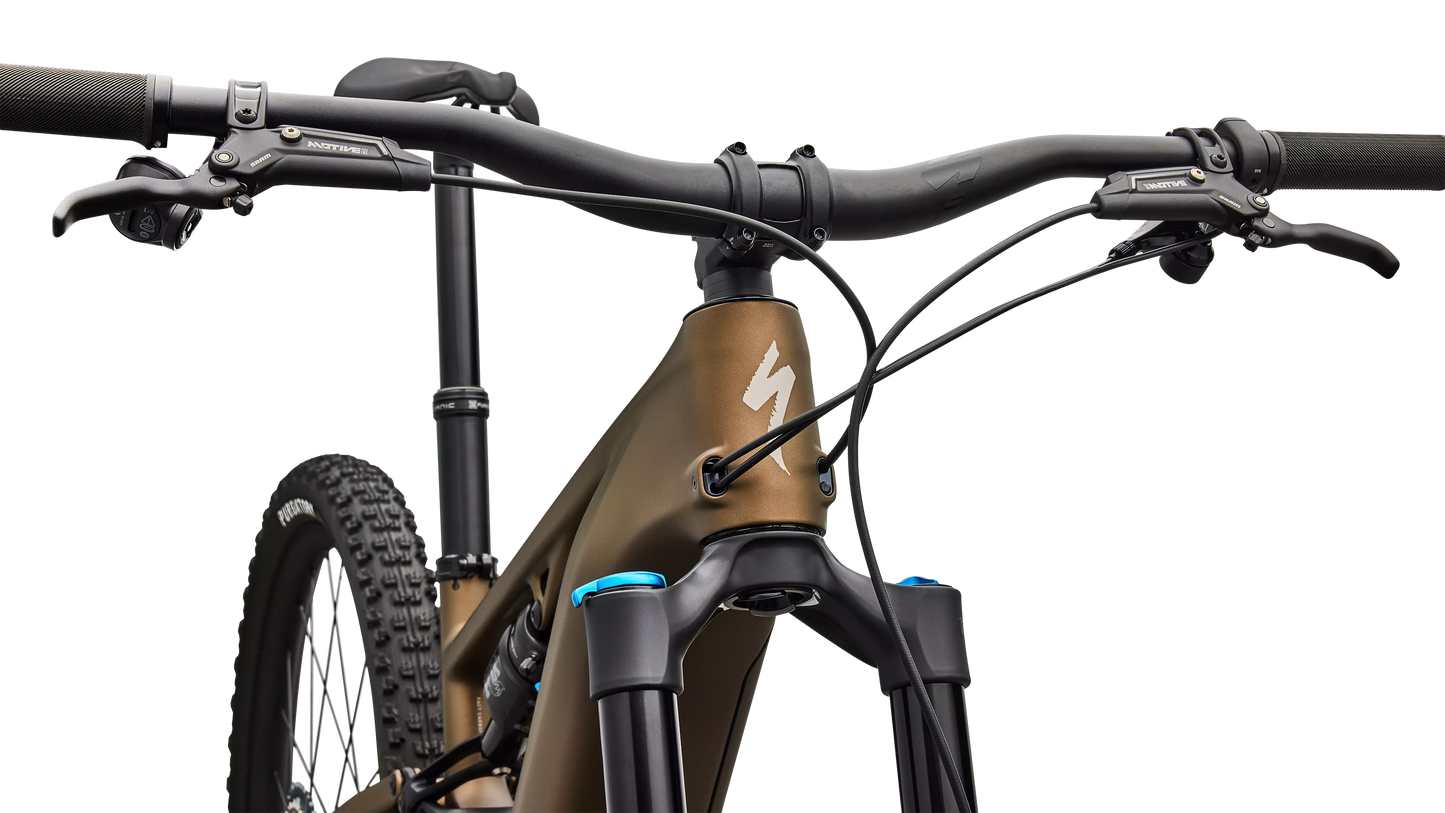

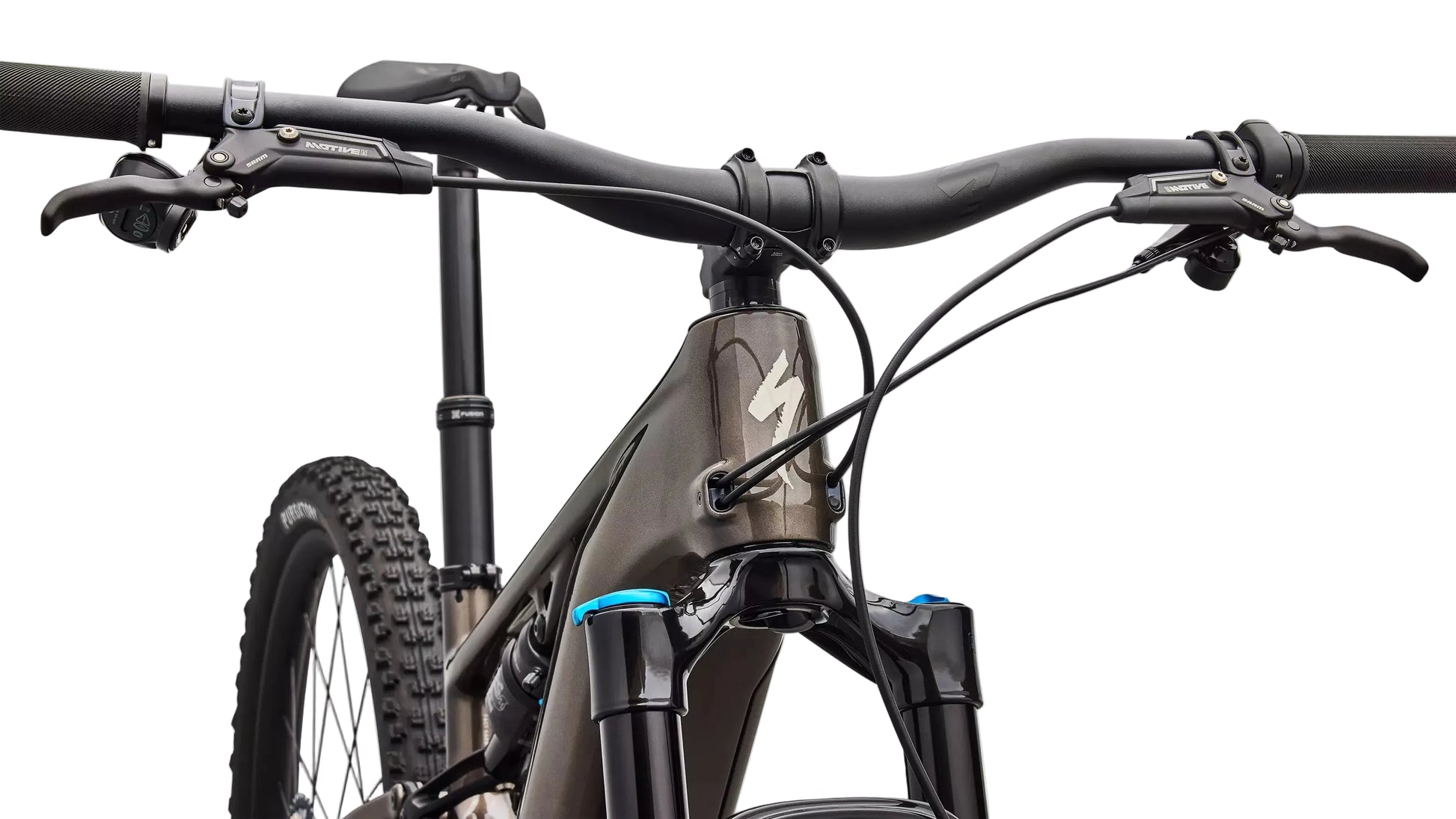

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Power Comp, steel rails

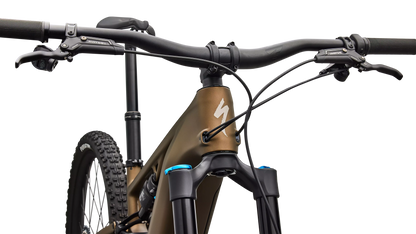

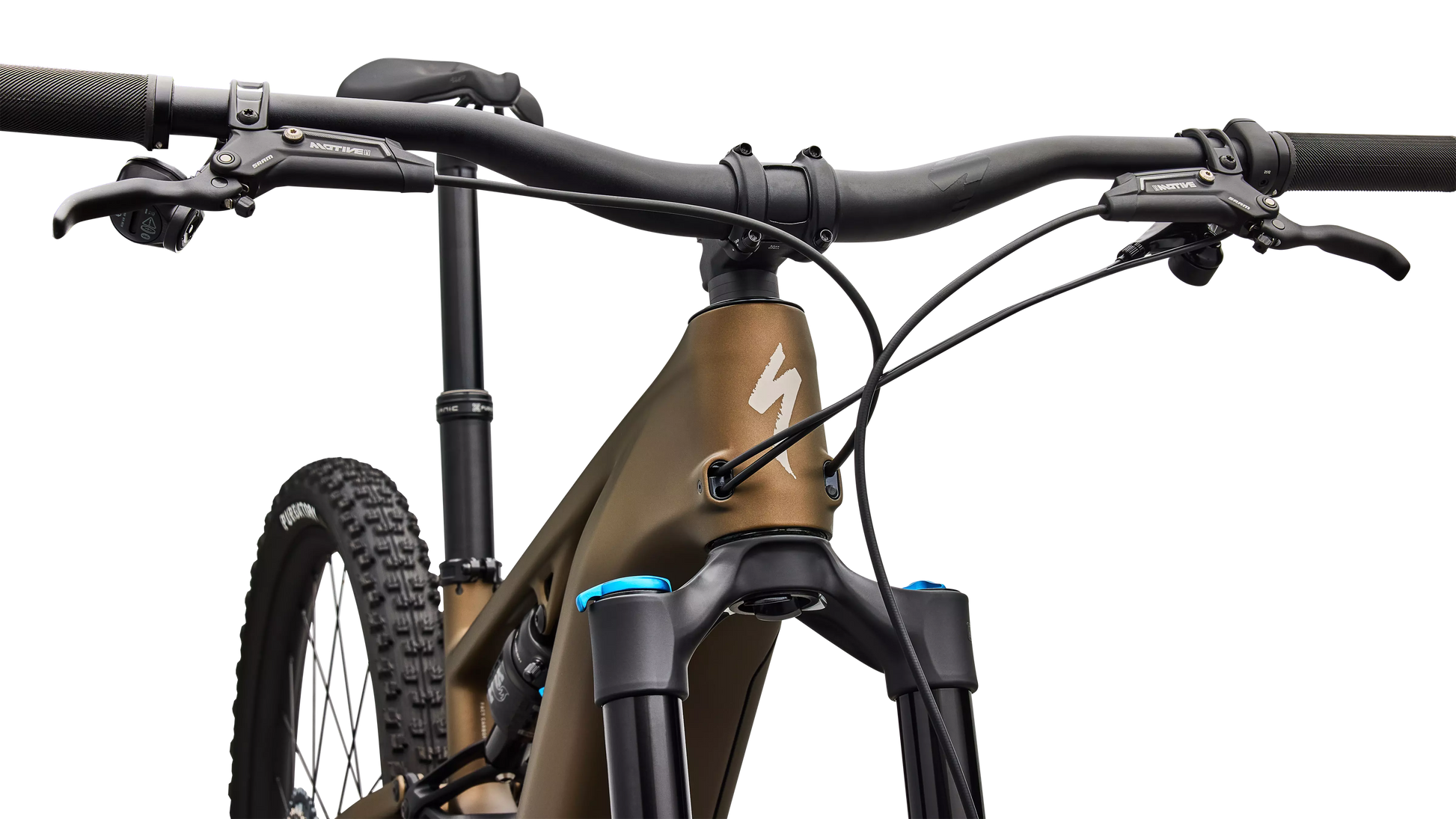

Handlebars
Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
Grips
Specialized Trail Grips
SeatPost
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
SWAT
SWAT internal downtube storage
Weight
Weight
22.34 kg (49 lb, 4.0 oz)
Weight Size
S3
Geometry
| S1 - 27.5 | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 | |
|---|---|---|---|---|---|---|
| Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 50 | 50 | 50 | 50 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 125 | 150 | 170 | 190 | 190 |
| Stack | 602 | 607 | 616 | 630 | 644 | 657 |
| Reach | 400 | 420 | 450 | 475 | 500 | 525 |
| Head-Tube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| Head-Tube Angle | 64.8 | 65 | 65 | 65 | 65 | 65 |
| B-B Height (low) | 339 | 339 | 339 | 339 | 339 | 339 |
| B-B Drop | 36 | 36 | 36 | 36 | 36 | 36 |
| Trail | 128 | 126 | 126 | 126 | 126 | 126 |
| Fork Length (full) | 550 | 550 | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 716 | 736 | 770 | 801 | 833 | 863 |
| Chain-Stay length | 447 | 447 | 447 | 447 | 447 | 447 |
| Wheelbase | 1160 | 1181 | 1215 | 1246 | 1277 | 1309 |
| Top-Tube Length (horizontal) | 539 | 560 | 592 | 620 | 649 | 677 |
| Bike Stand-Over Height | 761 | 763 | 773 | 783 | 793 | 803 |
| Seat-Tube Length | 375 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 77 | 77 | 77 | 77 | 77 | 77 |
| Seat Post Max Insertion | 292 | 312 | 210 | 227 | 249 | 271 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
