SPECIALIZED

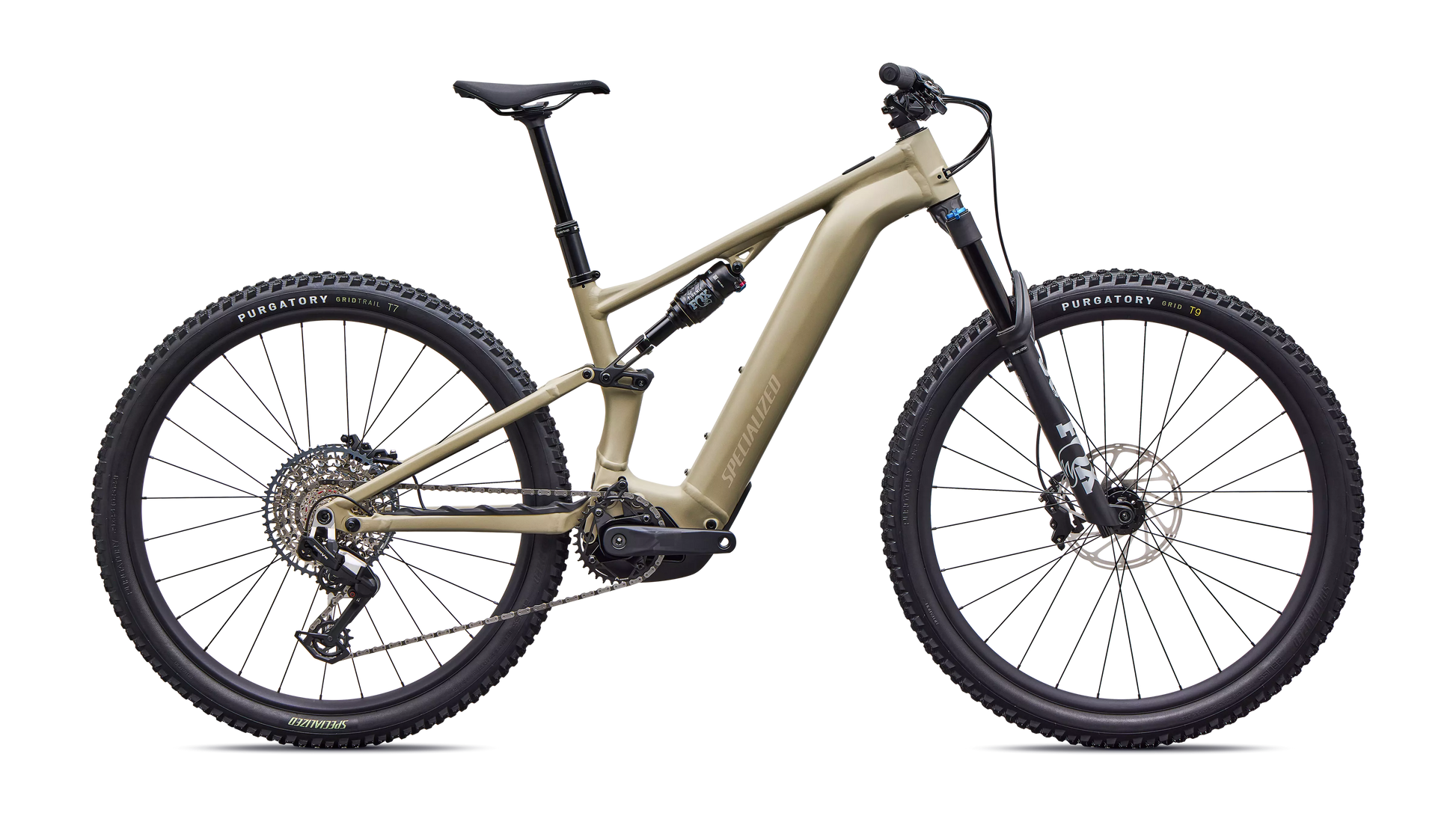

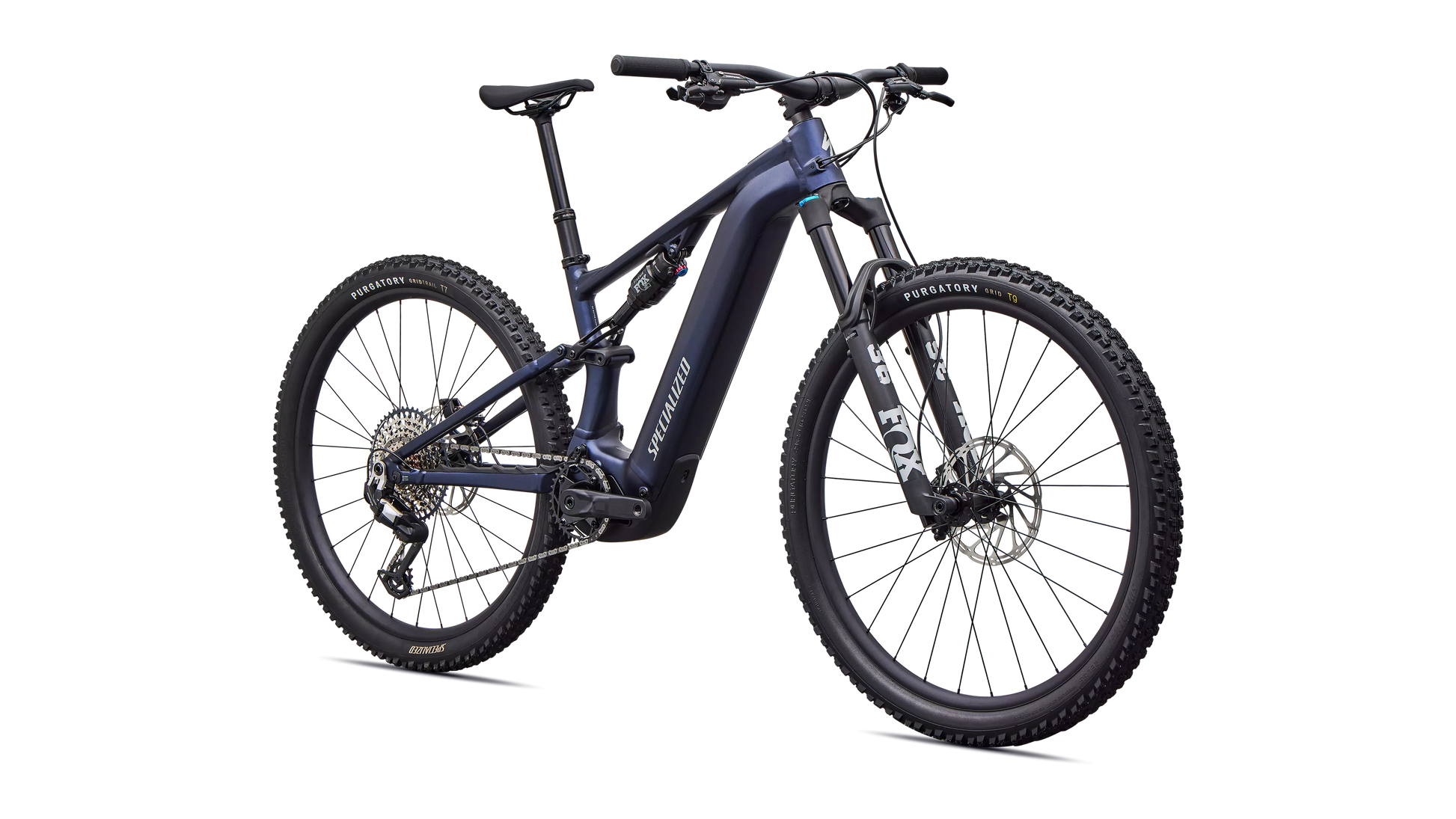

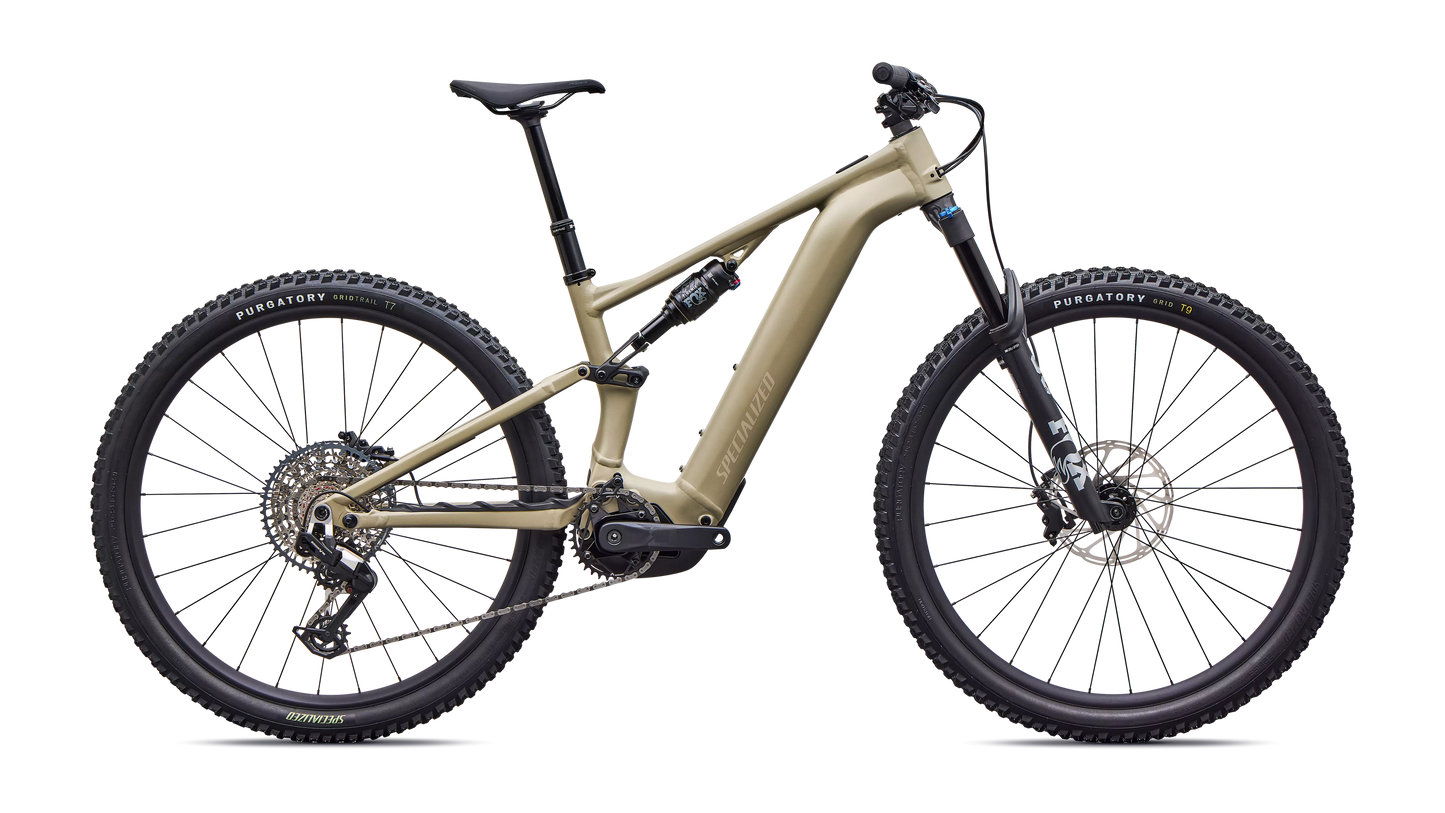

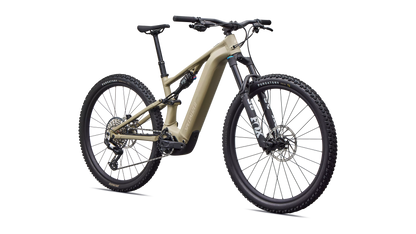

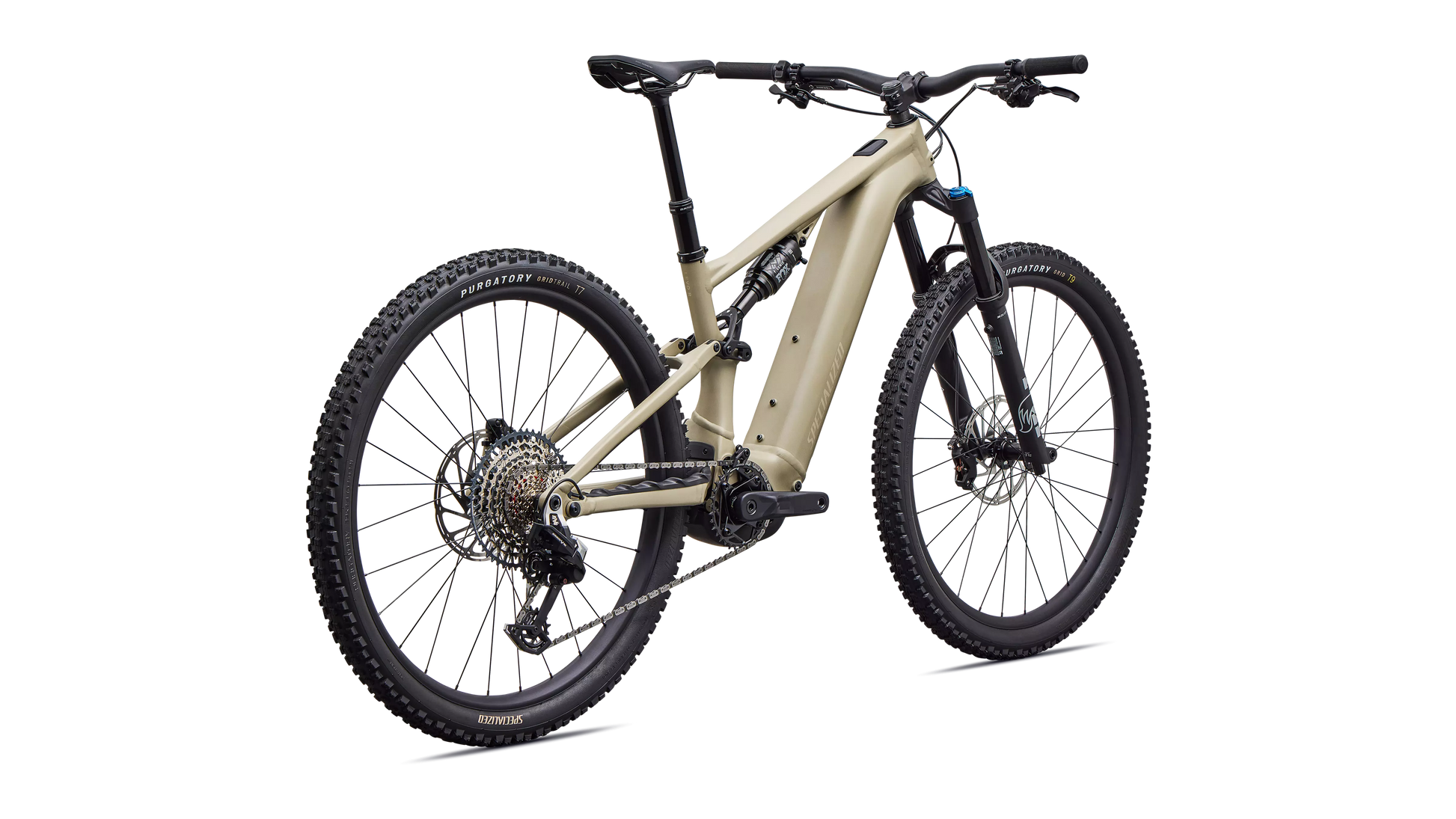

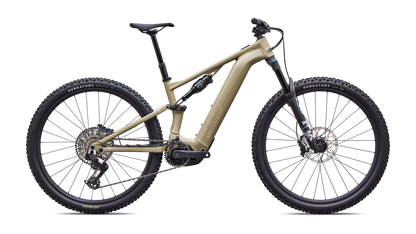

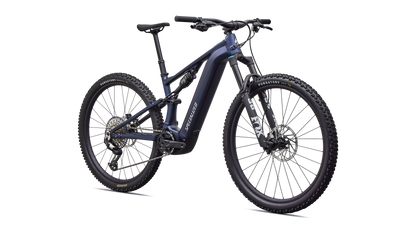

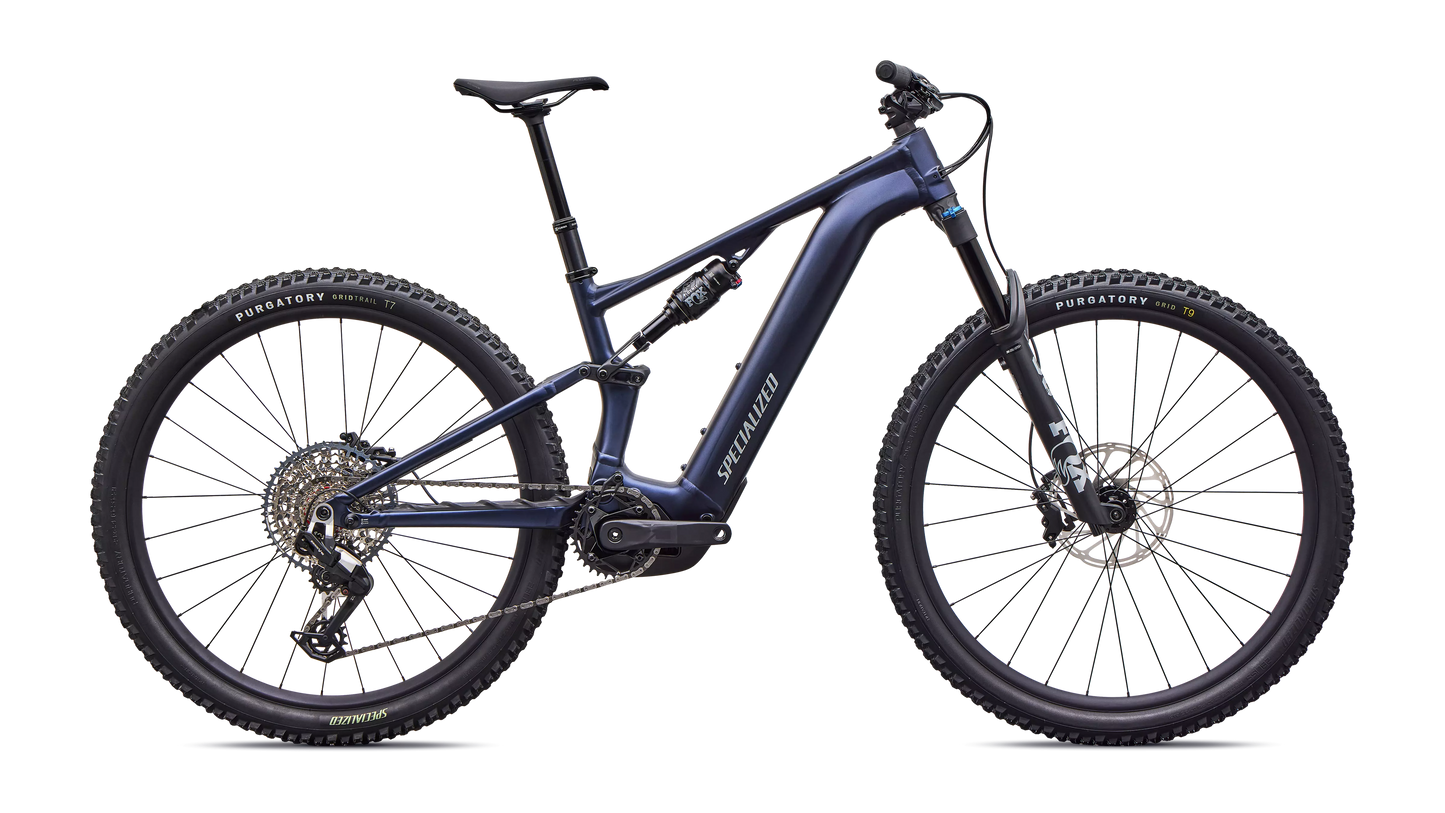

Turbo Levo R Comp Alloy
Turbo Levo R Comp Alloy
SKU:95727-5203
In stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
SuperNatural Power, Agility, and Range
Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 - but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and Electric‑Rally‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean. This is Electric Rally.
At a Glance
Use
- Full Power Electric Rally
E-System
- Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame
- M5 Aluminum, Geo Adj & SWAT Storage
Suspension
- Front: 140mm FOX 36 SL Performance GRIP
- Rear: 130mm GENIE - FOX FLOAT Performance
Drivetrain
- SRAM Eagle 90 Transmission
Wheels
- Specialized Alloy Wheels
Technical Specifications
E-bike
Battery
840Wh battery

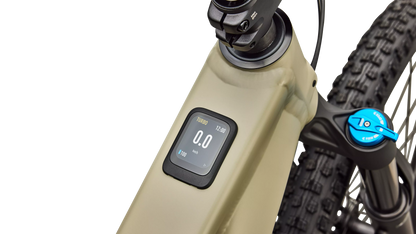

UI/Remote

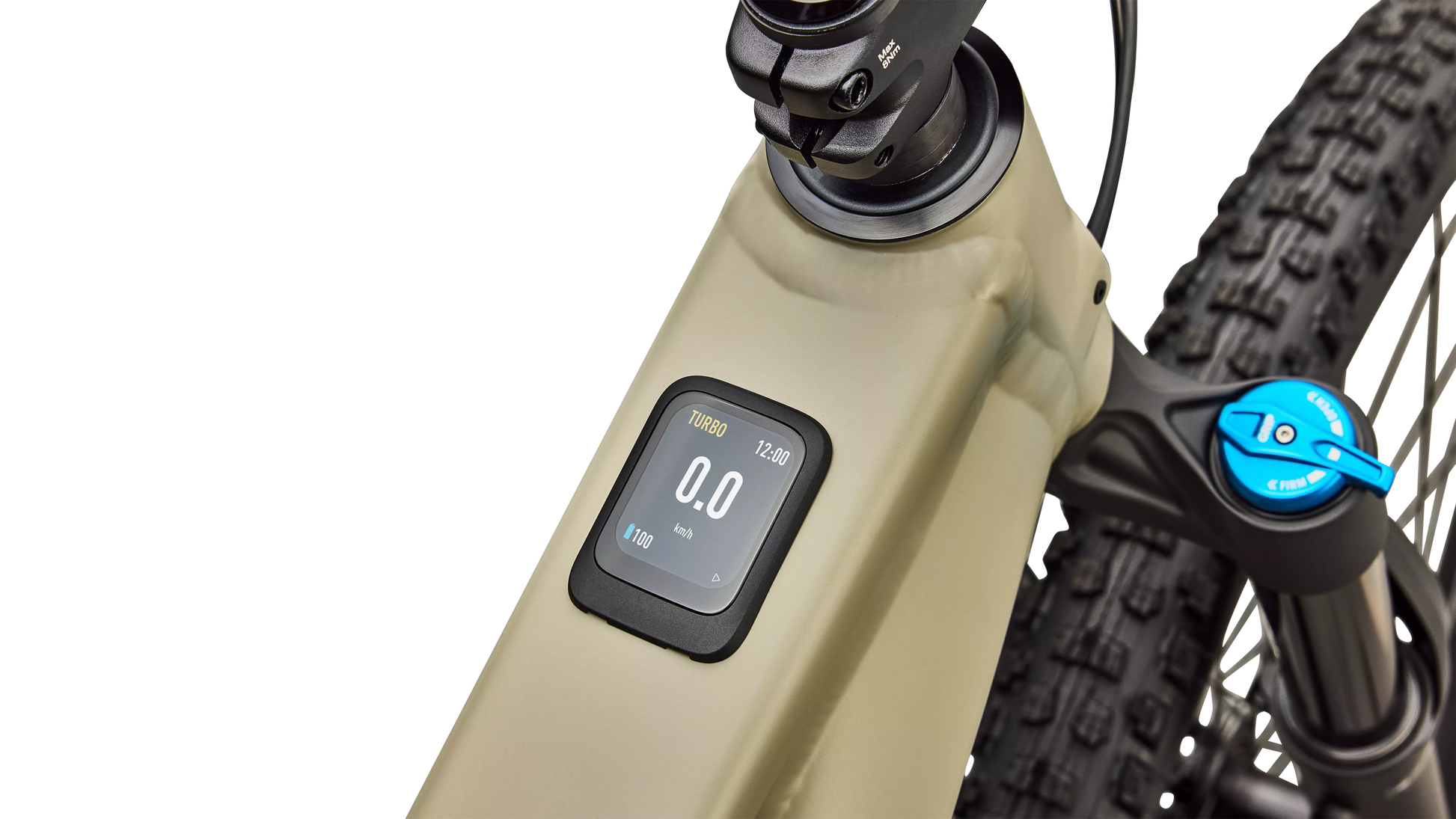

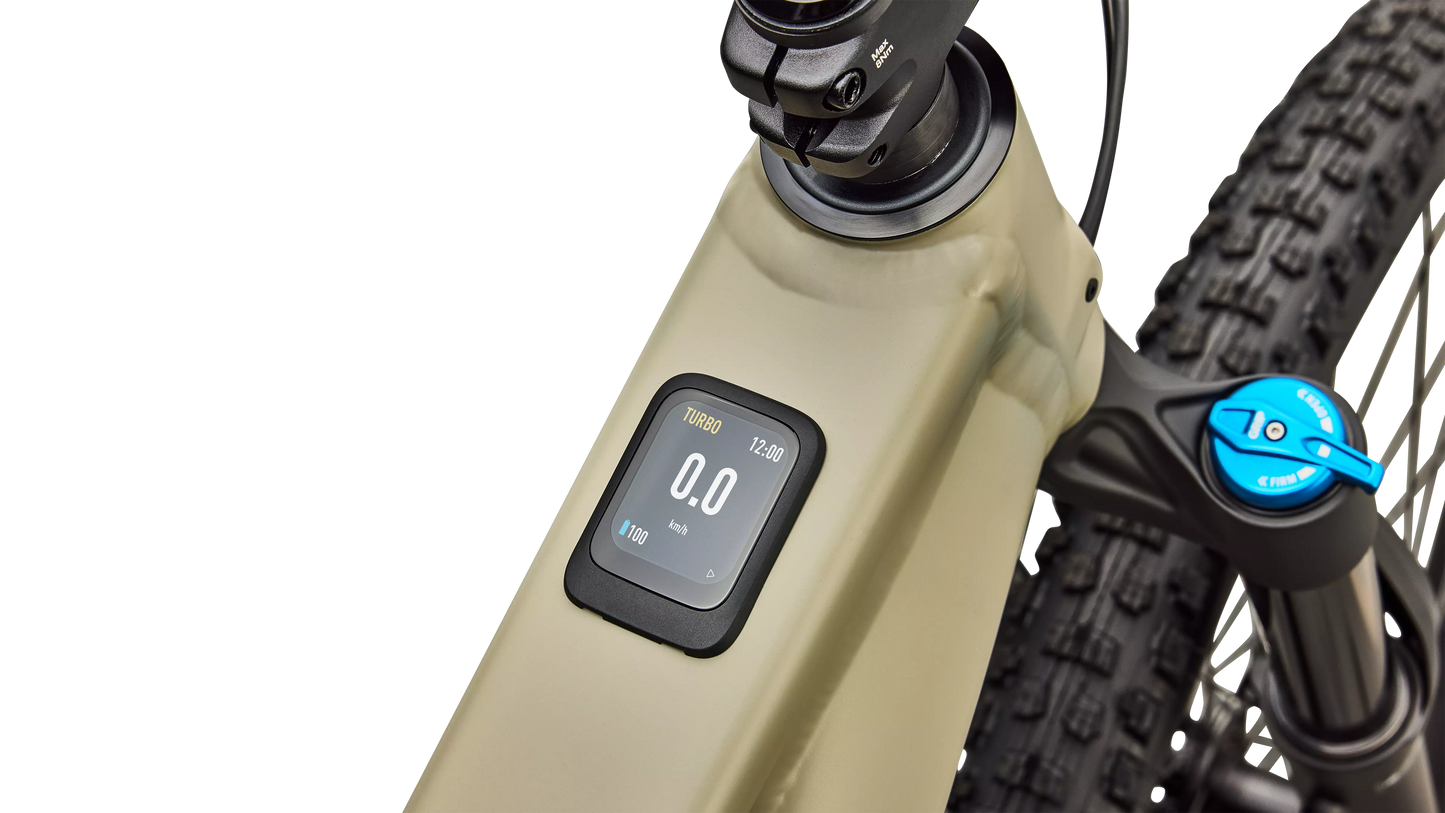

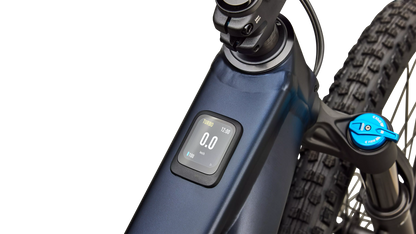

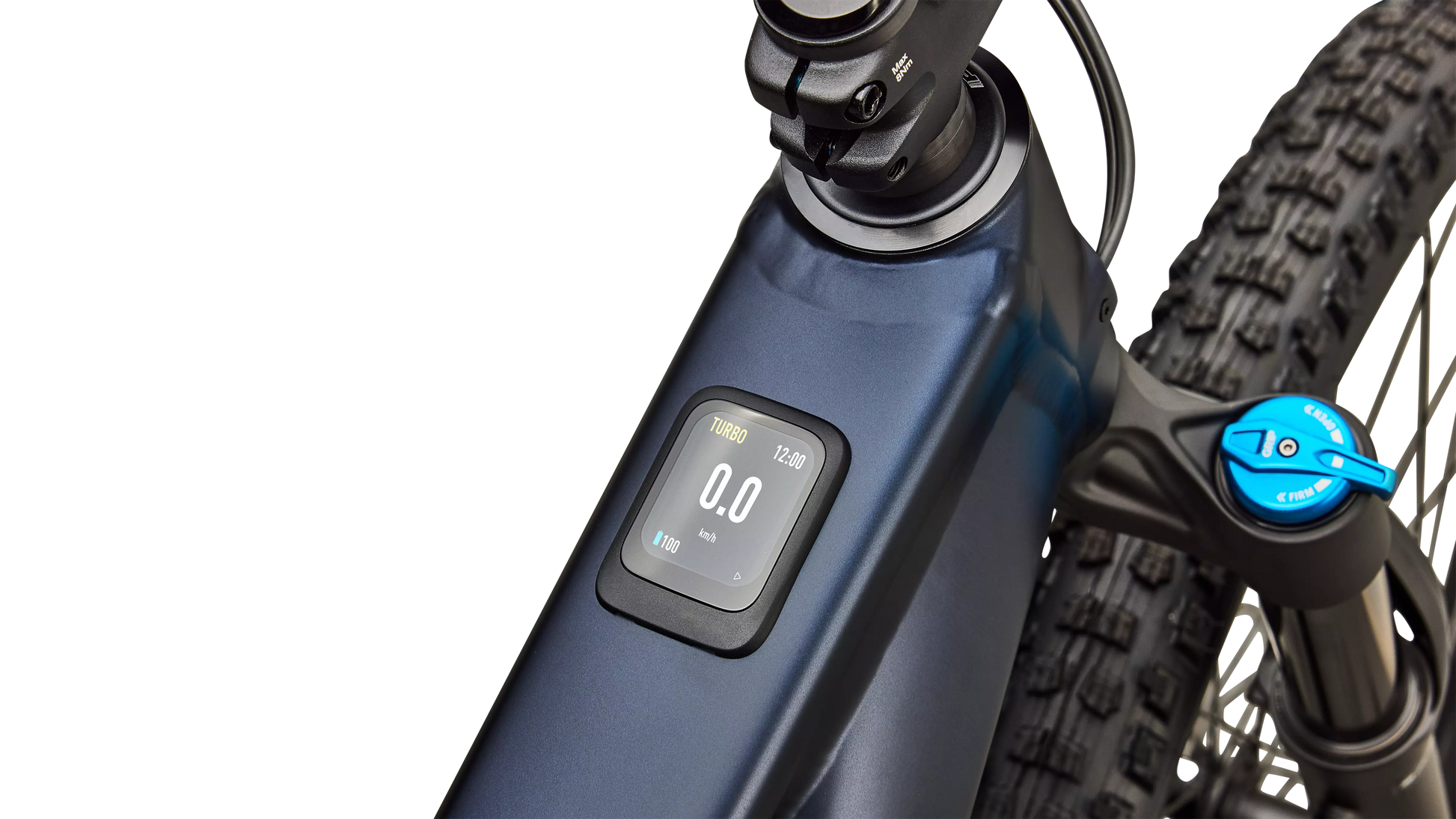

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

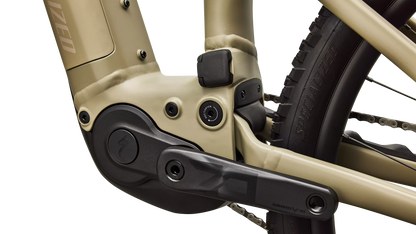

Motor

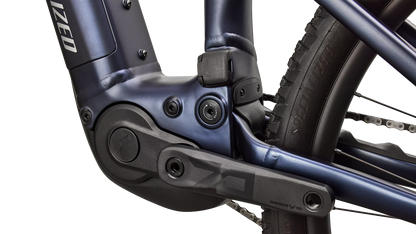

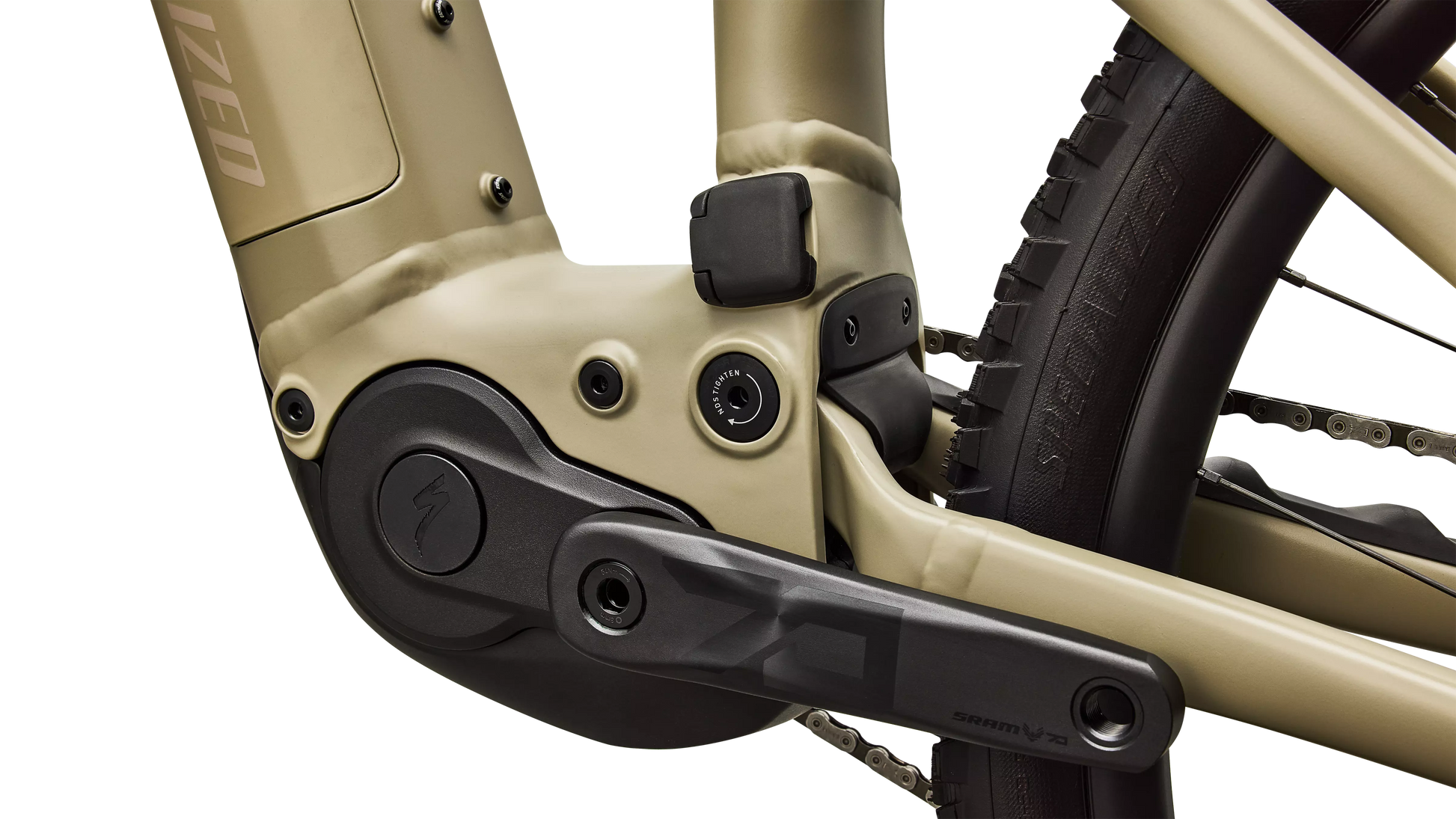

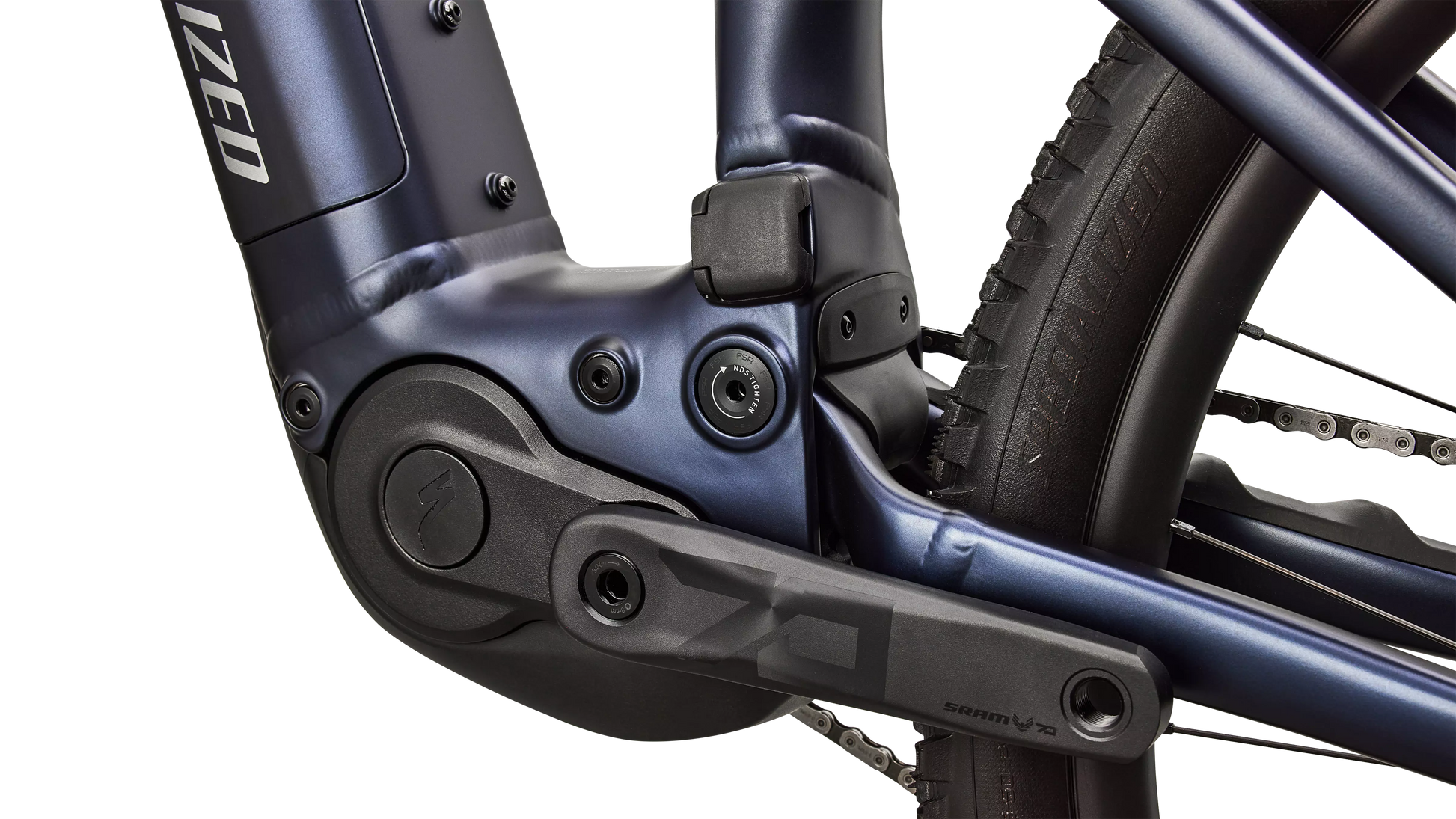

Specialized 3.1 Motor, 105Nm torque, 810W power
Charger
Specialized 4amp charger
Frameset
Seat Binder
Alloy, 38.6mm
Frame
M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
Fork
FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

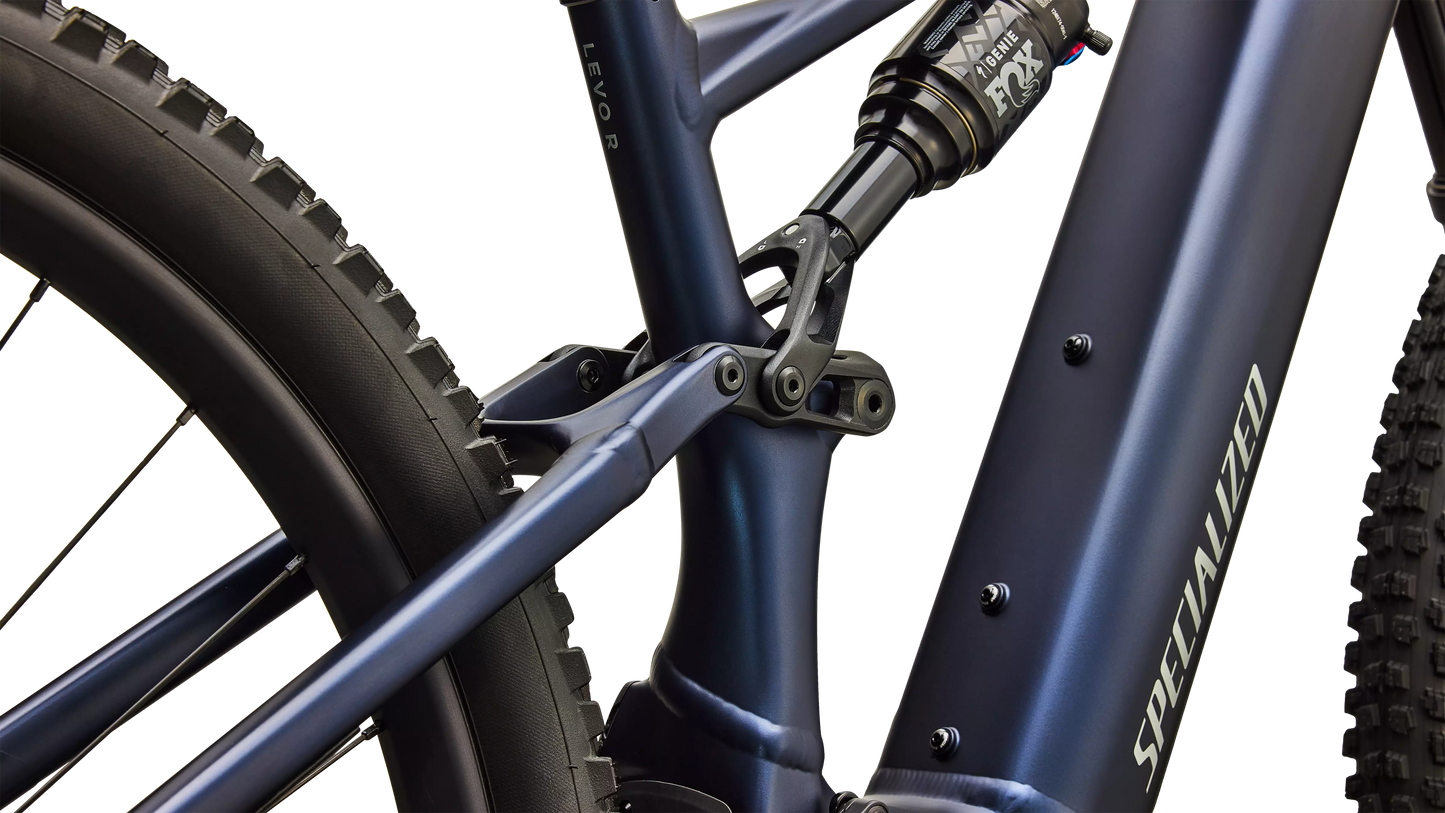

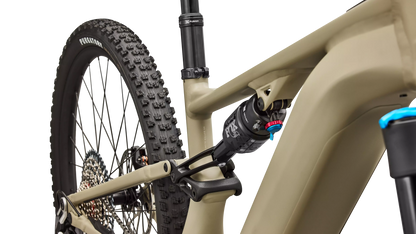

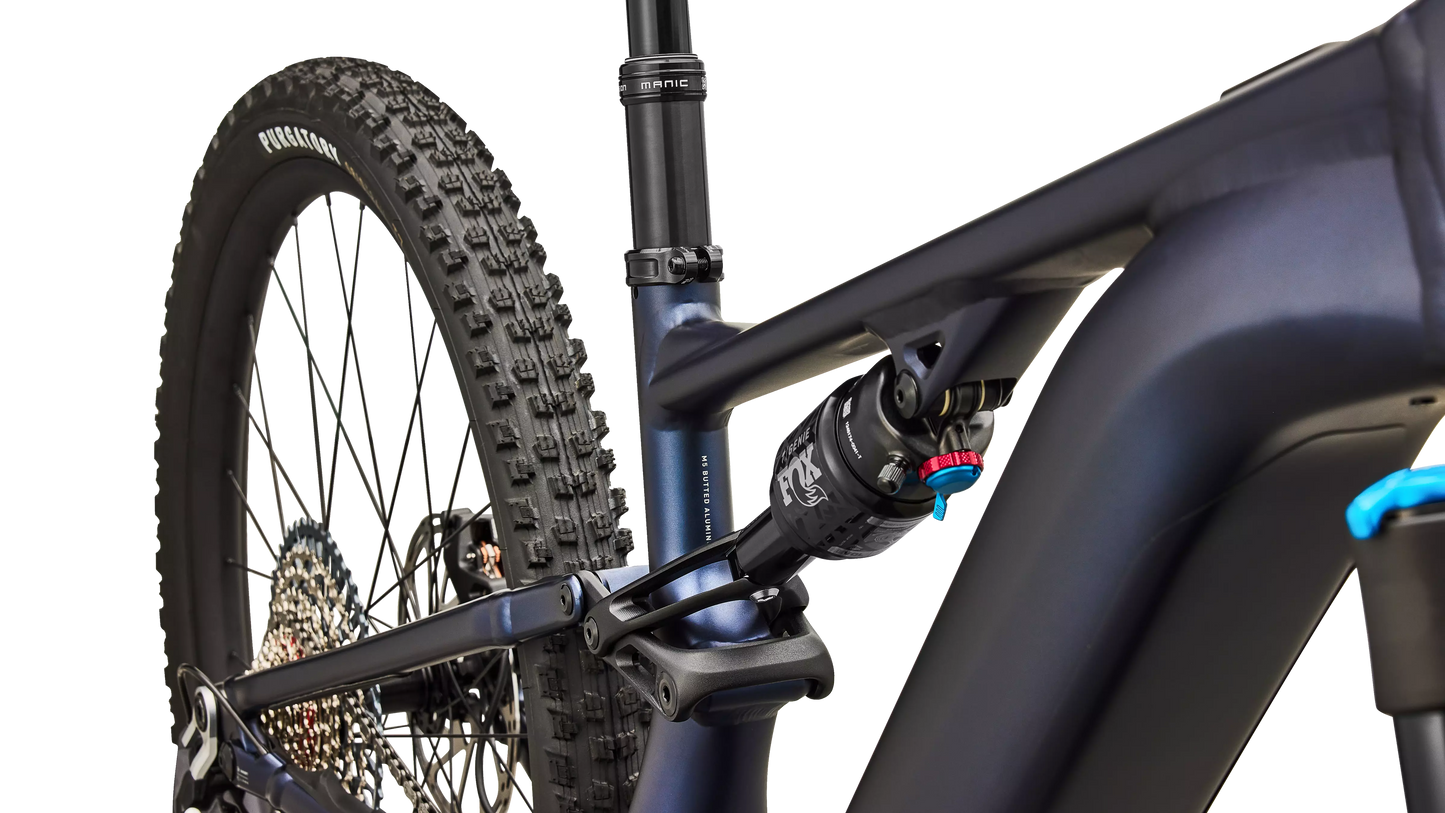

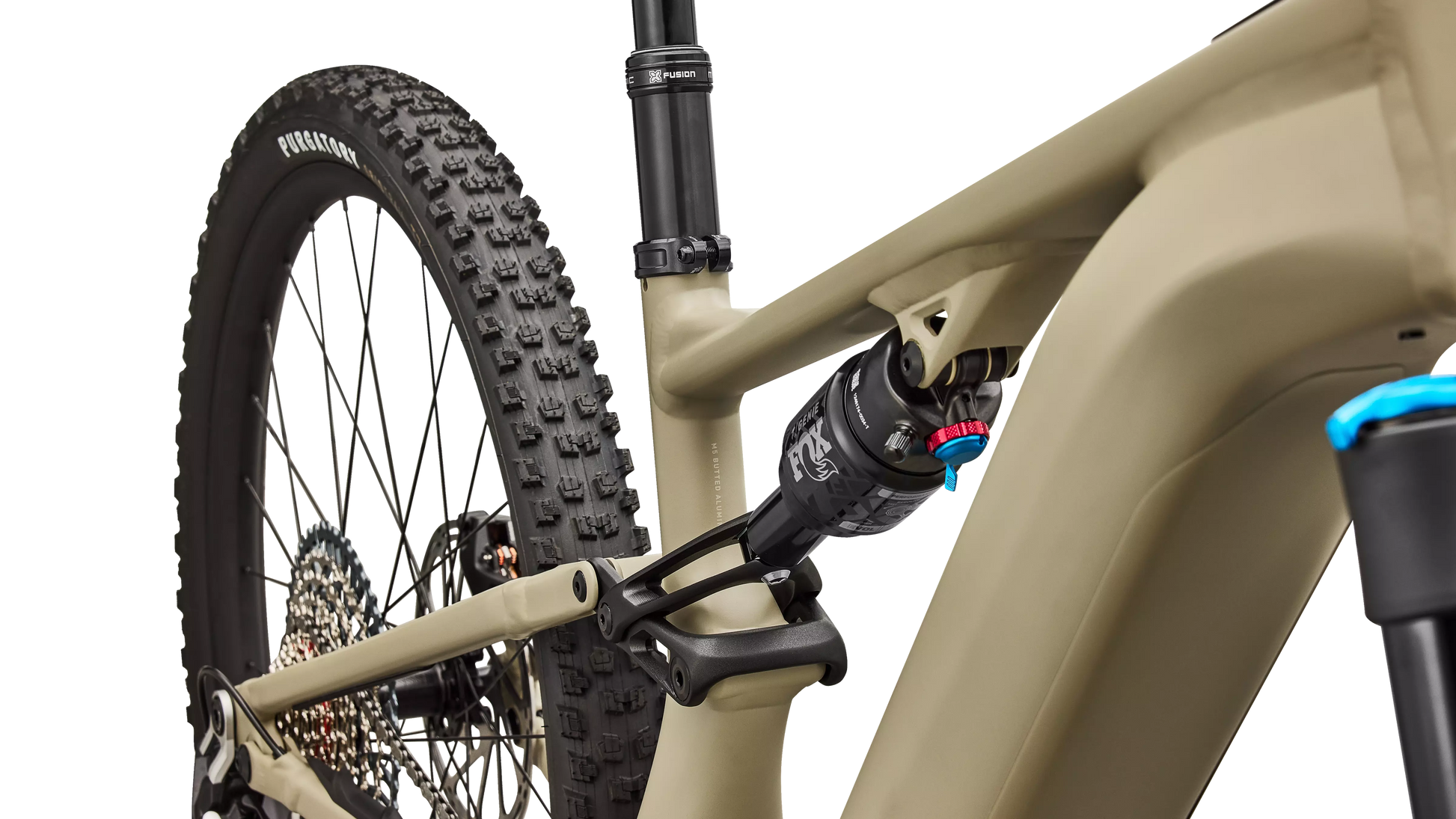

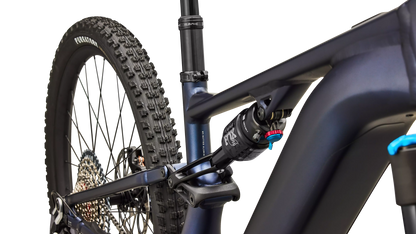

Rear Shock

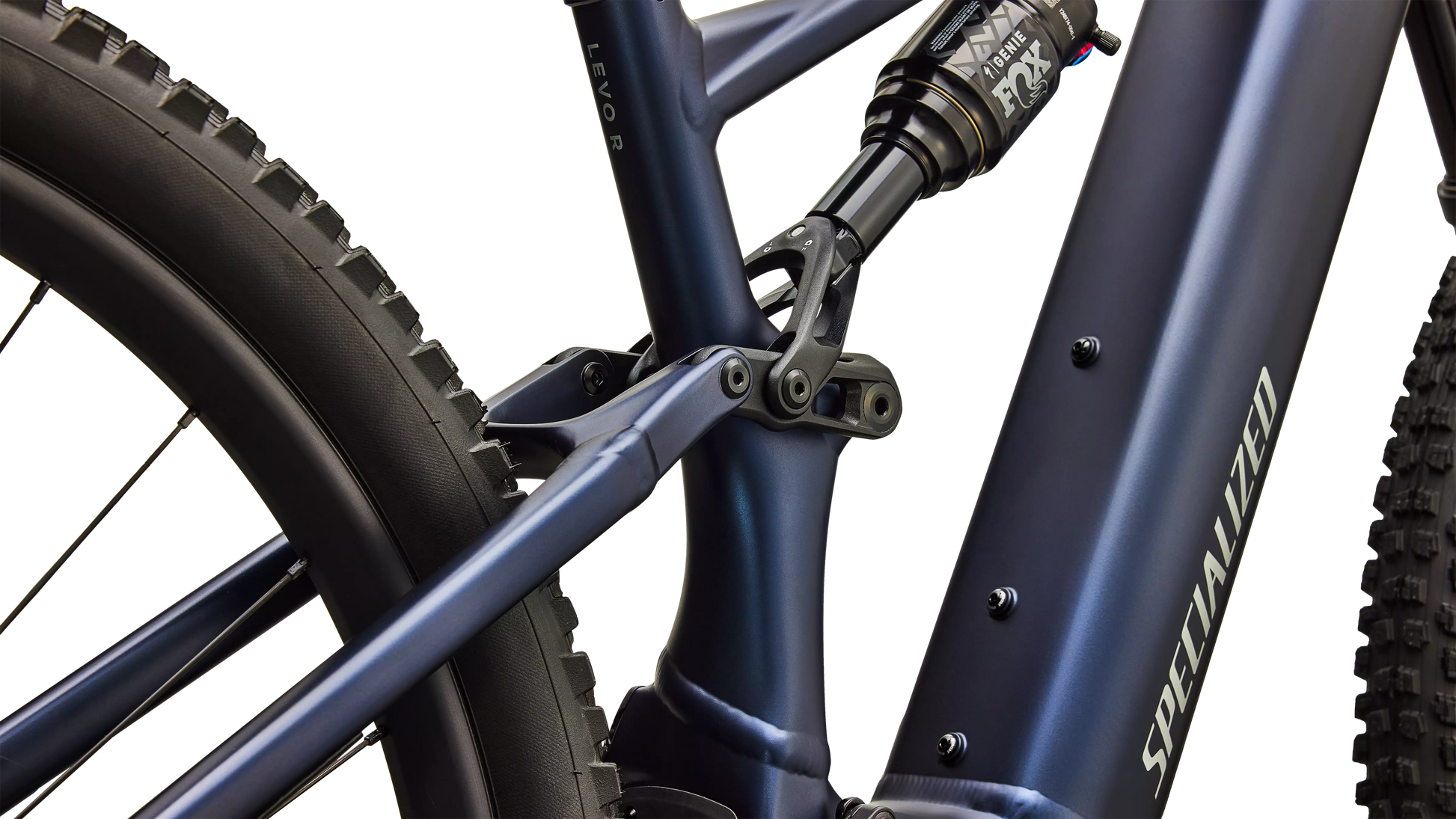

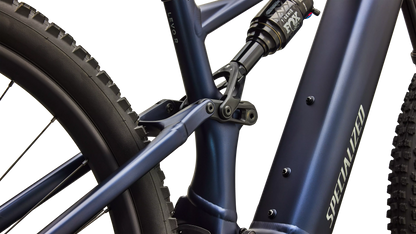

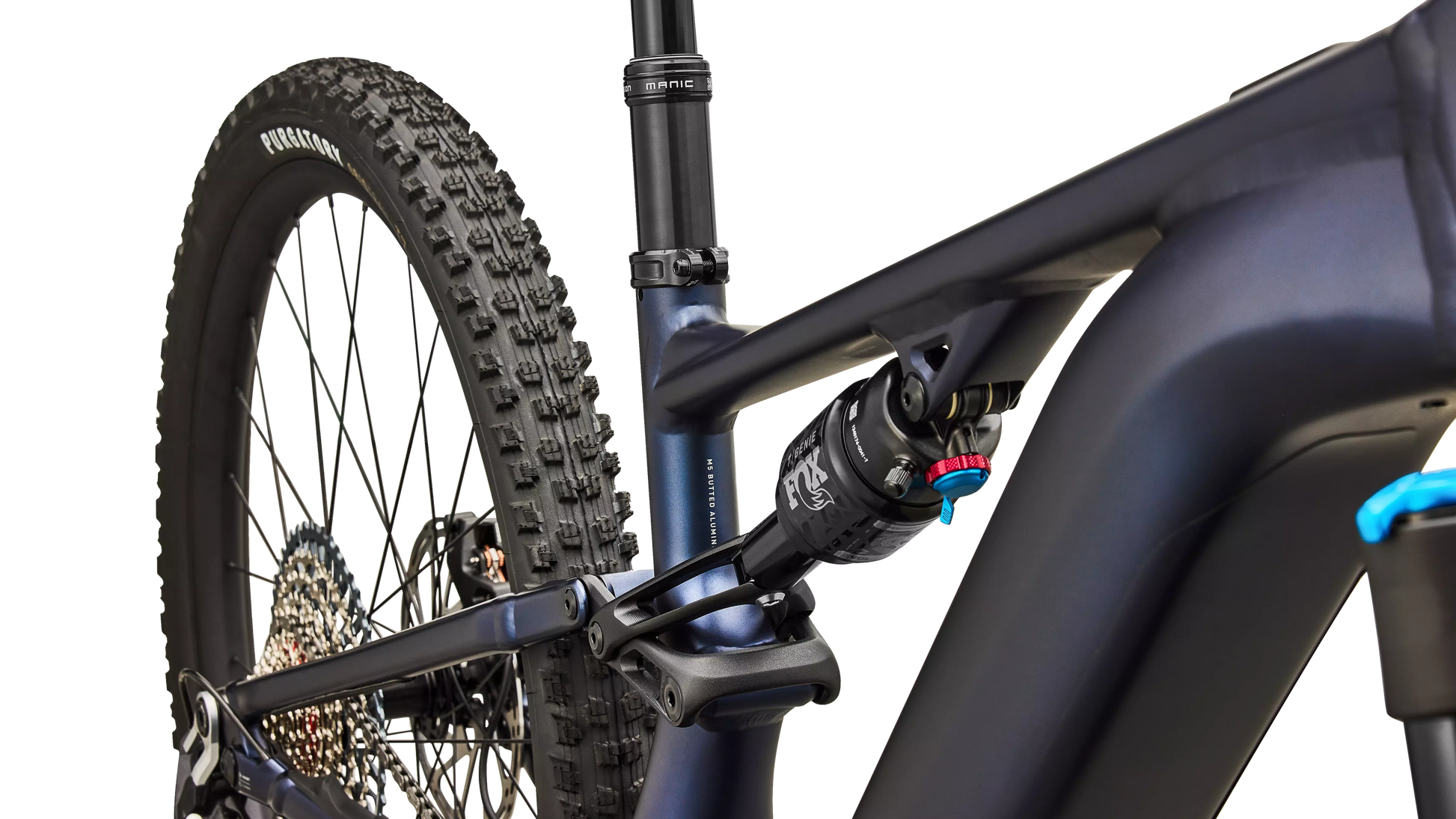

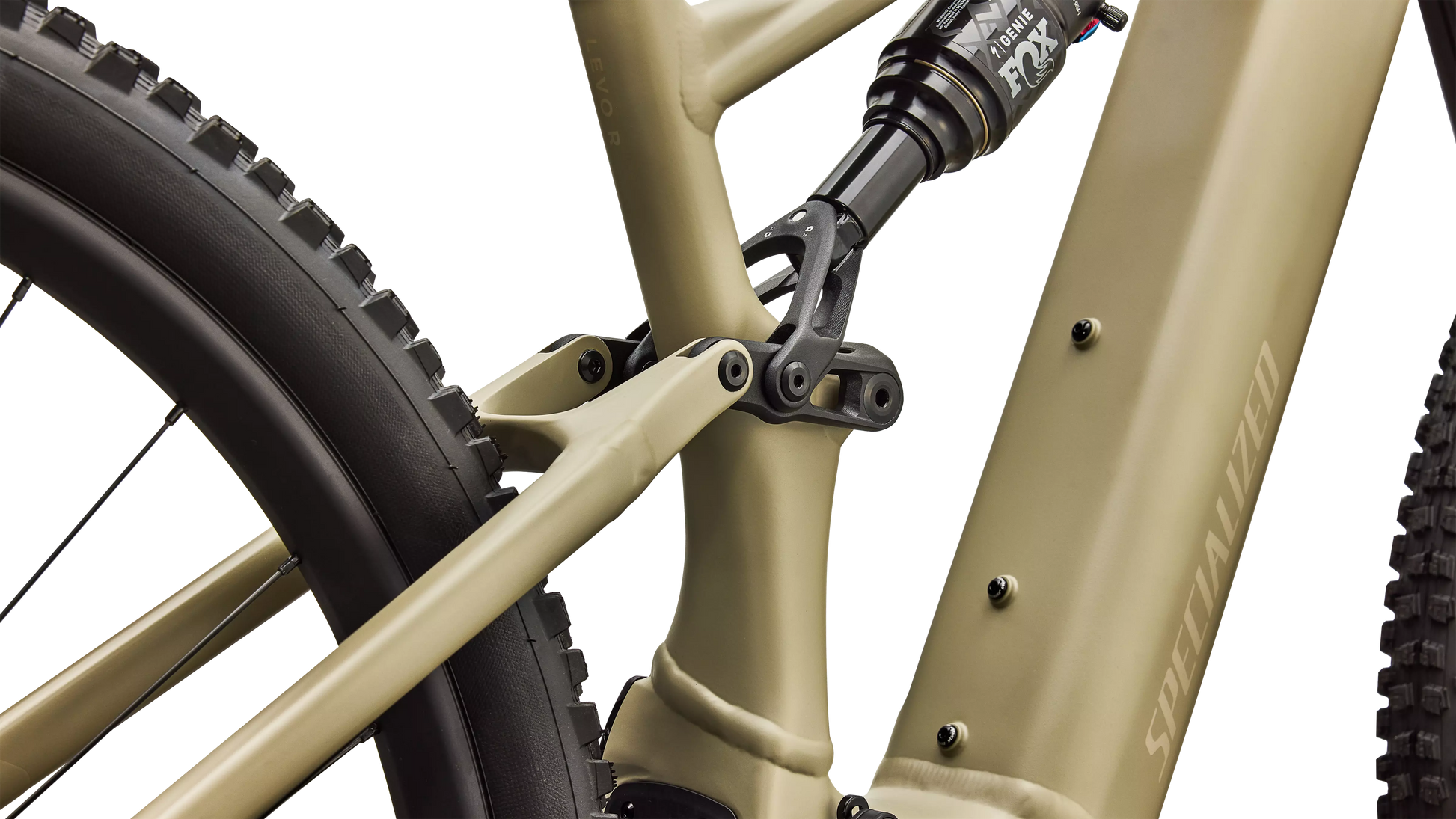

FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Shift Levers
SRAM EAGLE 90T, single click, with MMX
Crankset
SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
Rear Derailleur
SRAM Eagle 90 T-Type
Cassette
SRAM GX Transmission, XS 1275, 10-52t
Wheels & tires
Spokes
DT Swiss Elemental
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rear Hub
Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire
Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve

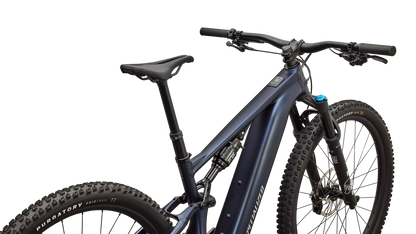

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Power Comp, steel rails

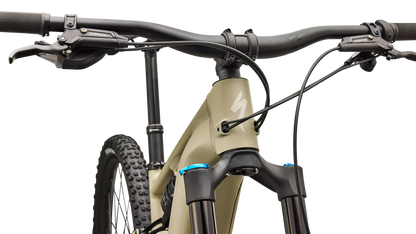

Handlebars

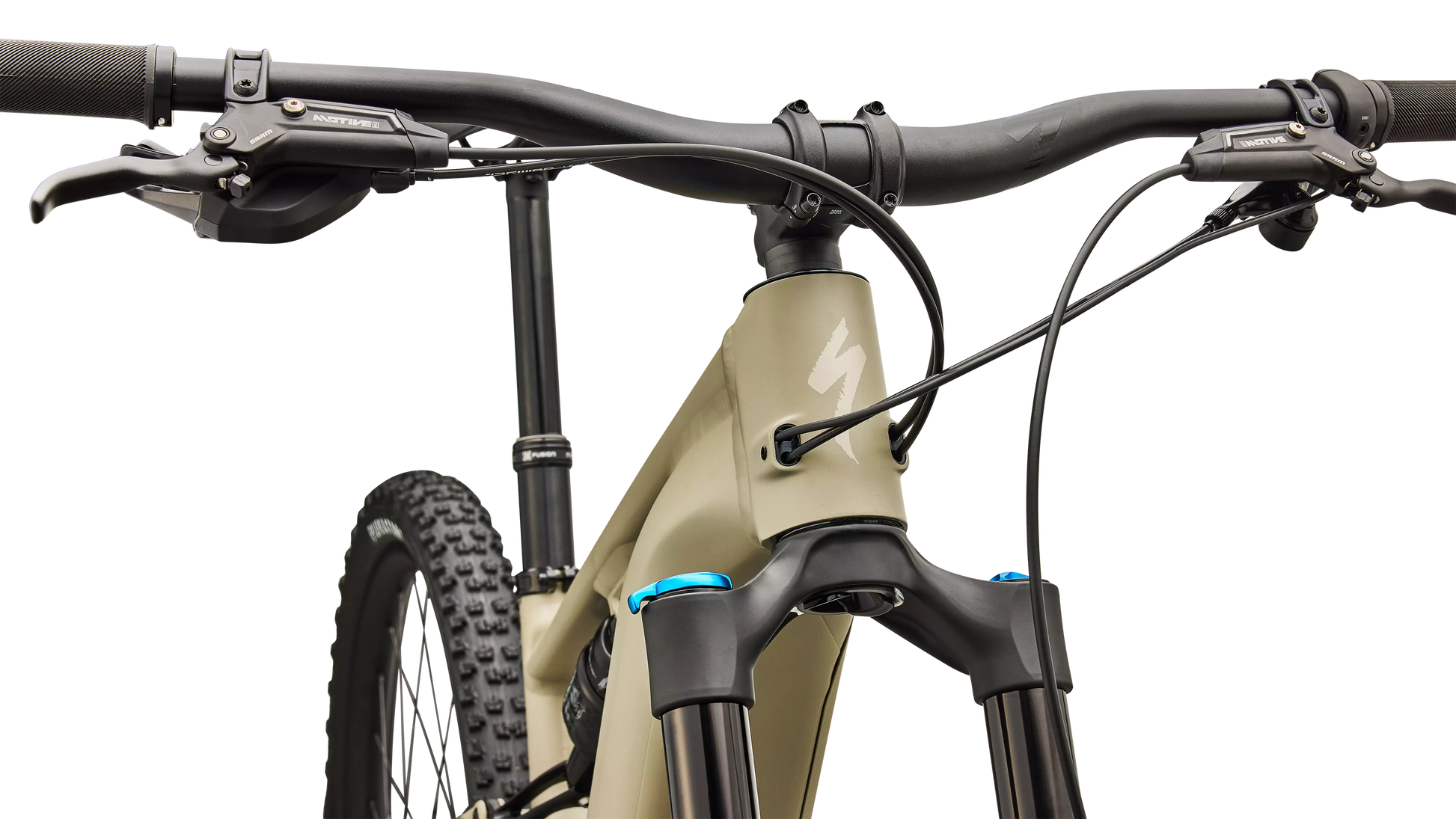

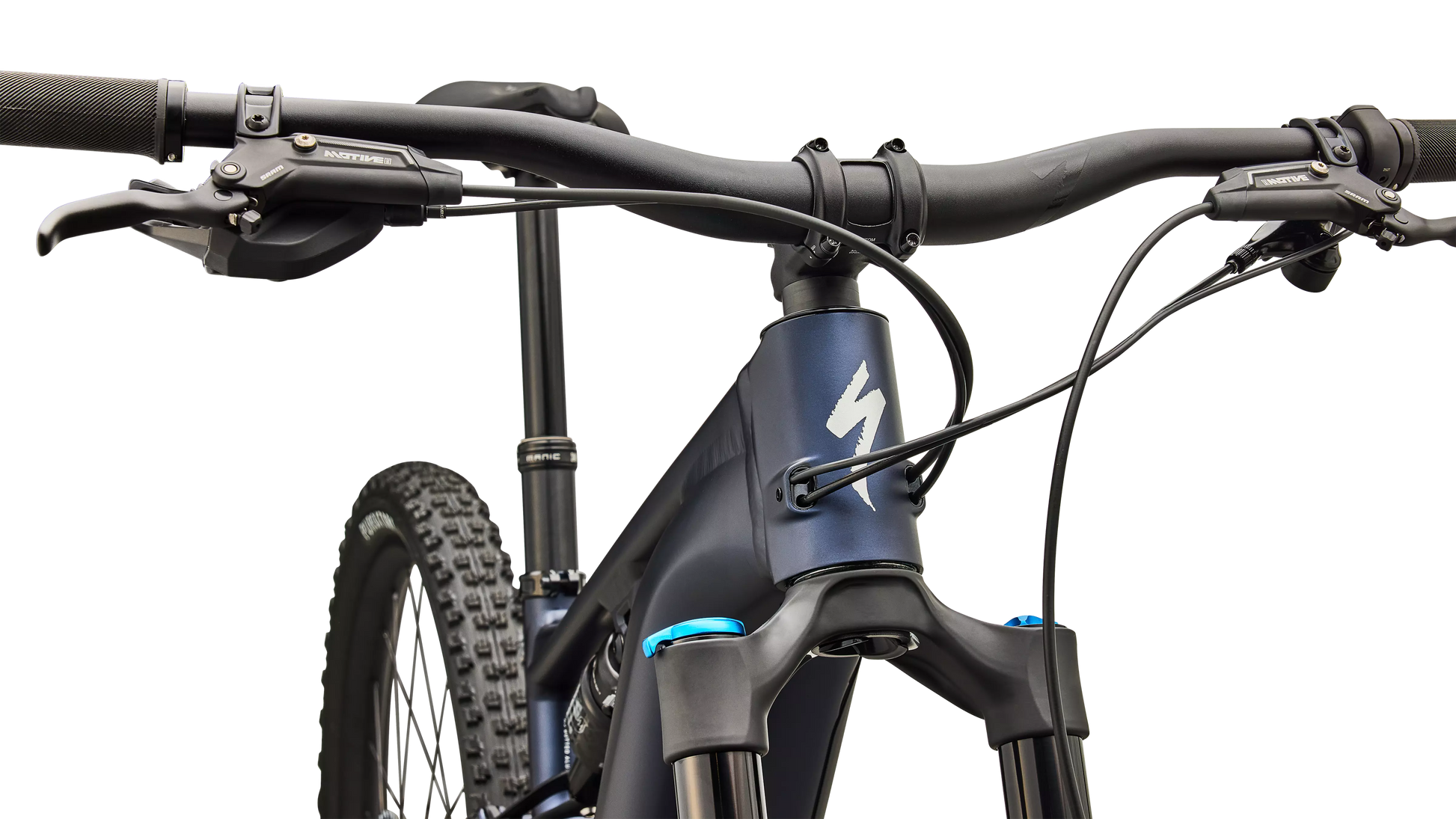

Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
Grips
Specialized Trail Grips
SeatPost
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
SWAT
SWAT internal downtube storage
Weight
Weight
24.24 kg (53 lb, 7.0 oz)
Weight Size
S3
Geometry
| S1 - 27.5 | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 | |
|---|---|---|---|---|---|---|
| Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 50 | 50 | 50 | 50 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 125 | 150 | 170 | 190 | 190 |
| Stack | 602 | 607 | 616 | 630 | 644 | 657 |
| Reach | 400 | 420 | 450 | 475 | 500 | 525 |
| Head-Tube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| Head-Tube Angle | 64.8 | 65 | 65 | 65 | 65 | 65 |
| B-B Height (low) | 339 | 339 | 339 | 339 | 339 | 339 |
| B-B Drop | 36 | 36 | 36 | 36 | 36 | 36 |
| Trail | 128 | 126 | 126 | 126 | 126 | 126 |
| Fork Length (full) | 550 | 550 | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 716 | 736 | 770 | 801 | 833 | 863 |
| Chain-Stay length | 447 | 447 | 447 | 447 | 447 | 447 |
| Wheelbase | 1160 | 1181 | 1215 | 1246 | 1277 | 1309 |
| Top-Tube Length (horizontal) | 539 | 560 | 592 | 620 | 649 | 677 |
| Bike Stand-Over Height | 761 | 763 | 773 | 783 | 793 | 803 |
| Seat-Tube Length | 375 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 77 | 77 | 77 | 77 | 77 | 77 |
| Seat Post Max Insertion | 292 | 312 | 210 | 227 | 249 | 271 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
